Warehouse LED Lighting Retrofit ROI: 12000㎡ Logistics Warehouse Project Data

Many logistics facility managers judge lighting renovation only by fixture unit price, ignoring hidden costs including power consumption, high‑altitude maintenance, light decay‑related rework and non‑compliance fines. A 12000 ㎡ Northern‑Europe third‑party logistics warehouse lighting retrofit delivers tangible financial reference for global warehouse operators. This blog breaks down real‑world expenditure, saving items and ROI calculation logic, helping you evaluate whether your warehouse is suitable for LED upgrade.

Background of the 12000㎡ Retrofit Project

‑ Site:12000 ㎡ logistics warehouse, ceiling height 10m, mixed high‑rack storage aisles and large‑scale sorting‑packing zones

‑ Original lighting solution:400W metal‑halide high bay lights, long‑term 16‑hour daily operation

‑ Old‑site pain points: High power consumption; frequent lamp‑ballast burnout; heavy shelf shadow; measured average illuminance only 112 lx, failed EN 12464‑1 workplace lighting requirement; high annual high‑altitude maintenance expense.

‑ Renovation scheme: Mixed‑beam‑angle LED high bay deployment, partial reuse existing qualified suspension hardware, equipped with 0‑10V dimming interface for future intelligent control expansion.

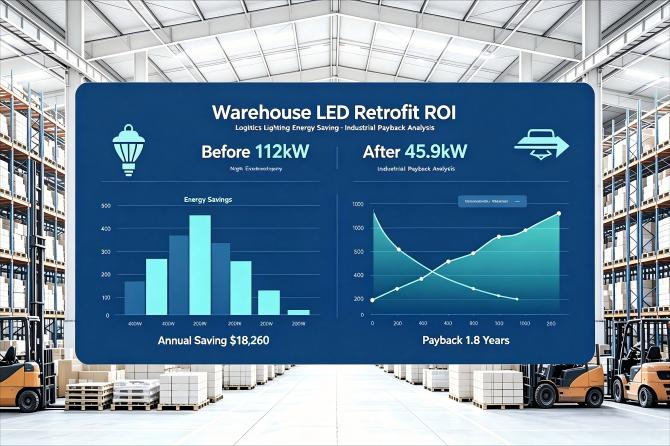

Real‑World Cost & Saving Breakdown

Note: The payback data is based on Northern‑Europe local electricity price and operation hours. For projects in Southeast Asia, Africa and other regions with different commercial electricity prices, the static payback period will change significantly. This set of data cannot be directly copied and applied to all projects.

Four Hidden Costs Easy to Be Ignored in Warehouse Lighting Renovation

1. Non‑compliance risk cost: If illuminance, uniformity U0 and UGR do not satisfy EN 12464‑1, workplace safety inspection may fail, bringing rectification cost & business‑stop risk.

2. Post‑installation rework loss: Selecting wrong beam angle causes heavy shelf shadow or dark zones; re‑replacing fixtures generates extra product & construction cost.

3. High‑altitude maintenance cost: Low‑cost lamps with short service life require frequent aerial replacement; aerial working service charge accounts for most maintenance expenditure.

4. Later intelligent upgrade cost: Lamps without reserved dimming interface need whole‑set replacement when building smart lighting system, raising secondary investment.

How To Estimate Your Own Warehouse Lighting ROI

1. Confirm average daily lighting hours and annual working days;

2. Count total power of original old‑style lighting system;

3. Get local commercial electricity price per kWh;

4. Roughly evaluate annual maintenance expense for old lamps (lamp replacement, aerial service);

5. Request supplier to provide Dia lux simulation report and total project quotation;

6. Calculate static payback period by total investment divided by sum of annual electricity & maintenance saving.

Tip: Do not judge scheme only by unit price of lamps. Comprehensive ROI shall be the core evaluation indicator for warehouse renovation projects.

FAQ

Q1 Will mixed‑beam‑angle layout increase total project investment?

EN: Slightly higher fixture‑selection cost but avoids rework risk caused by unqualified lighting effect. From long‑term operation perspective, mixed‑beam layout brings better overall economic benefit for mixed‑zone warehouse. For small‑size warehouses, the economic advantages of mixed‑beam solution will be weakened.

Q2 If my warehouse only runs 8 hours per day, what payback period can I expect?

EN: When daily operation reduces to 8 hours, static payback period will extend to 3.2‑3.8 years. It is still worthwhile if you consider improvement in workplace safety and picking efficiency.

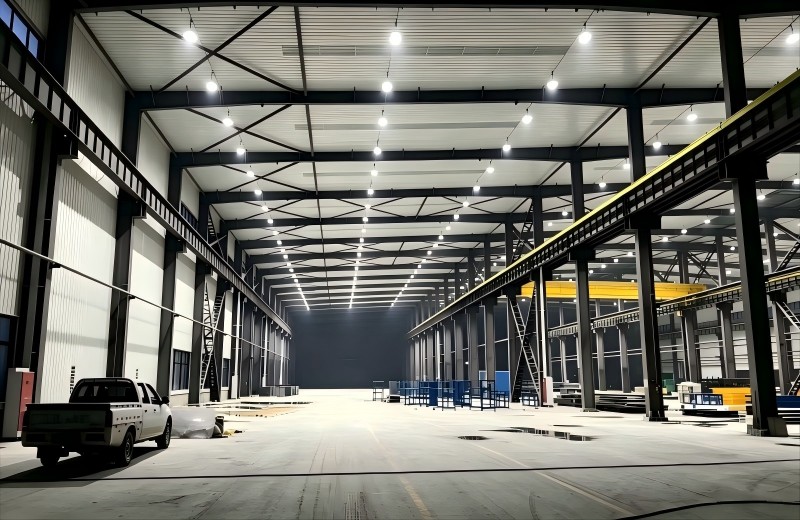

Read real case study：12000㎡ Logistics Warehouse Lighting Retrofit Project Case
