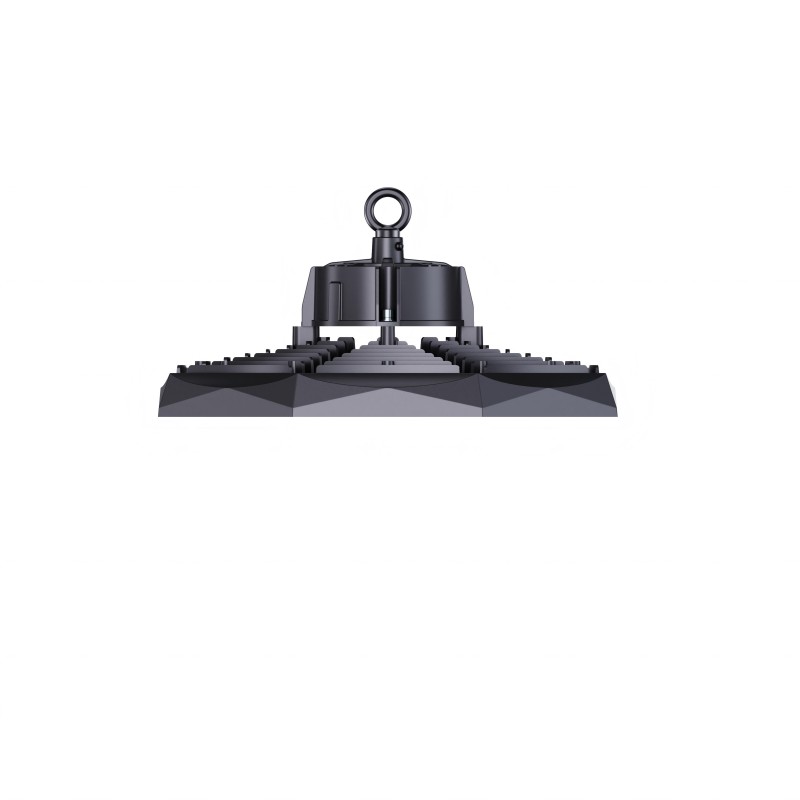

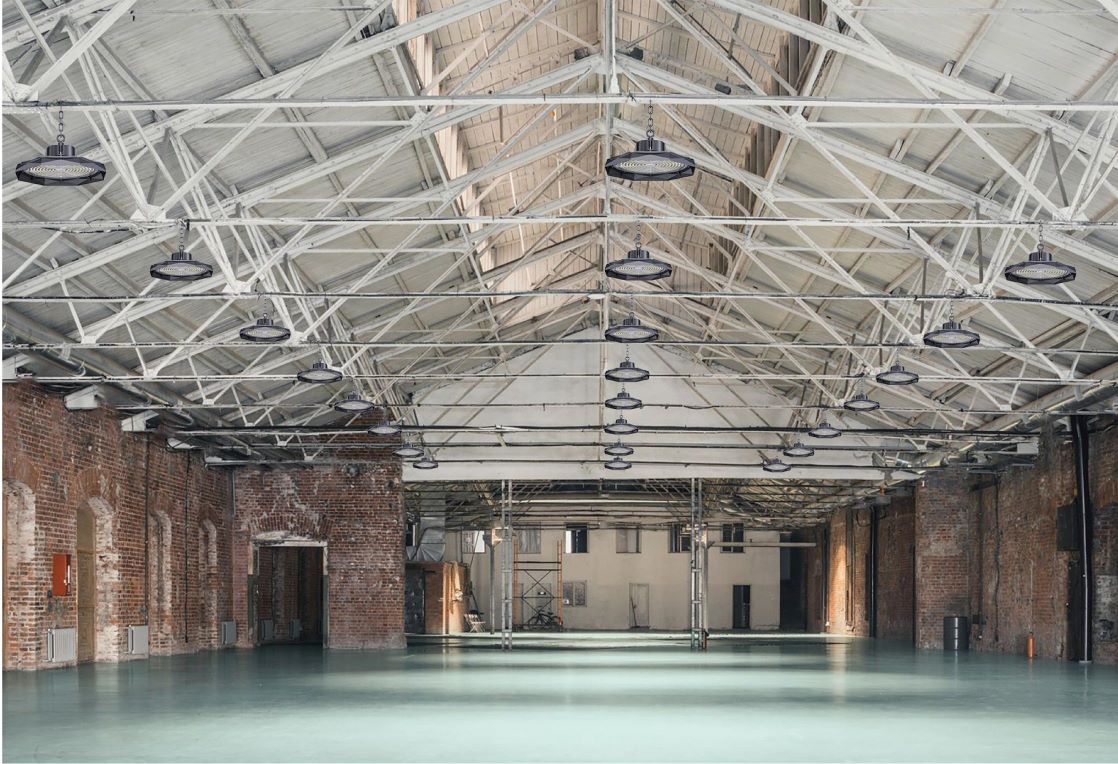

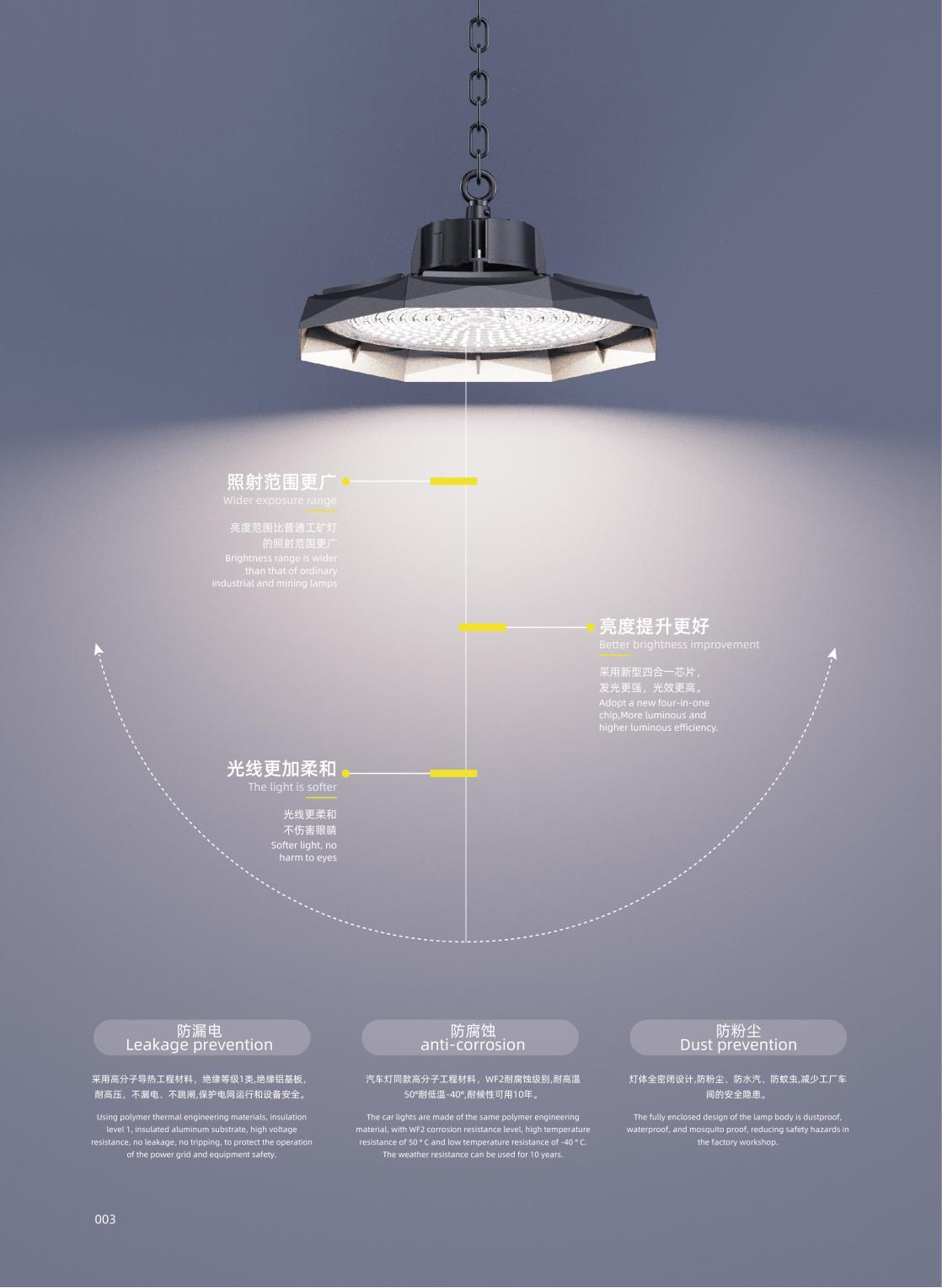

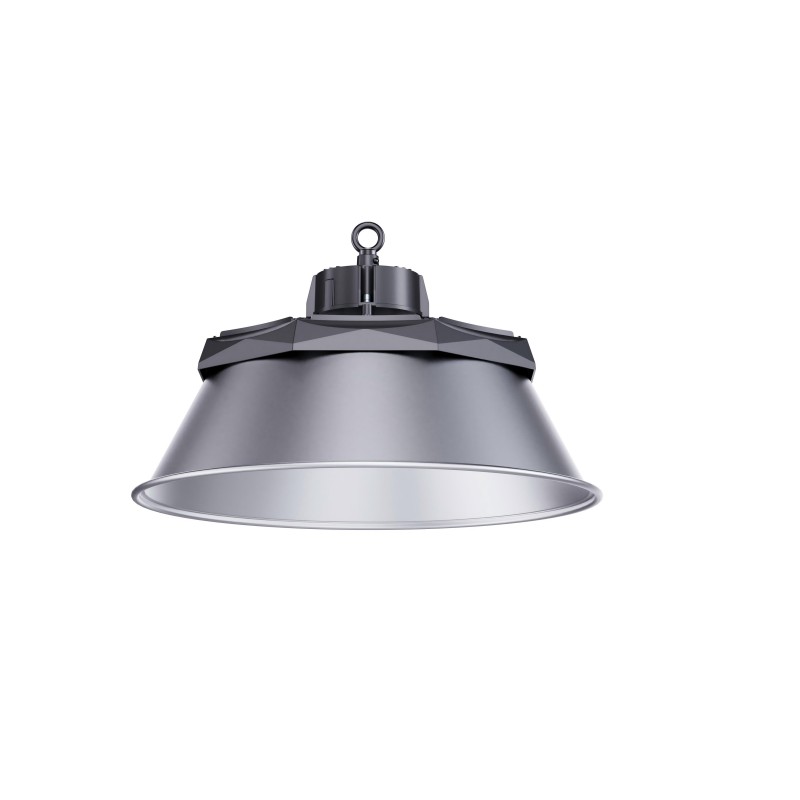

Dragon Dream Series LED High Bay Light is designed for large spaces such as factories, warehouses and gymnasiums. Equipped with diamond-cut heat sink, it delivers excellent heat dissipation and longer service life. Built-in anti-glare lens provides soft and even light to reduce eye strain. With IP66 industrial rating, the fixture is dustproof and waterproof, suitable for harsh dusty and humid environments. It features wide voltage input, optional 0-10V dimming and various beam angles. Flexible to install, energy efficient and reliable, it is an ideal solution for industrial high-ceiling lighting.

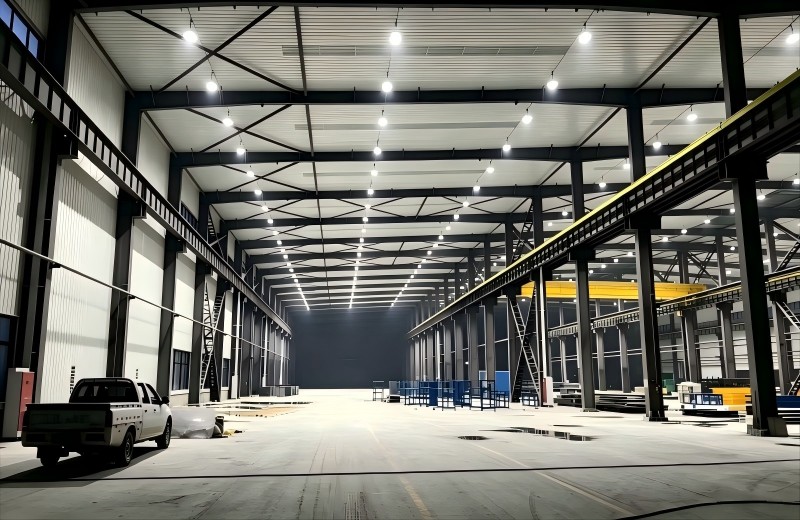

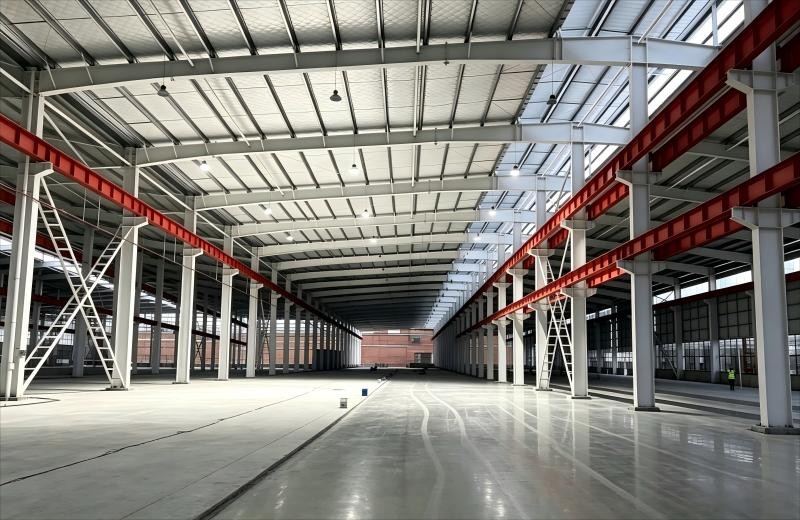

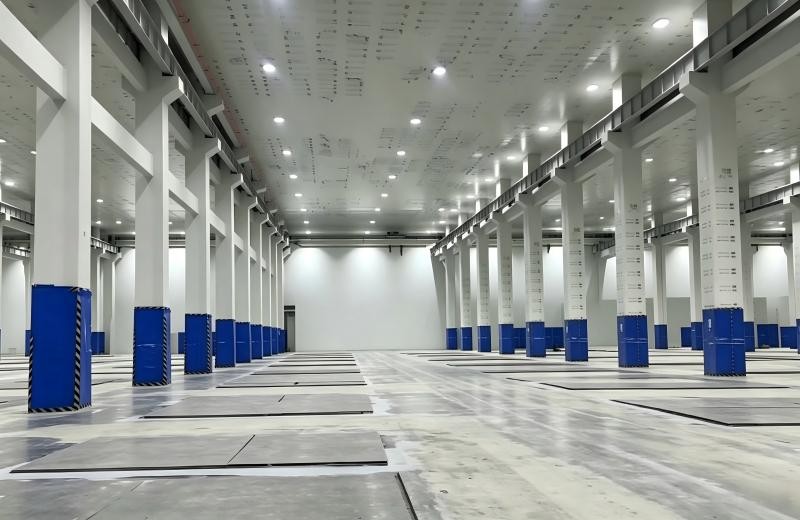

Applications:
Certified Quality for Global Projects

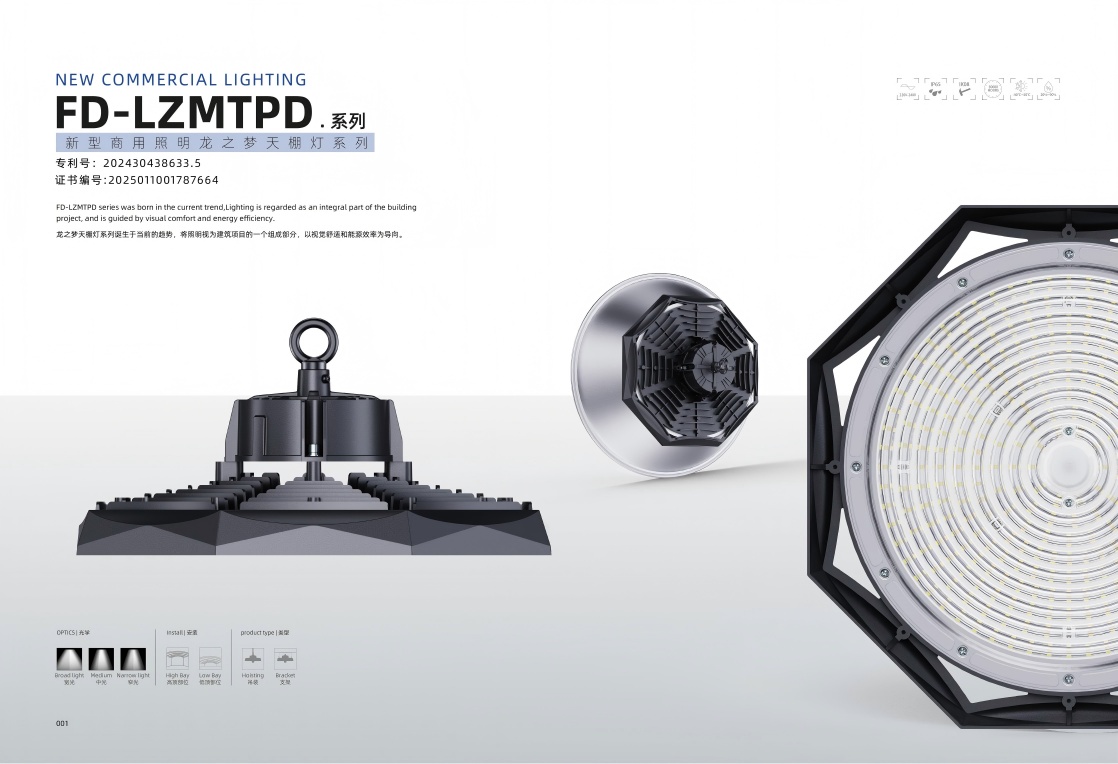

Dragon Dream Series LED High Bay Light | Energy-Saving Industrial Lighting

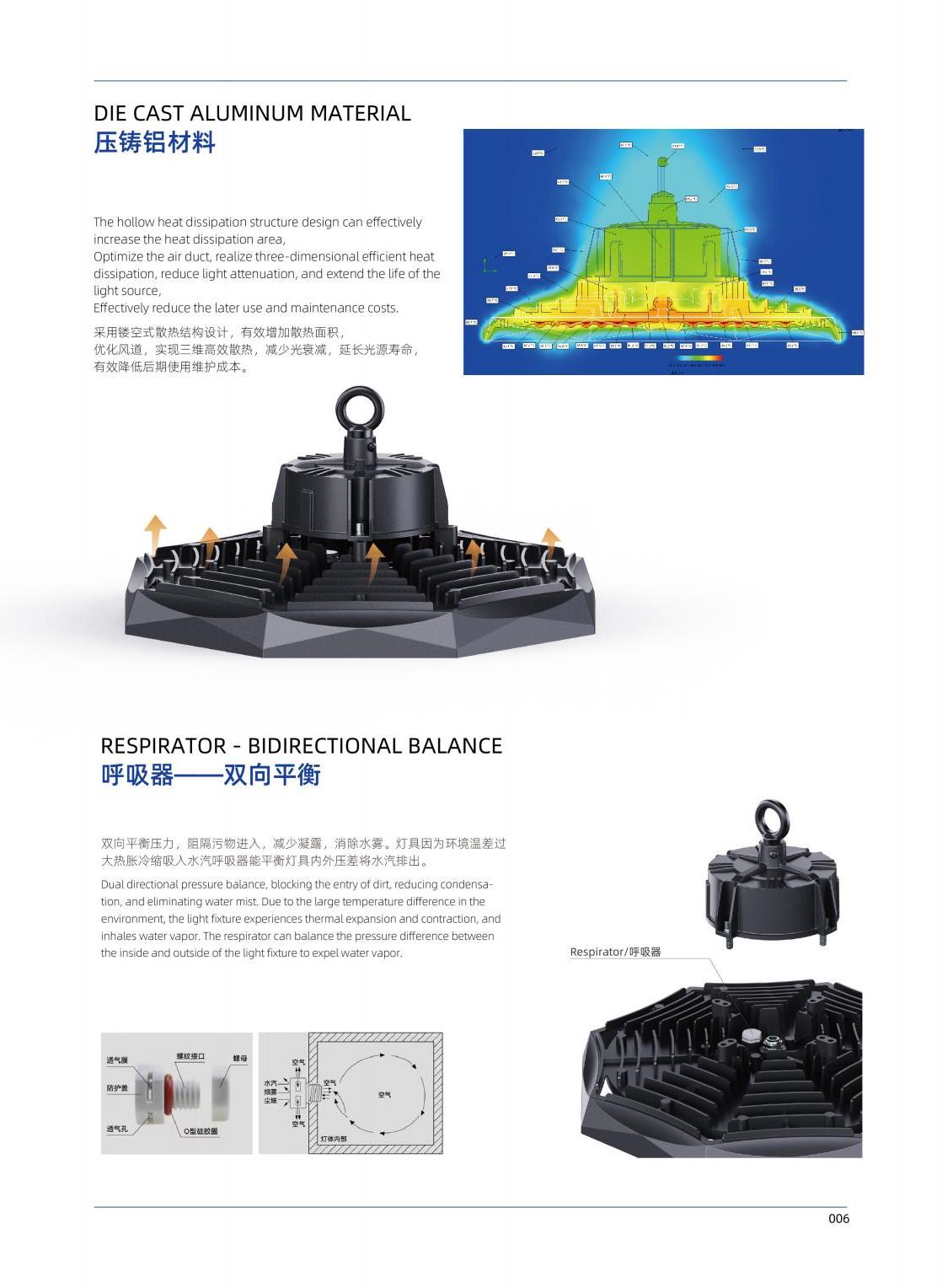

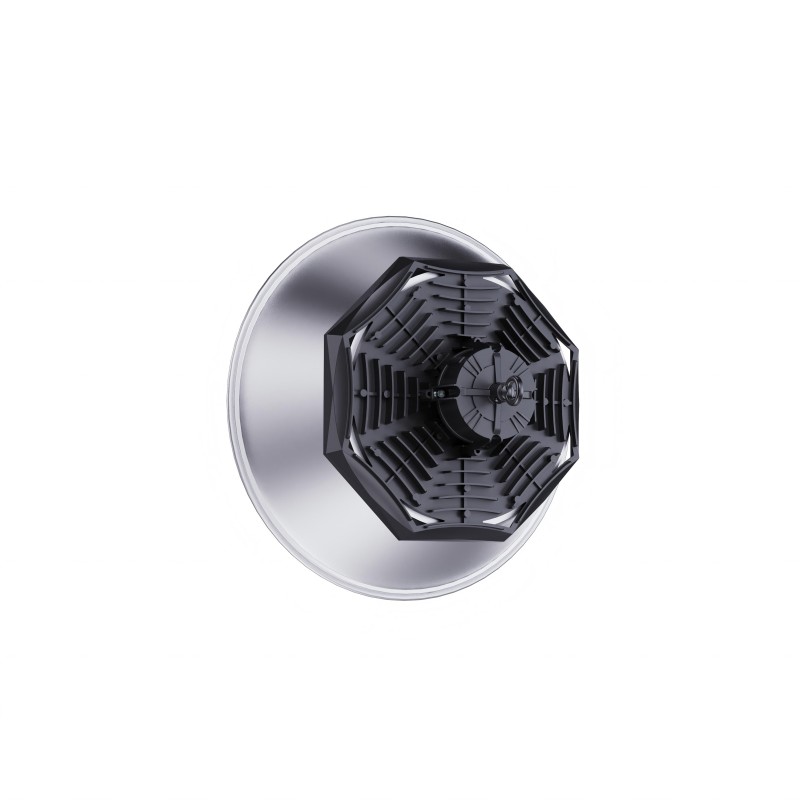

Excellent Heat Dissipation
Adopting integrated diamond-cut die-cast aluminum heat sink, it expands the heat dissipation area and accelerates heat conduction to rapidly release heat generated by LED chips. It effectively controls the overall temperature rise of the lamp, prevents component performance degradation caused by high temperature, reduces light decay and greatly extends the service life.
IP66 Full Industrial Protection
Featured with fully sealed structure, this light reaches IP66 high protection rating, fully dust-tight and water jet resistant. It works steadily in harsh environments with heavy dust, moisture and rain, resisting corrosion and external damage all day long.
High Luminous Efficiency & Great Energy Saving
Built with high-quality Lumileds chips, with low light decay (L70>50,000 hours)and excellent light efficacy. It delivers the same brightness with much lower power consumption compared with traditional metal halide lamps and incandescent lights. It is an ideal replacement to cut electricity bills and reduce replacement frequency, lowering overall operation and maintenance costs.
Wide Voltage Driver for Global Use
Powered by branded constant-current driver with universal AC85-265V input, compatible with power grids worldwide. Multiple protection circuits against over-voltage, over-current, short circuit and surge ensure flicker-free and noise-free operation. It maintains stable performance even under voltage fluctuation.

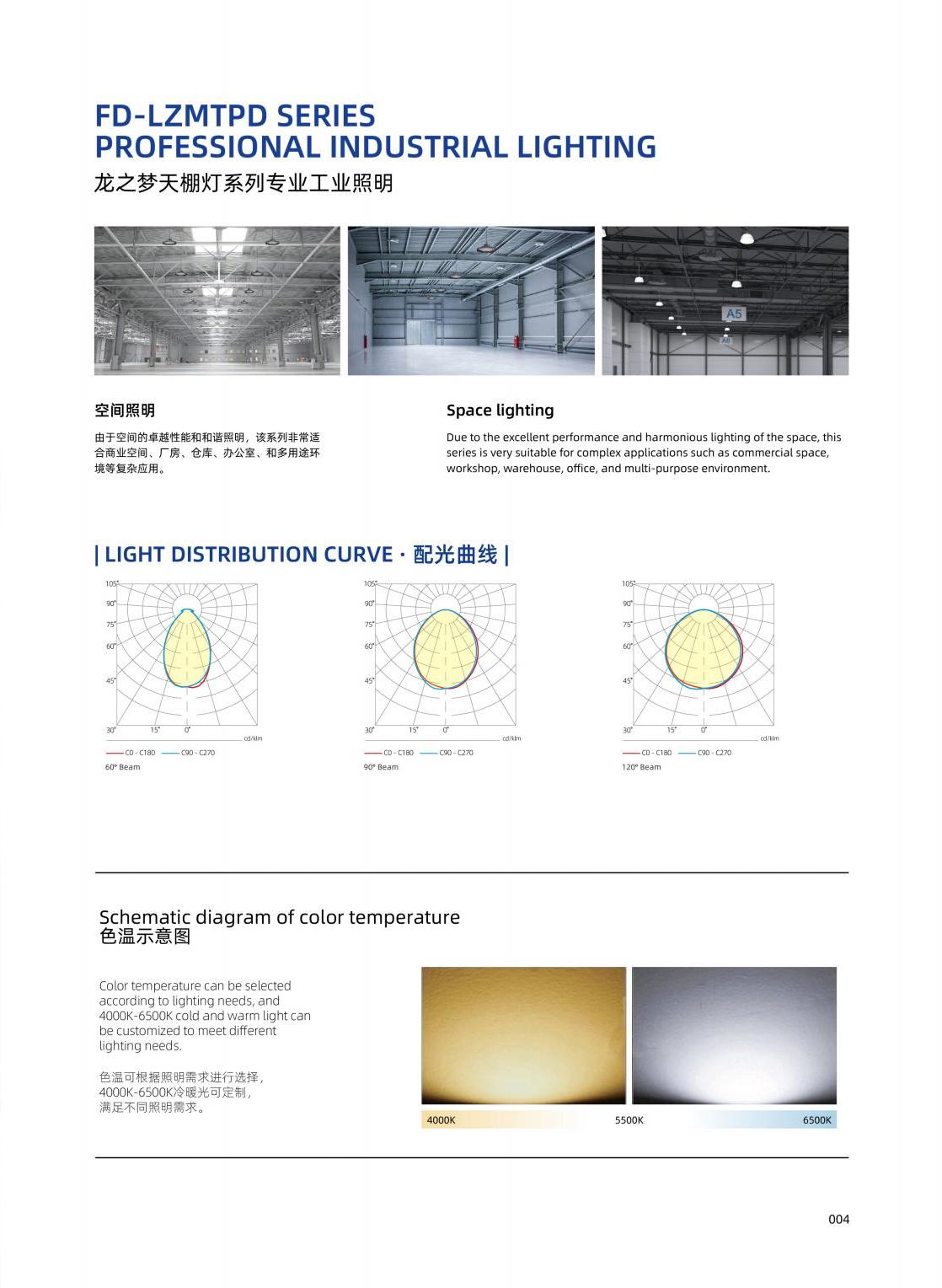

Optional Multiple Beam Angles
Three mainstream beam angles (60°/90°/120°) are available for different space layouts. Narrow beam angles focus light for high-ceiling deep spaces, while wide angles provide flood lighting for large areas, meeting diversified lighting layout requirements precisely.

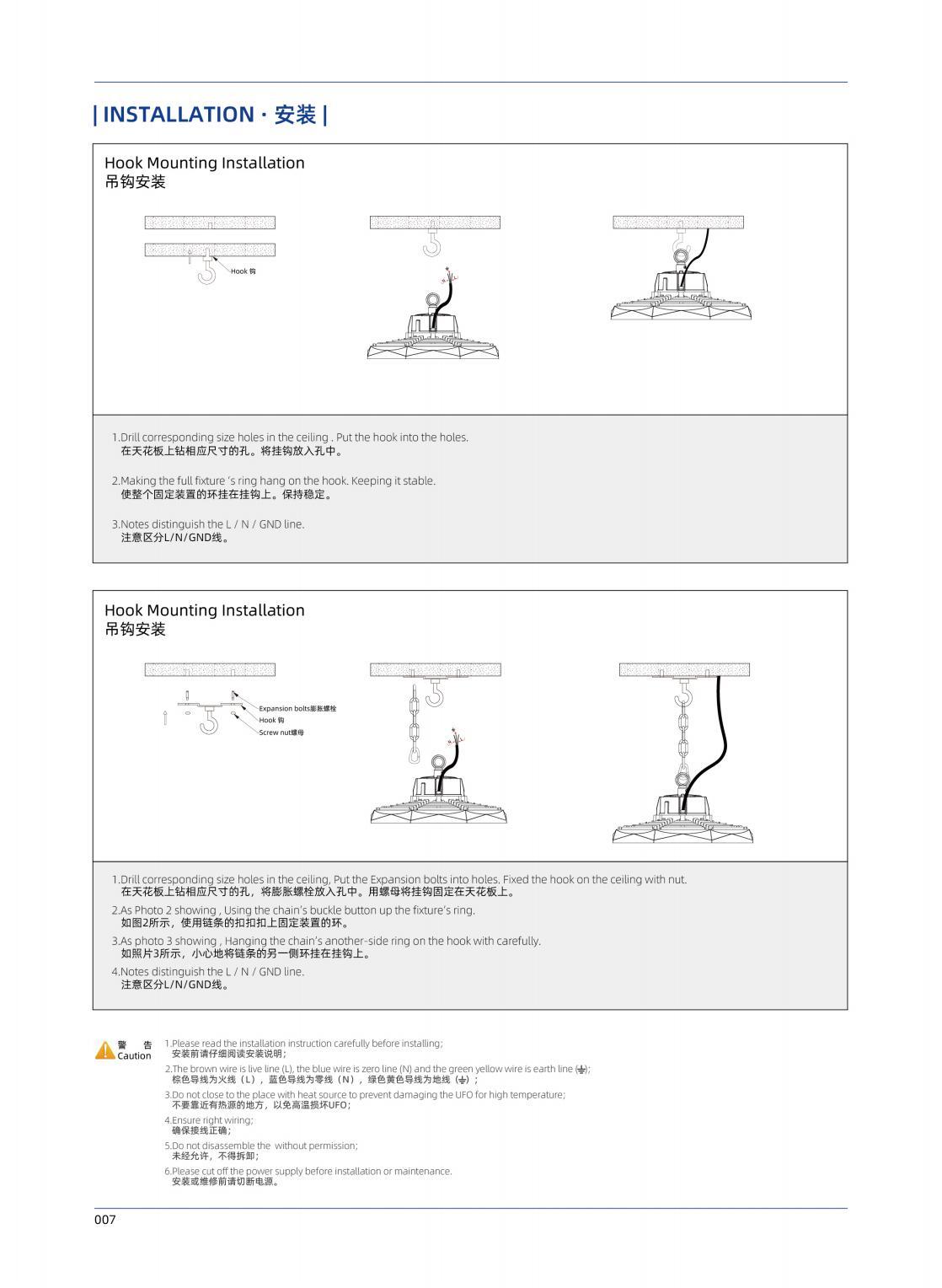

Diverse & Easy Installation
It supports two mainstream mounting ways: chain suspension and rod suspension. Complete accessories and streamlined structure enable quick installation by a single person. It fits all kinds of high-ceiling venues, and brings great convenience for later inspection and maintenance.

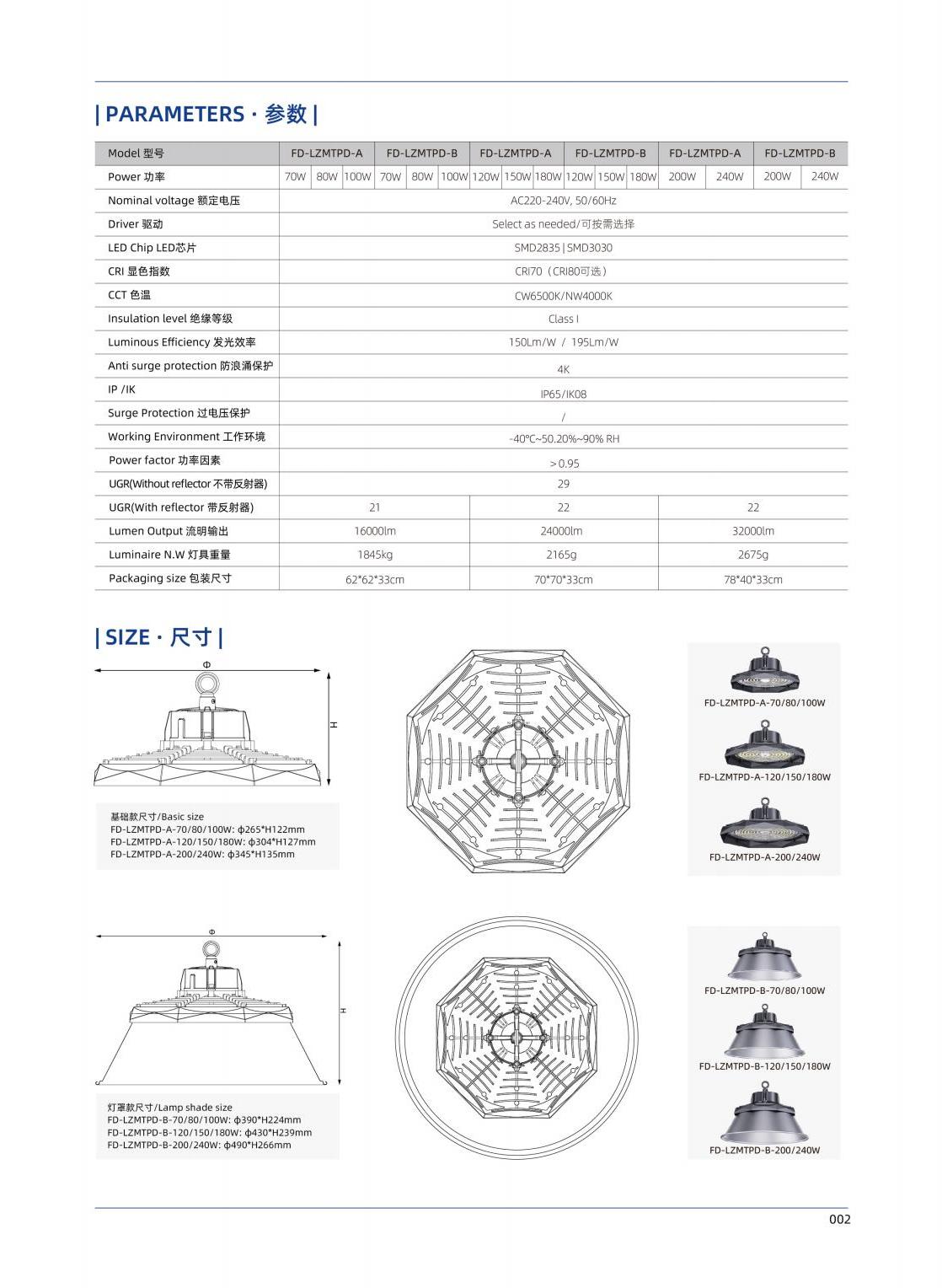

| Model | FD-LZMTPD-A | FD-LZMTPD-B | FD-LZMTPD-A | FD-LZMTPD-B | FD-LZMTPD-A | FD-LZMTPD-B | ||||||||||
| Power | 70W | 80W | 100w | 70W | 80W | 100W | 120W | 150W | 180W | 120W | 150W | 180W | 200W | 240W | 200W | 240W |
| Nominal voltage | AC220-240V,50/60Hz | |||||||||||||||
| Driver | Select as needed | |||||||||||||||
| LED Chip LED | SMD2835|SMD3030 | |||||||||||||||
| CRI | CRI70(CRI80可选) | |||||||||||||||
| CCT | CW6500K/NW4000K | |||||||||||||||
| Insulation level | Classl | |||||||||||||||
| Luminous Efficiency | 150Lm/W /195Lm/W | |||||||||||||||
| Anti surge protection | 4K | |||||||||||||||
| IP/IK | IP65/IK08 | |||||||||||||||
| Surge Protection | / | |||||||||||||||
| Working Environment | -40℃~50.20%~90%RH | |||||||||||||||
| Power factor | >0.95 | |||||||||||||||
| UGR(Without reflector) | 29 | |||||||||||||||
| UGR(With reflector) | 21 | 22 | 22 | |||||||||||||
| Lumen Output | 16000lm | 24000lm | 32000lm | |||||||||||||
| Luminaire N.W | 1845kg | 2165g | 2675g | |||||||||||||
| Packaging size | 62*62*33cm | 70*70*33cm | 78*40*33cm | |||||||||||||
