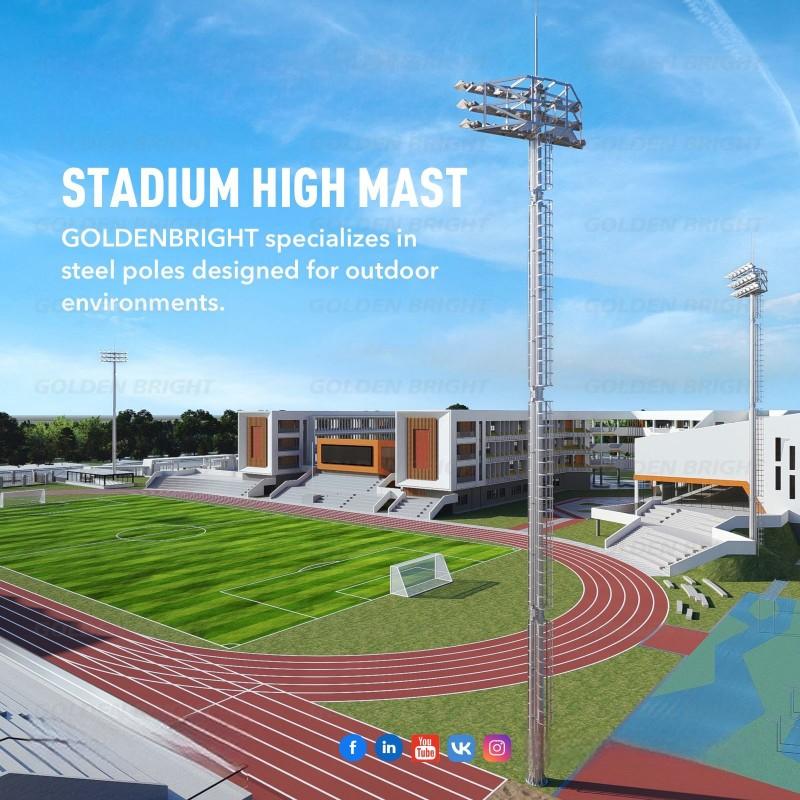

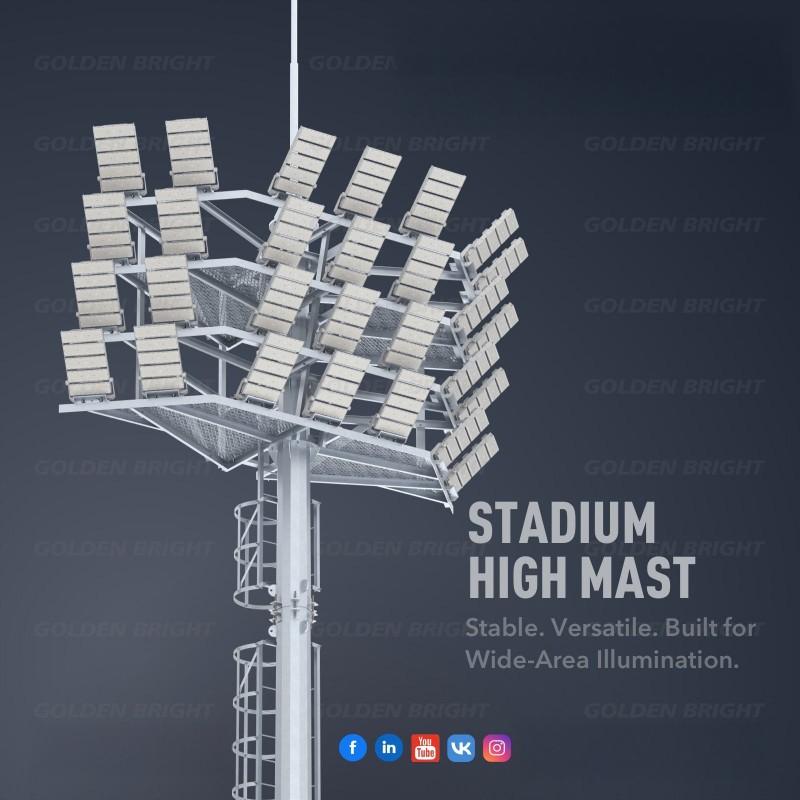

HRLUX Stadium High Mast Lights: Deliver powerful, uniform and reliable lighting for large outdoor venues such as football fields, stadiums and arenas. Featuring a robust structure, advanced integrated lighting and easy maintenance, they are trusted worldwide.
Main Advantages
● Material: High-strength S235/S355 hot-dip galvanized steel
● Structural Integrity: Corrosion-resistant, capable of withstanding extreme weather for long-term stability and safety

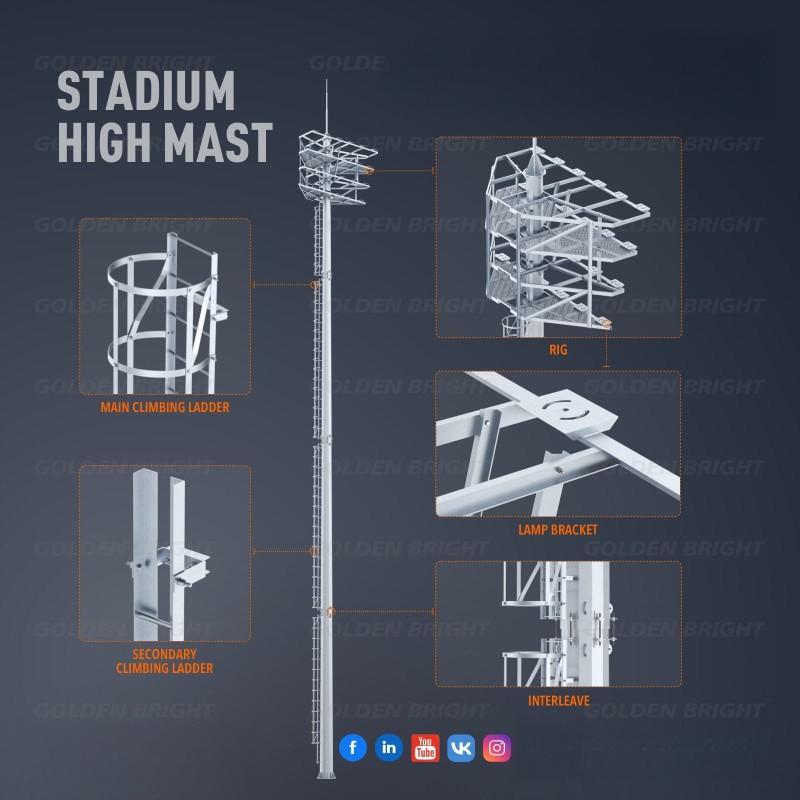

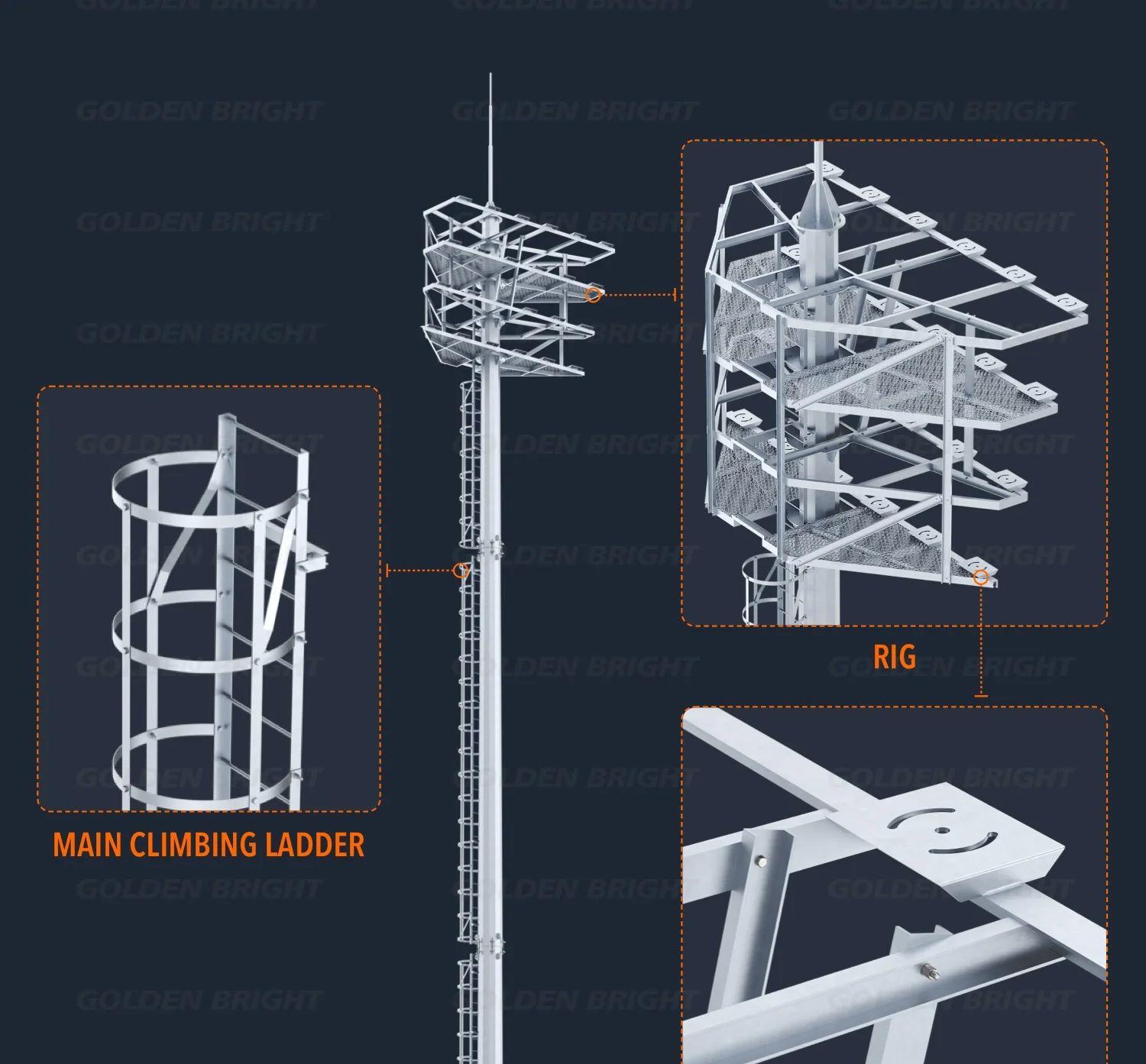

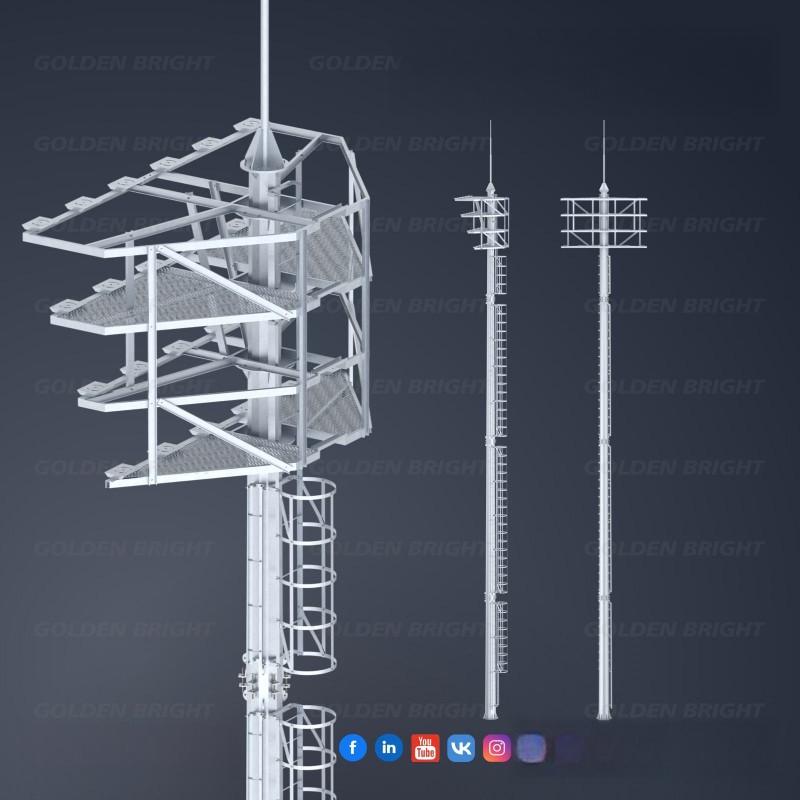

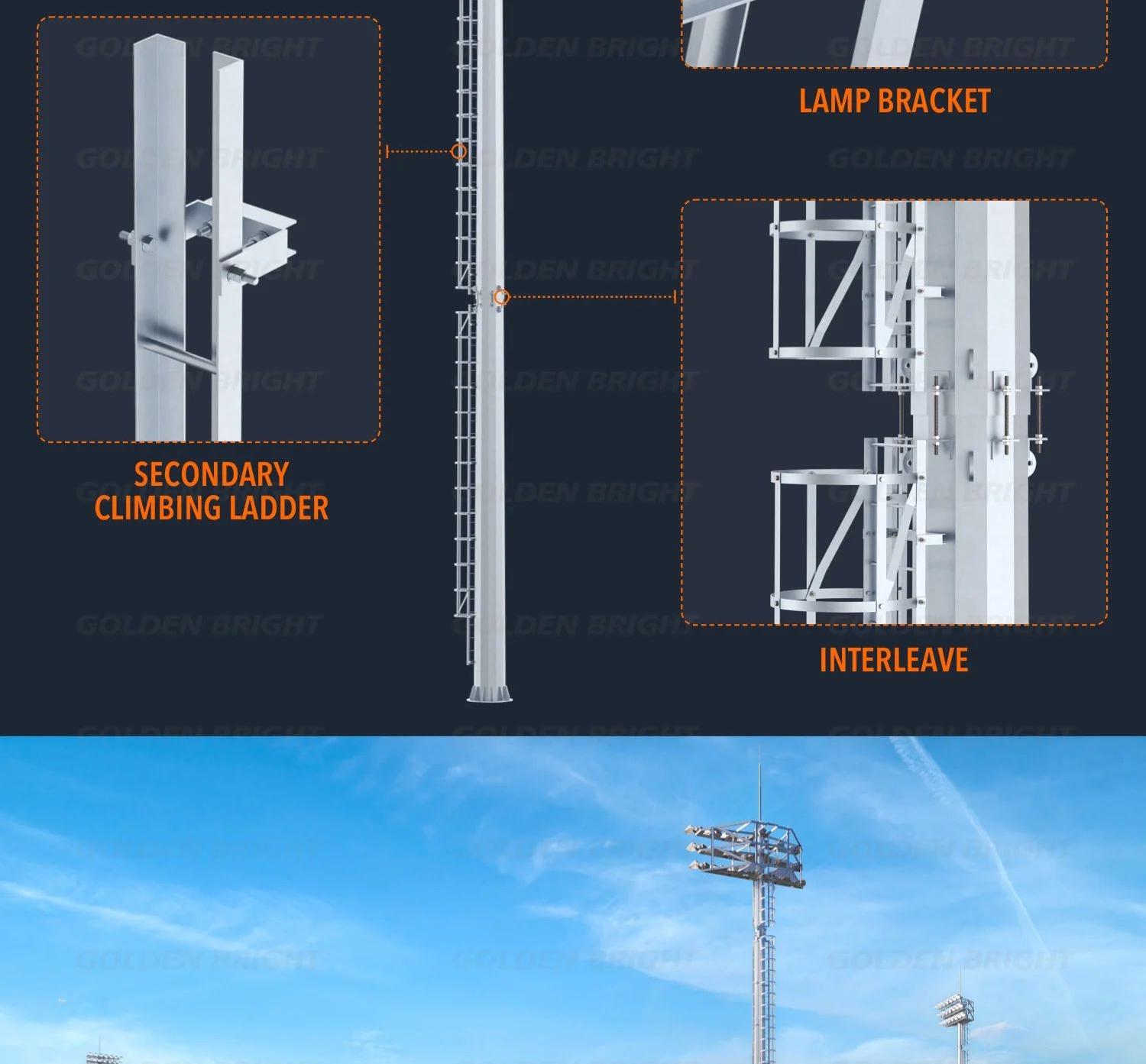

● Access System: Equipped with climbing ladders and top maintenance platforms to ensure safe access for technicians
● Height & Shape: Standard height 20–40m; polygonal or round tapered design; custom sizes available

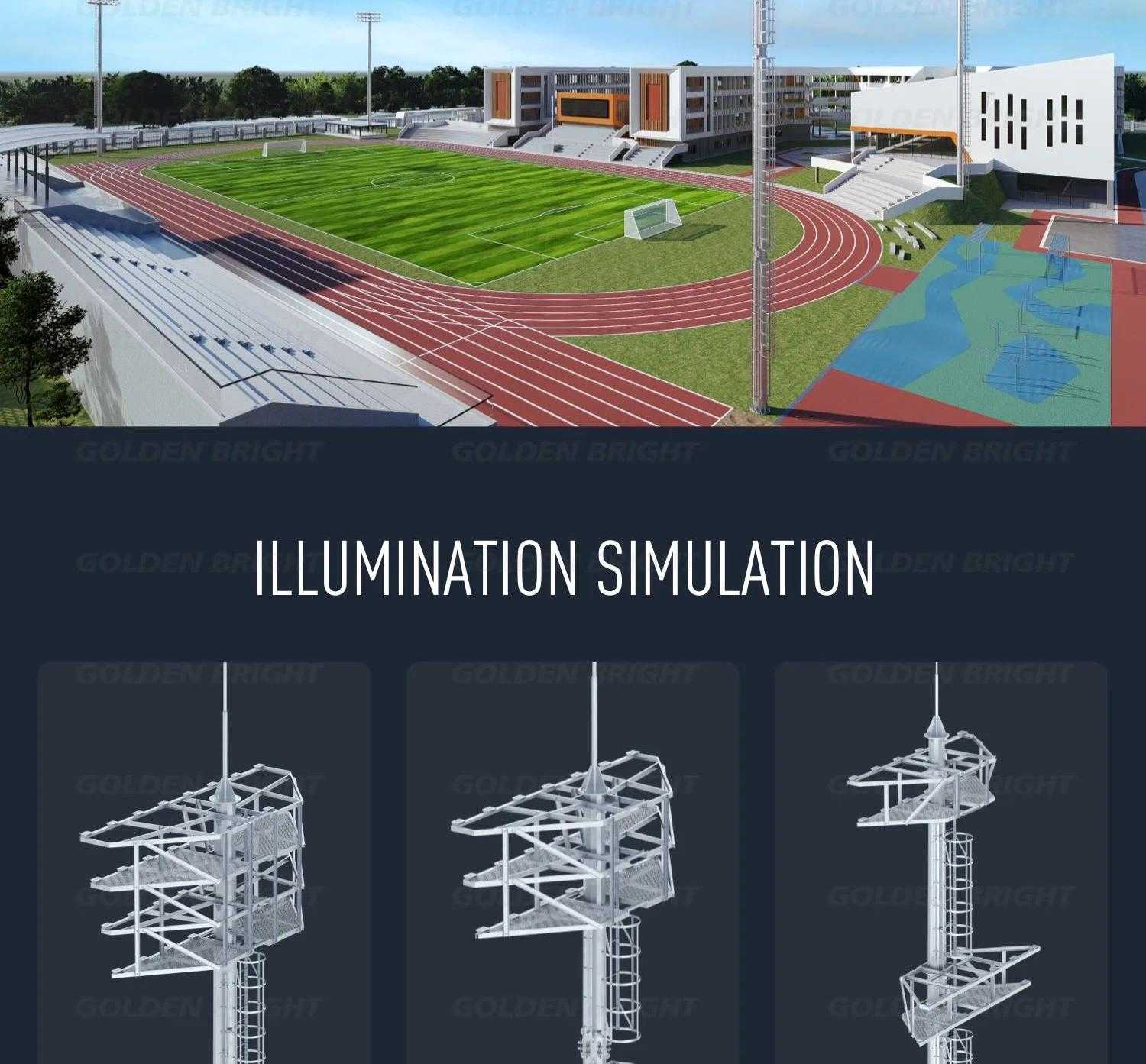

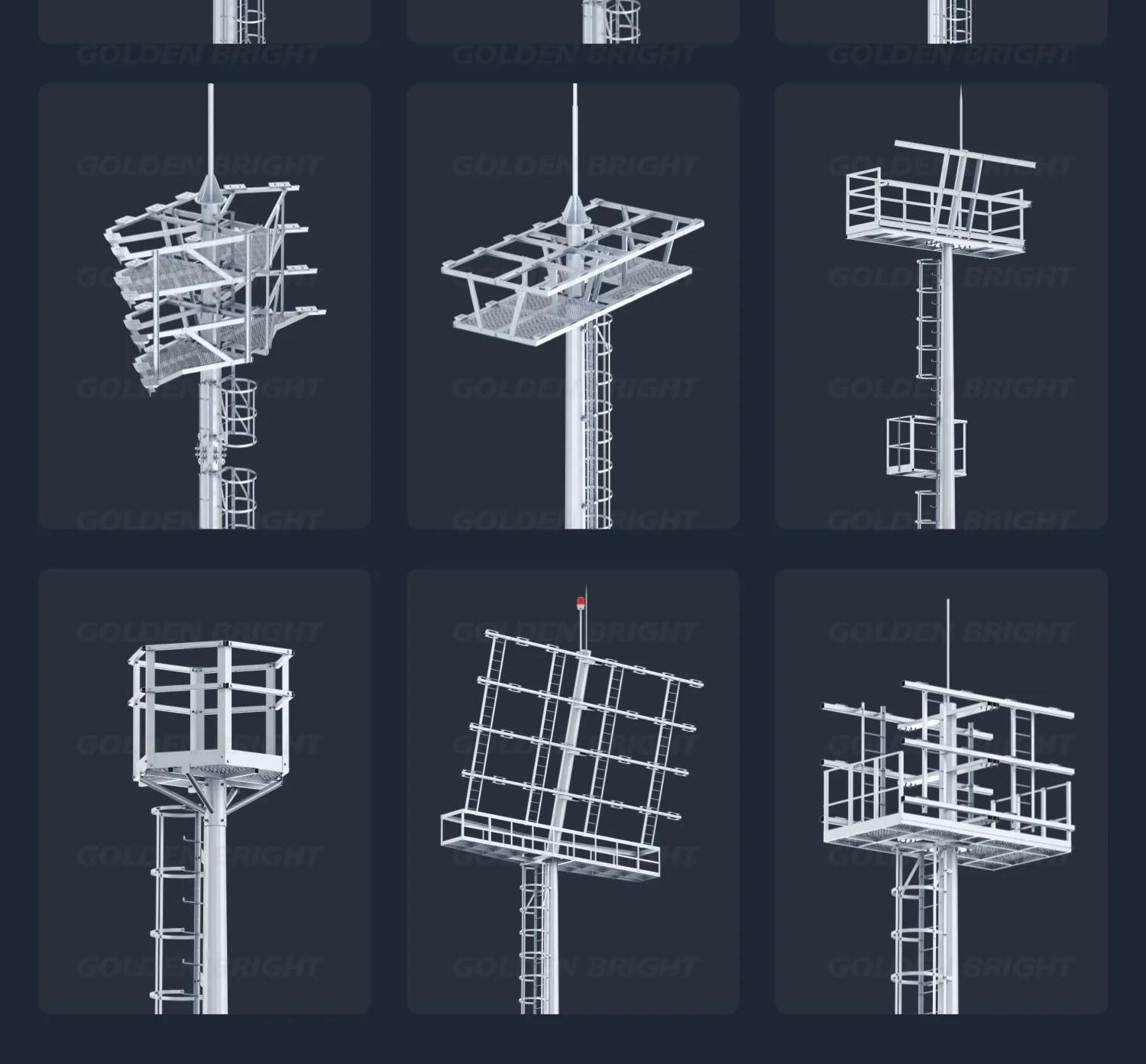

● Head Frame & Bracket: Modular and flexibly installable, compatible with various beam angles, brands and layouts
● Lighting Performance: Supports up to 40 high-power LED floodlights to provide large-area, even illumination while minimizing glare
● Customization: Project-specific engineering design including lighting simulation and structural drawings, compliant with international standards
Applications:

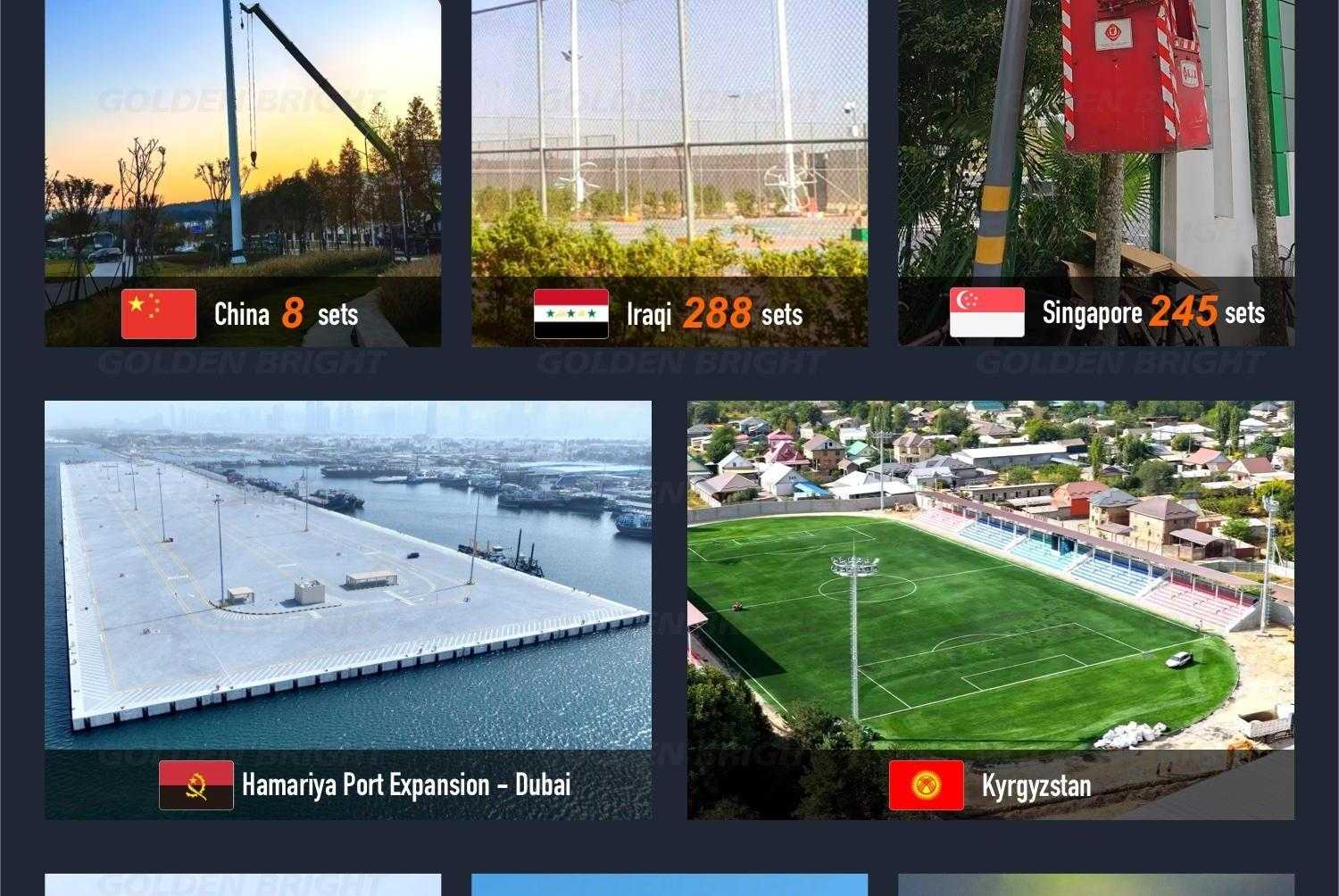

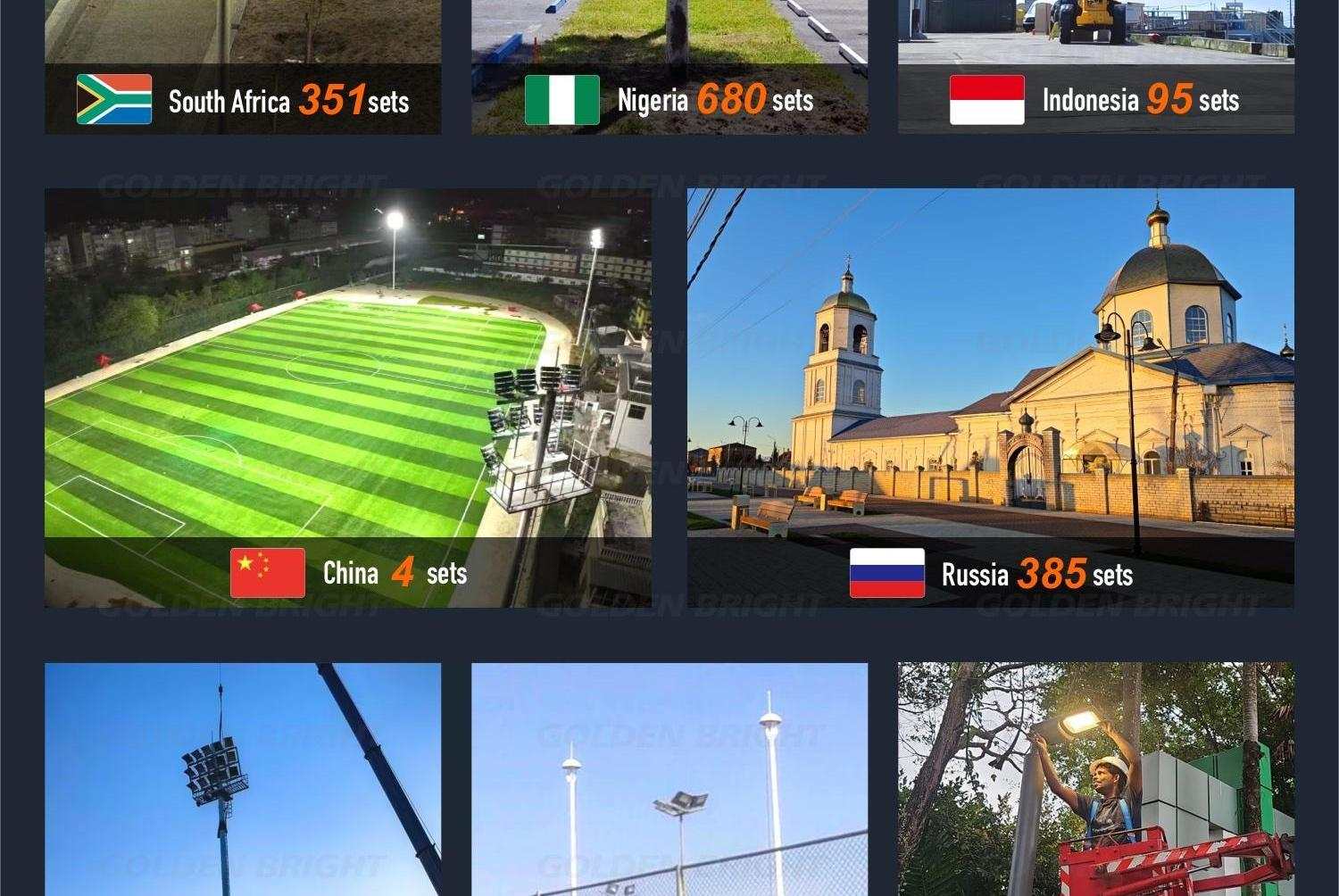

Certified Quality for Global Projects
High Mast Light Tower for Football Stadium, Q235/Q345 Outdoor Street Light Pole

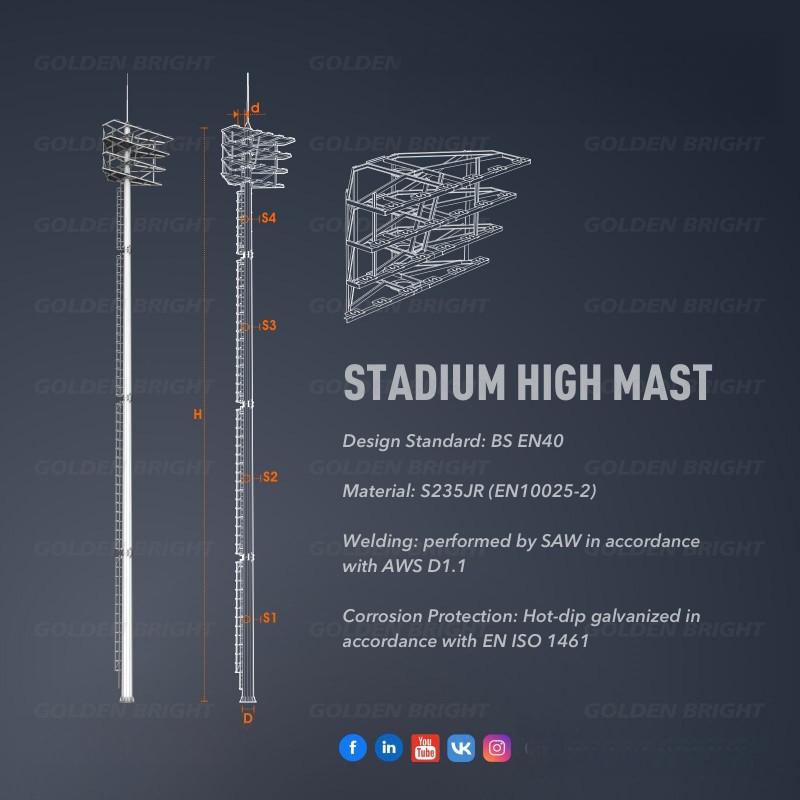

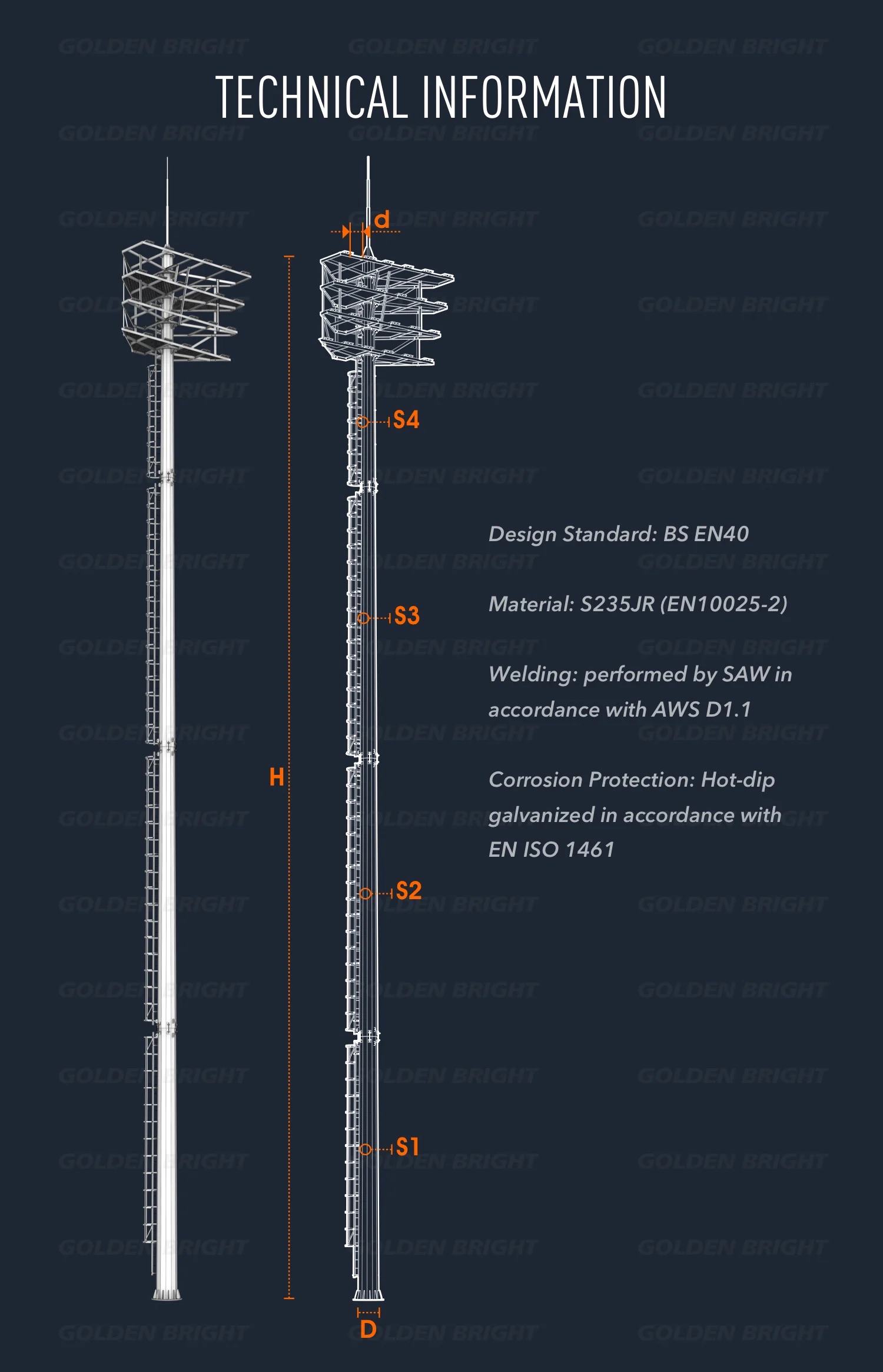

12-Sided Tapered Structure, Excellent Mechanical Performance
Dodecagonal tapered design ensures even stress distribution, with higher torsion/bending resistance than round/octagonal poles. Segmented plug-in structure for easy installation and low transportation cost.
High-Strength Steel, Safe & Durable
Made of high-strength low-alloy steel (Q235B/Q355B/ASTM A572 Gr.50/S355JR), yield strength ≥345MPa, wind resistance up to 60m/s, seismic grade 8.
Hot-Dip Galvanized for Long Life
Internal & external hot-dip galvanizing (zinc layer 85–120μm), compliant with GB/T 13912, ASTM A123, EN ISO 1461. 30-year rust-proof protection, adaptable to coastal, acid rain, and high-humidity environments.

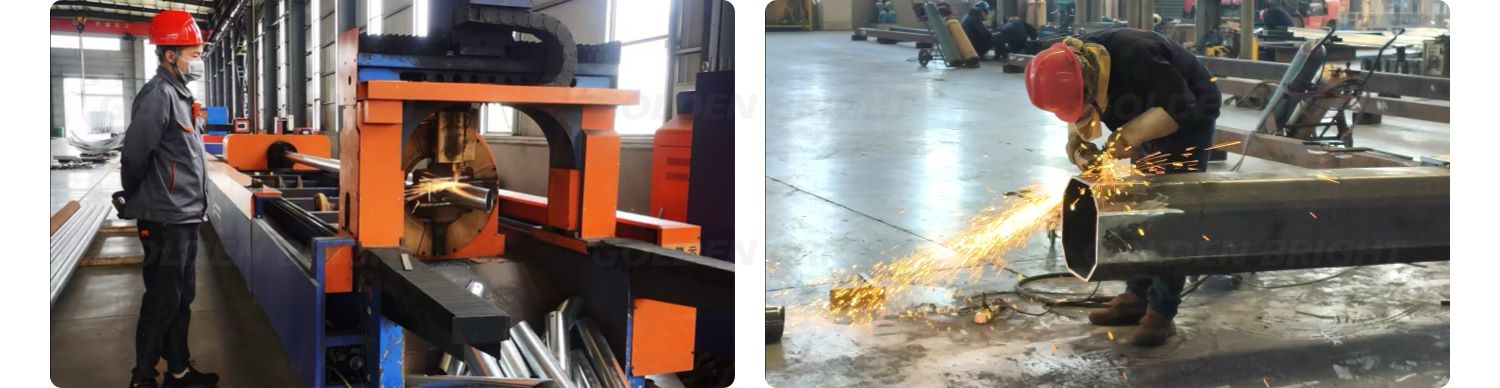

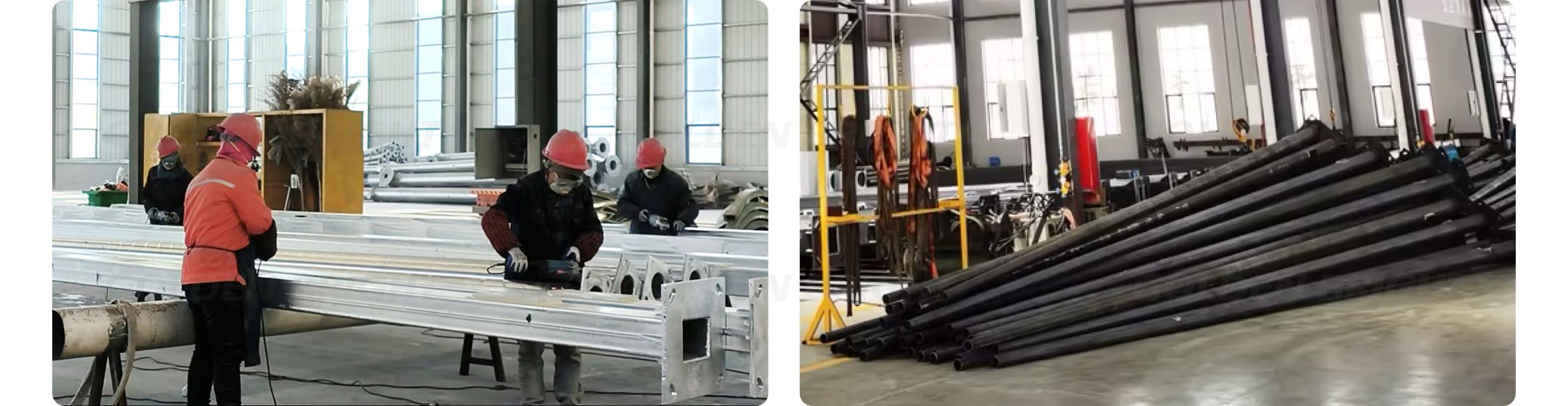

Precision Welding, Reliable Quality

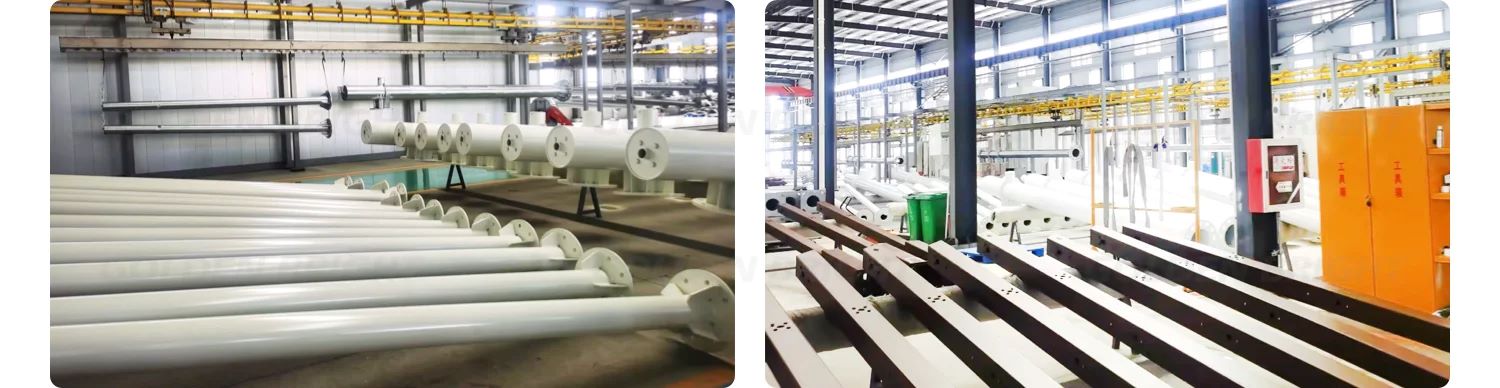

Fully automatic submerged arc/CO₂ welding, smooth welds with no defects. 100% ultrasonic testing, compliant with AWS D1.1, EN 15614 standards, 100% structural strength qualified.
Smart Lifting System (Optional)
Built-in electric/manual dual-control lifting device, speed 3–5m/min, with electromagnetic brake, anti-fall protection, manual operation during power failure. No high-altitude maintenance required.
Custom Design for All Scenarios
Height 15–40m optional, wall thickness 3–16mm, flange/direct burial installation. Equipped with lightning rod, intelligent control, multi-cantilever lamp panel to meet various engineering needs.
| code | High | lower caliber millimeter |
upper caliber millimeter |
Segmentation
|
Thickness in millimeters |
flange millimeters |
Weight kilogram |
square meters |
| GB-HD TS-12400200 | 20 | 570 | 220 | 2 | 8,8 | ø750*25 | 1856 | 28 |
| National Standard - HDTSA-15400200 | 25 | 605 | 300 | 3 | 8,10,12 | ø1000*30 | 3315 | 40 |
| National Standard - HDTSA-18450220 | 30 | 605 | 350 | 4 | 8,10,12 | ø1000*30 | 4230 | 52 |
| National Standard - HDTSA - 20450220 | 35 | 780 | 450 | 4 | 10,12,14,16 | ø1100*30 | 6910 | 66 |
| National Standard - HDTSA - 25550260 | 40 | 785 | 500 | 4 | 10,12,14,16 | ø1200*30 | 7876 | 75 |
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.

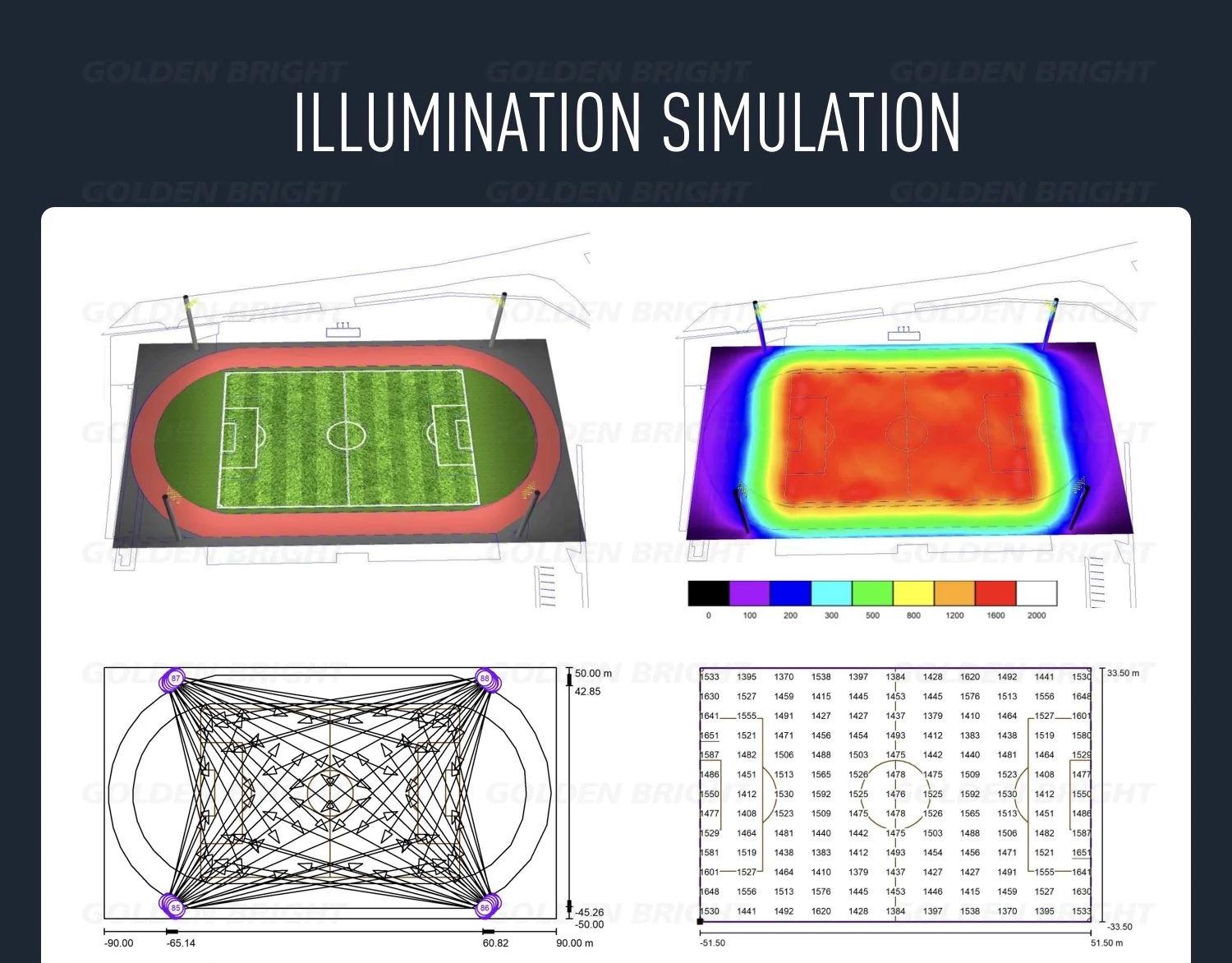

Need a Dialux simulation for your project? Click here for a free lighting plan.
