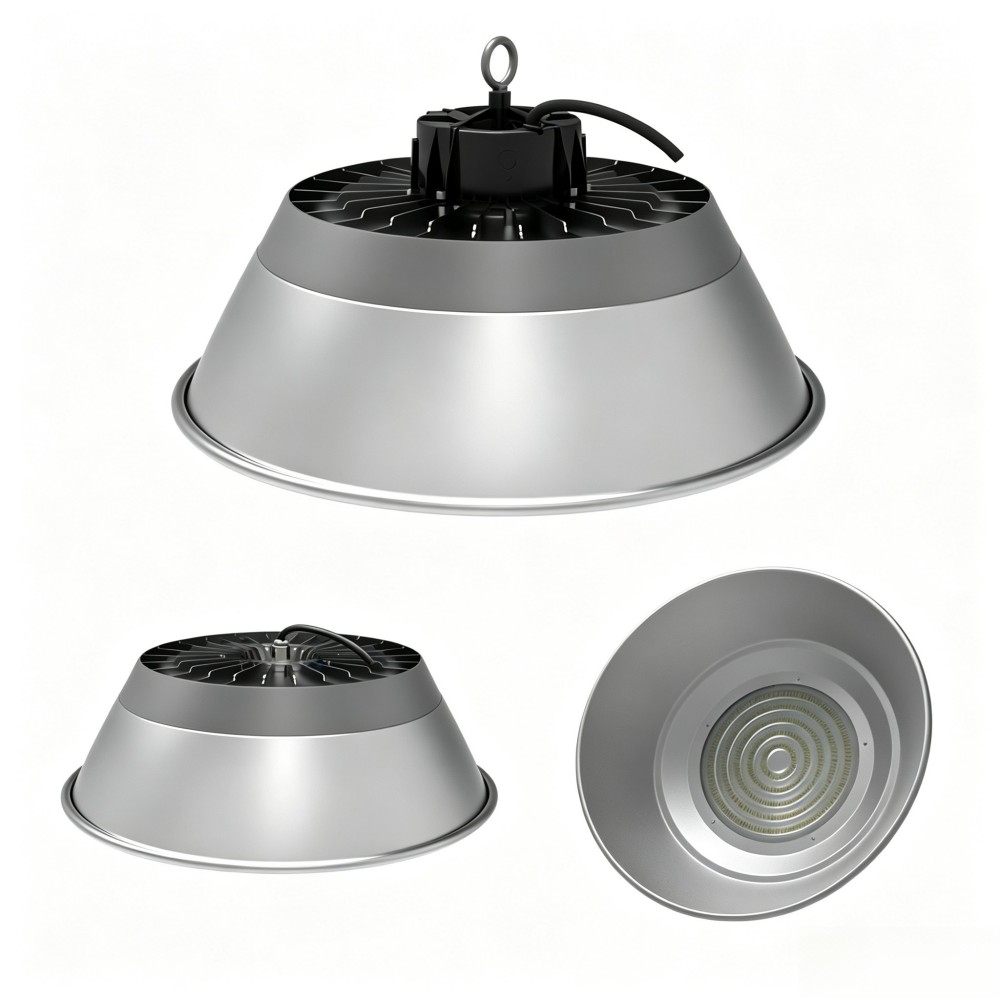

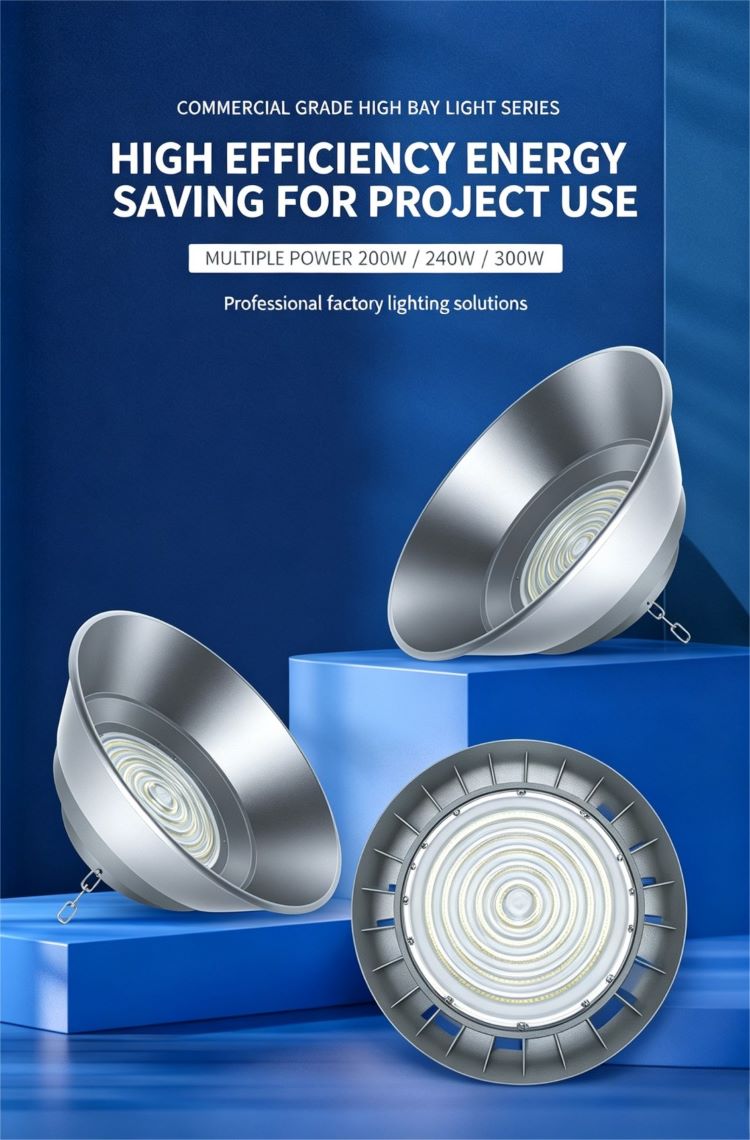

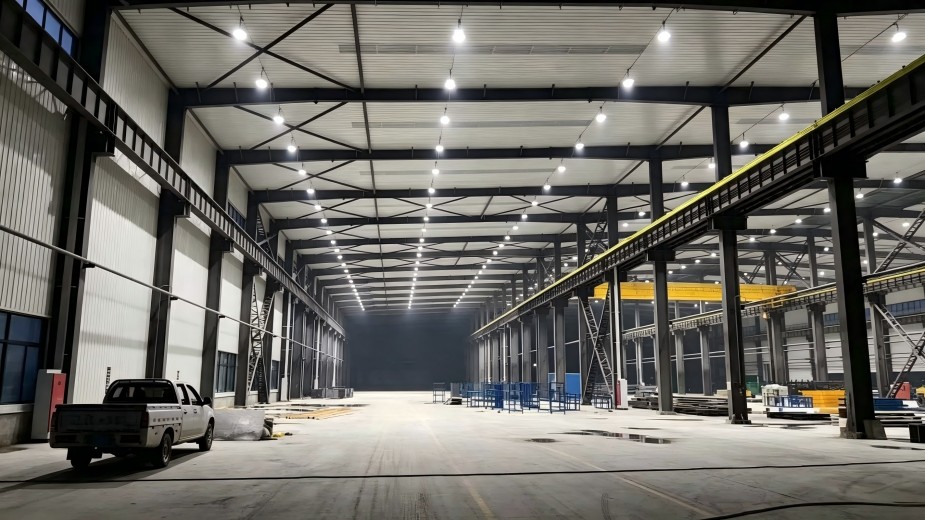

The LJX series UFO LED high bay light is a professional industrial lighting fixture designed for warehouses, factories, workshops and large high-ceiling spaces. Equipped with genuine Philips original independent driver, it delivers stable output, low THD and a long service life of up to 50,000 hours.

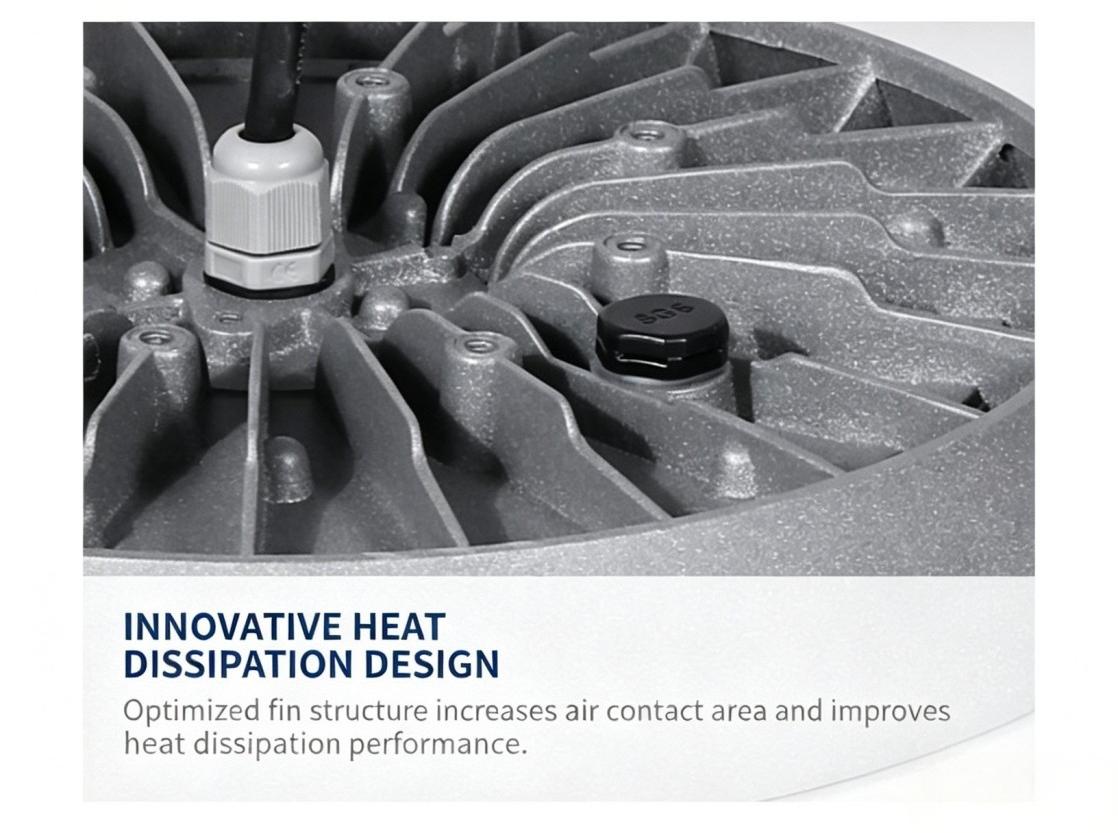

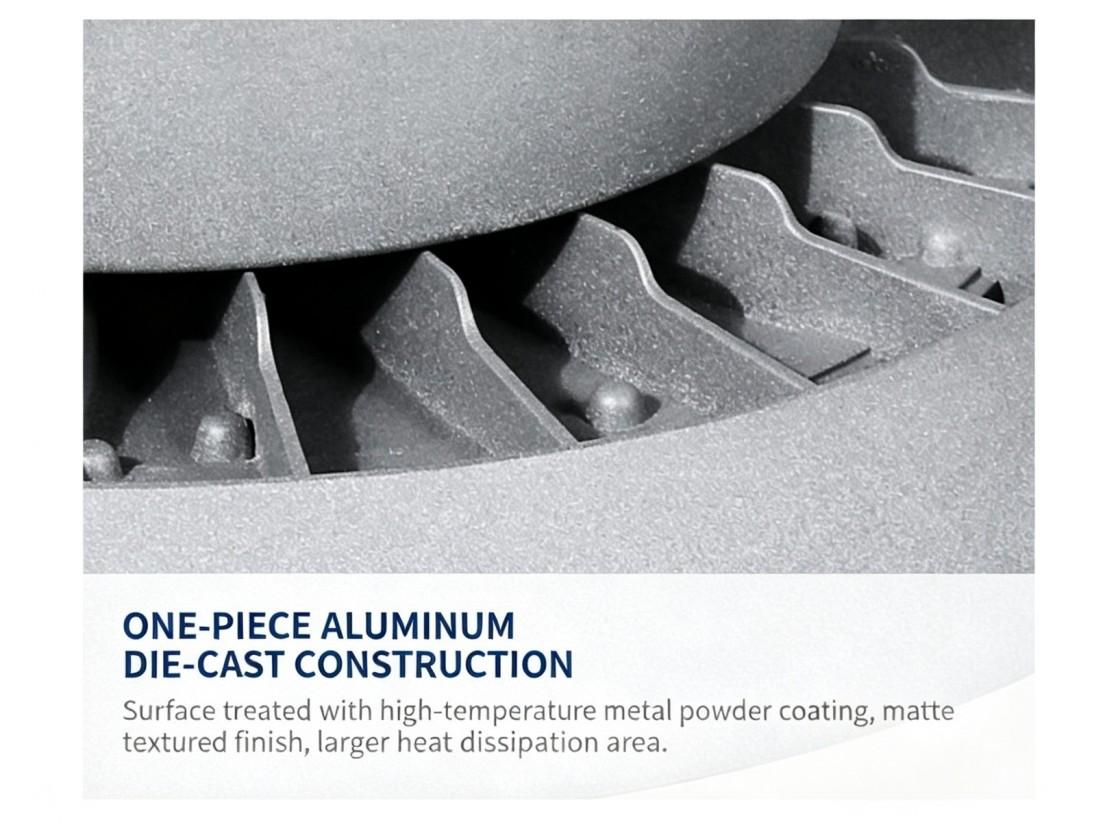

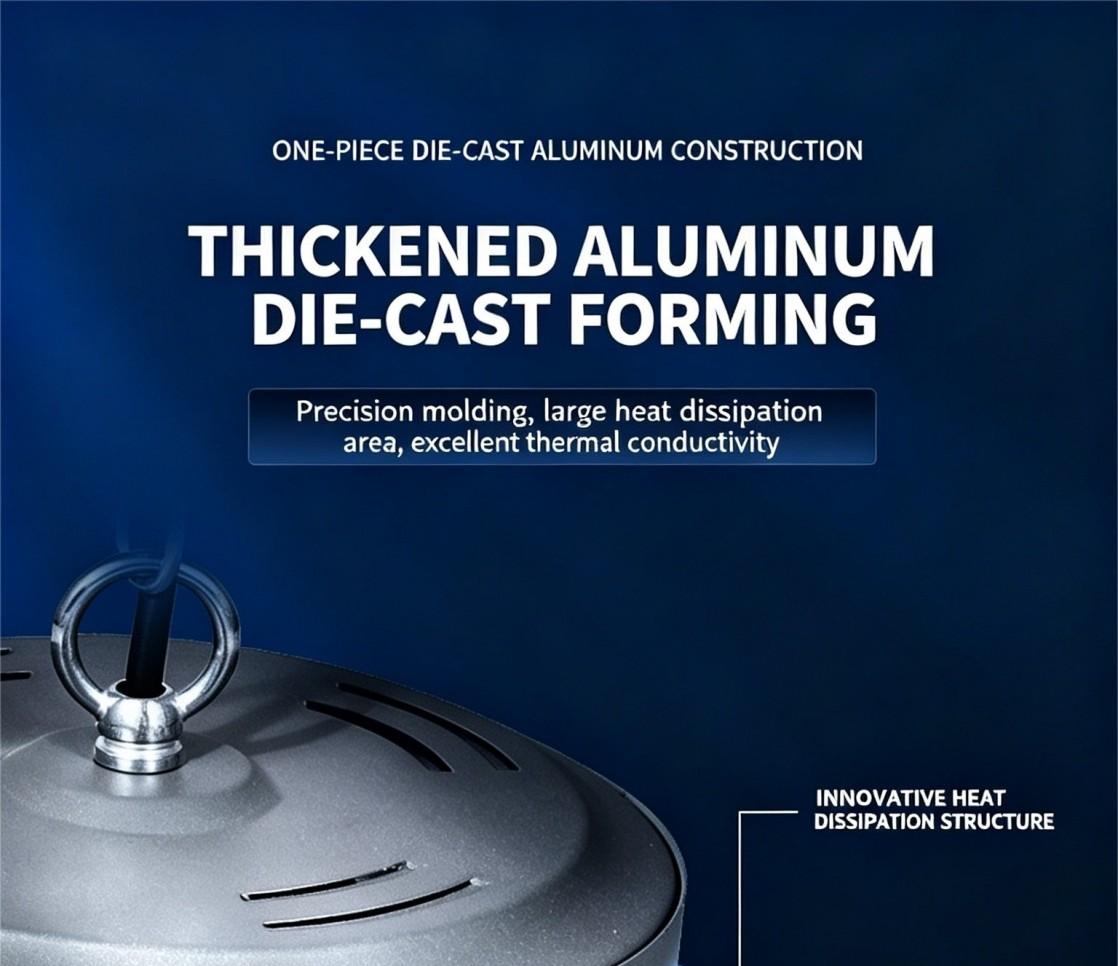

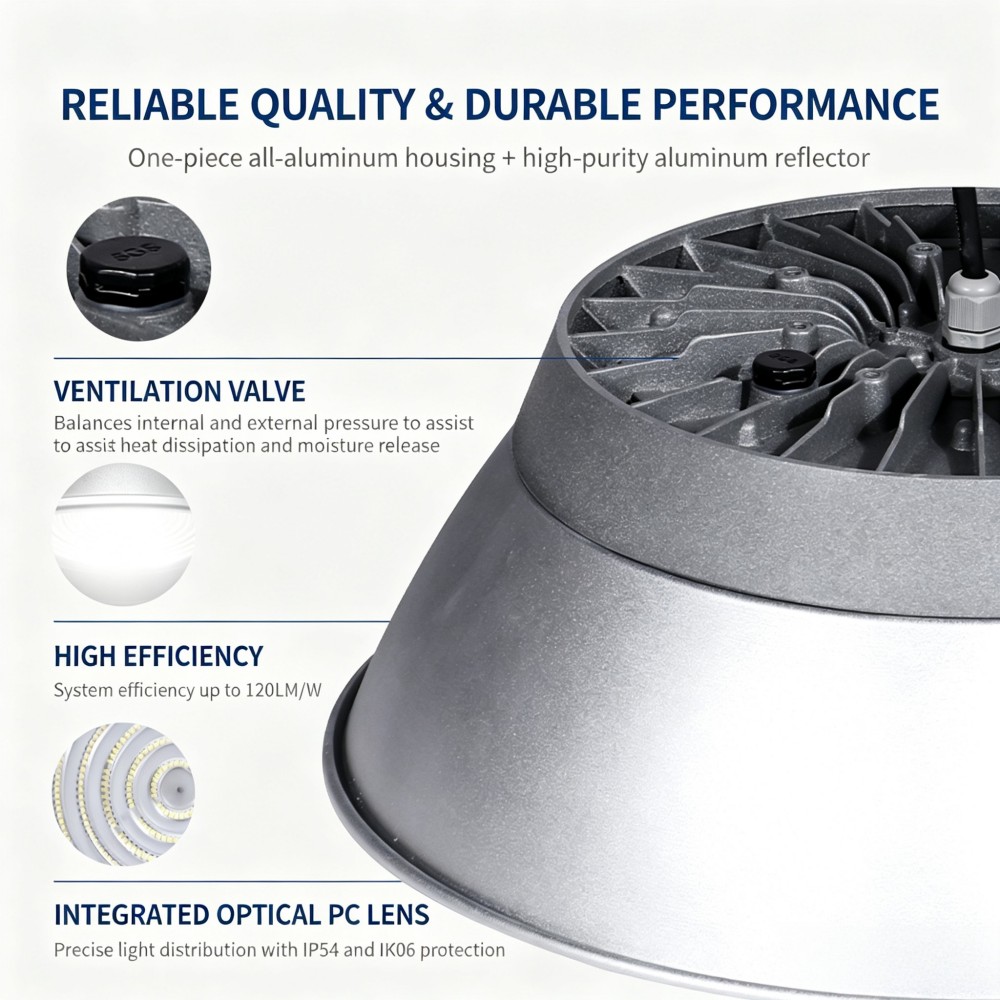

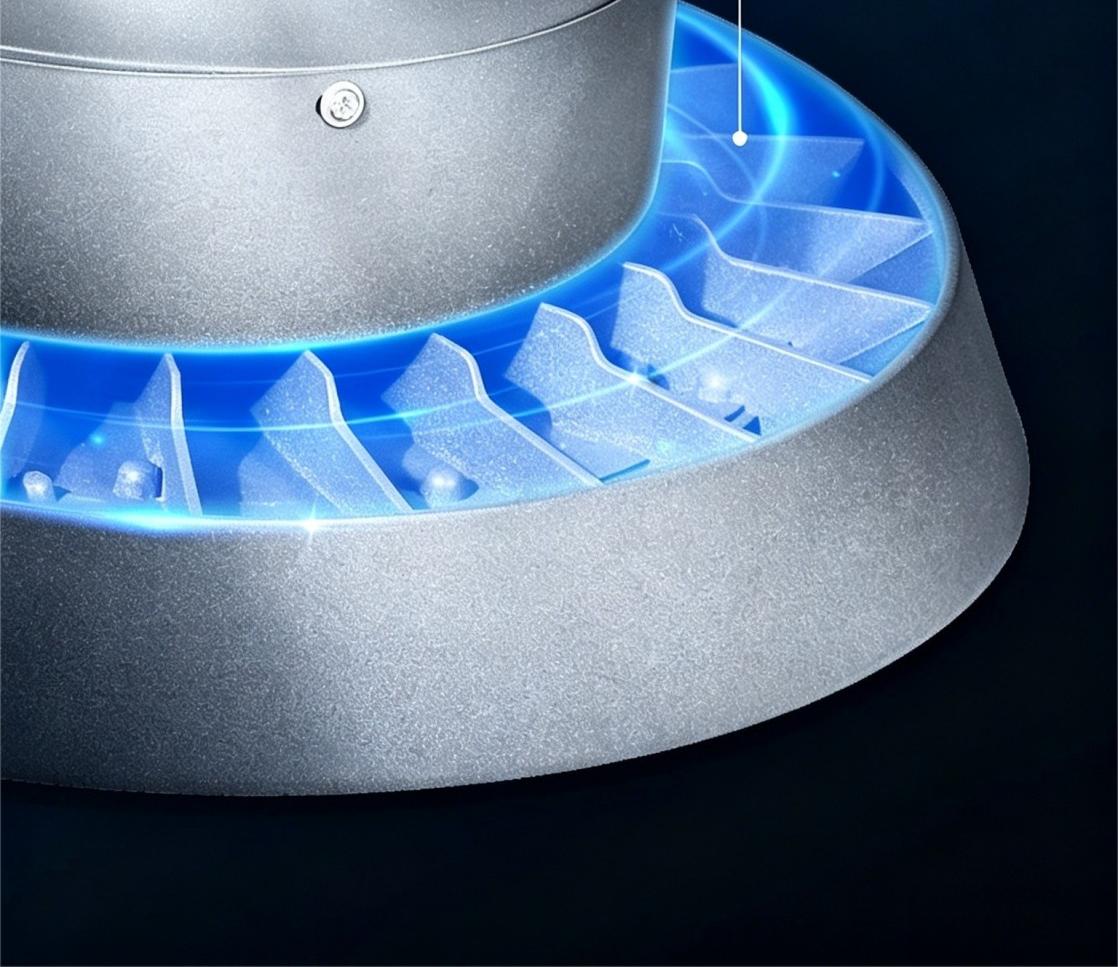

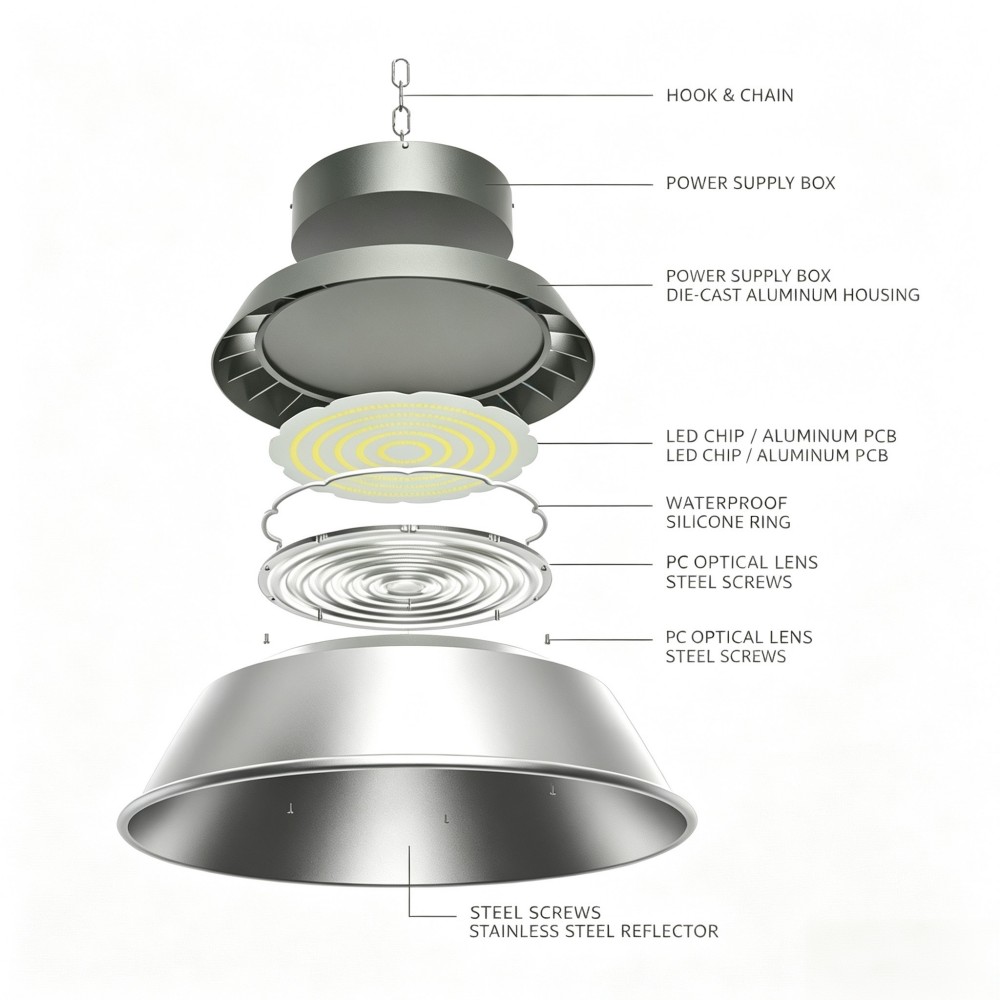

Constructed with integrated die-cast aluminum housing, this industrial lamp features excellent heat dissipation and reaches IP54 & IK06 protection grade to resist dust and minor impact. The matched high-purity aluminum reflector effectively reduces UGR glare, offering uniform, soft illumination for high-bay installation scenarios.
Available in 100W, 120W, 150W, 180W, 200W and 240W power options, the light boasts high luminous efficiency of 120LM/W, cutting industrial electricity consumption by up to 65%. Multiple installation accessories including lifting hooks and pole-mount kits are optional to meet diverse project installation demands. With complete CCC and EMC certifications, it is a reliable energy-saving lighting solution for global commercial and industrial projects.

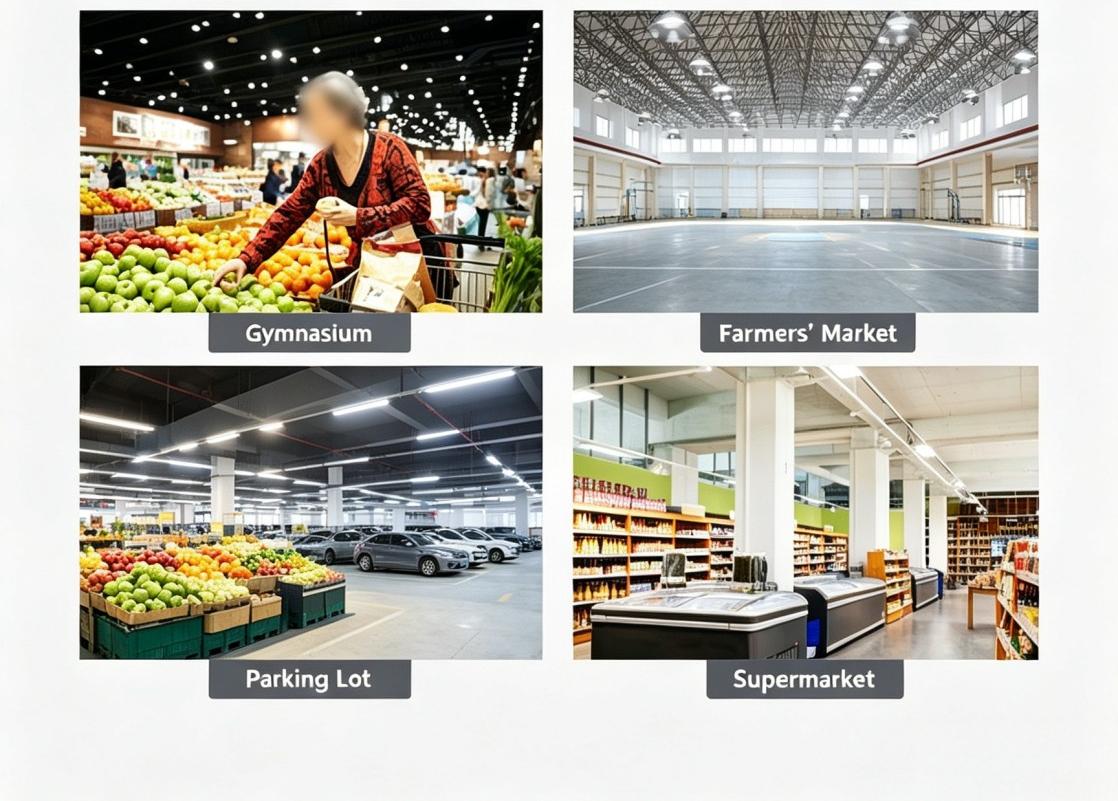

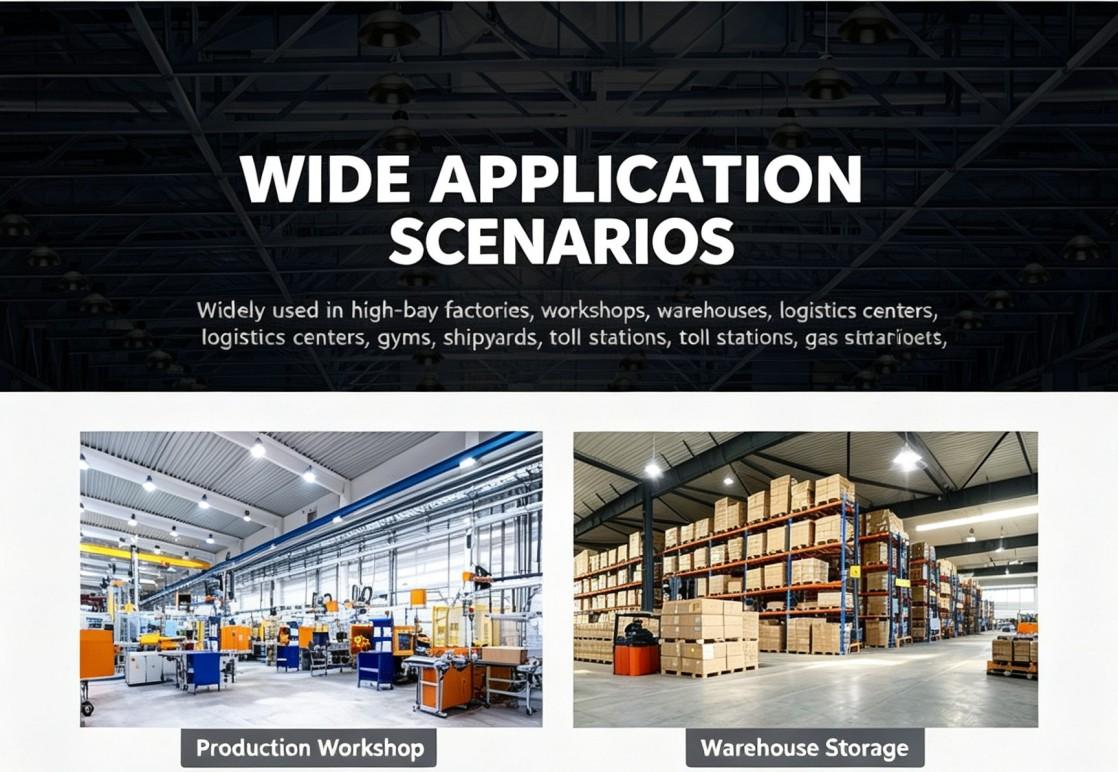

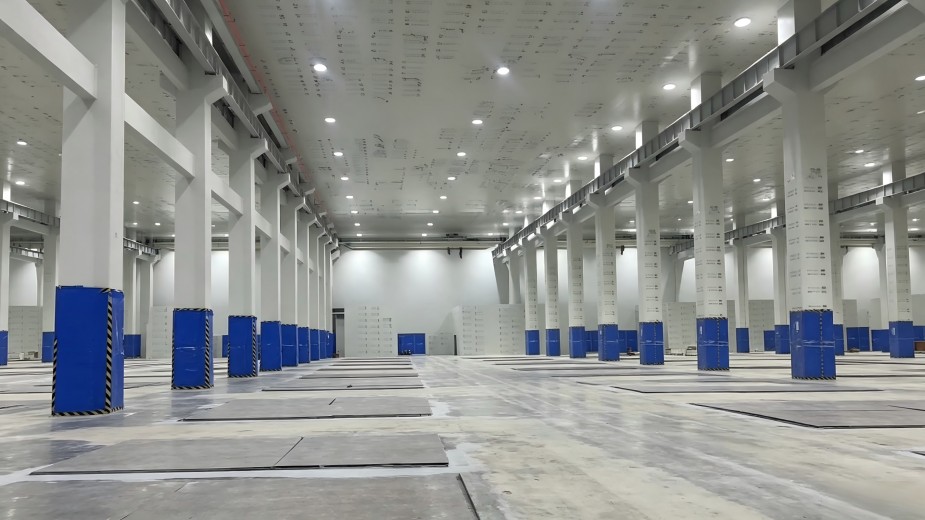

Applications:
Certified Quality for Global Projects
Die-cast Aluminum UFO High Bay Light For Large Space Workshop Lighting

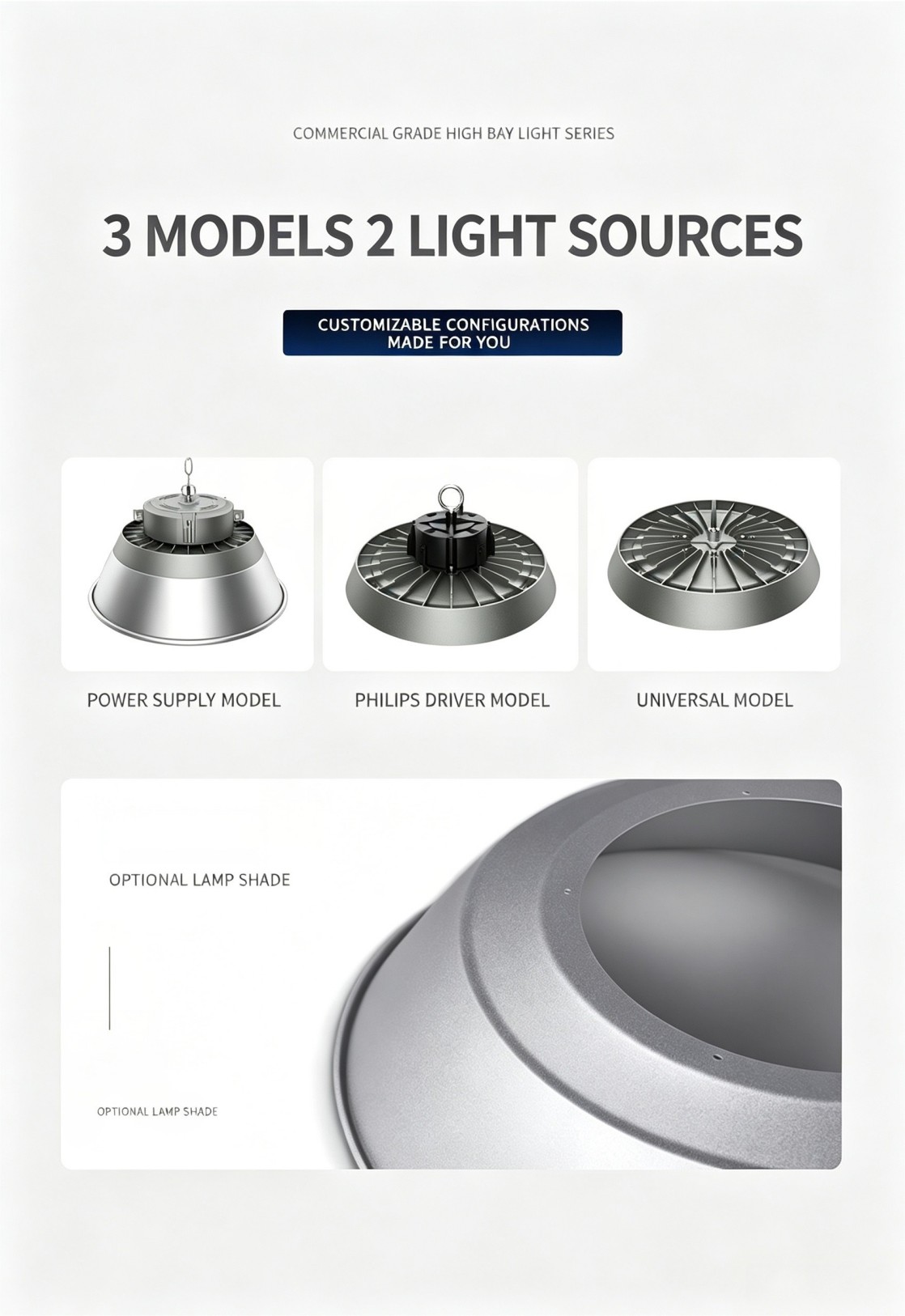

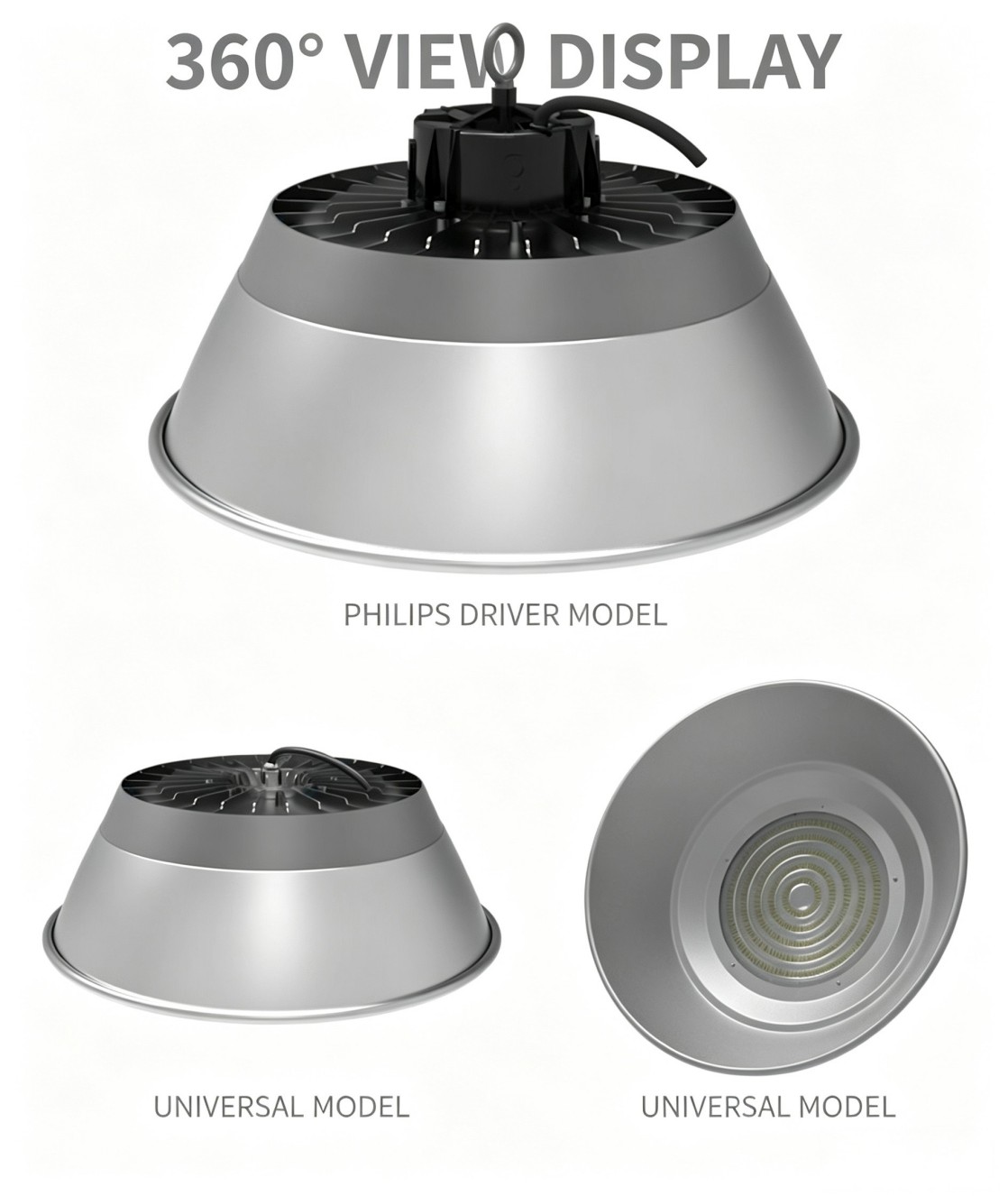

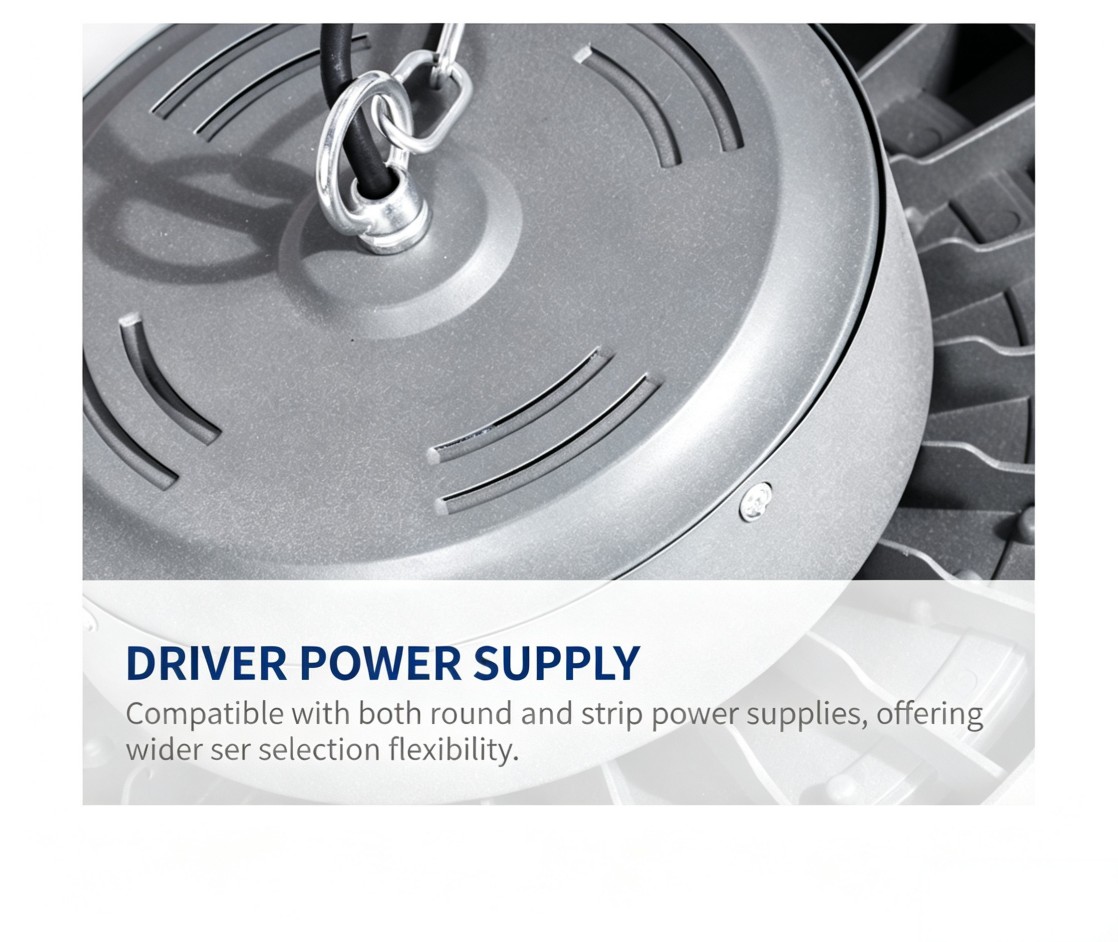

Optional Original Philips Driver
Support optional genuine original Philips independent constant current driver as upgraded configuration. It delivers ultra-low THD, steady current output and flicker-free lighting with strong anti-interference performance, effectively preventing light decay and lamp flicker during long-time continuous operation.

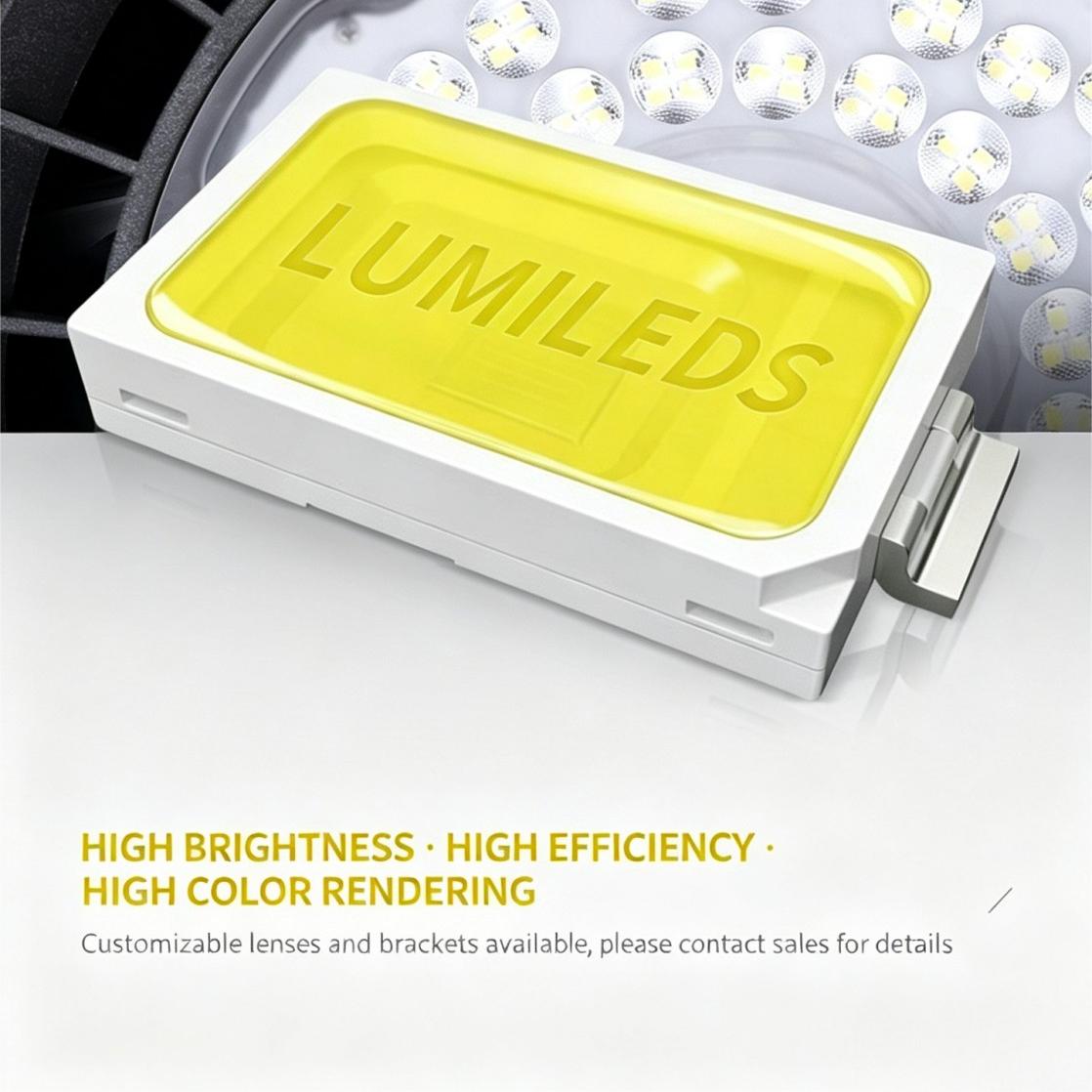

High Luminous Efficiency & Energy Saving

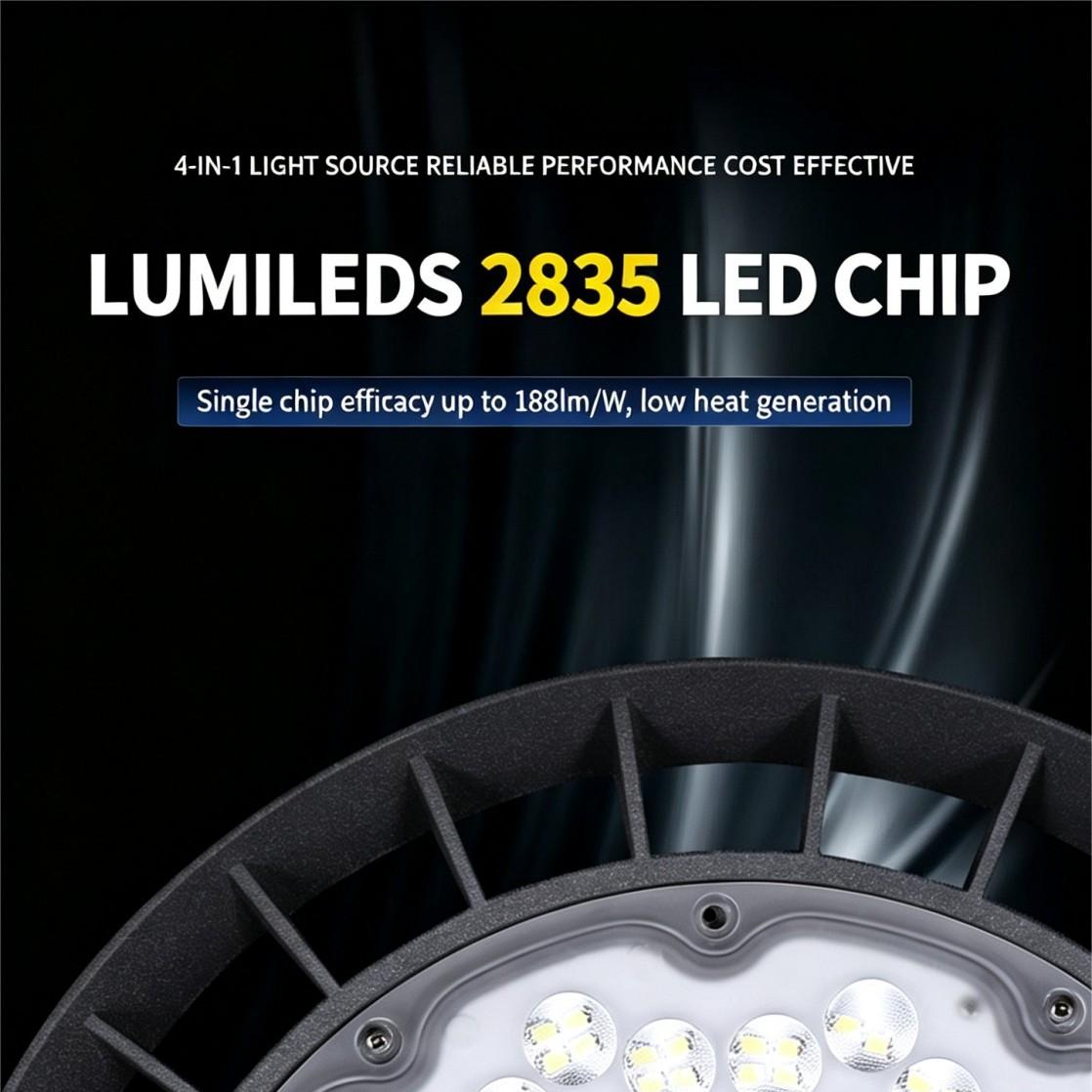

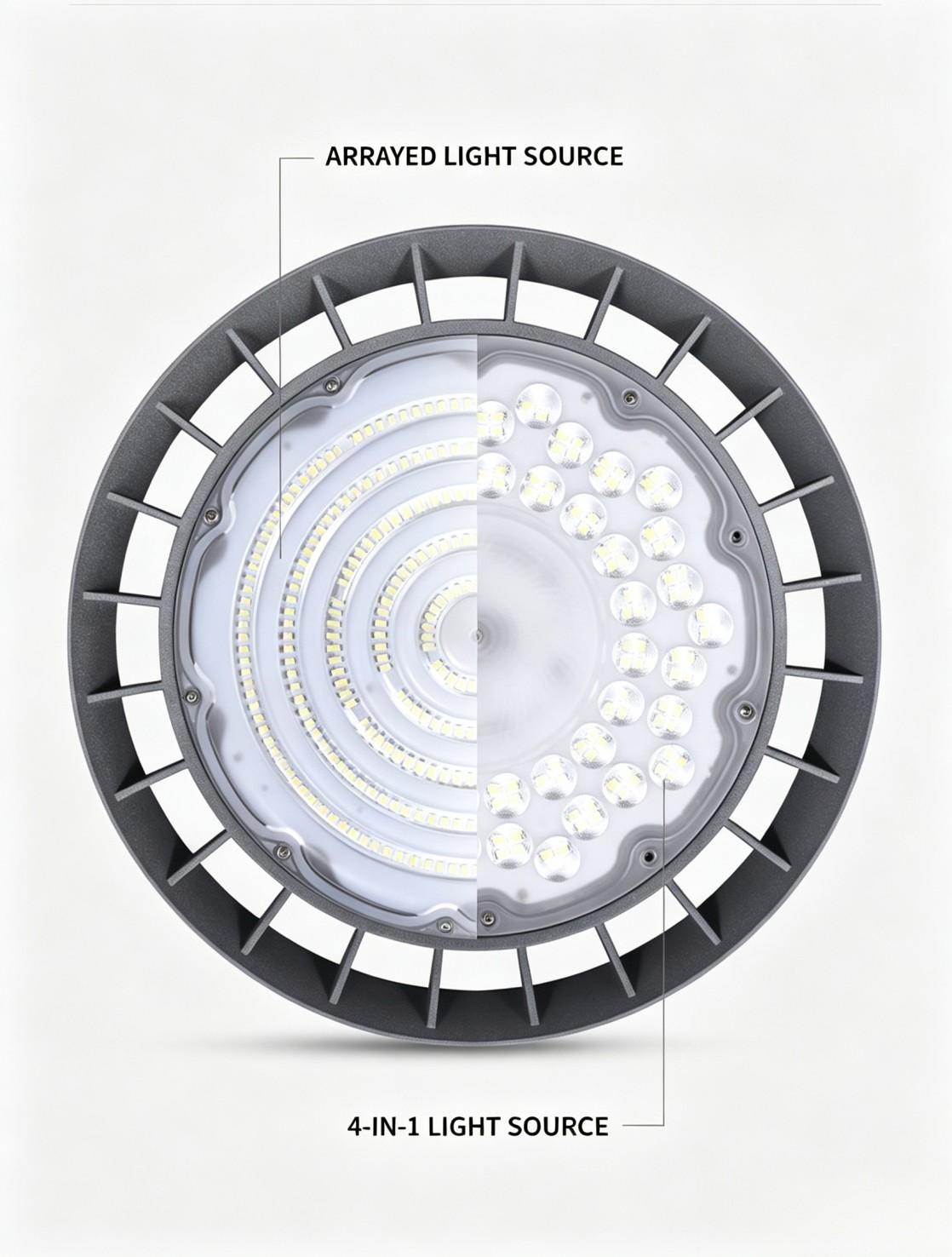

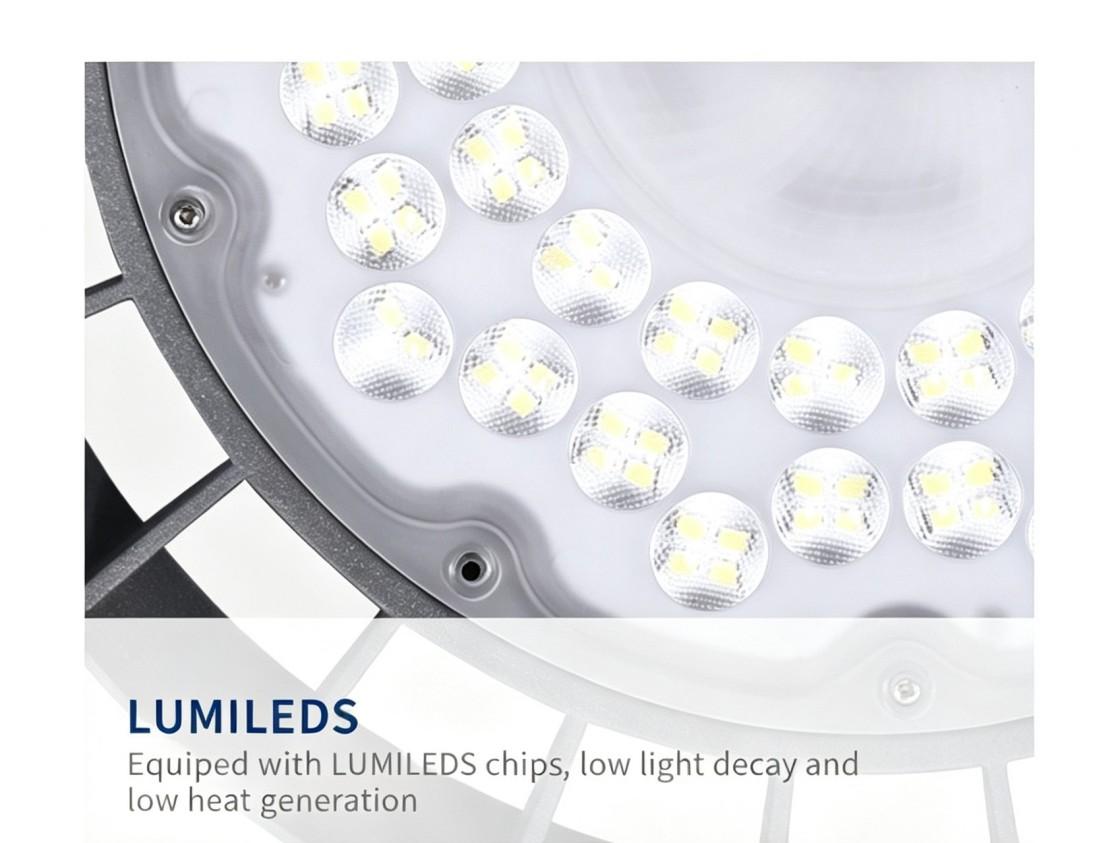

Built with high-quality LED chips, the luminous efficiency reaches 120LM/W. Compared with traditional halogen and metal halide lamps, it saves up to 65% industrial power consumption. It provides high-brightness and uniform lighting while reducing operational costs.

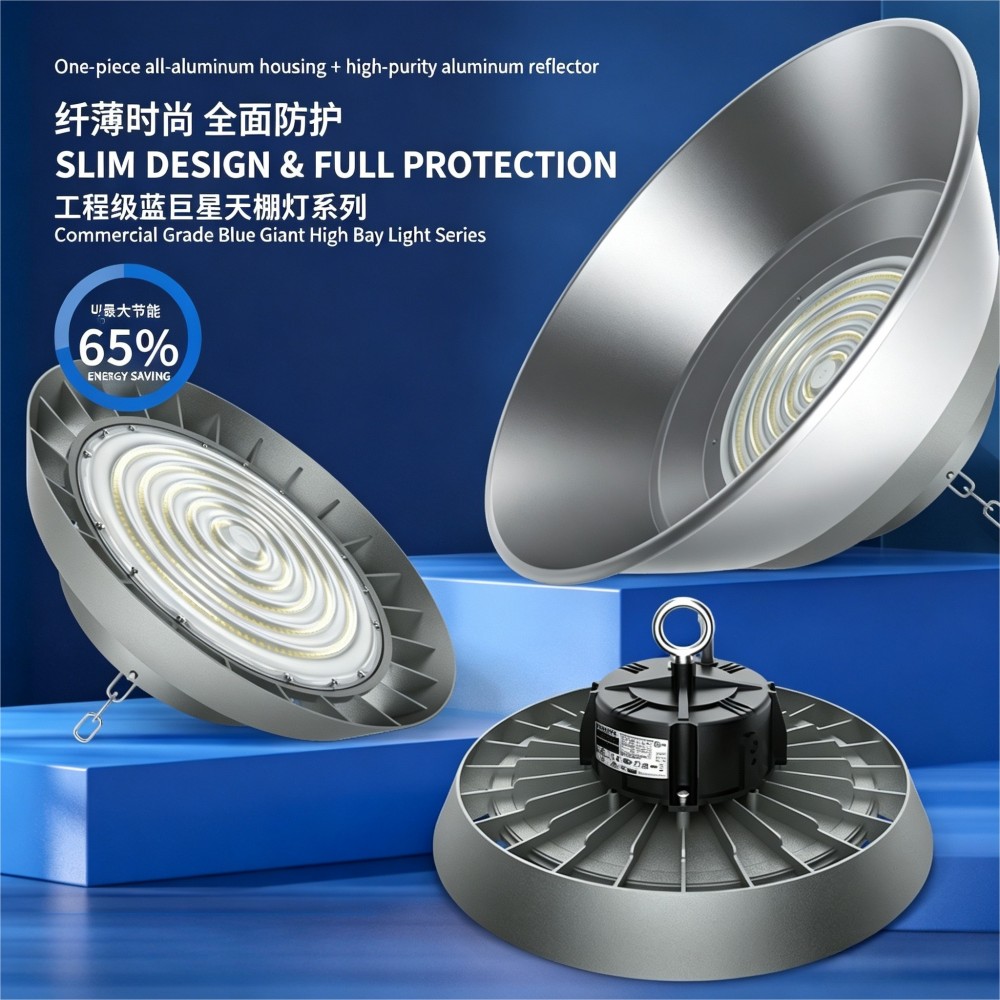

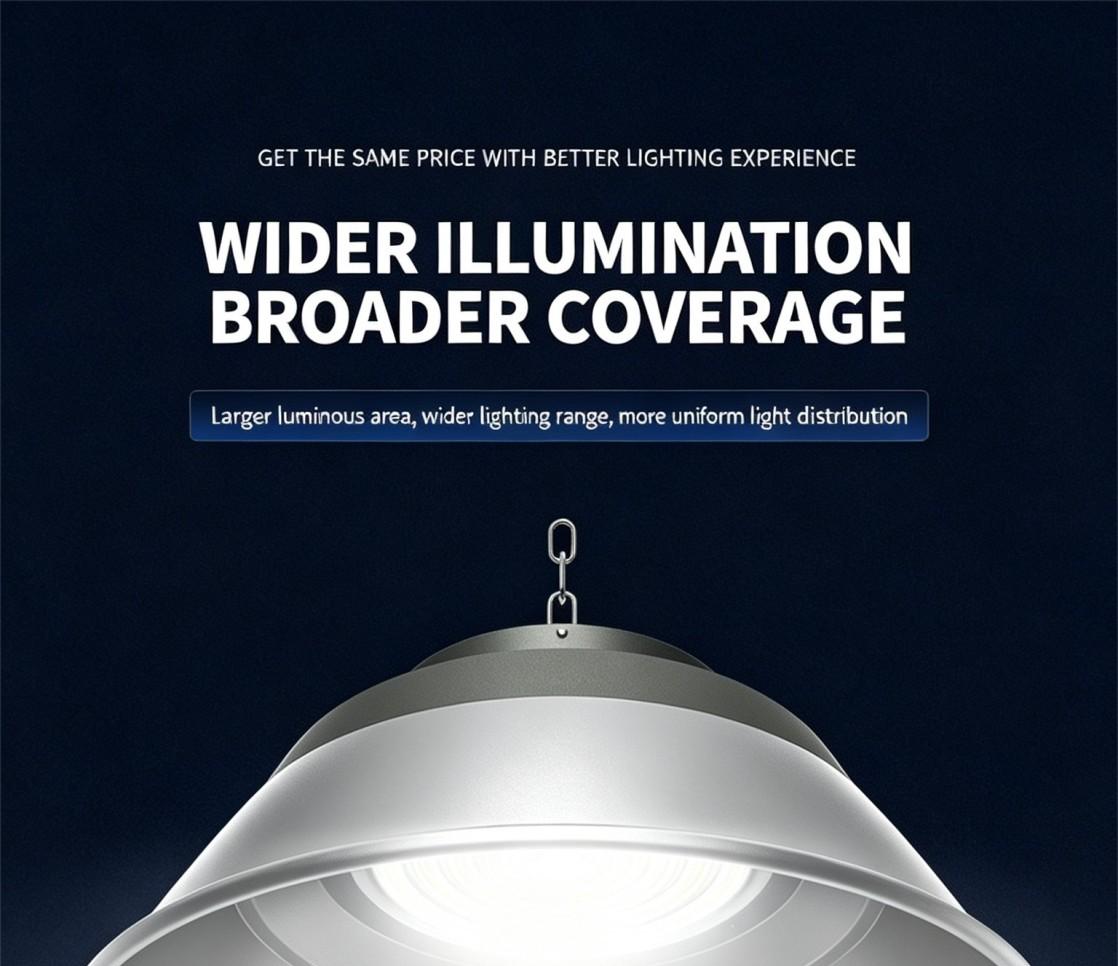

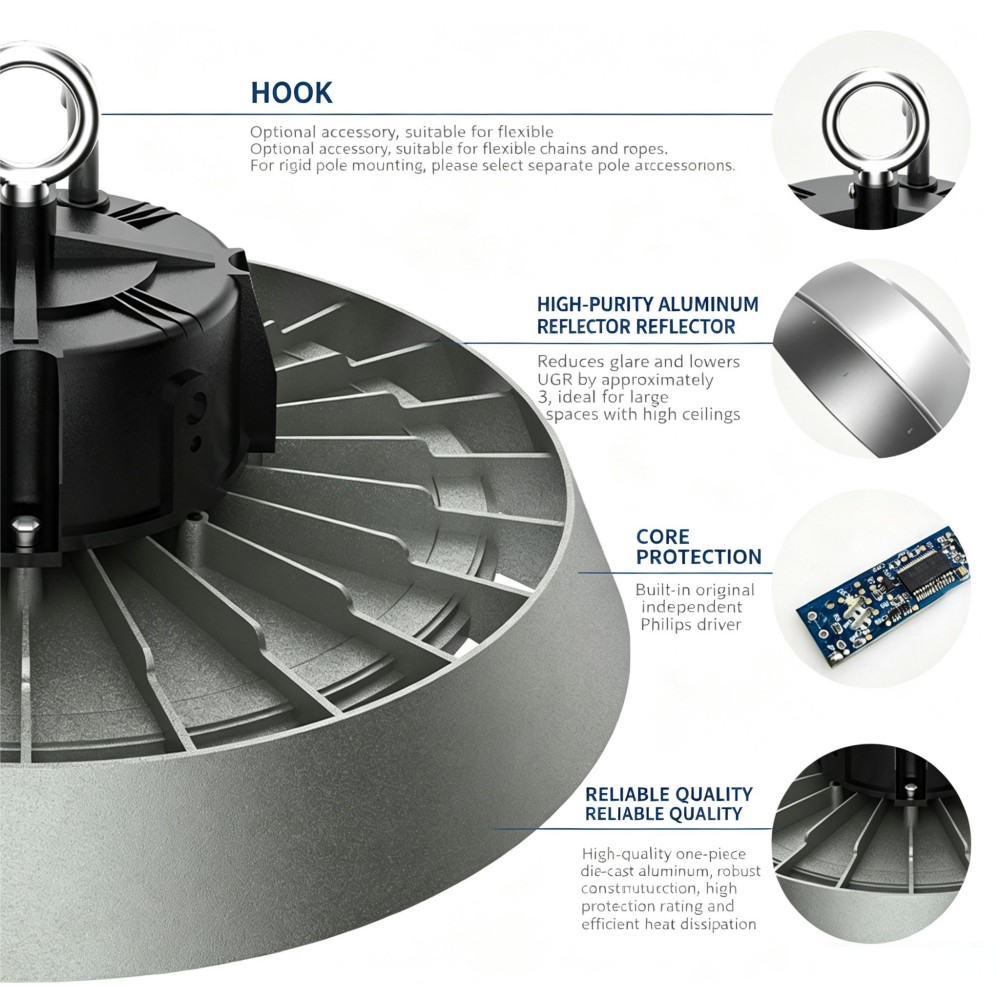

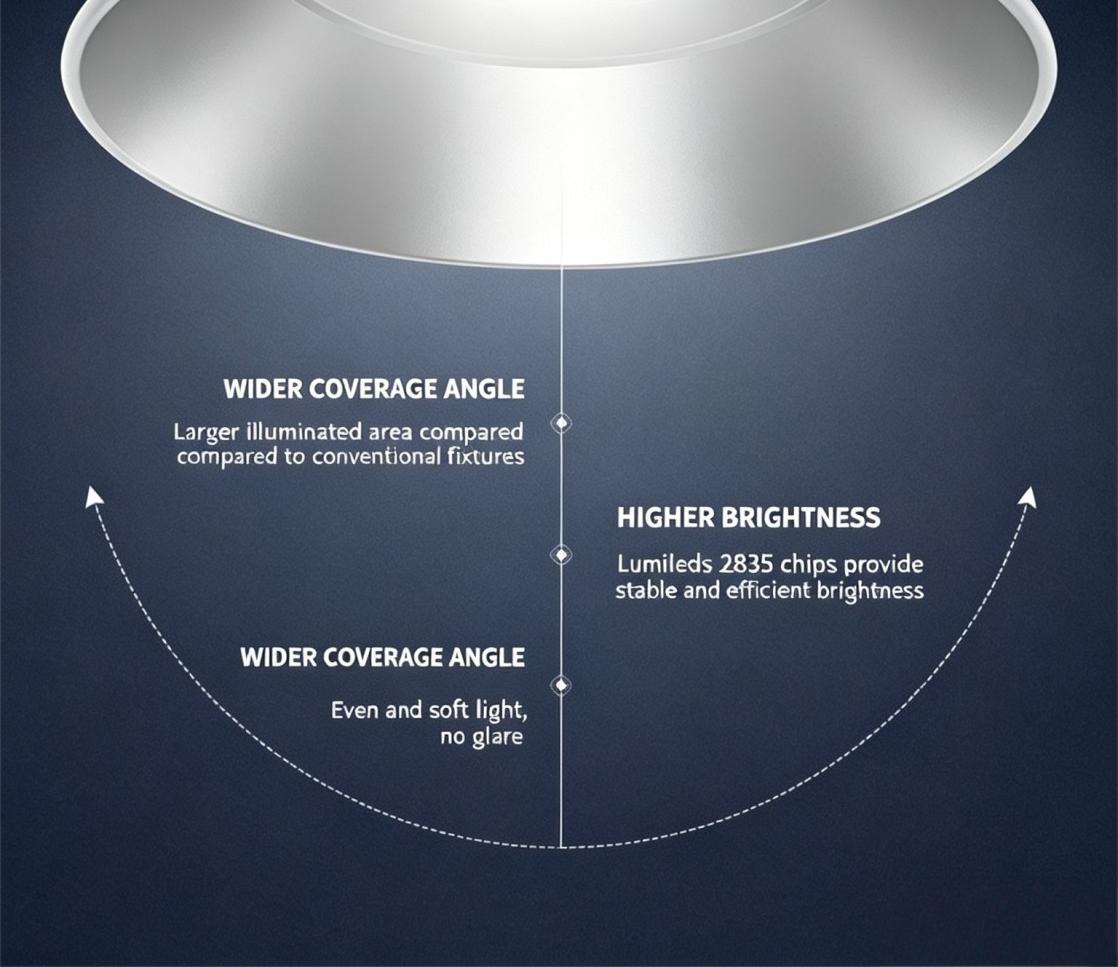

Low Glare Aluminum Reflector Design
Equipped with high-purity aluminum reflector, which optimizes light projection angle and effectively reduces UGR glare value. The soft and uniform light eliminates eye fatigue, perfectly suitable for long-hour working environments of factories and warehouses.

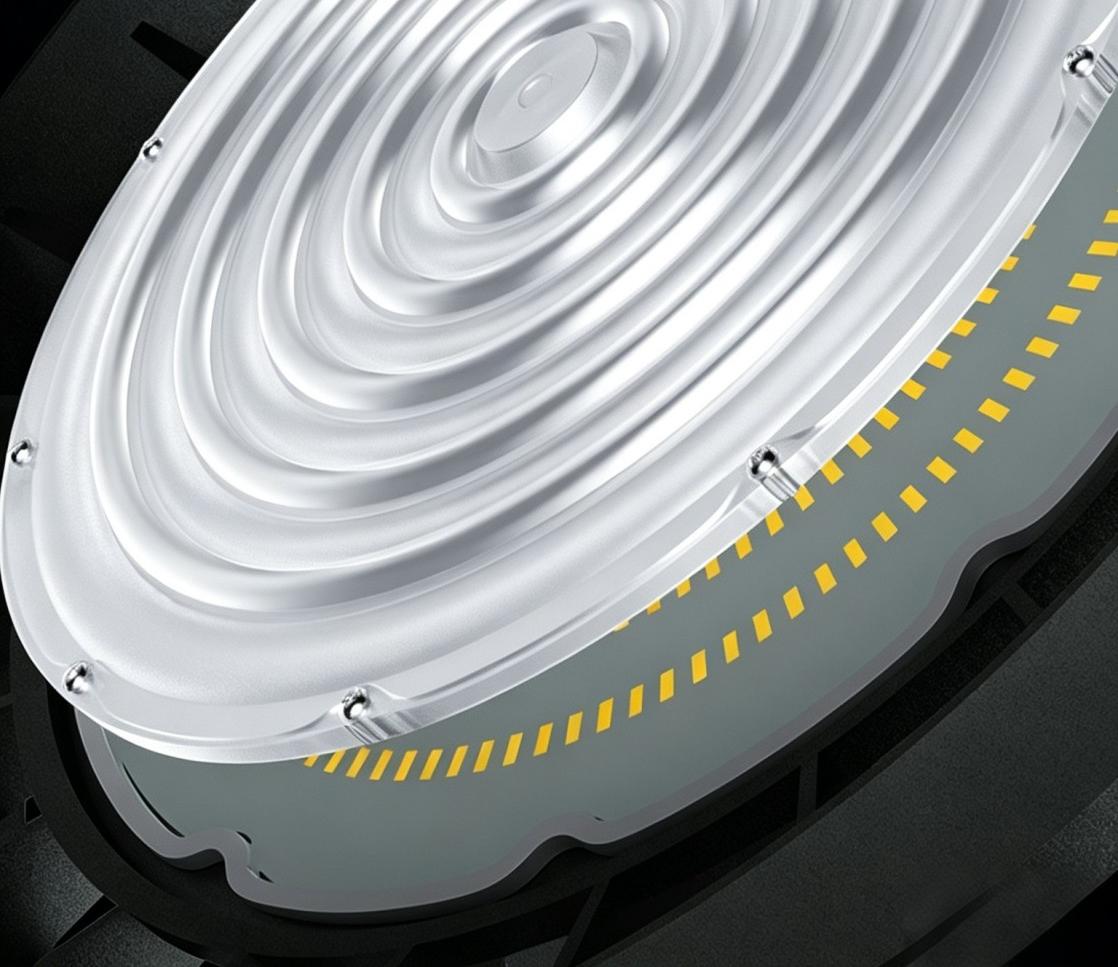

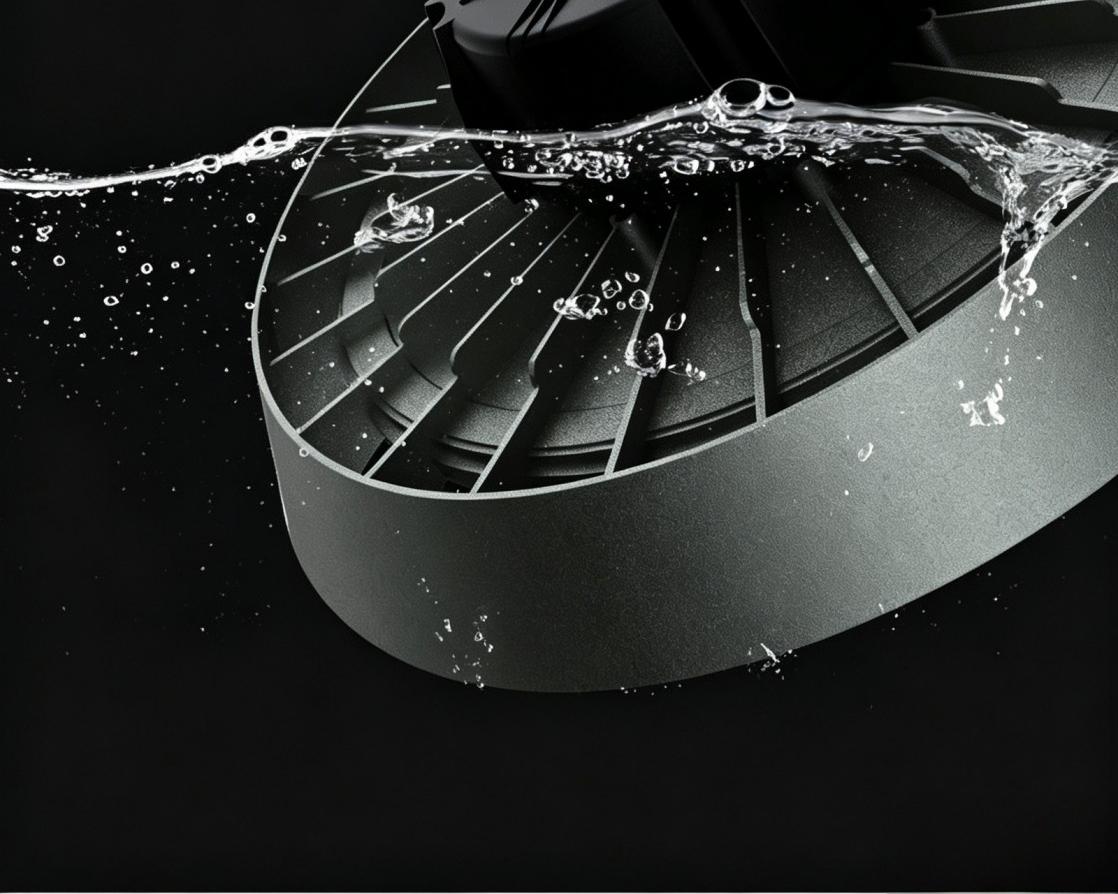

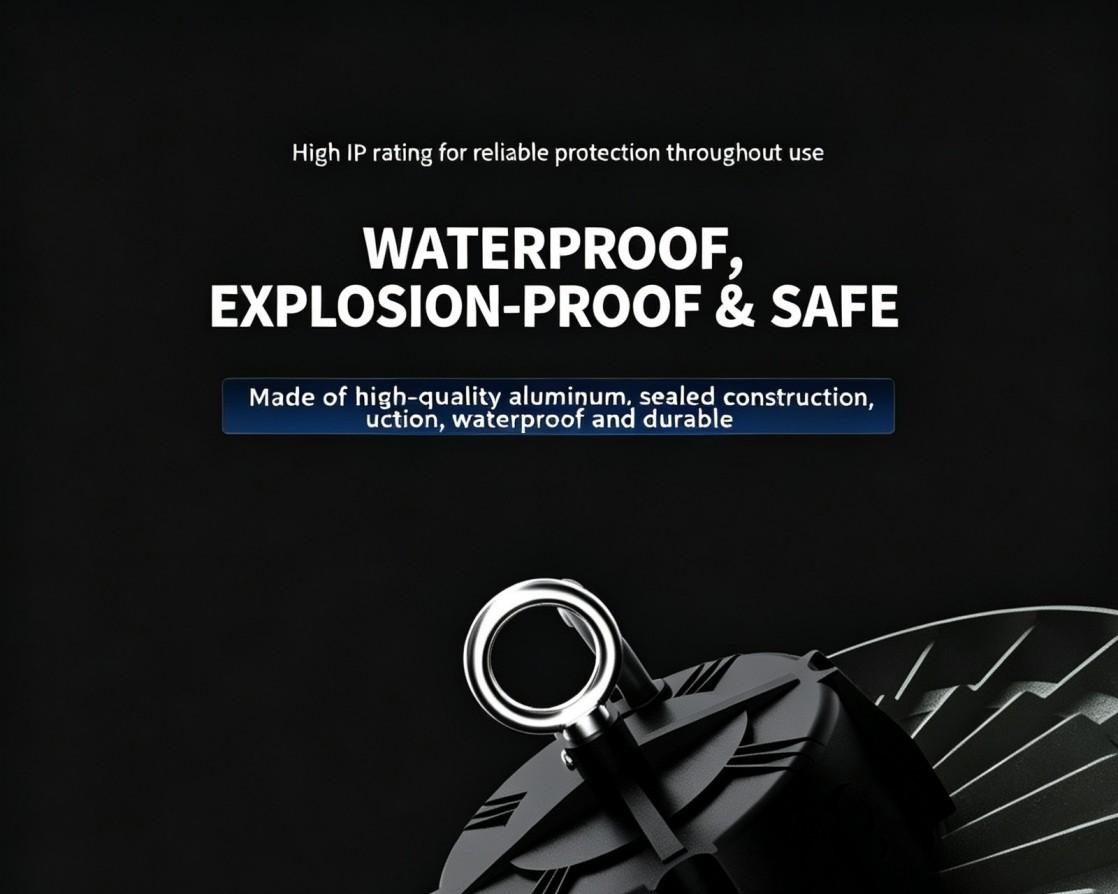

IP54 & IK06 High Protection Grade
This industrial high bay light reaches IP54 dustproof and waterproof grade and IK06 impact resistance grade. It can effectively resist dust accumulation, water splashes and minor mechanical collisions, adapting to harsh industrial working environments.
Ultra-long Service Lifespan
With premium chips and stable driver system, the product lifespan can reach up to 50,000 hours. It supports long-term continuous operation without frequent replacement, greatly reducing maintenance and replacement costs for industrial projects.

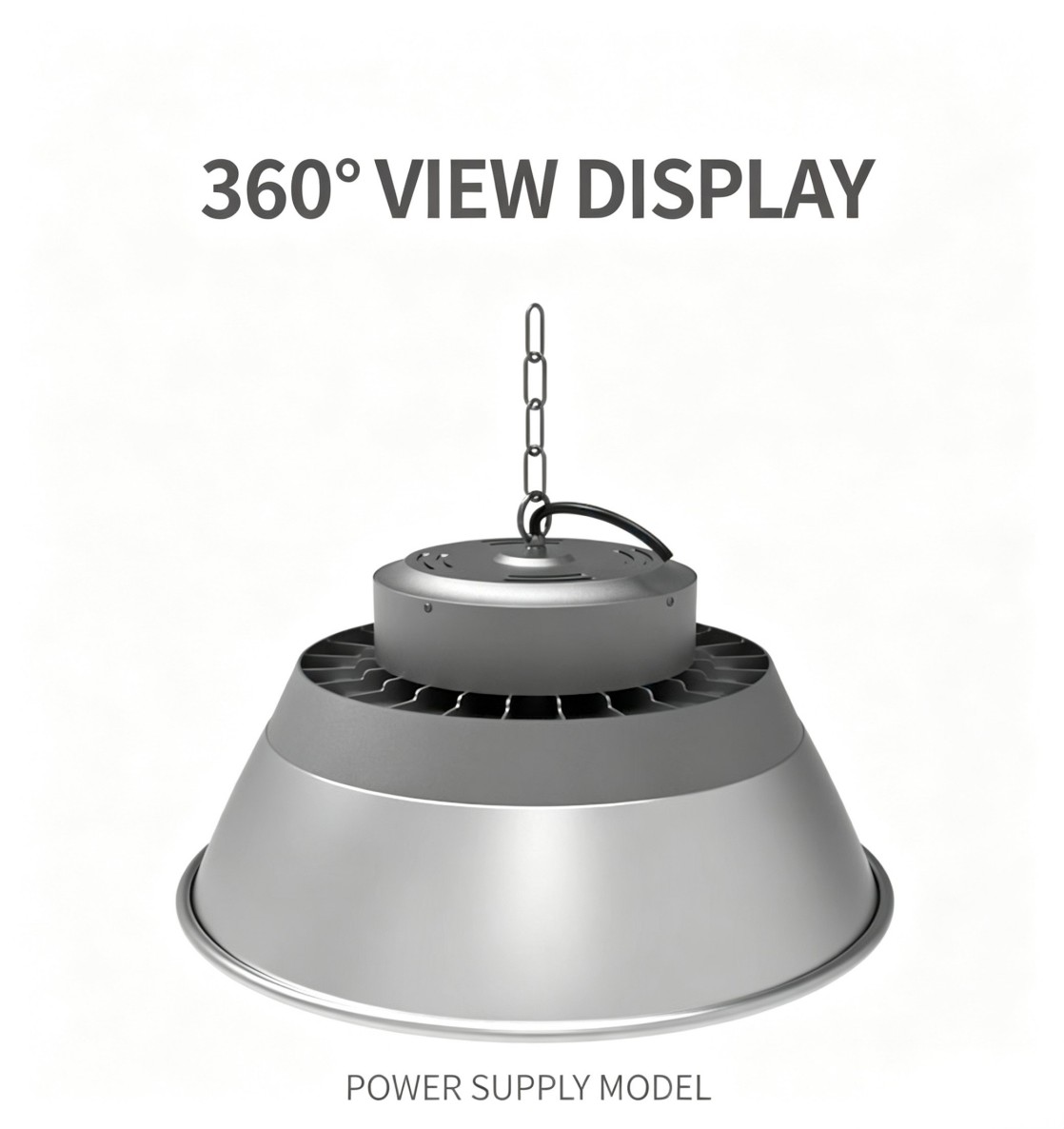

Multiple Power & Installation Options
Available in 100W, 120W, 150W, 180W, 200W, 240W complete power specifications. Optional hook suspension and pole-mount accessories support diverse installation methods to meet different ceiling height and project design requirements.

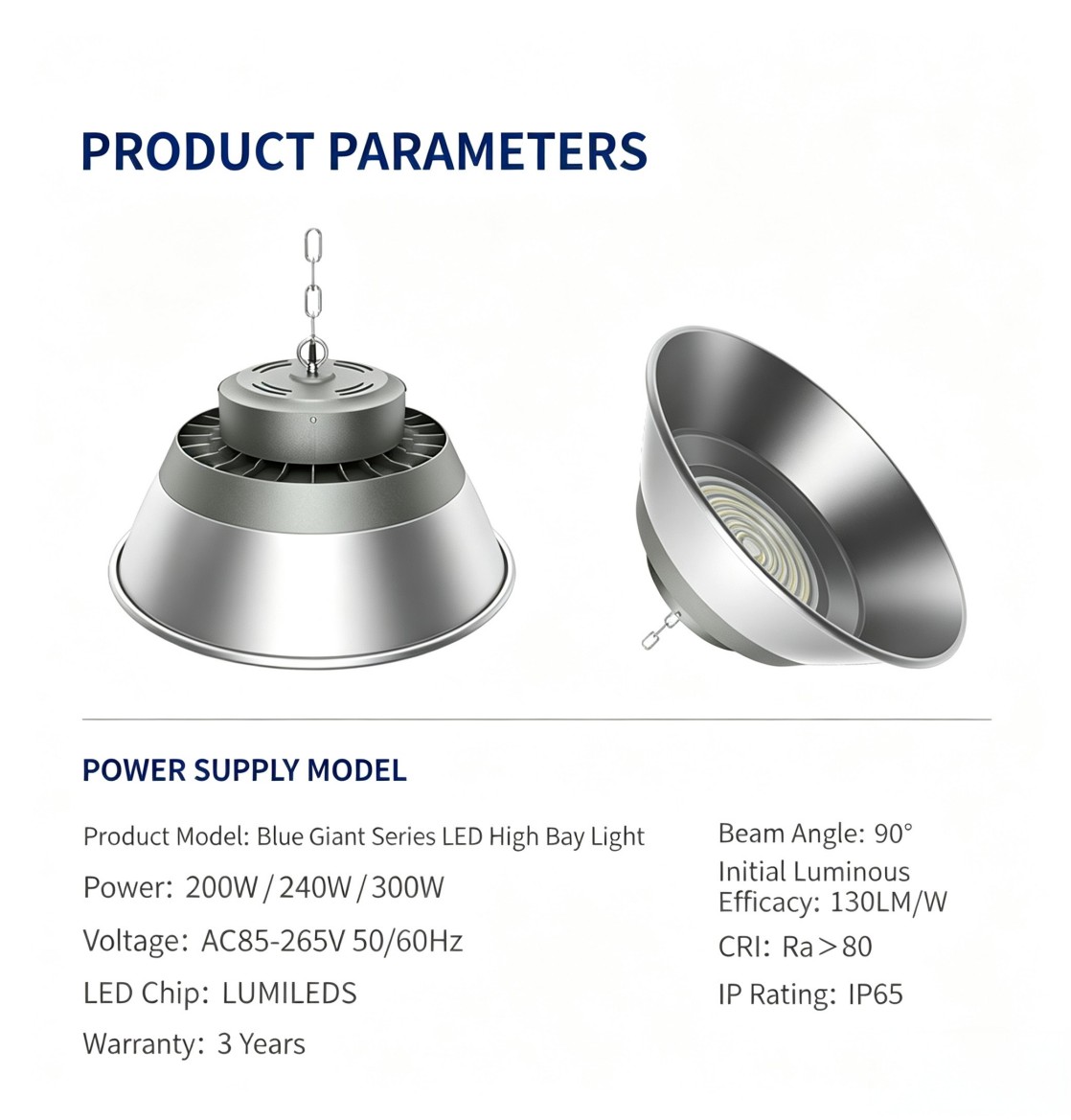

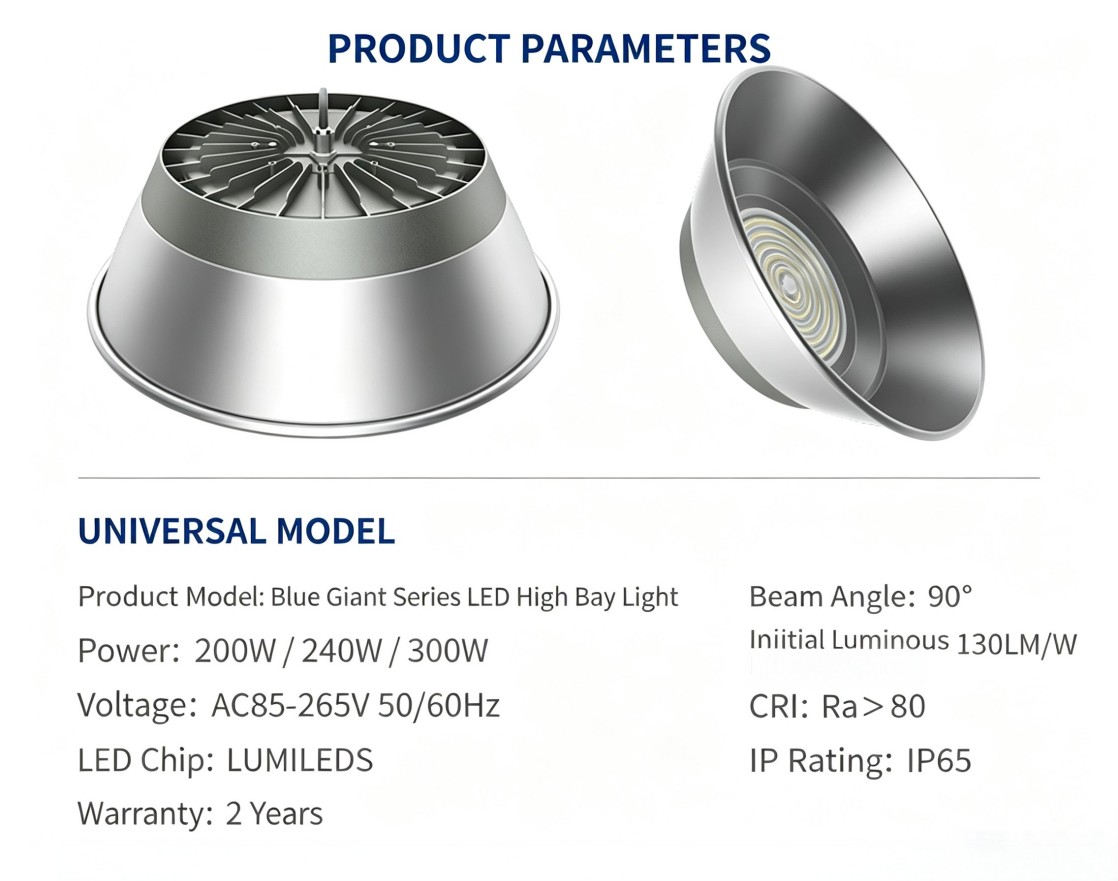

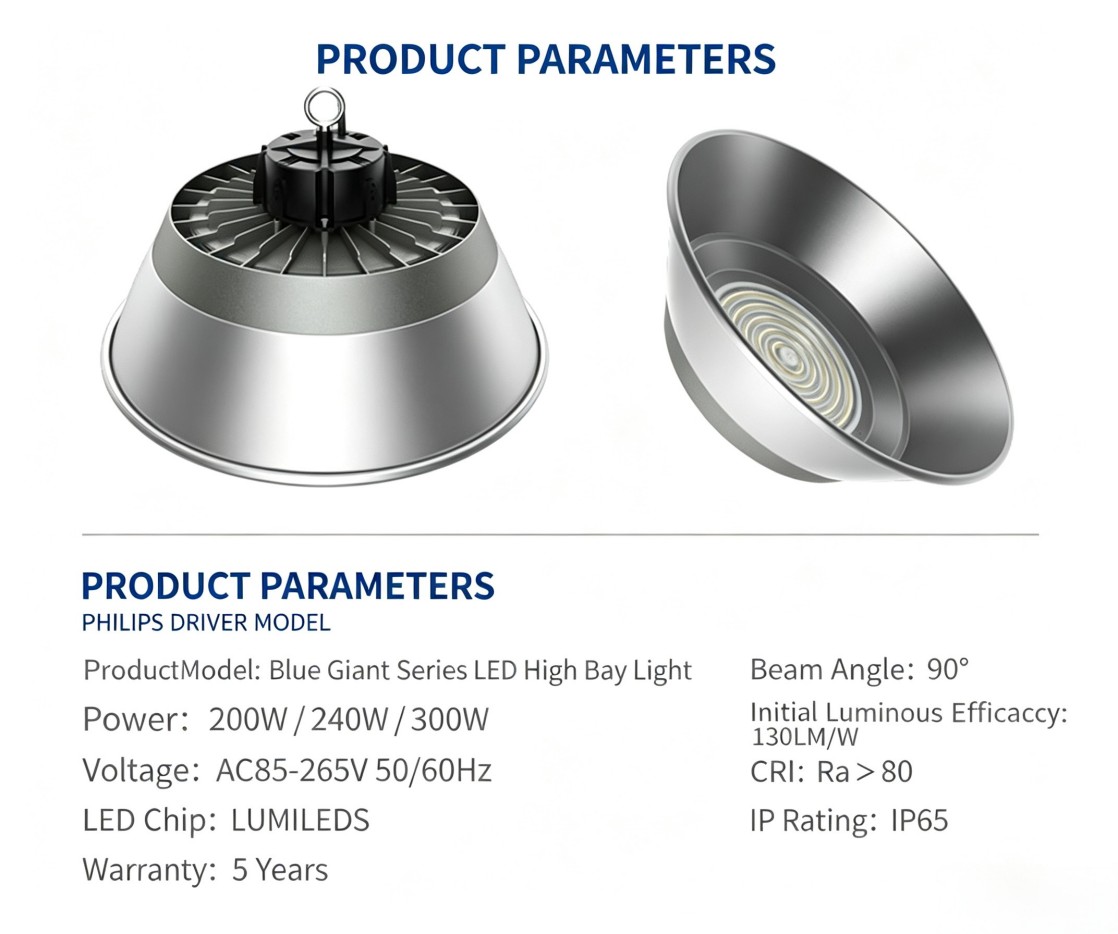

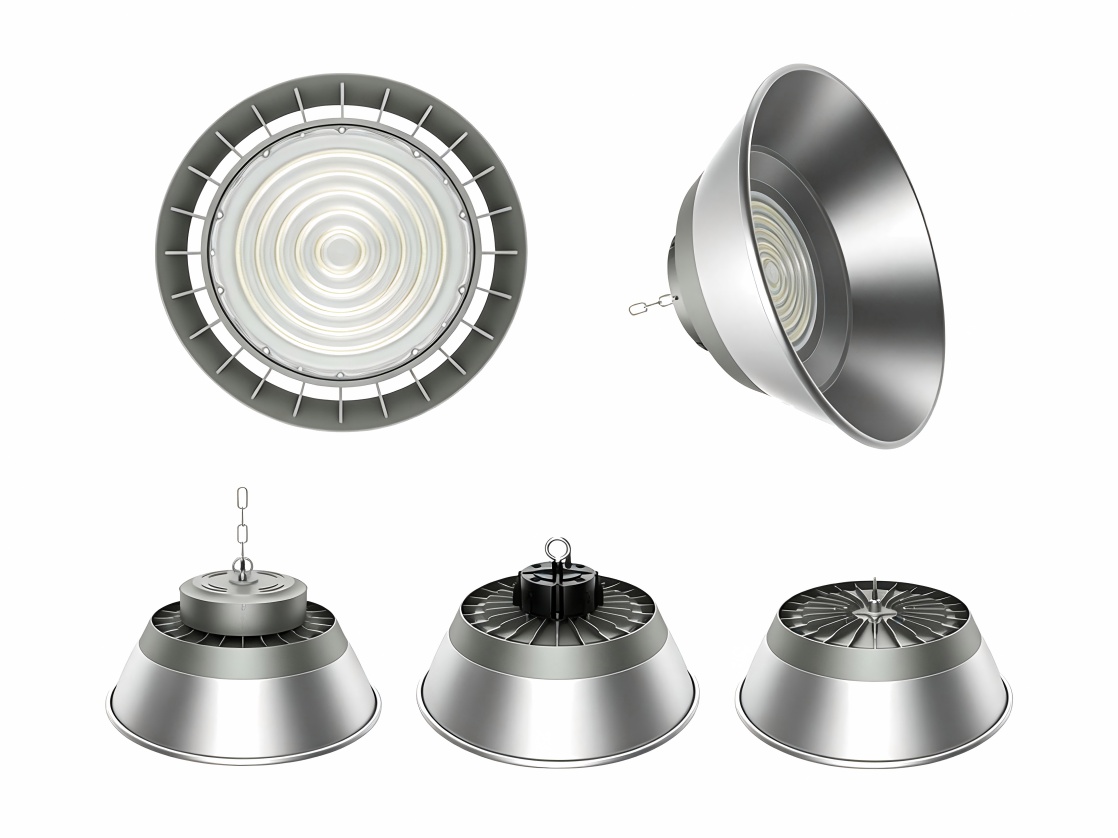

| SPECIFICATIONS | ||||||
| Luminous Flux | 12000LM | 14000LM | 18000LM | 21600LM | 24000LM | 28800LM |
| System Power | 100W | 120W | 150W | 180W | 200W | 240W |
| Size(Diameter*Height) | Φ355*280MM | Φ255*205MM | Φ355*280MM | Φ450*205MM | Φ450*270MM | Φ485*265MM |
| Net Weight | 1.66KG | 1.4KG | 2.29KG | 2KG | 3KG | 3.13KG |
| Efficiency | 120LM/W | |||||
| Color Temperature | 6000K/4000K | |||||
| CRI | CRI＞80 | |||||
| R9 | ＞19 | |||||
| Color Tolerance | SDCM＜5 | |||||
| UGR (Without Reflector) | 27 | 29 | ||||
| UGR (With Reflector) | 19 | 21 | 22 | |||
| Ingress Protection | IP54/IK06 | |||||
| Insulation Class | CLASS I | |||||
| Operating Temperature Range | -20℃~+45℃ (TA35℃) | |||||
| Surge Protection | 4KV/6KV | |||||
| Breather | Yes | |||||
| Lifespan | 2Yrs (10000H) / 3Yrs (20000H) / 5Yrs (50000H) | |||||
| Light Distribution | WB | |||||
| Voltage / Frequency | 220‑240V,50/60HZ | |||||
| Power Factor | ＞0.90 | |||||
| THD | ＜20% | |||||
| Ripple Current | ＜30% | |||||
| Certification | CCC; EMC | |||||
| Optional Accessories | Reflector(Large/Medium/Small), Hook / Pole‑mount Kit(Compatible with old versions) | |||||
| Housing Material & Process | Die‑cast Aluminum | |||||
