Application of DIALux Illumination Simulation in Football Pitch LED Lighting Design

Introduction

Professional football pitch lighting is never a simple lamp installation project. Unreasonable pole layout, mismatched beam angles, and improper lamp power will lead to uneven brightness, severe glare, insufficient vertical illuminance, and failed broadcasting qualification. To avoid on-site rework, extra costs and unqualified project delivery, professional lighting manufacturers rely on DIALux evo simulation for full-scene photometric analysis before construction.

As a core tool compliant with FIFA, UEFA and international CIE standards, DIALux enables accurate 3D modeling, illuminance calculation, glare simulation and scheme optimization. All HRLUX football stadium lighting projects adopt official DIALux simulation verification, ensuring every finished venue fully meets tournament and broadcast-grade requirements.

What Is DIALux Lighting Simulation?

DIALux is a globally authoritative and free professional lighting design software, widely adopted in outdoor sports venues, stadiums, squares and architectural lighting projects. It imports authentic lamp IES photometric files to simulate real luminous performance, including horizontal/vertical illuminance, uniformity, glare rating (GR), flicker performance and light pollution data.

Different from empirical manual design, DIALux simulation turns subjective lighting design into data-driven standardized engineering, eliminating design errors and ensuring 100% compliance with international sports lighting specifications.

Core Applications of DIALux Simulation in Football Pitch Lighting

1.Scientific Layout & Pole Parameter Optimization

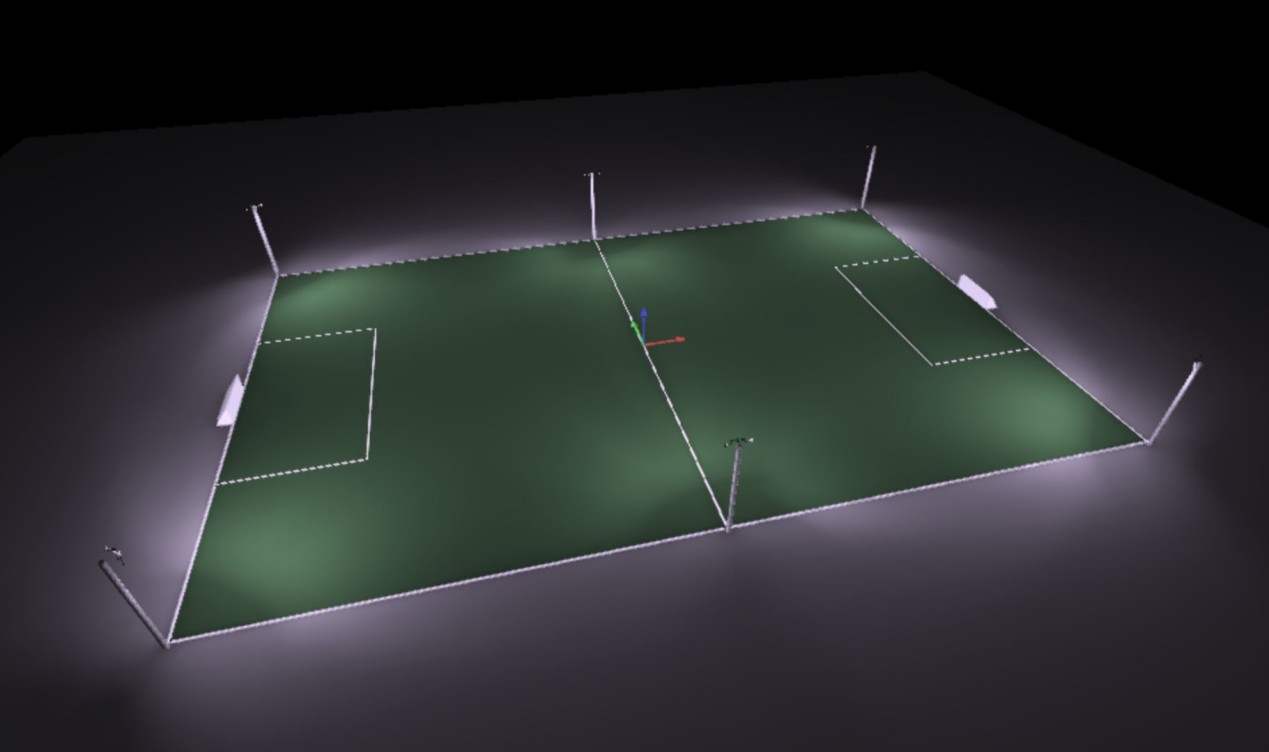

Different pitch sizes (5-a-side, 7-a-side, 11-a-side) and competition grades require differentiated pole heights, quantities and spacing. DIALux builds 1:1 venue 3D models to test multiple layout solutions, including 4-corner layout, 6-side layout, 8-side layout and roof canopy mounting.

Engineers can adjust pole height (15m–35m), installation distance, lamp tilt angle and spacing in the software to avoid central dark zones or over-bright edges. It effectively solves common on-site problems such as poor overall uniformity and inconsistent brightness between penalty area and midfield.

2.Accurate Illuminance & Uniformity Verification

Illuminance and uniformity are the two core indicators of football field lighting quality. DIALux precisely calculates average horizontal illuminance, vertical illuminance, minimum/maximum illuminance, and uniformity U1/U2 values.

HRLUX leverages DIALux simulation to match corresponding parameters for different grades:

•Training Grade: Ensure average illuminance ≥200lx, U2 ≥0.5

•Amateur Grade: Ensure average illuminance 300–500lx, U2 ≥0.6

•Professional Grade: Ensure average illuminance ≥750lx, U2 ≥0.7

•Broadcast Grade: Ensure vertical illuminance 1000–2000lx, U2 ≥0.75–0.85

All simulation data is recorded in official export reports, supporting project inspection, bidding and customer qualification verification.

3.Professional Glare & Light Pollution Control

Excessive glare seriously affects athletes’ visual judgment and match fairness, while stray light causes light disturbance to surrounding residential areas. DIALux can simulate professional GR glare rating and stray light distribution.

By adjusting lamp aiming angles, selecting matched beam angles and optimizing anti-glare optical structures, HRLUX optimizes GR value between 43–50. It effectively suppresses overflow light, complies with CIE 150:2017 light pollution standards, and makes sports venues more community-friendly.

4.Broadcast-Grade Flicker & Color Parameter Calibration

For HD and 4K/8K live broadcast venues, flicker and color consistency are indispensable indicators. Combined with professional driver parameters and lamp CCT/CRI data, DIALux verifies overall field lighting stability, ensuring flicker depth ≤0.5%, color tolerance ≤3SDCM, Ra ≥90–95 and R9 ≥80.

This professional calibration guarantees stable, high-restoration visual effects for commercial live streaming and slow-motion playback.

5.Energy-Saving Scheme Verification & Cost Control

Blindly increasing lamp power will lead to excessive energy consumption and unnecessary budget waste. DIALux compares multiple schemes with different lamp power and quantities to find the most cost-effective configuration.

In multiple football field renovation projects, HRLUX uses DIALux simulation to replace traditional high-power metal halide lamps with low-power high-efficiency LED lights, achieving 40%–70% power saving while meeting FIFA standard parameters, greatly reducing long-term operational costs for venue owners.

6.Standardized Project Report Output

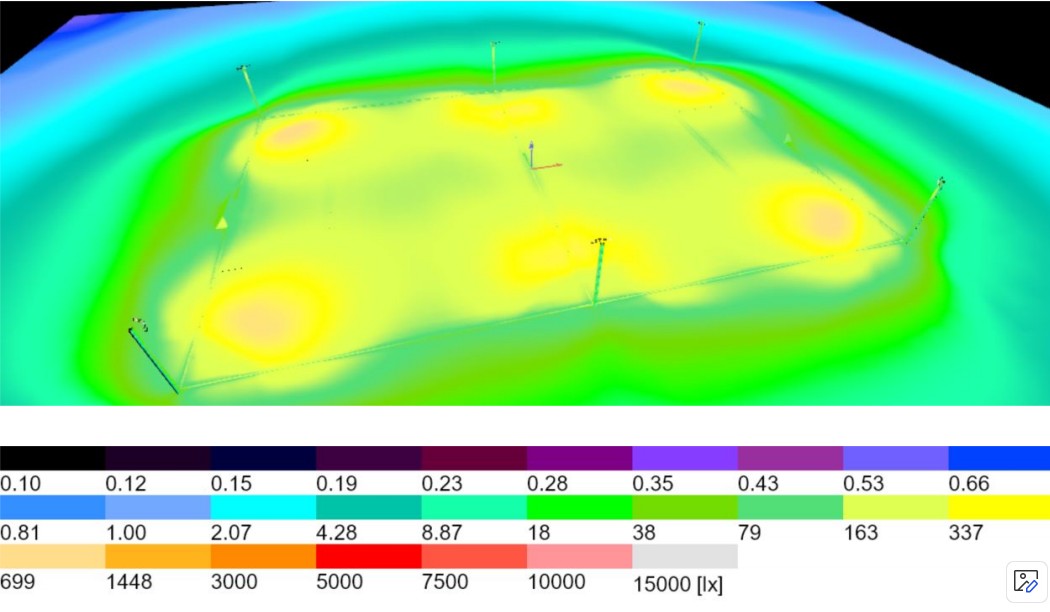

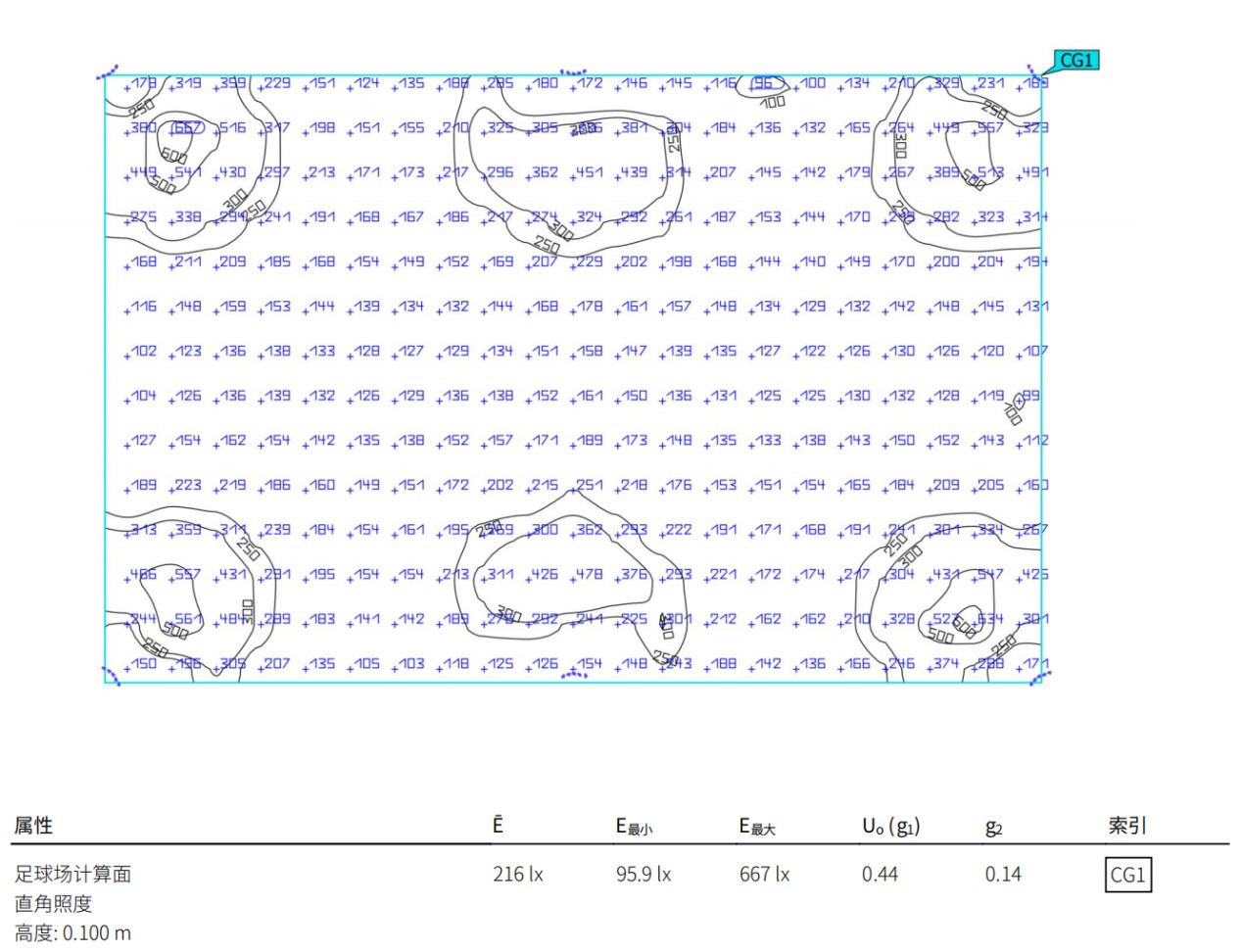

DIALux can export formal PDF simulation reports containing 3D venue models, layout diagrams, illuminance contour maps, parameter test data and overall evaluation results. As official technical documents, these reports support global project bidding, engineering acceptance and after-sales technical verification.

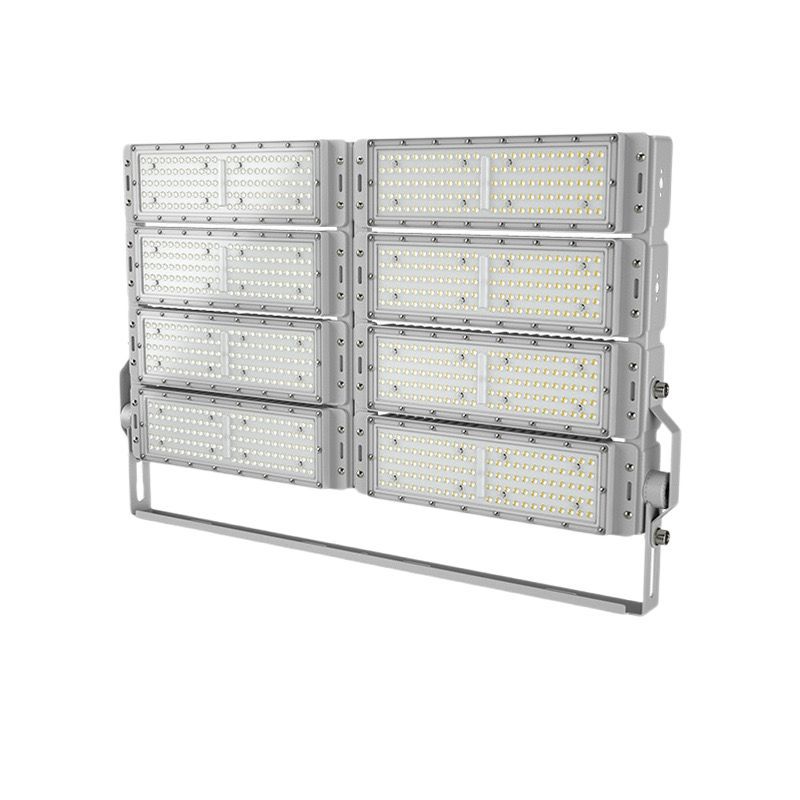

HRLUX Professional DIALux Simulation Service Advantages

Different from suppliers providing fixed generic schemes, HRLUX delivers one-to-one customized DIALux simulation design for every football lighting project:

•Import authentic IES files of HRLUX sports lights to ensure simulated data consistent with real on-site effects

•Adapt to 5-a-side, 7-a-side, 11-a-side and customized irregular football venues

•Optimize schemes for community training, campus amateur, professional competition and top broadcast-level scenarios

•Provide complete official simulation reports for global bidding and engineering acceptance

•Avoid on-site dark areas, glare, unqualified uniformity and repeated construction

Conclusion

DIALux illuminance simulation is the core prerequisite for standardized, professional and reliable football pitch LED lighting design. It standardizes the entire design process from layout planning, parameter optimization to effect verification, avoiding empirical design defects and project risks.

With professional DIALux simulation technology and mature sports lighting solutions, HRLUX helps global sports venue owners obtain compliant, energy-saving, low-maintenance and broadcast-ready football field lighting systems.
