Airport Apron LED High Mast Lighting Retrofit: Benefits & Common Pitfalls

1. Introduction

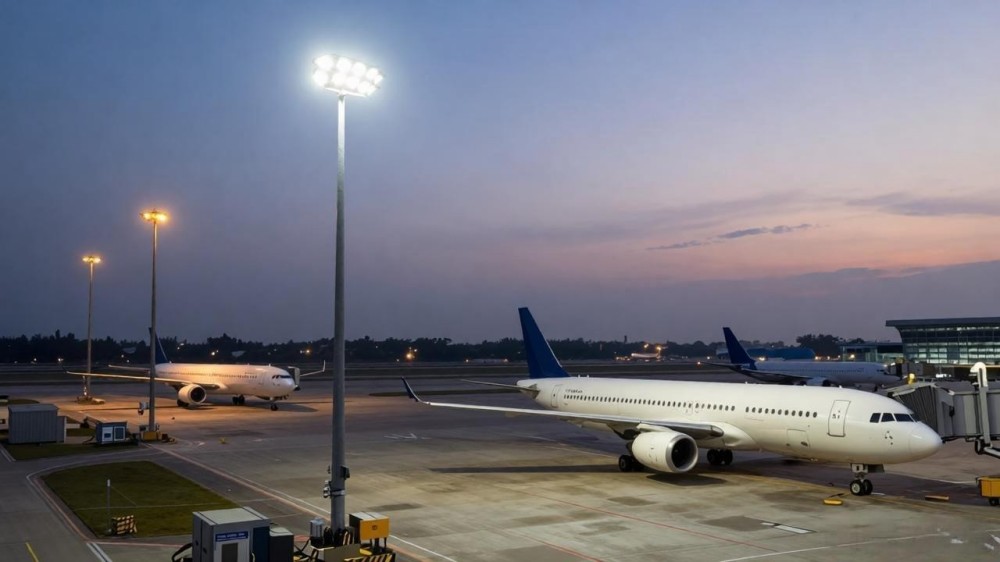

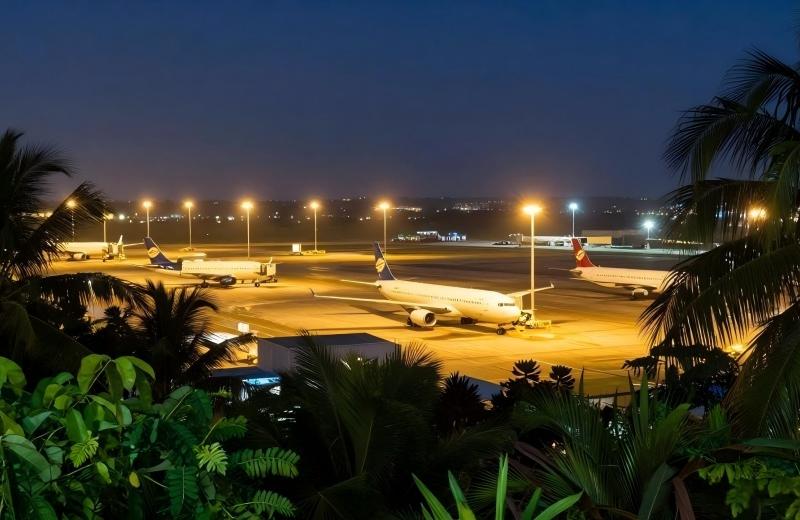

Airport apron lighting is one of the most critical infrastructures ensuring safe overnight aircraft operation. Most existing airport aprons still rely on traditional high-pressure sodium (HPS) high mast lights. Although HPS lights are low in initial cost, they cause long-term operational problems such as high power consumption, severe light decay, poor color rendering, and frequent high-altitude maintenance. With the global trend of energy saving and aviation safety upgrading, LED high mast light retrofit has become the mainstream solution for regional airport apron renovation projects. Southeast Asia airport apron lighting renovation project case.

2. Core Benefits of LED High Mast Light Retrofit for Airport Aprons

2.1 Higher Energy Saving Efficiency

Compared with traditional HPS lamps, professional aviation LED high mast lights reduce overall power consumption by 40%–51%. Combined with long L70 lifespan over 50,000 hours, airports can obtain stable annual electricity savings.

2.2 Lower Long-Term Maintenance Risks

 HPS lamps require replacement frequently due to short service life, forcing workers to carry out high-altitude operations many times every year. LED high mast lights with electric lifting structures greatly reduce high-level maintenance frequency and avoid safety risks during apron operation periods.

2.3 Improved Aviation Safety & ICAO Compliance

LED lighting provides uniform horizontal ground illumination and stable vertical illuminance on aircraft fuselages. Low-glare optical design effectively reduces light interference for pilots and tower controllers, fully meeting ICAO apron lighting standards.

3. Common Pitfalls in Airport Apron LED Retrofit Projects

Many failed apron renovation cases are caused by simple “lamp replacement only”. Airport lighting has strict aviation limitations that ordinary industrial lighting upgrades cannot satisfy.

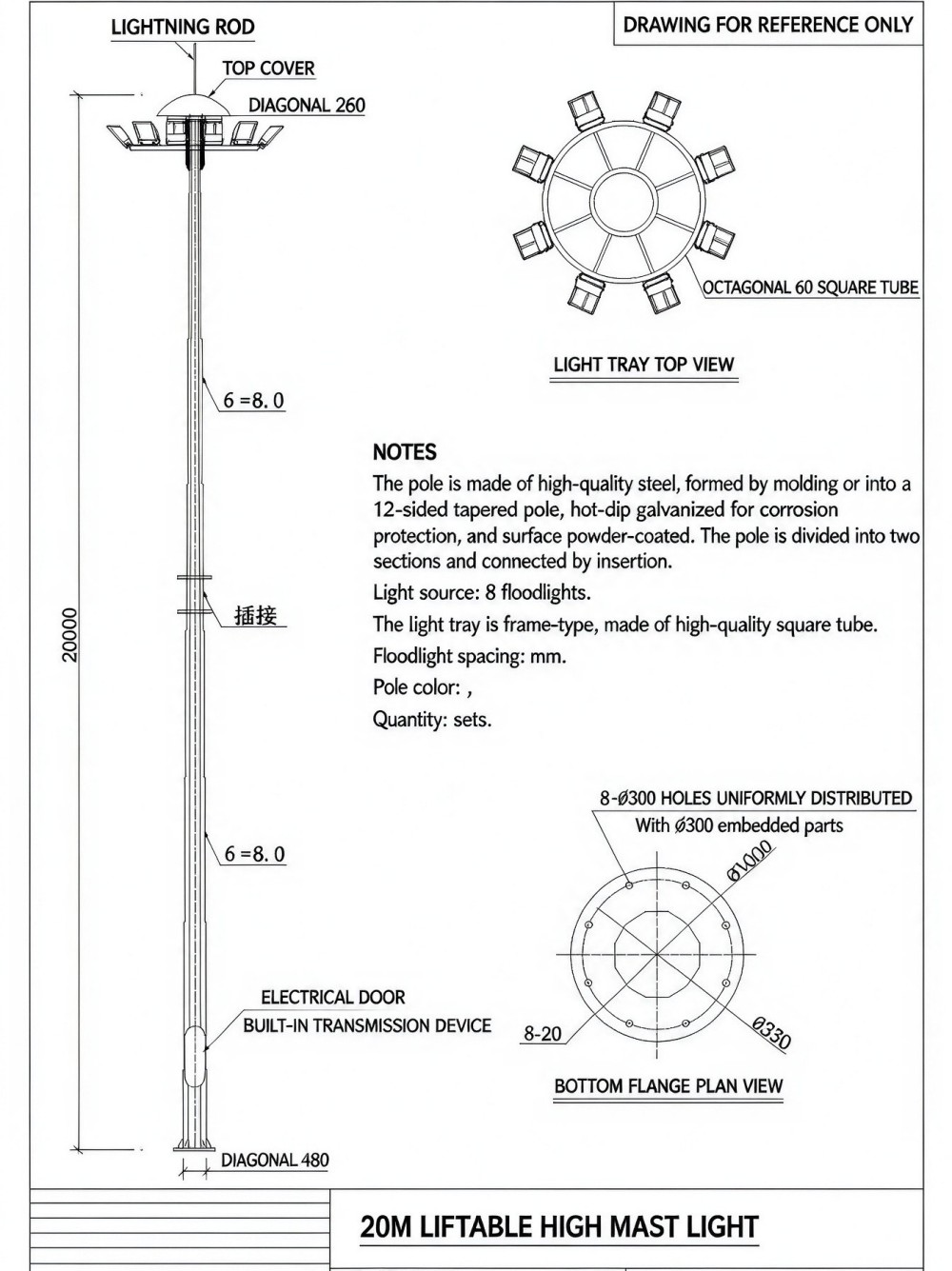

3.1 Ignoring Aircraft Vibration Resistance

 Apron areas suffer continuous vibration from aircraft engines. Ordinary LED lamps will loose internal structures and accelerate light decay without professional anti-vibration design.

3.2 Insufficient Lightning & Surge Protection

Airport power grids are complex and lightning-prone. Without 10kV SPD surge protection, LED drivers are easily burned out, causing frequent lamp failure.

3.3 Uncontrolled Glare & Light Spill

Improper beam angle selection causes strong stray light, affecting pilot night vision and failing TI glare index inspection.

3.4 Skipping Professional Dialux Simulation

 Aircraft wings and fuselages create large shadow areas. Without 3D Dialux simulation containing aircraft obstacle models, the actual illuminance will be uneven and fail acceptance.

4. Can Existing High Mast Poles Be Reused During Retrofit?

Most airport clients want to reuse original poles to save budget. Poles can be retained only if the foundation load test, wind resistance capacity, and galvanized anti-corrosion layer pass inspection. If the lifting system is aging, full-set replacement is recommended to avoid hidden safety hazards.

5. FAQ

Q1: What is the ROI period for airport apron LED retrofit?

A1: The static payback period is generally 2–3 years, based on electricity saving and maintenance cost reduction.

Q2: Is Dialux simulation necessary for apron lighting renovation?

A2: Yes. ICAO-standard airport projects require professional lighting simulation to guarantee uniform illuminance and qualified glare control.

6. Conclusion

 Airport apron LED retrofit is not simple lamp replacement. Successful upgrading requires anti-vibration structure, surge protection, ICAO-compliant low-glare optical design, and professional Dialux simulation. HRLUX provides full-set LED high mast lighting solutions and free photometric reports for airport renovation projects. ICAO compliance specifications for new airport apron high mast lighting procurement.
