Neptune Series 200W–600W High Power LED Flood Light is a professional-grade outdoor lighting solution engineered for large-area illumination, combining industry-leading brightness, extreme durability, and energy efficiency. It adopts high-efficiency LED lamp beads and an optimized heat dissipation structure, with a luminous efficacy of up to 150 lumens per watt, enabling stable output even in harsh outdoor environments. The die-cast aluminum integrated lamp body, paired with an IP66 waterproof and dustproof rating, can withstand heavy rain, salt spray, high temperatures and impacts, ensuring durability and reliability.
Applications:
Certified Quality for Global Projects

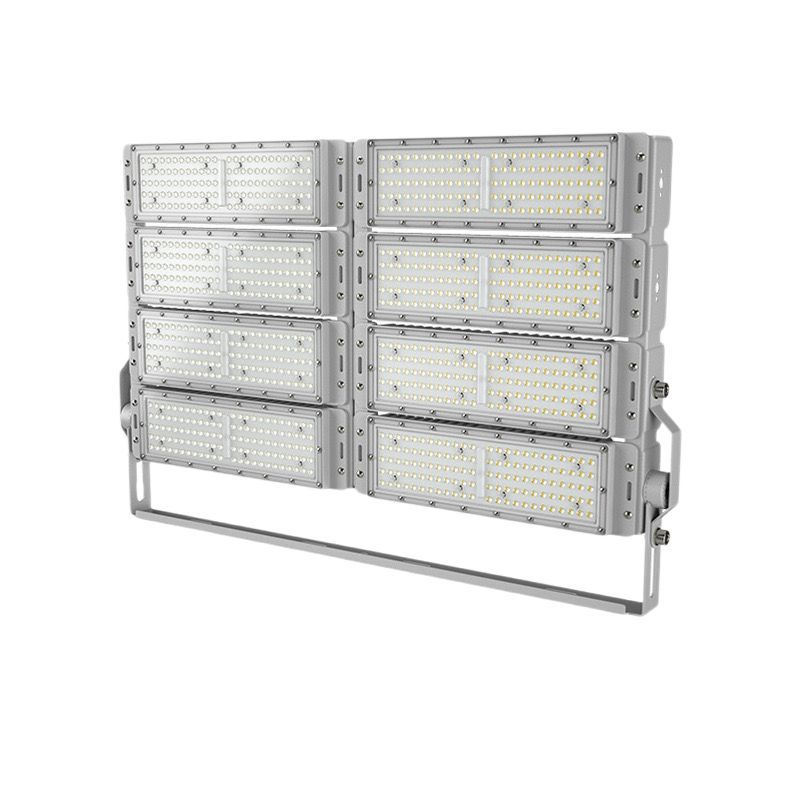

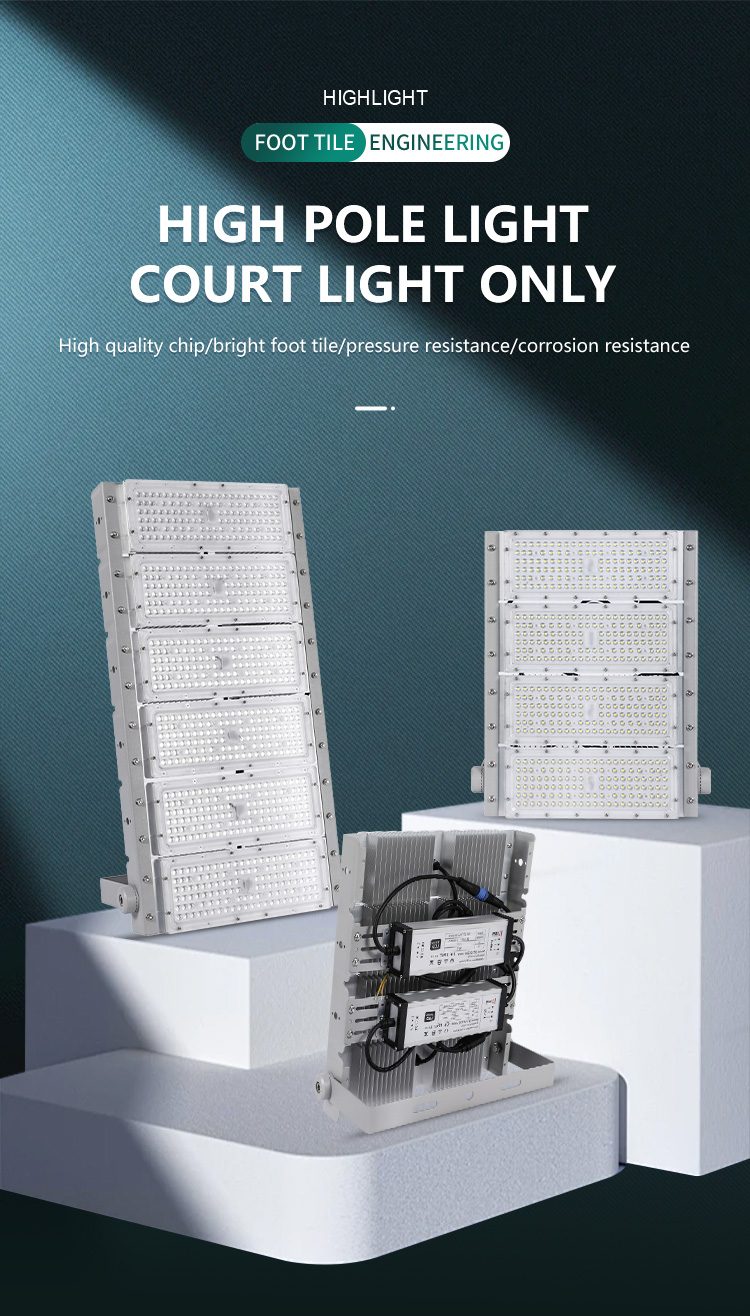

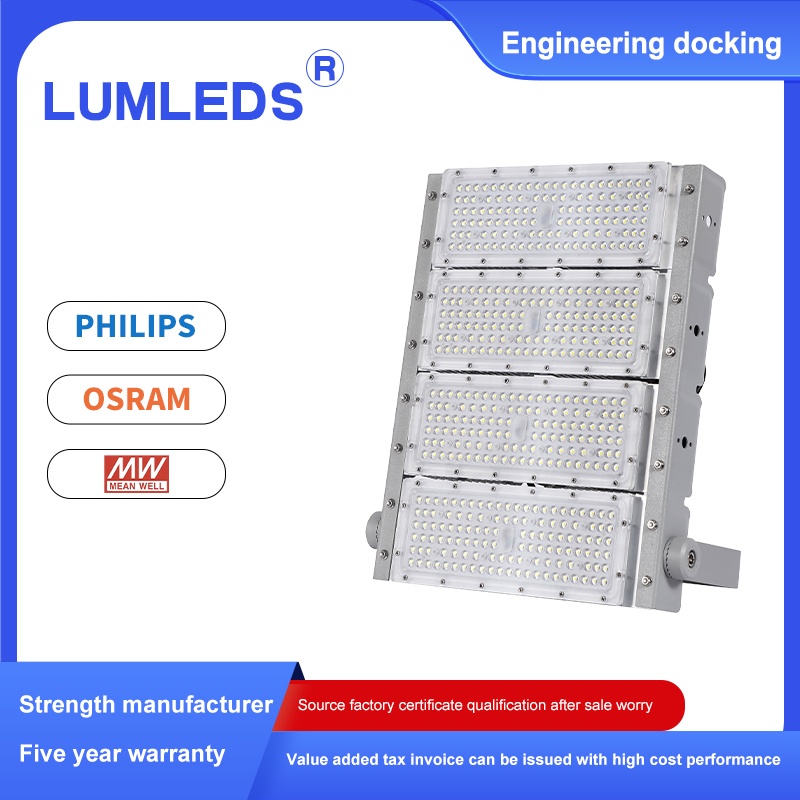

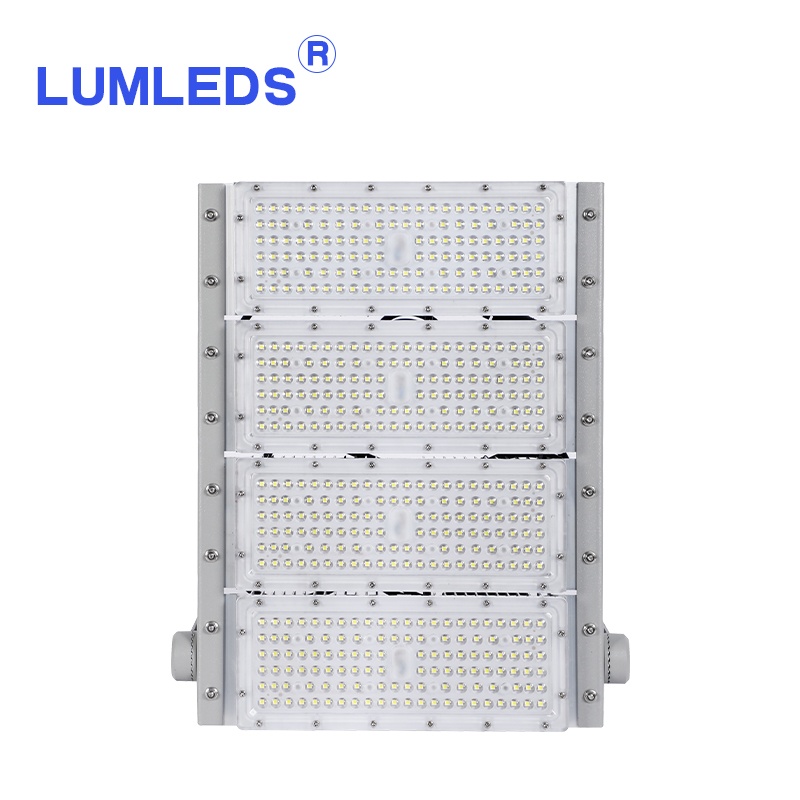

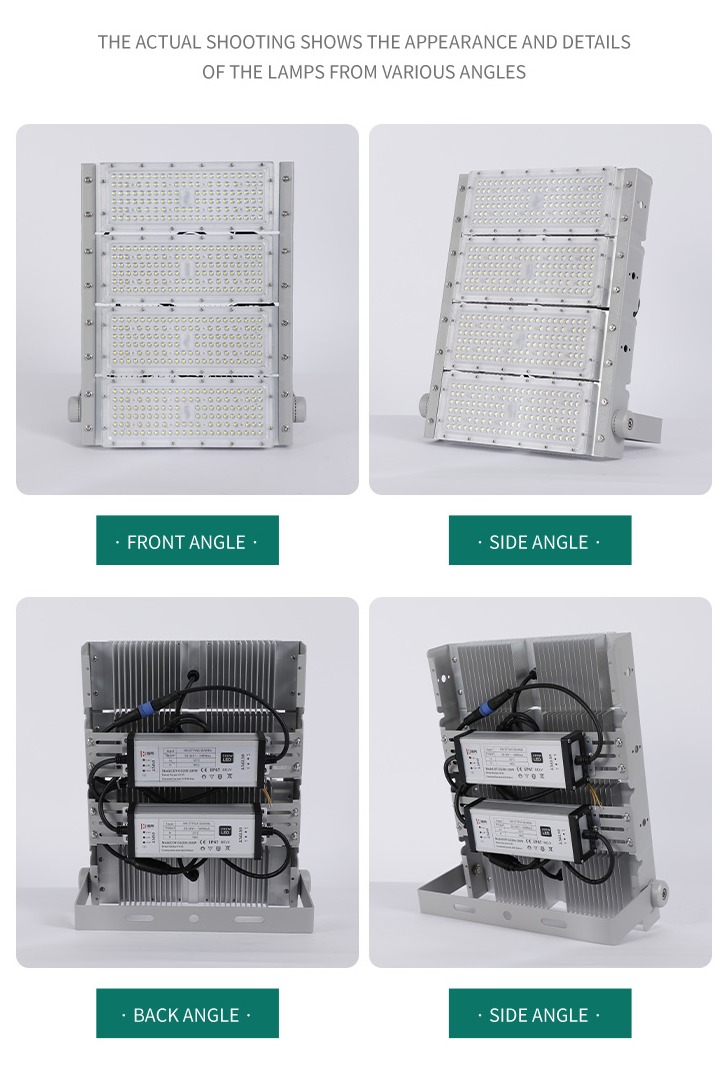

Neptune 200W-600W Outdoor LED Floodlight

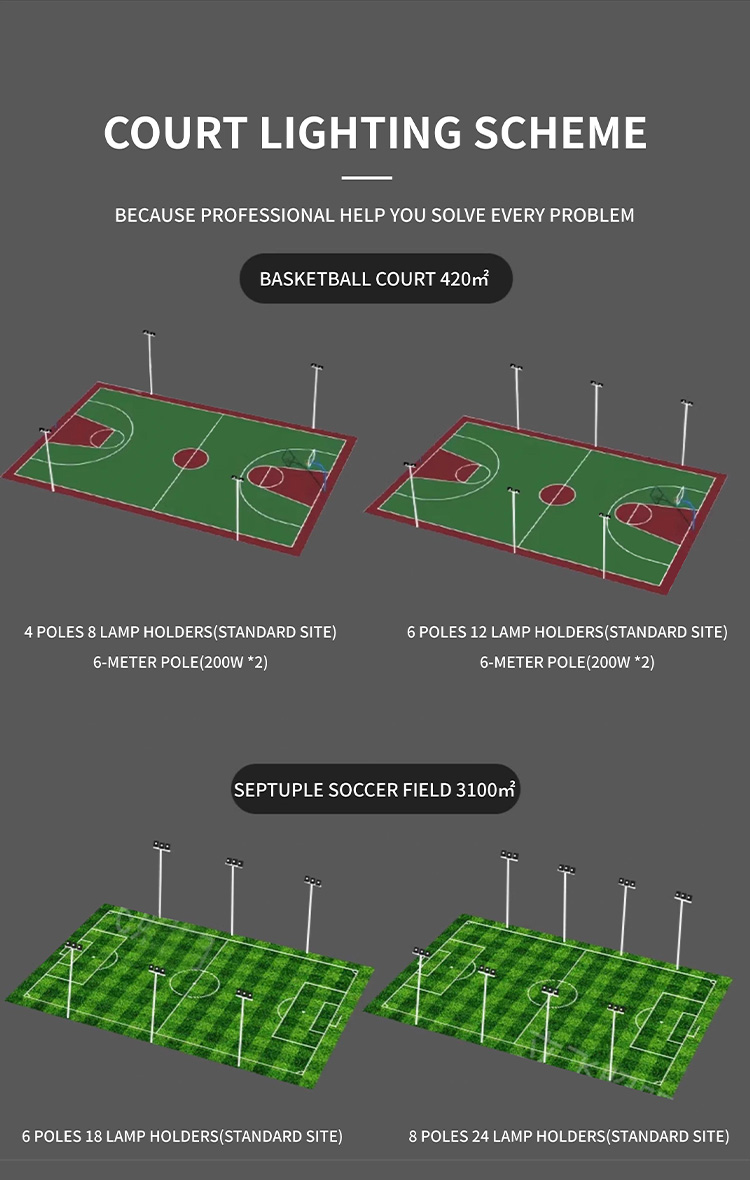

High-Lumen IP66 Waterproof Lighting for Stadiums & Large Sites
Ultra-High Brightness & Energy Efficiency

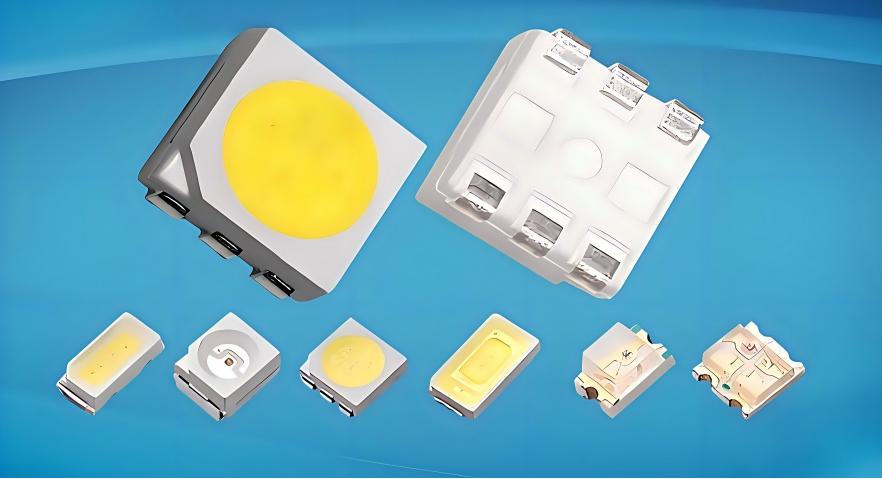

Equipped with high-quality SMD LED chips, delivering uniform, glare-free illumination with CRI >80.Reduces energy consumption by 70% compared to traditional HPS/MH flood lights, cutting electricity costs significantly.Modular design allows flexible power configuration to match your lighting needs.

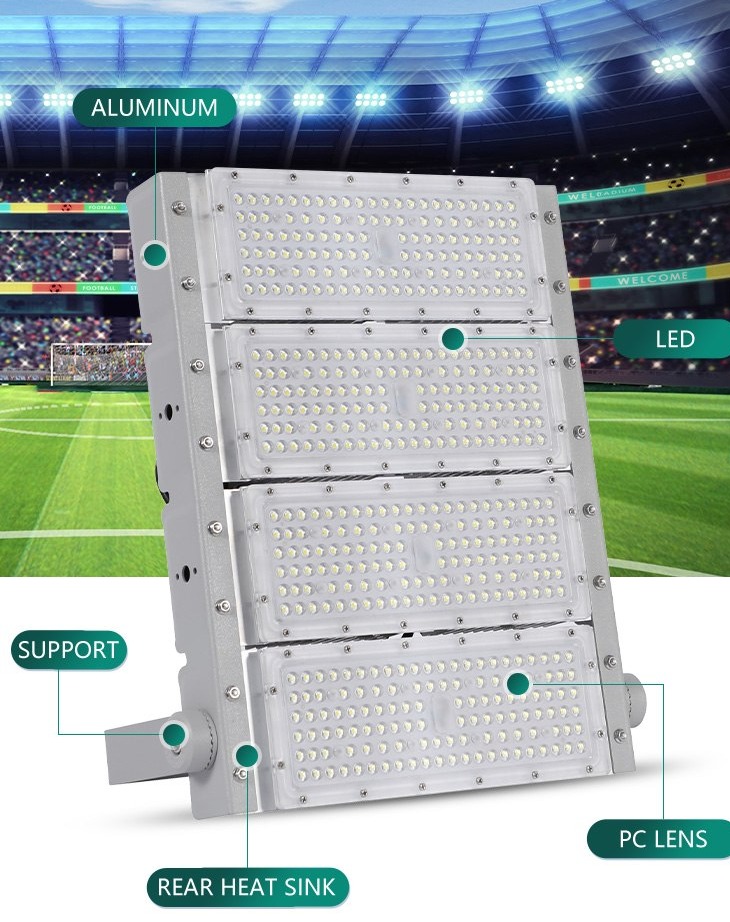

Premium Die-Cast Aluminum Housing

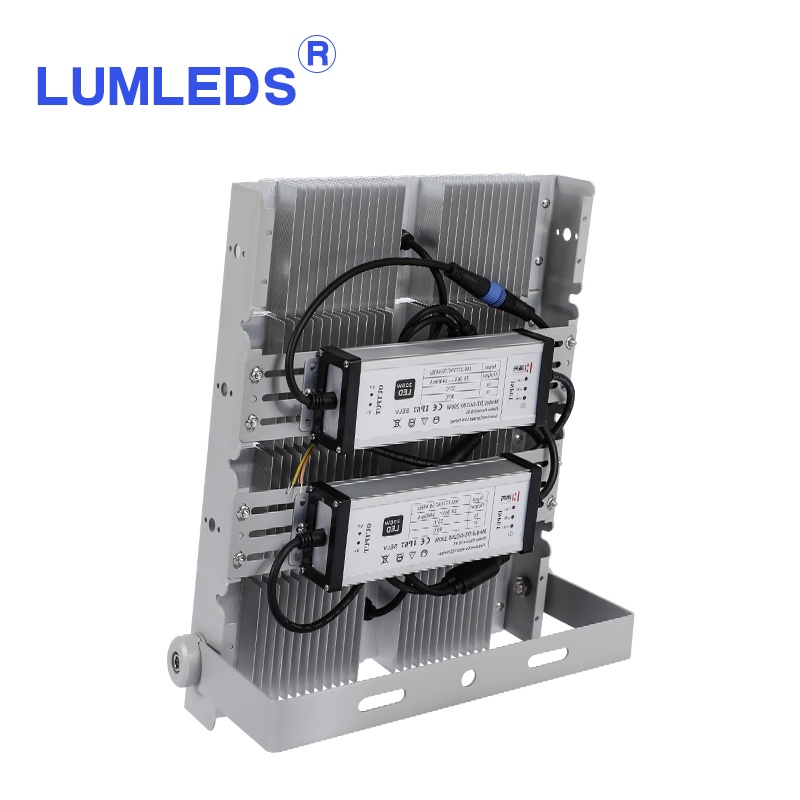

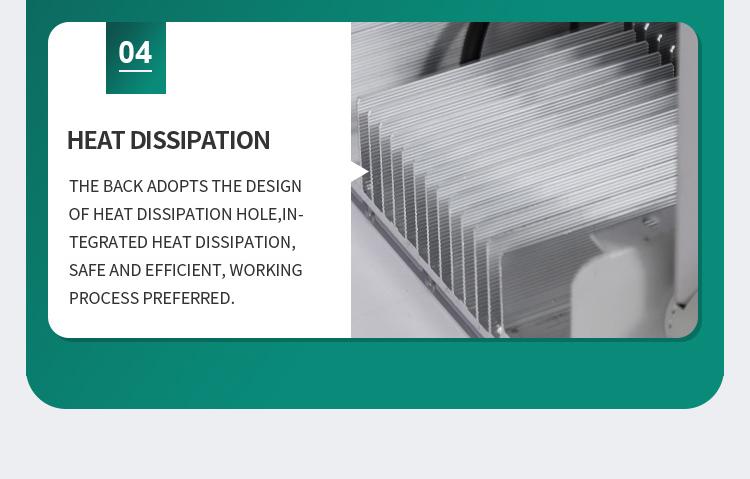

Robust die-cast aluminum alloy housing with excellent heat dissipation, extending LED lifespan to over 50,000 hours.Seamless integrated structure with high-quality silicone sealing rings, achieving IP66 waterproof and dustproof rating.Withstands extreme weather: heavy rain, snow, high temperature, and coastal salt spray environments.
Professional Optical Design

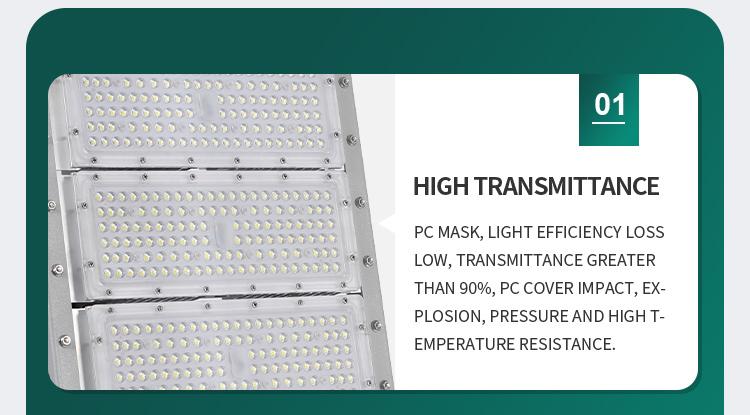

IHigh-transmittance PC lens with anti-UV and anti-yellowing properties, ensuring 95%+ light transmittance.Multiple beam angle options (15°/30°/60°/90°/120°) for precise lighting control, suitable for different application scenarios.Uniform light distribution, no dark spots, meeting professional lighting standards for sports fields and industrial sites.

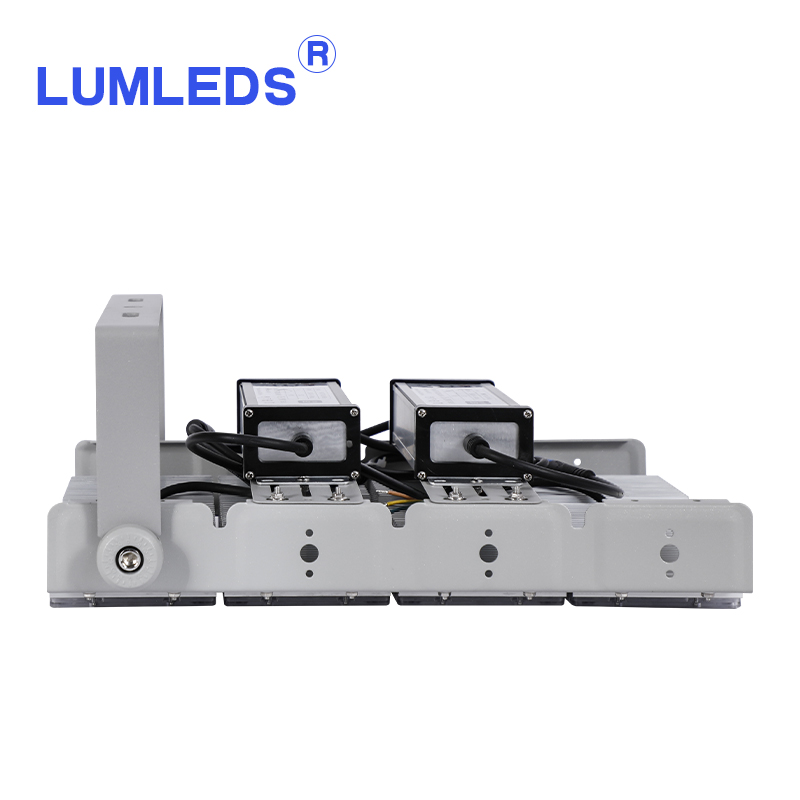

Reliable Electrical Performance

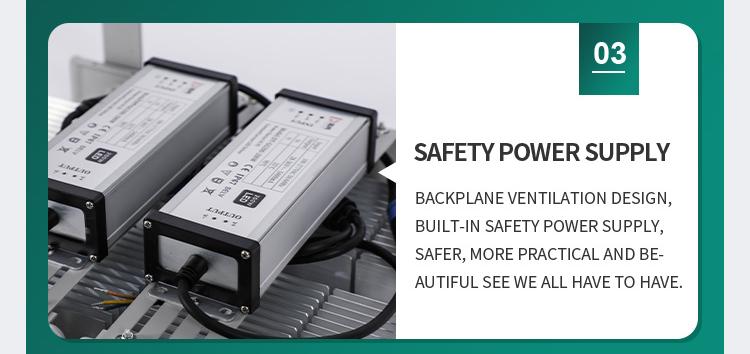

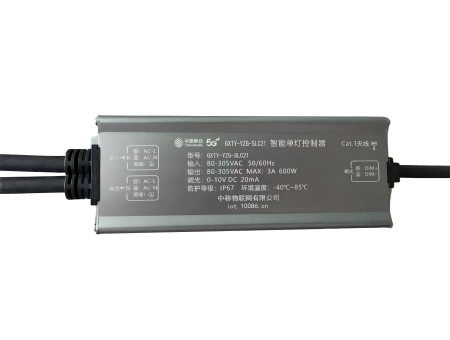

Built-in high-efficiency isolated LED driver with over-voltage, over-current, and short-circuit protection.Wide input voltage range (AC 100-277V / 220-480V), compatible with global power grids.Surge protection up to 10KV, ensuring stable operation in areas with unstable power supply.Optional 0-10V dimming, photocell sensor, and motion sensor for smart energy management.
Easy Installation & Maintenance

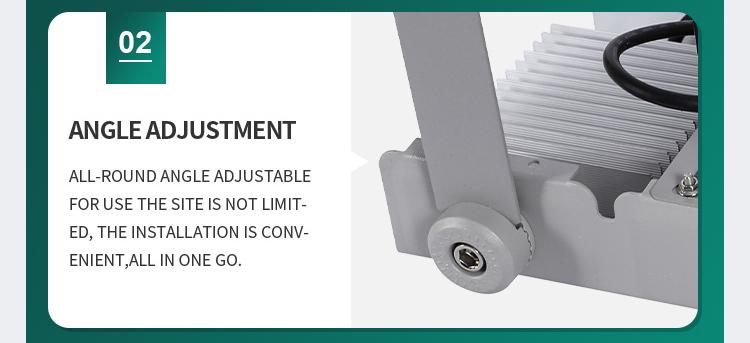

Adjustable mounting bracket with 0-360° angle adjustment, suitable for wall, pole, and ceiling installation.Lightweight yet sturdy structure, reducing installation labor and structural load.3-5 years of product warranty, providing comprehensive after-sales support for global projects.
| Model Number | MZ2-2 | MZ2-3 | MZ2-4 | MZ2-5 | MZ2-6 |
| Size | L215*W360*H125MM | L315*W360*H125MM | L415*W360*H125MM | L525*W360*H125MM | L625*W360*H125MM |
| Rated Power | 200W | 300W | 400W | 500W | 600W |
| Total Lumen | 30000 LM | 45000 LM | 60000 LM | 75000 LM | 90000 LM |
| Color Temperature | 3000K/4000K/6000K | ||||
| Input Voltage | AC 170-265V / 110-277V | ||||
| Brace eye distance | 155MM | ||||
| CRI | ≥70 | ||||
| IP/IK Rate | IP66 / IK09 | ||||
| Material | Stretch aluminum profiles | ||||
| Heat Dissipation | Natural Convection Heat Dissipation | ||||
| Working Temperature | -40°C ~ +65°C | ||||
| Service Life | ≥50,000 Hours | ||||
Step 1: Select installation method
Wall-mounted Installation、Pendant Installation、 Ground-mounted Installation.
Step 2: Fix the Screws
Align the lamp bracket with the installation position, fix it firmly with matching screws, and ensure stable installation without looseness.
Step 3: Connect the Wires
Connect live, neutral and ground wires as marked, close the junction box tightly, and complete waterproof sealing.
Step 4: Adjust the Angle
Loosen the adjustment screw, adjust the irradiation angle as needed, then tighten the screw to lock the position.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.

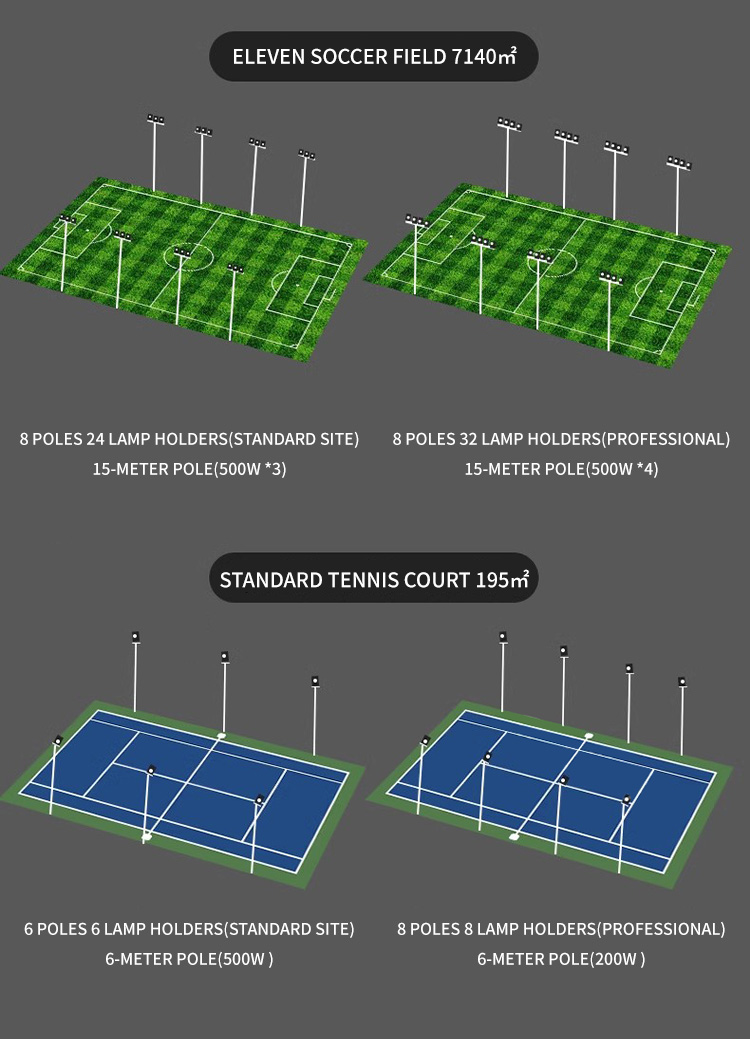

Need a Dialux simulation for your project? Click here for a free lighting plan.
