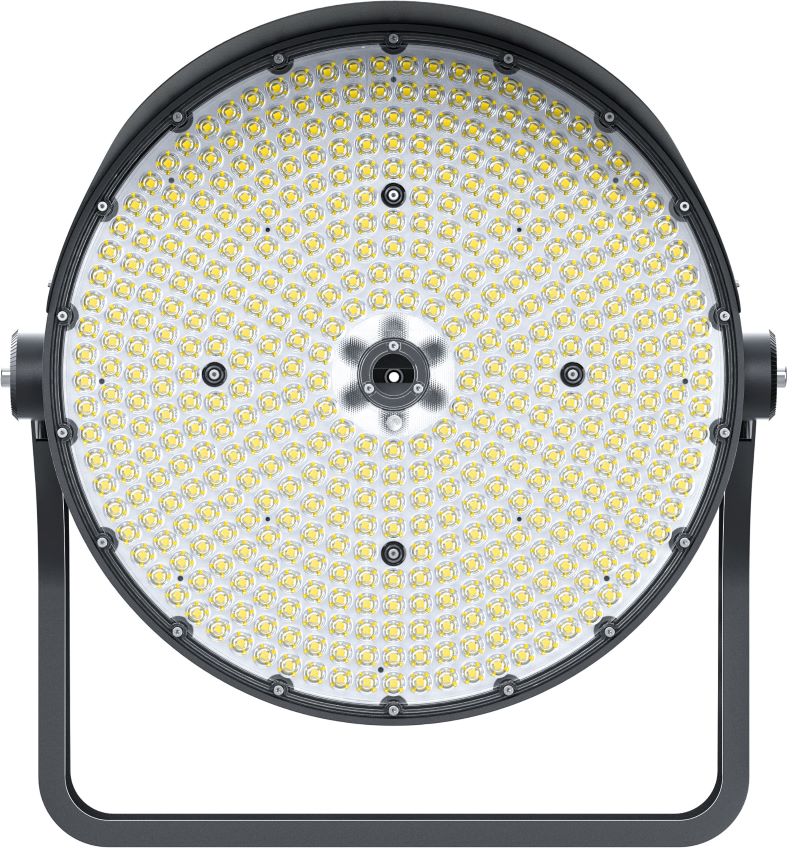

Dark Pluto 1200W High Lumen LED Floodlight 180000lm

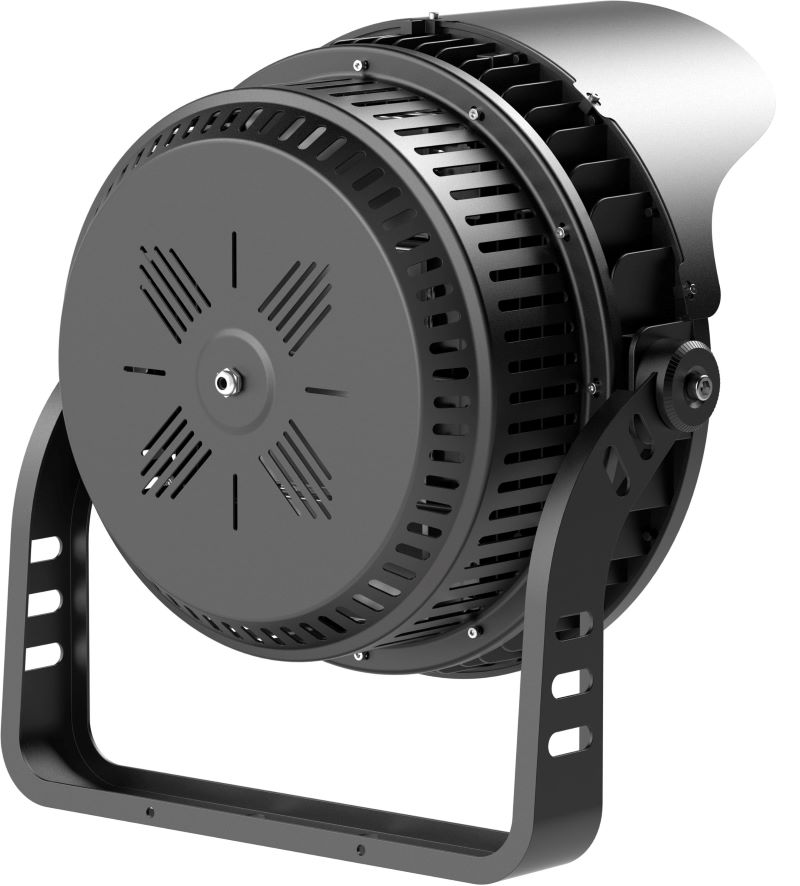

IP66 Waterproof Dark Pluto Series LED Industrial Light

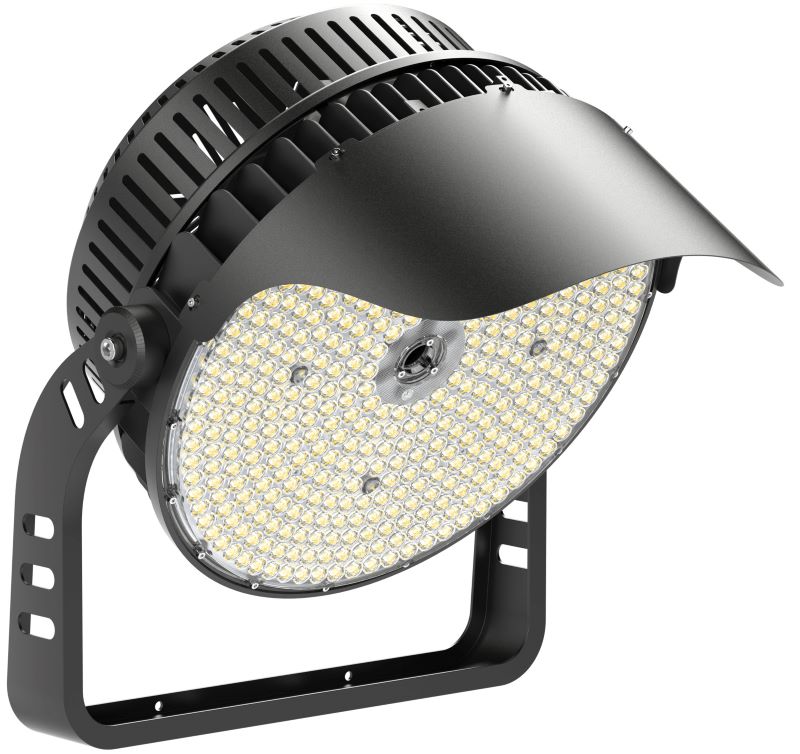

Dark Pluto Series Die-Cast Aluminum LED Floodlight

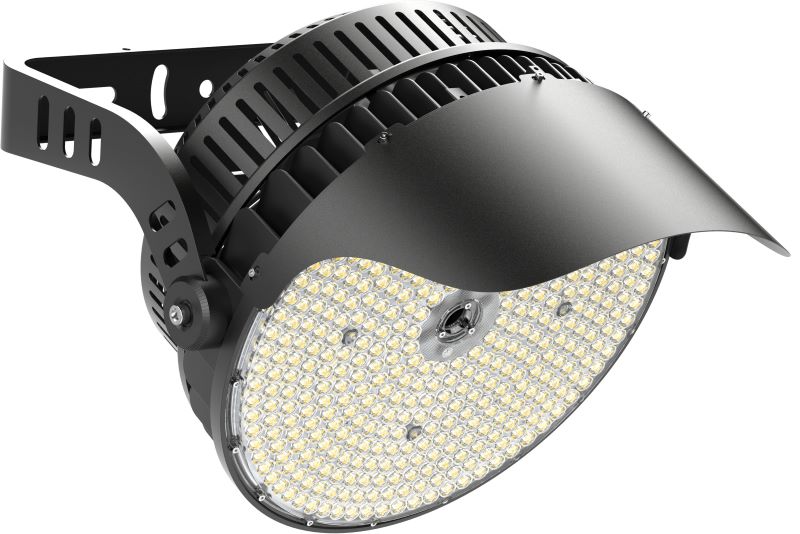

180° Adjustable Dark Pluto LED Stadium Light

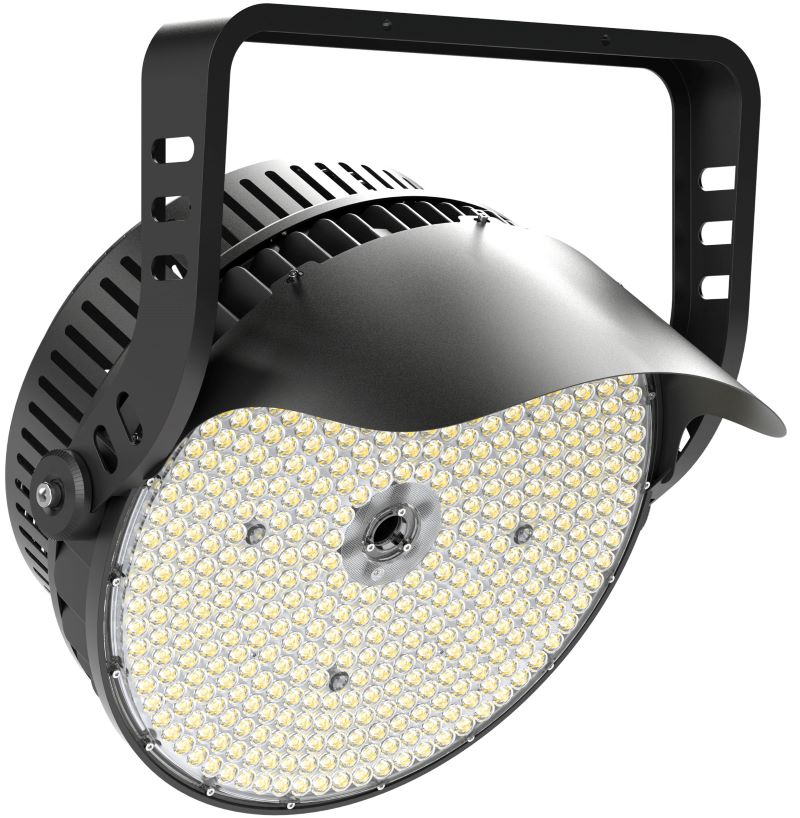

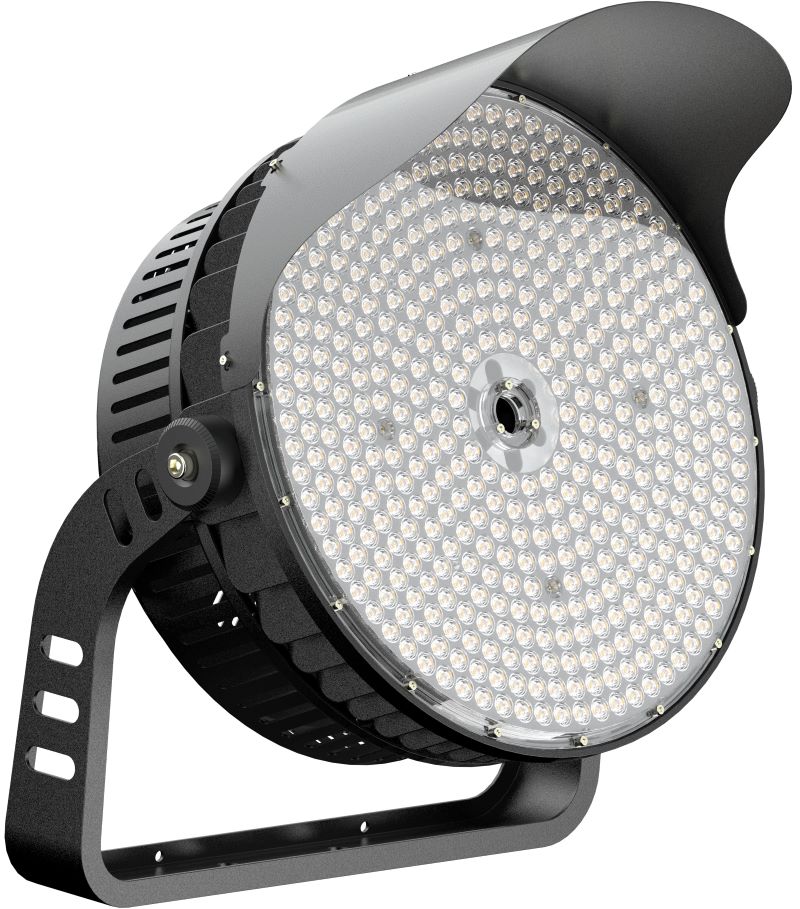

Anti-Glare Visor Dark Pluto Series LED Floodlight

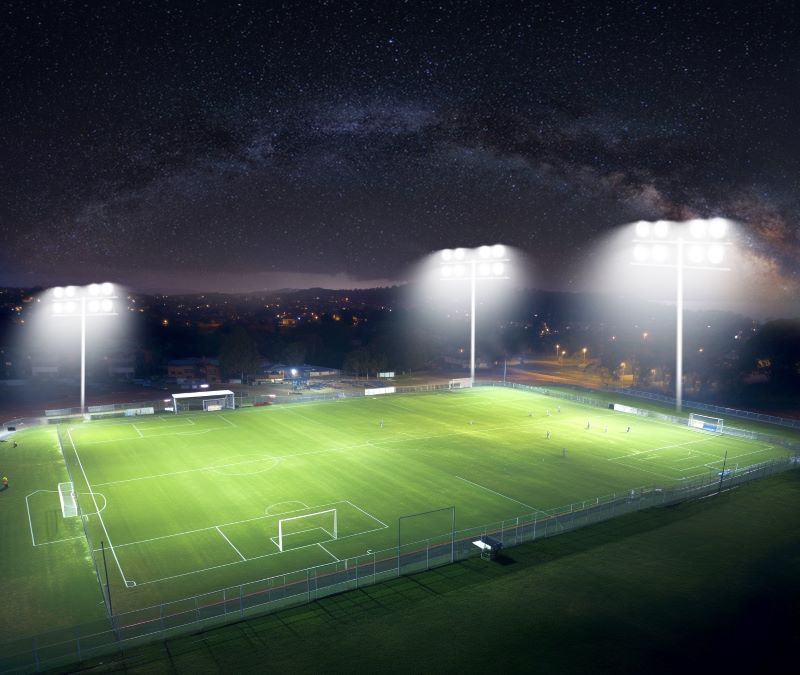

Dark Pluto Series LED Football Pitch Floodlight

Dark Pluto Series High-Power LED Stadium Floodlight

Dark Pluto Series high-performance LED stadium floodlights are engineered for demanding large-scale outdoor lighting applications, including professional sports fields, football pitches, industrial yards, and port terminals. Built with rugged durability and extreme brightness at their core, these fixtures deliver reliable, uniform illumination in the harshest environments while meeting global energy efficiency standards.



Applications:

  • Professional football pitche
  • Large public parks and parking lots
  • Port terminals
  • Warehouses
  • Construction sites and logistics hubs​
  • Amateur football pitches
  • Industrial yards and manufacturing facilities
  • Stadiums and sports arenas



Certified Quality for Global Projects



Inquire Now

Dark Pluto Series High-Power LED Stadium Floodlight

Subtitle: 500W-1200W Options, Ultra-Bright & Durable









Professional Outdoor LED Floodlight Dark Pluto Series

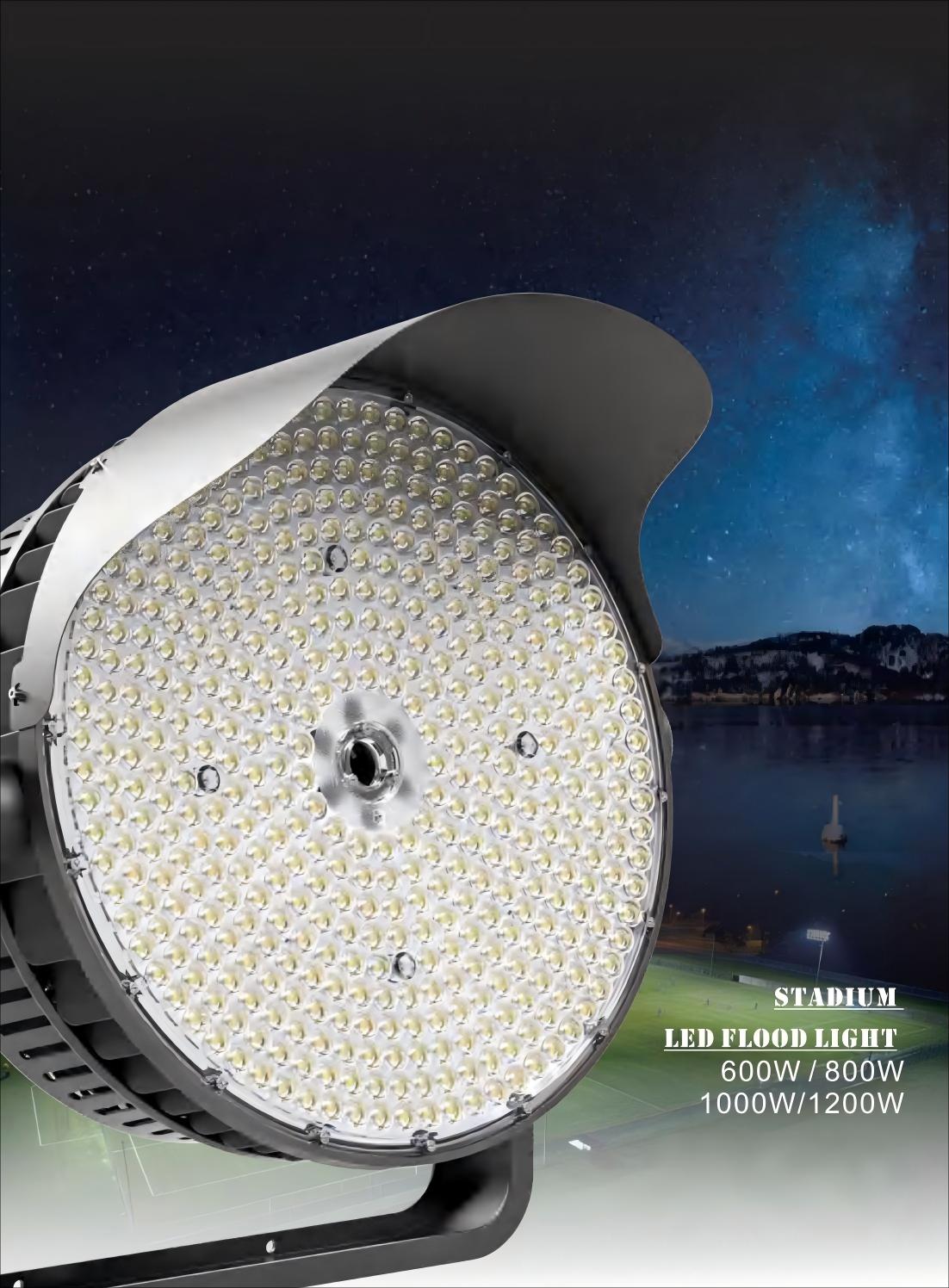

Dark Pluto Series Die-Cast Aluminum Housing Detail

Ultra-Bright Performance for Large Spaces

Deliver stadium-grade illumination with lumen outputs up to 180,000 lm, ensuring uniform, shadow-free lighting across expansive sports fields, industrial facilities, and open-air work zones. Eliminate dark spots and meet professional lighting standards for both recreational and competitive use.







 Built to Withstand the Elements

The robust die-cast aluminum housing, finished with a durable black powder coat, provides exceptional corrosion resistance and impact protection. With IP65/IP66 ratings, these lights are fully dust-tight and waterproof, operating reliably through heavy rain, snow, and extreme temperature fluctuations.







Flexible Installation for Every Application

The 180° adjustable knuckle mount allows versatile installation on poles, walls, ceilings, or high masts, making it easy to direct light exactly where it’s needed. Perfect for retrofitting existing infrastructure or designing new lighting layouts for sports complexes and industrial sites.







Reliable Electrical Performance

Built-in high-efficiency isolated LED driver with over-voltage, over-current, and short-circuit protection.Wide input voltage range (AC 100-277V / 220-480V), compatible with global power grids.Surge protection up to 10KV, ensuring stable operation in areas with unstable power supply.Optional 0-10V dimming, photocell sensor, and motion sensor for smart energy management.







Finned Heat Dissipation & Anti-Glare Design

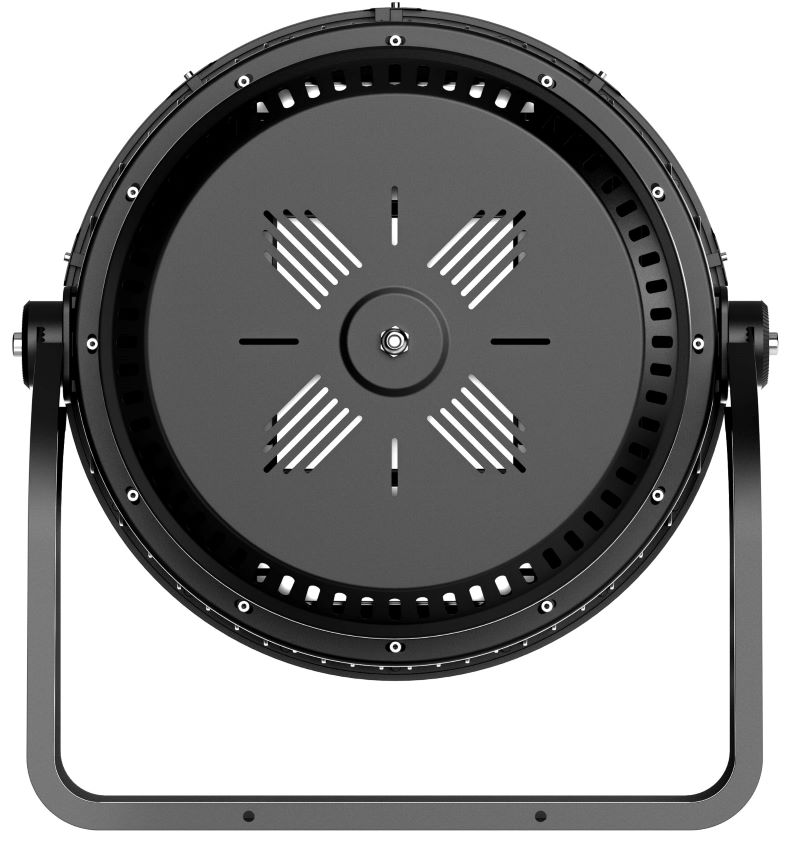

Adopts finned heat sink structure on the back, which enlarges the heat dissipation area and quickly conducts heat away from the light source to reduce light decay. Equipped with a protective anti-glare visor, it softens strong light, reduces visual irritation for athletes and workers, and improves overall lighting comfort and safety.

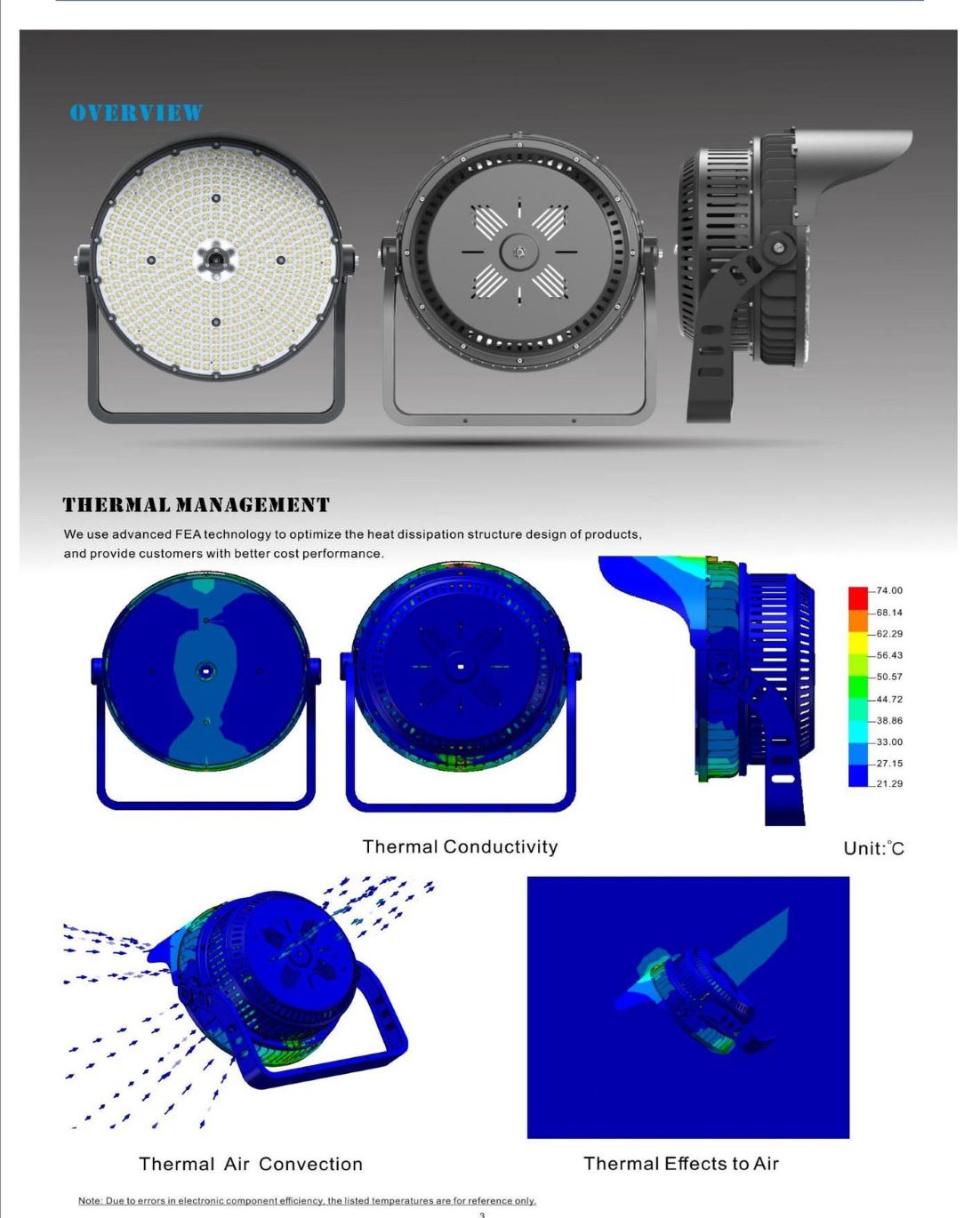

Dark Pluto IP66 Waterproof Test Scene

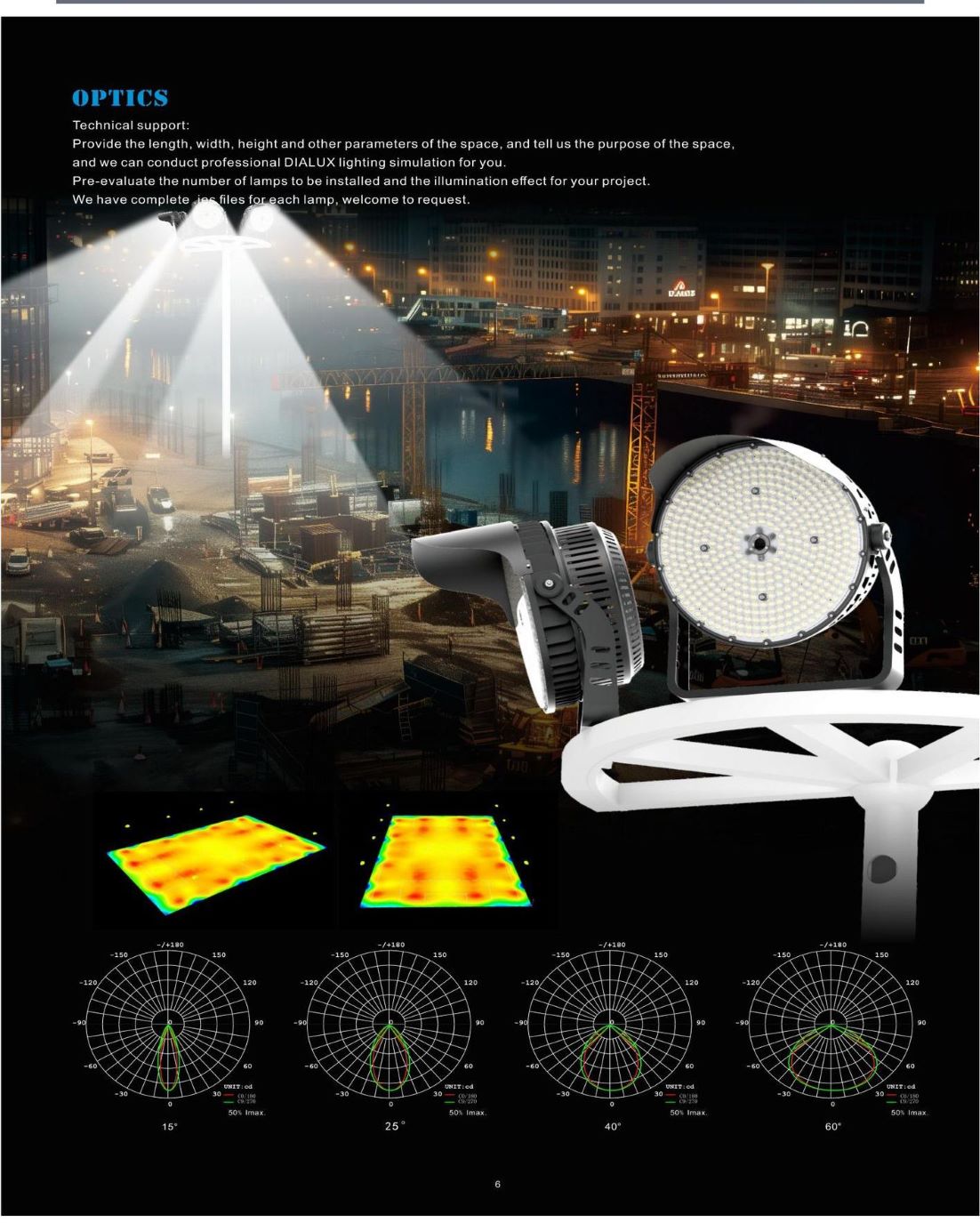

Dark Pluto LED Floodlight Lumen Output Test Diagram



Technical Specifications



Model Number YX-600 YX-800 YX-1000 YX-1200
Size L432*W415*H232MM L502*W495*H232MM L577*W545*H245MM L642*W610*H245MM
Rated Power 600W 800W 1000W 1200W
Total Lumen 96000 LM 128000 LM 160000 LM 192000 LM
Color Temperature 3000K/4000K/6000K
Input Voltage AC 170-265V / 110-277V
CRI ≥70
IP/IK Rate IP66 / IK09
Material Stretch aluminum profiles
Heat Dissipation Natural Convection Heat Dissipation
Working Temperature -40°C ~ +65°C
Service Life ≥50,000 Hours

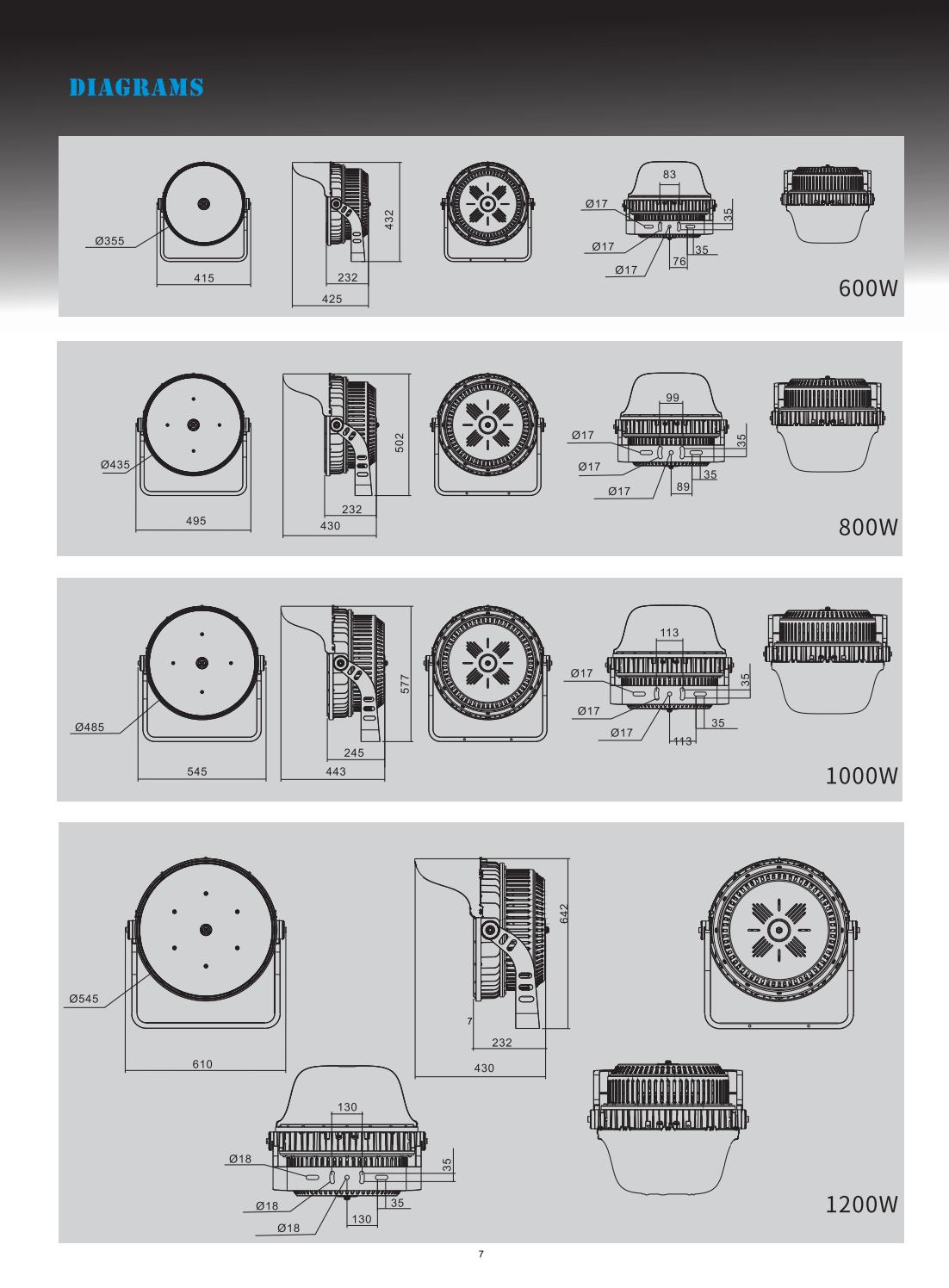

Dark Pluto Series Product Introduction Diagram









Product Structure

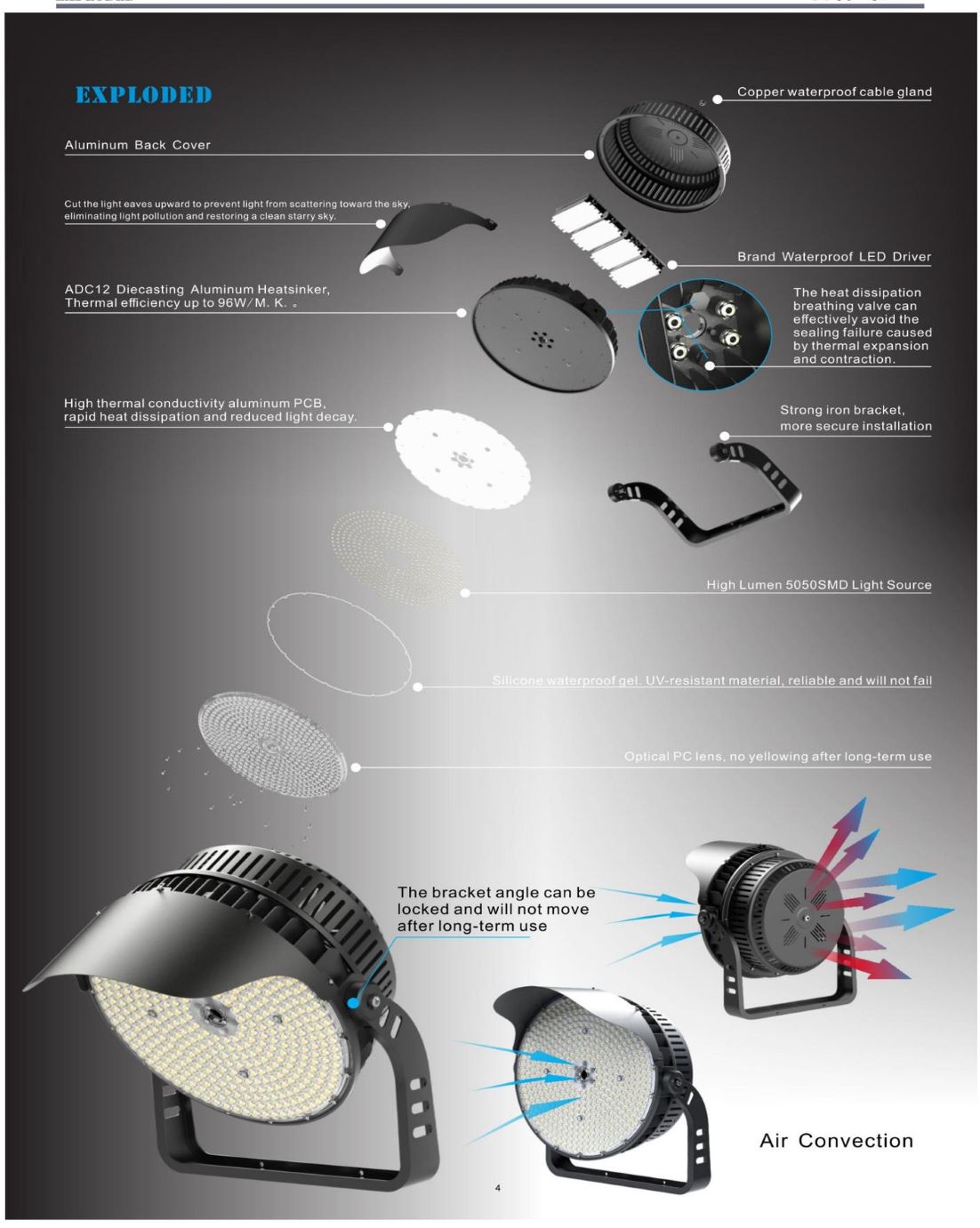

Dark Pluto Series Die-Cast Aluminum Housing Detail

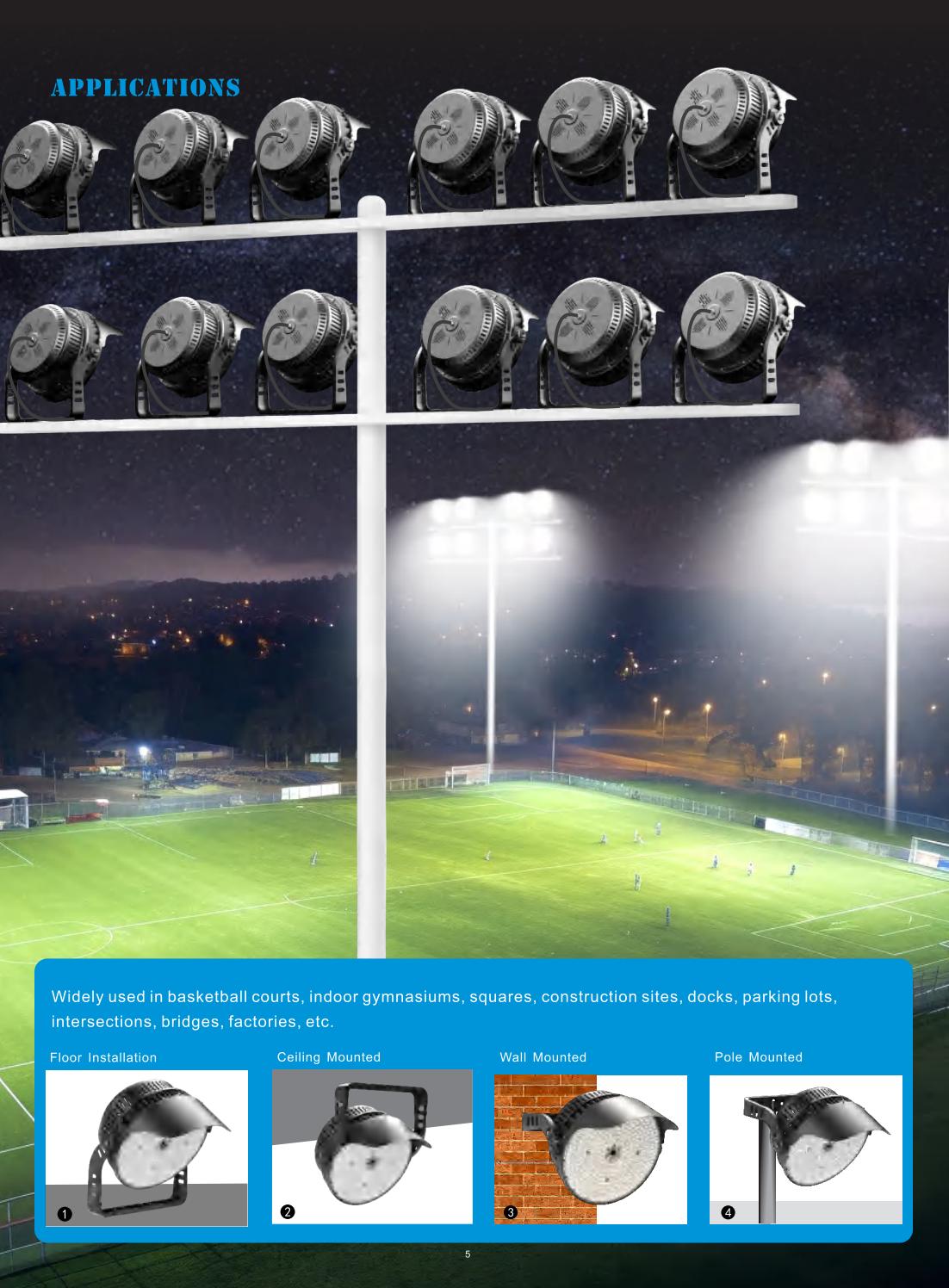

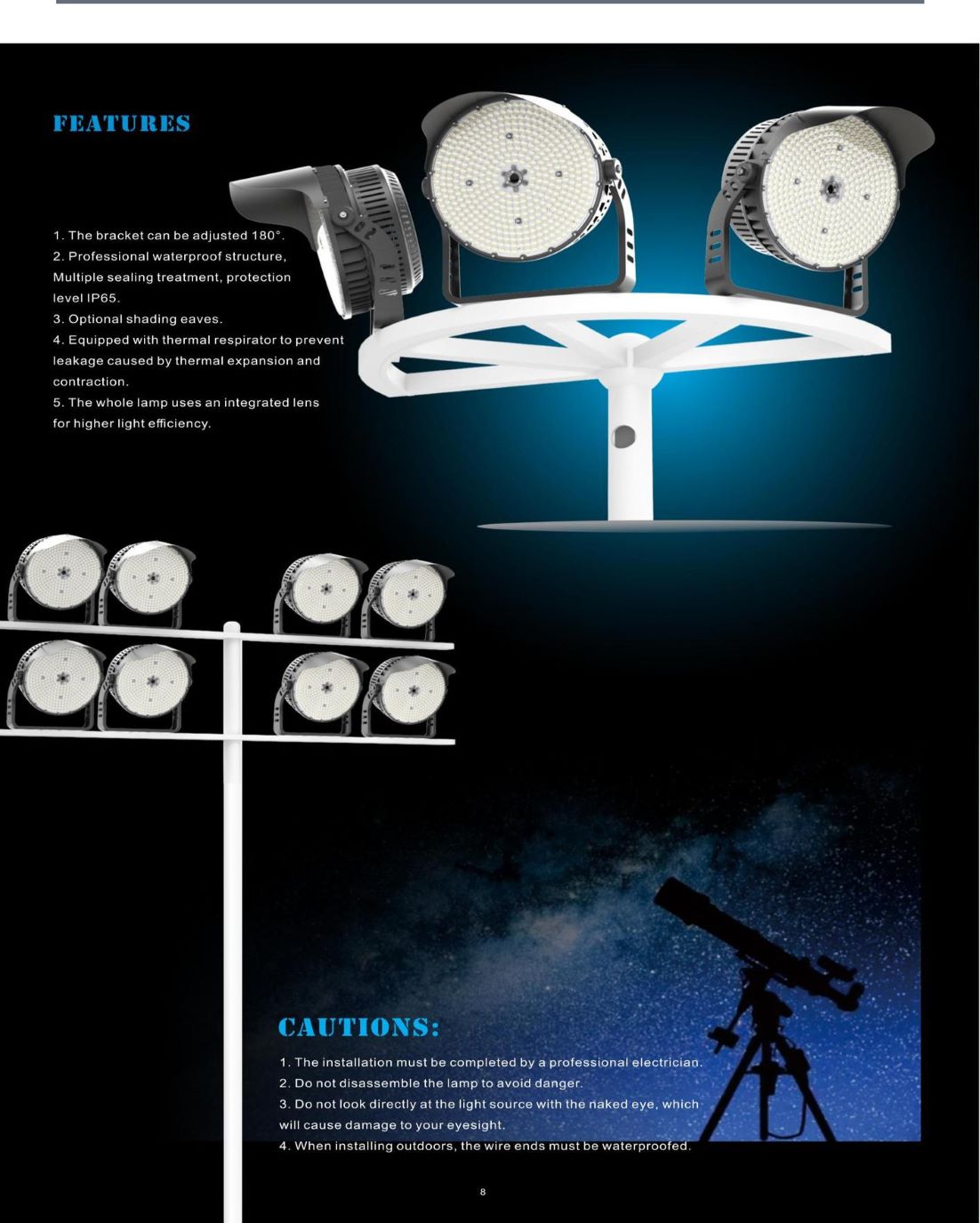

Dark Pluto LED Lighting in Sports ArenaDark Pluto LED Floodlight in Construction Site








Easy to Installation



Dark Pluto Series Installation Guide Diagram

Step 1:  Select installation method

Wall-mounted Installation、Pendant Installation、 Ground-mounted Installation.

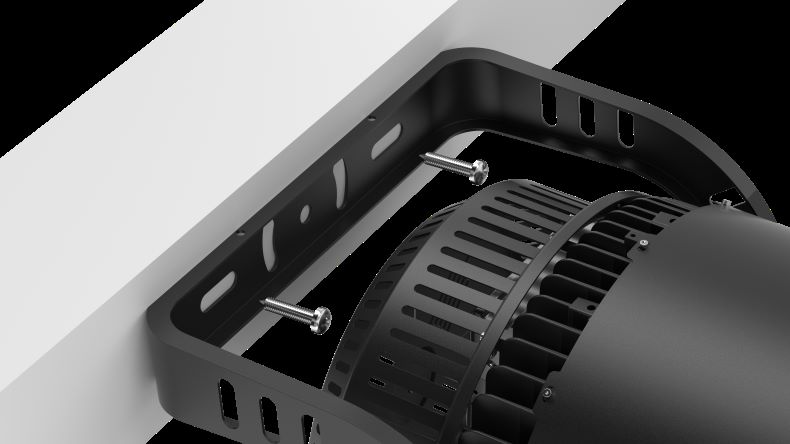

Step 2:  Fix the Screws

Align the lamp bracket with the installation position, fix it firmly with matching screws, and ensure stable installation without looseness.

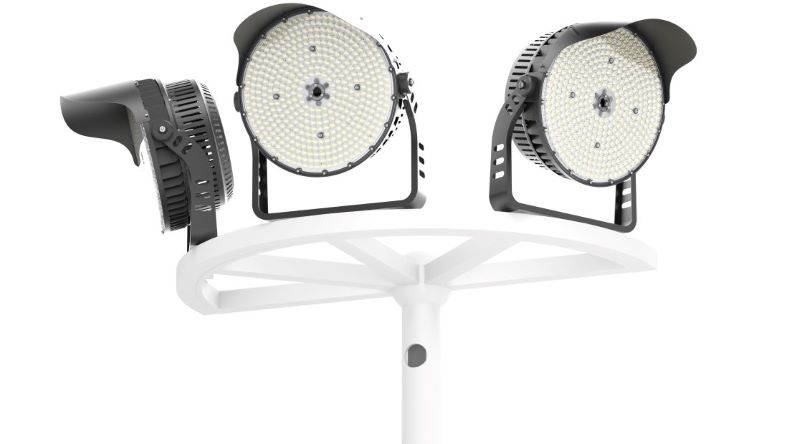

Dark Pluto Series Installation Guide Diagram

Step 3: Connect the Wires

Connect live, neutral and ground wires as marked, close the junction box tightly, and complete waterproof sealing.







Step 4: Adjust the Angle

Loosen the adjustment screw, adjust the irradiation angle as needed, then tighten the screw to lock the position.
