Venue managers and lighting contractors often struggle when selecting LED floodlights for sports field upgrades. Two mainstream designs dominate the market: modular split lights and traditional all in one integrated fixtures. Many buyers only compare wattage and unit price, ignoring critical gaps in heat dissipation, long term maintenance and scene adaptability.

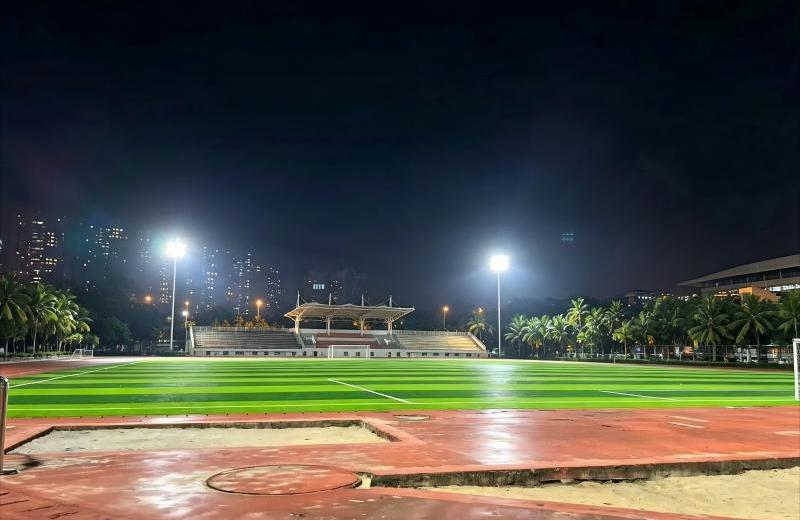

Drawing lessons from the Southeast Asia multi sports field renovation project equipped with HRLUX HRMZ500A modular stadium lights, this article breaks down practical pros and cons of the two technical routes. It helps project owners make cost effective decisions instead of blindly chasing low upfront purchase prices.

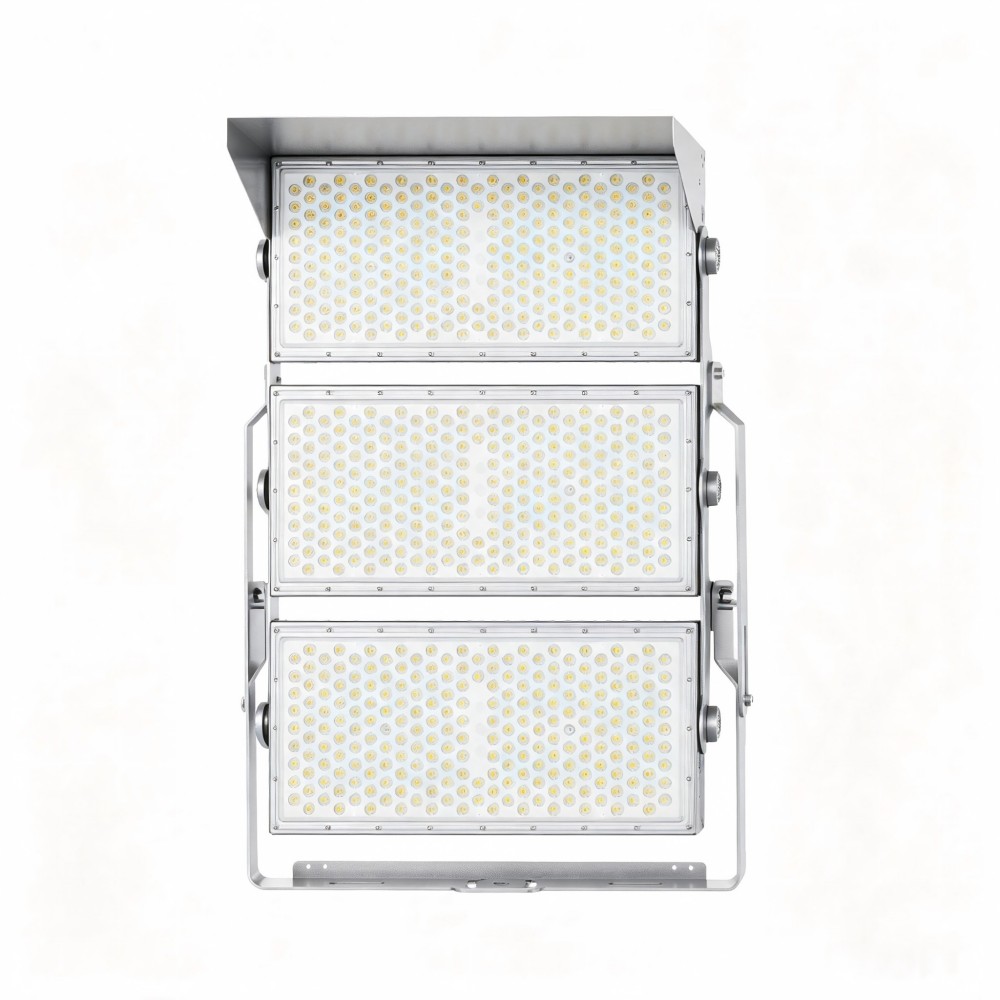

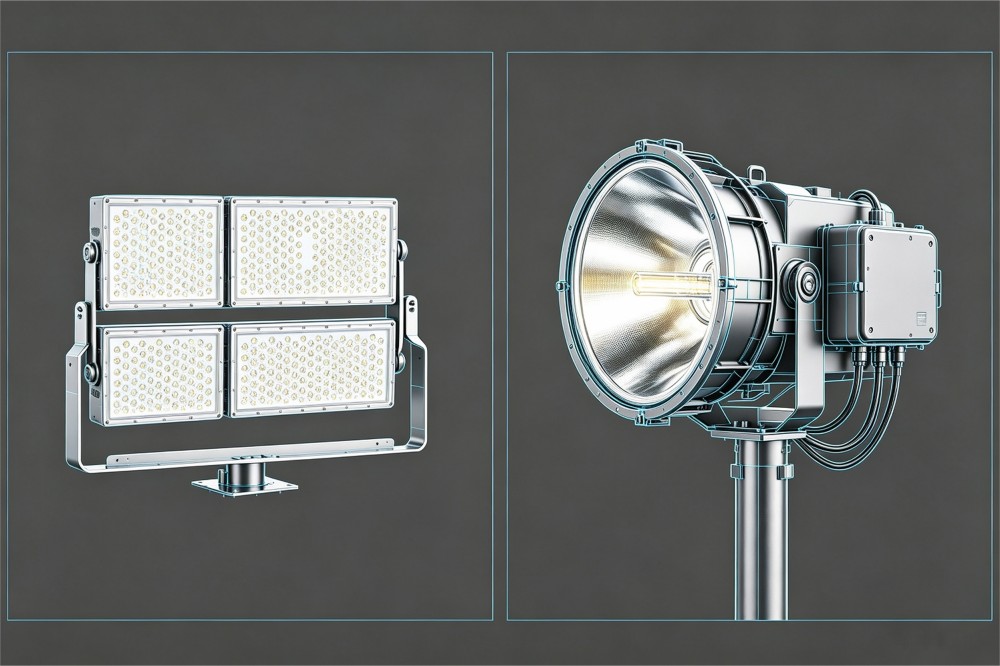

Modular stadium light (HRMZ500A as example)：Each 500W module works independently with a separate heat dissipation cavity. Modules can be assembled into 1000W, 1500W or 2000W configurations. Each panel supports separate beam angle adjustment. If one unit fails, technicians replace only the faulty module, without removing the whole luminaire.
Integrated all in one stadium light：All LED chips and drivers are packed inside a single housing. Once internal components fail, the entire fixture must be replaced. Heat accumulates inside one closed cavity.
| Evaluation Item | Modular LED Stadium Light | Integrated All In One Stadium Light |
| Power Combination | Flexible 1000 2000W by adding modules | Fixed power per fixture |
| Repair Method | Replace single faulty module | Must replace whole lamp |
| Heat dissipation | Independent heat sink, no heat stacking | Single shared cavity, heat accumulation risk |
| Beam angle adjustment | Each module adjustable separately | Only whole lamp angle adjustment |
| Initial procurement cost | Relatively higher | Lower |
| Long term maintenance cost | Low | High |
Note: Comparison based on HRMZ500A project application. Actual performance varies by brand material and manufacturing craft.
Advantages of Modular Stadium Light
1.Reduce high altitude maintenance risk: High mast stadium lighting brings safety hazards during on site repair. When one module fails, technicians only replace the defective module instead of dismounting heavy full fixtures. This feature greatly reduced high altitude workload in the Southeast Asia project.
2.Avoid heat stacking aging: Independent heat dissipation design eliminates thermal interference between modules. For tropical high temperature regions like Southeast Asia, slower light decay extends real service life.
3.Strong scene flexibility: For multi purpose venues (basketball, badminton, amateur football in this case), different modules can target separate zones to eliminate dark spots and uneven illuminance, no extra lamp poles required.
Convenient power upgrade: If venue lighting requirements increase later, users can add modules instead of purchasing brand new flood lights.
1.Higher initial procurement cost compared with low end integrated lamps.
2.More component parts, requiring stricter factory assembly quality control.
1.Lower upfront cost for small, simple single function projects.
2.Fewer parts and compact size for limited installation space.
1.Single internal fault triggers full lamp replacement. Cumulative high altitude labor costs become expensive year after year.
2.All heat concentrates inside one housing. Continuous long hour operation in hot tropical areas accelerates driver and chip aging.
Cannot partition light output for mixed multi sport courts.
✅ Choose modular LED stadium light if you meet below conditions:
High mast installation, venue located in tropical / high temperature regions
Multi purpose multi sport mixed use court
Project requires controllable long term O&M cost
Future power upgrade may be needed
✅ Choose integrated LED flood light if you meet all below conditions:
Low mount short pole lighting, small single function court
Extremely tight one time budget, no high altitude maintenance challenges
No future power expansion requirement
Q1: Does modular lamp mean higher failure rate because of more components?
A1: Not necessarily. If each module adopts independent qualified driver and mature heat dissipation design like HRMZ500A, separate unit actually reduces thermal coupling risk. Poor quality modular products may bring more faults, so check component certification.
Q2: Can I mix different wattage modules on one modular stadium light?
A2: HRMZ500A series uses unified 500W per module specification. Keep same power modules to guarantee stable performance.
Share your venue type, pole height and local maximum wind speed. Our HRLUX team helps you configure HRMZ500A modules and judge whether modular stadium light fits your retrofit project.
