Football field lighting is a specialized LED floodlight system designed to deliver consistent, safe, and high-performance illumination for training sessions, amateur matches, professional games, and live TV broadcasts. With scientific pole arrangement and premium optical design, modern football lighting achieves high illuminance, superior uniformity, low glare, ultra-low stroboscopic flicker, and accurate color rendering.
A qualified sports lighting solution ensures clear sightlines for players, fair judgment for referees, high-definition broadcast footage, and comfortable viewing experiences for spectators. Meanwhile, it balances energy saving, weather resistance, and intelligent control for long-term venue operation.
In accordance with FIFA, UEFA, and international sports lighting regulations, HRLUX divides football field lighting into five clear grades. Each grade matches specific application scenarios with fixed technical parameters. This standardized classification helps engineers and project contractors select the most cost-effective lighting configuration.
All data below is compliant with international sports lighting standards.
| Grade | Applicable Scenarios | Horizontal Illuminance Eh (lx) | Vertical Illuminance Ev (lx) | Uniformity U1 (U2) | Glare GR | Stroboscopic Ratio | Color Temperature CCT (K) | Color Rendering Index CRI (Ra) |
| Grade I | Training / Community Venues | 200–300 | — | ≥0.4(0.5) | ≤55 | ≤5% | 4000–4500 | ≥70 |
| Grade II | Amateur / Campus Venues | 500–750 | — | ≥0.5(0.6) | ≤50 | ≤3% | 4500–5000 | ≥80 |
| Grade III | Professional Non-broadcast Matches | 1000–1500 | ≥750 | ≥0.6(0.7) | ≤47 | ≤2% | 5000–5500 | ≥85 |
| Grade IV | TV Broadcast Matches | ≥1500 | ≥1000 | ≥0.7(0.75) | ≤45 | ≤1% | 5500–5600 | ≥90 |
| Grade V | Top-tier 4K/8K Broadcast Matches | ≥2000 | ≥1800 | ≥0.75(0.85) | ≤43 | ≤0.5% | 5600 | ≥95(R9≥80) |
To build a compliant football pitch, lighting designers must follow standardized design steps to avoid dark zones, strong glare, or uneven brightness.
1. Confirm venue grade: Select reasonable illuminance, uniformity, and glare standards based on actual usage.

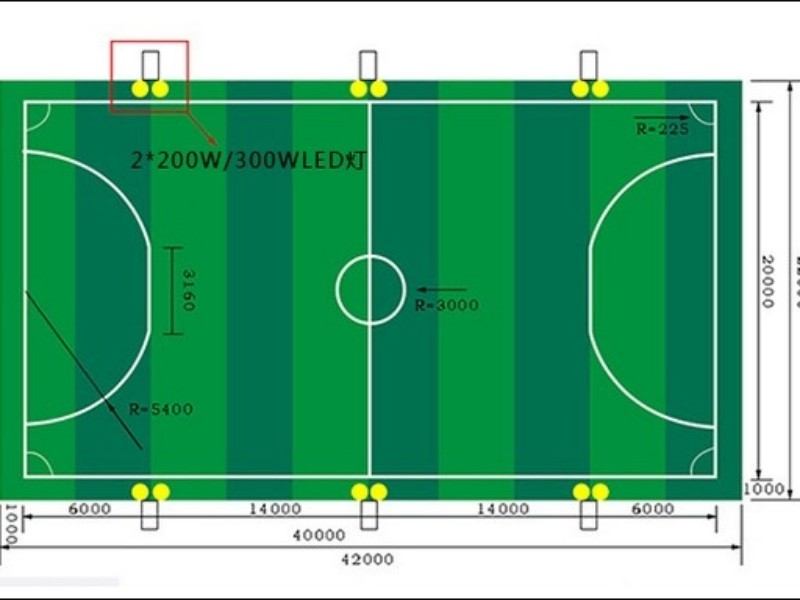

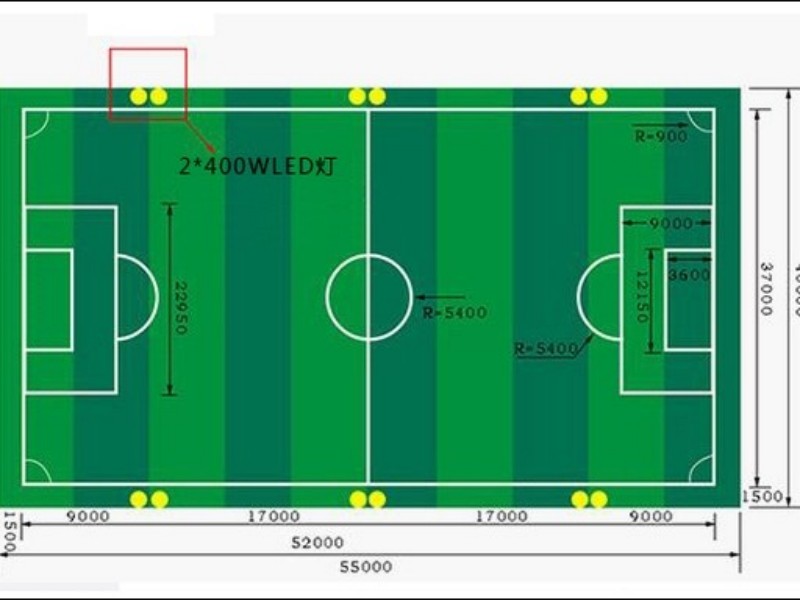

2. Clarify pitch dimensions: 11-a-side (105×68m), 7-a-side (60×40m), 5-a-side (40×20m).
3. Determine pole layout: 4 poles for training, 6 poles for amateur, 8 poles for professional venues.
4. Match lamp parameters: Power from 400W to 1500W; beam angle 10°–60°; luminous efficacy ≥130lm/W.
5. Simulation testing: Use DIALux or AGi32 to verify all lighting indicators before construction.
6. Install intelligent systems: Support dimming, scene switching, emergency mode, and remote control.

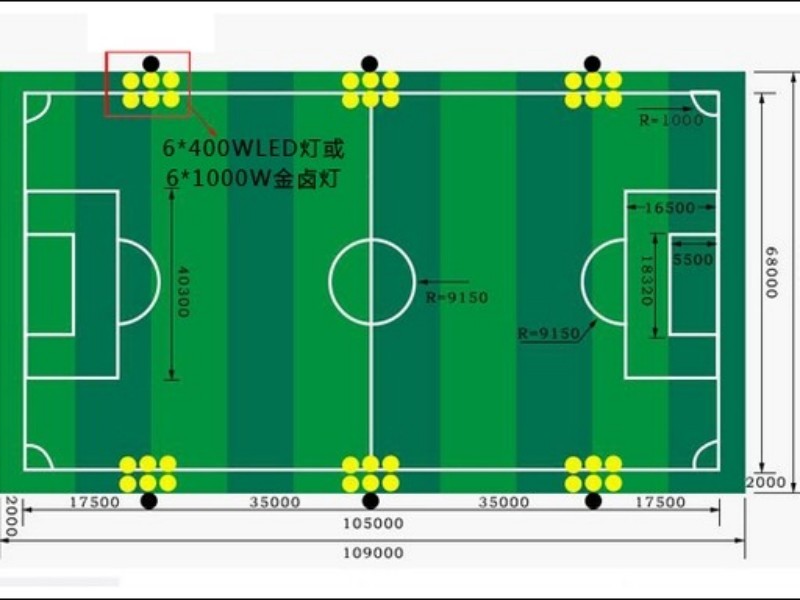

The 11-a-side football field is the most common standard venue for professional and commercial projects.
- Pitch size: 105m × 68m
- Goal size: 7.32m × 2.44m
- Buffer zone: ≥1.5m (touchlines); ≥2m (goal lines)
5.1 Four-Corner Layout (4 Poles)
Best for: Community fields, training grounds, small pitches.
Four poles are installed at four corners with a height of 15–18m. This layout is cost-effective and easy to install, though uniformity is moderate with minor dark areas.
5.2 Bilateral Symmetrical Layout (6/8 Poles)
Best for: Amateur fields, campus stadiums, non-broadcast professional pitches.
Evenly place 3–4 poles on each side at a height of 18–25m. This layout delivers excellent uniformity, low glare, and no obvious dark zones.
5.3 Four-Corner + Catwalk Hybrid Layout
Best for: Top-tier stadiums, 4K/8K live broadcast venues.
Combined with 8 ground poles and roof catwalk supplementary lights (25–35m height). It achieves ultra-even illuminance, ultra-low glare, and fully meets high-definition broadcasting standards.
6.1 Layout Spacing
- Training venues: 25–30m pole spacing
- Amateur venues: 20–25m pole spacing
- Broadcast venues: 15–20m pole spacing
6.2 Pole Height Standards
- Training: 15–18m (projection angle ≥20°)
- Amateur: 18–20m (glare reduction)
- Professional: 25m (meet vertical illuminance demand)
- Broadcast: 25–35m (FIFA angle: 25°–45°)
6.3 Installation Requirements
- Minimum 3m distance between poles and touchlines
- Foundation bearing capacity ≥1.5 times the total lamp weight
- Installation angle: 25°–35° to avoid direct dazzling light
Uniformity determines whether the entire pitch has consistent brightness without flickering dark spots.
- U1 (Min/Max): Training ≥0.4 | Amateur ≥0.5 | Professional ≥0.6 | Broadcast ≥0.75
- U2 (Min/Average): Training ≥0.5 | Amateur ≥0.6 | Professional ≥0.7 | Broadcast ≥0.85
Optimization methods: Increase pole quantity, raise height, and mix narrow & medium beam angles.
Glare Rating (GR) directly affects athlete comfort and viewing experience.
- Ordinary fields: GR ≤50
- Broadcast fields: GR ≤45
- Top-tier stadiums: GR ≤43
Anti-glare solutions: Install anti-glare hoods, keep shading angle ≥30°, adopt asymmetric optical design, and avoid unilateral strong light.
Modern football floodlights support multi-scene intelligent dimming to reduce unnecessary power consumption.
- Training mode: 30% brightness
- Match mode: 70% brightness
- Broadcast mode: 100% brightness
- Emergency mode: 50% brightness
Control methods include touch panels, mobile APP, and remote centralized control. Intelligent dimming saves 30%–50% energy annually.
Severe stroboscopic flicker causes eye fatigue and distorted slow-motion footage. HRLUX adopts high-frequency PWM dimming and flicker-free chips to control flicker depth below 0.5%.
- Community fields: 4000–4500K (soft white)
- Campus fields: 4500–5000K (neutral white)
- Professional stadiums: 5500–5600K (natural daylight)
Color tolerance ≤3SDCM to ensure zero color deviation during live broadcasting.
High CRI ensures real color restoration for jerseys, grass, and human skin tones.
- Basic training: Ra ≥70
- Amateur matches: Ra ≥80
- Professional games: Ra ≥85
- 4K broadcast: Ra ≥95 & R9 ≥80
13.1 Customized FIFA Standard Design
HRLUX provides free DIALux lighting simulation for every project. We customize beam angles (10°–60°), power, CCT, and CRI to match all venue grades.
13.2 Ultra-High Luminous Efficacy 140–160lm/W
Compared with traditional metal halide lamps, our LED floodlights save 60%–80% electricity. With only ≤3% light attenuation in 5,000 hours, the service life reaches 100,000 hours.
13.3 Industrial-Grade Driving System
Equipped with Infineon and Mitsubishi chips, the lamps support AC90–305V wide voltage and 6KV lightning protection. The power factor reaches 0.98 with ultra-low harmonic distortion.
13.4 Professional Asymmetric Optical Design
Nano reflective cups and secondary lenses improve uniformity by 20%. The 30° shading angle keeps GR below 43 without dazzling glare.
13.5 IP66 & IK08 Heavy-Duty Protection
Die-cast aluminum housing ensures dustproof, waterproof, and impact-resistant performance. It works stably from -40℃ to 85℃ in extreme weather.
13.6 Laser Positioning Focusing Technology
Light projection deviation is controlled within 0.5°, effectively reducing light pollution and improving field light concentration.
13.7 Efficient Fan-Free Heat Dissipation
Integrated heat sink expands heat dissipation area by 40°. The silent fan-free design realizes maintenance-free long-term operation.
Whether you are building a community training pitch, campus football field, or professional broadcast stadium, HRLUX provides one-stop sports lighting solutions.
✅ Free DIALux illumination simulation
✅ Custom pole layout solution
✅ 5-year official warranty
✅ 24/7 professional engineering support
Contact HRLUX team now to get a personalized football field lighting design and quotation.
