Padel Court Lighting Design & CIE Standard Lux Requirements

Padel tennis has become one of the fastest-growing racket sports worldwide. Unlike traditional tennis courts, standard padel courts adopt fully enclosed glass walls and a compact layout. This unique structure brings inherent lighting challenges, including glass reflection glare, uneven floor illumination, and corner shadow dead zones.

Strictly following CIE international lux standards is essential for qualified padel court lighting. Whether you are building a new court or upgrading an old venue, standardized lighting layout directly affects player comfort, competition fairness, and long-term commercial operation.

This article covers official CIE lux specifications, standard pole layout techniques, anti-glare solutions, and LED high mast light product selection for different padel court scenarios.

1.Official CIE Lux Standards for Padel Court Lighting

CIE 12193 is the global authoritative standard for outdoor sports lighting. Padel court illumination is divided into three grades according to usage intensity, with clear requirements for average lux, uniformity, and glare control.

Note：All lux values are measured at 1 meter above court surface. Live broadcast venues require Ra>80 color rendering to ensure stable camera performance and clear streaming visuals.

2.Unique Lighting Pain Points of Enclosed Padel Courts

Fully enclosed glass fences are the biggest feature of padel courts, but they also cause typical lighting problems. Ordinary floodlights easily produce mirror-like reflections on glass walls, resulting in severe glare and blocked player sightlines.

In addition, compact enclosed spaces often suffer from uneven light distribution and shadow corners, which reduce the overall venue quality and affect match performance.

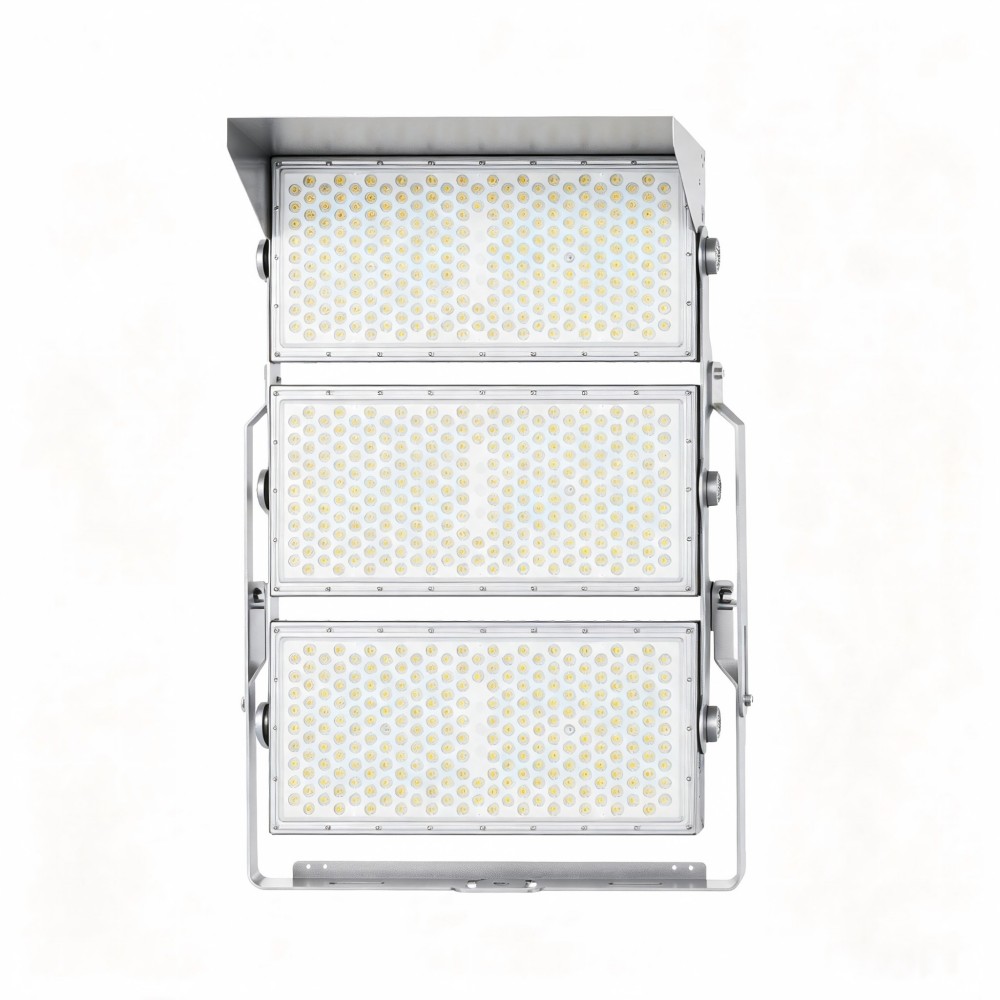

 To solve these structural defects, professional anti-glare sports lighting is required. TheHRMZ500A modular stadium light is widely used in high-standard padel court projects. It adopts customized optical lenses to precisely control light angles, eliminate vertical glass reflection, and deliver uniform full-court illumination without hotspots or dark zones.

3.Lighting Design Differences: New Court vs Old Court Retrofit

Padel court lighting design varies greatly between new construction and renovation projects, requiring targeted product matching and layout plans.

New padel courts allow full customization of pole height, position, and wattage. Engineers can perfectly match lighting power and beam angles according to CIE standards. For newly built commercial and competition-level courts, HRMZ500A modular LED high mast light is the preferred solution due to its flexible module combination, adjustable beam angles, and excellent optical consistency.

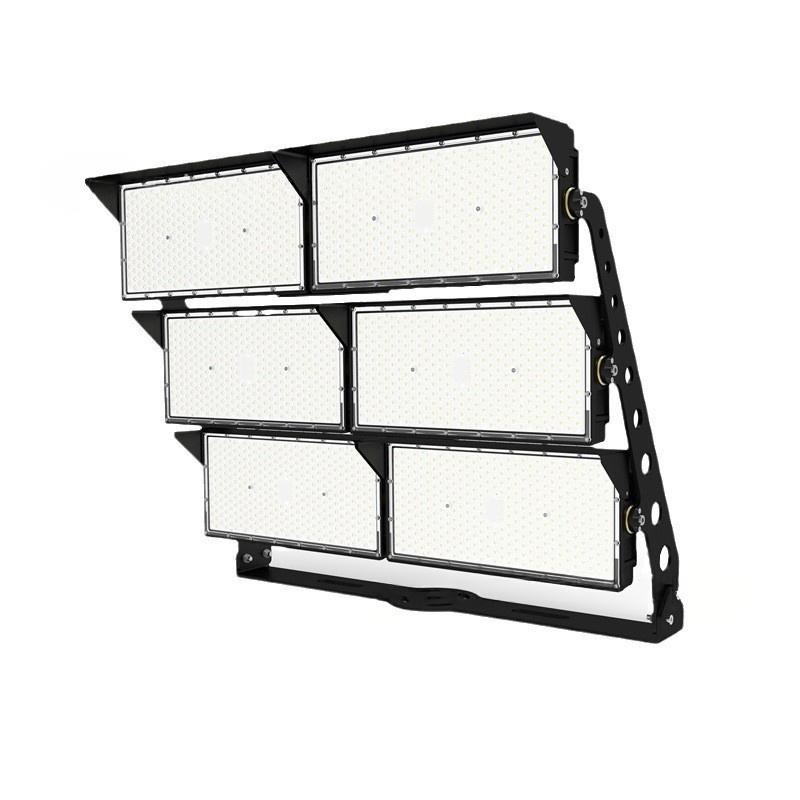

 Old venue renovations are limited by existing pole positions and foundation structures. It is unnecessary to rebuild poles or modify basic infrastructure. Upgrading to high-efficiency anti-glare LED lights can quickly improve lux and uniformity to meet standard requirements. For budget-friendly club upgrades with stable daily lighting demands, the IP66 LED Flood Light For Sports Court provides reliable, cost-effective lighting performance that fully meets daily training and recreational standards.

4.Standard Pole Height & Layout Design Solution

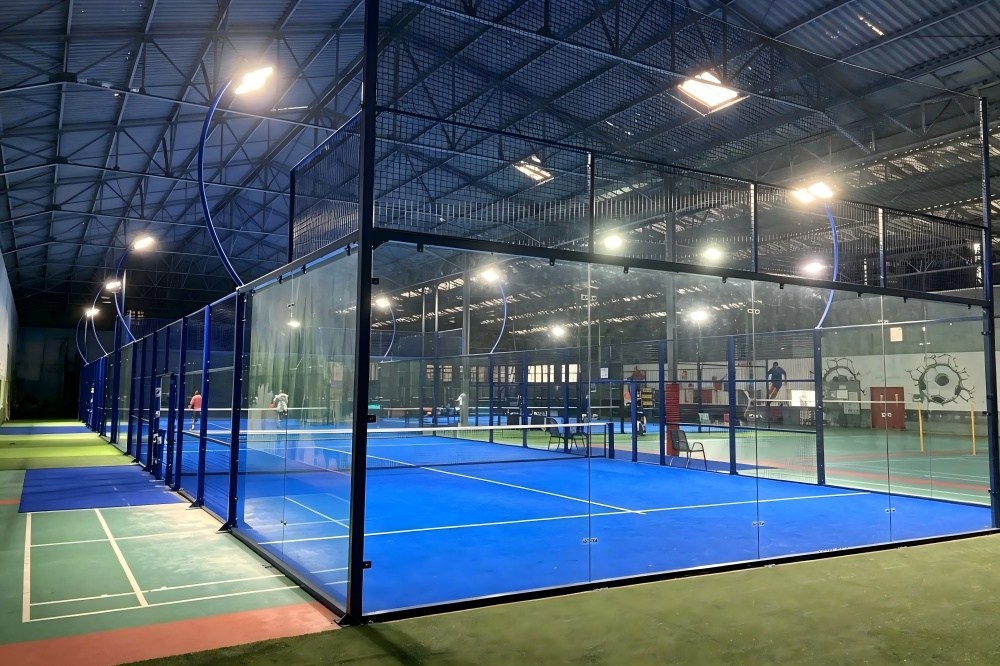

A standard single padel court adopts a mature 4-point symmetric pole layout. The recommended pole height is 6m–8m, with 2–4 lamps installed per pole to achieve full dead-angle-free court coverage.

Outdoor padel courts in coastal and tropical areas face strong wind pressure, high temperature, and salt spray corrosion. Ordinary lamps easily loosen, shake, fade or age rapidly in long-term harsh outdoor environments, leading to frequent maintenance and hidden safety hazards.

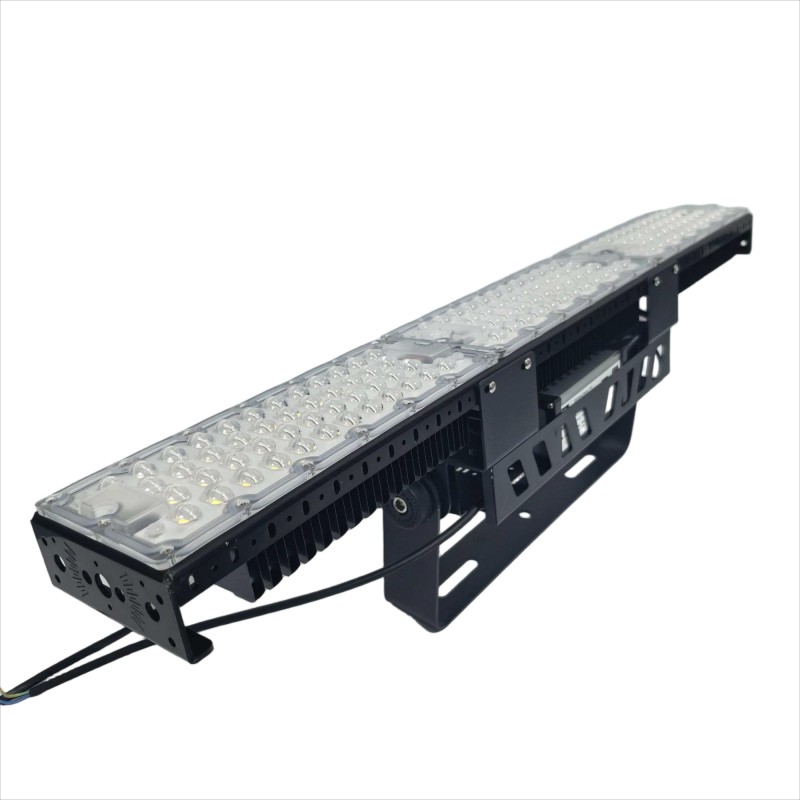

 For harsh climate venues, the Padel Pickleball LED Light is specially designed for outdoor racket sports venues, with excellent wind resistance, heat dissipation and anti-corrosion performance. It can withstand harsh coastal and high-temperature environments, ensuring long-term stable operation and low maintenance for outdoor padel lighting systems.

5.Core Design Principles to Avoid Project Failure

Follow these key principles to ensure your padel lighting project fully passes CIE standard acceptance and avoids on-site rework:

1. Match beam angle with pole height: 6m short poles use wide-angle lenses for uniform ground coverage; 8m high poles use medium-angle focusing lenses to avoid light overflow and glare.

2. Strictly control upward light spillage to reduce glass reflection glare and surrounding light pollution.

3. Prioritize illumination uniformity over excessive single-point brightness to ensure consistent visual experience for players in all court areas.

4. Coastal and high-temperature areas must adopt wind-resistant, anti-corrosion and heat-dissipation lamp structures to extend service life.

6. FAQ

Q1: What is the best lighting solution for coastal salt-spray padel courts?

A1 : Coastal padel venues require dual protection of wind resistance and salt spray corrosion resistance. It is recommended to adopt the HRS series wind-resistant sports flood light with 45m/s wind resistance and electrostatic anti-corrosion treatment, which can adapt to long-term coastal harsh environments and maintain stable lighting performance.

Q2: How to upgrade old padel court lighting to meet competition-level CIE standards?

A2 : There is no need to replace original lamp poles and foundations. Replace traditional outdated floodlights with high-uniformity, anti-glare HRMZ500A modular LED lights. Optimize beam angles and installation angles via professional Dialux lighting simulation to quickly upgrade to competition-level 500–750 lux lighting effects.

Q3：What is the allowable installation error for padel court light poles?

A3：The height and spacing error of padel court lamp poles should be controlled within ±0.5m. Excessive deviation will cause local dark areas and reduce overall illumination uniformity, resulting in failure to pass CIE standard acceptance.

Q4: Is Dialux simulation necessary for padel court lighting projects?

A4 : Yes, Dialux lighting simulation is essential. It can pre-detect lux value, uniformity and glare problems, avoid on-site debugging and rework, and ensure the lighting scheme 100% complies with CIE international standards.

Q5: How many LED lights does a standard single padel court need?

A5 : A standard single padel court requires 8–16 LED lamp fixtures, matched with a 4-point pole layout. The specific quantity and wattage depend on your target lux grade, pole height and venue environment. Our team provides free customized quantity calculation and lighting layout solutions.

7.Conclusion

Qualified and standard padel court lighting relies on three core elements: compliant CIE lux grading standards, scenario-based scientific layout design, and matched high-performance LED high mast light equipment.

Simply increasing lamp wattage cannot solve glass glare and shadow dead zone problems. Selecting targeted products according to venue scenarios:HRMZ500A for professional competition-grade new courts, IP66 LED Flood Light for cost-effective club renovation projects, and Padel Pickleball LED Light for outdoor coastal and multi-sport venues, which perfectly solves all kinds of padel court lighting pain points.

Professional optical design and weather-resistant lighting solutions are the key to creating high-quality, long-service-life padel court lighting systems.
