Achieving Energy-Efficient Street Lighting: Key Obstacles and Practical Remedies

Introduction



When people talk about saving energy in lighting, they often fixate on luminous efficacy alone. But real-world lighting design is much more than achieving a certain brightness level—it is fundamentally about supporting safe, efficient operations in the built environment. Different application scenarios are governed by well-established international standards. For road lighting, the primary performance benchmark is EN 13201, which sets requirements for road surface luminance or illuminance, uniformity, and glare restriction. Workplaces follow EN 12464, sports venues are covered by EN 12193 or RP-8-21, and tunnels have their own guidance under CIE 88. Together, these documents define the minimum acceptable performance for lighting installations.



Since entering this sector in 2005, ZGSM has observed continuous technological shifts and evolving client expectations. Road lighting in particular has progressed considerably. A truly effective road lighting solution must not only satisfy basic safety criteria—meaning EN 13201 compliance—but also deliver enhanced visual comfort, lower energy consumption, and support for intelligent management. The ideal installation minimizes energy use while strictly meeting every safety standard, providing comfortable passage for both pedestrians and drivers, and incorporating smart controls. Let us explore these topics in greater depth below.



Why Street Lighting Often Falls Short on Efficiency



Inferior Components and Premature Failures



Lighting technology has advanced dramatically from gas lamps and incandescent bulbs to high-pressure sodium and now mainstream LED streetlights. Yet a large number of fixtures on the market still lag far behind modern efficacy benchmarks. This is usually because manufacturers cut corners by using low-grade LED chips or inefficient LED drivers to reduce upfront costs. The result is not only poor initial efficacy but also significant light depreciation, meaning the fixture may fail to meet road lighting requirements soon after installation. In addition, poorly designed housings with inadequate heat dissipation, combined with substandard drivers, dramatically increase the likelihood of early failure. Users are then burdened with frequent maintenance and unexpected expenses. Addressing both low efficacy and poor reliability has become the most urgent priority for roadway applications.



Misaligned Optics and Unwanted Light Spill



Luminous efficacy tells you how well a luminaire converts electrical power into visible light. However, not all emitted light actually lands on the surface that needs illumination. Traditional high-pressure sodium lamps, for example, scatter a substantial portion of their output into non-target areas beside the road. The proportion of light that accurately reaches the intended surface depends heavily on the optical design. LED luminaires can employ secondary lenses to shape the beam precisely for the application: batwing distributions are typical for roadways, narrow or asymmetric beams for sports fields, and rectangular patterns for warehouse racking. In practice, problems arise when the wrong light distribution curve is chosen, when fixtures are installed incorrectly, or when tilt angles are excessive. These errors cause light to spill into areas where it is not wanted, producing light trespass, skyglow, and glare. A scientifically designed optical system combined with careful lighting layout can significantly improve pavement brightness and uniformity while controlling glare—this is a key element of energy-efficient lighting. The same principle applies to stadium and indoor applications: illuminate only what needs to be lit, without disturbing the surroundings.

Lack of Adaptive Control



In an age that emphasizes low-carbon operation and refined management, road lighting systems without intelligent controls represent a major hidden waste. Traditional streetlights typically rely on simple timers or photocells, achieving little more than a crude “on at dusk, stay on all night, off at dawn” routine. This cannot adapt to actual nighttime conditions, such as low traffic volumes after midnight, resulting in unnecessary energy consumption and avoidable environmental impact.

Beyond wasted energy, non-intelligent streetlights cannot report faults proactively. Maintenance teams must depend on scheduled inspections or citizen complaints, which raises labor costs and increases the risk of prolonged outages. Modern smart control systems have transformed this situation. Options include timer-based dimming, motion detection, and wireless network management, each offering distinct capabilities and benefits that will be examined later.

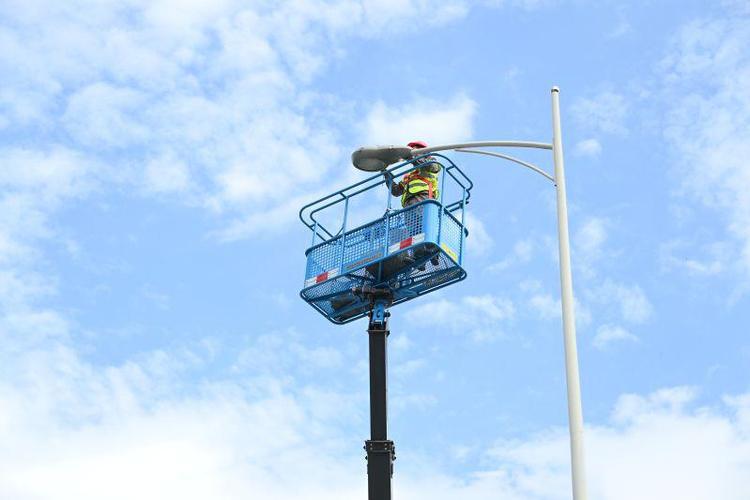

Maintenance Burdens



The cost of maintaining street lighting has always worried municipal authorities. This is one reason LED streetlights have become popular in recent years—not only for their high efficacy but also for their longer service life. In real-world use, the expense and difficulty of repairing malfunctioning fixtures, or dealing with frequent lamp replacements, often surpass the initial purchase price. Traditional high-pressure sodium installations require periodic replacement of both lamps and ballasts. You may have noticed dark streetlights in older neighborhoods; that is the visible sign of conventional lamp failure. Repairs typically happen only after residents report the problem, leading to high costs and slow response times. In locations such as overpasses, expressways, or high-mast installations, maintenance crews must perform work at dangerous heights, increasing both safety risks and operational difficulty. Modern LED street lighting is moving toward maintenance-free or easy-to-service designs, as will be detailed in the following sections.

Light Decay Without Compensation



Light decay is an unavoidable physical characteristic of all lighting fixtures. In simple terms, it is the gradual reduction in a light source’s ability to convert electricity into light over its operating life. Incandescent lamps, high-pressure sodium lamps, and LEDs all exhibit this phenomenon. During lighting simulations, designers account for this through a “maintenance factor.” This factor predicts future light depreciation, often derived from LM80 and TM21 data. It ensures that the target area still receives adequate illumination at the end of the fixture’s service life, even though this may mean slightly higher initial power than strictly necessary. The greater the expected light decay, the higher the initial wattage must be. Therefore, choosing LEDs with lower light decay directly contributes to more energy-efficient lighting. At the same time, regular cleaning of luminaires—especially the light-emitting surface—helps reduce the additional decay caused by accumulated dust and dirt, allowing stable, compliant lighting at a lower overall energy cost.



Strategies for Energy-Saving Street Illumination



Selecting High-Performance LEDs and Drivers



The foundation for solving inefficiency and reliability problems lies in establishing a rigorous closed-loop process that covers component selection, design, verification, and maintenance. First, strict control at the source is essential. Qualified LED chips and drivers must be specified with clear performance indicators, including brand, efficacy, light decay characteristics, driver efficiency, and expected lifespan. This prevents the use of inferior materials from the outset.



Second, product design must carefully match electrical parameters and ensure a reliable thermal management structure. Proper heat dissipation allows LEDs to maintain their rated efficacy and reduces the long-term impact of high temperatures on the overall fixture lifespan. During the design verification phase, testing in a darkroom or with an integrating sphere confirms that actual efficacy meets specifications. Measuring the luminaire’s Ts temperature evaluates heat dissipation performance. Where possible, luminous flux decay testing according to standards like IEC 62717, IEC 62722, or ENEC+ should be performed to assess long-term behavior. While premium LEDs and drivers require a higher initial investment, they dramatically reduce later maintenance frequency and cost. Purchasing decisions should therefore be based on total cost of ownership and energy efficiency, not simply lowest price.



Refining Optics and Simulation-Based Layouts



To overcome light waste, light pollution, and poor lighting quality caused by improper beam control, a systematic approach combining optimized optics with standardized installation is required. ZGSM fixtures offer a wide range of light distribution patterns. For example, streetlights commonly use Type IIM or Type IIIM distributions. Custom Type IV distributions are available for parking lot lighting, while asymmetric distributions—both lateral and vertical—suit pedestrian pathways. The correct distribution curve depends heavily on the application: narrow beams or asymmetric patterns work well for sports fields, while rectangular distributions are appropriate for warehouse shelving. If you are interested in these specific scenarios, please contact us or refer to our blog on LED light distribution.



Selecting the right distribution also requires an experienced lighting designer who can quickly match a suitable optical pattern to the scenario and validate the design in lighting simulation software. By optimizing the layout, the designer can precisely position each luminaire, specify installation angles or aiming points, and guide field installation. An optimized lighting design delivers outstanding uniformity, glare control, and energy savings—precisely what is meant by energy-efficient lighting.

Integrating Smart Dimming and Wireless Management

There are several ways to implement intelligent control in LED streetlights. The most common methods include timer-based dimming, microwave sensing, and wireless smart lighting control.

Timer dimming allows the system to automatically reduce power to a predetermined level—for example, 50%—during set periods such as midnight to 5 a.m., achieving immediate energy savings. A proven example is our recent commercial area LED street light project in Malaysia, where smart dimming profiles successfully reduced energy consumption for local shoplot streets without compromising safety. Importantly, this function is often already built into the LED driver, but many users are unaware of it and fail to take advantage.

Microwave and intelligent control functions require additional investment, but they offer more capabilities and make energy-efficient lighting easier to achieve. LED streetlights equipped with microwave or infrared motion sensors can detect approaching pedestrians or vehicles. When motion is detected, the light rises from a low-power standby level to full brightness, then automatically returns to sleep mode after the traffic has passed, significantly cutting power consumption.

Smart street lighting control requires each luminaire to be fitted with a lamp controller, typically mounted on top of the fixture via a Zhaga or NEMA socket. Through a centralized gateway, operators can remotely switch lights, adjust dimming levels, and read operational data, enabling efficient management and rapid fault response。

Adopting Tool-Free and Modular Designs



Easy maintenance and maintenance-free operation are two core advantages of LED streetlights. First, high-quality LED fixtures exhibit much slower light decay than conventional sources, with lifetimes typically ranging from 50,000 to 100,000 hours, greatly extending replacement intervals. Second, high-quality LED drivers offer superior reliability—higher MTBF and longer life—with a lower failure rate, so repairs or replacements are rare. Based on these two factors, many manufacturers now market LED luminaires as maintenance-free products.

Furthermore, modular design and tool-free opening structures have become mainstream configurations. When a luminaire does fail, maintenance personnel can open the housing without any tools and directly replace the faulty module, dramatically reducing on-site operation time. Modular construction also simplifies spare parts management: only complete modules need to be stocked, eliminating the need for detailed electrical knowledge and allowing efficient field service. Combined with intelligent control systems, municipal teams can also detect faults promptly and initiate repairs before complaints arise. Compared with traditional fixtures, LED streetlights significantly cut maintenance costs and time across the entire lifecycle, with much faster fault response.



Minimizing Light Decay and Using Constant Lumen Output



Light decay is a concern for both buyers and sellers in the LED industry. A straightforward way to avoid additional power consumption caused by light decay is to choose products with inherently lower depreciation rates. We recommend that customers carefully review manufacturer test reports, with the TM21 report being the most fundamental. LM80 and ISTMT reports should also be considered, and all reports should come from a third-party laboratory with ISO17025 accreditation. L70 greater than 100,000 hours is a common selection criterion, while L80 or even L90 at 100,000 hours indicates superior performance and places higher demands on the luminaire.

As mentioned earlier, the maintenance factor concept means selecting higher-power LED streetlights at the initial design stage to ensure adequate illumination later in life. The slower the light decay, the higher the lamp lumen maintenance factor, which allows a correspondingly lower initial fixture wattage. However, this approach still results in some early-stage energy waste. This is where Constant Lumen Output (CLO) technology comes in. Many LED drivers now include this feature, such as Inventronics’ EUM series, Philips’ FP series, and products from Tridonic. With CLO, the luminaire power gradually increases over time to compensate for the natural decline in luminous flux, maintaining constant illumination while avoiding excessive initial power. This achieves highly energy-efficient lighting over the entire service life. Simultaneously, regular maintenance and cleaning of luminaires—especially the light-emitting surface—remains necessary to reduce the additional decay caused by dust and dirt obstruction. For further details, please see our blog on maintenance factors in illumination lighting.



Conclusion



There are five main reasons why street lighting often fails to achieve true energy efficiency. First, many streetlights use inferior LED chips and drivers, resulting in low overall efficacy and frequent malfunctions. Second, improper light distribution leads to ineffective illumination of target areas, while also causing light pollution and glare. Third, there is a lack of intelligent control—such as timer dimming—to save energy during periods of low nighttime traffic. Fourth, streetlights are difficult to maintain, driving up long-term costs. Fifth, significant light decay and the absence of CLO technology cause persistent energy waste over the fixture’s life.

Fortunately, all of these problems are avoidable. ZGSM addresses each one with targeted solutions. By strictly controlling the quality of LED chips and drivers, we improve reliability and efficacy from the very beginning. We select appropriate light distribution curves for each scenario and validate designs through lighting simulation, supplemented by clear installation guidance. We apply timer dimming, microwave sensing, and wireless intelligent control to deliver light only when and where it is needed, with proactive fault reporting. We adopt modular and tool-free structural designs to reduce maintenance difficulty and total lifecycle costs. And we use optimized thermal management and high-quality LEDs to minimize light decay, while incorporating Constant Lumen Output technology to dynamically compensate for lumen depreciation—avoiding excessive power consumption during the early and middle stages of operation.

Through these combined measures, truly energy-efficient road lighting can be achieved. If you are interested in any of the methods described here, please contact us for more information.
