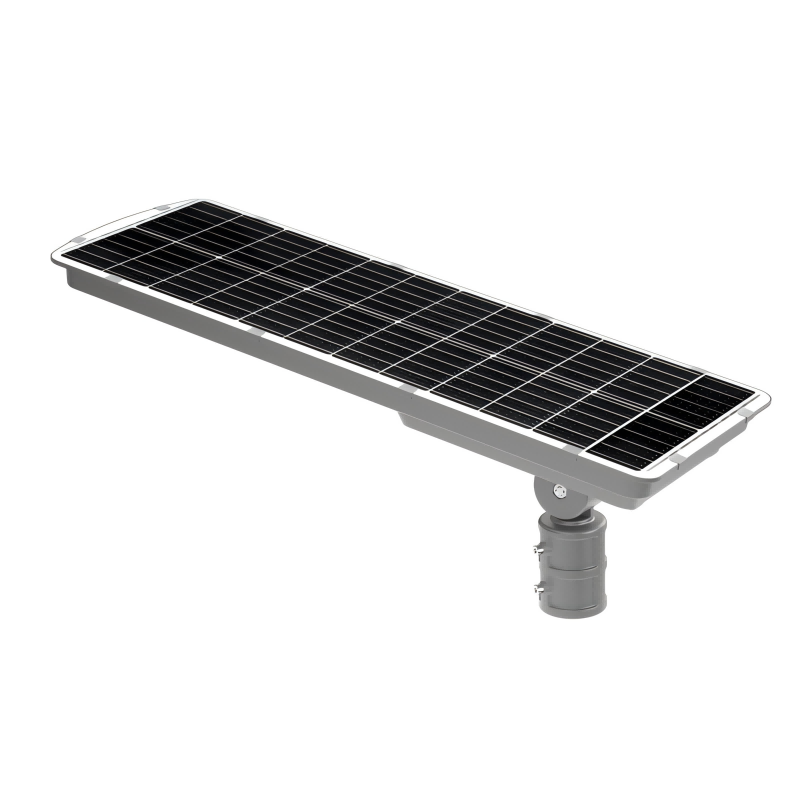

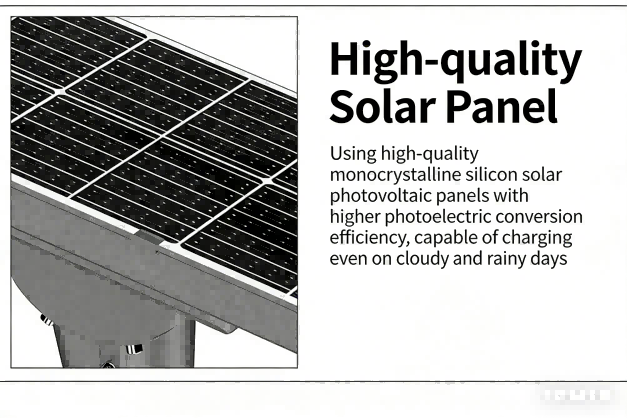

As a cost-effective municipal engineering-grade all-in-one solar street light, the Sirius Series features a high-performance integrated design, combining monocrystalline solar panels with 23% efficiency, LiFePO4 batteries (2,000+ cycles), and smart controllers. Suitable for off-grid and remote areas, it offers advantages such as intelligent control, easy installation, and resistance to harsh environments. Delivering an industry-leading 190lm/W luminous efficacy, it minimizes power consumption while maintaining maximum brightness—this efficiency significantly reduces the size requirements for panels and batteries, thereby slashing overall project costs. As a premium OEM/ODM solution, its "plug-and-play" setup makes it the ideal choice for global municipal, park, and road lighting, as well as municipal projects in remote or off-grid regions.
Applications:
Certified Quality for Global Projects

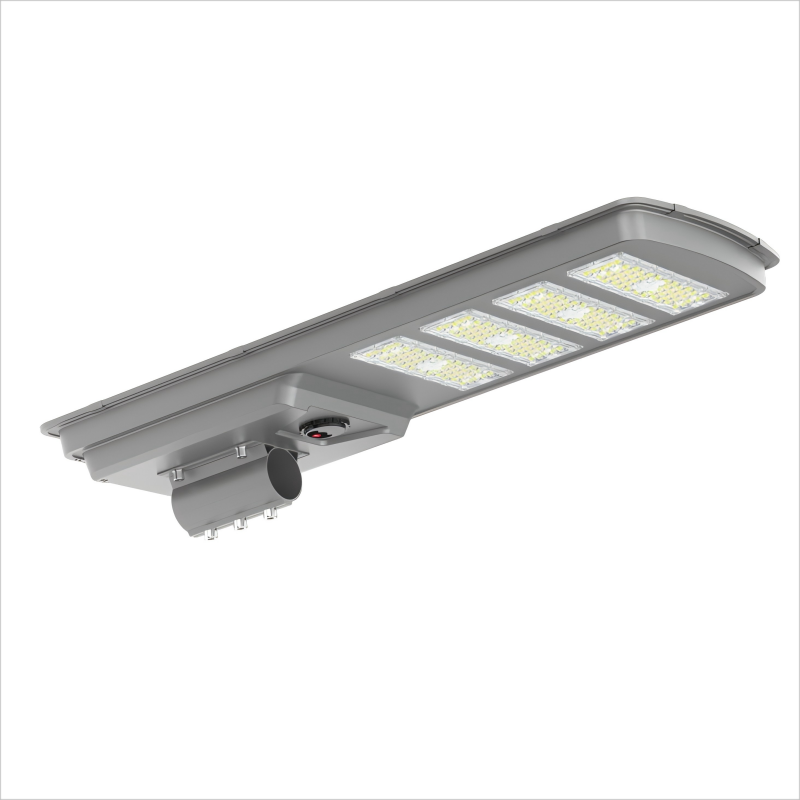

Sirius Series Integrated Solar Street Light (40W-120W)
High-Lumen Outdoor Lighting for Projects
Superior Luminous Efficacy
Boasting superior luminous efficacy, the Sirius Series is equipped with premium Bridgelux/Philips LED chips, delivering an impressive light output of up to 200lm/W. This exceptional efficiency guarantees maximum brightness while minimizing energy consumption, effectively reducing the overall energy demands of the system.

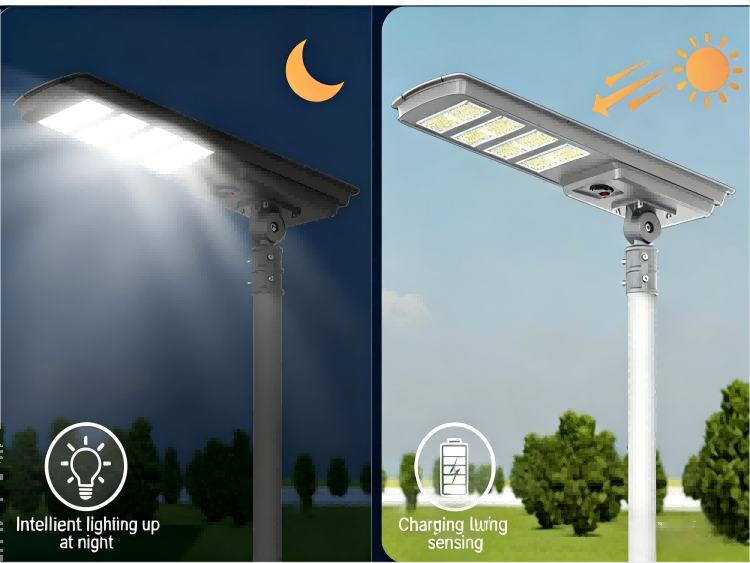

Intelligent Power Management

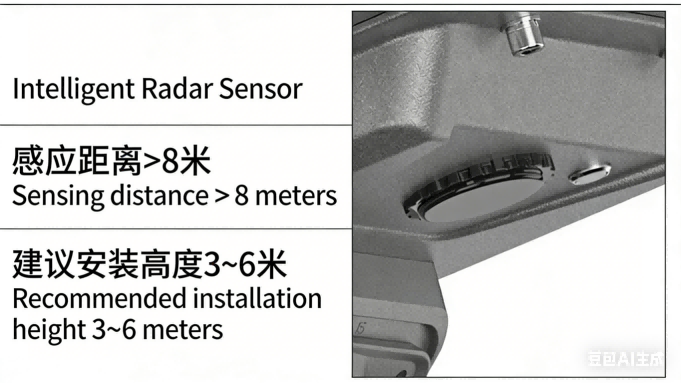

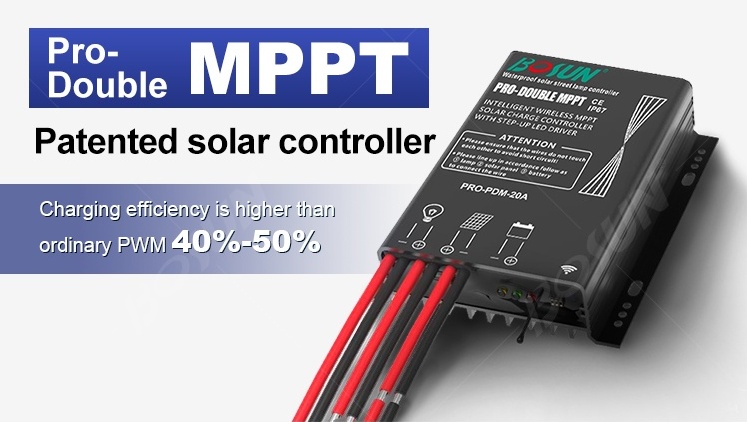

Our proprietary MPPT (Maximum Power Point Tracking) Controller increases charging efficiency by 30% compared to traditional PWM controllers. Combined with a smart PIR motion sensor, the system ensures stable lighting for 3-5 continuous rainy days.
Harsh Environment Adaptation

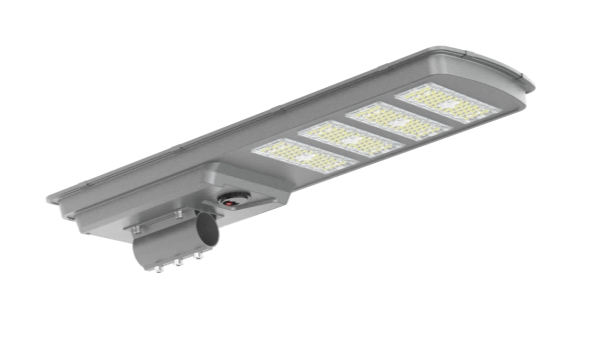

Protection grade up to IP66 and impact resistance grade IK09, using aviation-grade die-cast galvanized iron shell with anti-corrosion coating, which can resist harsh weather such as typhoons (wind resistance >120km/h), heavy rain, and desert dust, suitable for coastal, plateau and other scenarios.
Long Lifespan & Easy Maintenance

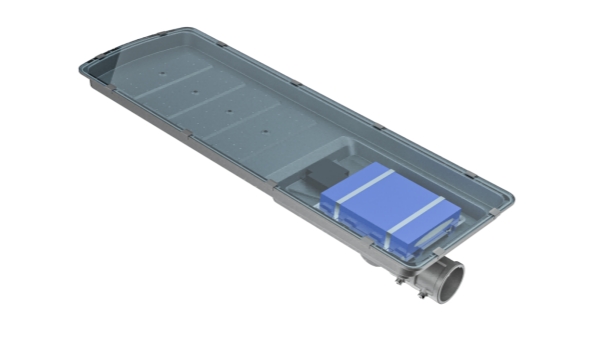

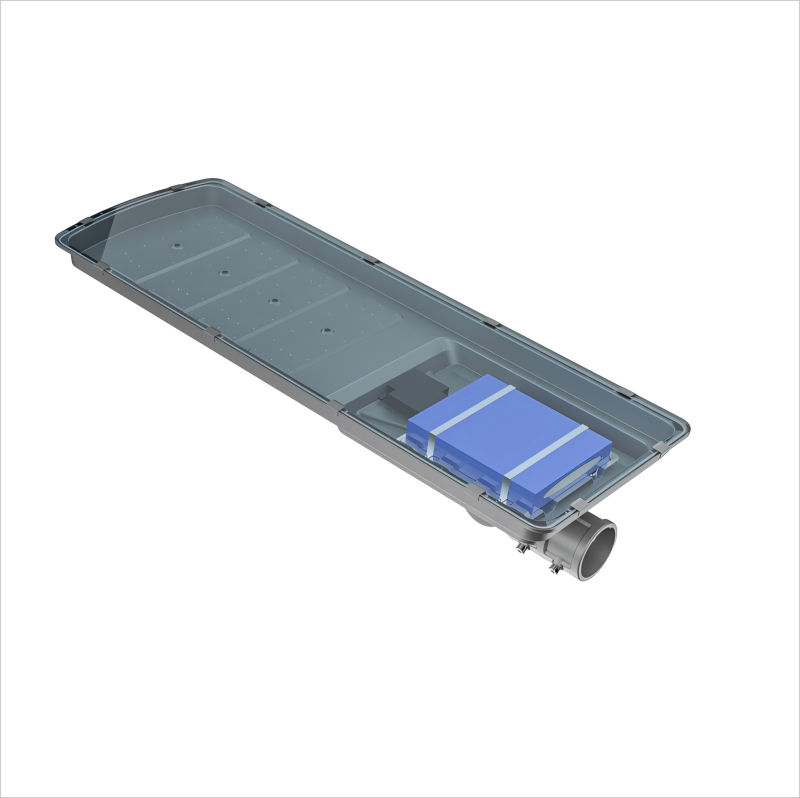

Using Grade A LiFePO4 batteries with more than 2000 deep charge-discharge cycles, the actual service life is 5-8 years, far exceeding lead-acid batteries; the detachable battery case design facilitates regular inspection and maintenance of the battery, extending the service life of the entire system.
Flexible Installation

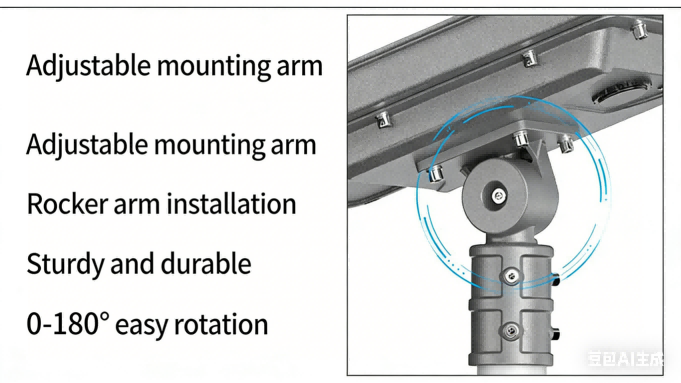

Integrated "plug-and-play" design, no complicated wiring required; 0-180° adjustable bracket, supporting vertical and horizontal installation methods, adapting to different lighting angle requirements, high installation efficiency, and reducing construction costs.
Uniform Lighting

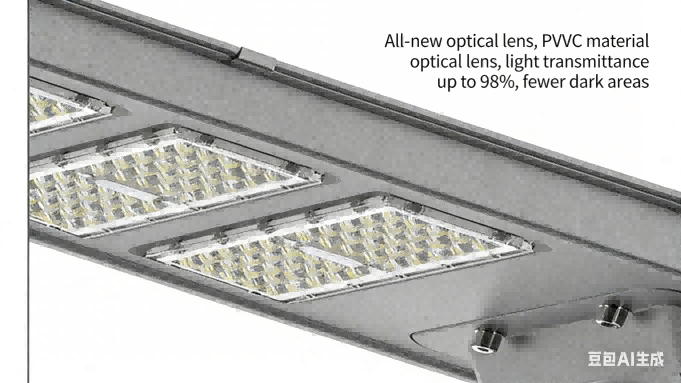

Using PVVC optical lens with light transmittance up to 98%, reducing lighting dark areas, the light is soft and uniform, suitable for large-area lighting scenarios such as roads and parking lots.

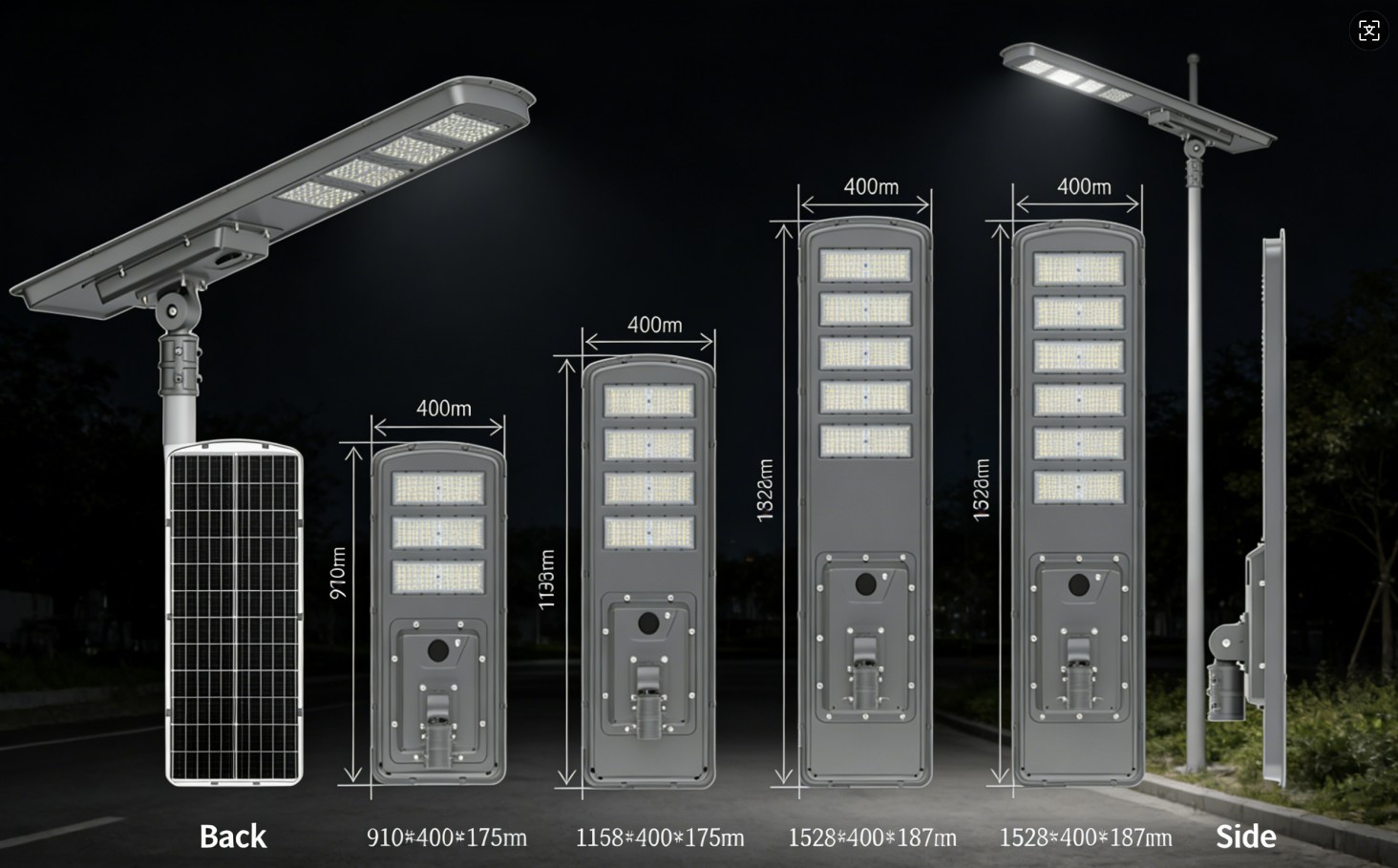

| Dimensions | 910*400*175mm | 1168*400*175mm | 1528*400*175mm | 1528*400*175mm |
| Power | 40W | 60W | 100W | 120W |
| Recommended Installation Height | 5-6M | 6-7M | 7-8M | 8-9M |
| Luminous Flux | 4400LM | 6600LM | 11000LM | 13200LM |
| Color Temperature | 3000K – 6500K | |||
| Light Distribution | Type II, Type III | |||
| Input Voltage | DC12/24V | |||

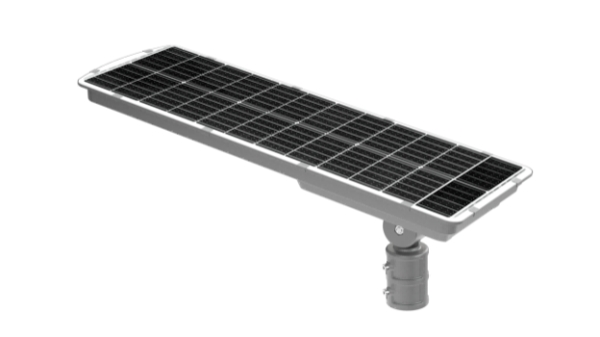

| Mono Solar Panel Power | 70W | 90W | 140W | 150W |
| LiFePO4 Battery Capacity | 320Wh | 384Wh | 640Wh | 768Wh |
| Solar Controller | 10A – 20A | |||
| Control Mode | Motion Sensor, PIR Sensor, Timer Dimming, Daylight Sensor | |||
| Installation Type | Rear / Side Entry | |||
| Lamp Material | Galvanized Iron | |||
| Operating Temperature | -20 – 65°C | |||
| Protection Grade | IP66 / IK09 | |||
| Wind Resistance | > 120 km/h | |||
| Service Life | > 10 Years | |||
| Service Life | 4-5 Nights | |||
Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
