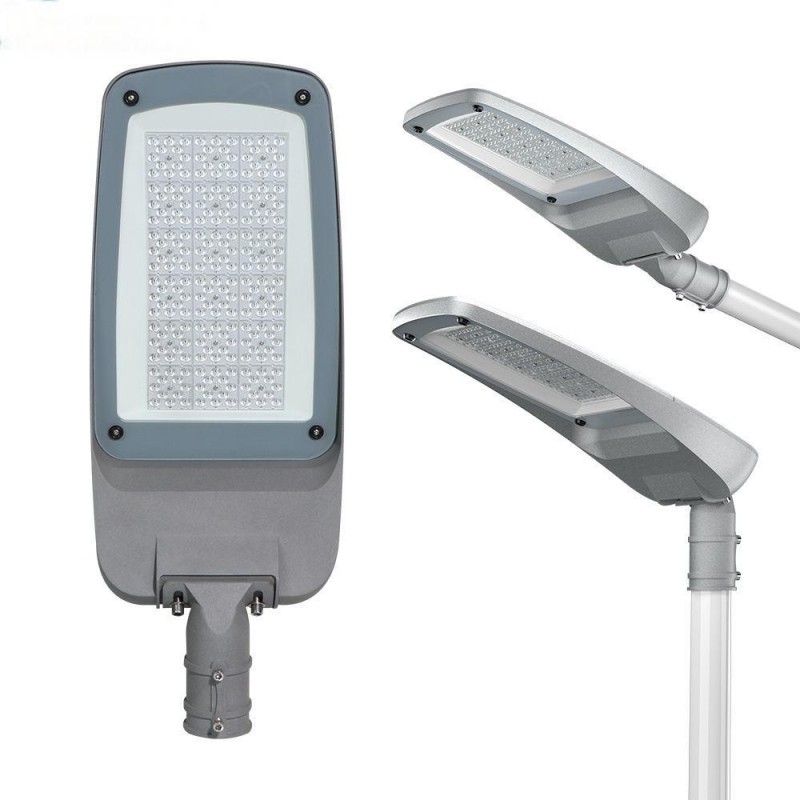

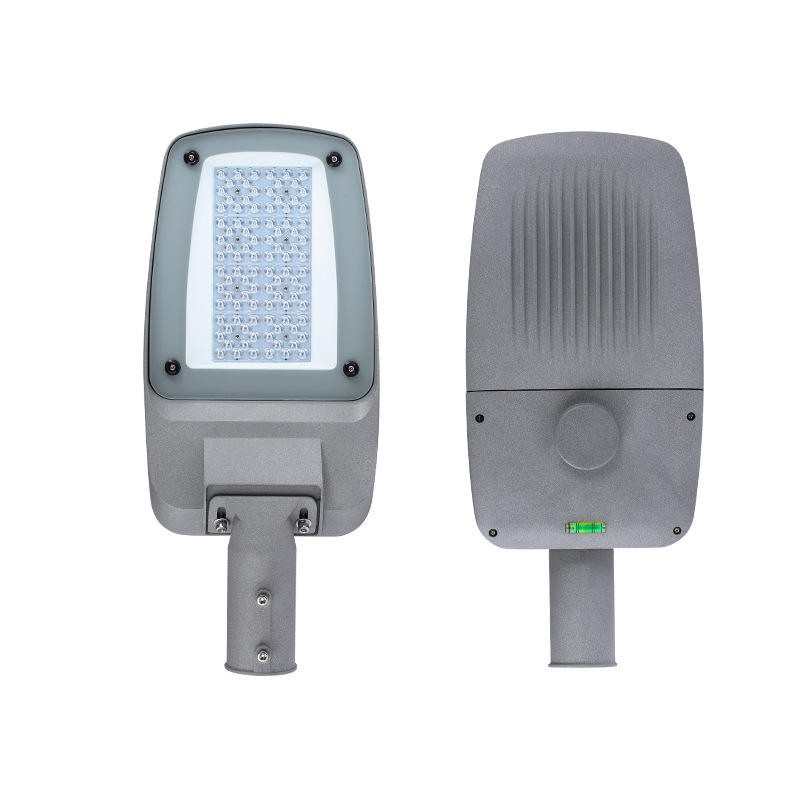

YS 40W 60W 100W 150W 200W IP66 Waterproof LED Street Light Wholesale Manufacturer

YS 40W 60W 100W 150W 200W IP66 Waterproof LED Street Light Wholesale Manufacturer

Our YS series LED street light is a high-performance outdoor road lighting fixture, available in 5 power options: 40W, 60W, 100W, 150W, 200W, perfectly matching municipal road, factory campus, parking lot, village and park lighting projects.

Constructed with thick die-cast aluminum housing, this street light owns excellent shock resistance, anti-corrosion and fast heat dissipation performance. Equipped with high-brightness 3030 LED beads and UV-resistant PC optical lens, it delivers uniform soft illumination without glare, and the lens will never turn yellow under long-term outdoor sunlight exposure.

It adopts IP66 fully waterproof LED driver, which can work stably in heavy rain, dust, high temperature and other harsh outdoor environments. A core highlight of YS model is dual-use design: it can work alone with city mains power, or be matched with solar panels & lithium batteries to become an off-grid solar street light, ideal for remote areas without power supply.

As a professional LED street light manufacturer in China, we support wholesale bulk supply and full OEM & ODM customization services. We can customize logo, color temperature, power, installation accessories and packaging for global distributors, engineering contractors and municipal project clients. All lights pass strict factory inspection before delivery, with long service life and low later maintenance cost, helping you cut project investment greatly.





Applications:

  • Municipal Arterial Road Lighting
  • Port, Wharf & Logistics Park Lighting
  • Highway & Expressway Lighting
  • Urban Square & Public Leisure Area Lighting
  • Rural & Urban-Rural Road Lighting
  • School, Hospital & Government Campus Road Lighting
  • Industrial Zone & Factory Road Lighting
  • Bridge & Tunnel Entrance/Exit Lighting



Certified Quality for Global Projects



Inquire Now

YS Series IP66 Waterproof LED Street Light | Wholesale Manufacturer, OEM Supported



  •
 LED street light

IP66 Waterproof & Dustproof

Engineered with IP66 rated protection, this street light is fully sealed against heavy rain, snow, dust, sand and moisture. It performs reliably in harsh outdoor environments, making it ideal for roads, highways and coastal areas with long-term exposure to the elements.



Thickened Die-Cast Aluminum Housing

Constructed with heavy-duty die-cast aluminum, the housing provides excellent durability, corrosion resistance and wind resistance. It ensures the fixture remains sturdy and deformation-free even in high-wind and long-term outdoor use.





Wide Beam Angle with Clear Glass

This solution adopts clear glass with high light transmittance and a wide beam angle. It provides more even and sufficient lighting, expands the effective illumination coverage, reduces dark spots on roads, and delivers safer, clearer lighting for main roads, highways and municipal engineering.





40W–200W High Power Output

 It is available in high-power versions of 40W, 60W, 100W, 150W and 200W. Featuring high brightness and uniform light distribution, it can fully meet the lighting demands of main roads, highways, industrial parks and large public areas, making it particularly suitable for municipal engineering applications.





Wide AC Voltage Compatibility

Supports wide-range AC voltage input, compatible with global power grid standards (110V–277V). It maintains stable performance even under voltage fluctuations, ensuring consistent operation in different countries and regions.





Surge & Lightning Protection

Built-in surge and lightning protection circuit guards against sudden voltage spikes and lightning strikes. This greatly reduces failure risk and improves safety and stability for outdoor municipal projects.





No regular inspection or maintenance required

Equipped with high-efficiency LED chips, it delivers superior luminous efficacy and consumes up to 60% less energy than traditional street lights. It helps lower electricity costs and reduce long-term operational expenses.





Easy Installation & Maintenance

The maintenance-free power compartment features a fully sealed structure, effectively providing waterproof, dustproof and anti-corrosion protection. It prevents moisture, dust and insects from entering, greatly reduces lamp failures and ensures stable operation in harsh outdoor environments. With no regular maintenance required, it significantly cuts down on long-term operation and maintenance costs, making it highly cost-effective for municipal engineering projects.

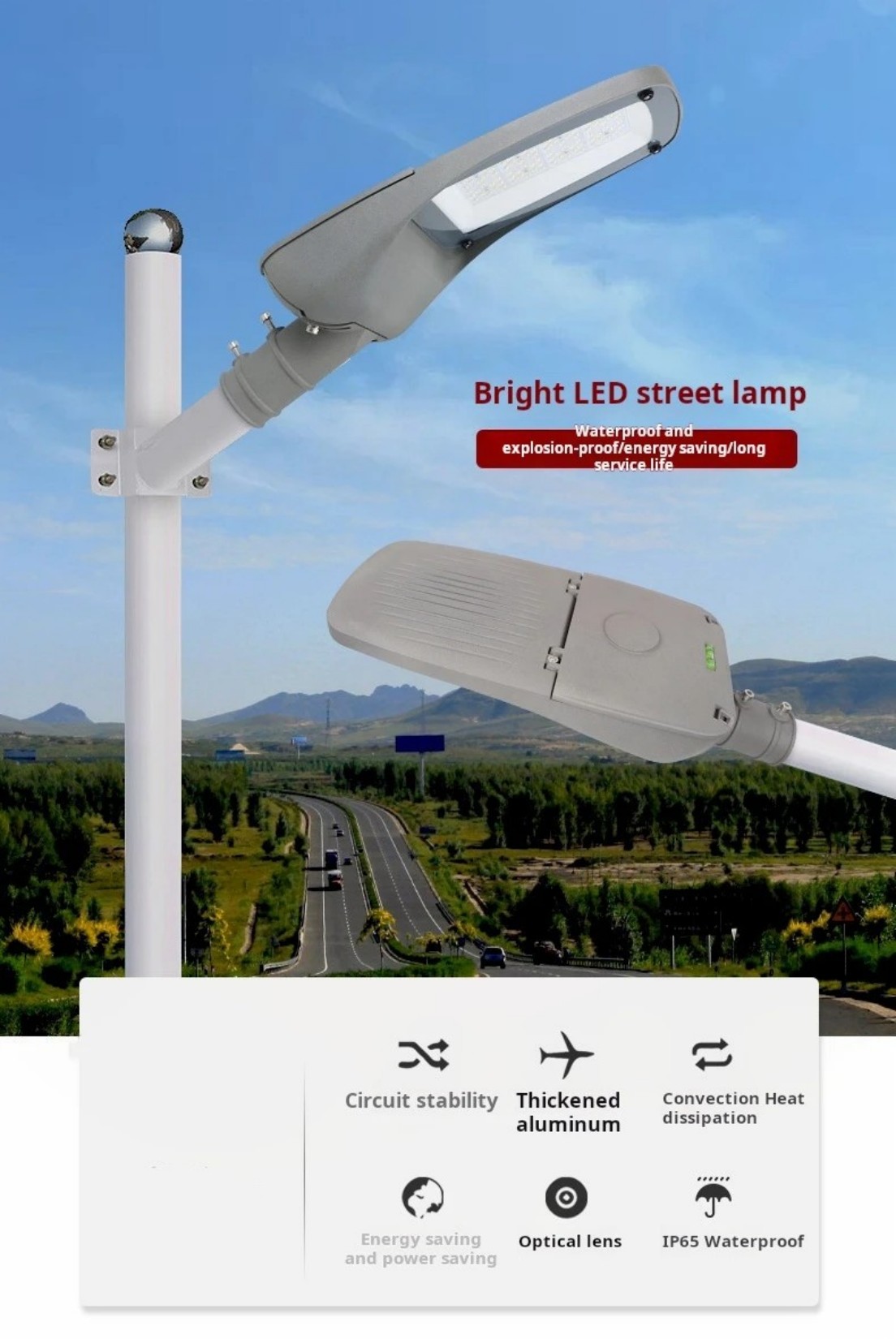

Aluminum Road Light

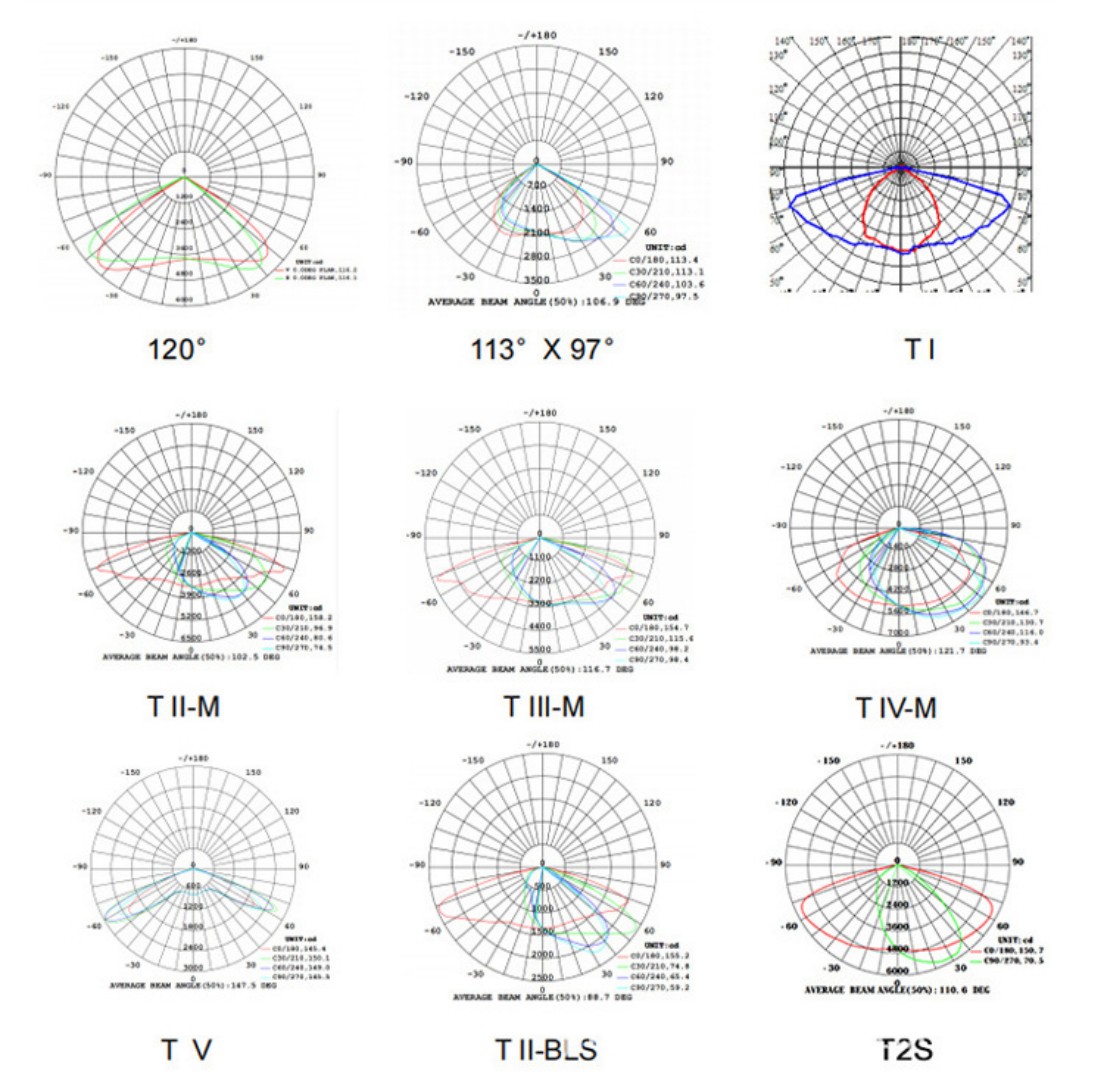

YS street light beam angle diagram

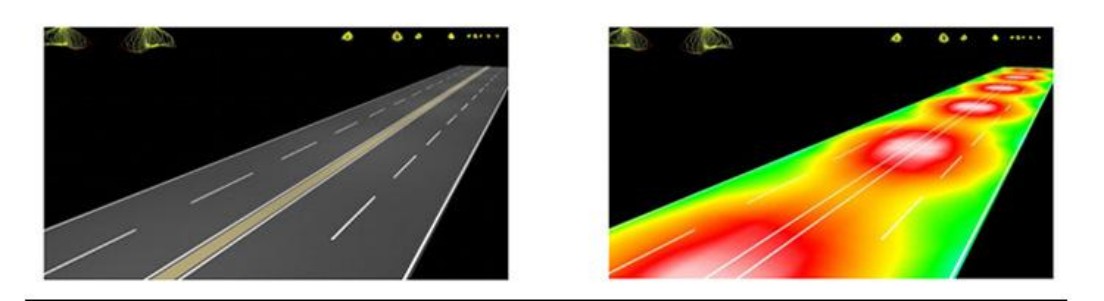

YS road light optical distribution chart





Technical Specifications

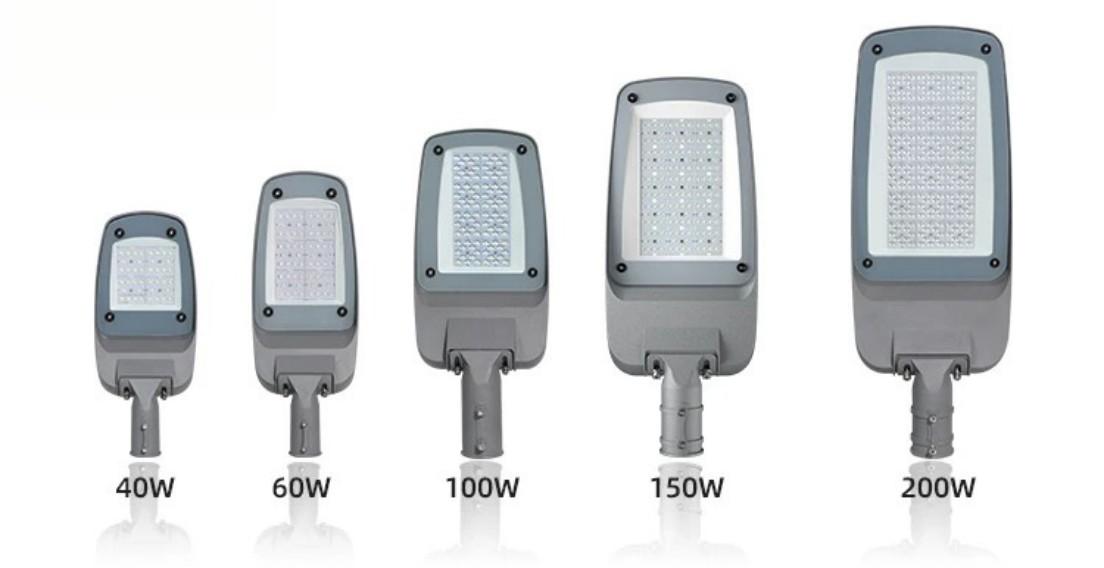

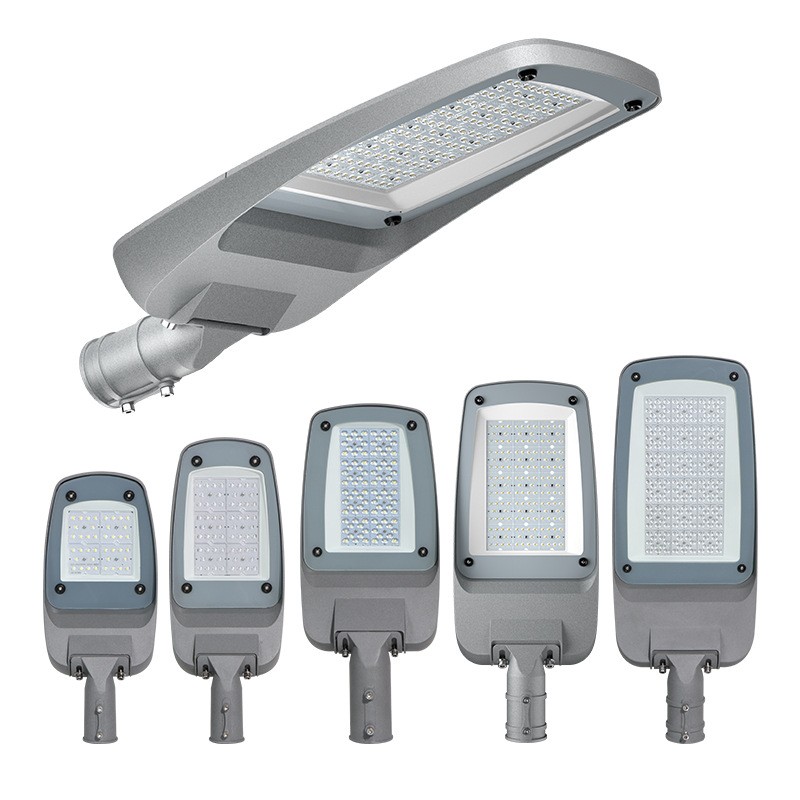

Multi-power YS LED street lamp 40W/60W/100W/150W/200W overall appearance



Product model YS-40W YS-60W YS-100W YS-150W YS-200W
Product size  (mm) 420*180*100 470*180*110 560*240*115 690*280*130 740*280*130
Input voltage AC100V-240V 50/60HZ
Lamp bead model SMD3030
LED Qty   (pcs) 40  60  96  150  216
Brightness   (LM) 4800-6000 7200-9000 11520-14400 18000-22500 25920-32400
Color  temperature 3000-4000k 4000-5000k 5000-6000k
Viewing Angle T2S/T3M/T4M
Rendering  Index Ra>70
Power  Efficiency >90%
Luminous  efficiency 120-150LM/W
Power factor >0.95
Harmonic 15%
Protection  Grade IP66/IK08

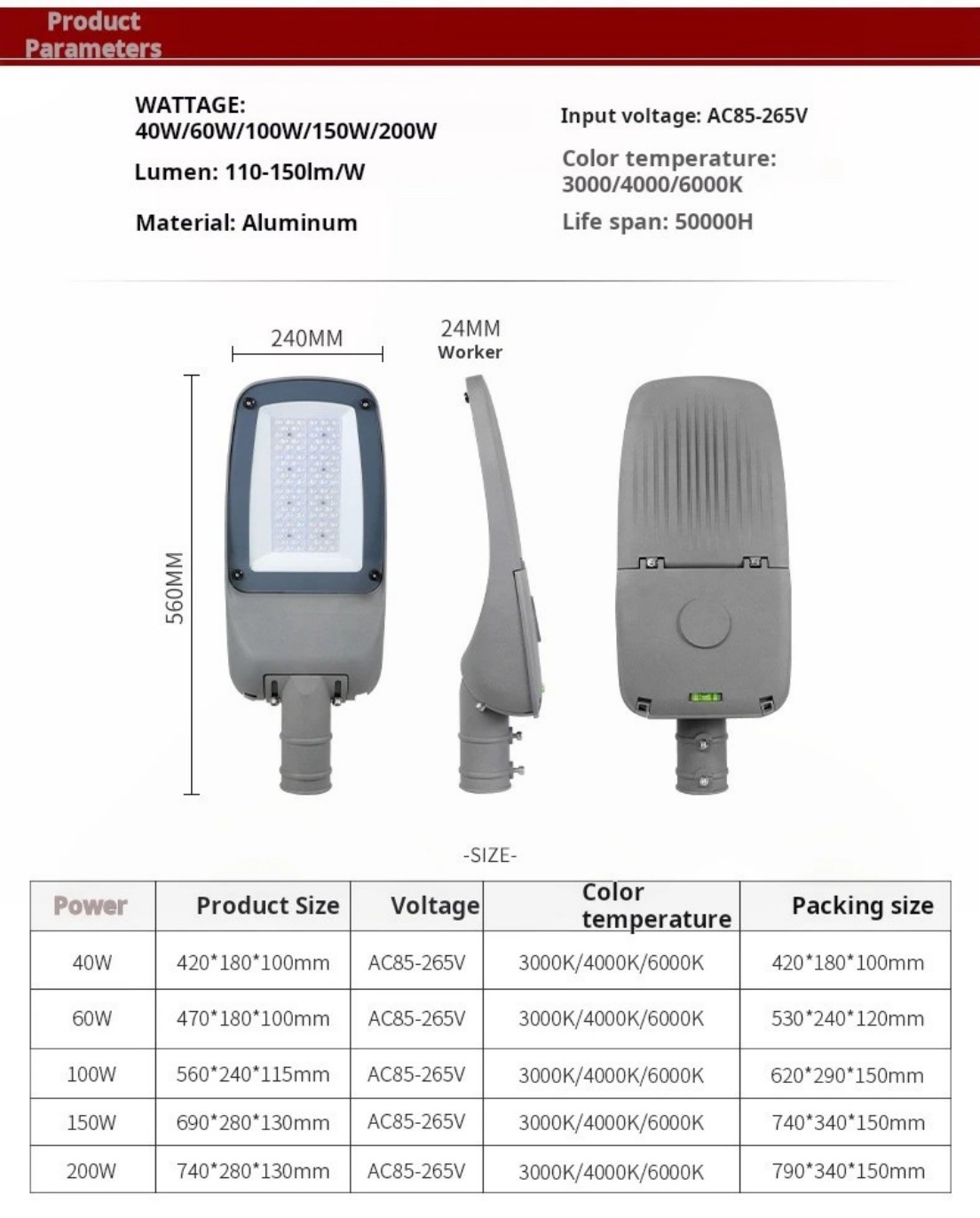

YS street light size chart

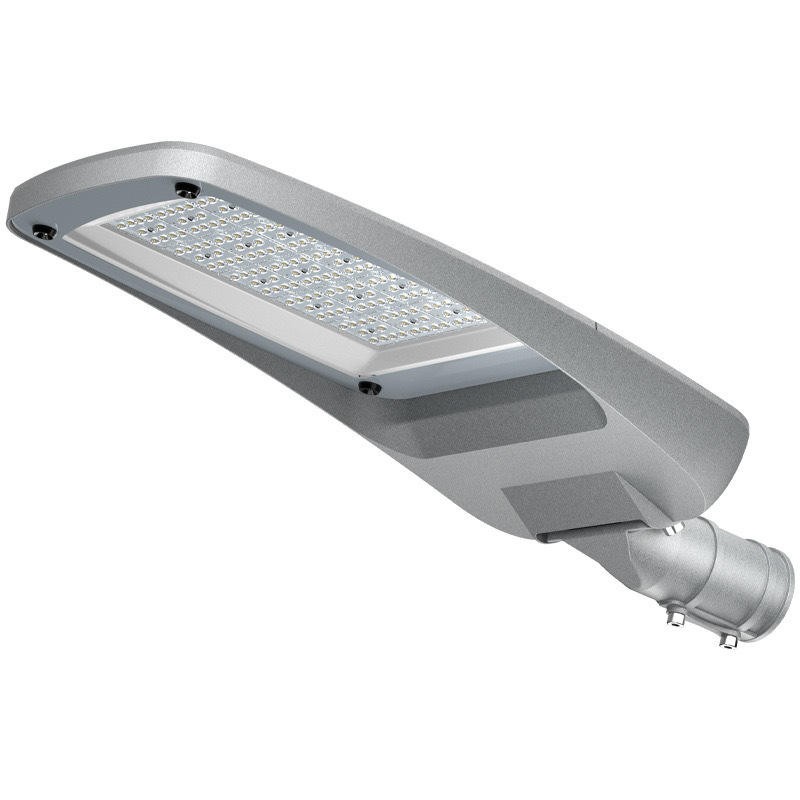

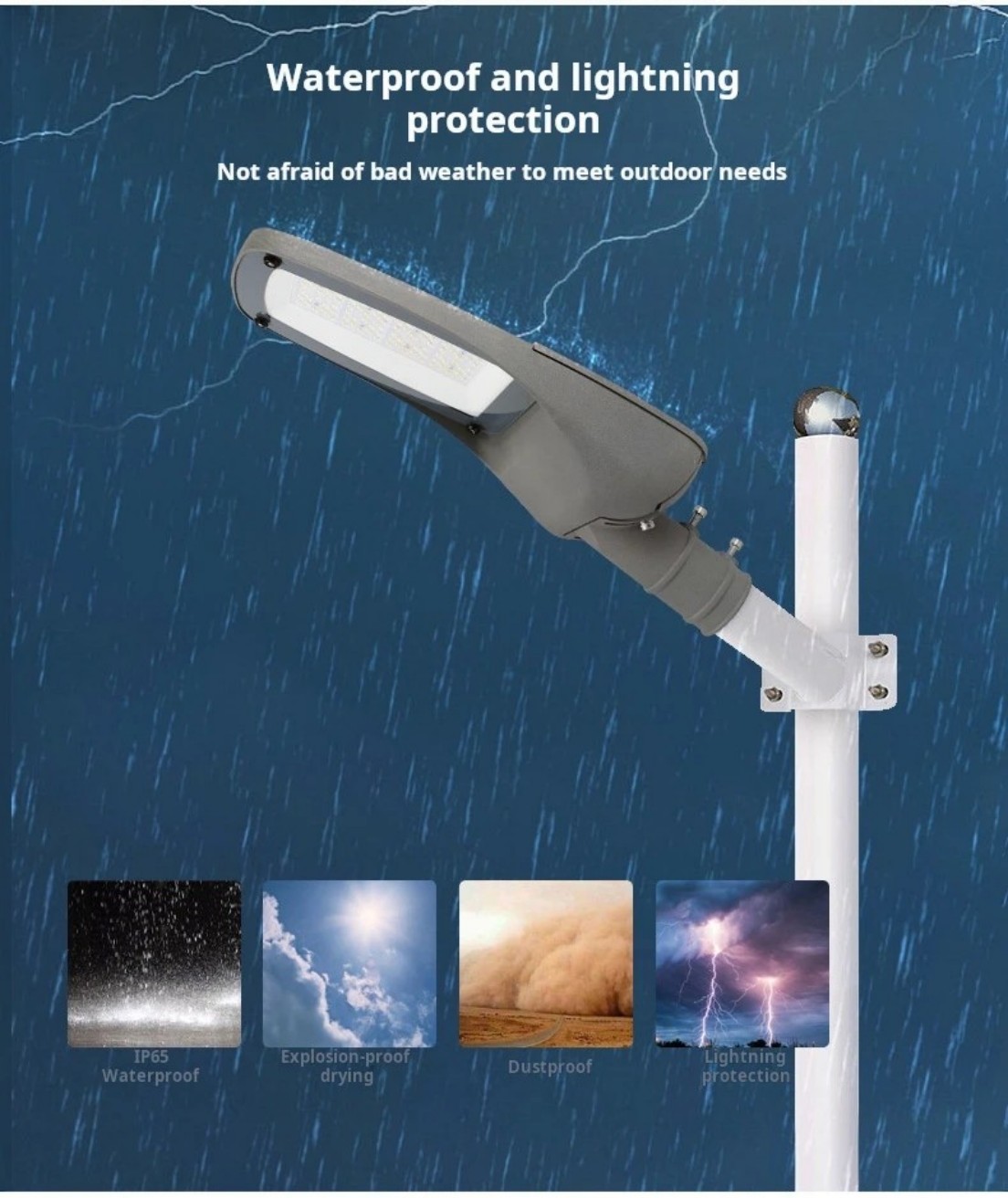

IP66 Waterproof YS Street Light

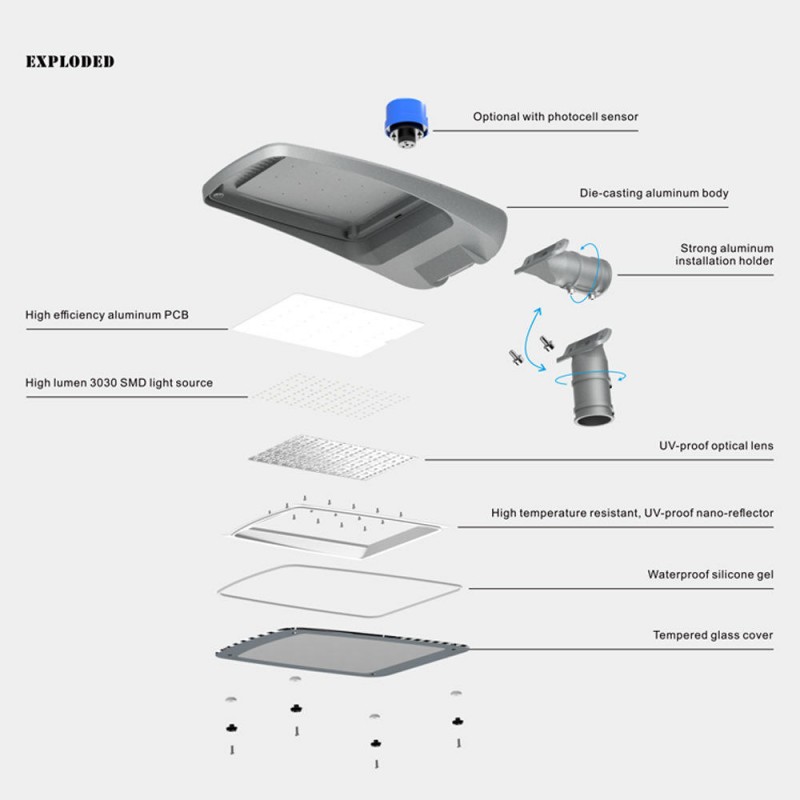

Product Structure

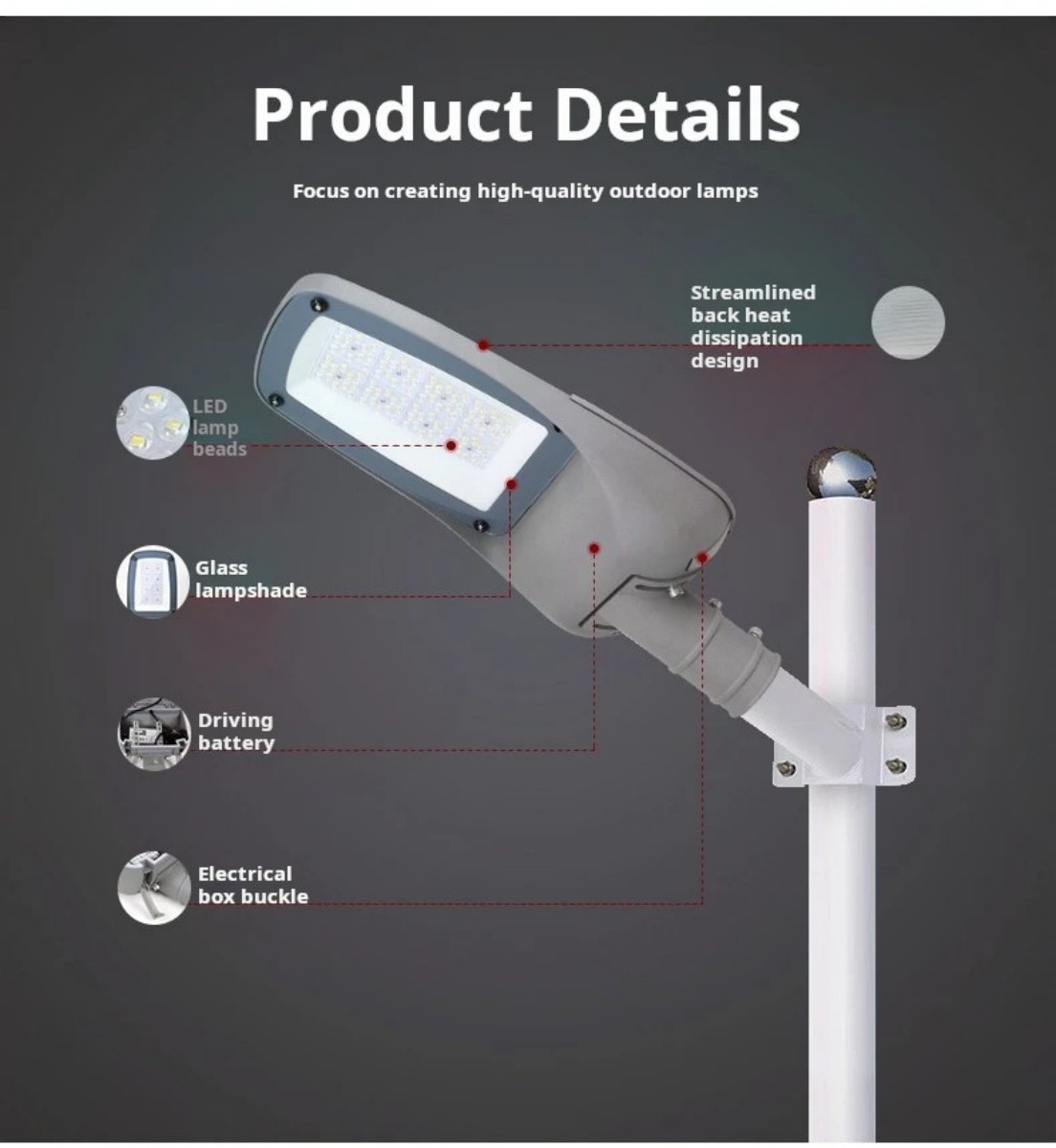

 YS series IP66 waterproof LED street light

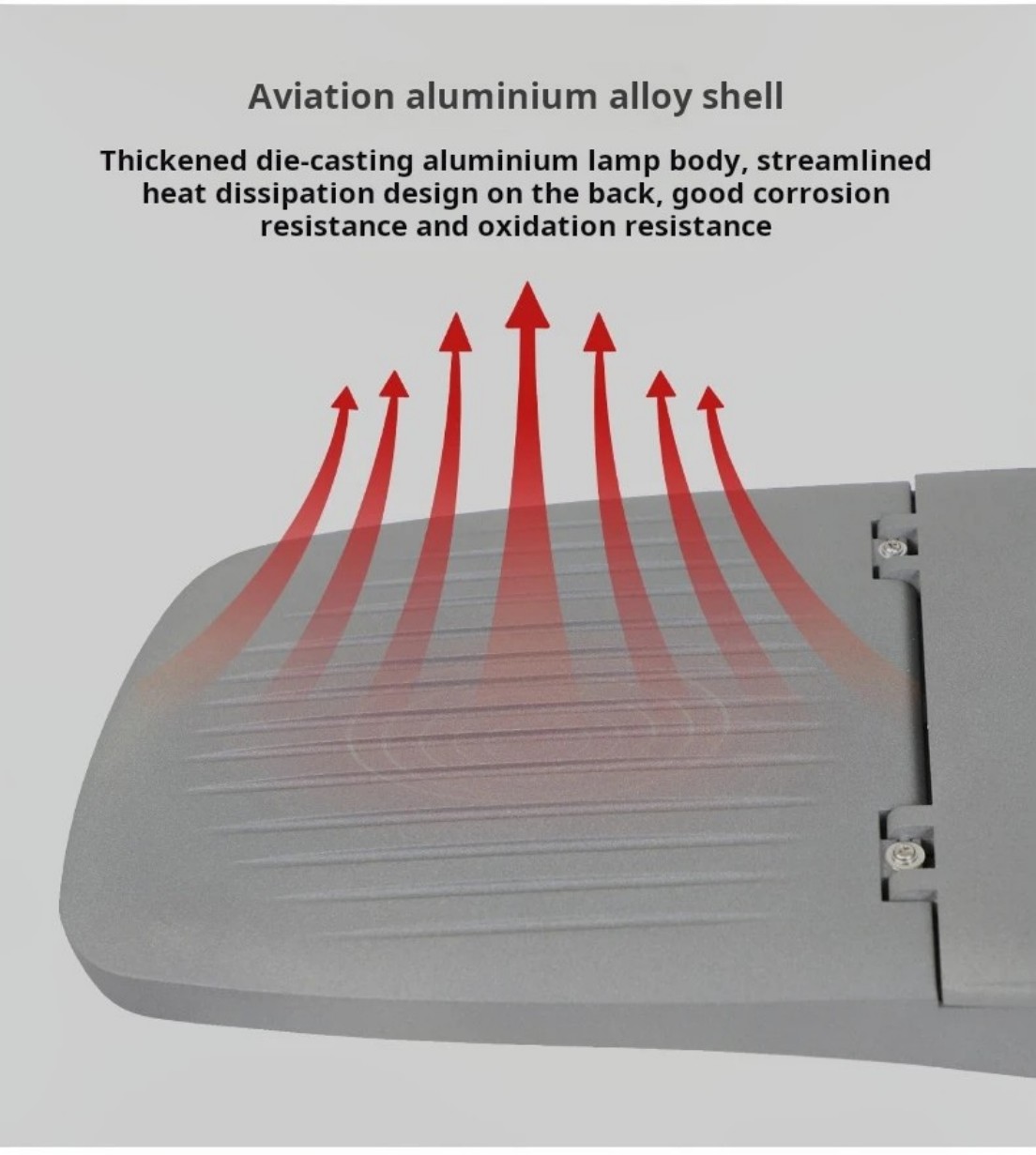

Die cast aluminum housing and heat dissipation structure of YS LED lamp

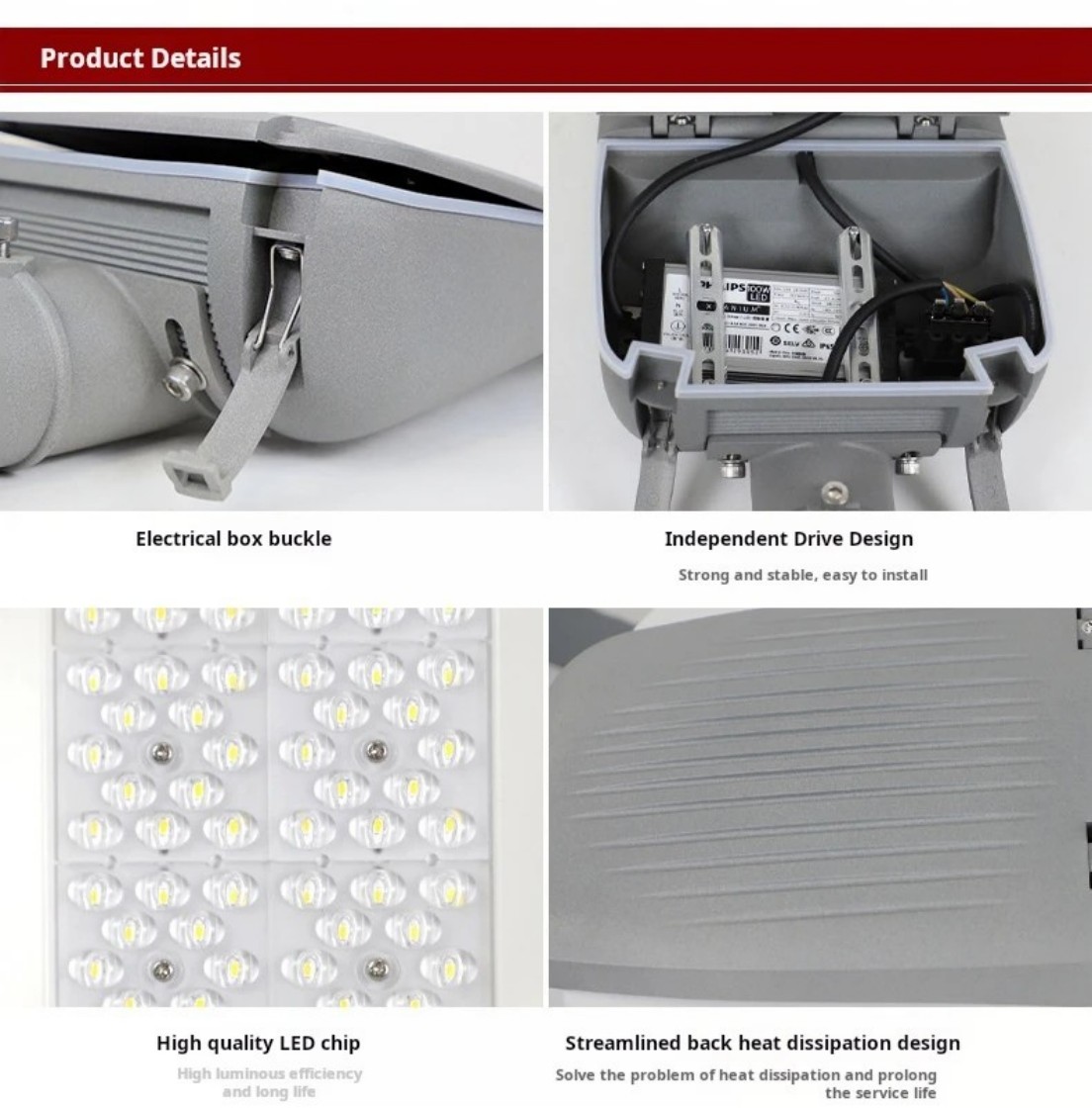

IP66 waterproof LED driver internal structure for YS road light

Application Scenarios of YS Street Lights

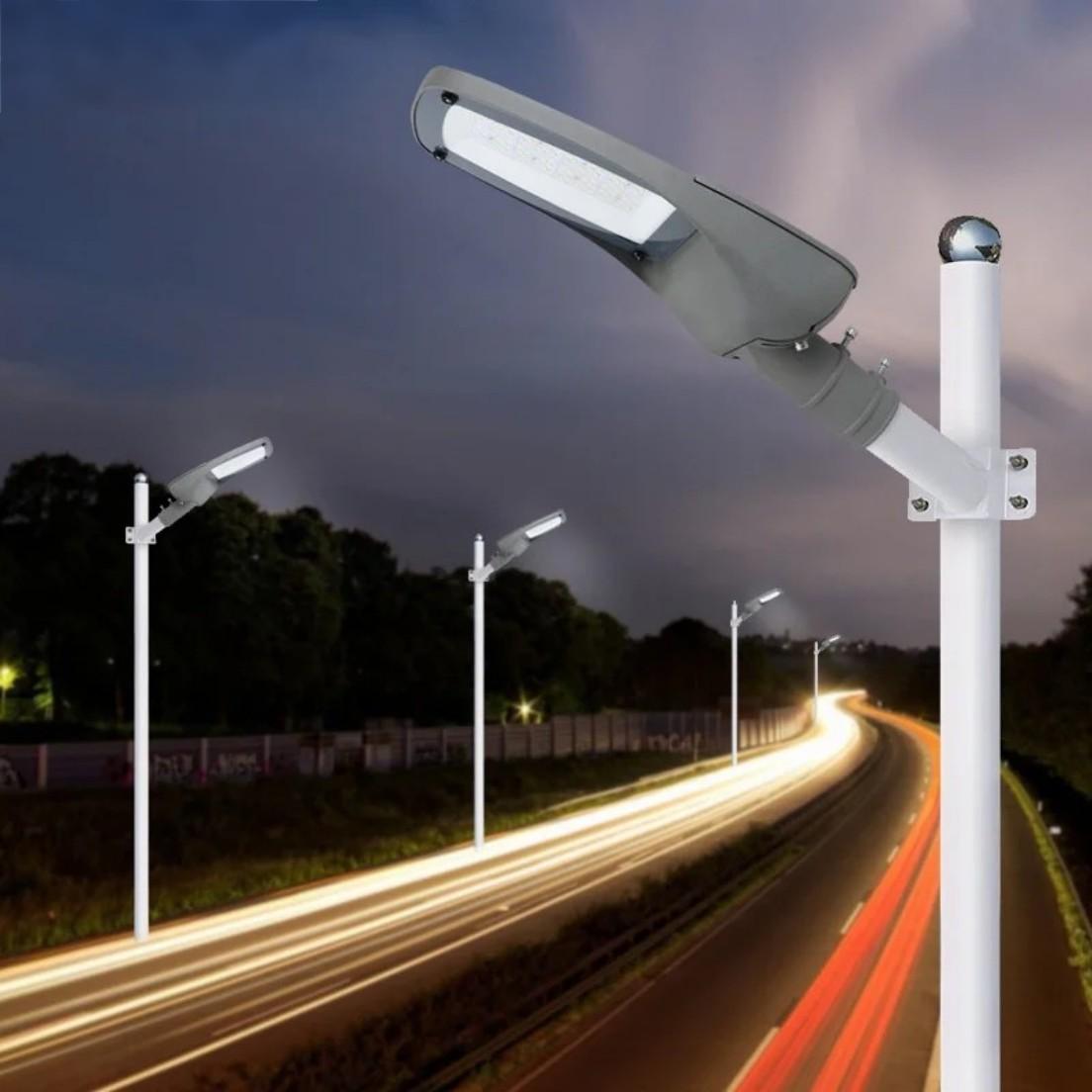

YS road light project effect



Easy to Installation



AC Power Light

Step 1: Take apart the sleeve

First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.



Step 2: Install the sleeve onto the lamp pole

Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.



Energy Saving Light

Step 3: Connect the lamp holder to the sleeve

Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.

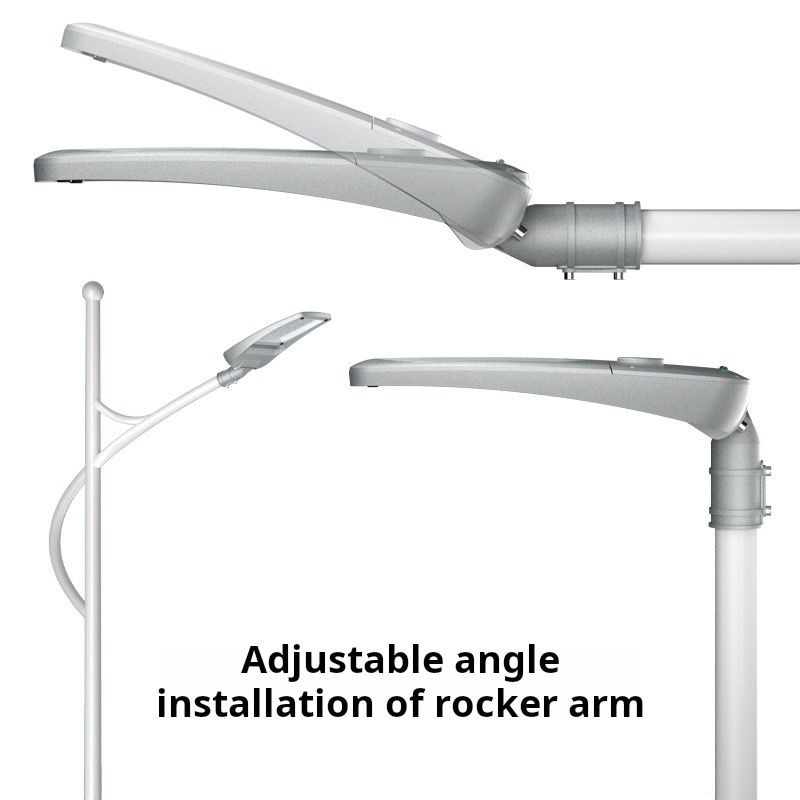

Step 4: Adjust the irradiation angle

Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.









Check out Project Gallery



Your Reliable Outdoor Lighting Partner



HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.

Need a Dialux simulation for your project? Click here for a free lighting plan.
