Certified Quality for Global Projects

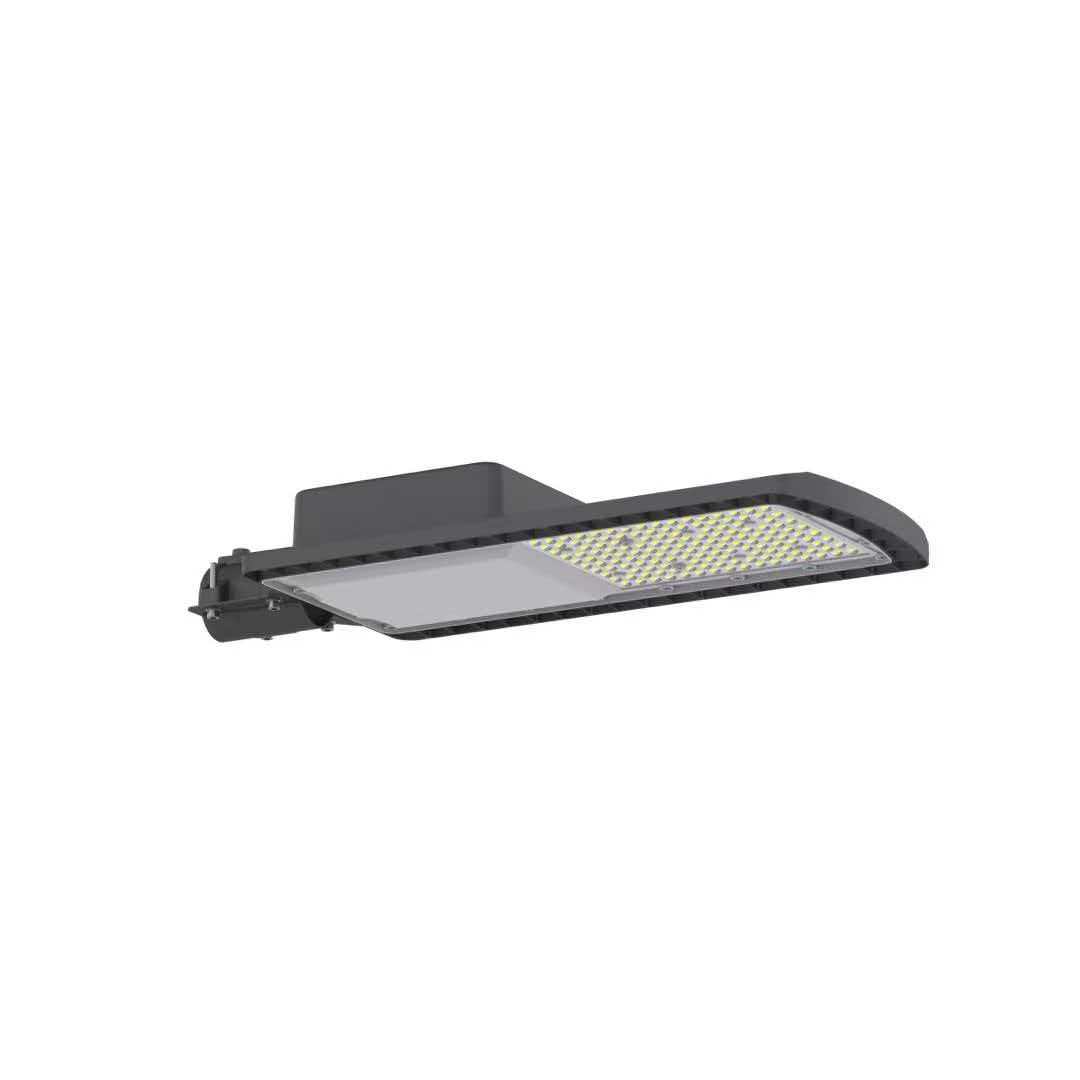

StarNet IP66 Waterproof LED Street Lights
100–200W grid-style AC street lights for outdoor municipal use
IP66 Waterproof & Dustproof
Engineered with IP66 rated protection, this street light is fully sealed against heavy rain, snow, dust, sand and moisture. It performs reliably in harsh outdoor environments, making it ideal for roads, highways and coastal areas with long-term exposure to the elements.

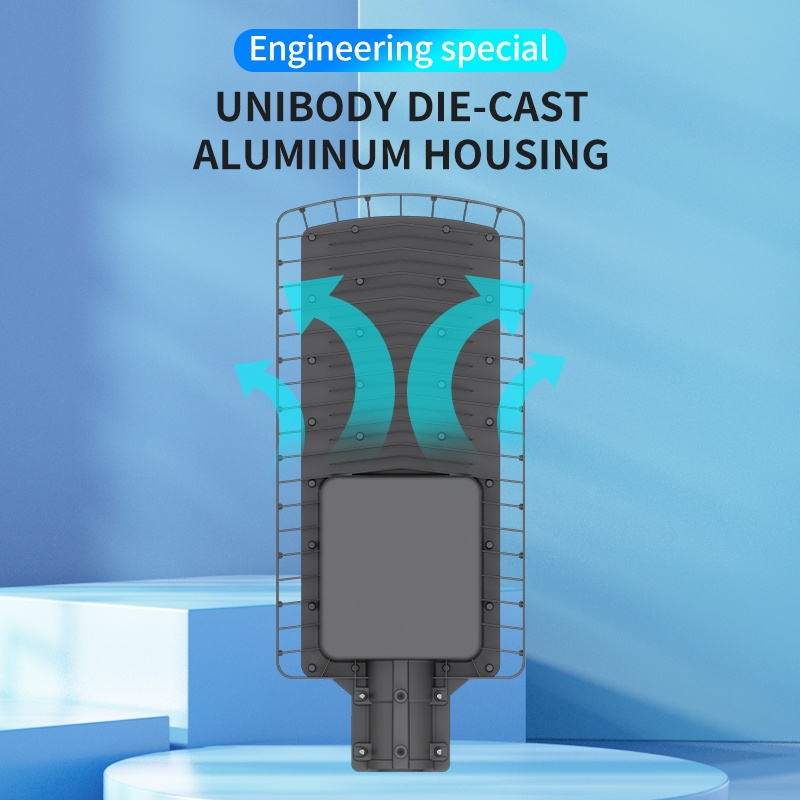

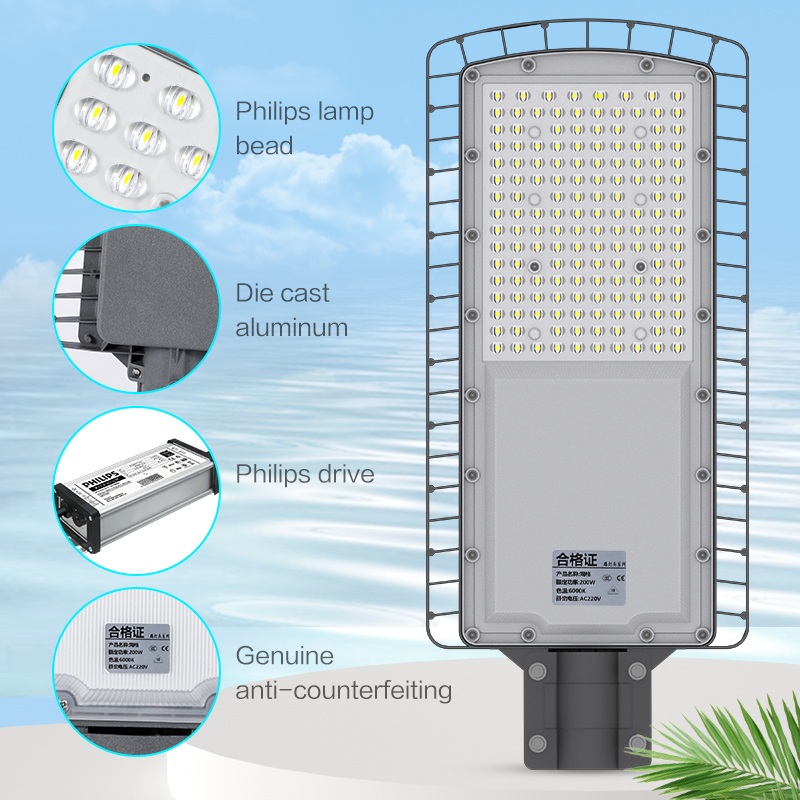

Thickened Die-Cast Aluminum Housing
Constructed with heavy-duty die-cast aluminum, the housing provides excellent durability, corrosion resistance and wind resistance. It ensures the fixture remains sturdy and deformation-free even in high-wind and long-term outdoor use.

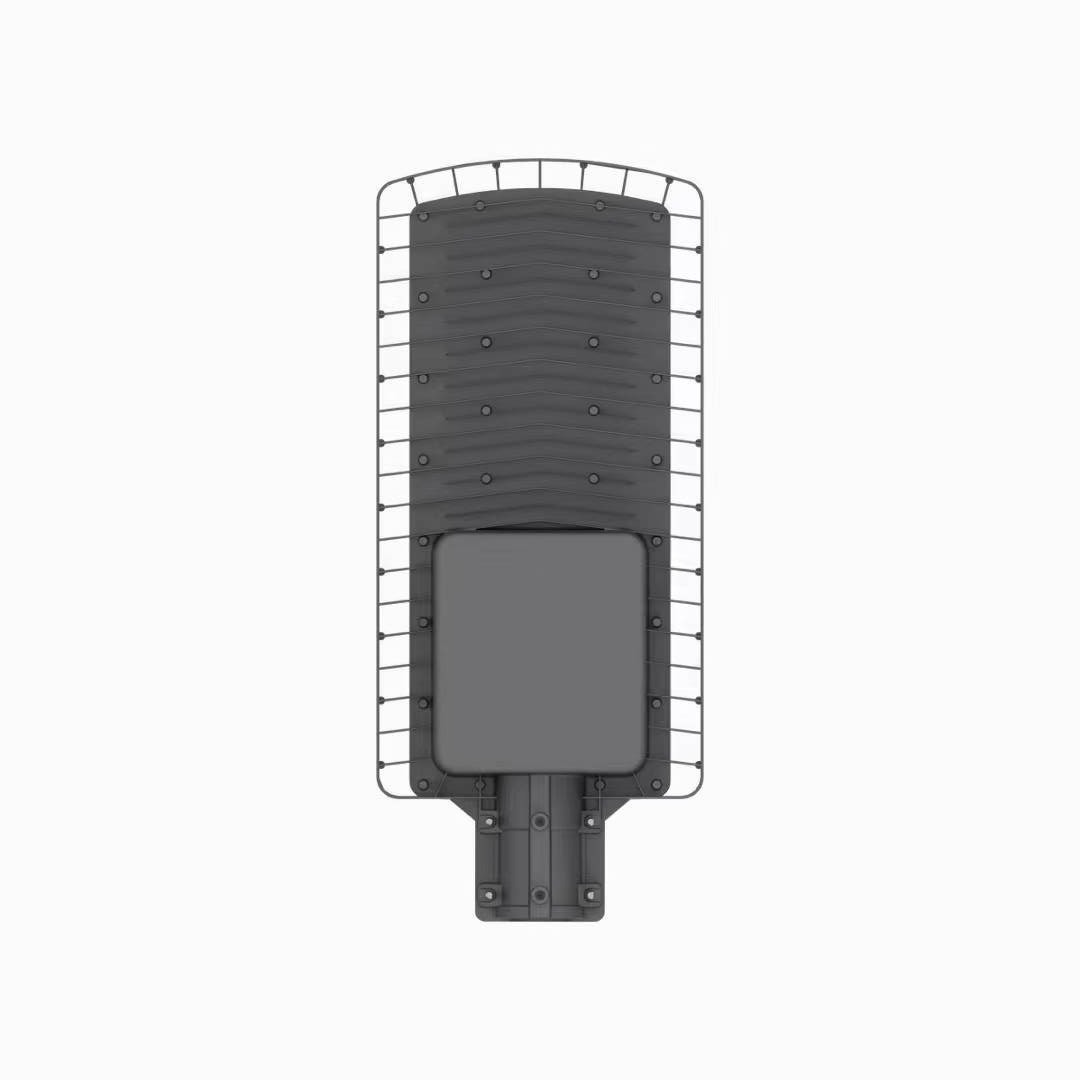

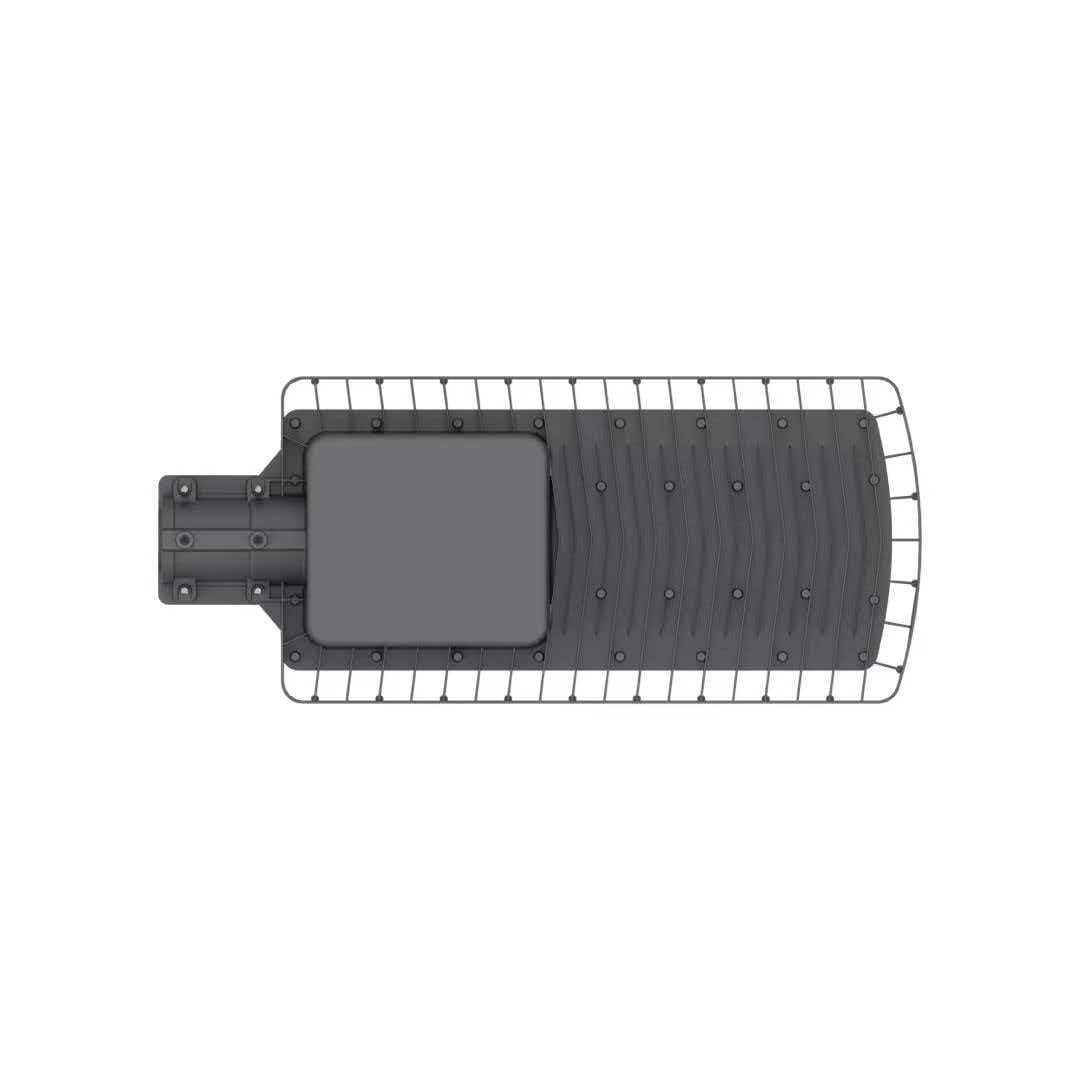

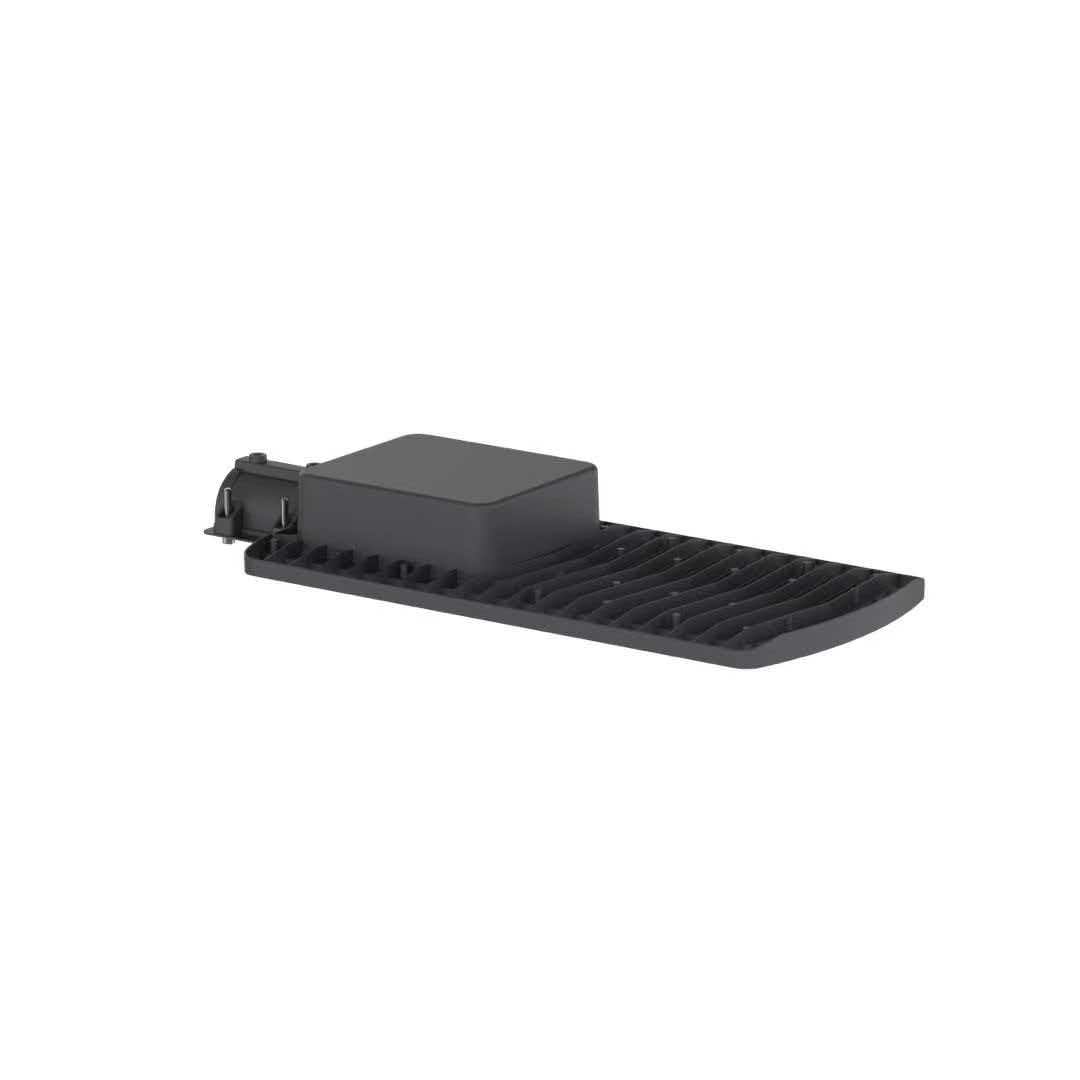

Efficient Grid Heat Dissipation
The unique grid-style heat sink increases heat dissipation area and improves air convection. This design effectively lowers junction temperature, reduces lumen depreciation and extends the service life of LEDs up to 50,000 hours.

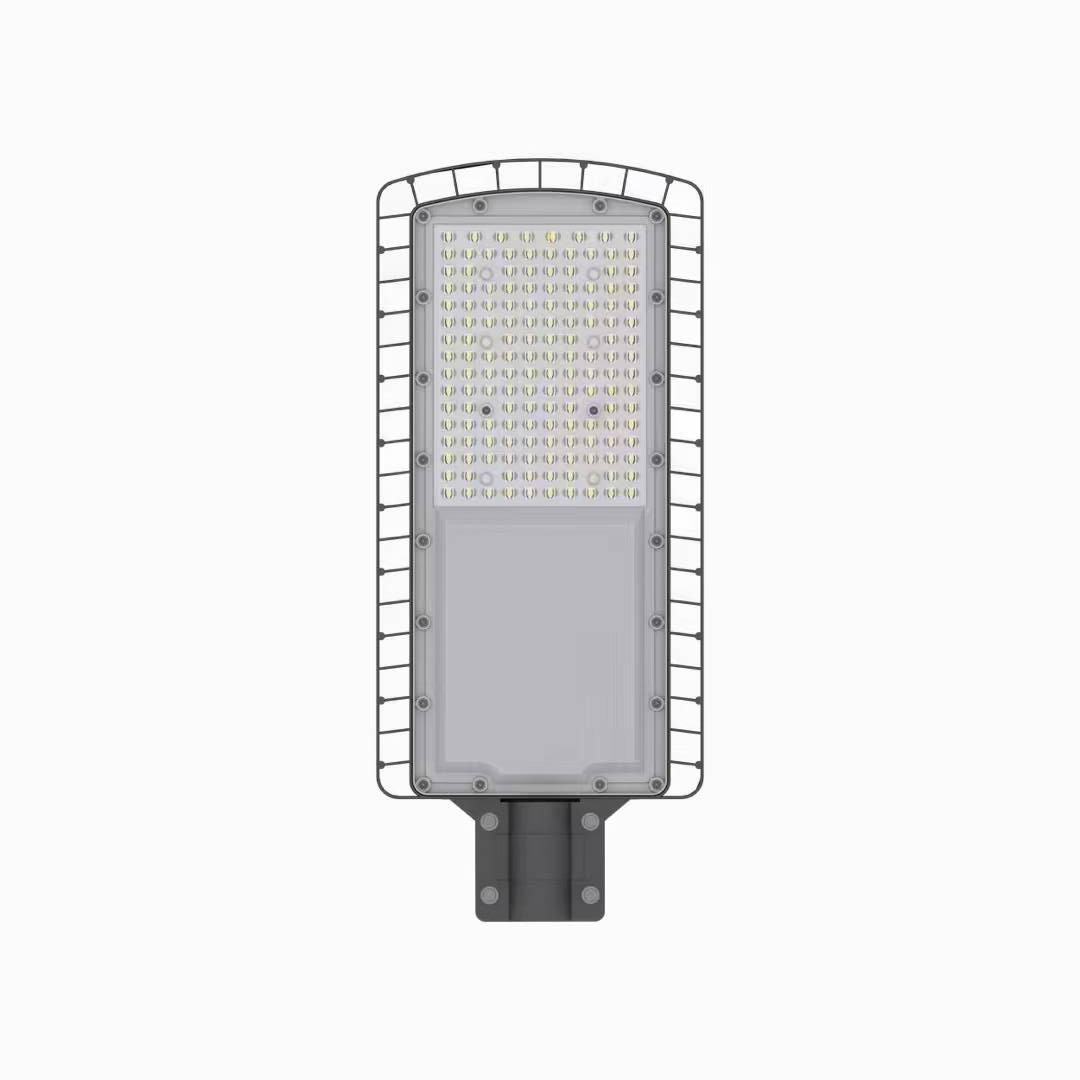

100W–200W High Power Output

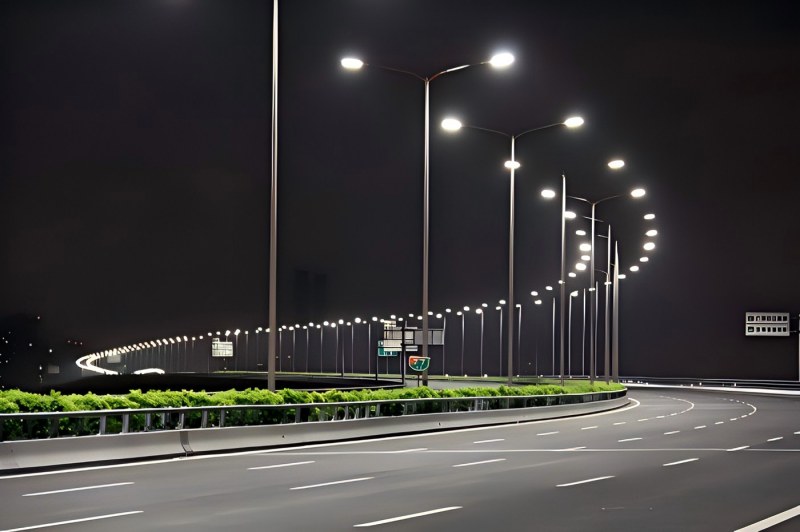

Available in 100W, 150W and 200W high-power versions, delivering high brightness and uniform light distribution. It fully meets the lighting demands of main roads, highways, industrial zones and large public areas.
Wide AC Voltage Compatibility
Supports wide-range AC voltage input, compatible with global power grid standards (110V–277V). It maintains stable performance even under voltage fluctuations, ensuring consistent operation in different countries and regions.
Surge & Lightning Protection
Built-in surge and lightning protection circuit guards against sudden voltage spikes and lightning strikes. This greatly reduces failure risk and improves safety and stability for outdoor municipal projects.
High Lumen & Energy Saving
Equipped with high-efficiency LED chips, it delivers superior luminous efficacy and consumes up to 60% less energy than traditional street lights. It helps lower electricity costs and reduce long-term operational expenses.
Easy Installation & Maintenance

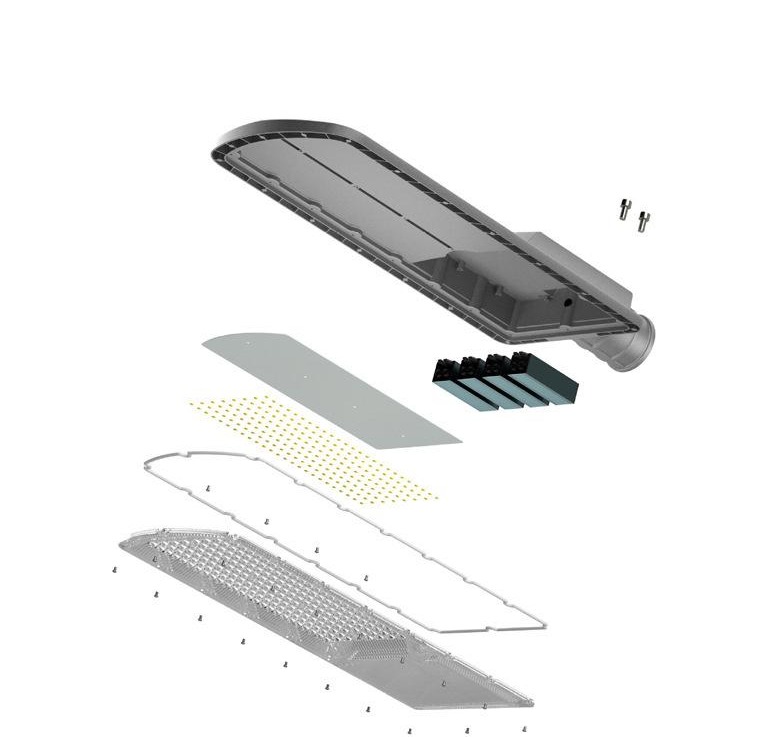

Designed with a universal mounting bracket and modular structure, it fits most standard poles and allows quick installation. The simplified design also makes maintenance and component replacement fast and cost-effective.

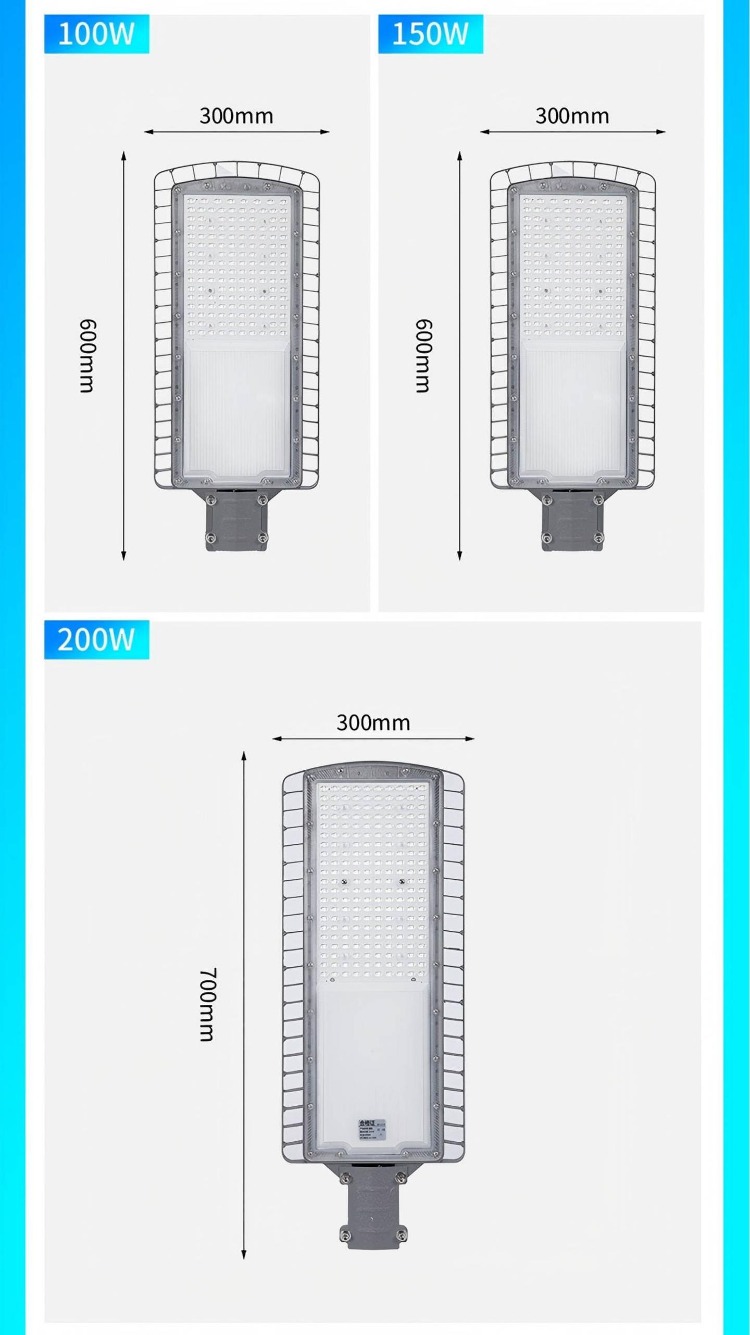

| Model Number | WG-100 | WG-150 | WG-200 |
| Size | L600*W300*H85MM | L600*W300*H85MM | L700*W300*H85MM |
| Rated Power | 100W | 150W | 200W |
| Input Voltage | AC 170-265V / 110-277V | ||
| Luminous Efficiency | 150 lm/W | ||
| Total Lumen | 15000 lm | 22500 lm | 30000 lm |
| Color Temperature | 3000K/4000K/6000K | ||
| CRI | ≥70 | ||
| IP/IK Rate | IP66 / IK09 | ||
| Material | Thickened Die-cast Aluminum | ||
| Heat Dissipation | Natural Convection Heat Dissipation | ||
| Working Temperature | -40℃ ~ +65℃ | ||
| Service Life | ≥50,000 Hours | ||

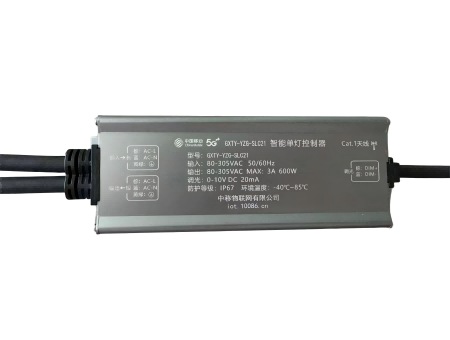

It enables remote intelligent dimming and real-time monitoring, significantly reducing street lamp energy consumption and electricity costs, providing accurate fault alarms, extending lamp service life, and achieving seamless integration with smart city lighting management.
Installation Steps:

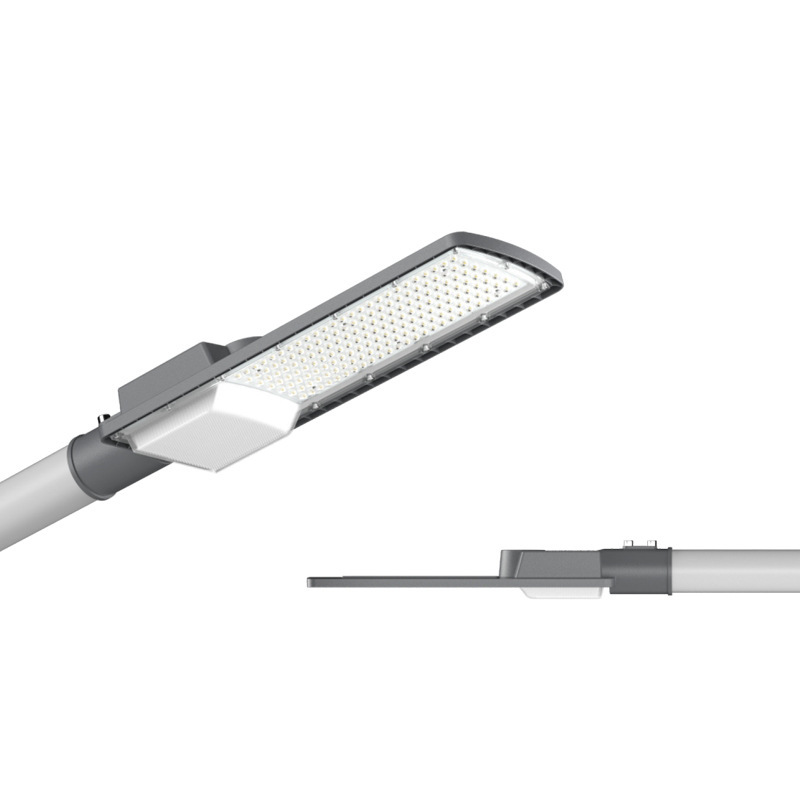

Installation is very convenient. Simply loosen the top screw, insert the lamp head into the lamp pole, and then tighten the top screw again. Adjust the lighting angle to a suitable position.
Installation Notes:
1. Safety First: Conduct all operations with power disconnected. Wear safety ropes for work at heights and comply with relevant working-at-height regulations.
2. Waterproof Sealing: Adequate waterproof treatment must be applied to wiring connections to prevent short circuits and burnout caused by rainwater ingress.
3. Heat Dissipation Requirements: The heat dissipation fins on the back of the street lamp head must not be obstructed to ensure proper ventilation and heat dissipation, thus extending service life.
4. Grounding Requirements: Reliable grounding is mandatory to guard against electric leakage risks.
5. Maintenance Space: Reserve inspection and maintenance space during installation to facilitate later maintenance and light source replacement.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
