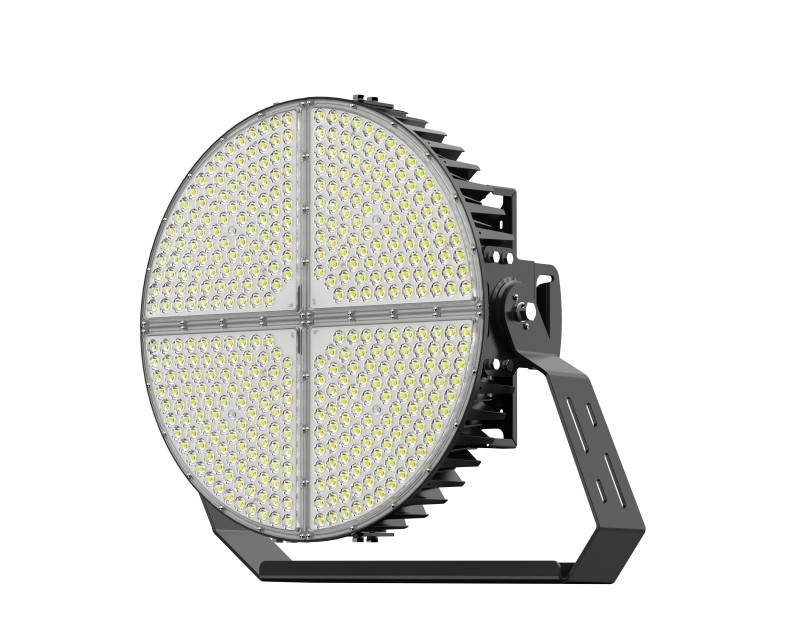

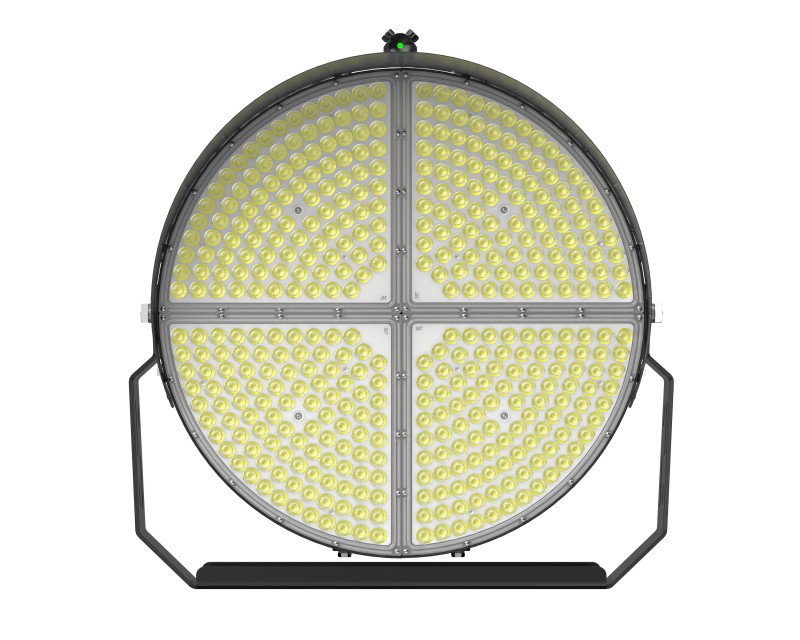

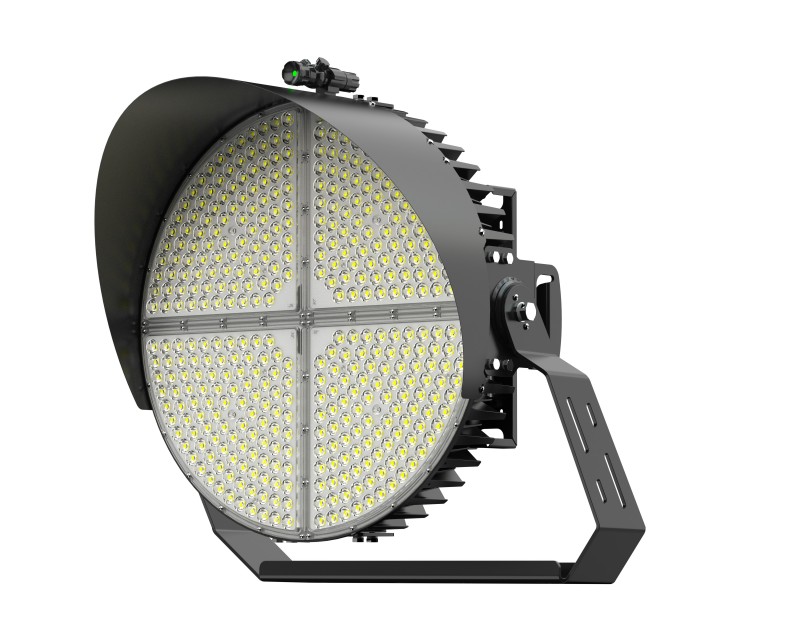

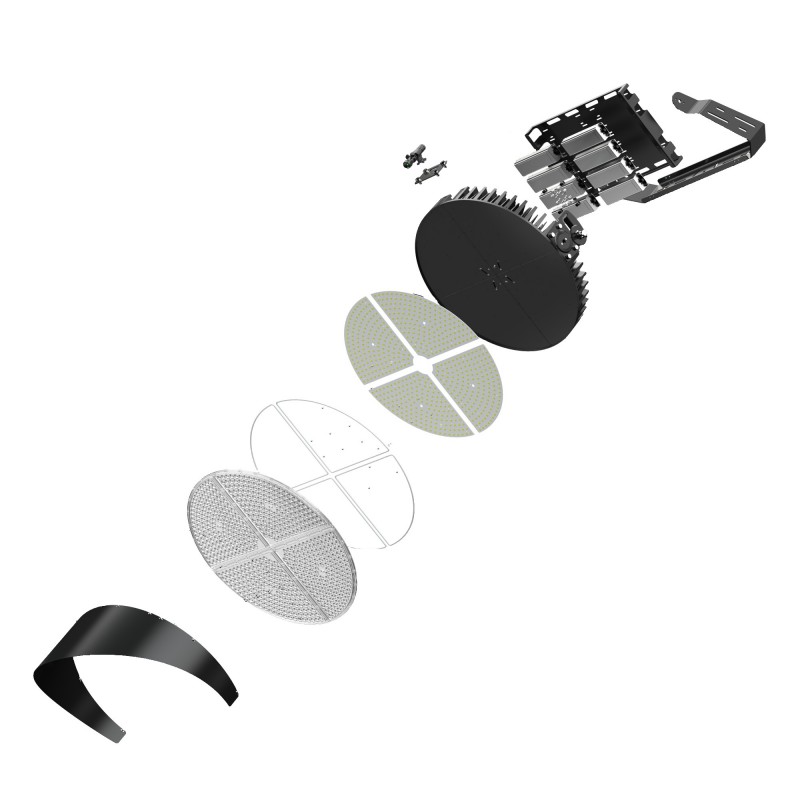

BD Series circular LED high mast flood light adopts exclusive UFO round die-cast aluminum housing with four split independent LED modules. Equipped with ring surrounding heat sink, it realizes efficient heat dissipation and low light decay, supporting 300W–2000W full power range.

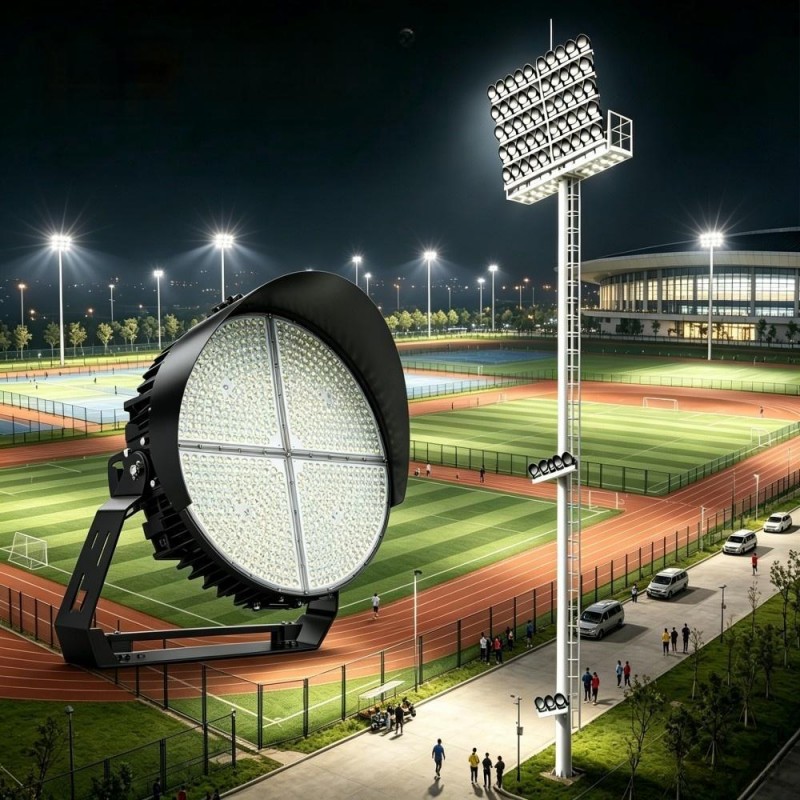

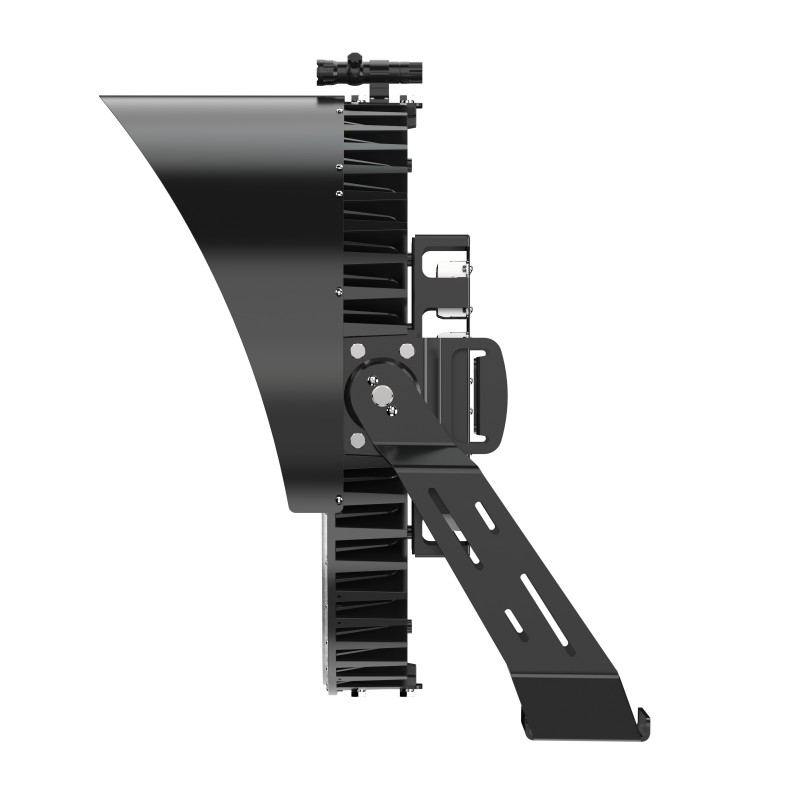

With IP67 waterproof, IK08 impact resistance and 360° adjustable heavy bracket, this anti-glare stadium light meets FIFA and IAAF competition lighting standards. It is widely used for football fields, athletics tracks, tennis courts, school playgrounds, port yards and large outdoor plazas. Optional DALI dimming, photocell sensor and 5–7 years global warranty are available for engineering wholesale orders, and OEM customization is supported.

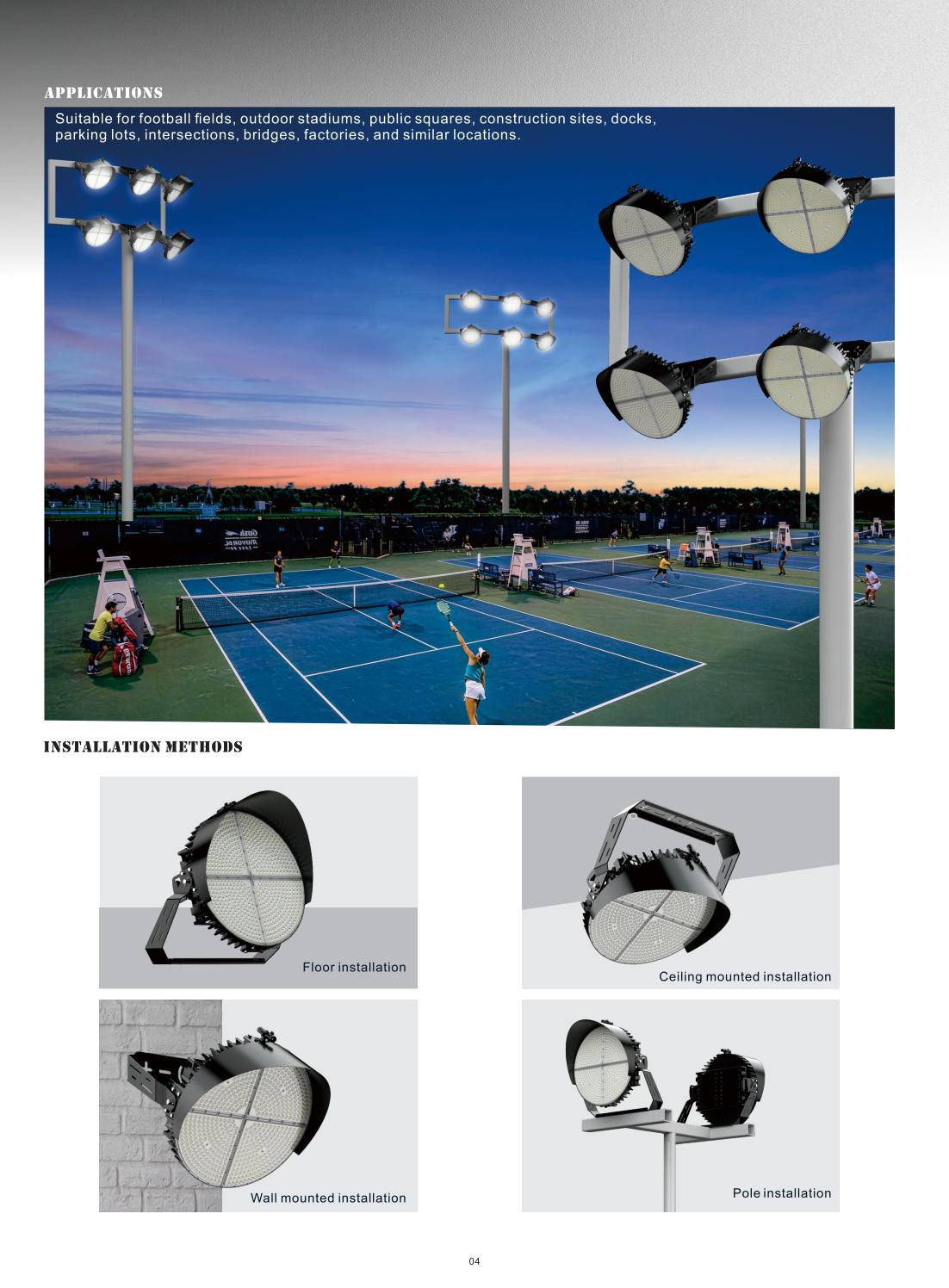

Applications:
Certified Quality for Global Projects
IP67 Anti-Glare BD Round LED Sports Light 300W-2000W Football Court Lamp

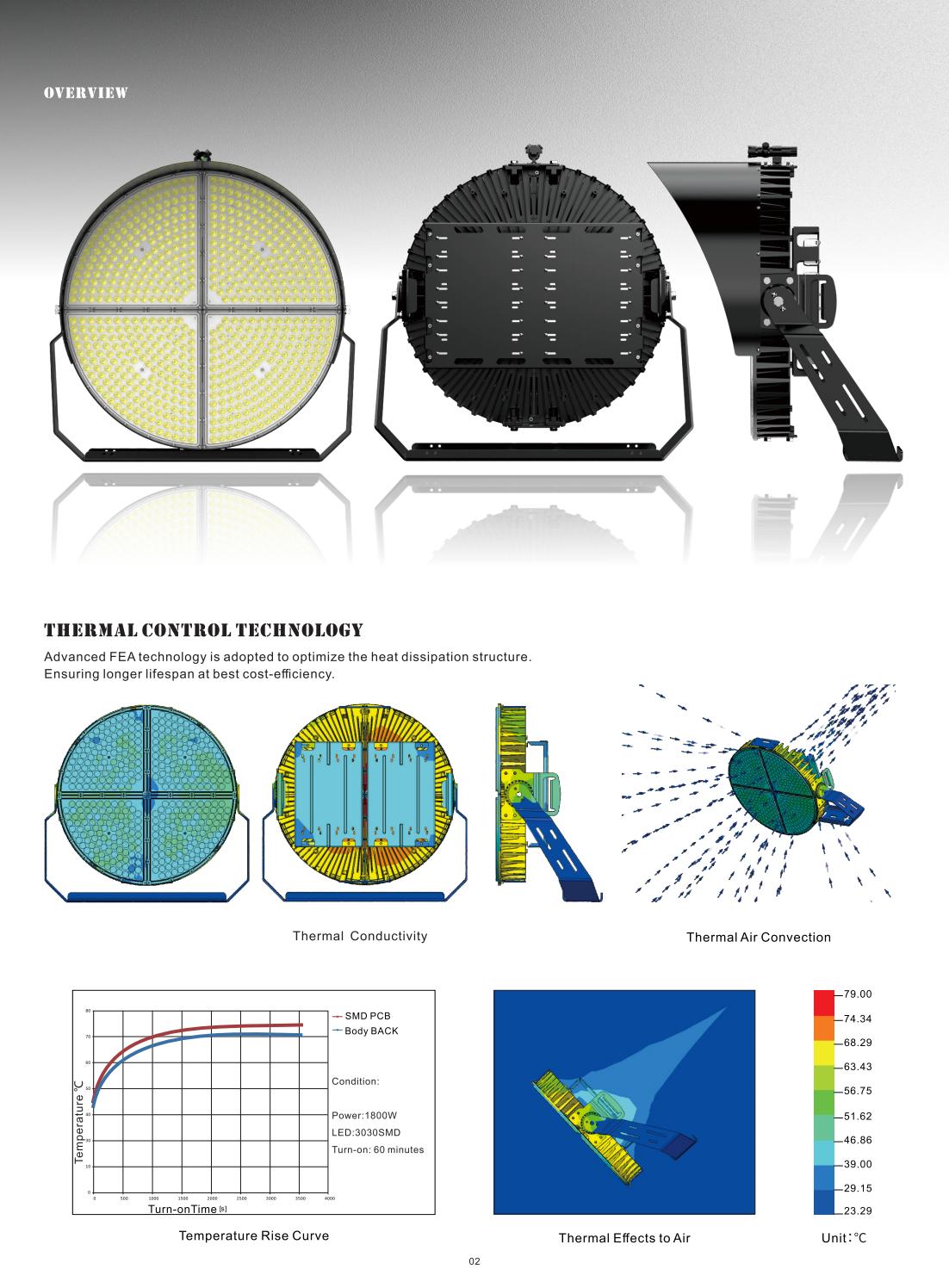

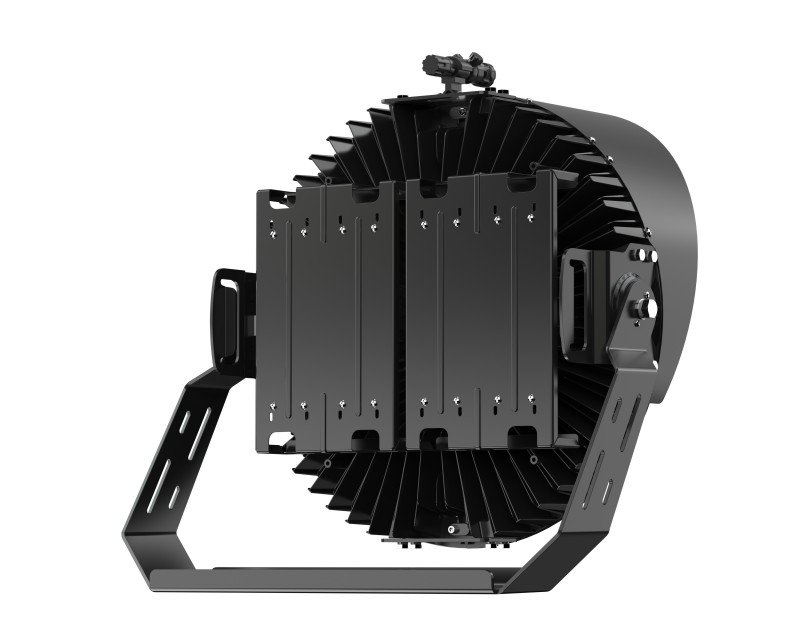

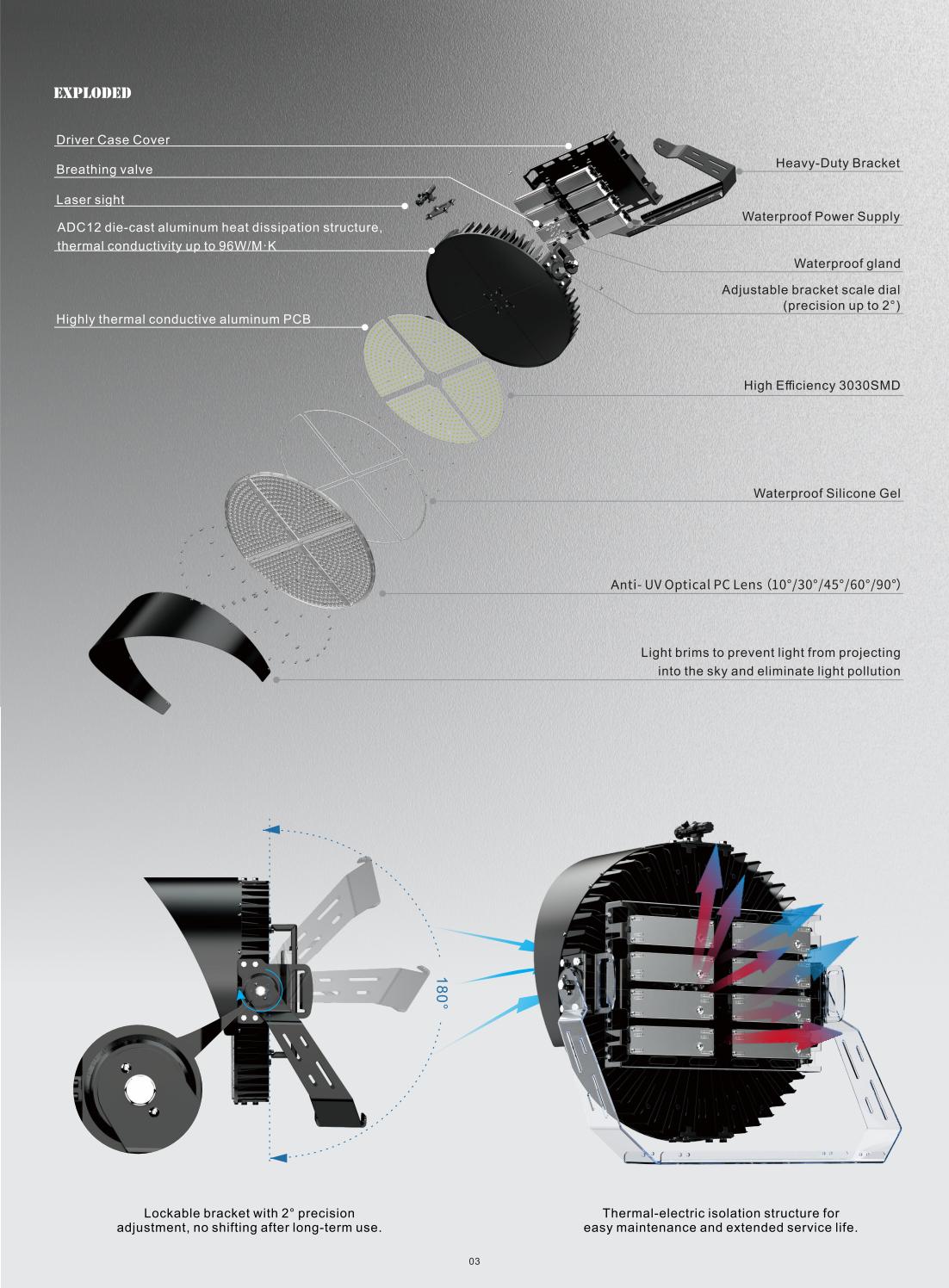

Annular surrounding heat dissipation greatly reduces lumen depreciation
Surrounding annular fin heat sink expands heat dissipation area by 40% compared with flat square lamps. The temperature of 2000W high-power lamp can be stably controlled under long-time full load, effectively slowing down lumen depreciation and extending service life.
Tournament-grade anti-glare lenses, meeting professional venue standards

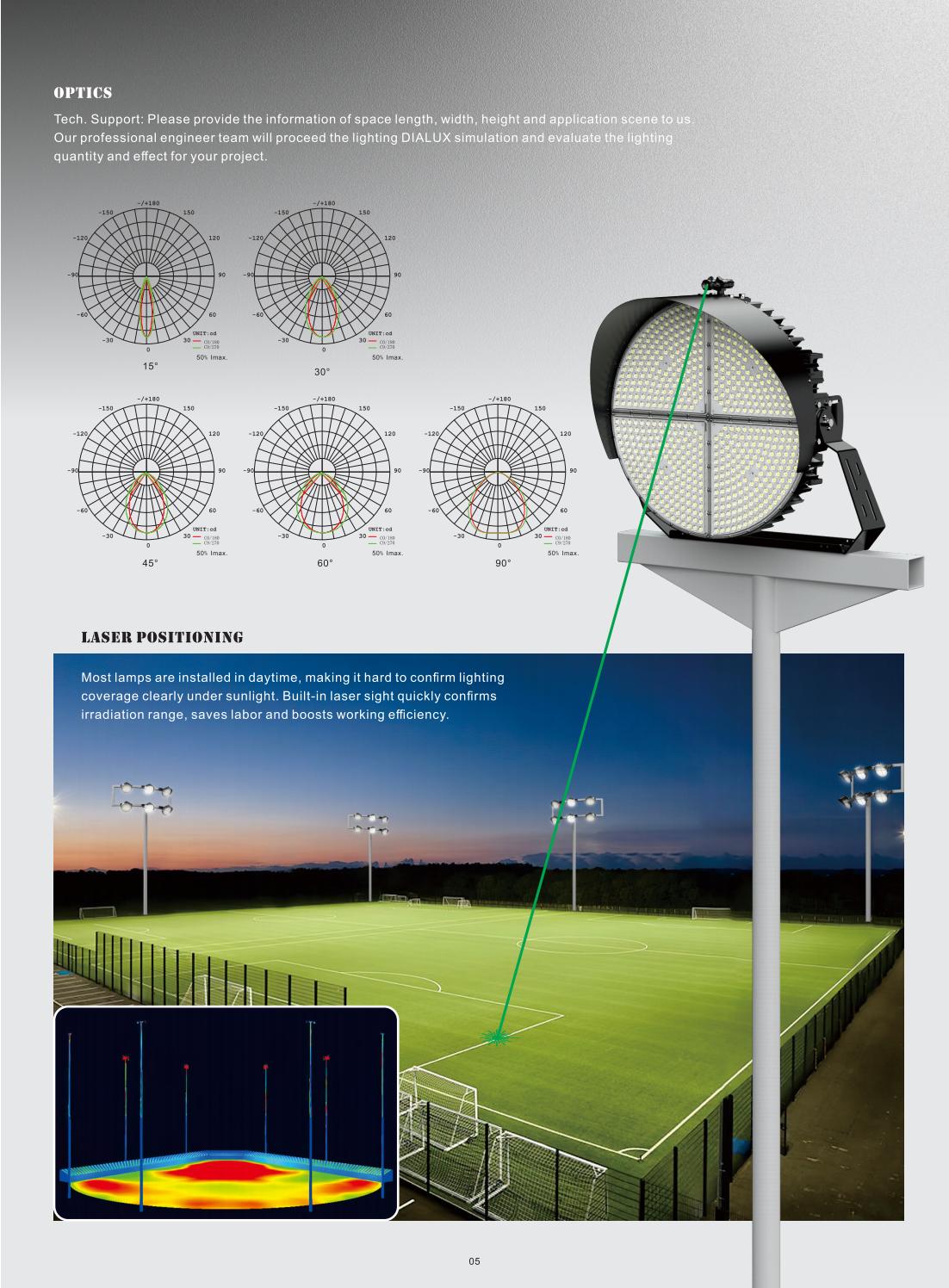

We have customized 5 types of professional optical lenses with different light distribution angles for sports venues, fully meeting the illuminance uniformity standards for football fields, athletics tracks, tennis courts and professional competition venues. The combinable options include 10° narrow-beam lenses, 25° medium-narrow-beam lenses, 40° medium-wide-beam lenses, 60° ultra-wide-beam lenses and anti-glare batwing professional sports lenses. They deliver even light without dark zones or harsh glare to protect the eyesight of athletes and spectators. The standard color rendering index is Ra85, and an upgraded high-CRI version with Ra95 is available, fully complying with the lighting specifications set by FIFA and IAAF.
Flexible intelligent customization, one-stop engineering supporting solutions
Optional DALI dimming, 0-10V dimming, light sensor and radar sensor. Support OEM logo printing, customized power, color temperature and housing color. We can provide free Dialux lighting simulation files, test reports and certification documents for bidding.

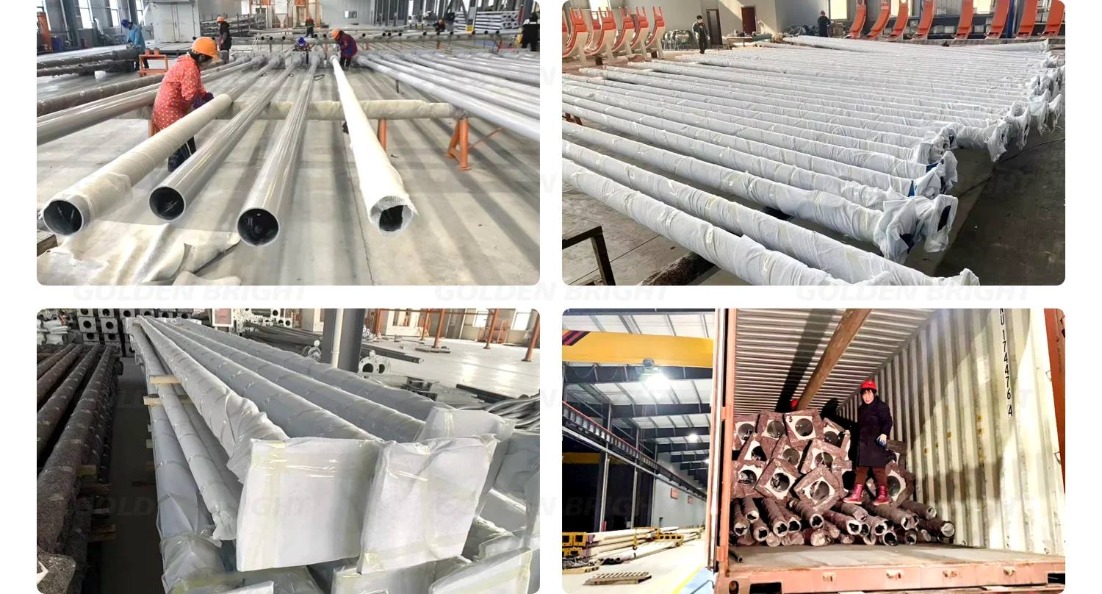

High-Strength Steel, Safe & Durable
Made of high-strength low-alloy steel (Q235B/Q355B/ASTM A572 Gr.50/S355JR), yield strength ≥345MPa, wind resistance up to 60m/s, seismic grade 8.
Hot-Dip Galvanized for Long Life
Internal & external hot-dip galvanizing (zinc layer 85–120μm), compliant with GB/T 13912, ASTM A123, EN ISO 1461. 30-year rust-proof protection, adaptable to coastal, acid rain, and high-humidity environments.

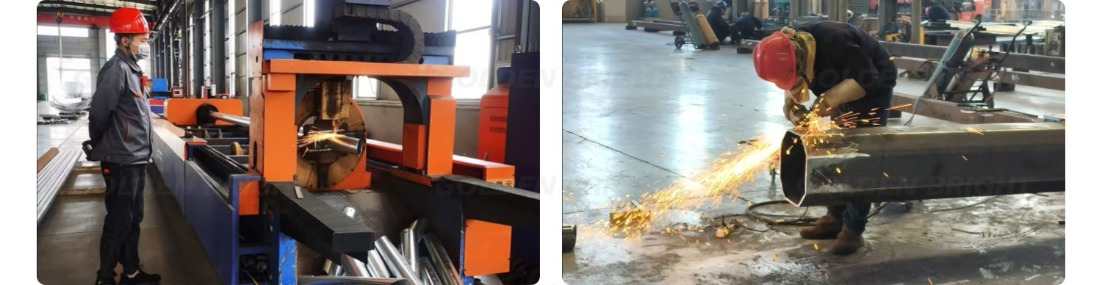

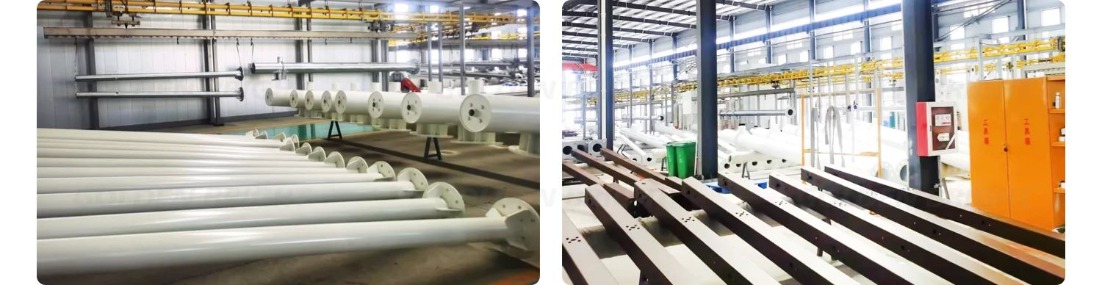

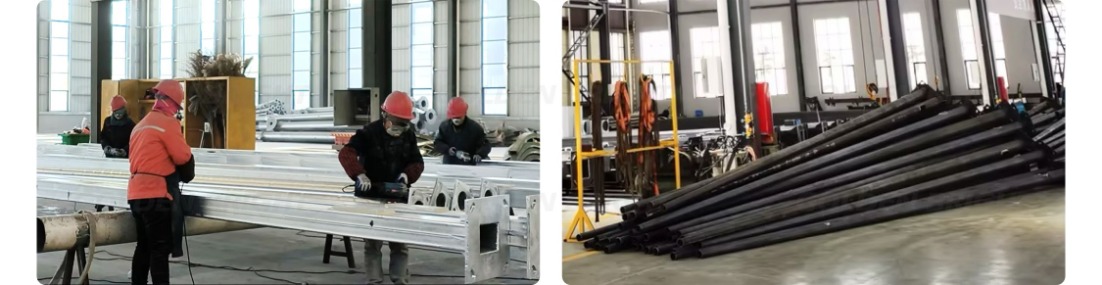

Precision Welding, Reliable Quality
Fully automatic submerged arc/CO₂ welding, smooth welds with no defects. 100% ultrasonic testing, compliant with AWS D1.1, EN 15614 standards, 100% structural strength qualified.
Smart Lifting System (Optional)
Built-in electric/manual dual-control lifting device, speed 3–5m/min, with electromagnetic brake, anti-fall protection, manual operation during power failure. No high-altitude maintenance required.
Custom Design for All Scenarios
Height 15–40m optional, wall thickness 3–16mm, flange/direct burial installation. Equipped with lightning rod, intelligent control, multi-cantilever lamp panel to meet various engineering needs.

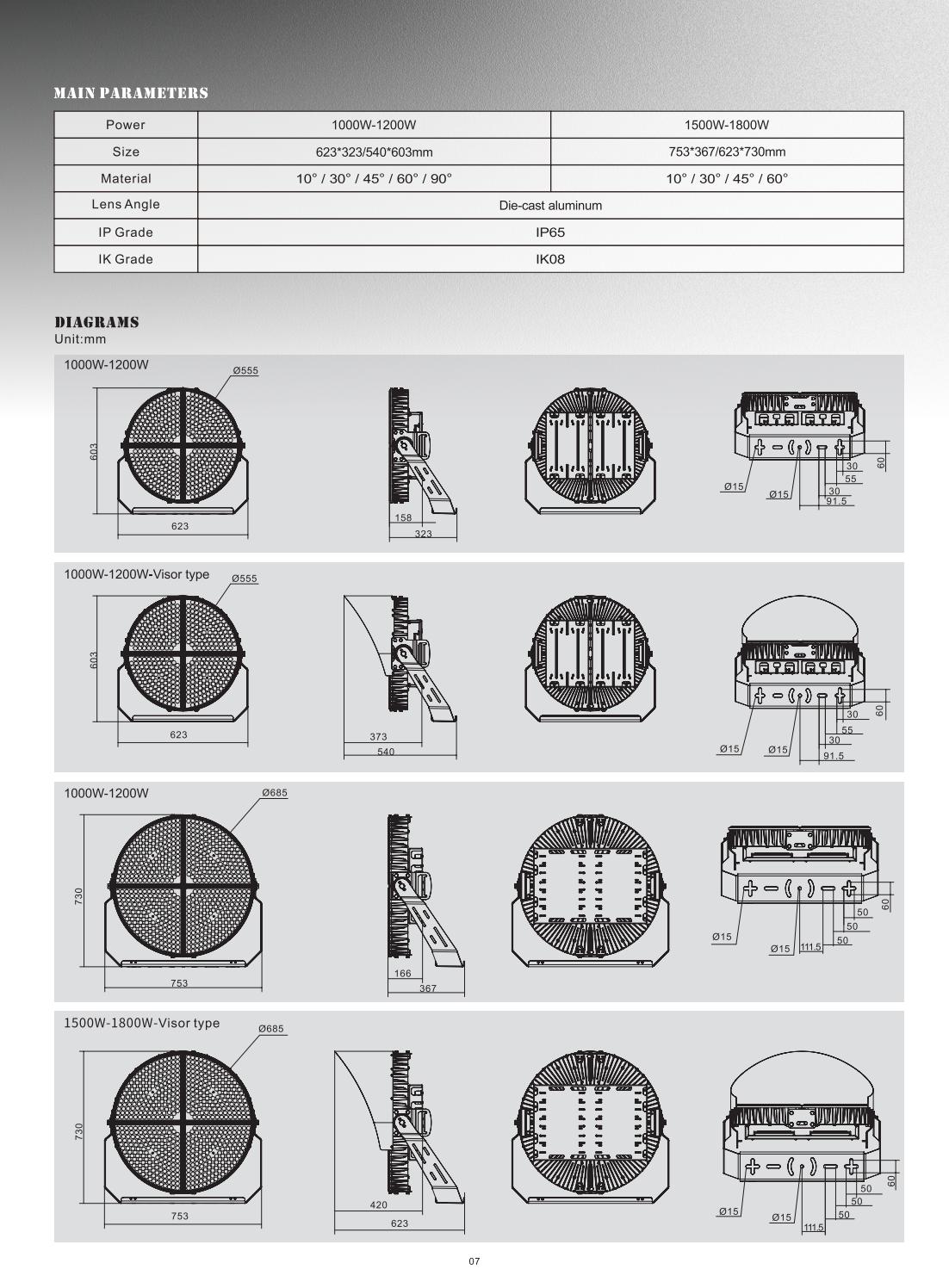

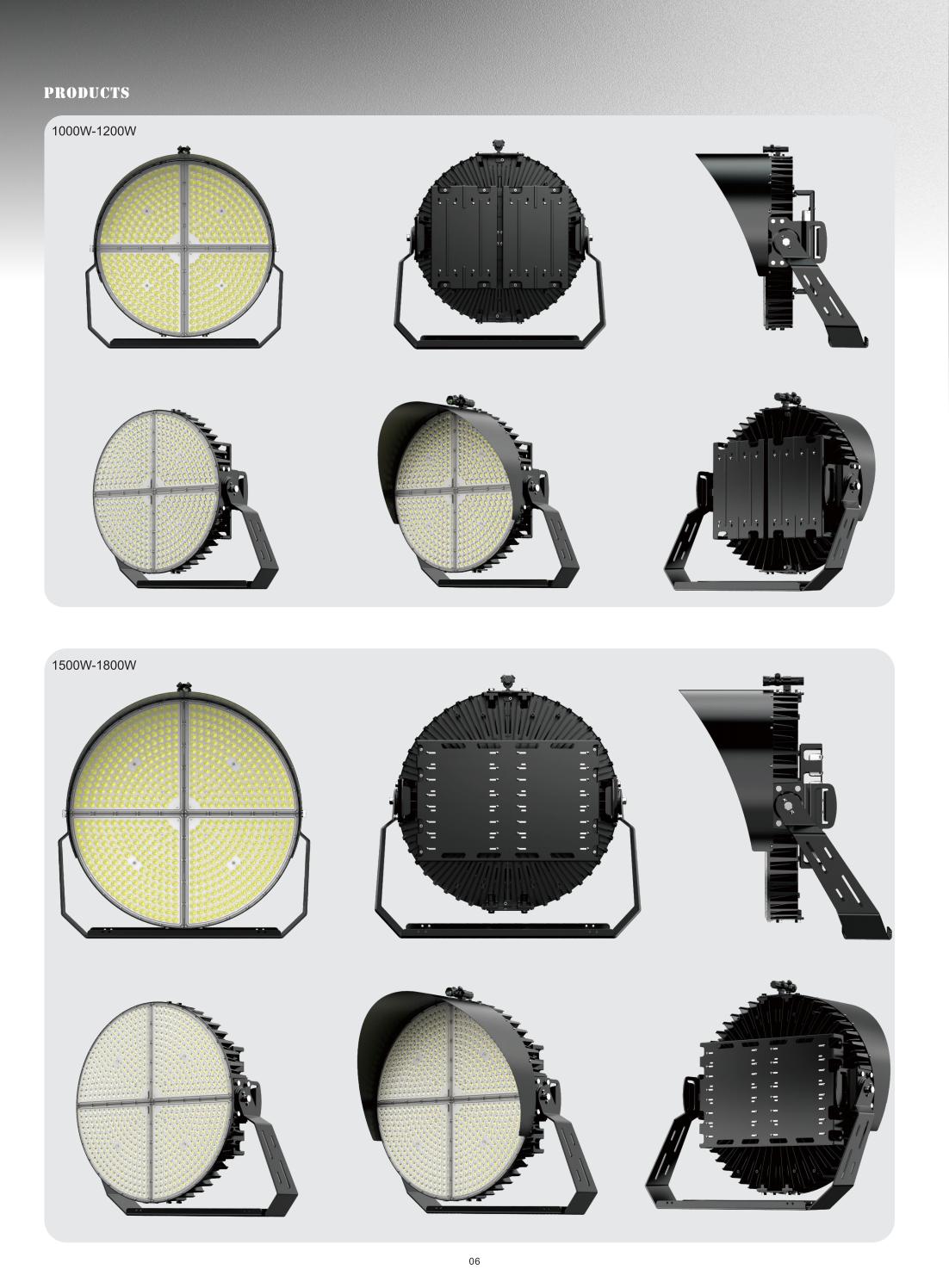

| Power | 1000W-1200W | 1500W-1800W |
| Size | 623*323/540*603mm | 753*367/623*730mm |
| Material | 10°/30°/45°/60°/90° | 10°/30°/45°/60° |
| Lens Angle | Die-cast aluminum | |
| IP Grade | IP65 | |
| IK Grade | IK08 | |
