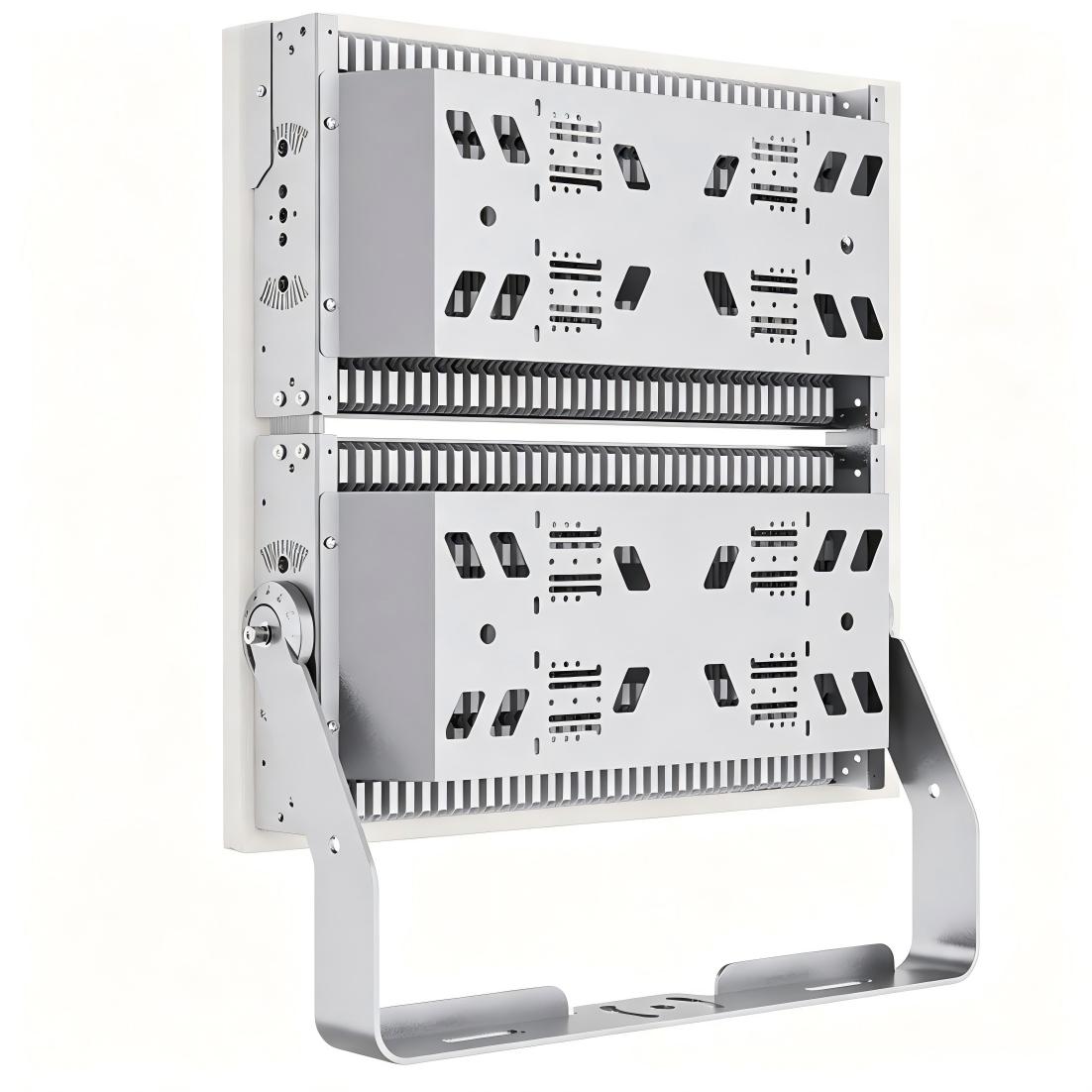

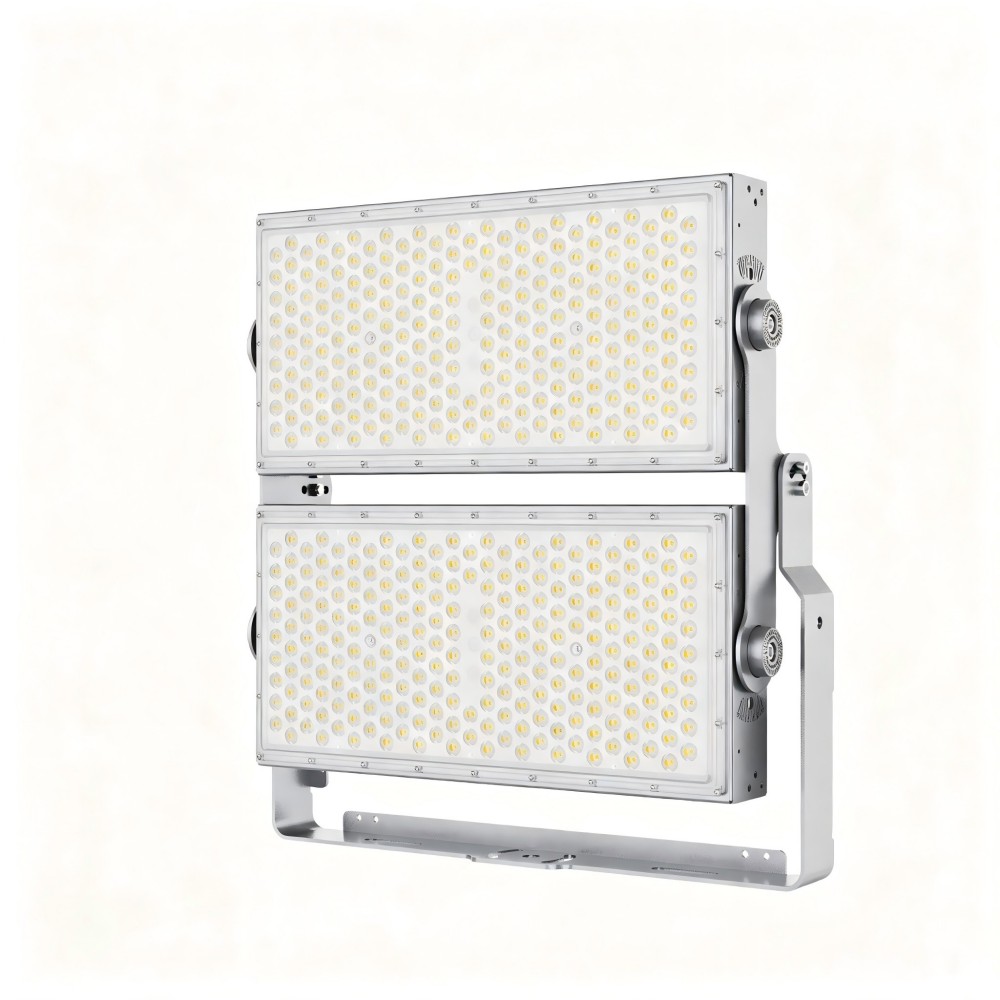

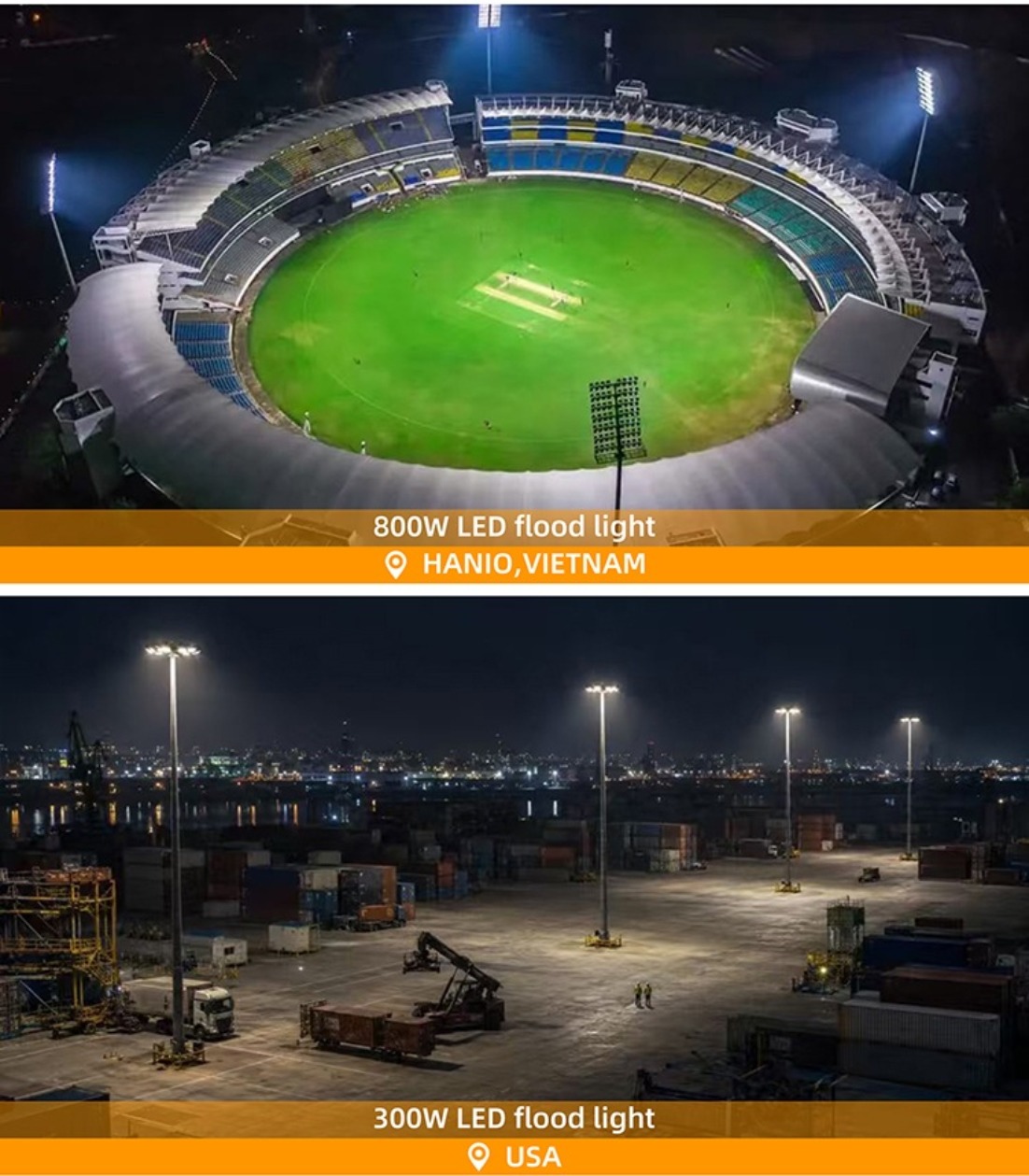

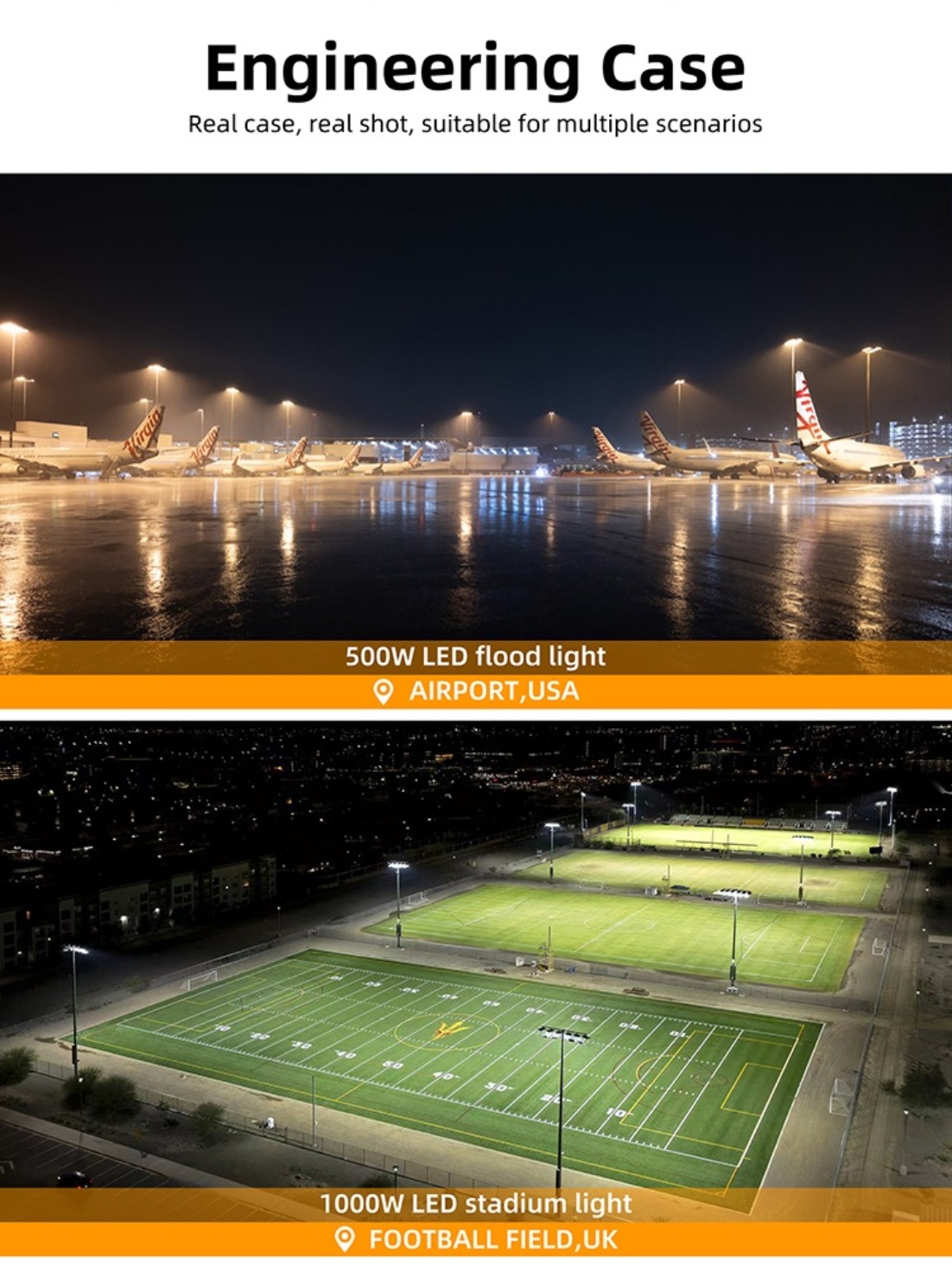

HRMZ500A series modular LED stadium flood light adopts split combined design, each independent module is 500W, freely assembled into 2-module (1000W), 3-module (1500W) and 4-module (2000W) according to lighting demands. Every light panel supports separate angle adjustment to realize targeted directional lighting. Multiple lens beam angles from 15° narrow beam to 120° wide beam are optional, plus detachable sun visor to cut stray light and glare. Widely used for sports stadiums, athletics tracks, tennis courts, port yards and large open parking lots.
Applications:
Certified Quality for Global Projects
HRMZ500A Modular LED Stadium Flood Light, 500W Per Module Adjustable Sports Court Lamp

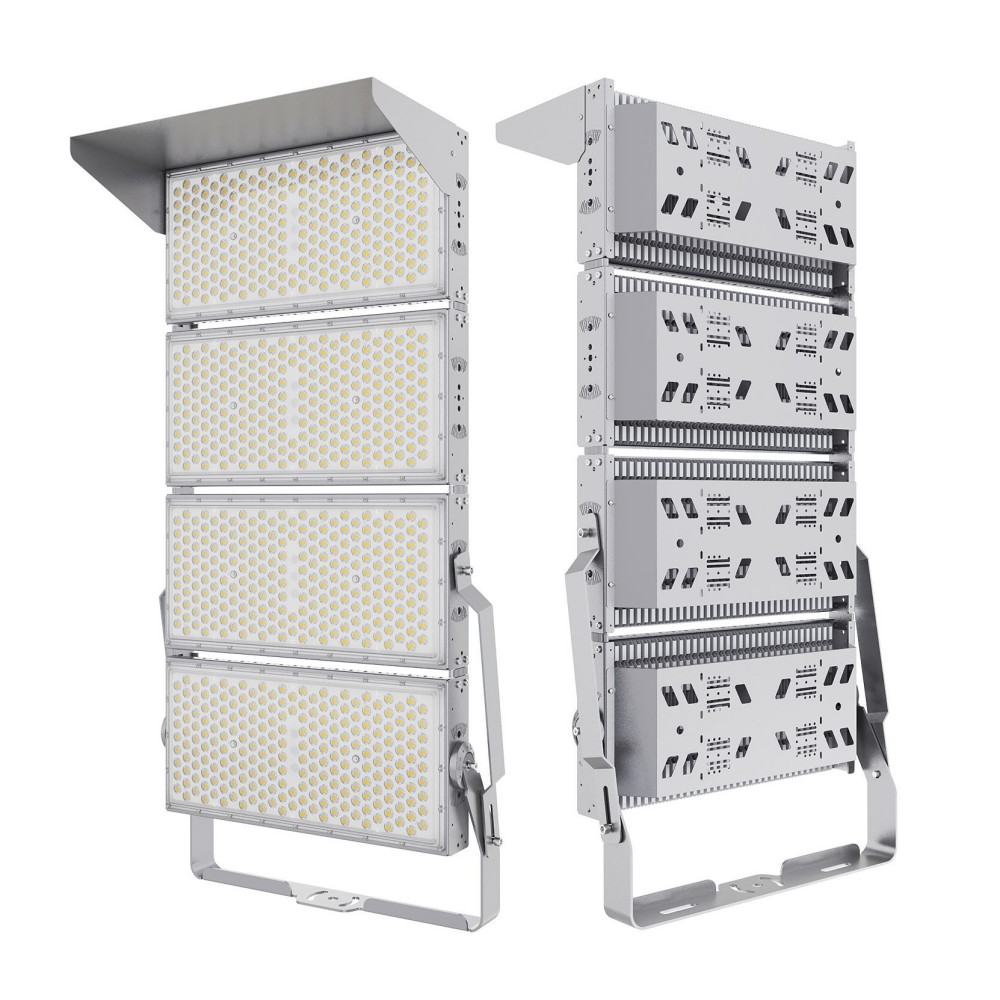

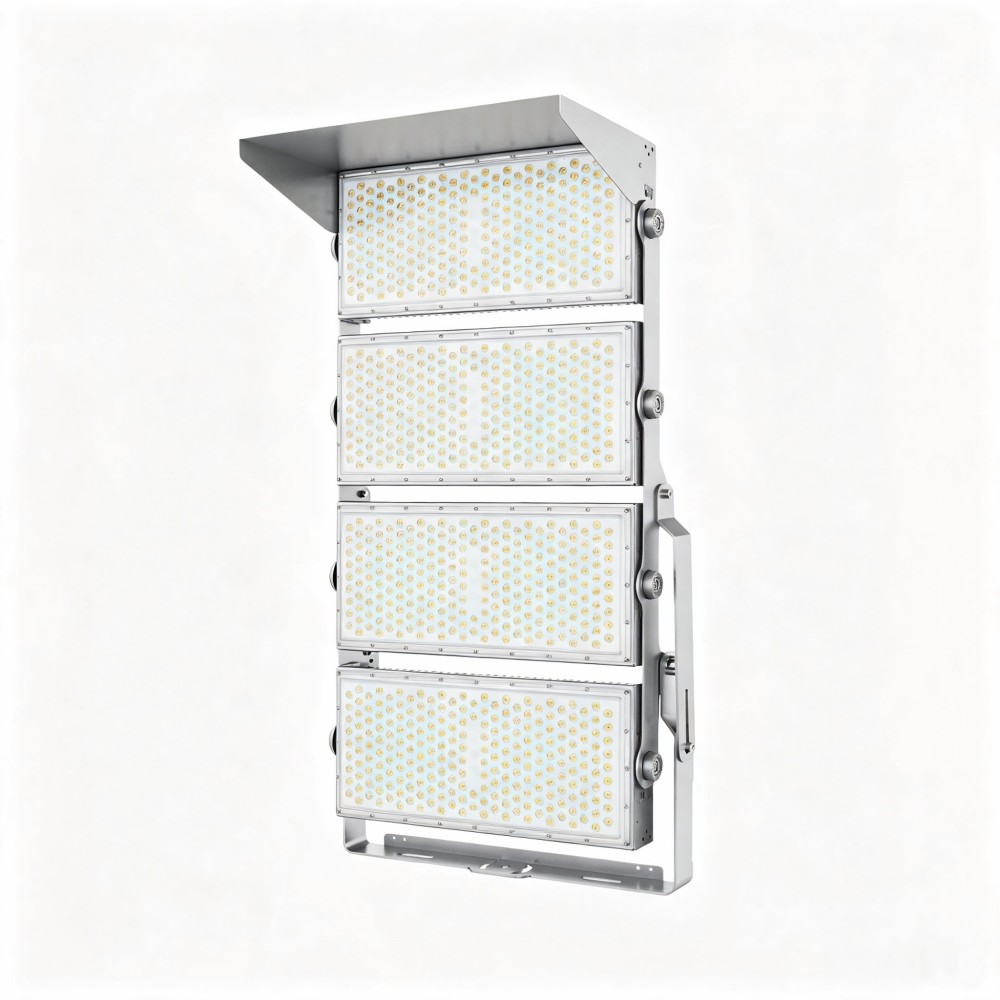

Free Splicing Modular Design, Flexible Power Combination

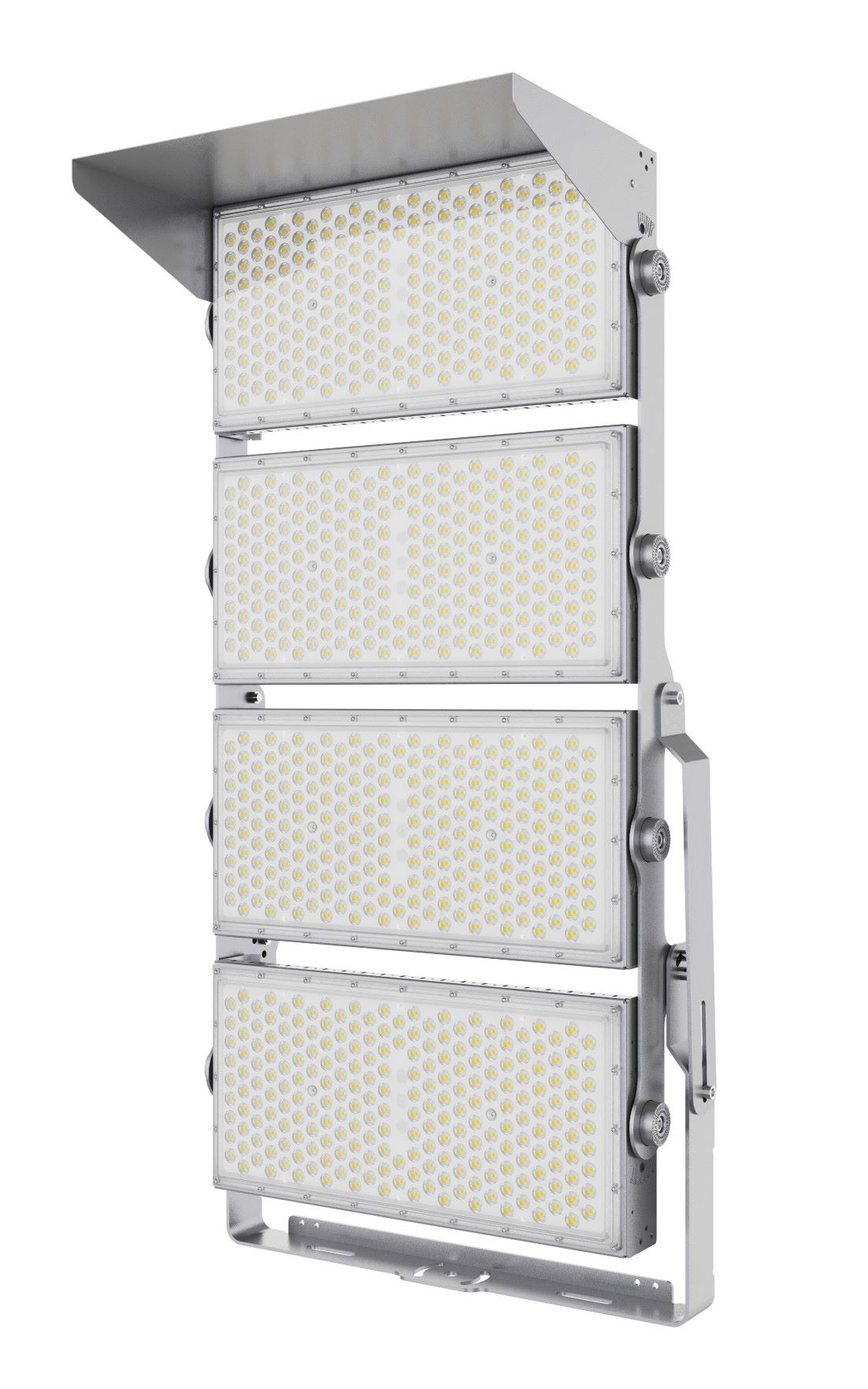

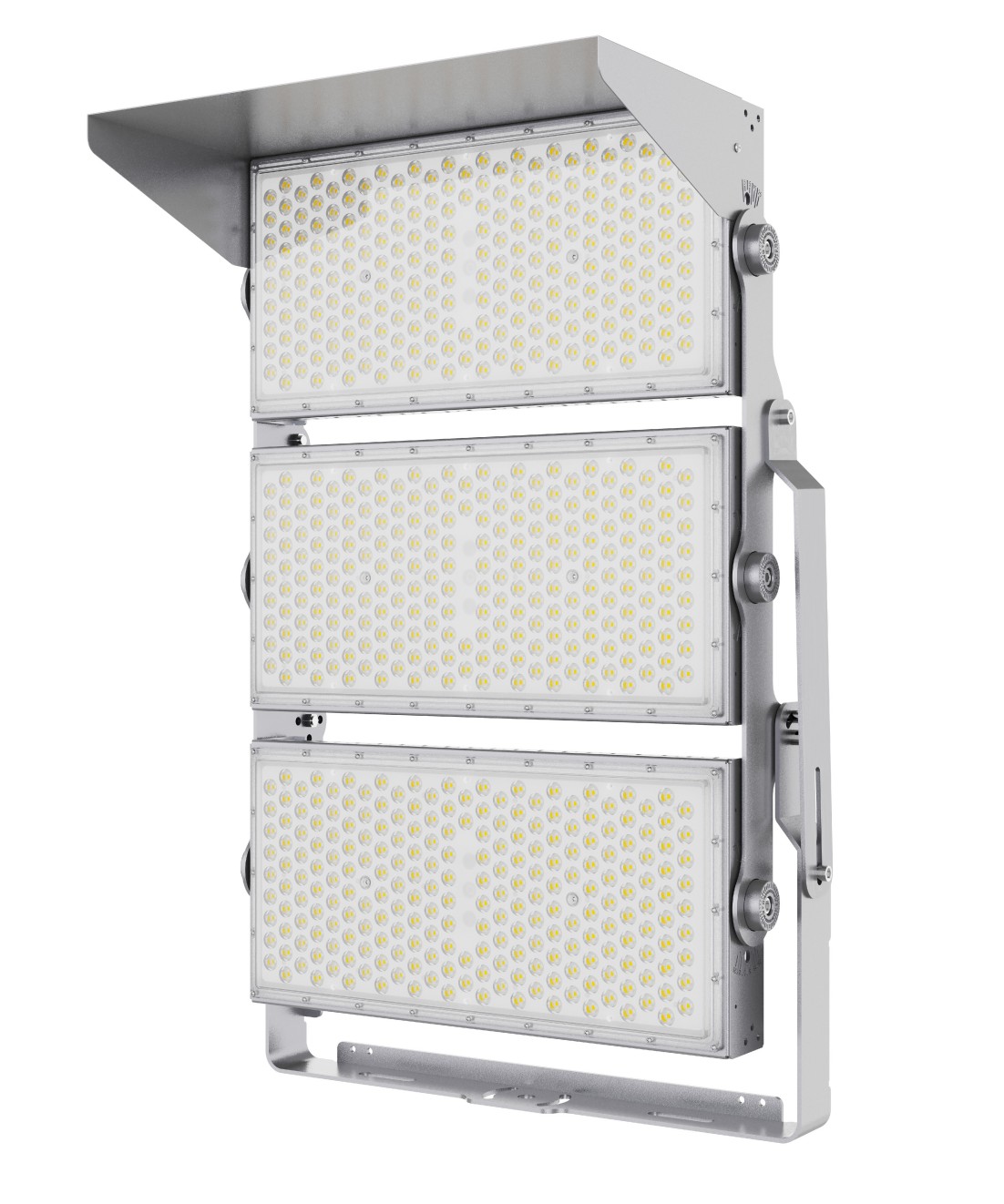

Single standard module 500W, support 2/3/4 modules assembly to reach 1000W/1500W/2000W. Clients match total wattage based on venue size, no need to stock multiple single-power lamp models.
Independent Angle Adjustment For Each Module
Every 500W light panel owns separate rotation structure, adjust irradiation direction individually. Solve uneven illuminance, dark corners and over-bright areas on large sports venues.

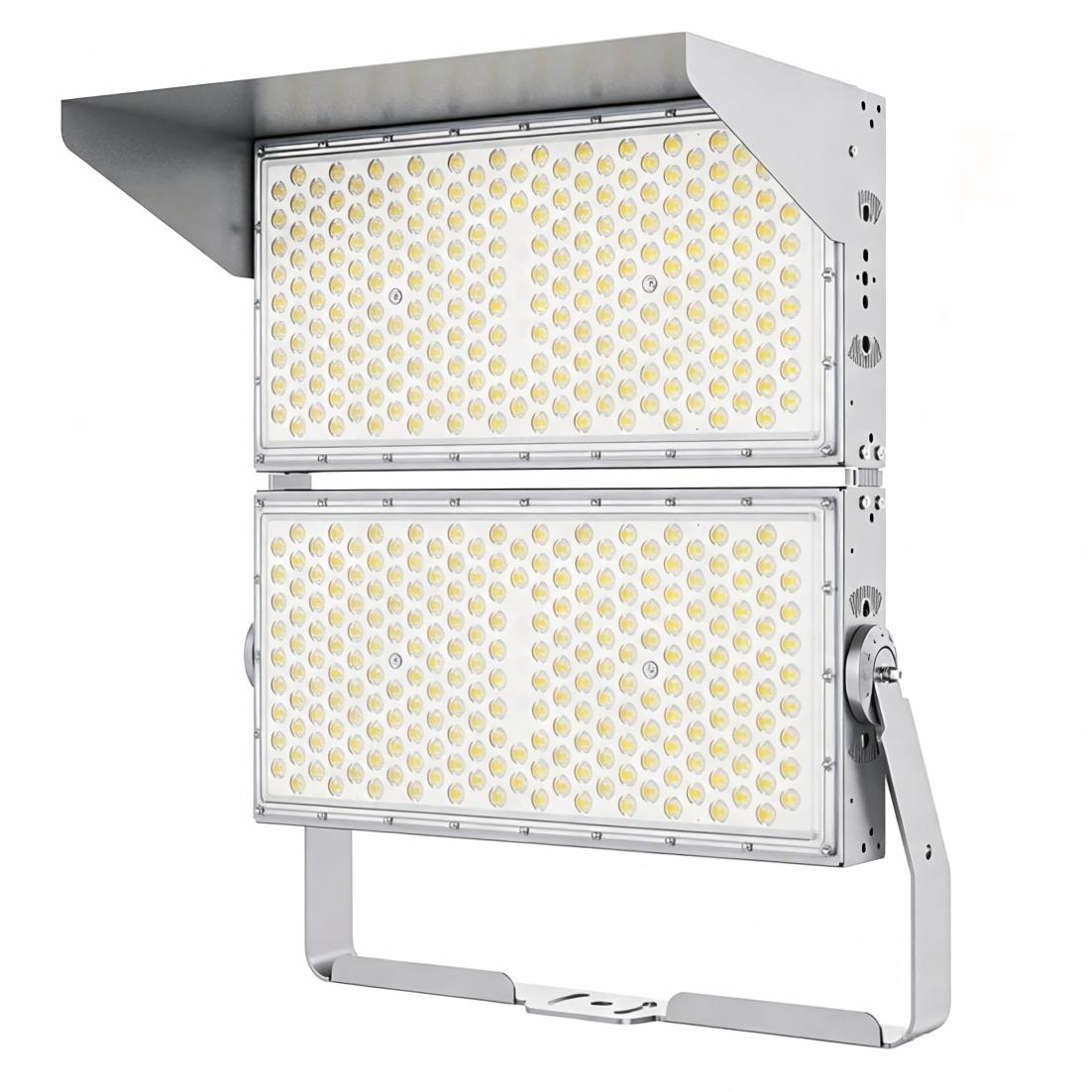

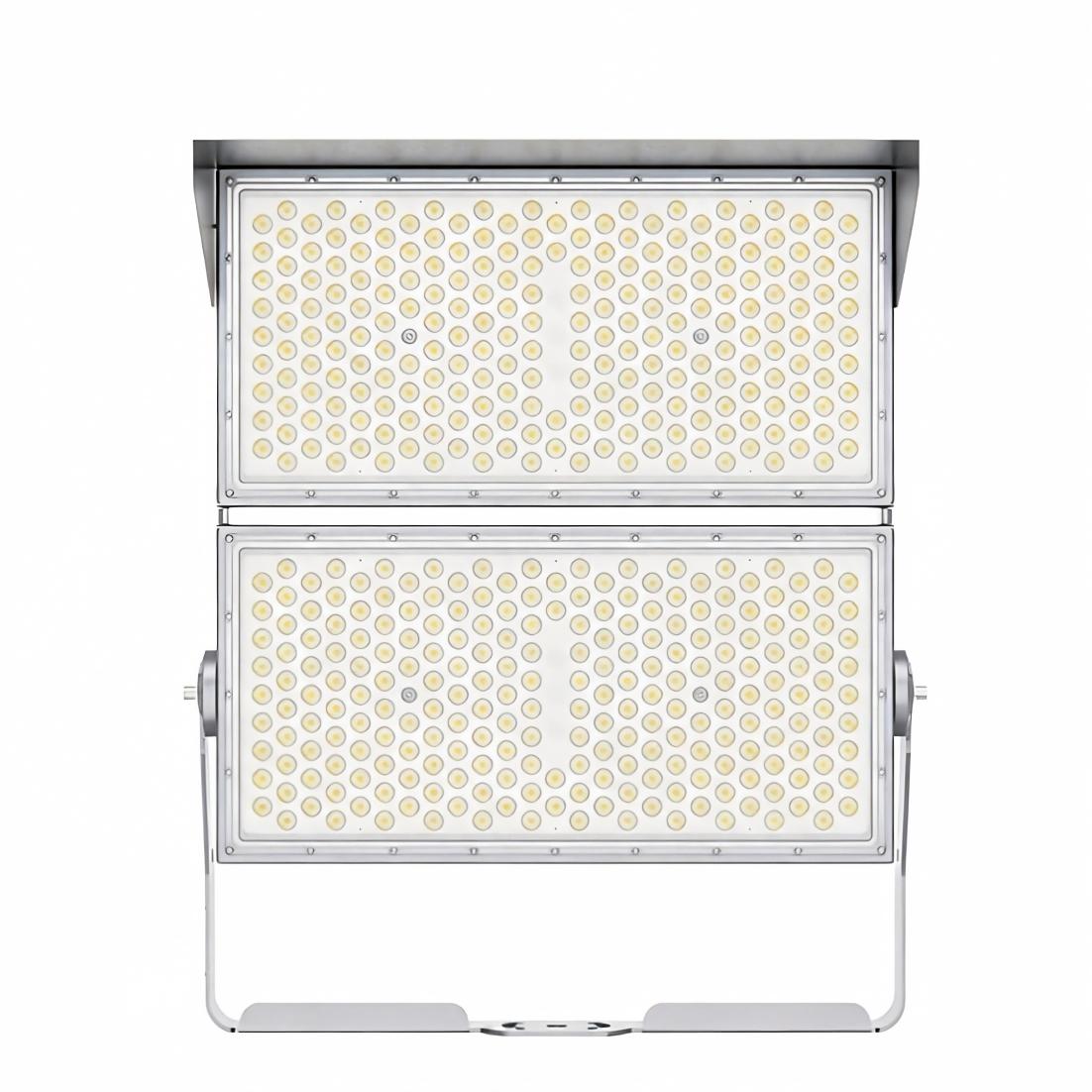

Optional Detachable Sun Visor, Anti-Glare & Anti-Light Pollution
Custom metal visor available to block upward stray light, reduce glare to athletes and audiences, avoid light spillage disturbing surrounding residential areas.

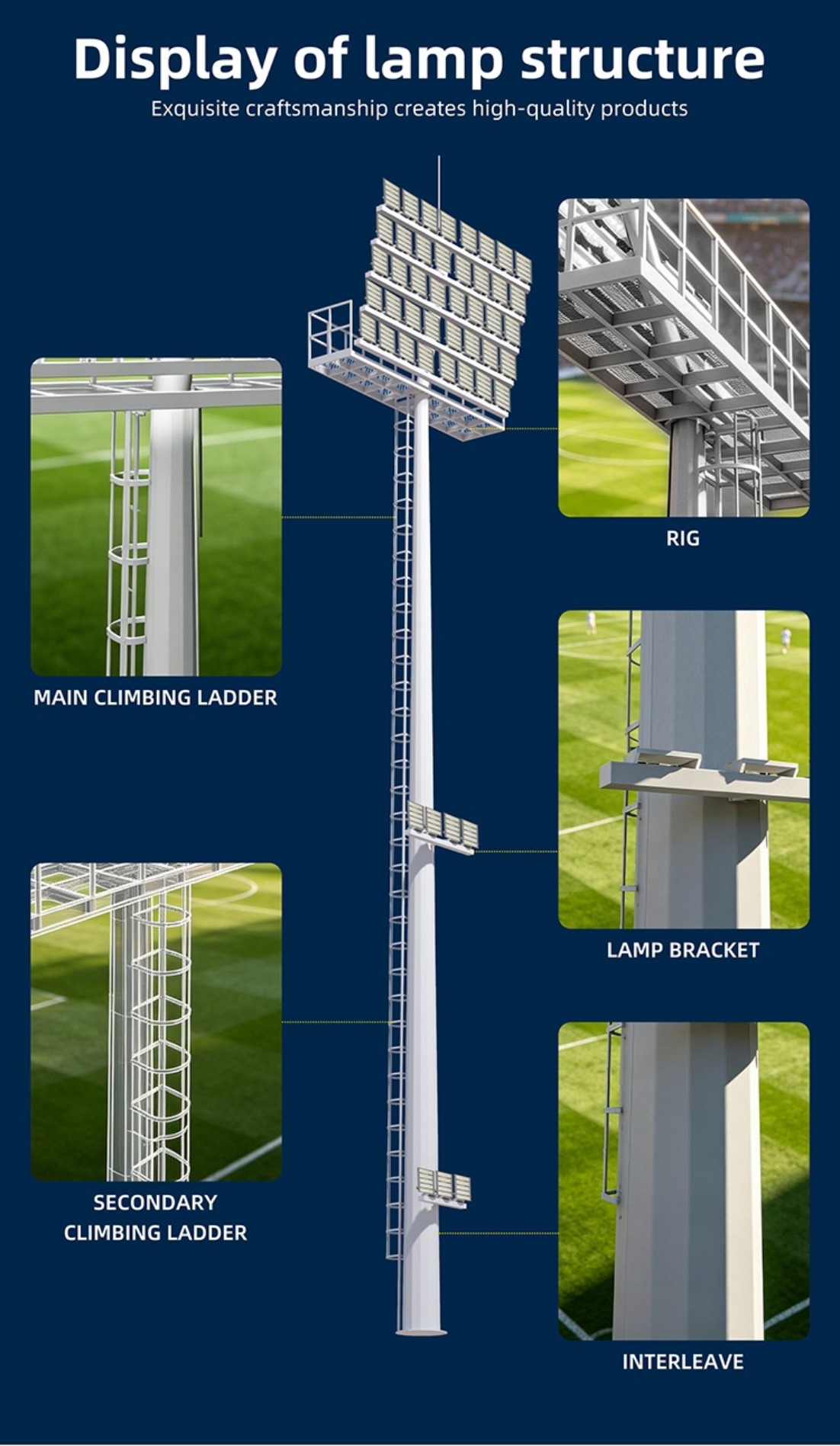

High-Strength Steel, Safe & Durable
Made of high-strength low-alloy steel (Q235B/Q355B/ASTM A572 Gr.50/S355JR), yield strength ≥345MPa, wind resistance up to 60m/s, seismic grade 8.

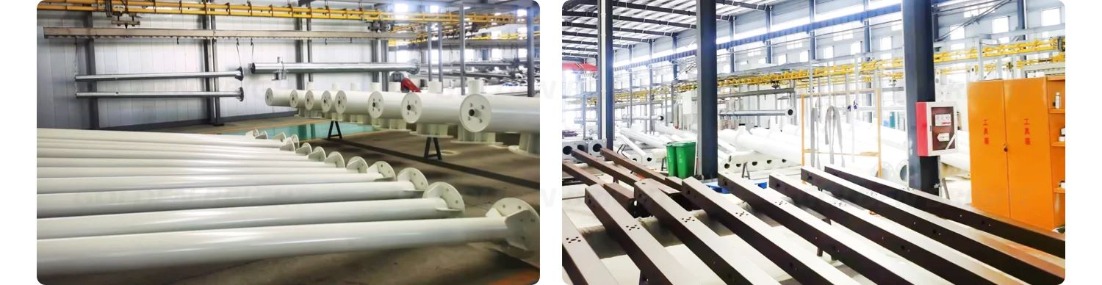

Hot-Dip Galvanized for Long Life
Internal & external hot-dip galvanizing (zinc layer 85–120μm), compliant with GB/T 13912, ASTM A123, EN ISO 1461. 30-year rust-proof protection, adaptable to coastal, acid rain, and high-humidity environments.

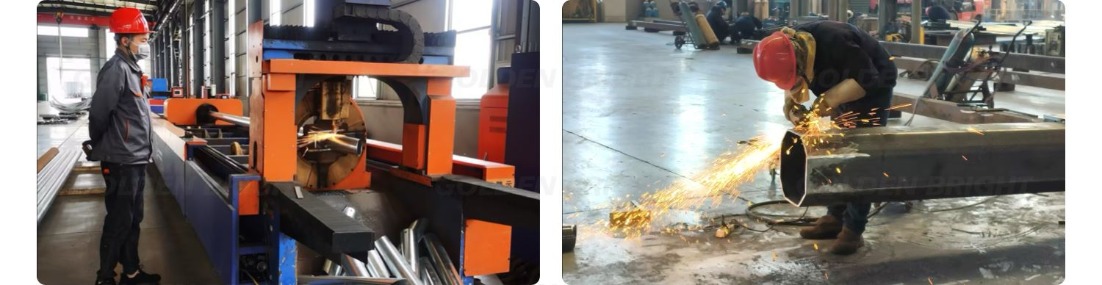

Precision Welding, Reliable Quality
Fully automatic submerged arc/CO₂ welding, smooth welds with no defects. 100% ultrasonic testing, compliant with AWS D1.1, EN 15614 standards, 100% structural strength qualified.
Smart Lifting System (Optional)
Built-in electric/manual dual-control lifting device, speed 3–5m/min, with electromagnetic brake, anti-fall protection, manual operation during power failure. No high-altitude maintenance required.
Custom Design for All Scenarios

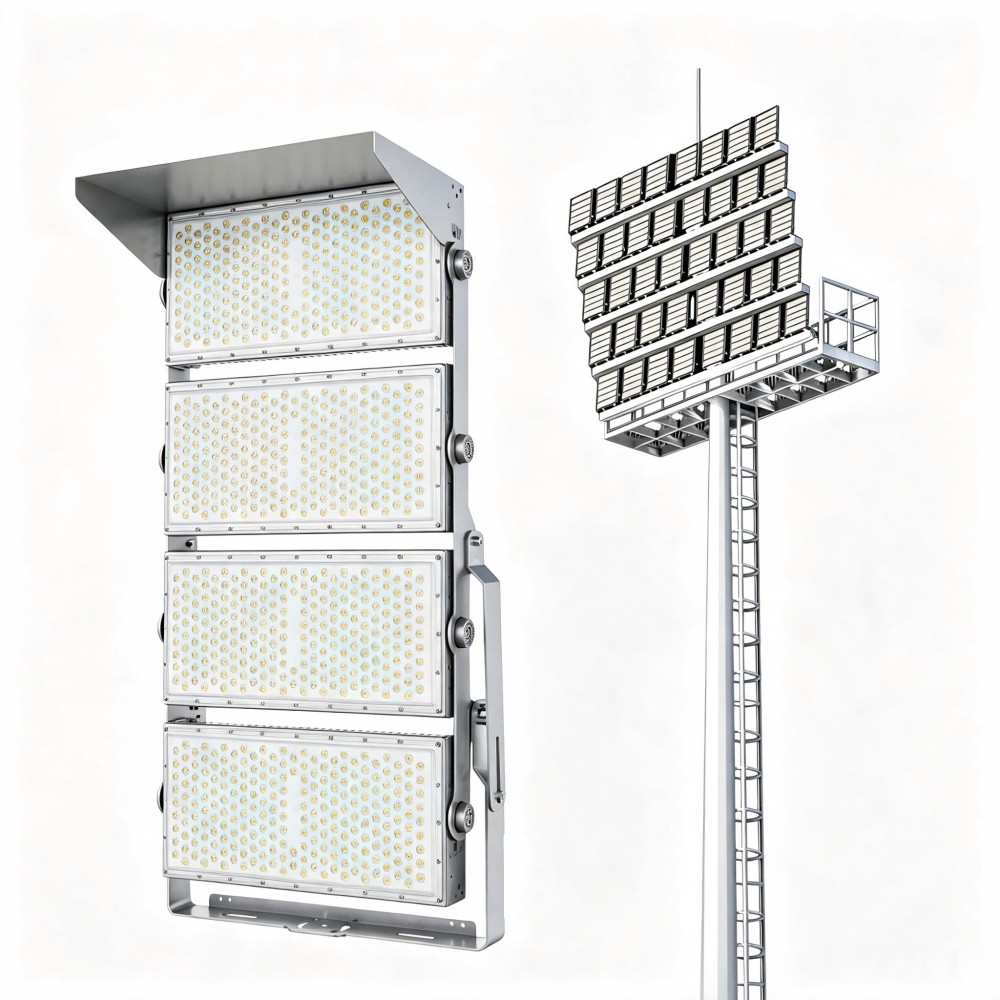

Height 15–40m optional, wall thickness 3–16mm, flange/direct burial installation. Equipped with lightning rod, intelligent control, multi-cantilever lamp panel to meet various engineering needs.
| Power | 1000W | 1500W | 2000W |

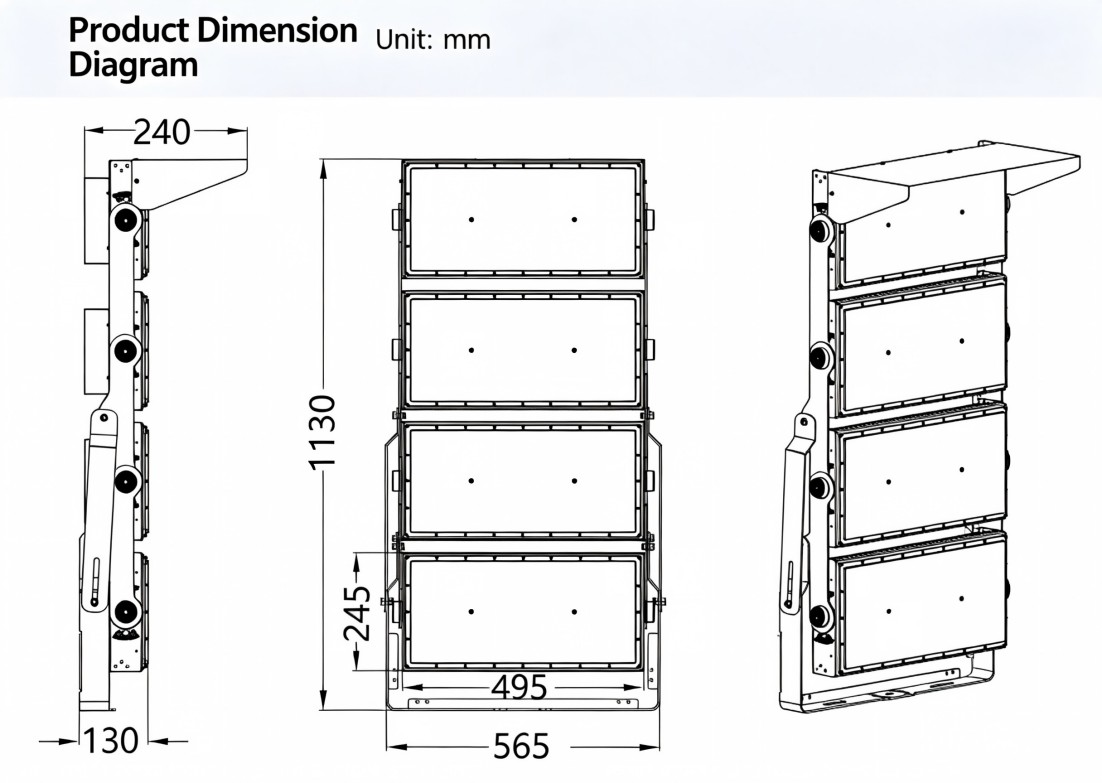

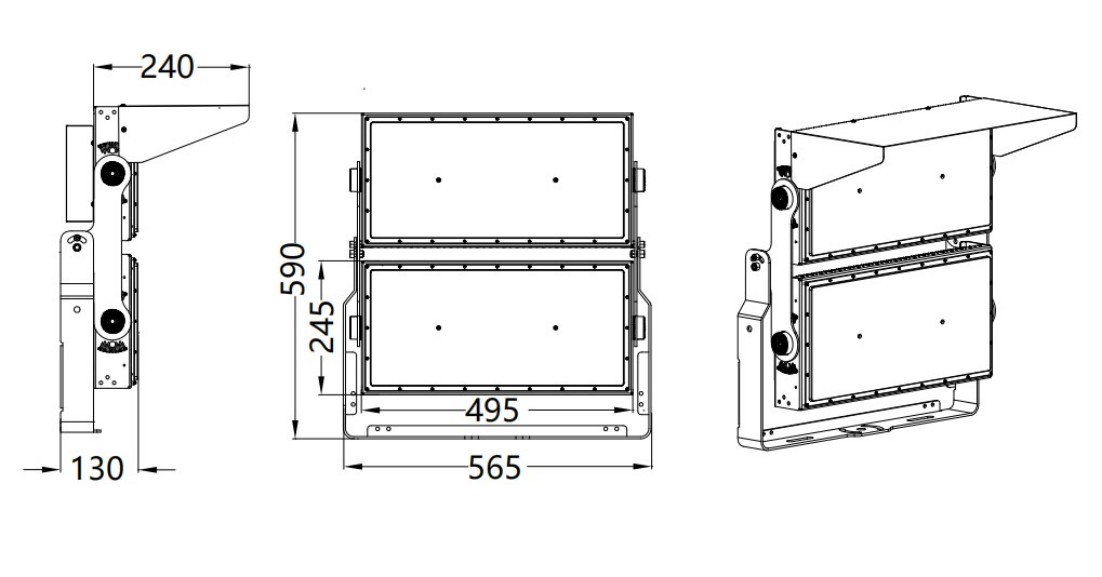

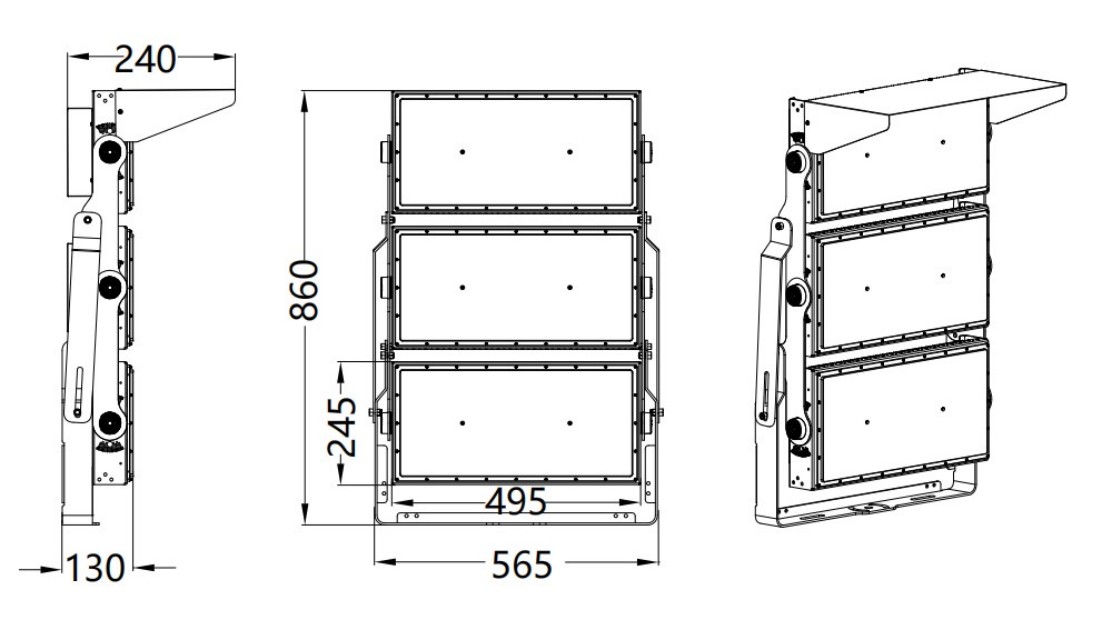

| Size | 565*590*130mm | 565*860*130mm | 565*1130*130mm |

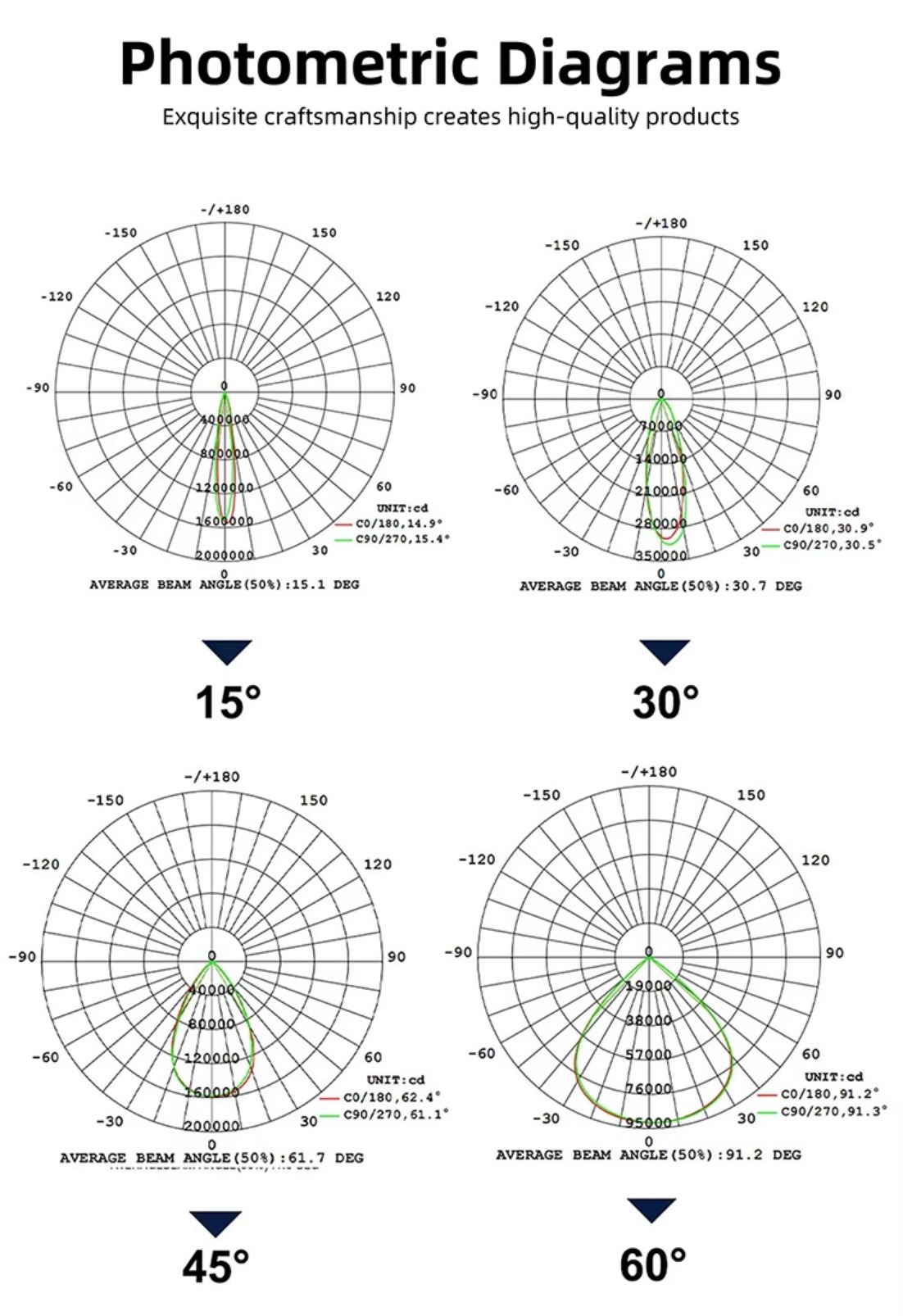

| Material | 15°/20°/30°/40°/45°/60°/120° | ||
| Lens Angle | Die-cast aluminum | ||
| IP Grade | IP66 | ||
| IK Grade | IK08 | ||
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
