The Morning Star series is a professional modular LED high mast lighting solution customized for large outdoor infrastructure projects, with adjustable power ranging from 200W to 1200W. This lighting system perfectly matches 6–30M high mast poles and delivers an illumination output of 200–1800lux, fully meeting the lighting standards of sports venues, airports and container terminals.
Adopting flexible modular splicing design, the lamp panels can be freely combined to adjust lighting coverage and brightness according to project requirements. It supports two supply modes: complete high mast light pole sets (including galvanized pole, lifting system and LED lamp head) for one-stop engineering procurement, and separate single lamp heads as replacement spare parts for old light poles, which satisfies the different demands of global buyers.

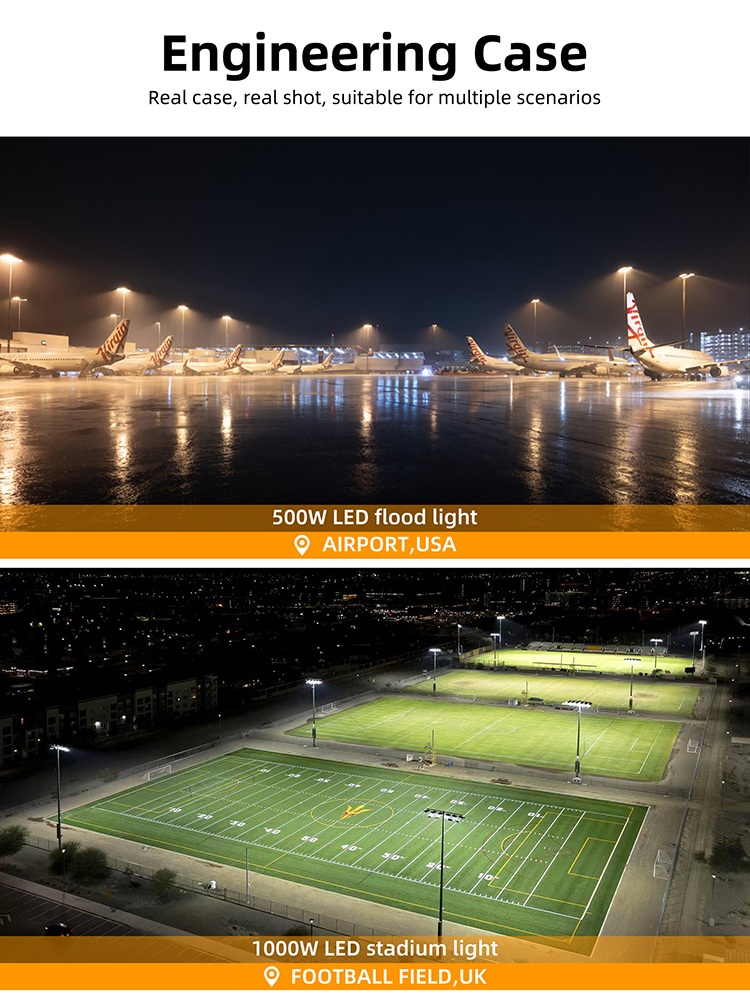

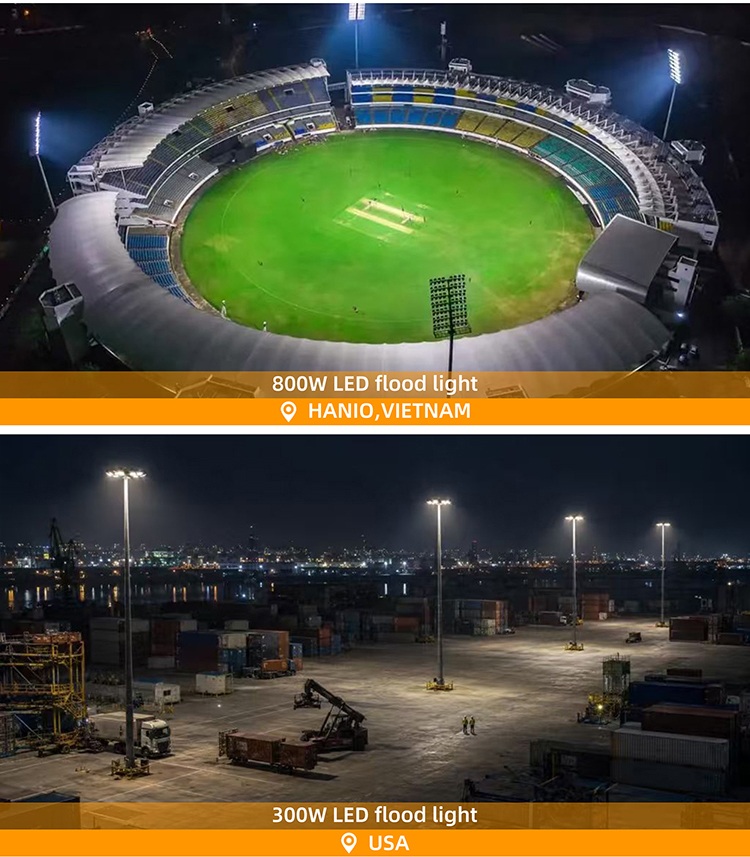

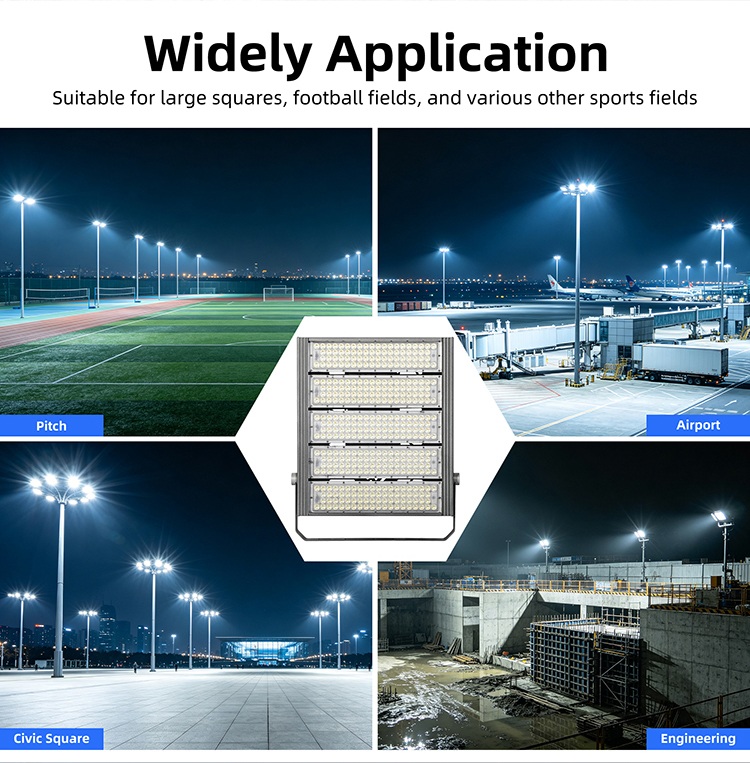

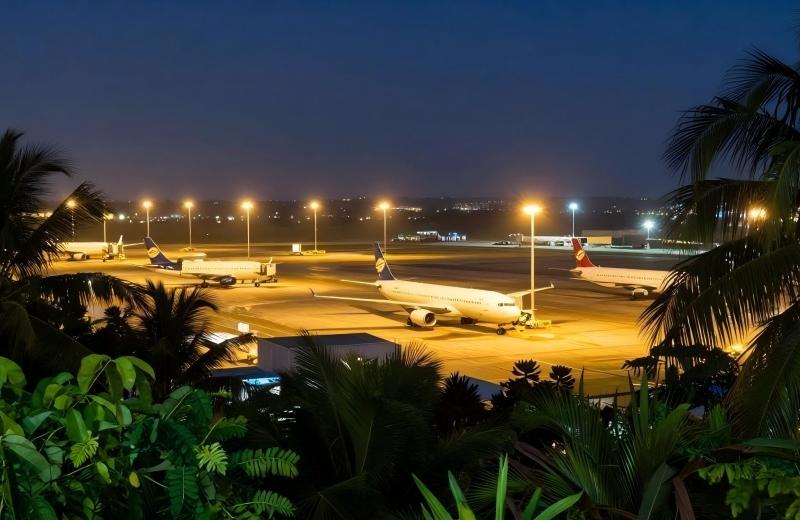

This high mast light is widely applied in football fields, baseball courts, tennis courts, track & field stadiums, cricket grounds, airport aprons, port storage yards and industrial parks. We have completed mass engineering projects in the US, UK, Vietnam and other regions, with stable luminous performance and strong weather resistance for long-term outdoor all-weather operation.
As the top searched full-set high mast light solution for Middle East and African engineering contractors, our integrated pole & lamp package saves customers the trouble of separate matching and local processing, greatly reducing project construction cycles and costs. For European and American maintenance merchants, we also provide independent lamp head supply for old equipment renovation.
Applications:
Certified Quality for Global Projects

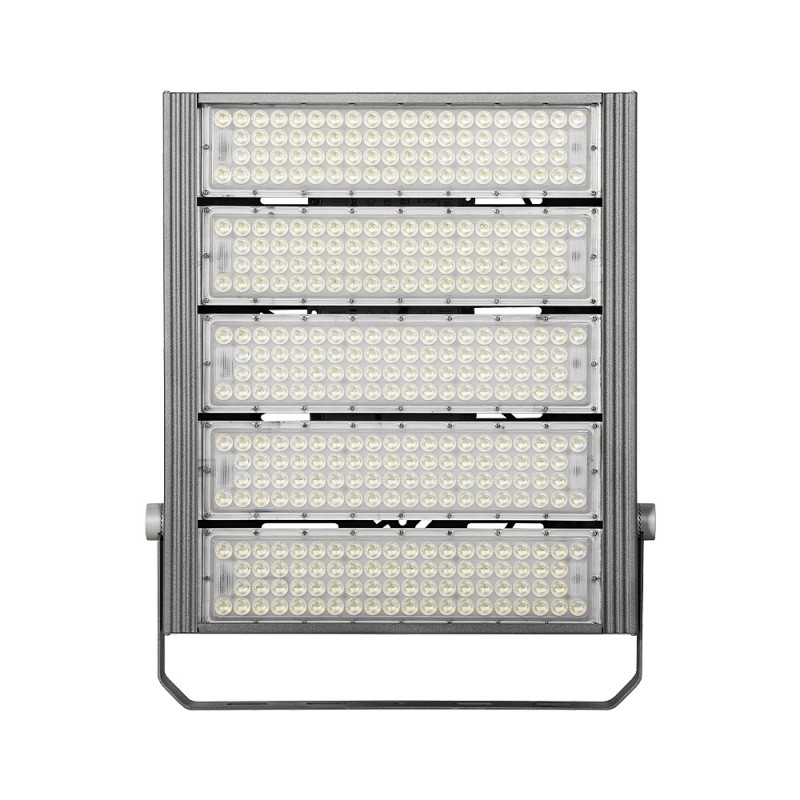

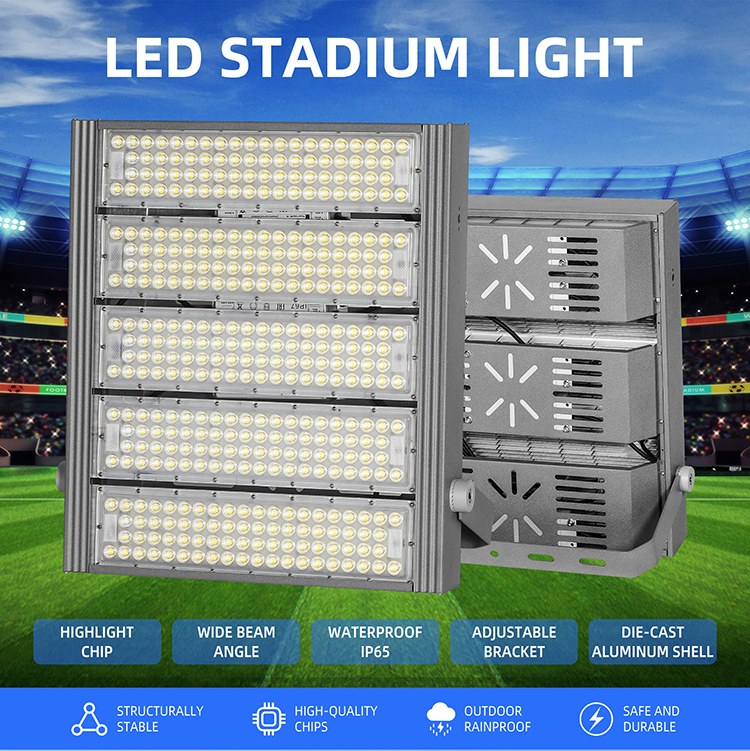

Morning Star 200W-1200W LED High Mast Light Pole Set For Football Field & Airport

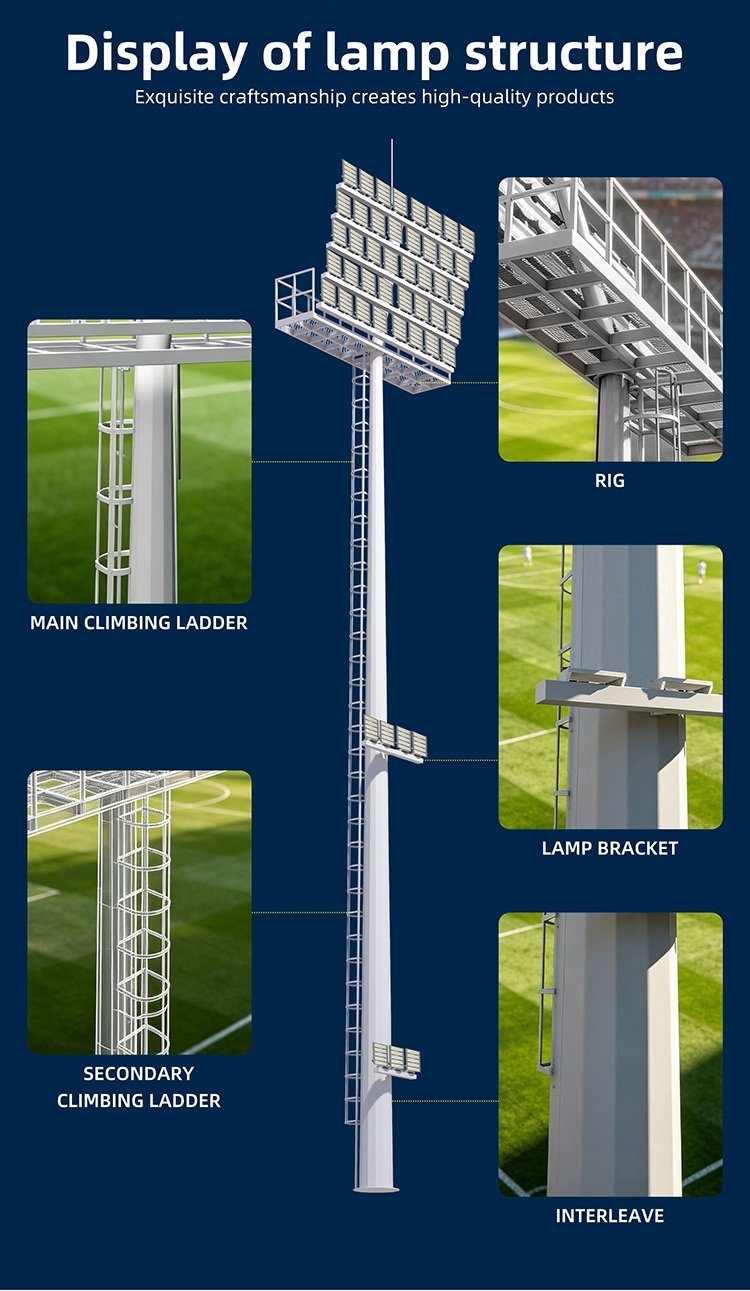

One-stop complete high mast light pole solution
We supply integrated full sets including galvanized steel pole, automatic lifting system, Morning Star LED lamp head and all matching accessories, matching the high search demand of high mast light pole from global engineering contractors. Clients do not need to source poles, lights and spare parts separately, which saves local processing, matching and construction costs, and shortens the whole project delivery cycle. Separate lamp heads are also available as replacement spare parts for European & American maintenance merchants.

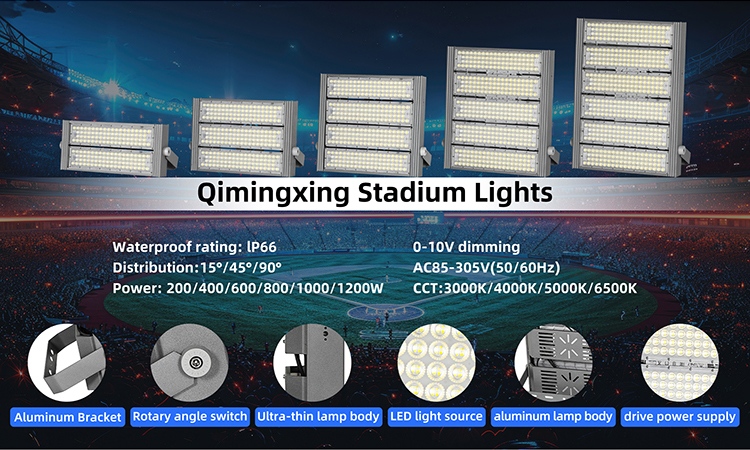

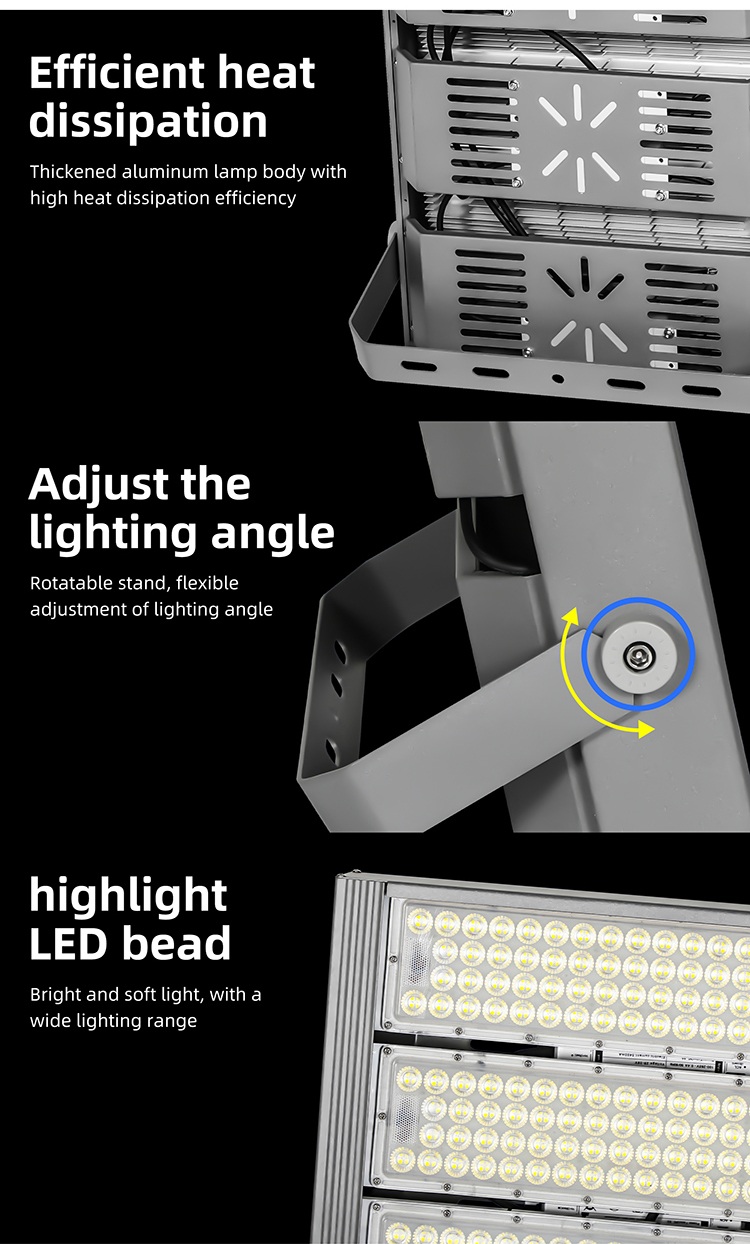

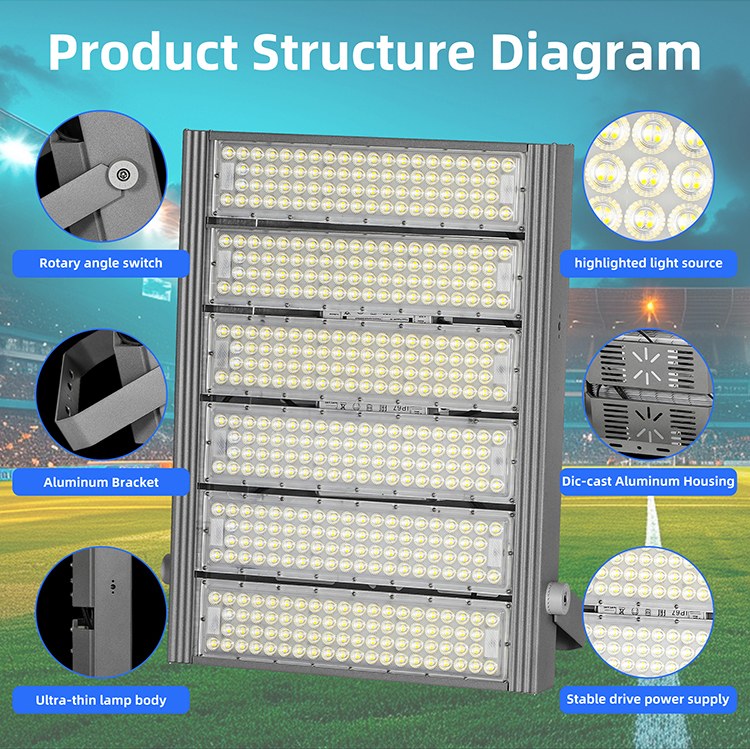

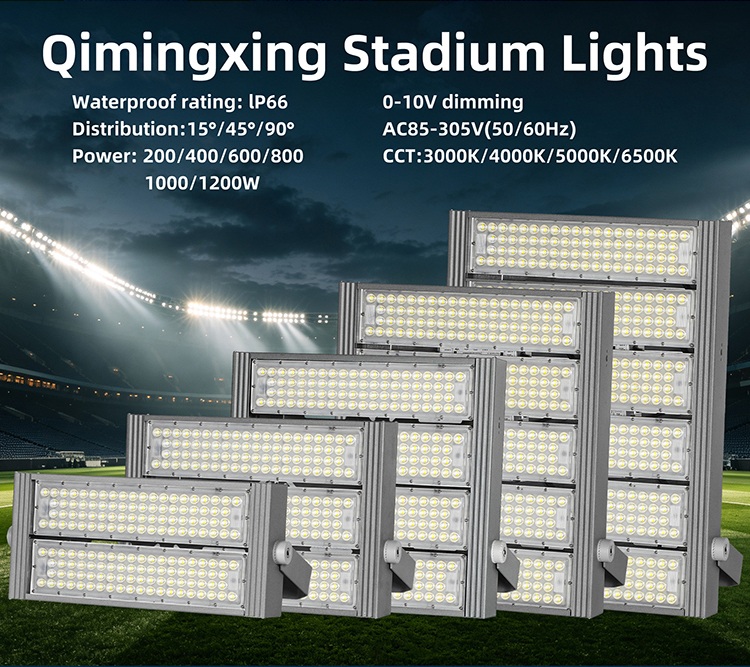

Flexible modular splicing design, 200W–1200W wide power range

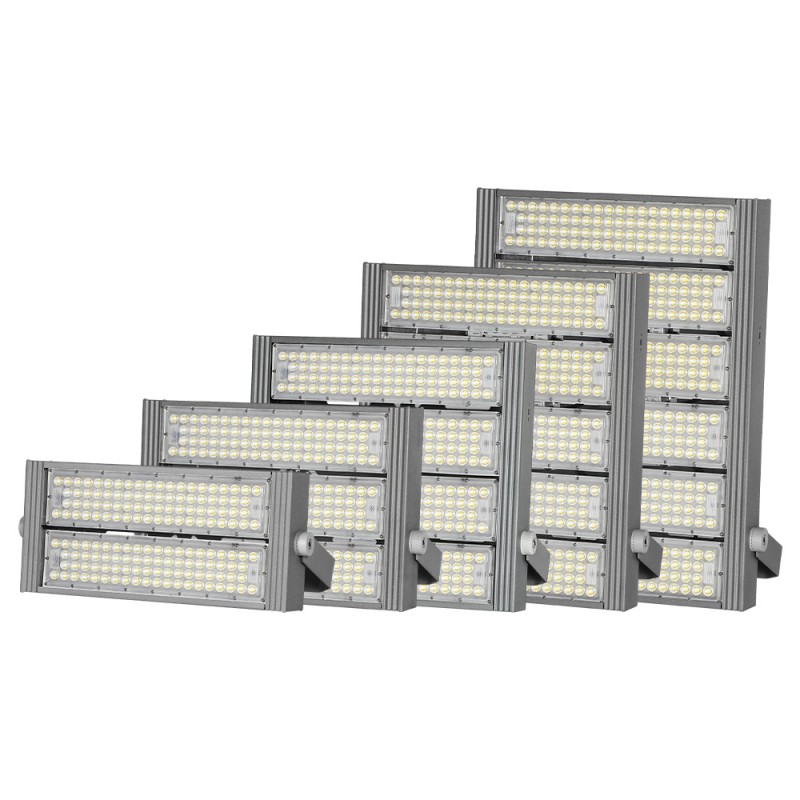

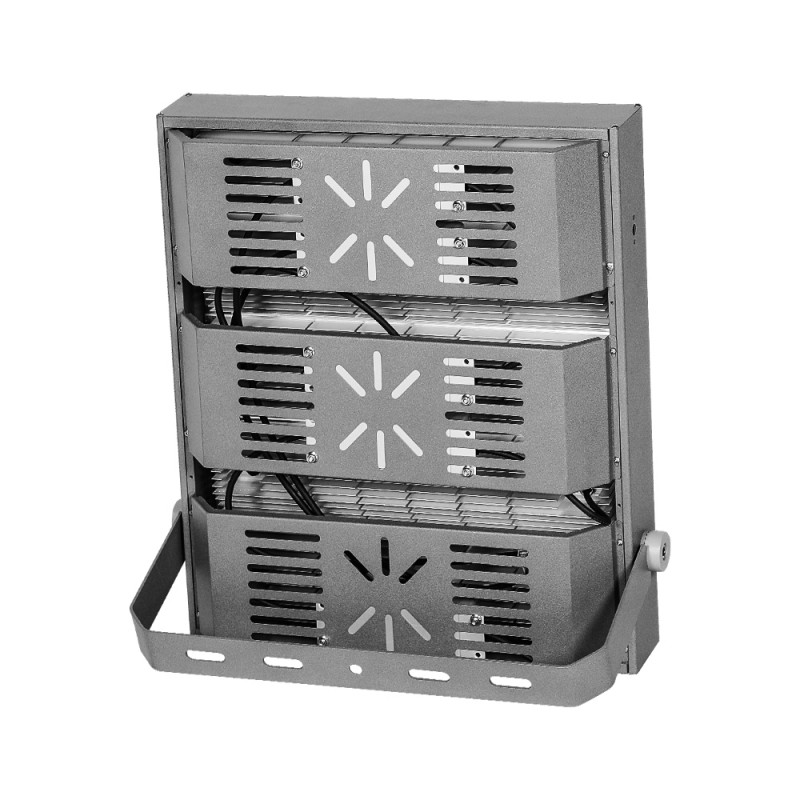

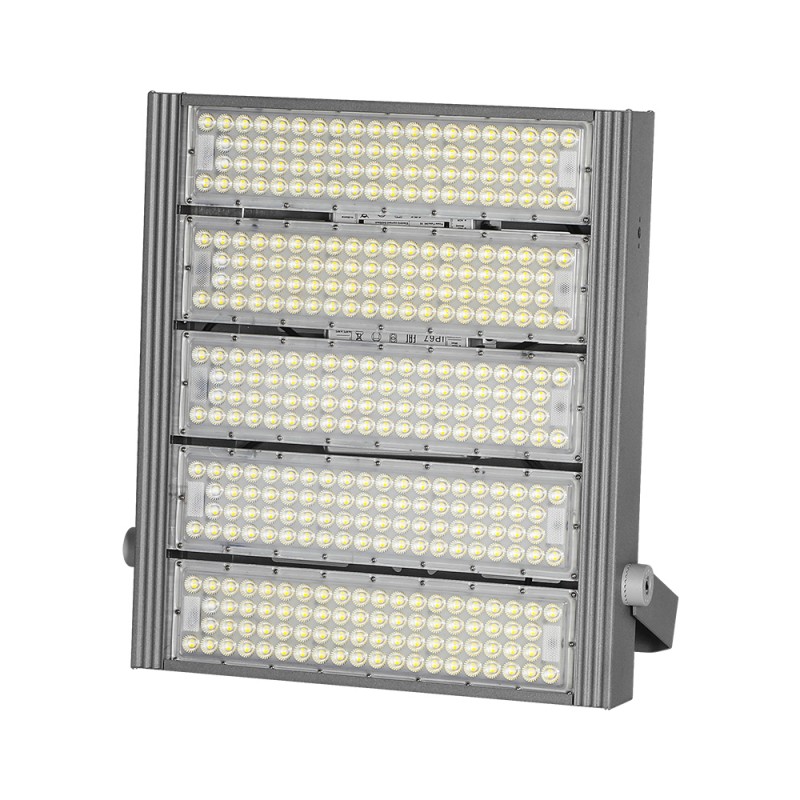

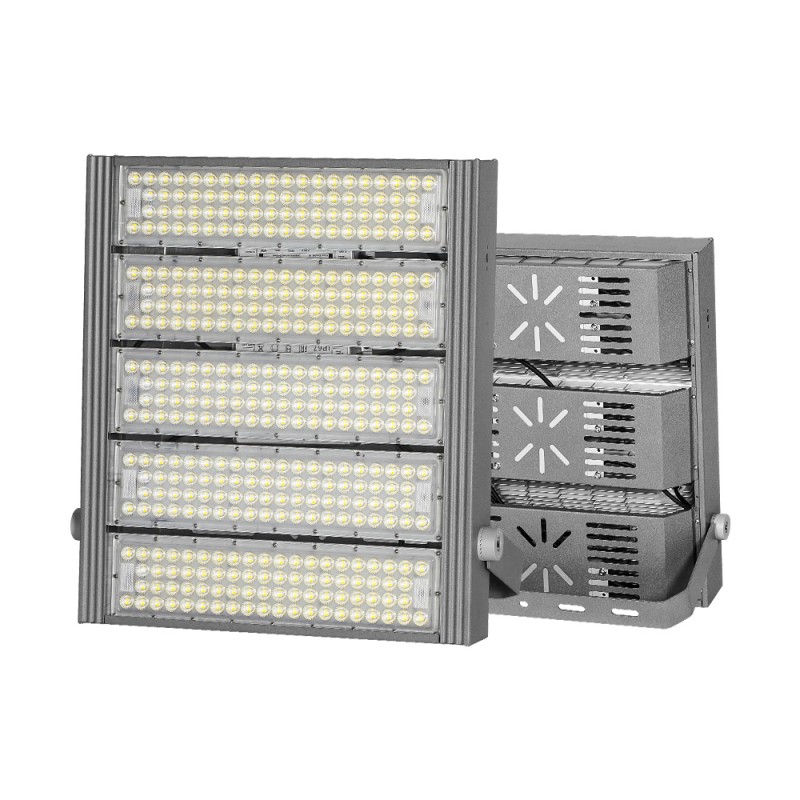

Modular lamp panel structure allows free combination of lamp units, supporting power adjustment from 200W to 1200W. Customers can customize total wattage according to venue size, no need to order different single lamp models. Uniform light distribution, no dark areas on large-area sports fields, ports and airports.
High-Strength Steel, Safe & Durable
Made of high-strength low-alloy steel (Q235B/Q355B/ASTM A572 Gr.50/S355JR), yield strength ≥345MPa, wind resistance up to 60m/s, seismic grade 8.
Hot-Dip Galvanized for Long Life
Internal & external hot-dip galvanizing (zinc layer 85–120μm), compliant with GB/T 13912, ASTM A123, EN ISO 1461. 30-year rust-proof protection, adaptable to coastal, acid rain, and high-humidity environments.
Precision Welding, Reliable Quality
Fully automatic submerged arc/CO₂ welding, smooth welds with no defects. 100% ultrasonic testing, compliant with AWS D1.1, EN 15614 standards, 100% structural strength qualified.
Smart Lifting System (Optional)

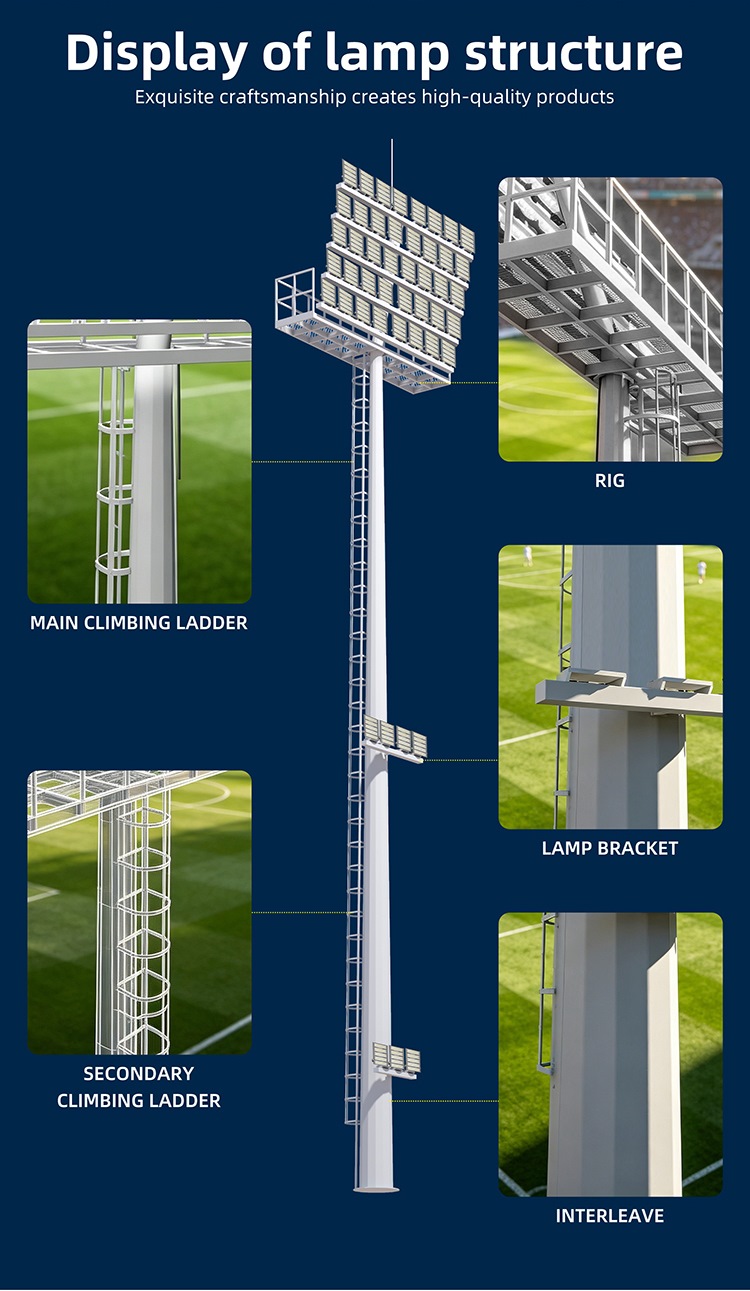

Built-in electric/manual dual-control lifting device, speed 3–5m/min, with electromagnetic brake, anti-fall protection, manual operation during power failure. No high-altitude maintenance required.
Custom Design for All Scenarios
Height 15–40m optional, wall thickness 3–16mm, flange/direct burial installation. Equipped with lightning rod, intelligent control, multi-cantilever lamp panel to meet various engineering needs.
| IETM NO. | QMX-200 | QMX-400 | QMX-600 | QMX-800 | QMX-1000 | QMX-1200 |
| Power | 200W | 400W | 600W | 800W | 1000W | 1200W |
| Product size | 115*520*140 | 220*520*140 | 335*520*140 | 440*520*140 | 550*520*140 | 665*520*140 |
| Weight | 3.5 | 6.5 | 9.5 | 12.7 | 15.8 | 19 |

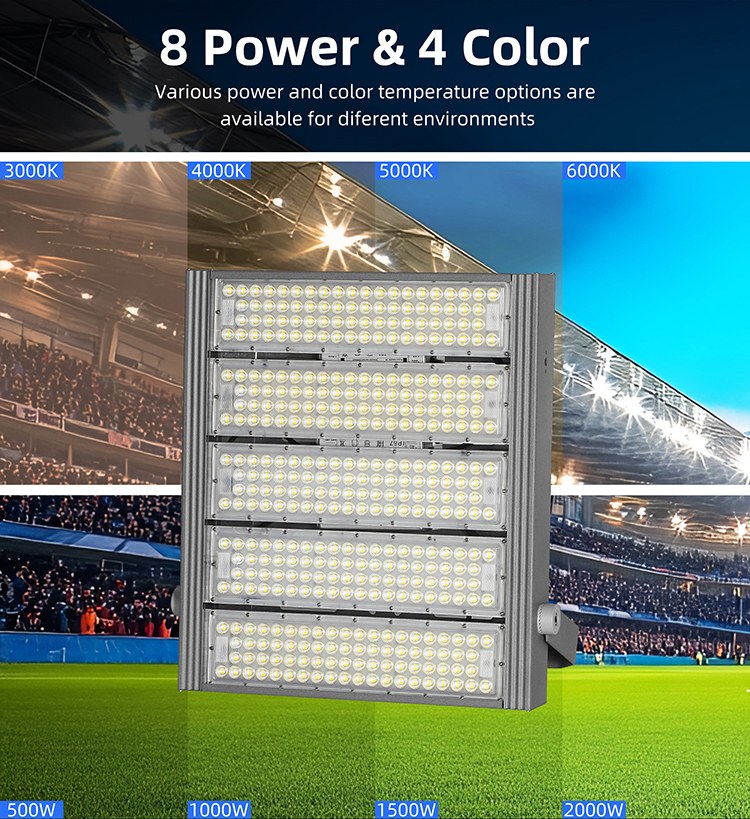

| CCT | warm white(2700-3500k)、Pure white(4000-4500k)、Cool white(6000-6500k) | |||||
| IP | IP66 | |||||

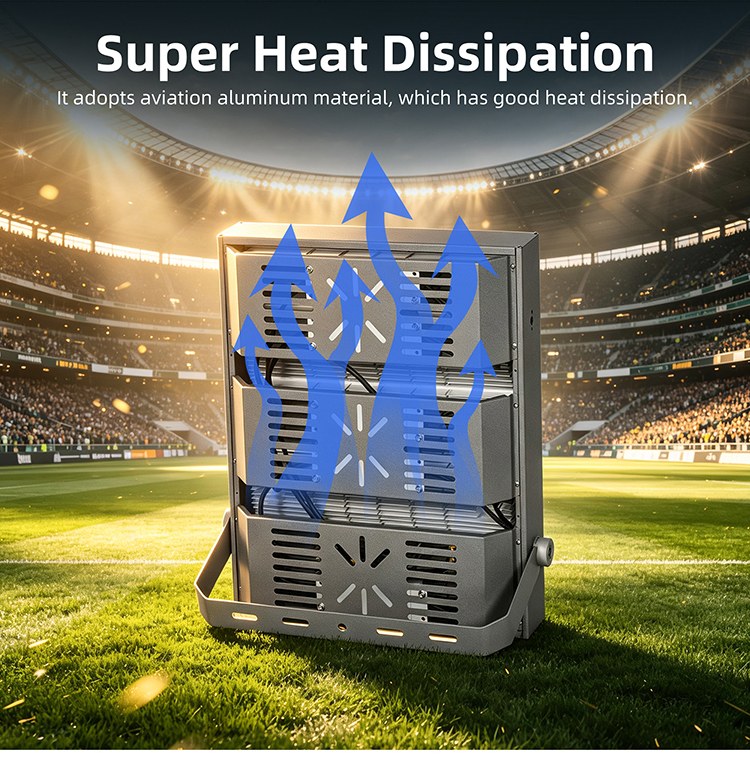

| Materials | Die-cast aluminum | |||||
| Working TEMP | -40~+60 | |||||

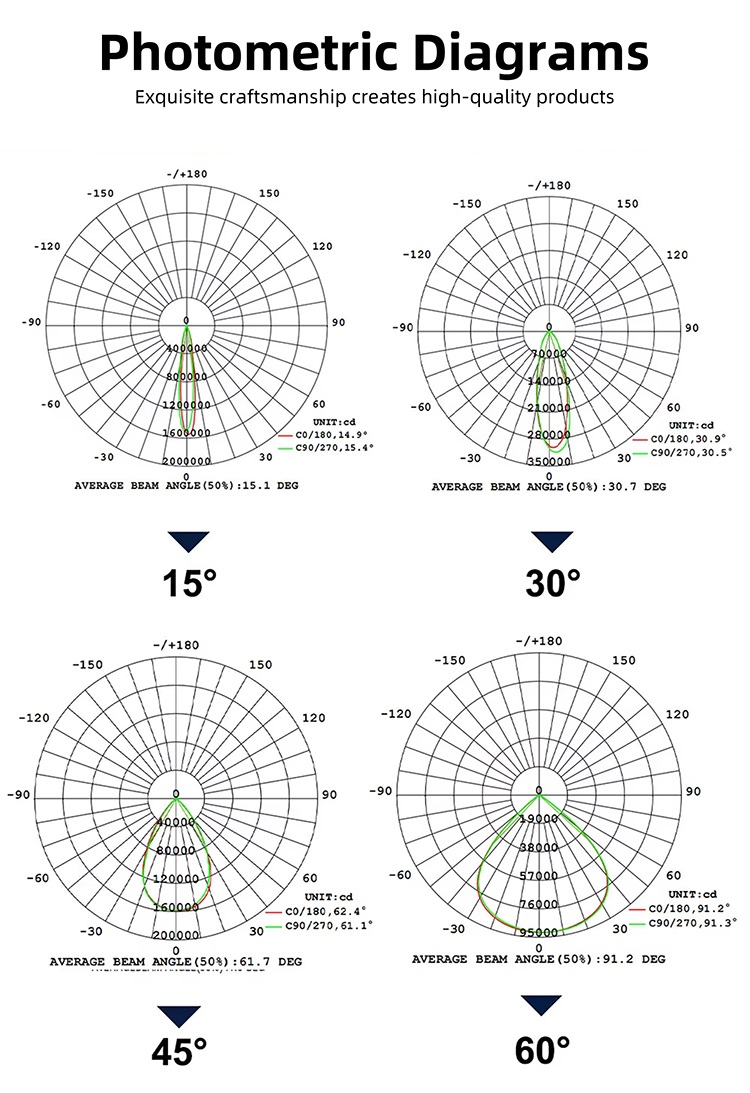

| Beam Angle | 15°/45°/90° | |||||
| Efficiency | 150-200LMIW | |||||
| LED life time | 50000h | |||||
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
