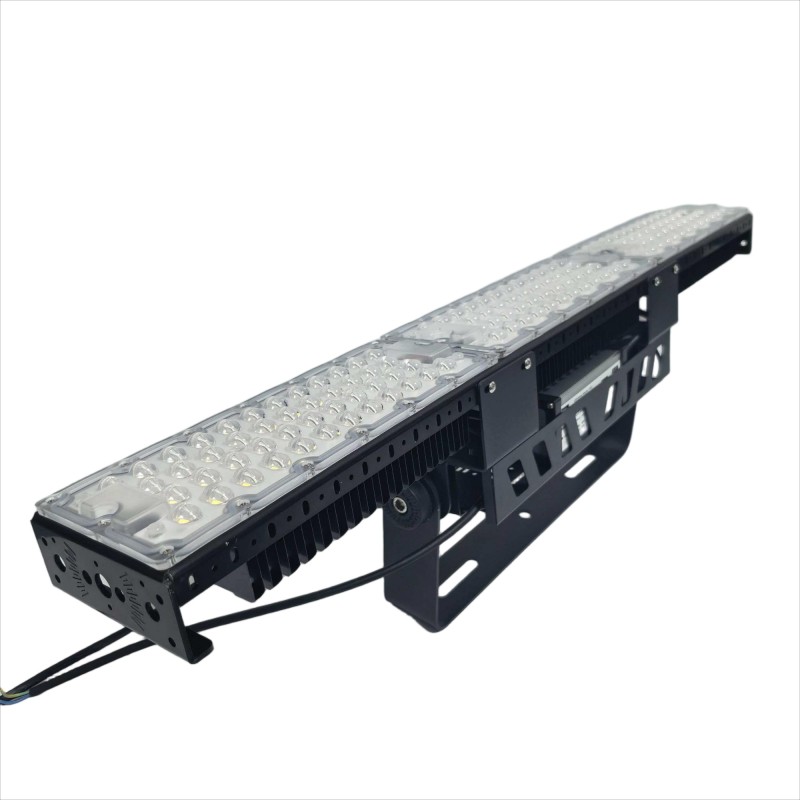

220V Anti Glare Padel Pickleball LED Light | P50 Lens With 0-10V Dimmable Option

220V Anti Glare Padel Pickleball LED Light | P50 Lens With 0-10V Dimmable Option

This professional LED light is tailor-made for padel and pickleball courts, featuring 220V wide voltage design for global wide compatibility.

0-10V dimming function is optional, matching mainstream venue control systems. It supports 0%-100% stepless brightness adjustment to suit leisure, training, match and tournament scenarios, solving rigid fixed lighting drawbacks.

Equipped with P50 professional optical lens, the fixture keeps UGR below 19. It suppresses glass fence reflection and stray light spillage, preventing public nuisance complaints and ensuring clear ball tracking. Flicker-free lighting perfectly fits live broadcast and video recording requirements.

Die-cast aluminum housing reaches IP66 waterproof and dustproof grade, stable enough to cope with all harsh indoor and outdoor weather conditions. High-efficiency LED chip saves 70% power compared with conventional lamps. 50000-hour service life largely reduces replacement and maintenance expenses. Fully compliant with international sports lighting criteria, it serves well for new venue construction and old lighting renovation.

Applications:

  • Padel Court
  • Indoor Sports Hall
  • Pickleball Court
  • Outdoor Sports Field
  • Tennis Court
  • Campus & Community Court
  • Ball Sports Venue
  • Sports Lighting Project



Certified Quality for Global Projects



Inquire Now

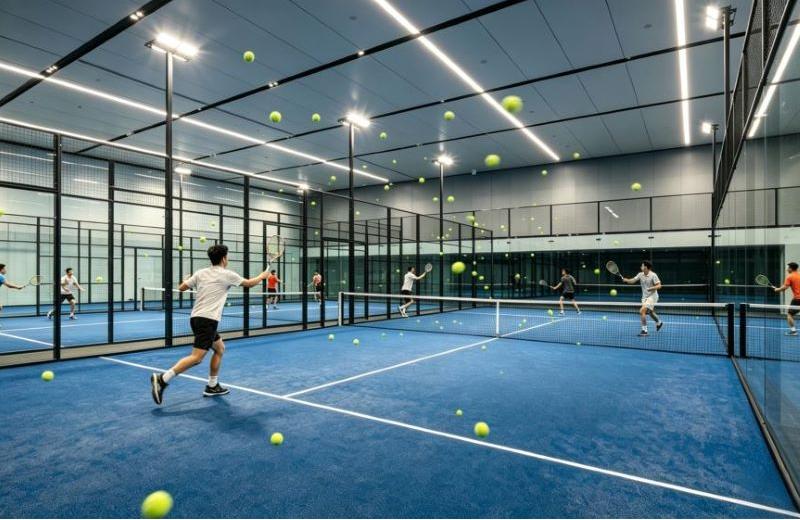

Padel Pickleball LED Lighting, suitable for various sports events

 Solve Reflection Issue & Improve Viewing Experience







Multi-scene Applicable, Ideal Sport Light

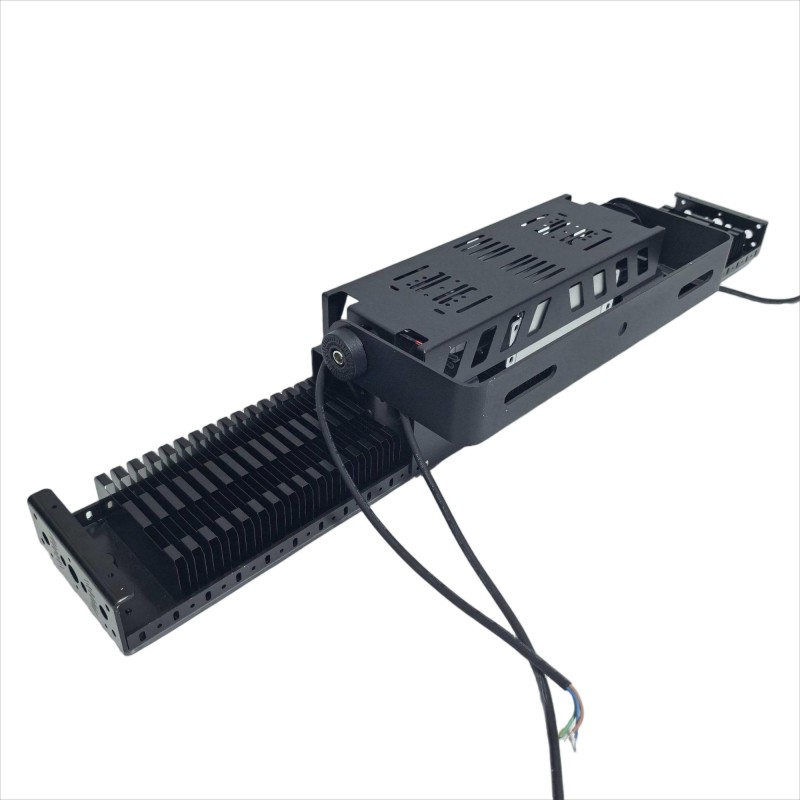

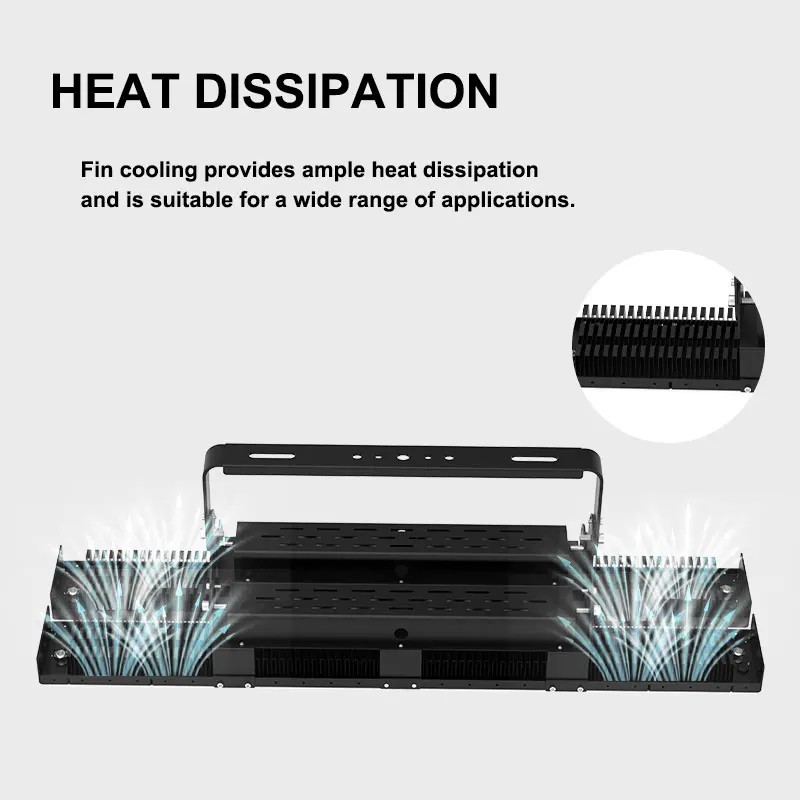

Fin Heat Dissipation Structure

Large-area fin structure accelerates heat dissipation and keeps stable working temperature. It slows down light decay, maintains lasting high brightness and prevents performance degradation caused by overheating, effectively extending the overall service life of the lamp.

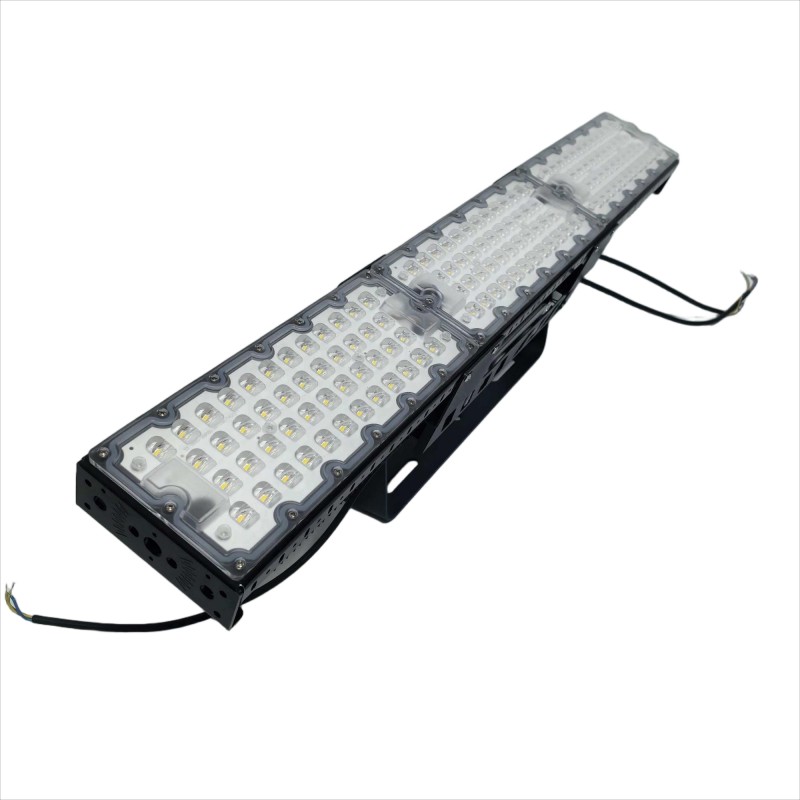

5054 High-efficiency LED Beads

Premium high-performance beads ensure stable flicker-free light output with high color rendering. It relieves eye fatigue during long-time sports, helps users accurately judge ball speed and rotation, and creates clear and comfortable viewing vision.



P50 Professional Optical Lens

The customized P50 lens realizes precise light control, concentrates light inside the court and blocks stray light overflow. It effectively suppresses glass wall reflection, eliminates glare disturbance and avoids light pollution complaints. Uniform light distribution covers every corner with no dark zones, delivering qualified lighting effect for formal matches.

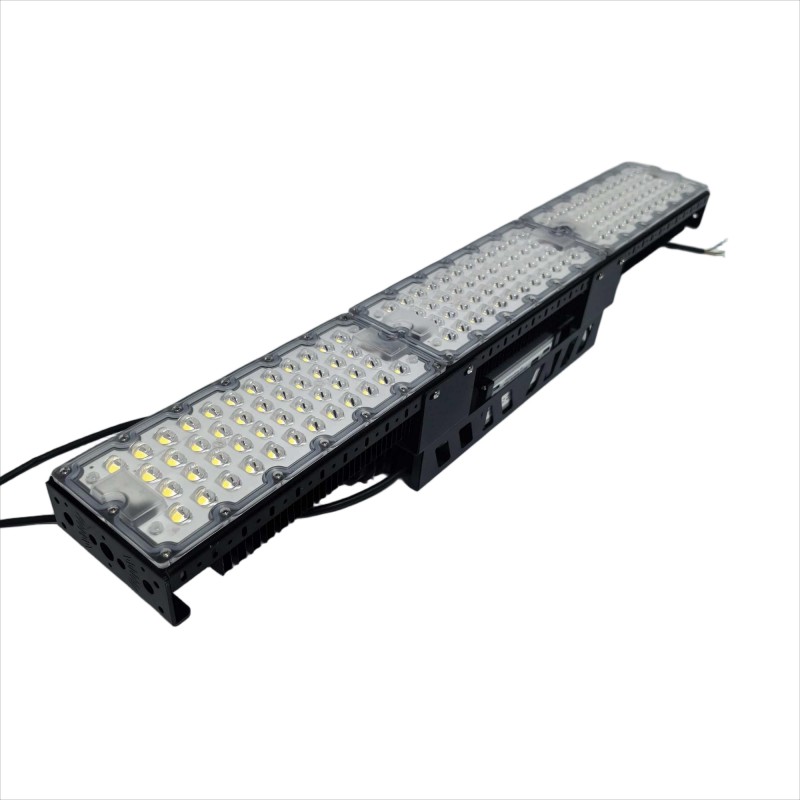

Optional 0-10V Stepless Dimming

Support 0%-100% brightness adjustment, match lighting demands of casual exercise, daily training and formal tournaments. Avoid unnecessary high-power lighting waste, adjust brightness flexibly to save power further, compatible with mainstream venue control systems for easy use.



IP66 Weatherproof Housing

Integrated die-cast aluminum shell reaches IP66 waterproof and dustproof grade. It resists high temperature, heavy rain, wind and frost, lowering failure and damage rate and reducing daily maintenance workload and cost.



Excellent Energy-saving Performance

High luminous efficiency design cuts power consumption by 70% compared with traditional lamps while maintaining equal brightness. Matched with optional 0-10V dimming function, brightness can be adjusted on demand to avoid unnecessary power waste, greatly reducing long-term electricity expenditure of venues.





Technical Specifications



ITEM No. : HR-PKT450-3 HR-PKT900-6
Luminous Flux >76800LM >153600LM
NW/GW: 9.2kg/10.8kg 19kg/23kg
Product Size: W132*L1150*H251mm W284.8*L1150*H328mm
Input Voltage: AC85-305V
Driver Brand: Meanwell / MOSO driver
Beam angle: Symmetrical: 20°/40°/60°/90°,   Asymmetrical: 100°×140°
CCT warm white(2700-3500k)  Pure white(4000-4500k)  Cool white(6000-6500k)
Light Efficient >160lm/w
IP Grade  IK IP66    IK08
Life span: 50000h

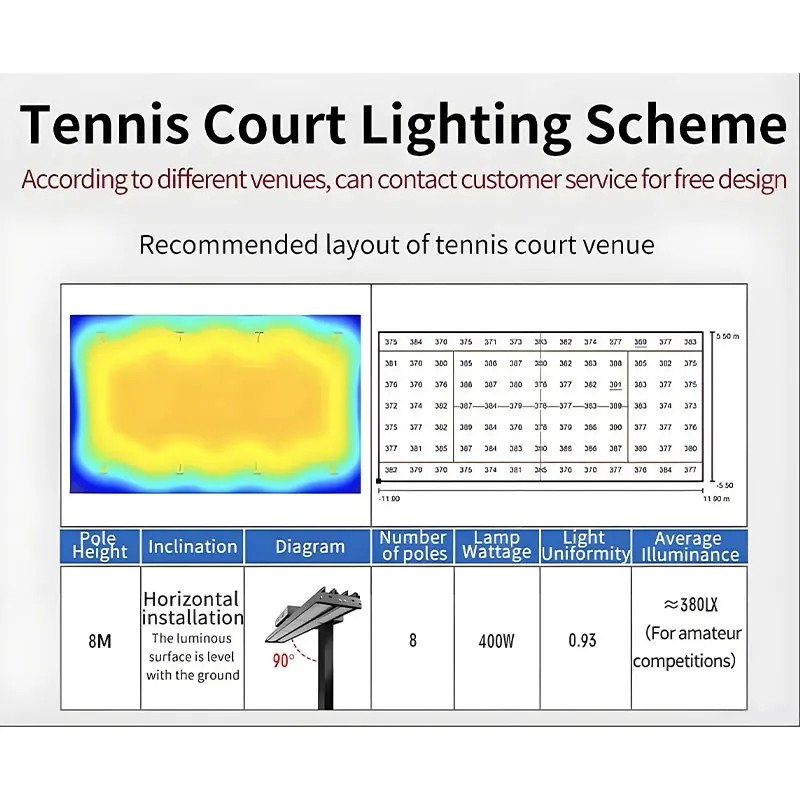

Precise Light Control, Anti Glare & Light Spill

High Energy Saving, Cut Operation Cost



Precise Light Control, Anti Glare & Light SpillIP66 Waterproof Dustproof, Outdoor Durable









Product Structure

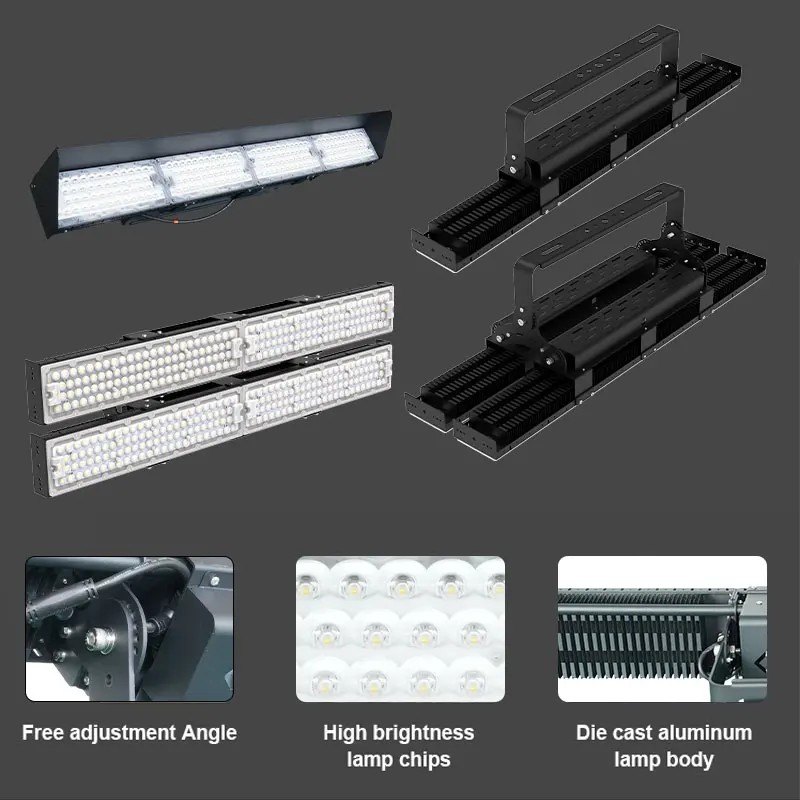

High CRI, Clear Visual ExperienceFin Rapid Heat Dissipation, Anti Light Decay

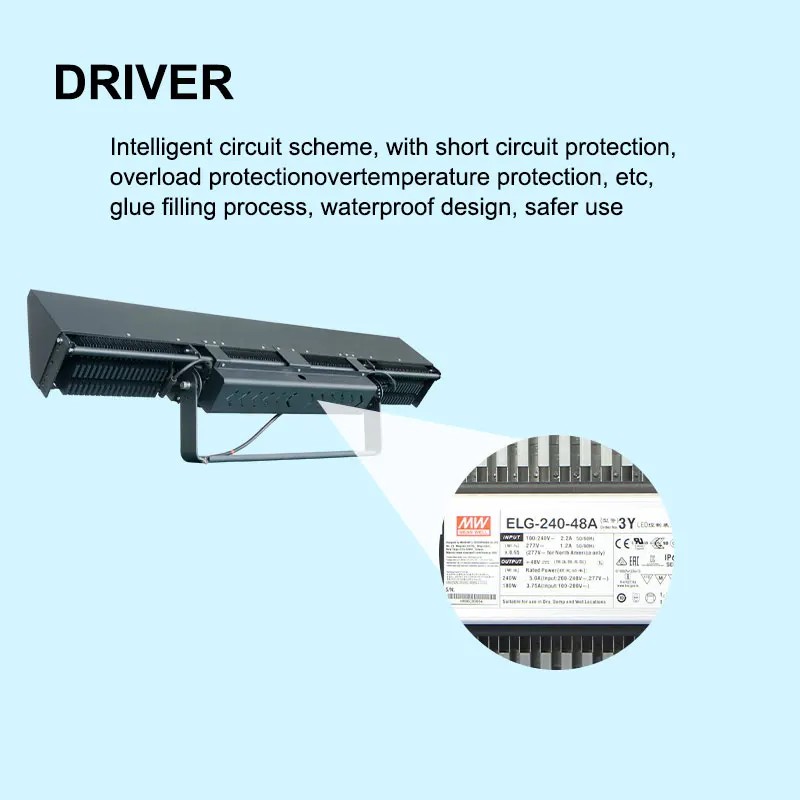

Wide Voltage, Easy Installation

High Energy Saving, Cut Operation Cost

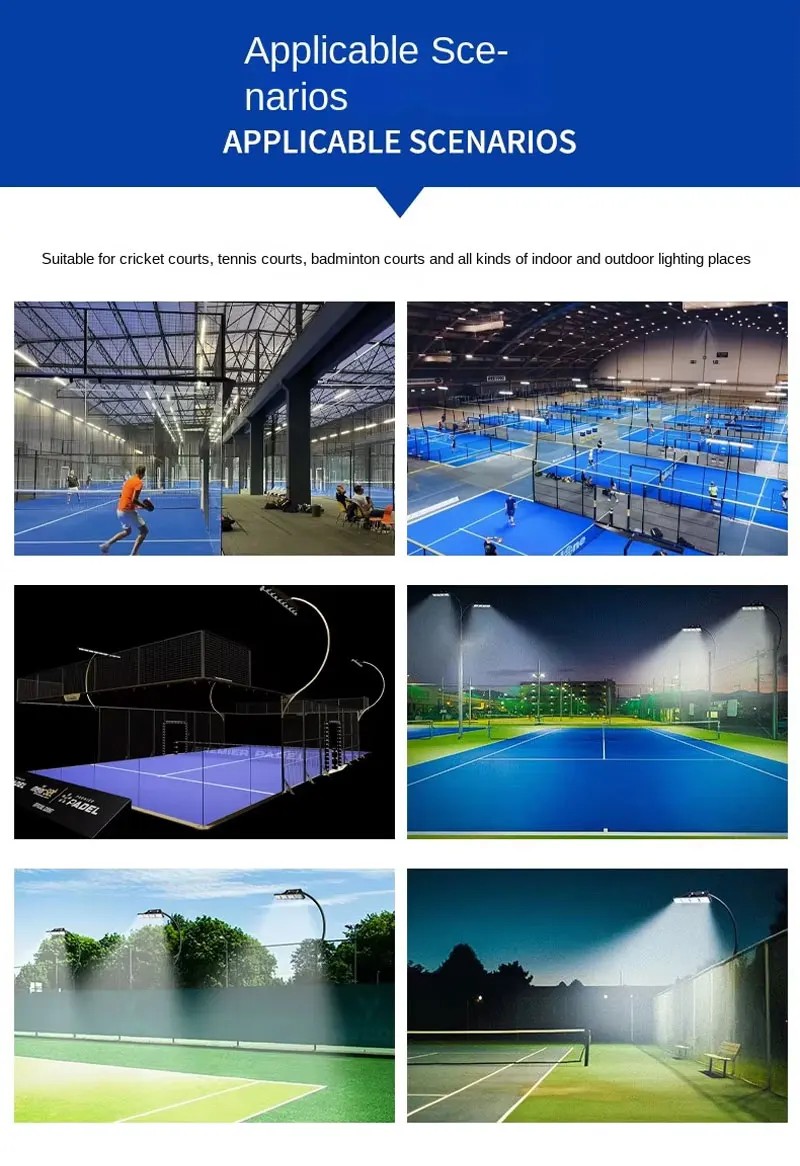

Multi-scene Applicable, Ideal Sport Light










Easy to Installation



Wide Area Lighting

Step 1:  Select installation method

Wall-mounted Installation、Pendant Installation、 Ground-mounted Installation.





Step 2:  Fix the Screws

Align the lamp bracket with the installation position, fix it firmly with matching screws, and ensure stable installation without looseness.







Wide Area Lighting

Step 3: Connect the Wires

Connect live, neutral and ground wires as marked, close the junction box tightly, and complete waterproof sealing.

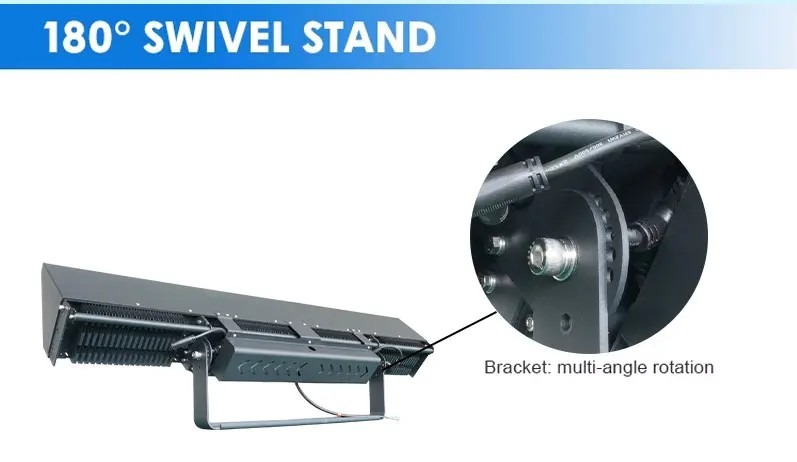

Step 4: Adjust the Angle

Loosen the adjustment screw, adjust the irradiation angle as needed, then tighten the screw to lock the position.
