Home LED Street Light

StarWind 100-300W High Power Municipal LED Street Light

Aluminum Road Light
LED Street Light
Outdoor Road Light
Urban Street Light
Public Road Lamp

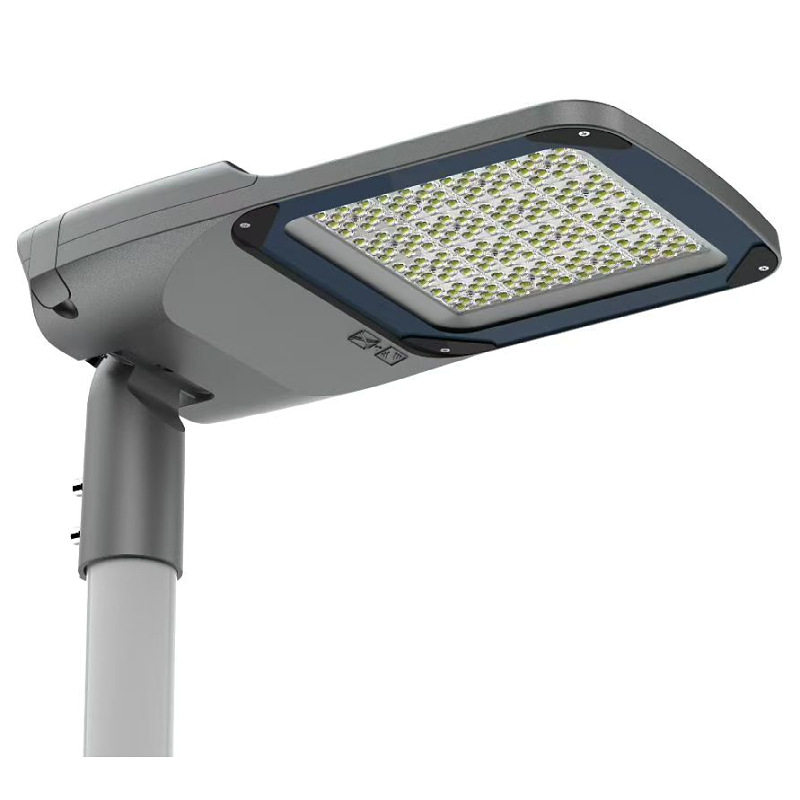

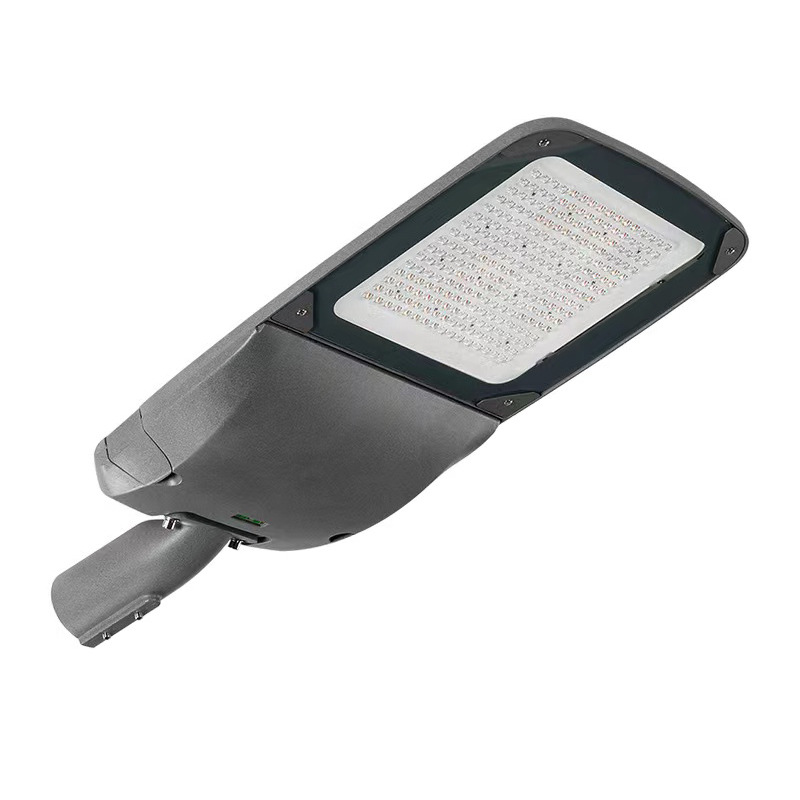

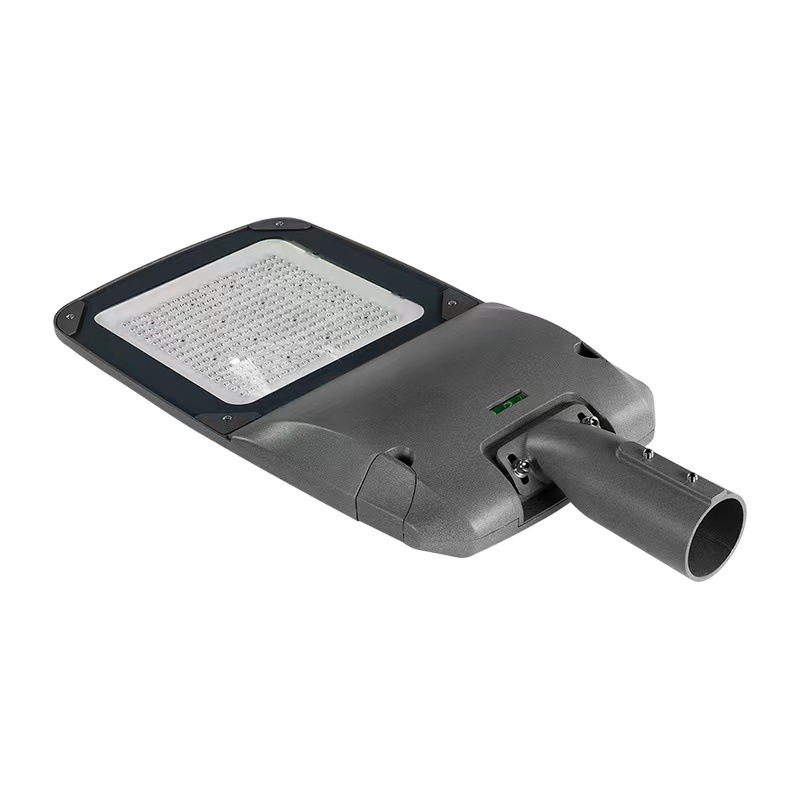

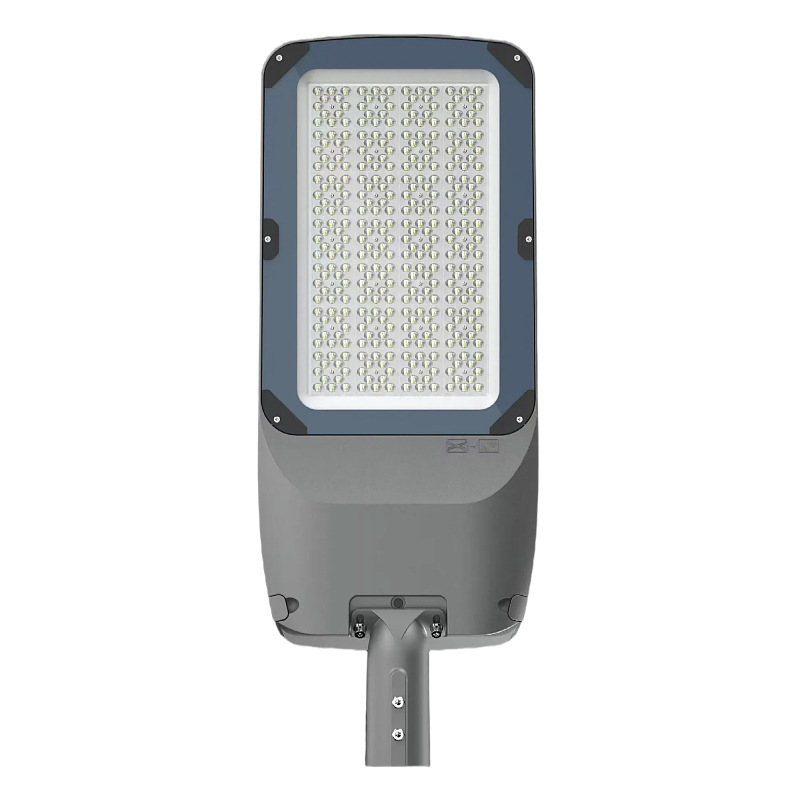

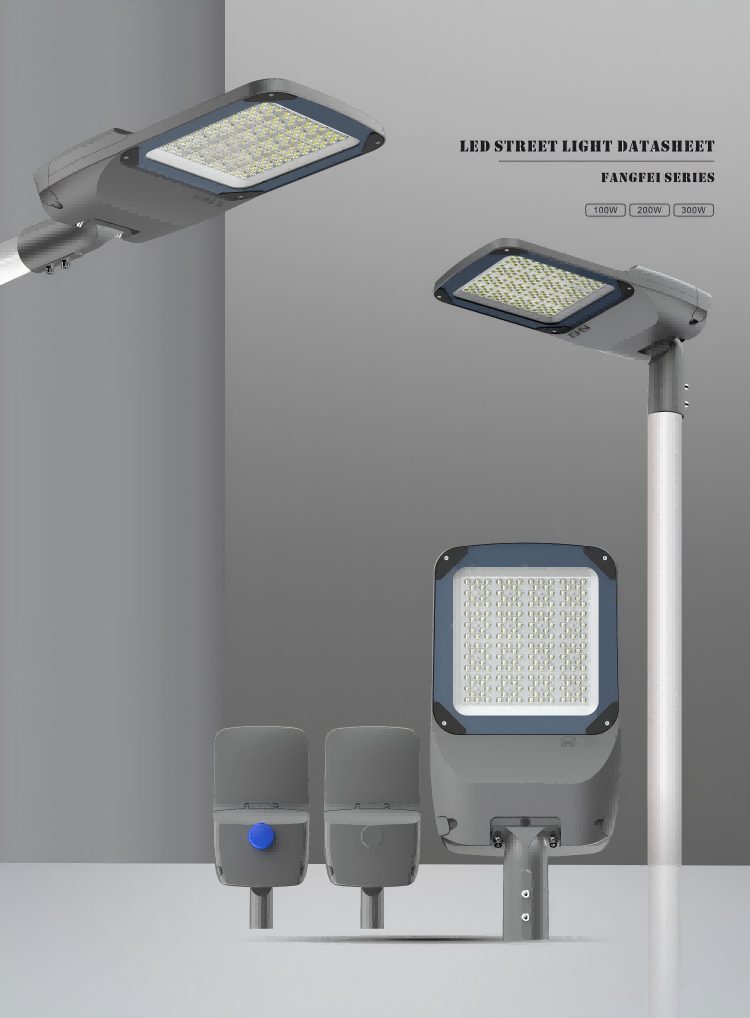

StarWind 100-300W High Power Municipal LED Street Light

The StarWind Series high-power municipal LED street light is a professional road lighting solution upgraded with an expanded power range of 100W to 300W, designed to meet the high-brightness demands of municipal main roads, highways, and large-scale public engineering projects. Adopting thickened die-cast aluminum housing for robust durability and efficient heat dissipation, it features IP66 waterproof and dustproof protection to adapt to all-weather outdoor environments. Equipped with a wide AC voltage driver, surge protection, and high luminous efficacy chips, this series ensures stable operation, low energy consumption, and a long service life of up to 50,000 hours. It is the ideal high-power lighting choice for urban road construction, highway engineering, and industrial park lighting.





Applications:

  • Municipal Arterial Road Lighting
  • Port, Wharf & Logistics Park Lighting
  • Highway & Expressway Lighting
  • Urban Square & Public Leisure Area Lighting
  • Rural & Urban-Rural Road Lighting
  • School, Hospital & Government Campus Road Lighting
  • Industrial Zone & Factory Road Lighting
  • Bridge & Tunnel Entrance/Exit Lighting



Certified Quality for Global Projects



Inquire Now

StarWind IP66 Waterproof High Power LED Street Lamp

Thickened Die-Cast Aluminum Housing







StarNet High-Power Street Lights with Thickened Aluminum Housing

Public Road Lamp

IP66 Waterproof & Dustproof

Engineered with IP66 rated protection, this street light is fully sealed against heavy rain, snow, dust, sand and moisture. It performs reliably in harsh outdoor environments, making it ideal for roads, highways and coastal areas with long-term exposure to the elements.

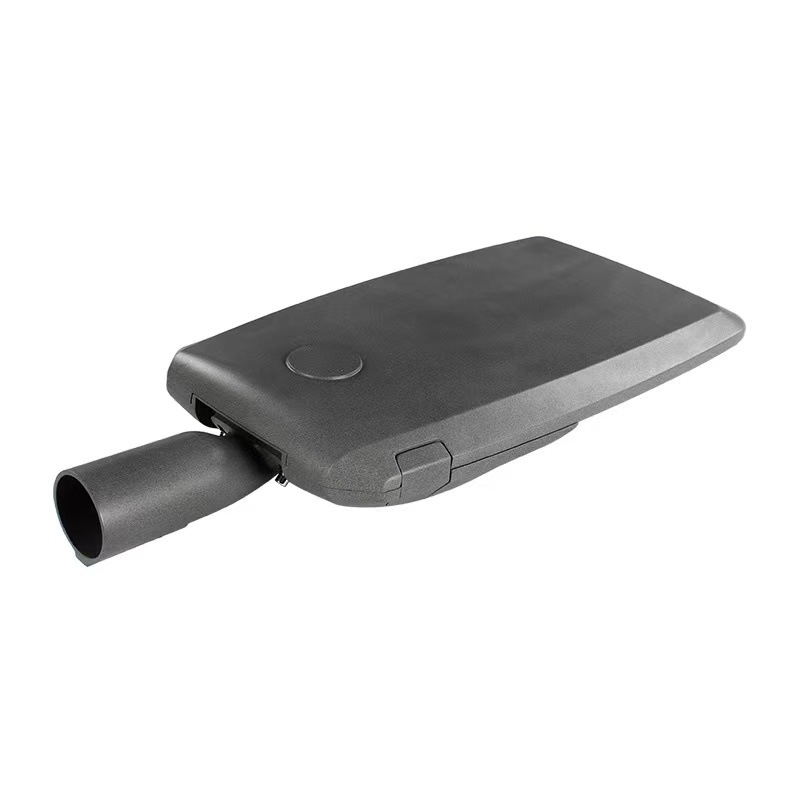

Thickened Die-Cast Aluminum Housing

Constructed with heavy-duty die-cast aluminum, the housing provides excellent durability, corrosion resistance and wind resistance. It ensures the fixture remains sturdy and deformation-free even in high-wind and long-term outdoor use.





Wide Beam Angle with Clear Glass

This solution adopts clear glass with high light transmittance and a wide beam angle. It provides more even and sufficient lighting, expands the effective illumination coverage, reduces dark spots on roads, and delivers safer, clearer lighting for main roads, highways and municipal engineering.

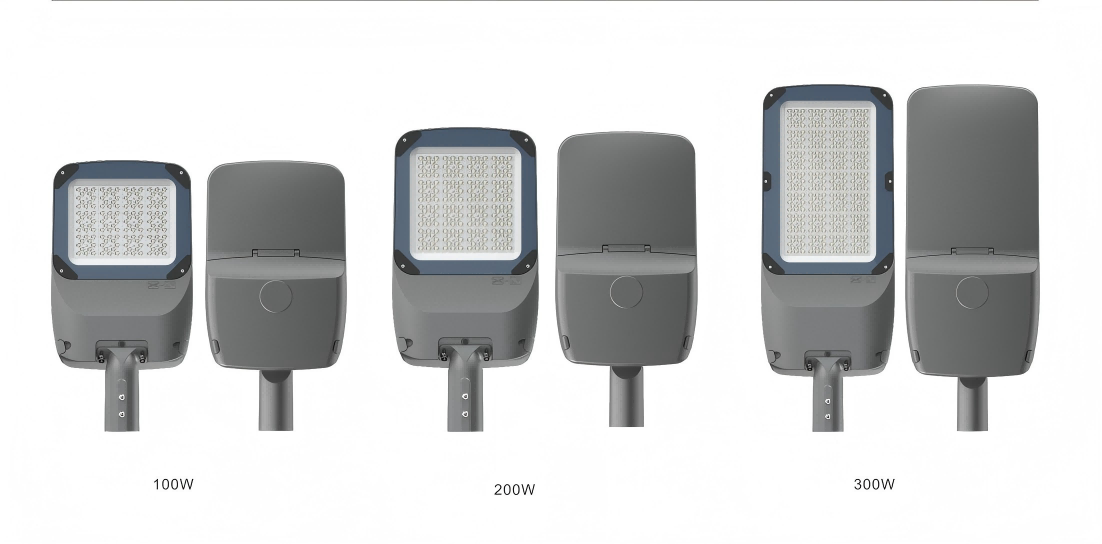

100W–300W High Power Output

 It is available in high-power versions of 100W, 150W, 200W, 250W and 300W. Featuring high brightness and uniform light distribution, it can fully meet the lighting demands of main roads, highways, industrial parks and large public areas, making it particularly suitable for municipal engineering applications.





Wide AC Voltage Compatibility

Supports wide-range AC voltage input, compatible with global power grid standards (110V–277V). It maintains stable performance even under voltage fluctuations, ensuring consistent operation in different countries and regions.





Surge & Lightning Protection

Built-in surge and lightning protection circuit guards against sudden voltage spikes and lightning strikes. This greatly reduces failure risk and improves safety and stability for outdoor municipal projects.





No regular inspection or maintenance required

Equipped with high-efficiency LED chips, it delivers superior luminous efficacy and consumes up to 60% less energy than traditional street lights. It helps lower electricity costs and reduce long-term operational expenses.





Easy Installation & Maintenance

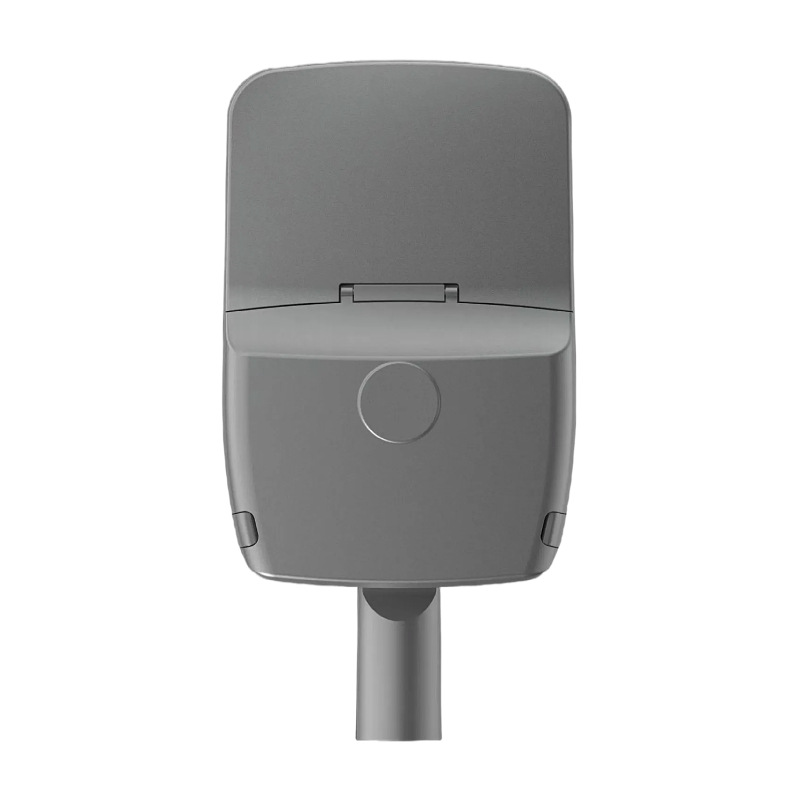

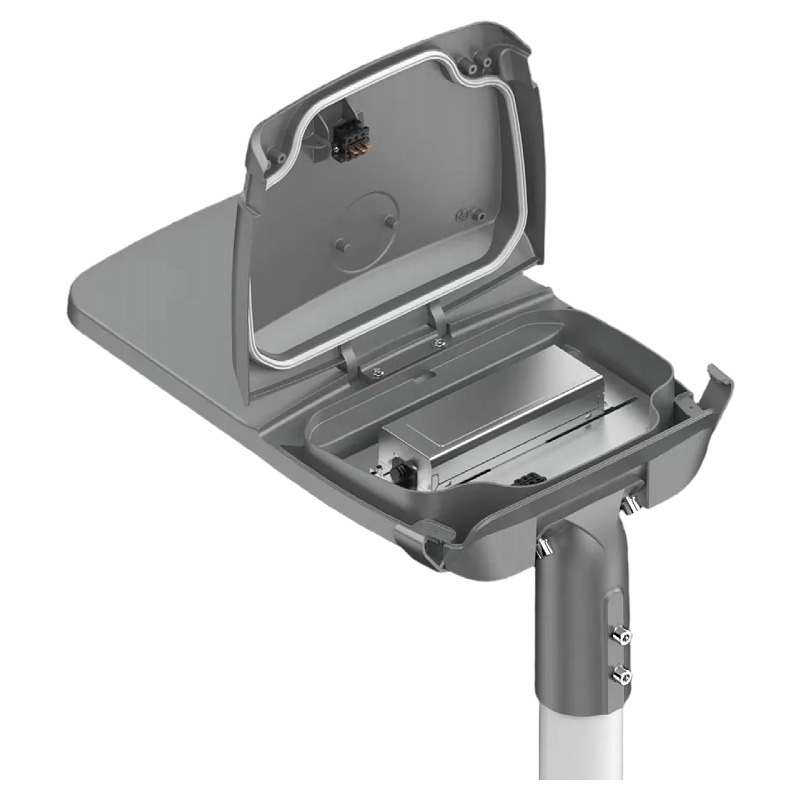

The maintenance-free power compartment features a fully sealed structure, effectively providing waterproof, dustproof and anti-corrosion protection. It prevents moisture, dust and insects from entering, greatly reduces lamp failures and ensures stable operation in harsh outdoor environments. With no regular maintenance required, it significantly cuts down on long-term operation and maintenance costs, making it highly cost-effective for municipal engineering projects.



Aluminum Road Light

IP66 Street Light





Technical Specifications

Model Number FL-100 FL-150 FL-200
FL-250 FL-300
Size L585*W306*H114MM L637*W306*H114MM L637*W306*H114MM
L844*W324*H114MM L844*W324*H114MM
Rated Power 100W 150W 200W 250W 30W
Input Voltage AC 170-265V / 110-277V
Luminous Efficiency 150 lm/W
Total Lumen 15000 lm 22500 lm 30000 lm
37500 lm 45000 lm
Color Temperature 3000K/4000K/6000K
CRI ≥70
IP/IK Rate IP66 / IK09
Material Thickened Die-cast Aluminum
Heat Dissipation Natural Convection Heat Dissipation
Working Temperature -40℃ ~ +65℃
Service Life ≥50,000 Hours

Urban Street Lighting

LED Road Lamp

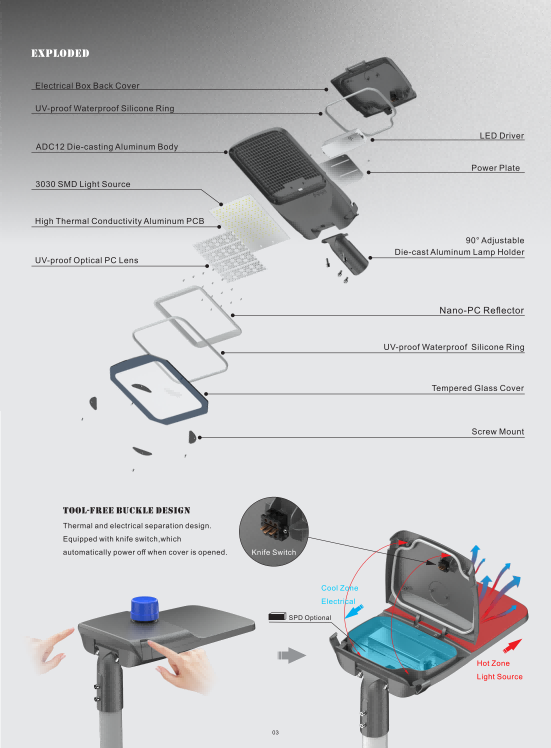

Product Structure



150W Road Lamp
  • LED Street Light

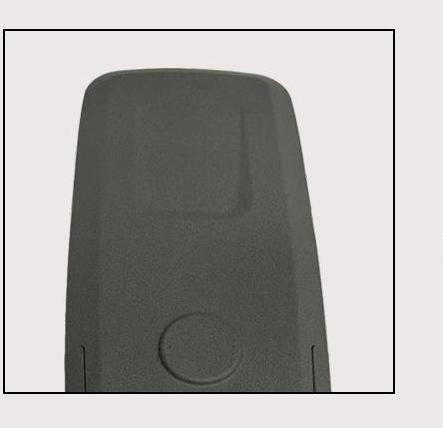

    Thickening Material

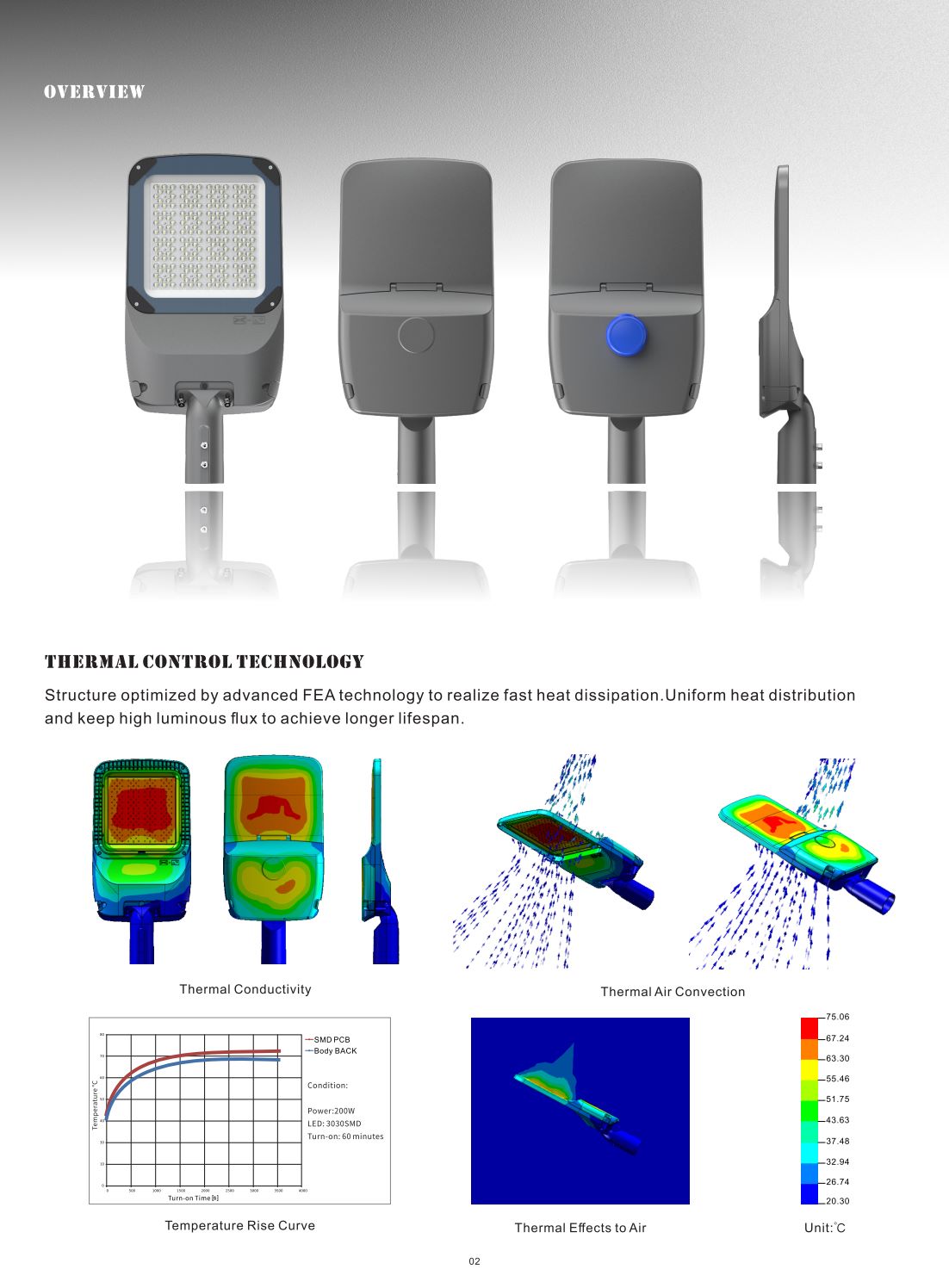

    Thickened die-cast aluminum maximizes heat dissipation for longer LED life and reliable performance. Durable, weatherproof and corrosion-resistant, it cuts maintenance costs for all outdoor projects.
  •  LED Street Light

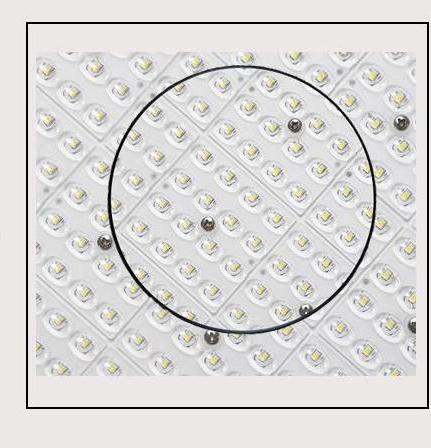

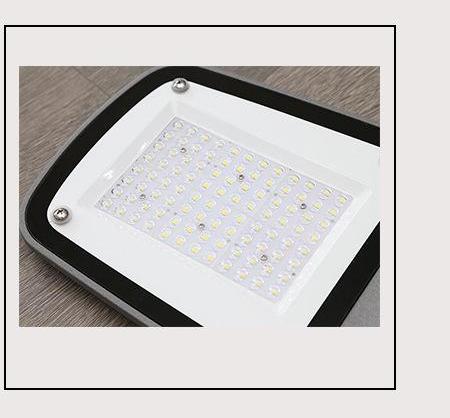

    High-brightness chip illumination
    3030 high-lumen chips: ultra-bright, energy-efficient, long-lasting.With excellent thermal stability and high color rendering, it provides uniform, eye-friendly illumination for all road and outdoor lighting projects.
  • LED Street Light
    Tempered Glass Lens・High Transmittance
    High-transmittance tempered glass ensures brighter, more uniform light output for better road visibility.Glass is anti-aging, scratch-resistant and non-yellowing, maintaining high clarity for long-lasting performance.

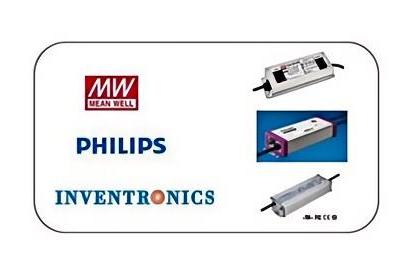

  • Driver Power Supply
    Brand Driver · Stable & Durable
    Brand LED driver ensures stable performance and wide voltage range for long-lasting reliability.High efficiency, low loss and surge protection extend the overall service life of the light.
  • Photocell Sensor (Optional)
    Photocell Sensor (Optional)
    Equipped with smart photocell sensor, it automatically turns on/off according to ambient brightness, lighting up at dusk and off at dawn without manual operation for easier management.Reduces unnecessary lighting to save energy and lower long-term operation costs.
  • Surge Protection (Optional)
    Surge Protection (Optional)
    Optional lightning protection protectors are available to effectively resist lightning strikes and voltage surges, protecting the lamp wicks and drivers from damage.Greatly improves outdoor safety, reduces failure risks, and ensures stable operation in bad weather.

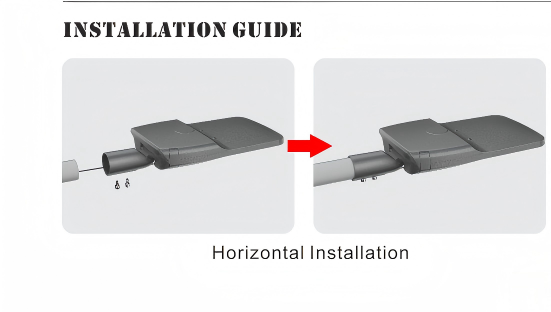

Easy to Installation



AC Power Light

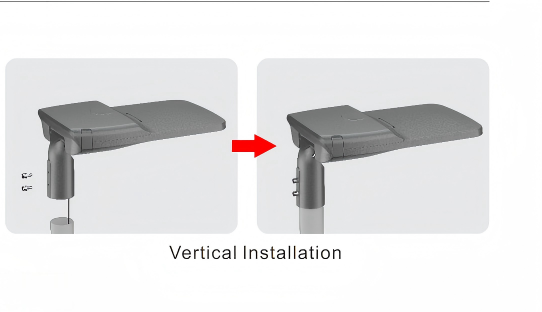

Step 1: Take apart the sleeve

First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.



Step 2: Install the sleeve onto the lamp pole

Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.



Energy Saving Light

Step 3: Connect the lamp holder to the sleeve

Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.



Step 4: Adjust the irradiation angle

Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.

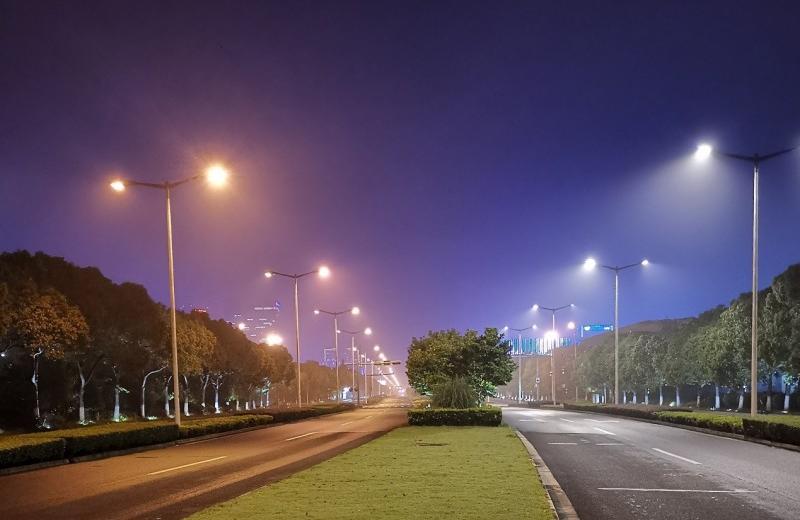

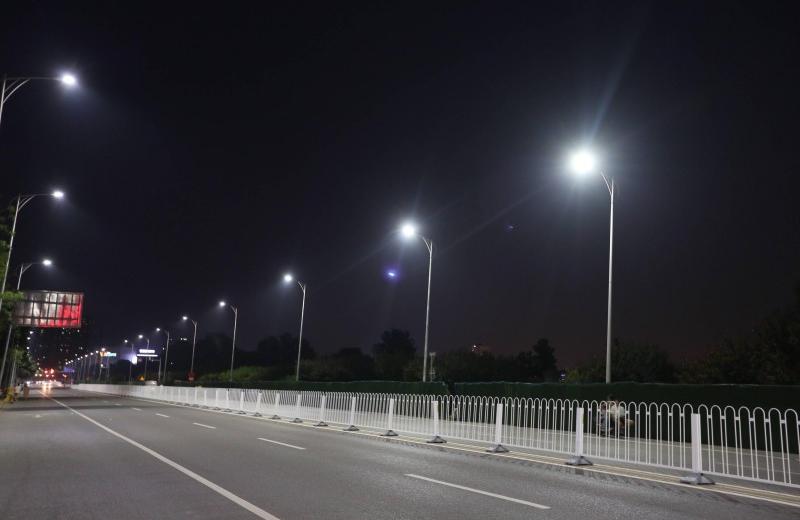

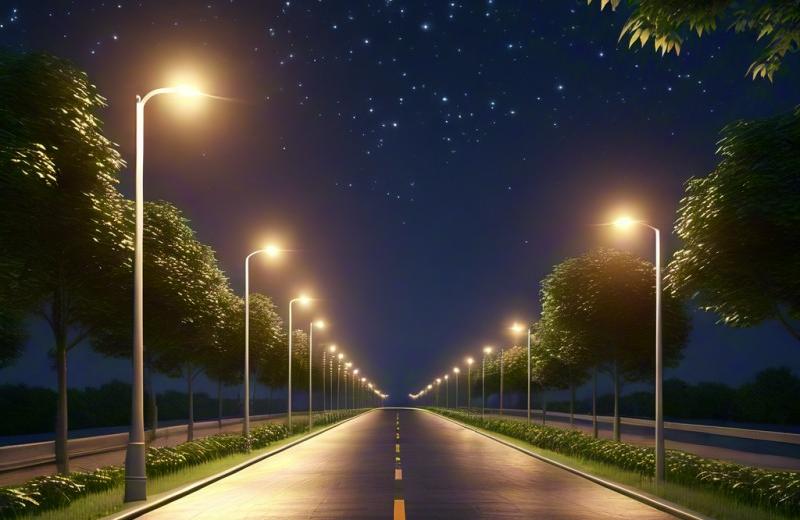

Check out Project Gallery



Your Reliable Outdoor Lighting Partner



HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.

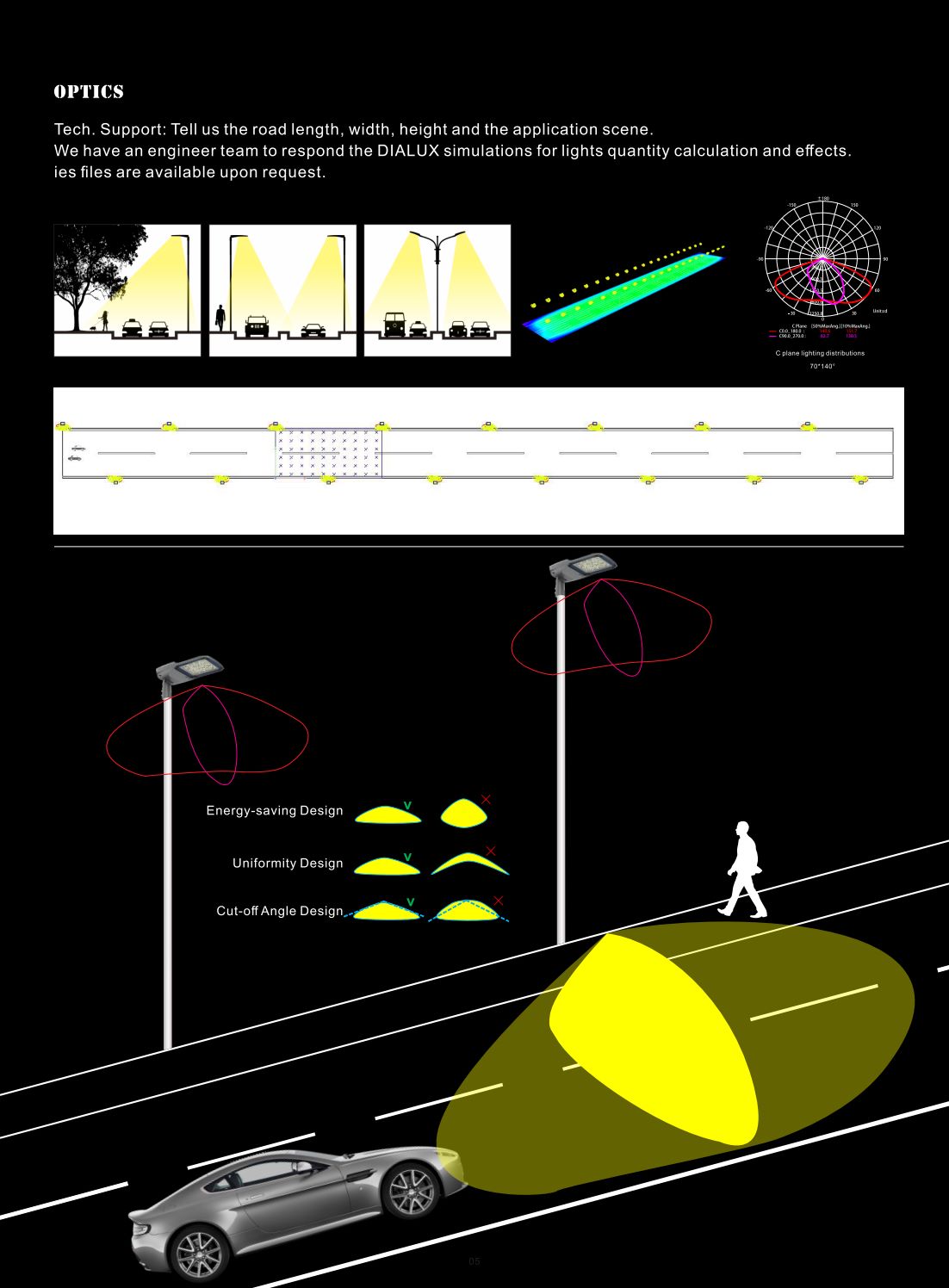

Need a Dialux simulation for your project? Click here for a free lighting plan.
