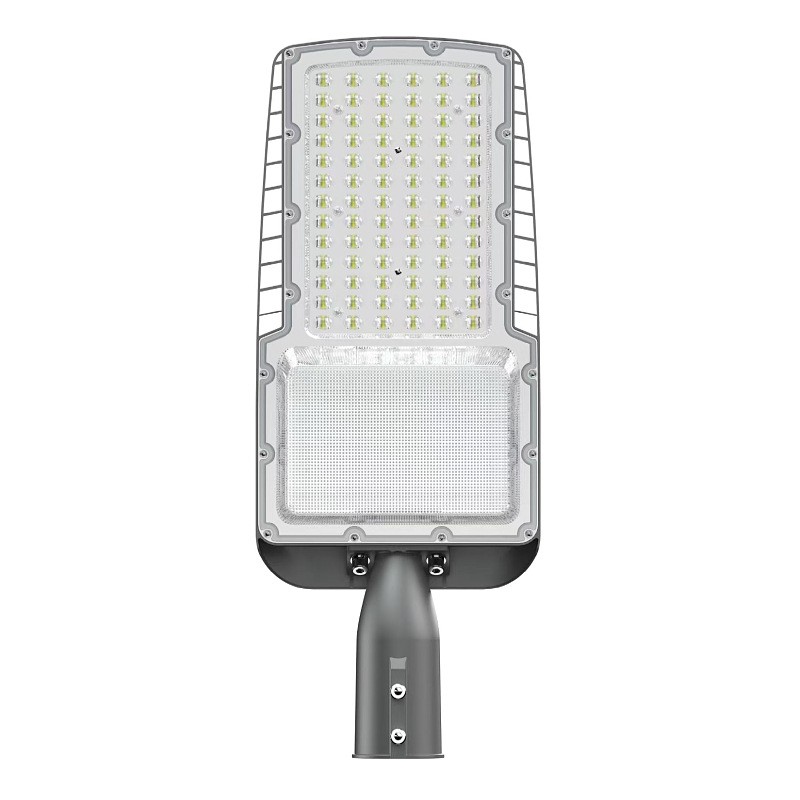

HT Series 100W/150W/200W 0-10V dimmable LED street light is a hot-selling road lighting retrofit fixture frequently searched by global municipal contractors and lighting wholesalers. Built with real die-cast aluminum heat sink, IP66/IP67 waterproof & IK08-IK09 impact-resistant housing and standard Φ60mm adjustable mounting bracket, this modular street lamp directly fixes buyers’ common troubles: traditional HPS lamps waste huge electricity without dimming function, ordinary outdoor lamps easily get water damaged in coastal/rainy areas, and irregular lamp size causes difficult installation on existing poles. Featuring 140~160lm/W high luminous efficacy, it saves over 60% power to cut long-term electricity cost; standard 0-10V linear dimming realizes 0-100% brightness control to meet smart city lighting demands, while CE/DLC certified quality plus 5-year factory warranty solves customers’ anxiety about short lifespan and expensive after-maintenance cost. Multiple optional CCT from 3000K to 5700K and available OEM/ODM service make it ideal for municipal roads, residential districts, highways, parking lots and industrial park lighting projects.

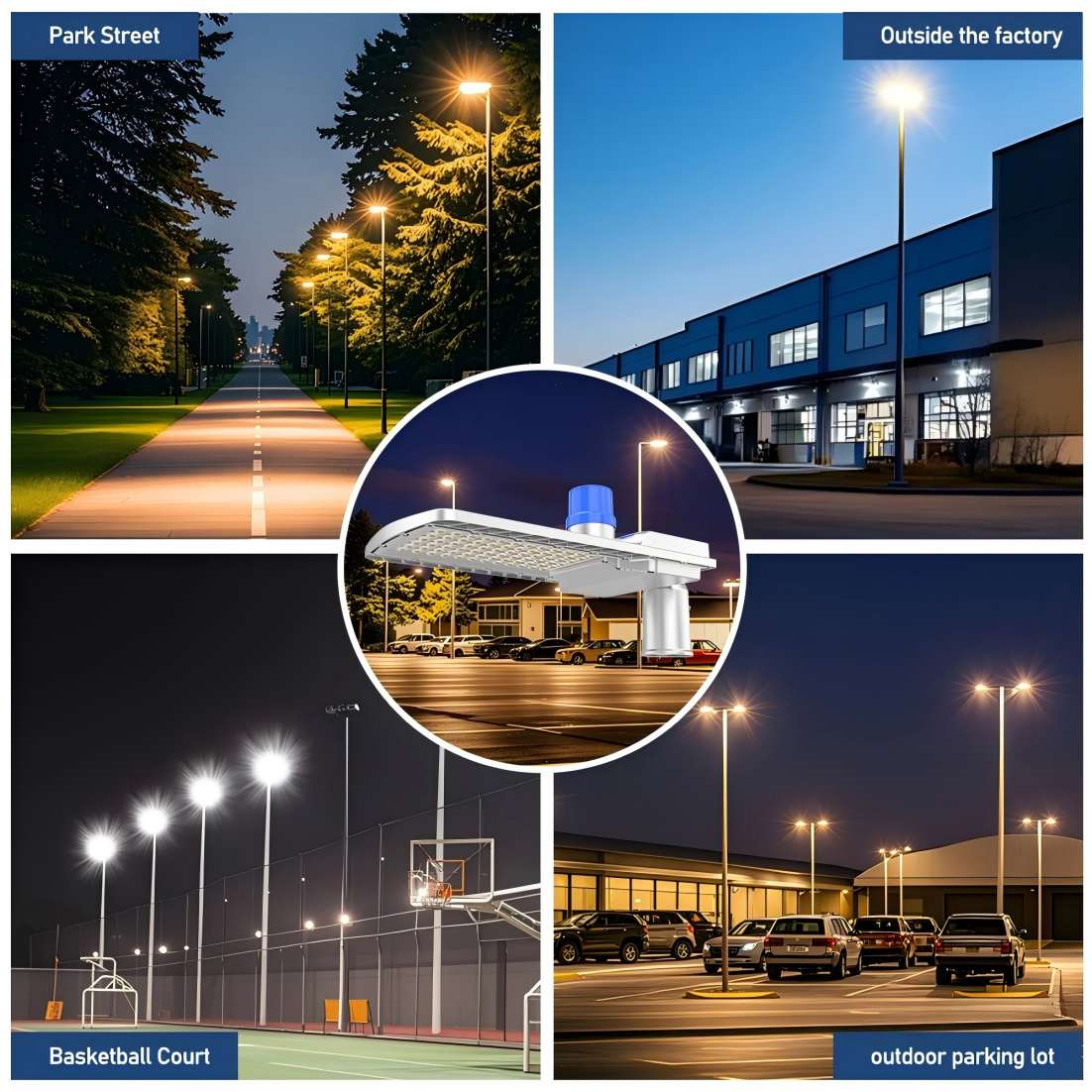

Applications:
Certified Quality for Global Projects
High Efficiency Batwing LED Road Lamp IP66 Waterproof 5 Years Warranty 0-10V Dimmable Street Light
for Highway & Parking Lot Lighting
IP67 Waterproof & IK09 Impact Resistance

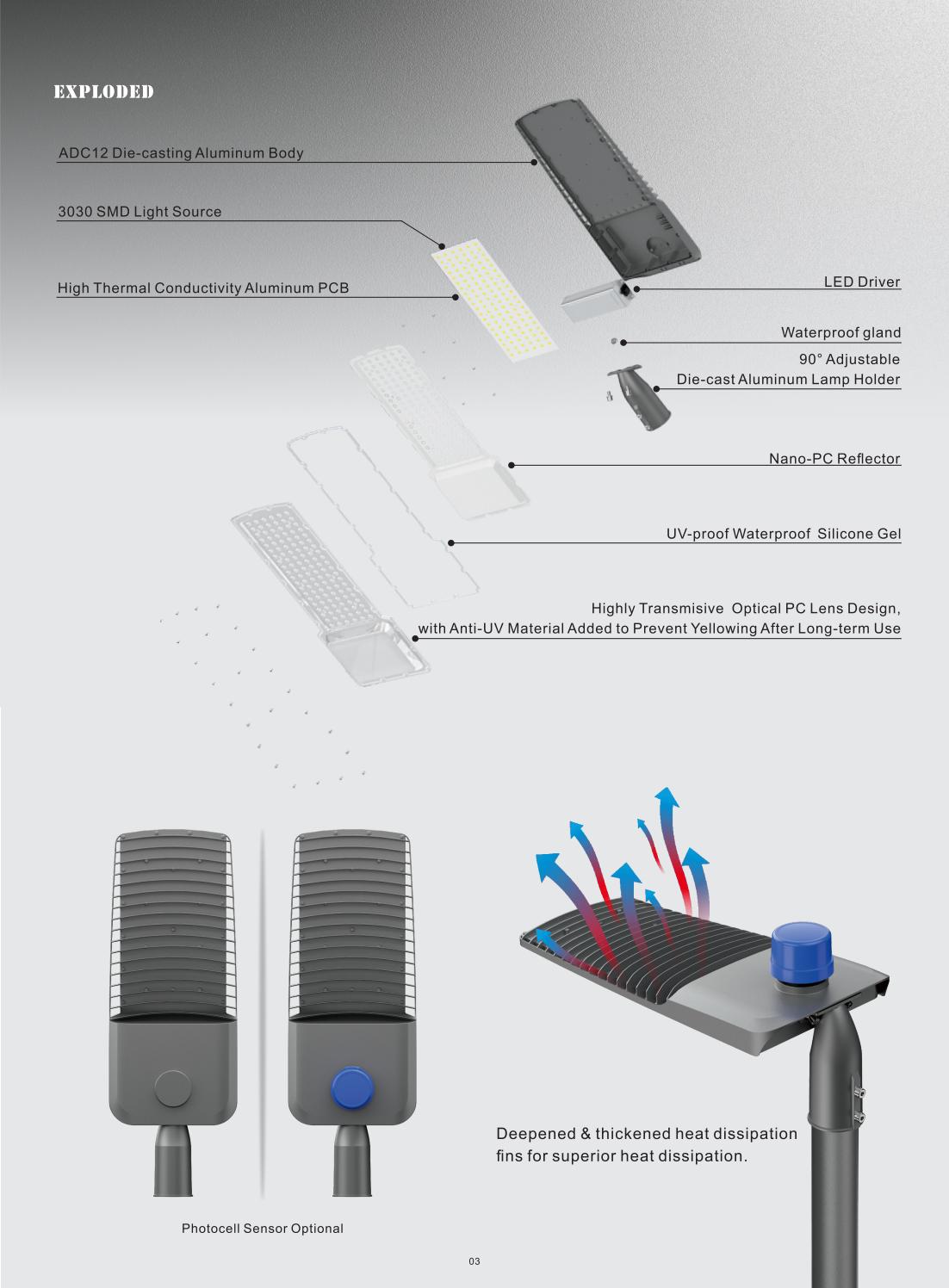

Die-cast aluminum fin housing + IP67 full sealing structure, IK08~IK09 anti-impact, adapt to -40℃~+60℃, anti-salt spray for coastal areas, no water ingress & circuit burnout in rainy, dusty, corrosive environments.
0-10V Dimmable & Superior Energy Saving

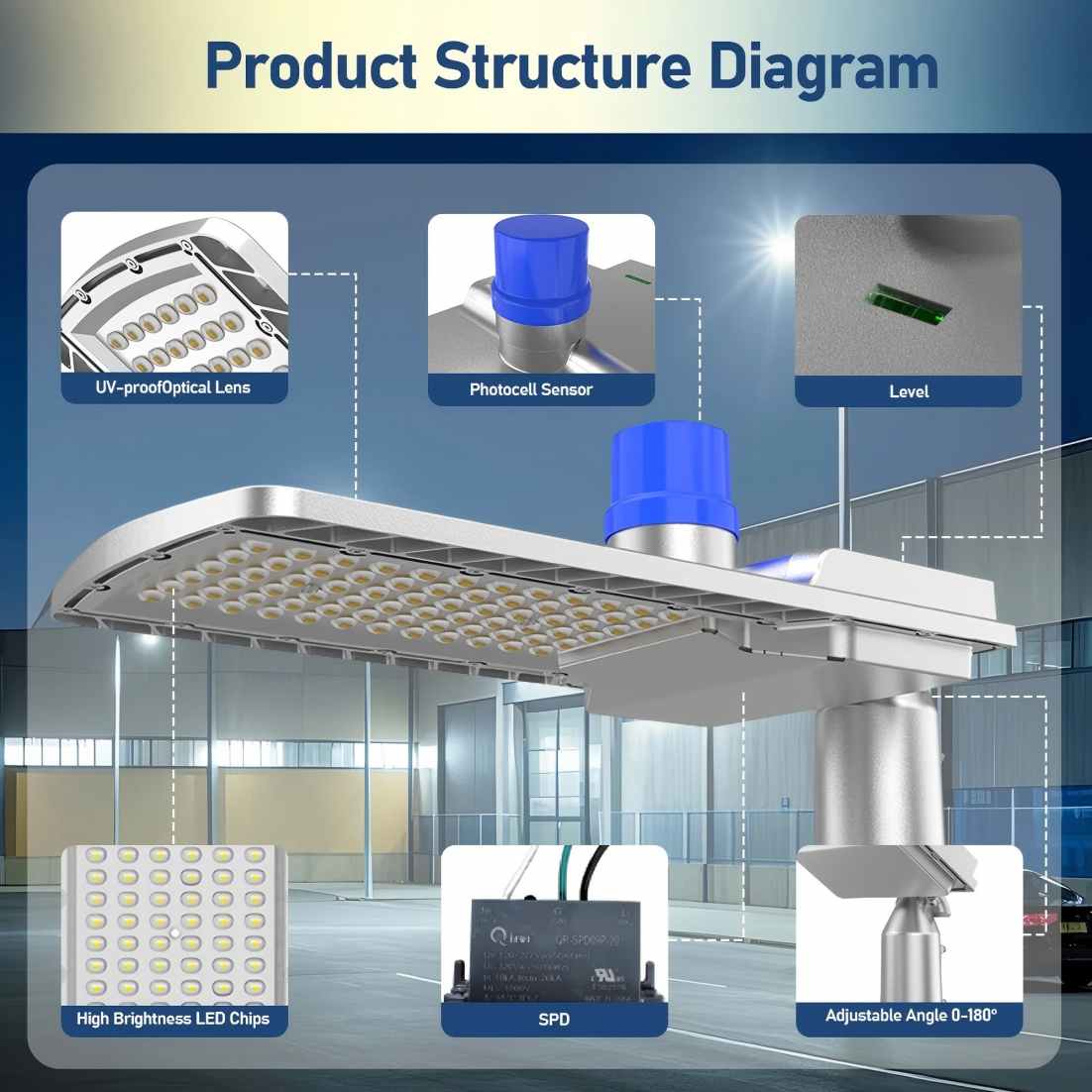

Built-in standard 0-10V linear dimming driver supports 0~100% stepless brightness adjustment, compatible with photocell and timer control system. Cut 15%-25% extra power at midnight, save over 60% electricity vs traditional HPS lamp, effectively reduce long-term electricity expense for municipal & property clients.
Universal 60mm Adjustable Mounting Bracket
Standard Φ60mm adjustable installation holder, match global mainstream street poles directly without extra accessories, fast on-site installation, greatly cut construction labor cost for road renovation projects.
Wide Voltage & Surge Protection Driver
AC90-305V ultra-wide input voltage, built-in lightning surge protection, PF＞0.95 low harmonic, stable operation under unstable local power grid worldwide.

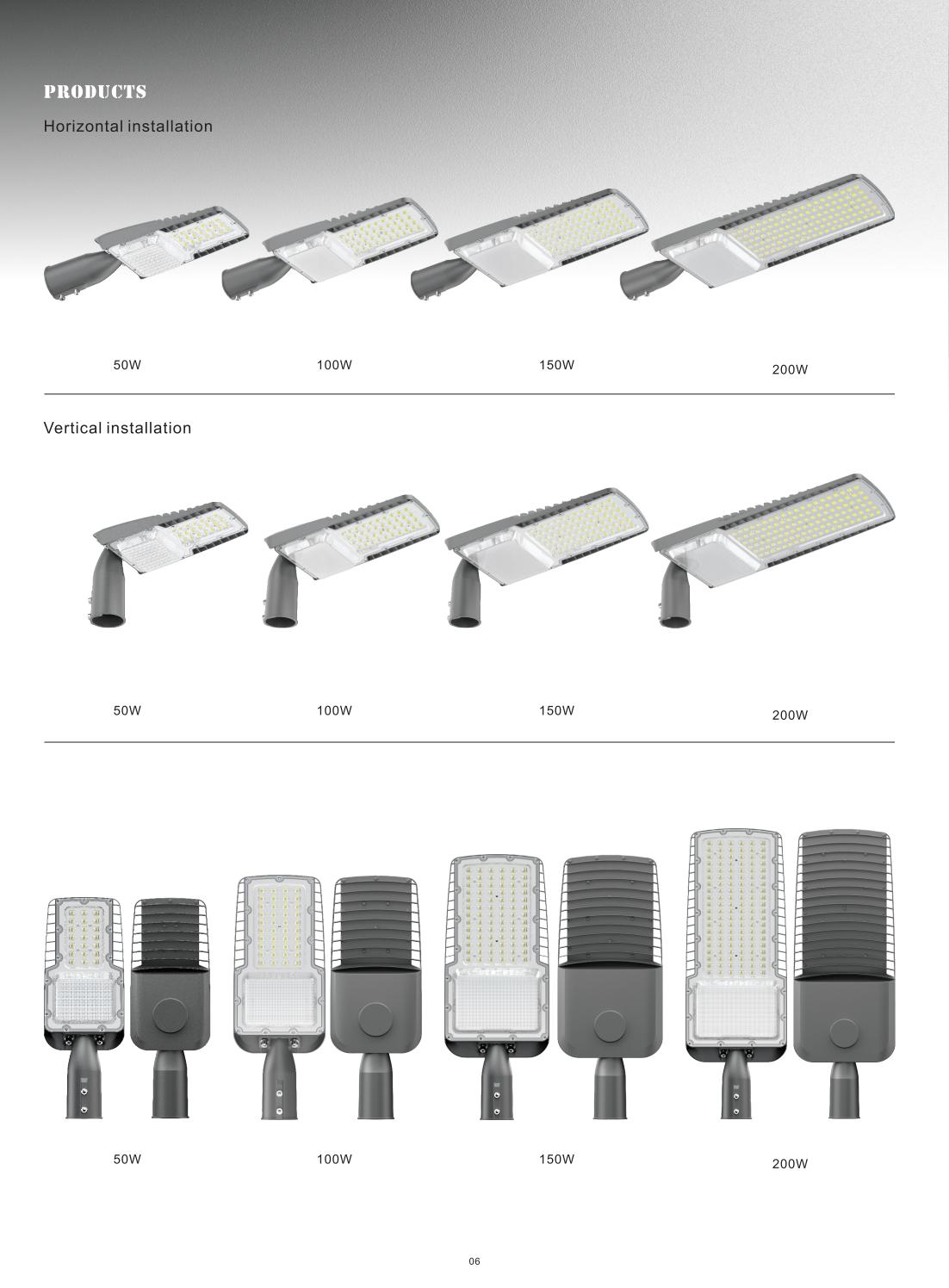

Multiple Specs & Customization Available

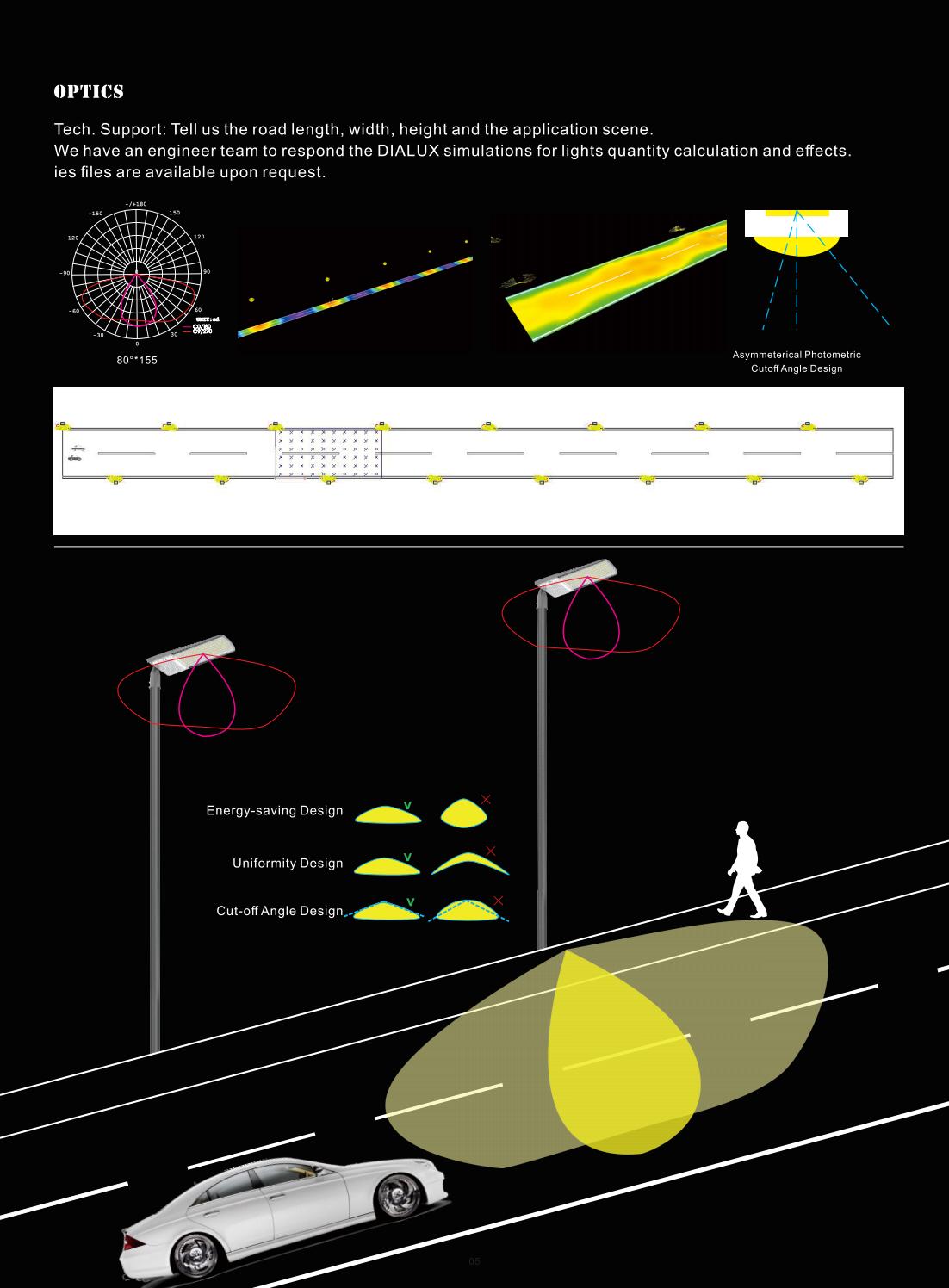

50W/100W/150W/200W optional power, CCT 3000K/4000K/5000K/5700K optional; accept OEM/ODM logo & appearance customization, provide DIALux IES files for engineering design.

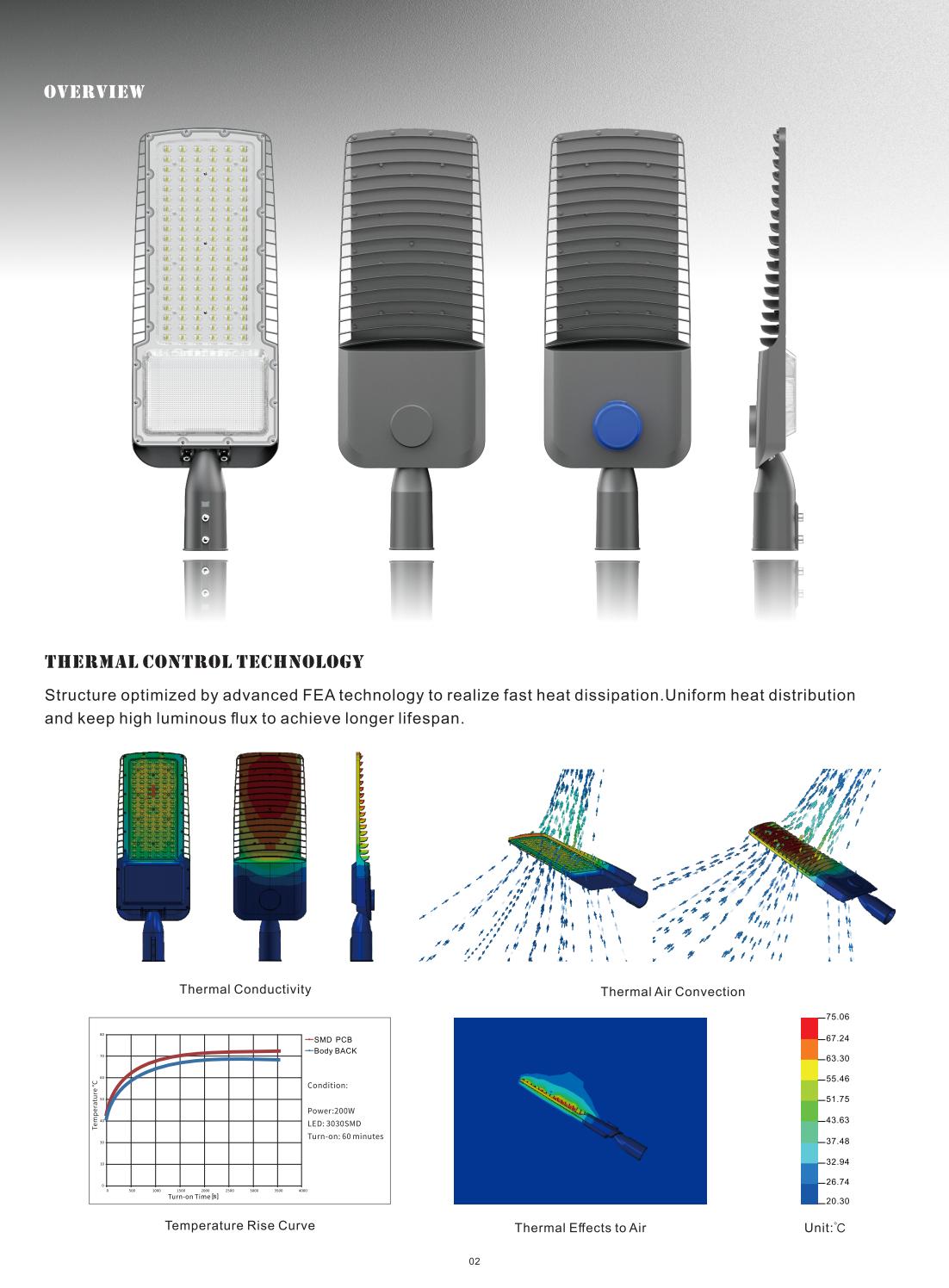

High Luminous Efficiency & Low Light Decay
Equipped with Philips / Osram LED chips, luminous efficiency reaches 140~160lm/W. Low lumen depreciation keeps stable brightness within its 50,000-hour service lifespan.
Lightweight Body to Cut Logistics Burden
Optimized lightweight casting structure reduces lamp weight, lower sea freight cost and avoid pole deformation after installation on old lamp poles.
\

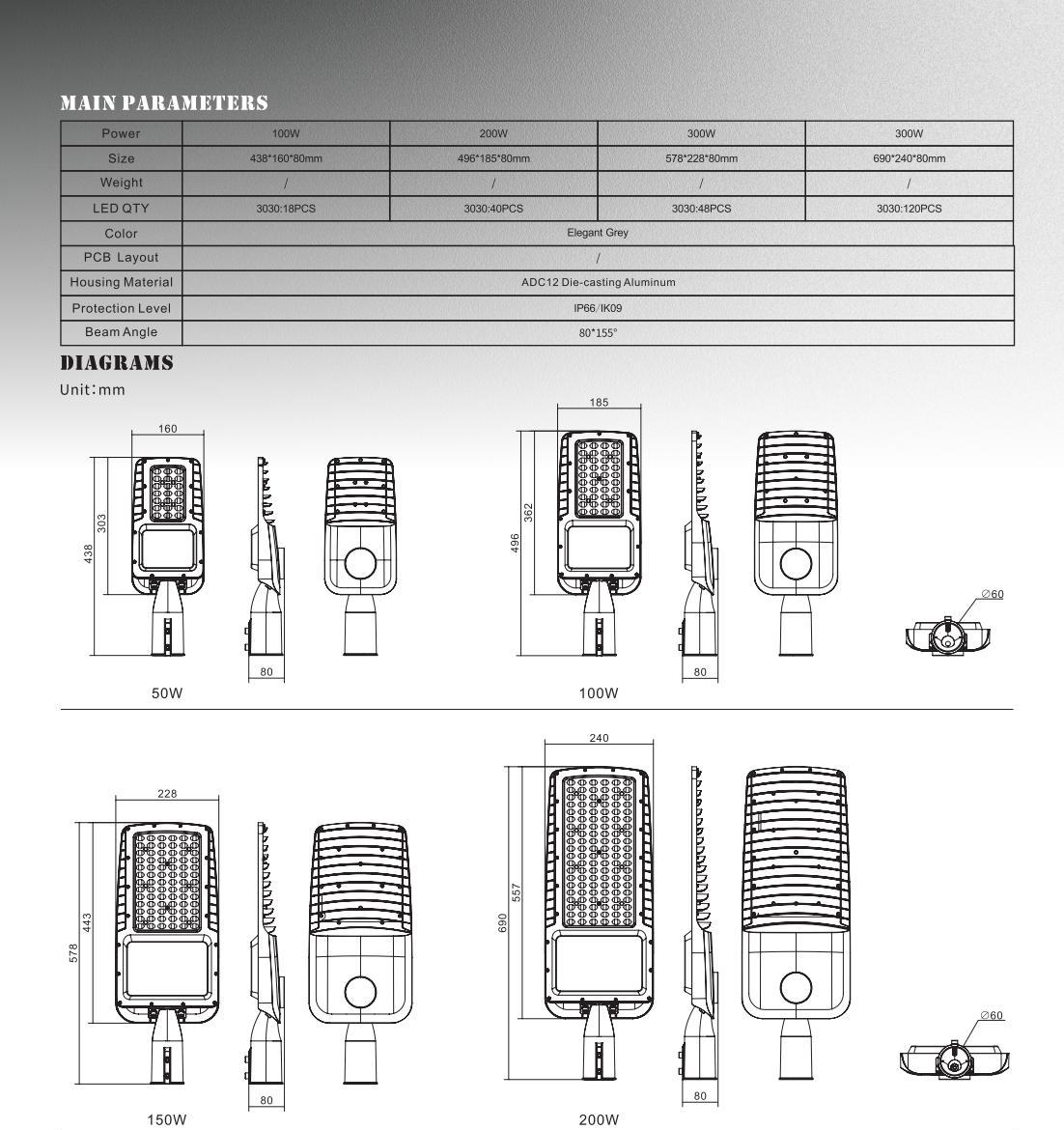

| Model Number | HT-50 | HT-100 | HT-150 |
HT-200 |
| Size | 438*160*80mm | 496*185*80mm | 578*228*80mm |
690*240*80mm |
| Rated Power | 50W | 100W | 150W | 200W |
| Input Voltage | AC 170-265V / 110-277V | |||
| Luminous Efficiency | 150 lm/W | |||
| Total Lumen | 7500 lm | 15000 lm | 22500 lm |
30000 lm |
| Color Temperature | 3000K/4000K/6000K | |||
| CRI | ≥70 | |||
| IP/IK Rate | IP66 / IK09 | |||
| Material | Thickened Die-cast Aluminum | |||
| Heat Dissipation | Natural Convection Heat Dissipation | |||
| Working Temperature | -40℃ ~ +65℃ | |||
| Service Life | ≥50,000 Hours | |||
Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
