Xiehe Series wall mount LED street lights is a popular choice for global outdoor engineering lighting. We offer 5 power options: 100W, 150W, 200W, 300W and 400W, to meet lighting requirements for small areas and large municipal projects. Adopting field-proven optical and structural design, the lights deliver high luminous efficiency, superior protection, easy installation and expandable smart functions. The universal wide voltage design fits power grids worldwide. With complete international certifications and long-term warranty, it is a reliable option for engineering bidding, bulk wholesale and project supporting.

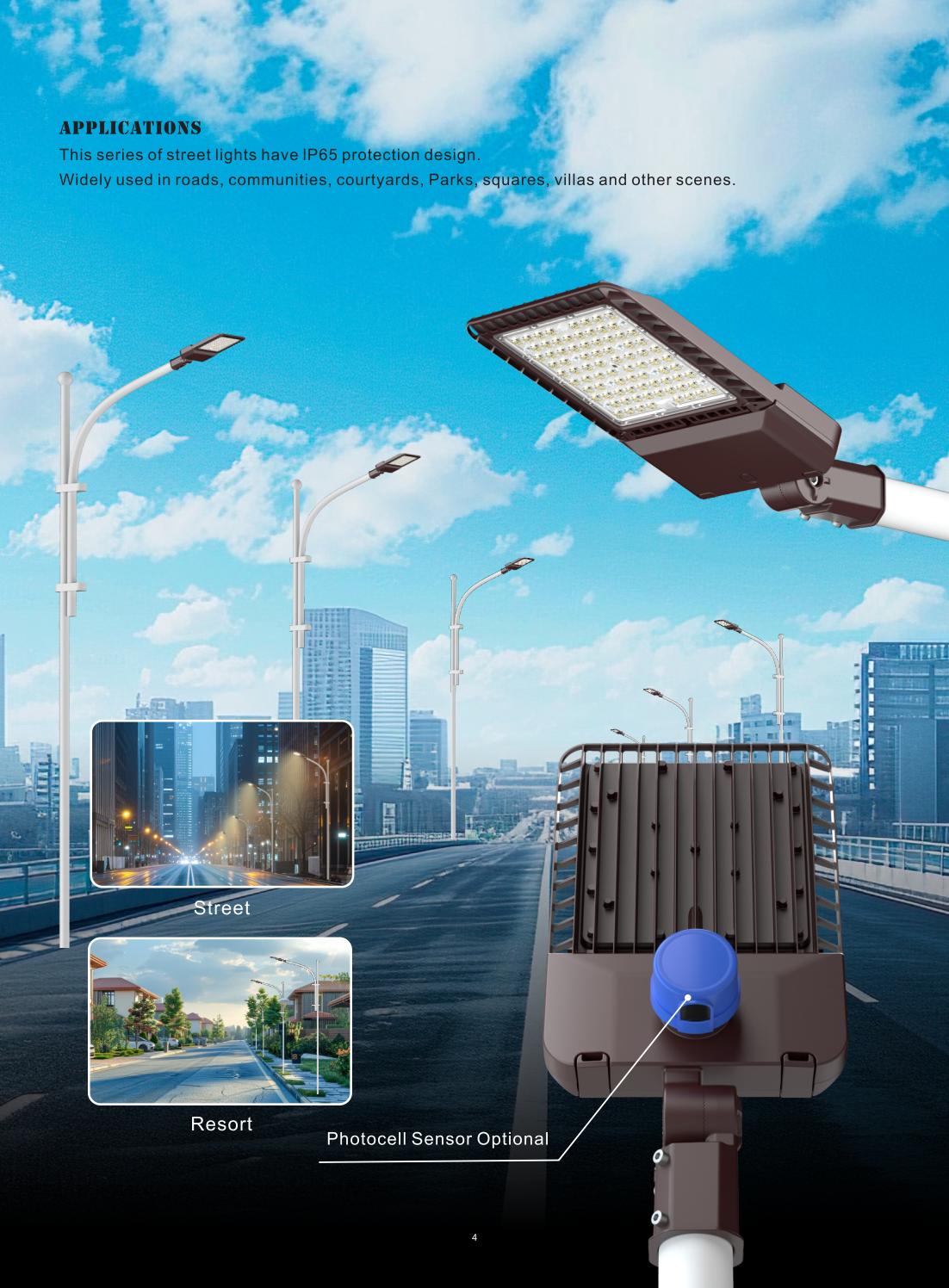

Applications:
Certified Quality for Global Projects

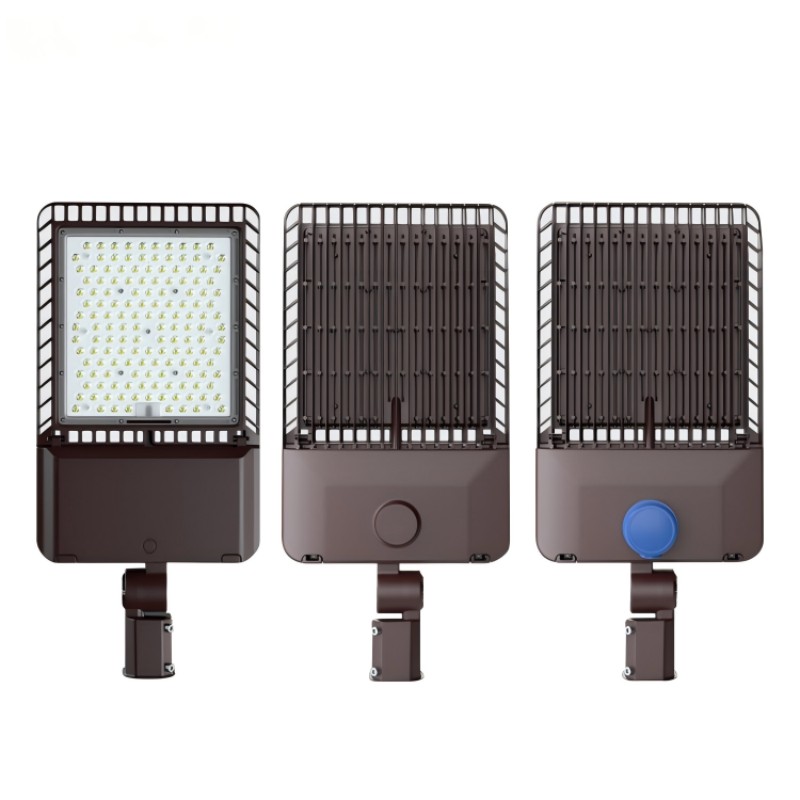

Xiehe Wall Mount LED Street Light 100W 150W 200W 300W 400W | IP67 Waterproof Outdoor Road Lamp for Commercial Projects
Full Power Range & Full Scenario Coverage

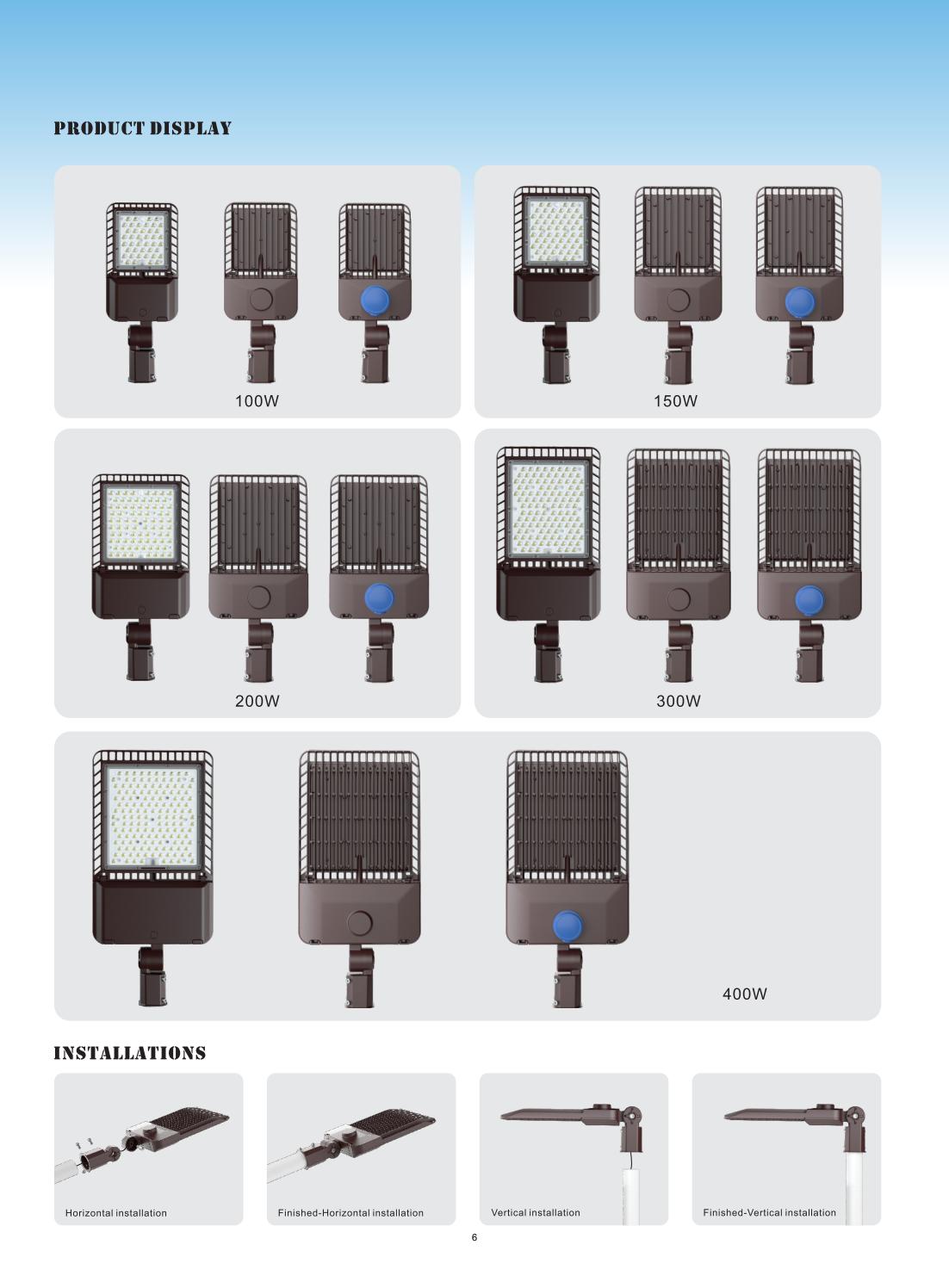

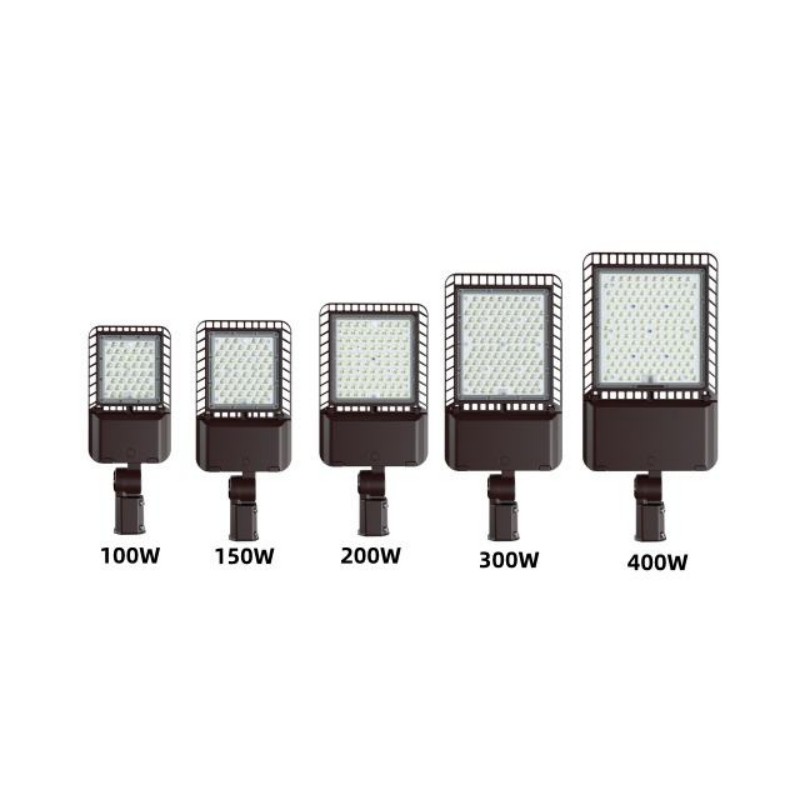

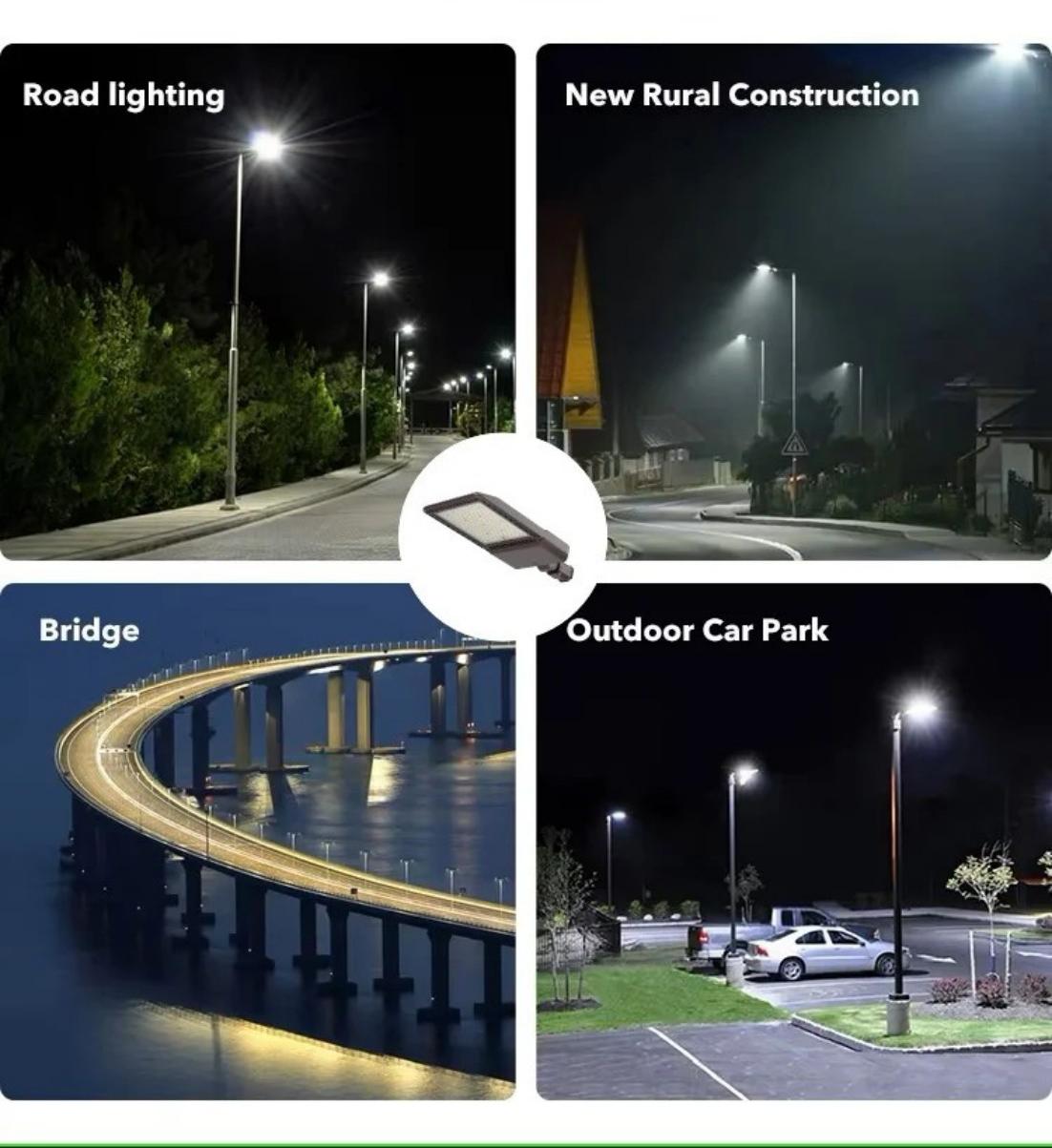

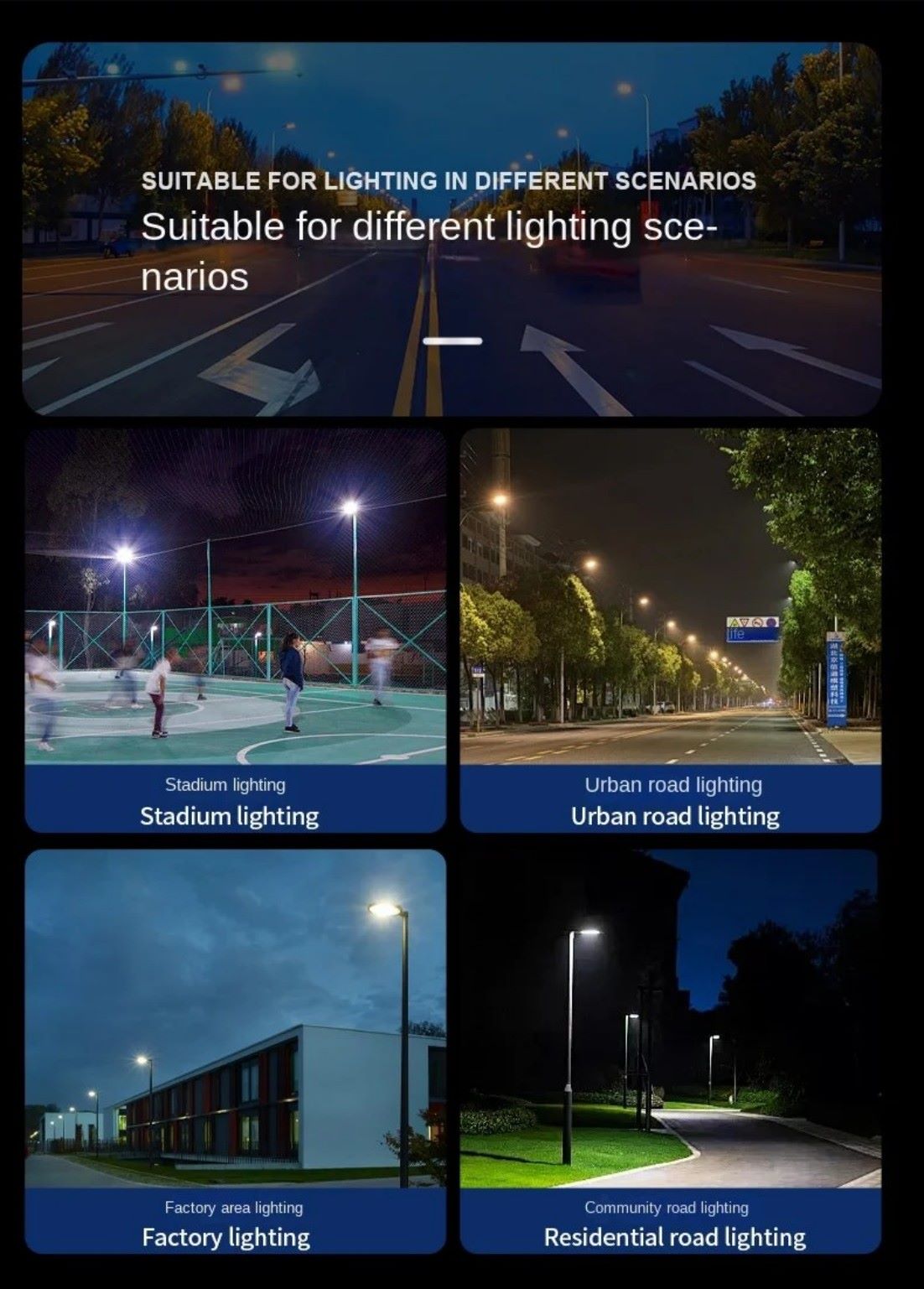

Available in 100W, 150W, 200W, 300W, 400W full power range. It covers all outdoor lighting scenarios from residential areas and parking lots to municipal main roads, logistics parks and ports, suitable for all global engineering projects.
High Lumen Efficiency & Energy Saving

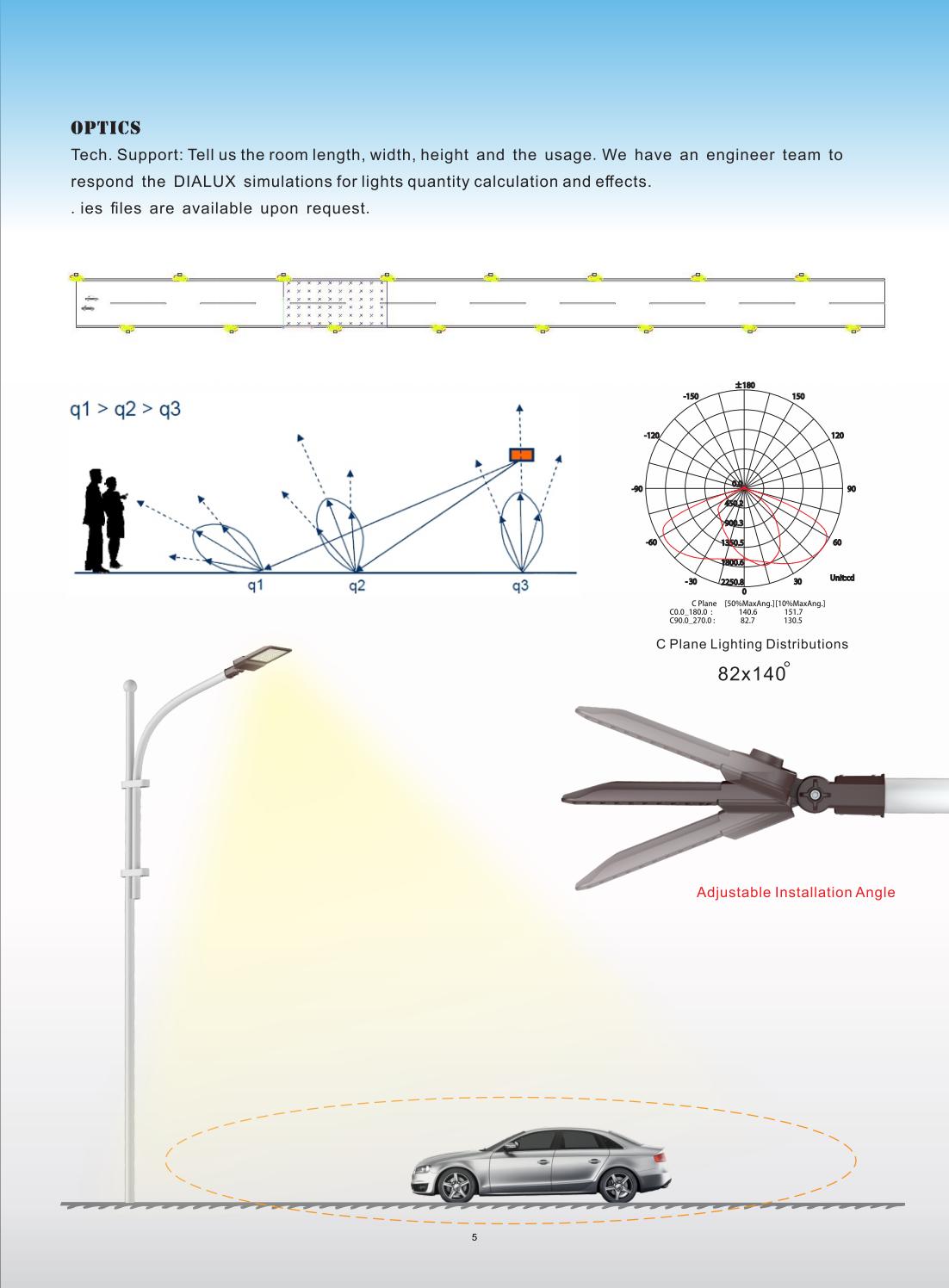

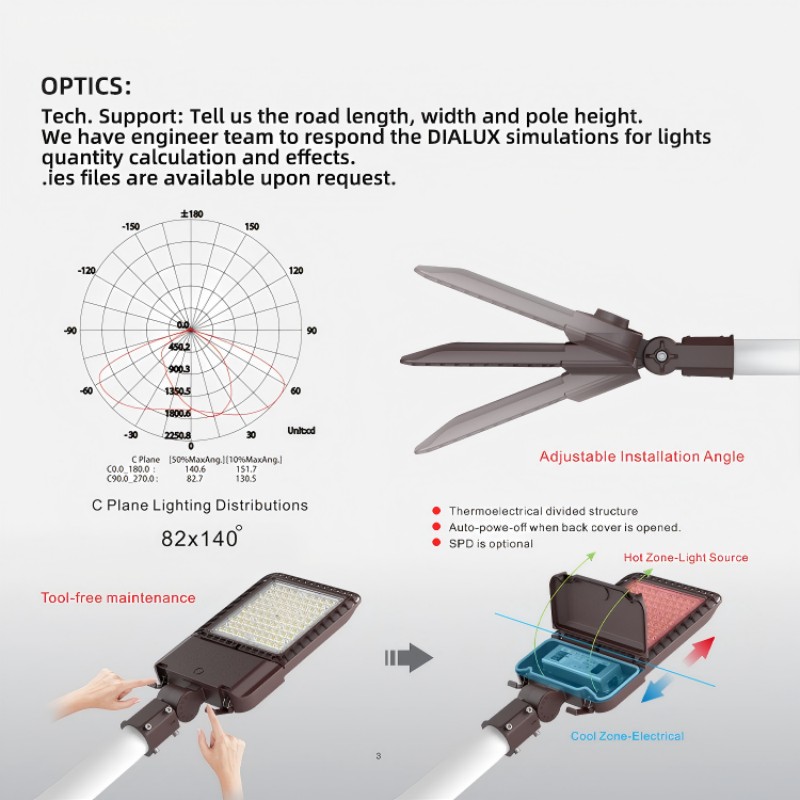

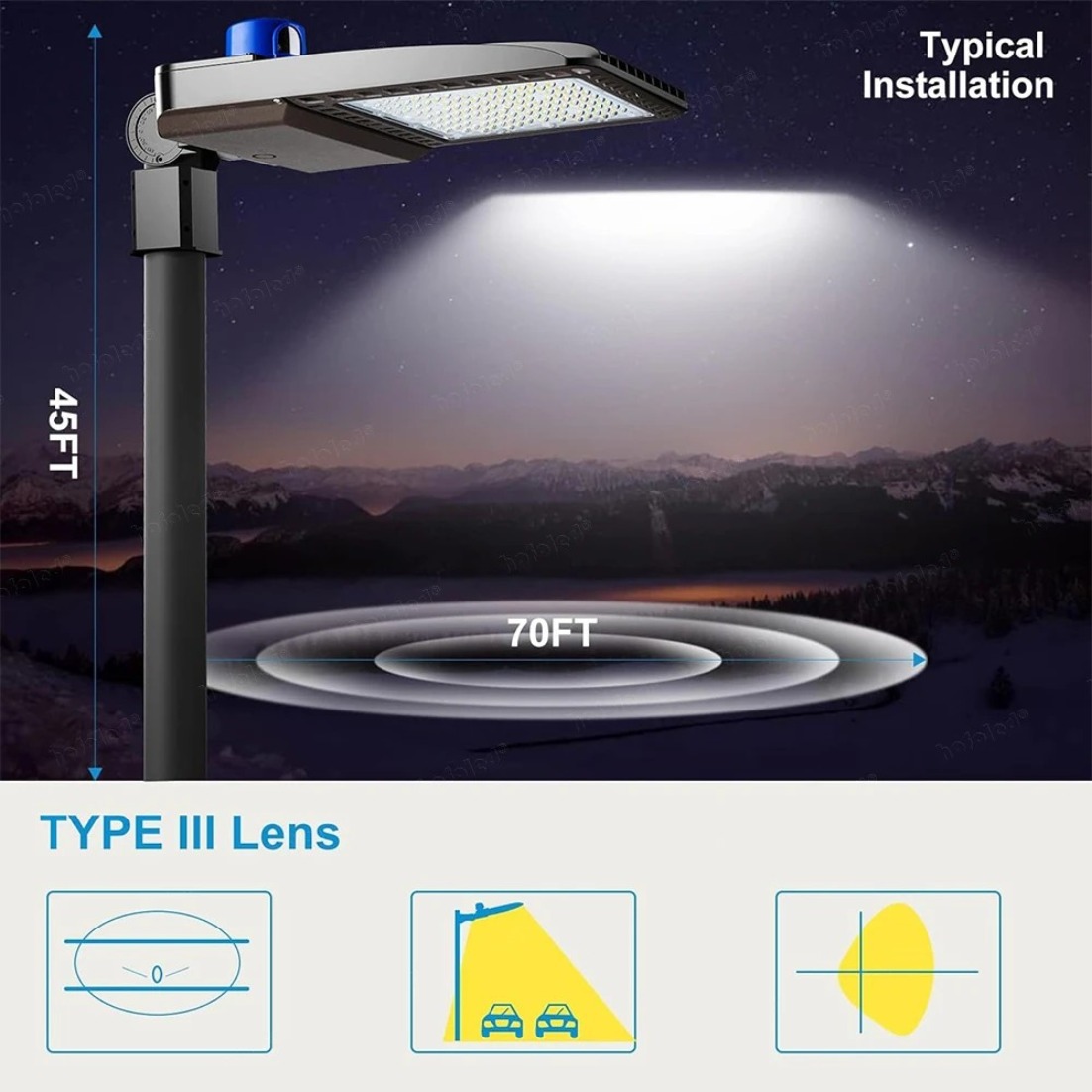

Ultra-high 160lm/W luminous efficacy with Type II bat-wing uniform light distribution and low glare. It saves over 70% energy compared with traditional lamps and meets EU & US road lighting standards for easy project approval.
IP67 All-Weather Heavy-Duty Performance

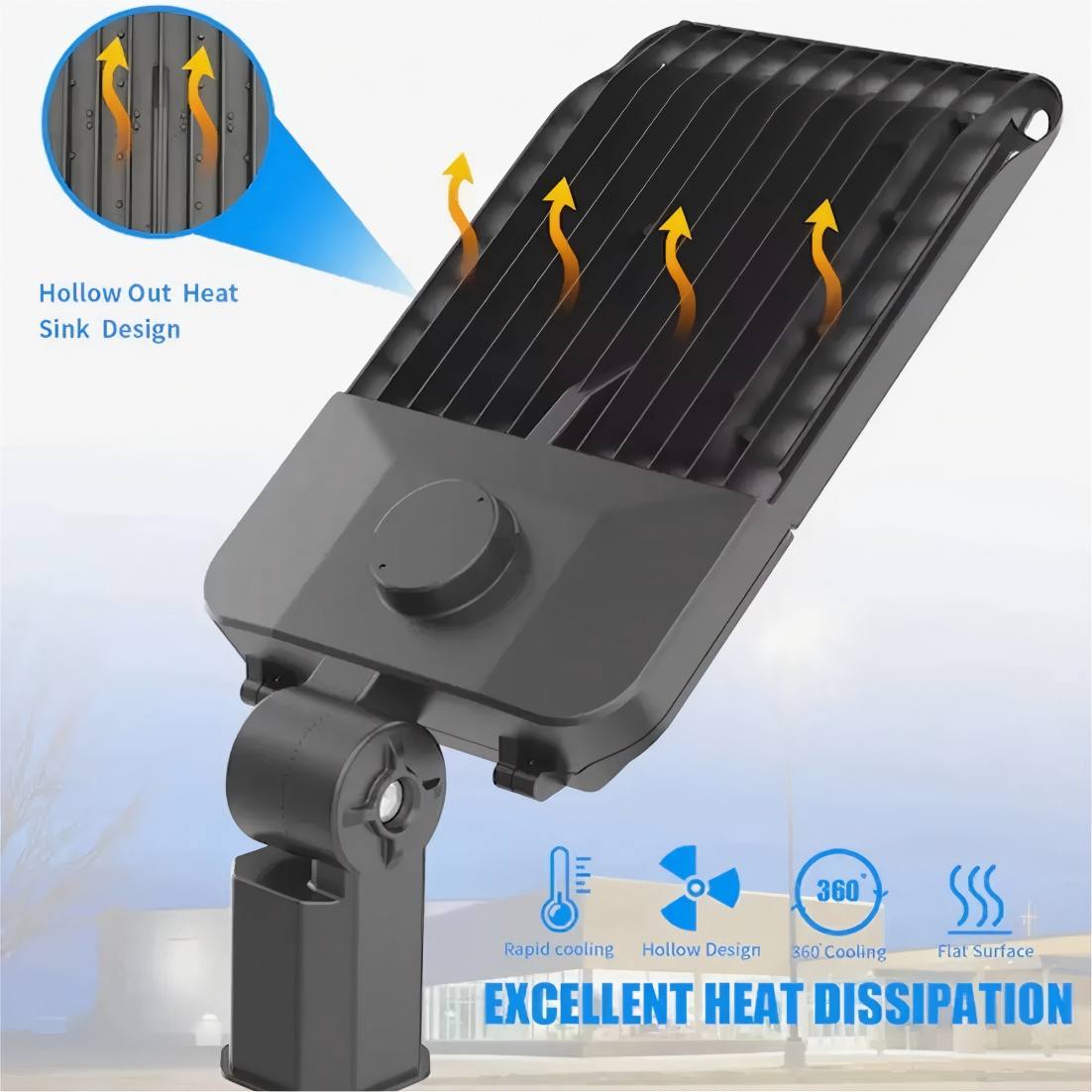

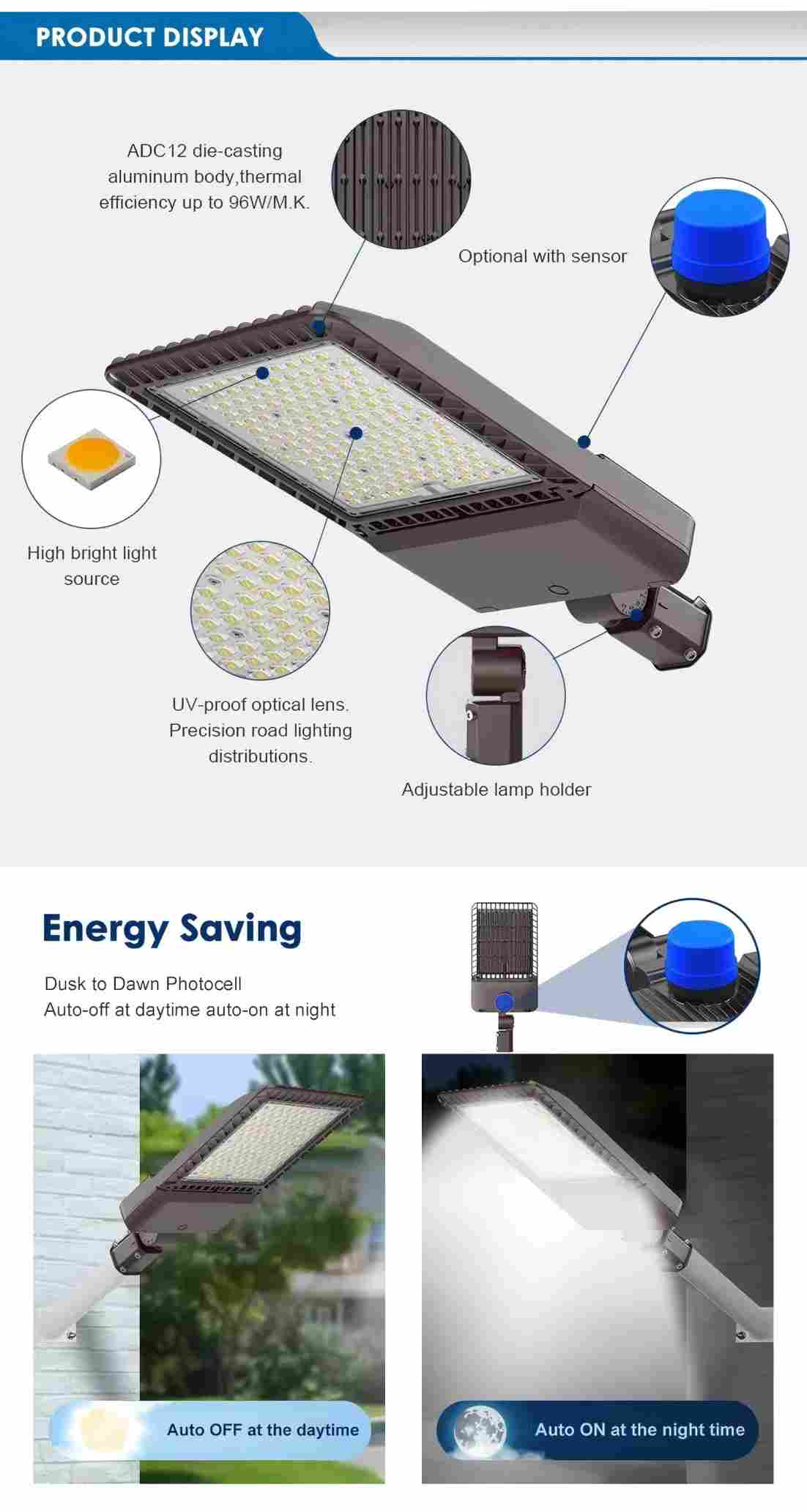

Integrated die-cast aluminum housing with fully sealed IP67 waterproof & dustproof structure and IK08 impact resistance. It resists extreme temperatures, salt spray and aging, ensuring stable long-term operation in harsh outdoor environments.
Global Wide Voltage & Easy Installation

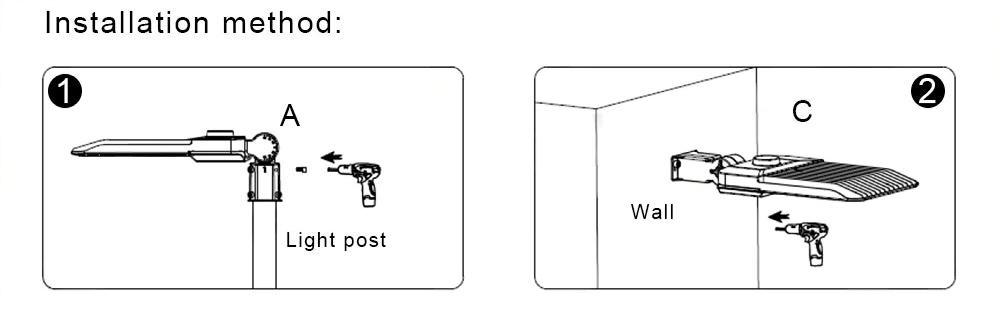

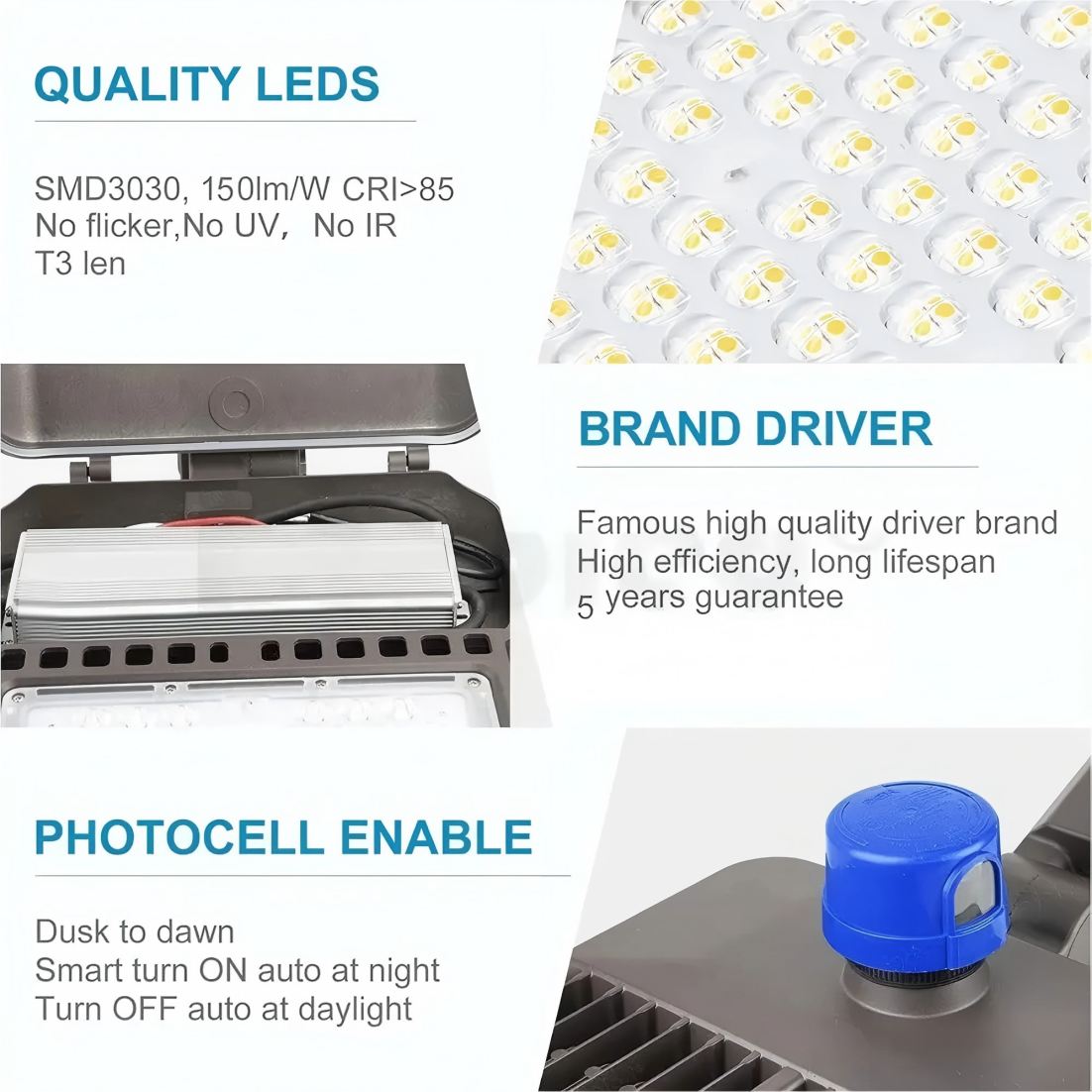

Universal AC90-305V wide voltage fits global power grids. Dual wall & pole mount design with enlarged wiring compartment and quick connectors enables fast installation, greatly reducing labor and project costs.
Smart Optional & Low Maintenance
High-PF surge-proof driver ensures flicker-free and stable performance. Optional 0-10V dimming and microwave sensor for smart lighting control. With 50,000 hours lifespan and 5-year warranty, plus full international certifications, it delivers low maintenance and worry-free export.
High PF & Lightning Surge Protection
The power factor is higher than 0.95 with high energy utilization rate, complying with international energy-saving grid standards. Built-in professional lightning and surge protection modules resist voltage fluctuations in thunderstorm weather, preventing lamp burnout and tripping for safer outdoor power operation.
Customizable for Diverse Projects
Supports personalized customization of color temperature, smart functions, body logo and export packaging. It can be adjusted according to differentiated needs of different countries and engineering projects, flexibly adapting to retail, wholesale, municipal bidding and cross-border projects to meet customized purchasing needs.

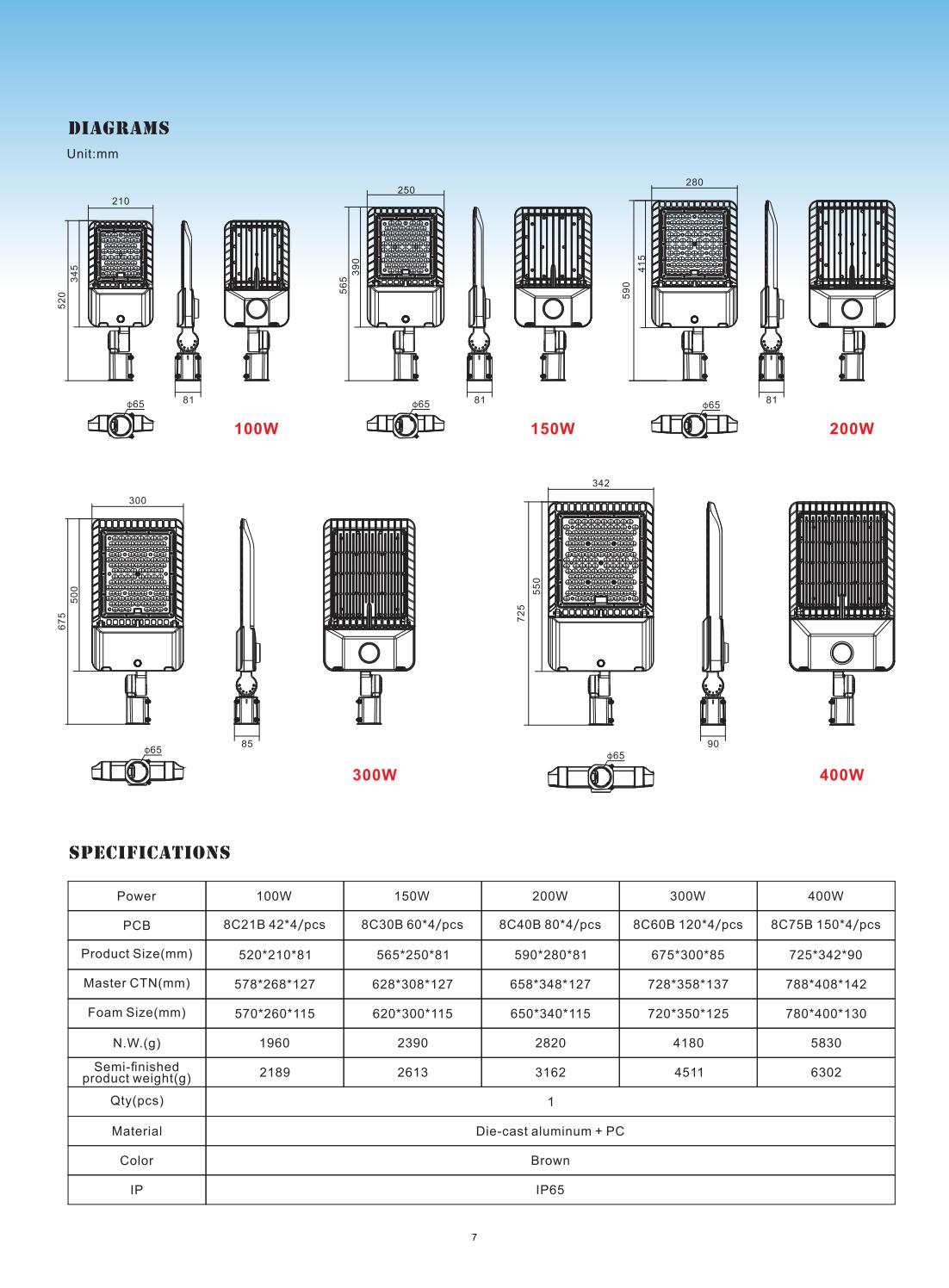

| Moudulars | XH-100 | XH-150 | XH-200 | XH-300 | XH-400 |
| Power | 100W | 150W | 200W | 300W | 400W |
| PCB | 8C21B42*4/pcs | 8C30B 60*4/pcs | 8C40B80*4/pcs | 8C60B 120*4/pcs | 8C75B 150*4/pcs |
| Product Size(mm) | 520*210*81 | 565*250*81 | 590*280*81 | 675*300*85 | 725*342*90 |
| Master CTN(mm) | 578*268*127 | 628*308*127 | 658*348*127 | 728*358*137 | 788*408*142 |
| Foam Size(mm) | 570*260*115 | 620*300*115 | 650*340*115 | 720*350*125 | 780*400*130 |
| N.W. (g) | 1960 | 2390 | 2820 | 4180 | 5830 |
| Semi-finished product weight(g) |
2189 | 2613 | 3162 | 4511 | 6302 |
| Qty(pcs) | 1 | ||||
| Material | Die-cast aluminum+PC | ||||
| Color | Brown | ||||
| IP | IP65 | ||||

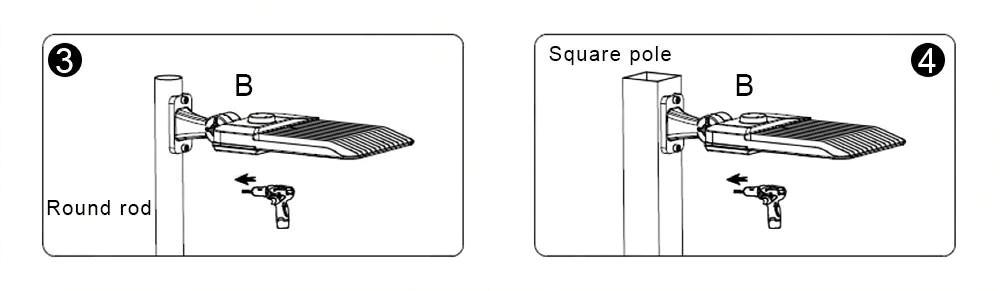

Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
