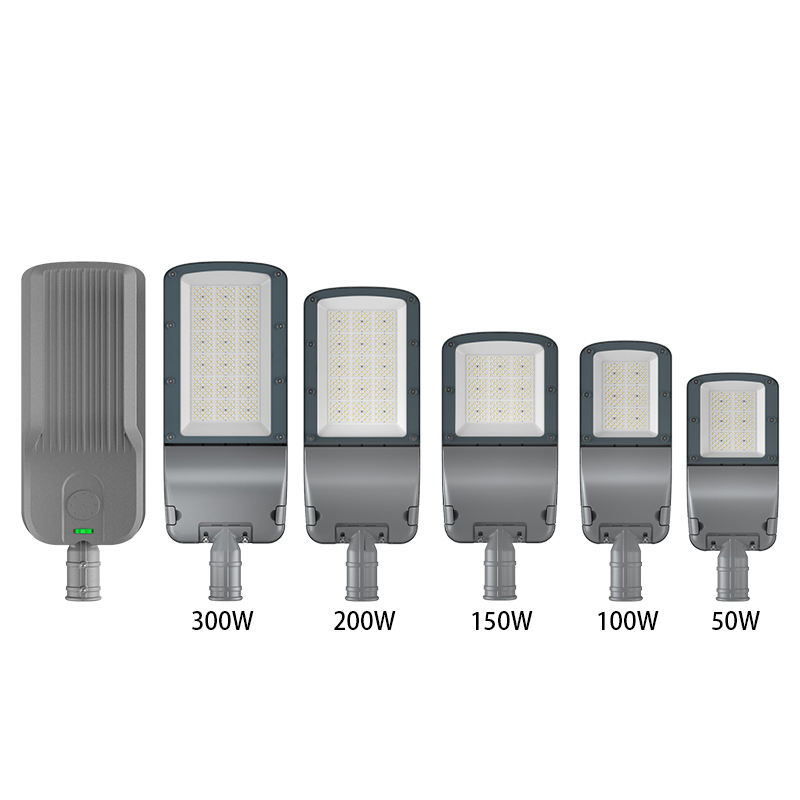

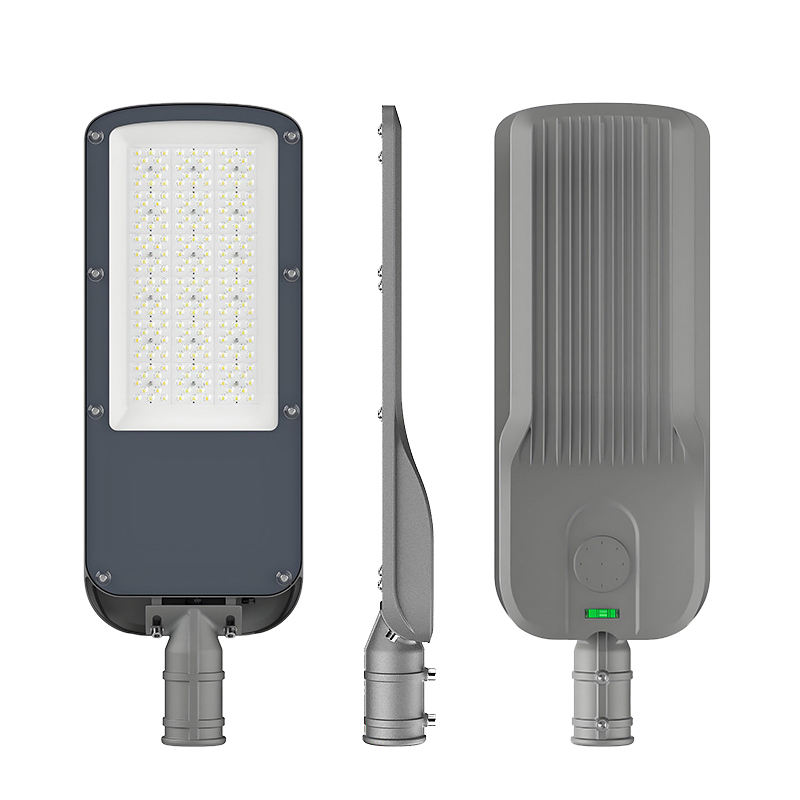

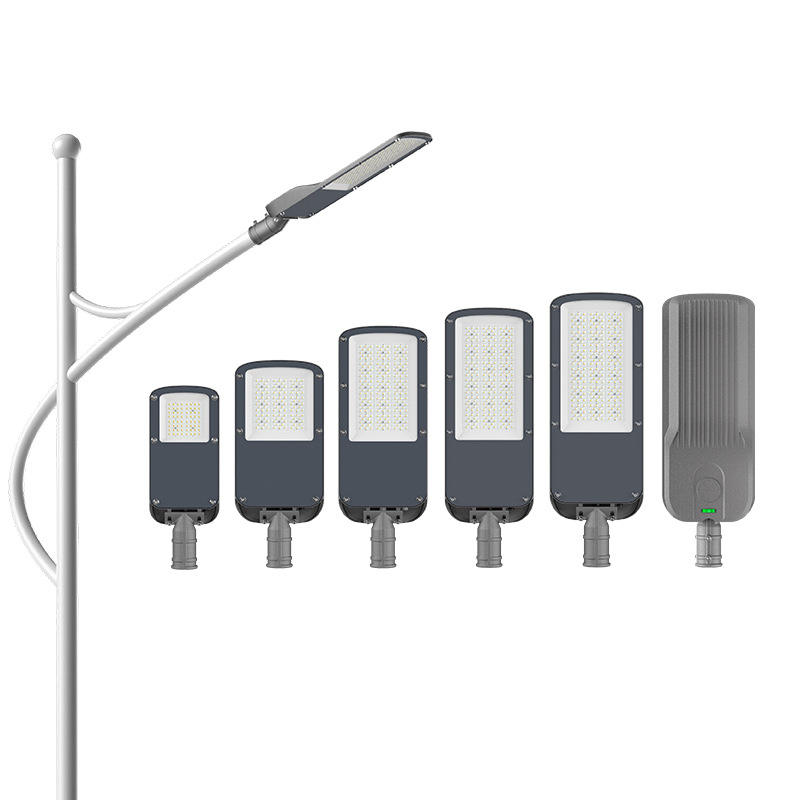

TXL series modular LED street lights range from 50W to 300W. Made of die-cast aluminum housing with split modular light source, it reaches IP66 waterproof & dustproof rating. Equipped with high-lumen LED chips, the lamp features low light decay and outstanding energy efficiency. It supports AC220V mains power and DC solar input; the smart version with indicator works perfectly for off-grid solar projects. As a Chinese source manufacturer, we provide OEM customization on power, lens and appearance, offer bulk wholesale stock. Widely applied in municipal highways, country roads, residential paths and industrial park lighting projects worldwide.

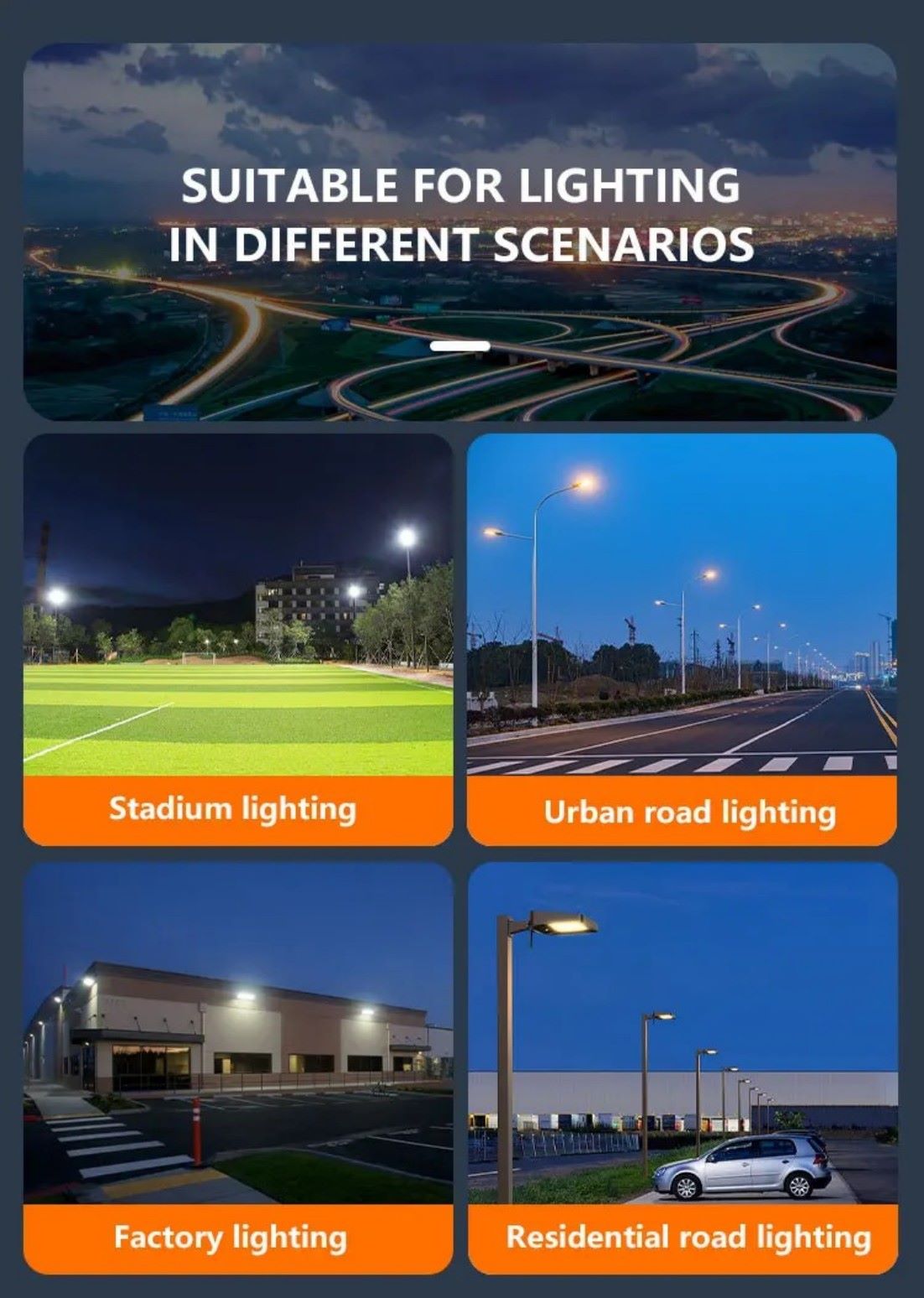

Applications:
Certified Quality for Global Projects

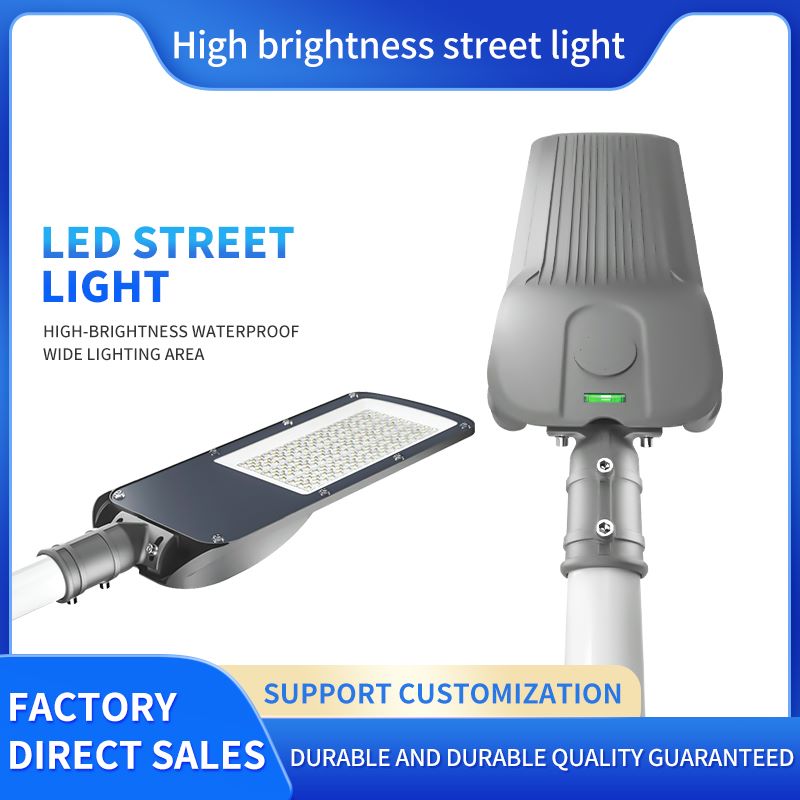

TXL Waterproof LED Road Lamp 50~300W | Municipal Street Light for Rural & Urban Road
Custom TXL LED Road Lamp | Bulk Discount for City Road Construction Project
IP67 Waterproof & IK09 Impact Resistance

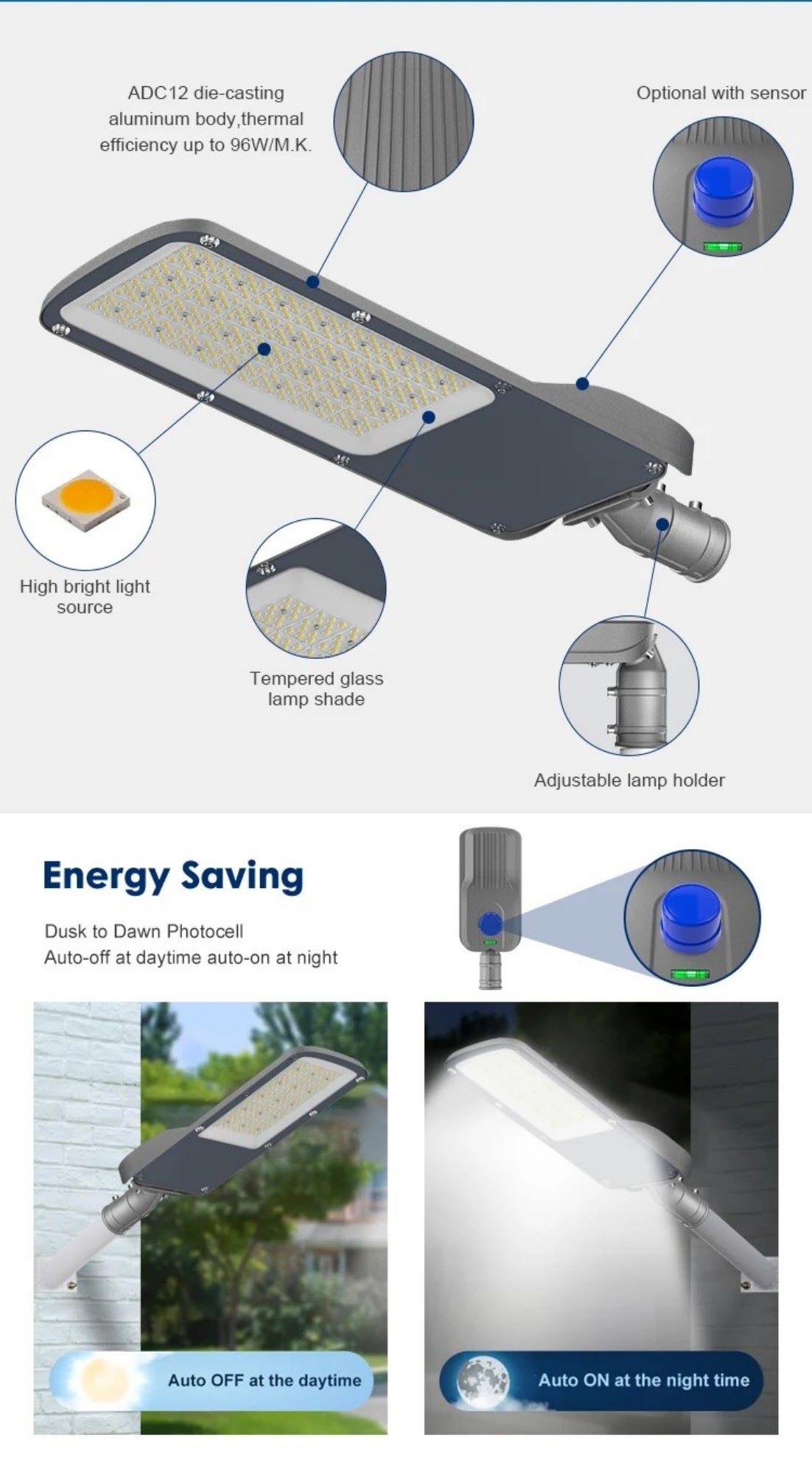

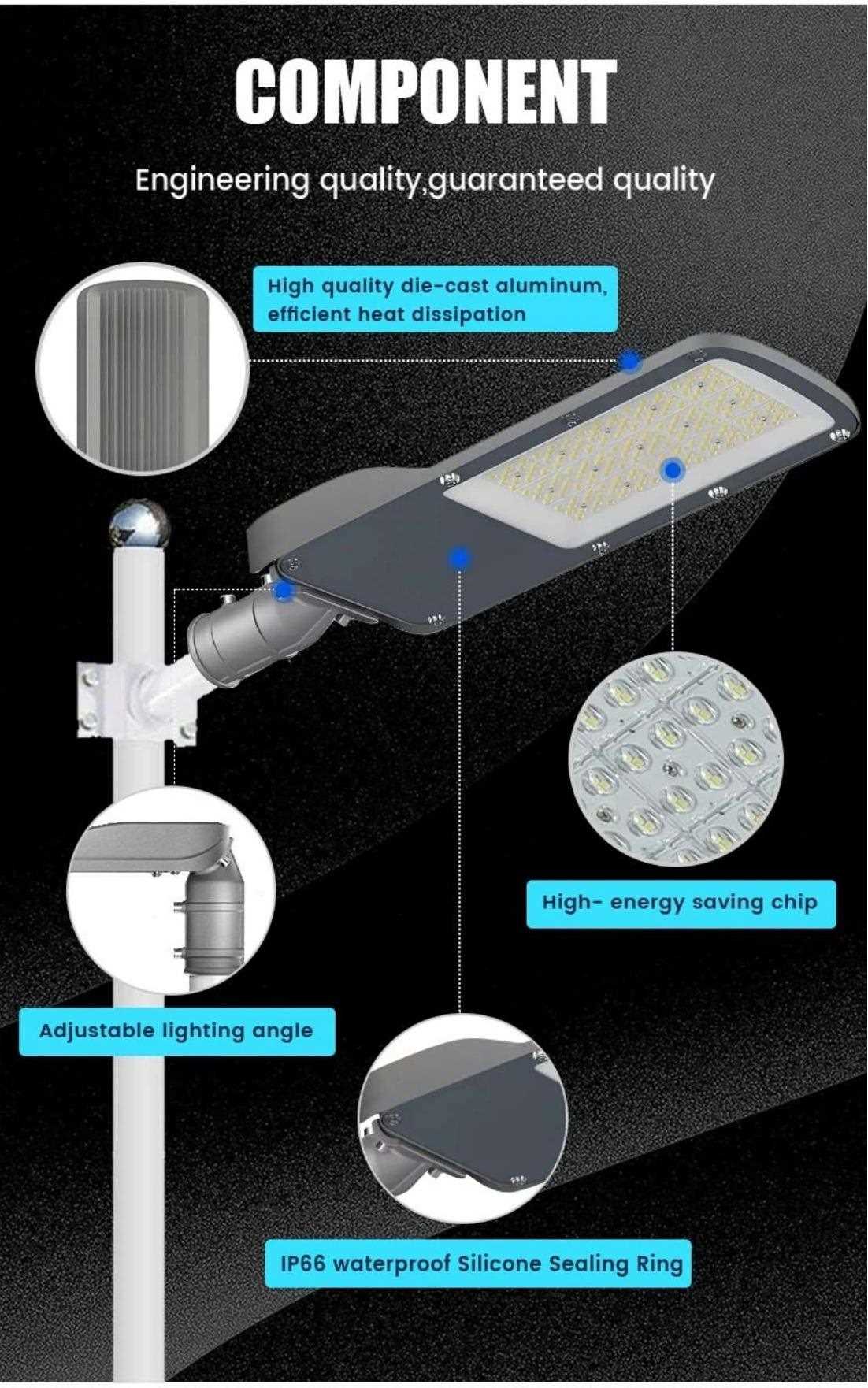

Die-cast aluminum fin housing + IP67 full sealing structure, IK08~IK09 anti-impact, adapt to -40℃~+60℃, anti-salt spray for coastal areas, no water ingress & circuit burnout in rainy, dusty, corrosive environments.

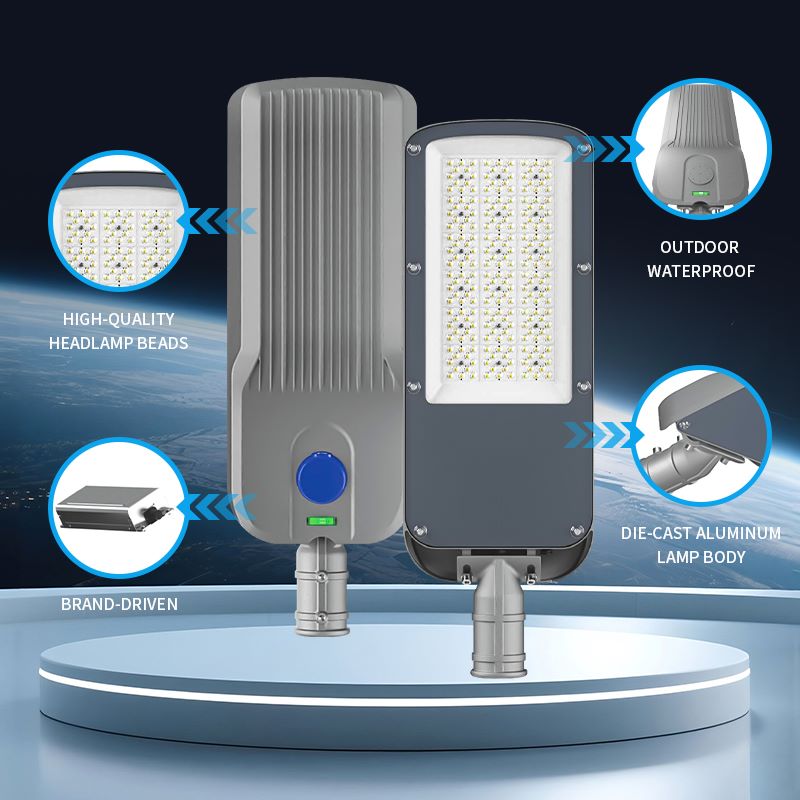

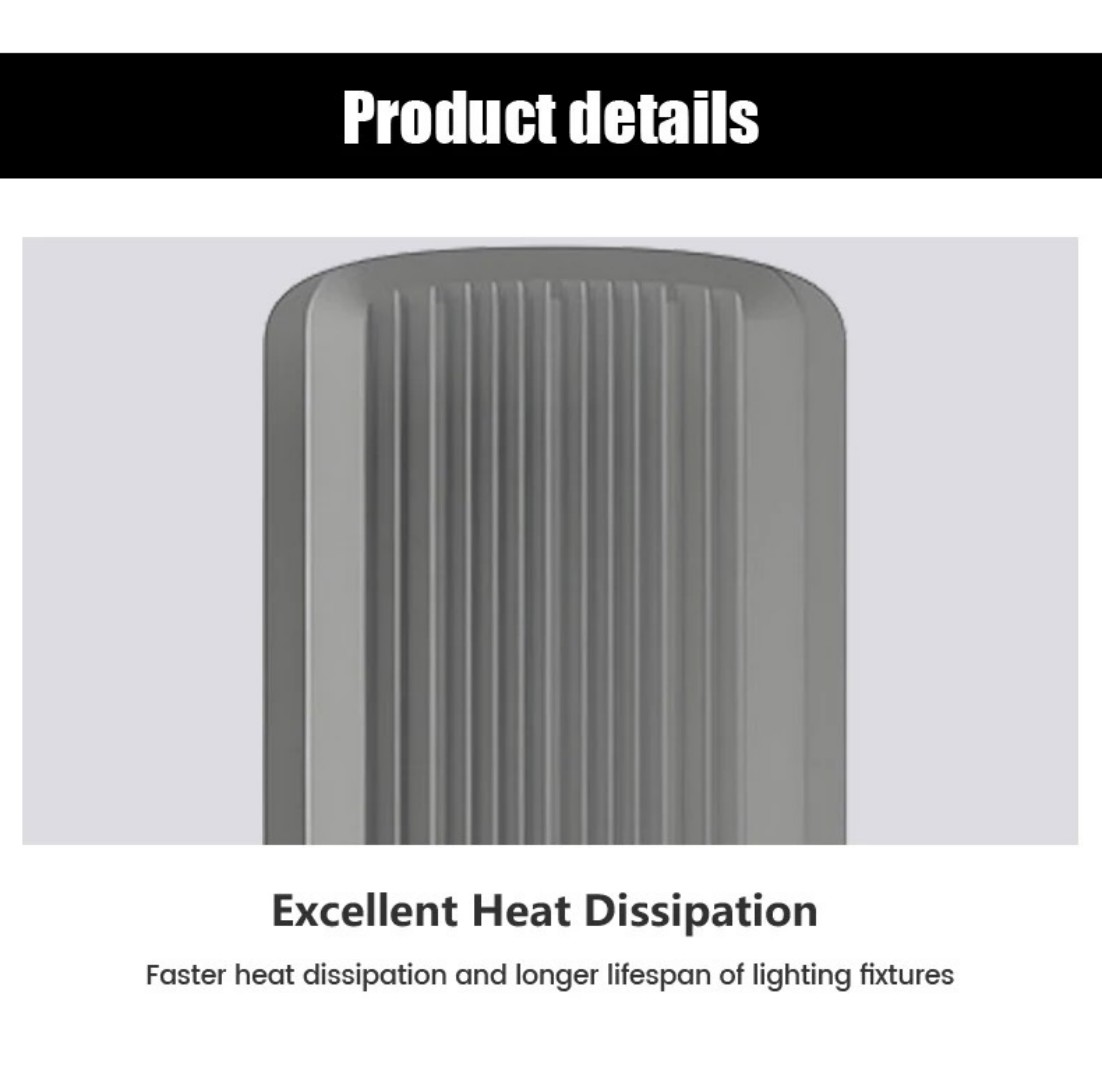

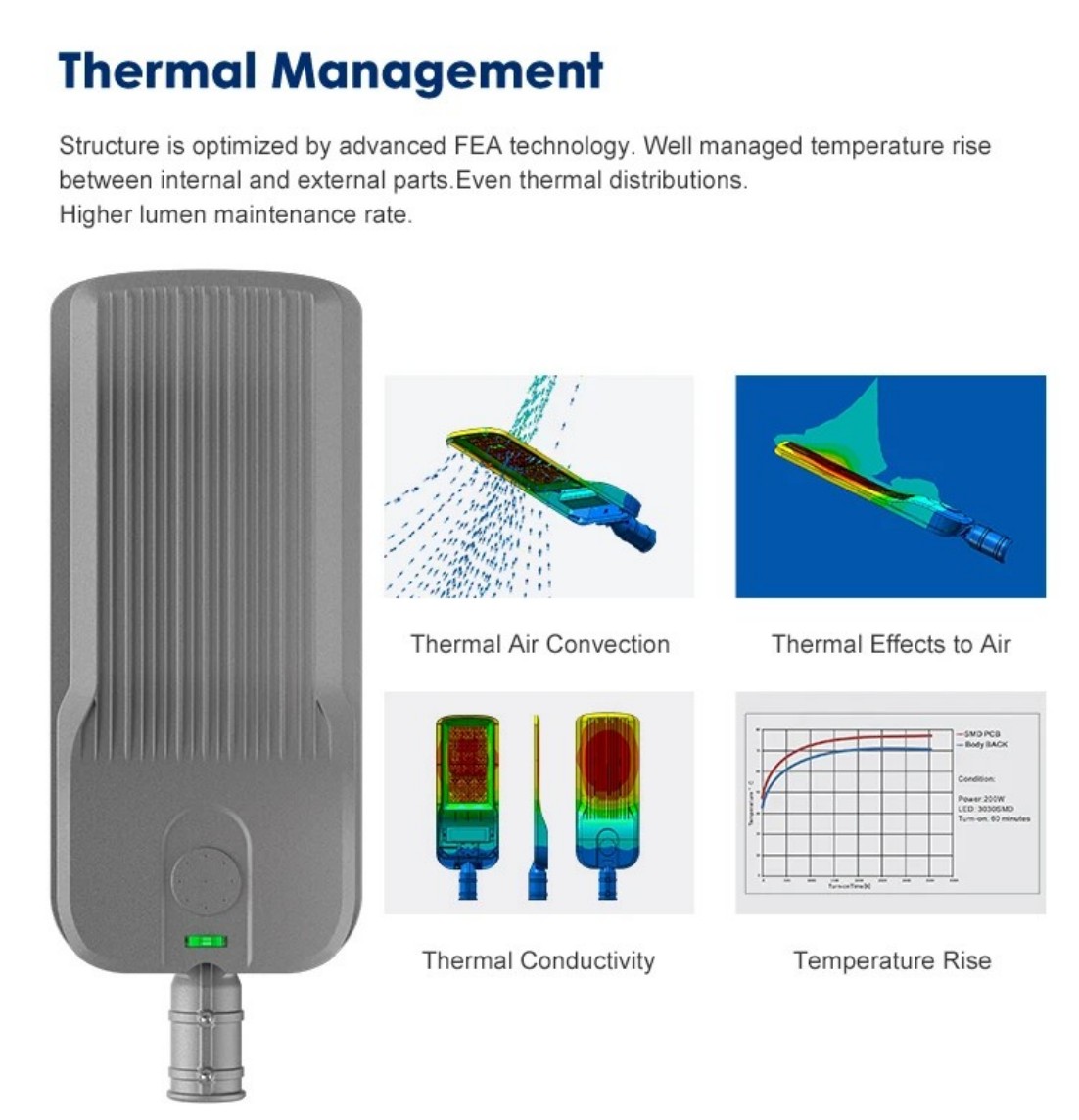

Excellent Heat Dissipation
Die-cast aluminum fin housing expands heat dissipation area to dissipate heat fast, restrain LED light decay and prolong lamp lifespan.
IP66 Superior Waterproof & Dustproof
Full sealing structure with tempered glass lens reaches IP66 grade, steady performance under rain, sandstorm and extreme temperature outdoors.
Split Openable Power Compartment
Hinged open-lid power compartment enables quick driver disassembly without removing the whole lamp from pole. Fast on-site repair & component replacement, cut maintenance time and labor cost for road lighting projects.
Factory OEM Customization
In-house production from 50W to 300W. Custom lens, appearance and logo are acceptable with favorable bulk wholesale price.

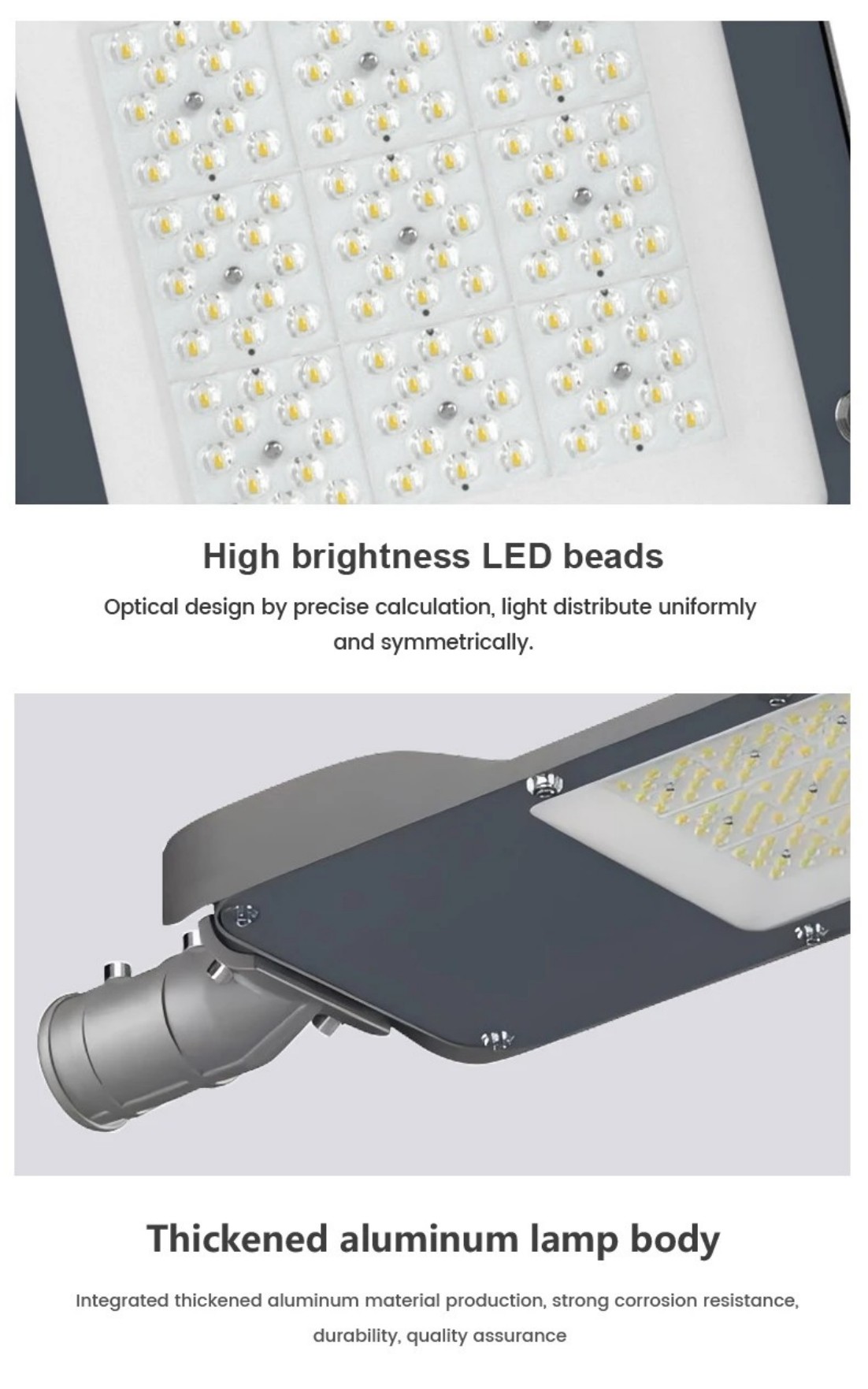

High Luminous Efficiency & Low Light Decay
Equipped with Philips / Osram LED chips, luminous efficiency reaches 140~160lm/W. Low lumen depreciation keeps stable brightness within its 50,000-hour service lifespan.
Lightweight Body to Cut Logistics Burden
Optimized lightweight casting structure reduces lamp weight, lower sea freight cost and avoid pole deformation after installation on old lamp poles.
\

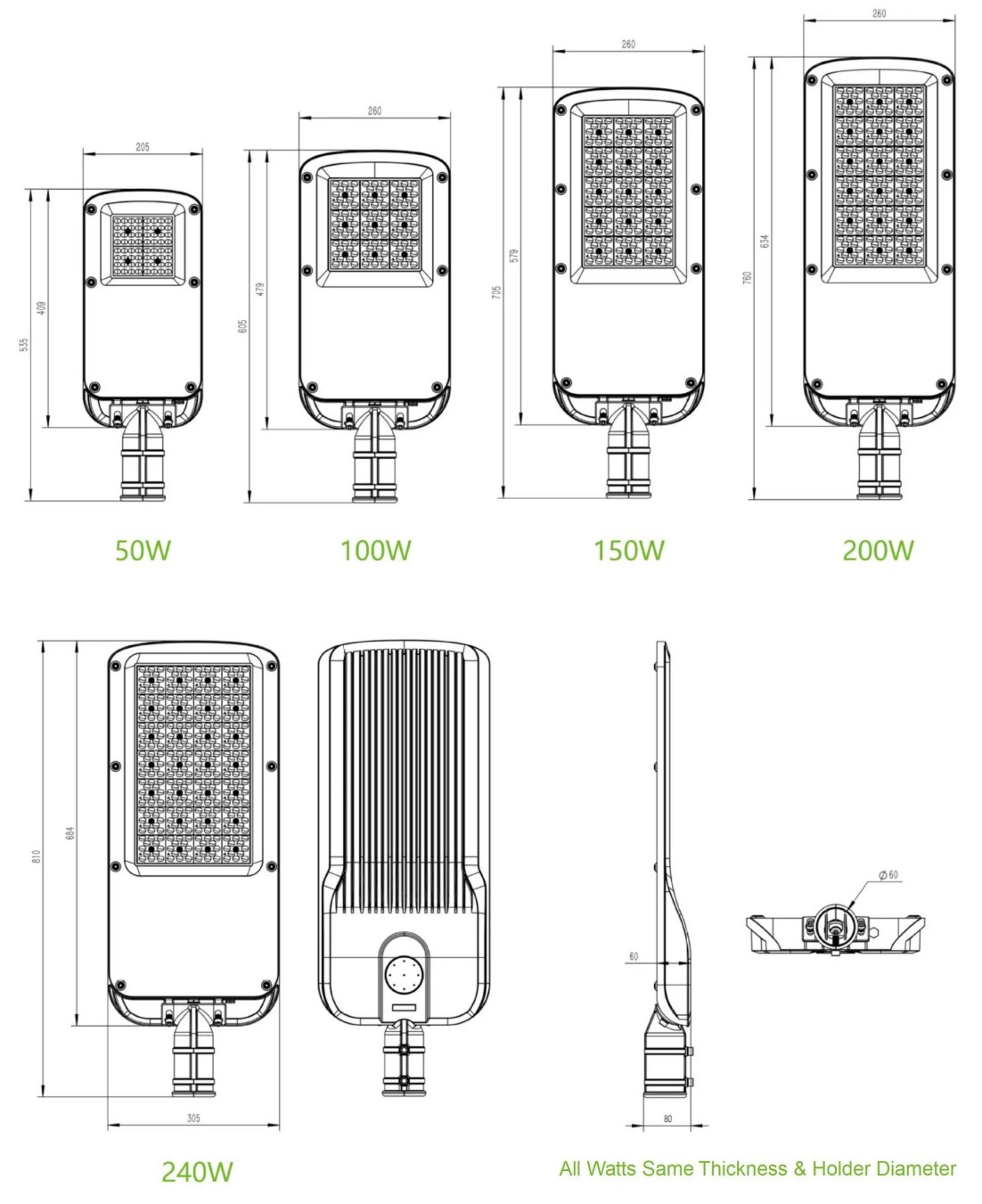

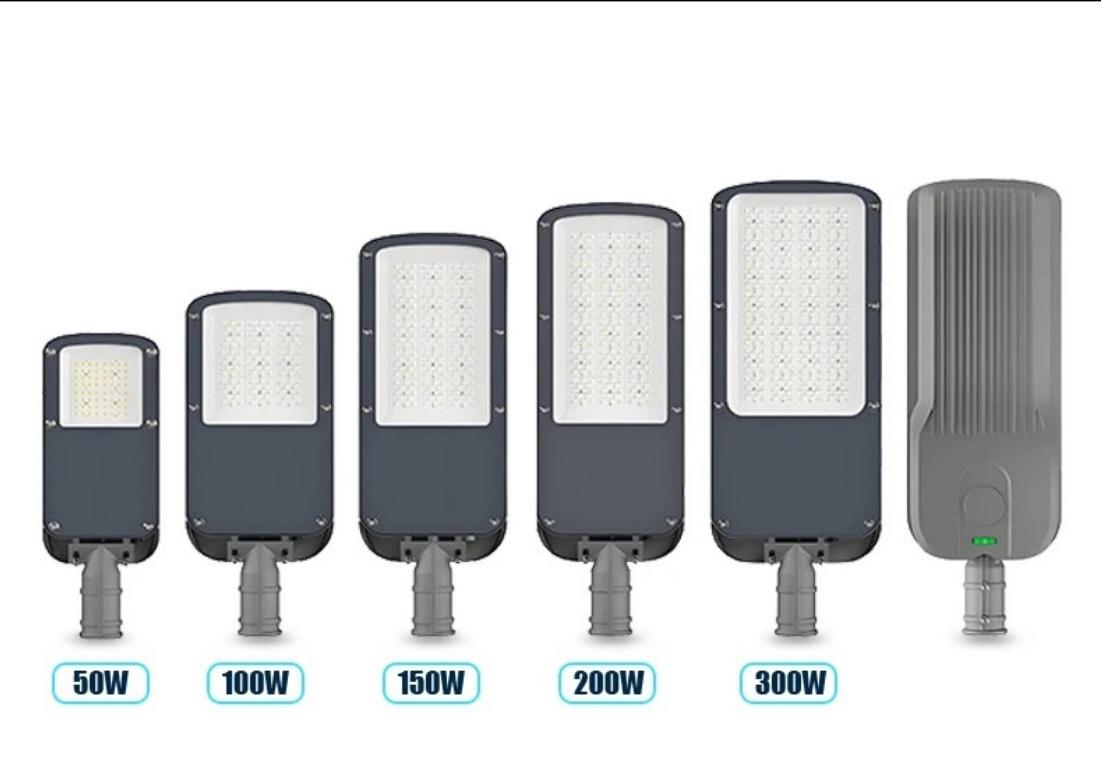

| Model | Wattage | Product size | Beam Angel | Led Source | IP |
| TXL-50 | 50W | 53.5*20.5*8cm | 80*155° | SMD 3030 | IP66 |
| TXL-100 | 100W | 60.5*26*8cm | 80*155° | SMD 3030 | IP66 |
| TXL-150 | 150W | 70.5*26*8cm | 80*155° | SMD 3030 | IP66 |
| TXL-200 | 200W | 76.5*26*8cm | 80*155° | SMD 3030 | IP66 |
| TXL-240 | 240W | 81*30.5*8cm | 80*155° | SMD 3030 | IP66 |
| TXL-300 | 300W | 81*30.5*8cm | 80*155° | SMD 3030 | IP66 |

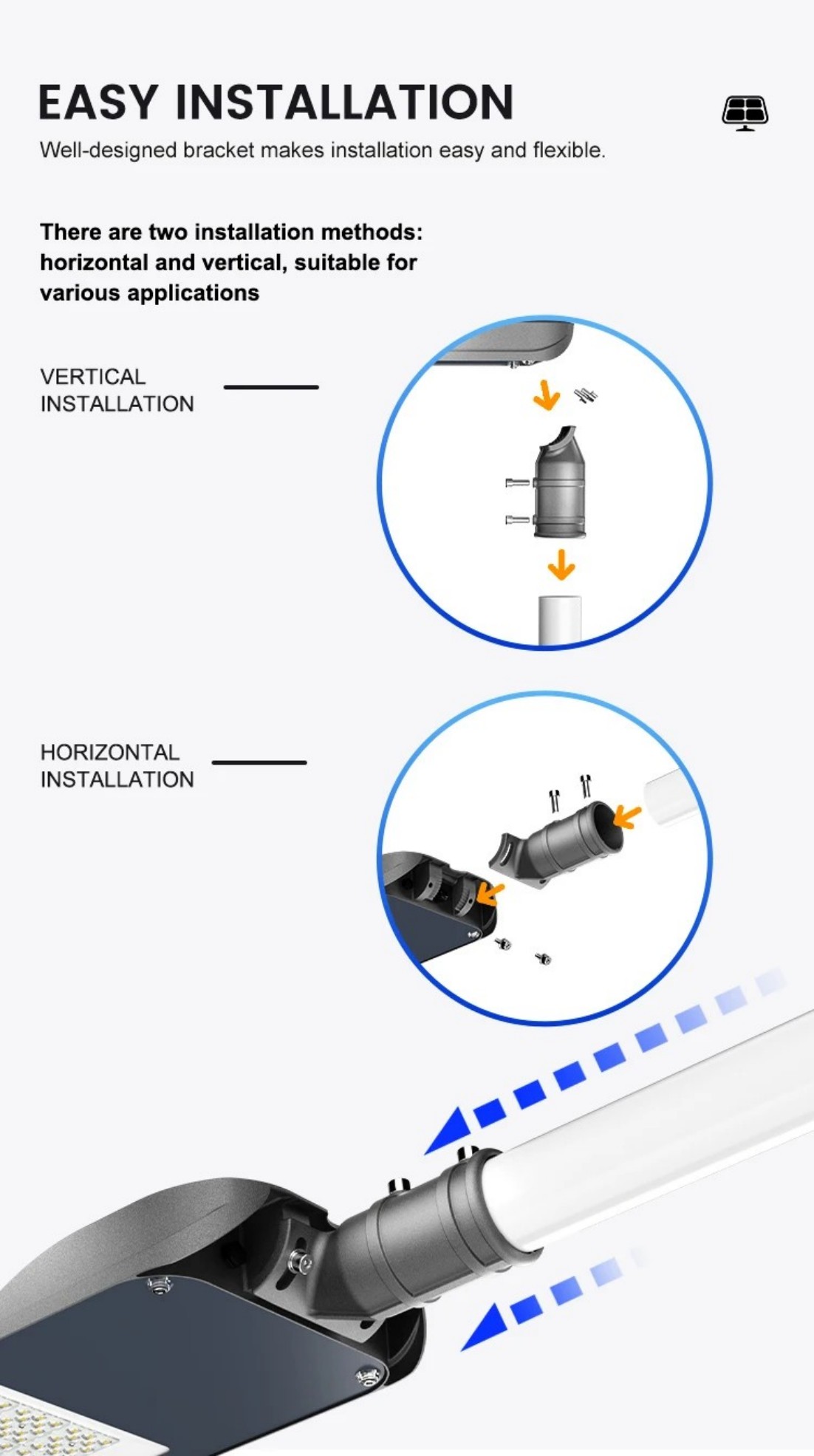

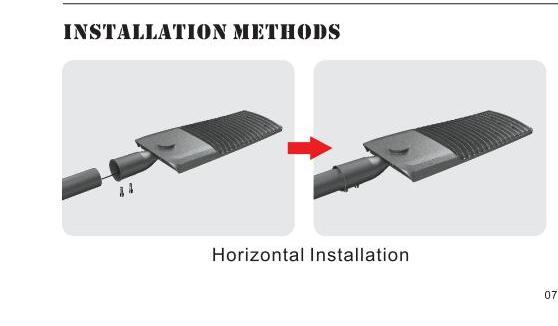

Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
