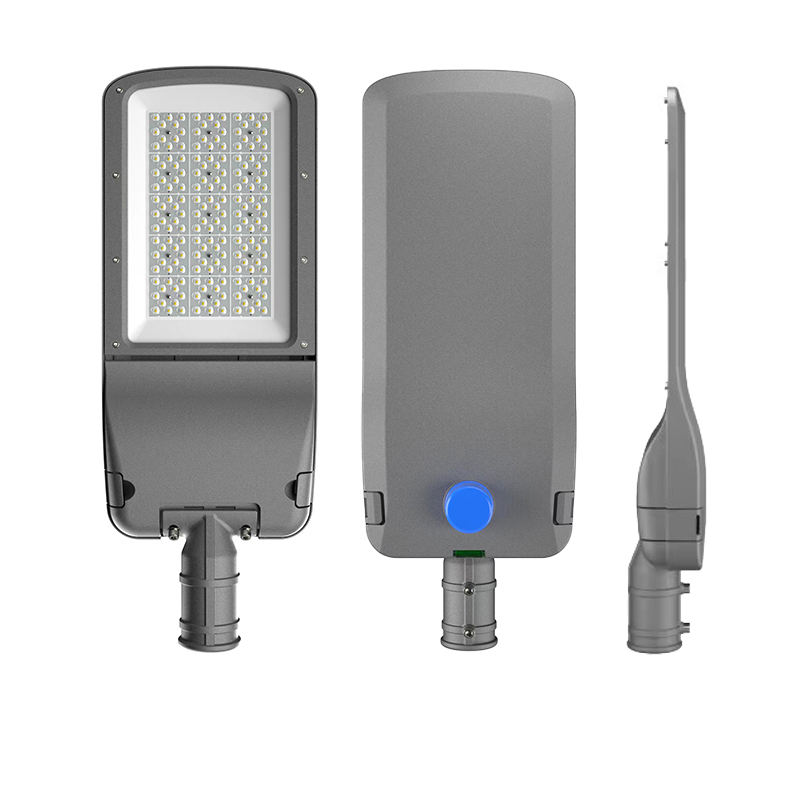

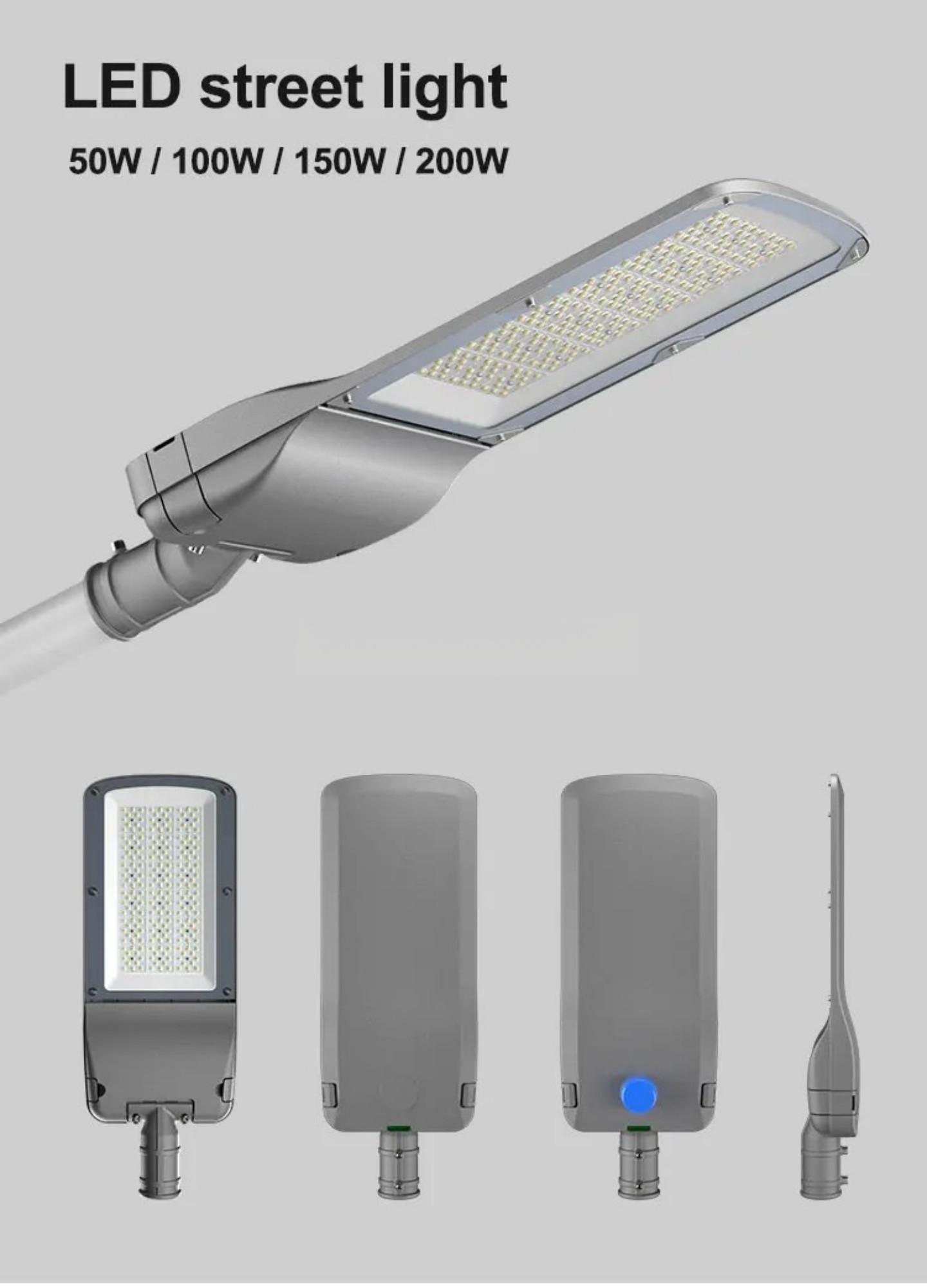

TEL series LED Street Light is available in four power options: 50W, 100W, 150W and 200W, customized to fit municipal road reconstruction, rural lane construction, residential community driveway, highway sidewalk and large-scale industrial park perimeter lighting worldwide. Unlike common street lamps with short warranty and internal fogging issue, TEL outdoor road light uses finned die-cast aluminum housing with internal breather valve, rated IP66 waterproof & IK08 impact resistance to withstand rainstorm, dust and extreme temperature changes. Fitted with high-efficiency SMD LED chips and PF＞0.95 surge-proof driver with 6KV lightning protection, it supports universal AC100–277V wide input, directly applicable for USA, Europe, Australia and most global power grids without auxiliary transformers. Multiple beam angles and 3000K/4000K/6000K color temperatures are optional to match narrow country roads, urban main roads and wide highway pavement lighting requirements. Our biggest selling highlight is full 5-year whole lamp factory warranty, greatly reducing after-maintenance expense for project contractors and lighting distributors. All models pass CE, FCC, RoHS certification, OEM logo & customized package are acceptable for bulk wholesale orders.
Applications:
Certified Quality for Global Projects
Die-cast Aluminum TEL Outdoor Street Lamp AC100-277V for Residential Road & Municipal Project

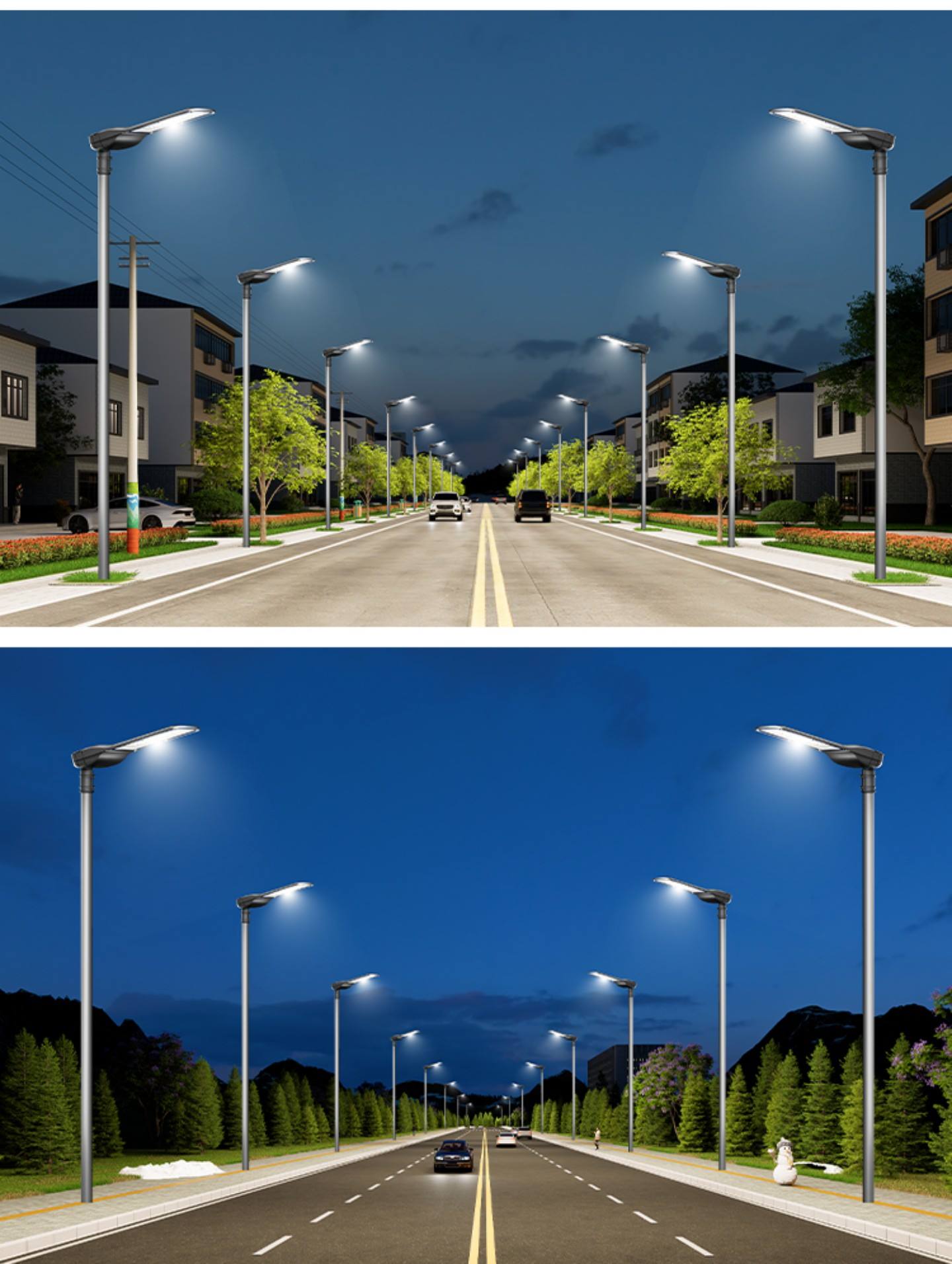

Multiple CCT and beam angle options for urban block lighting
IP67 Waterproof & IK09 Impact Resistance

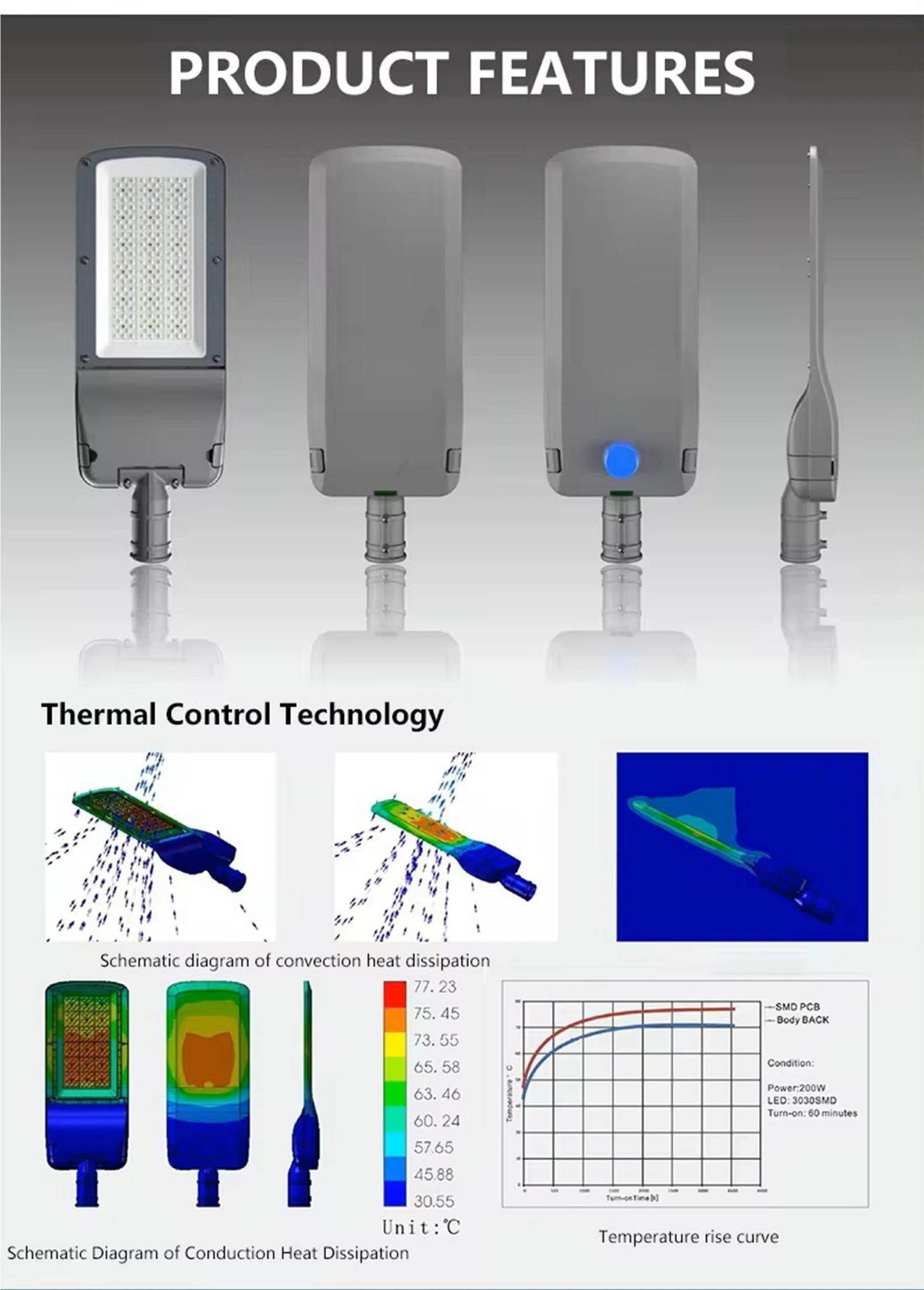

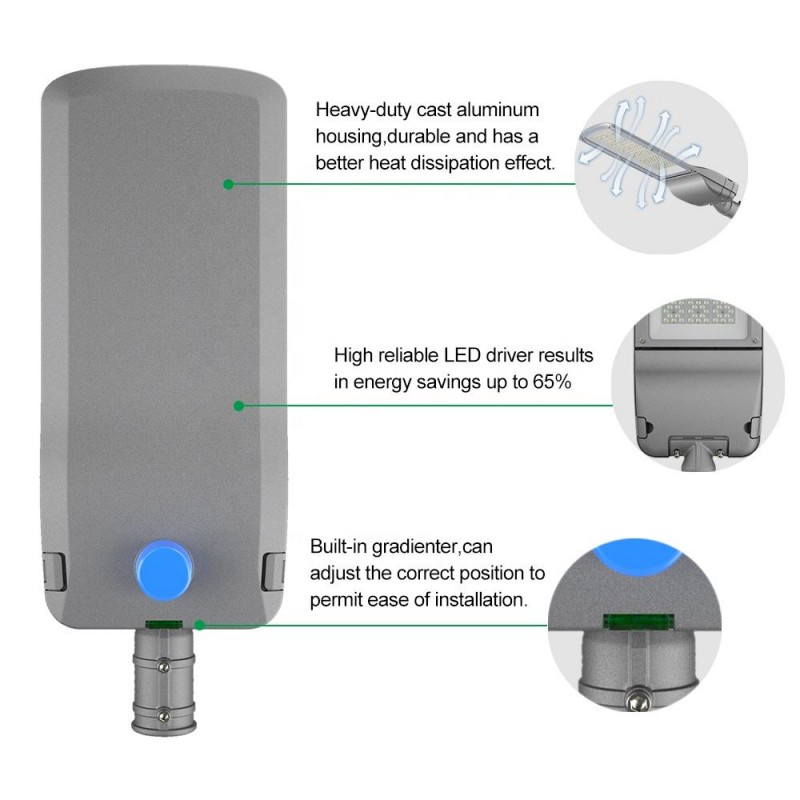

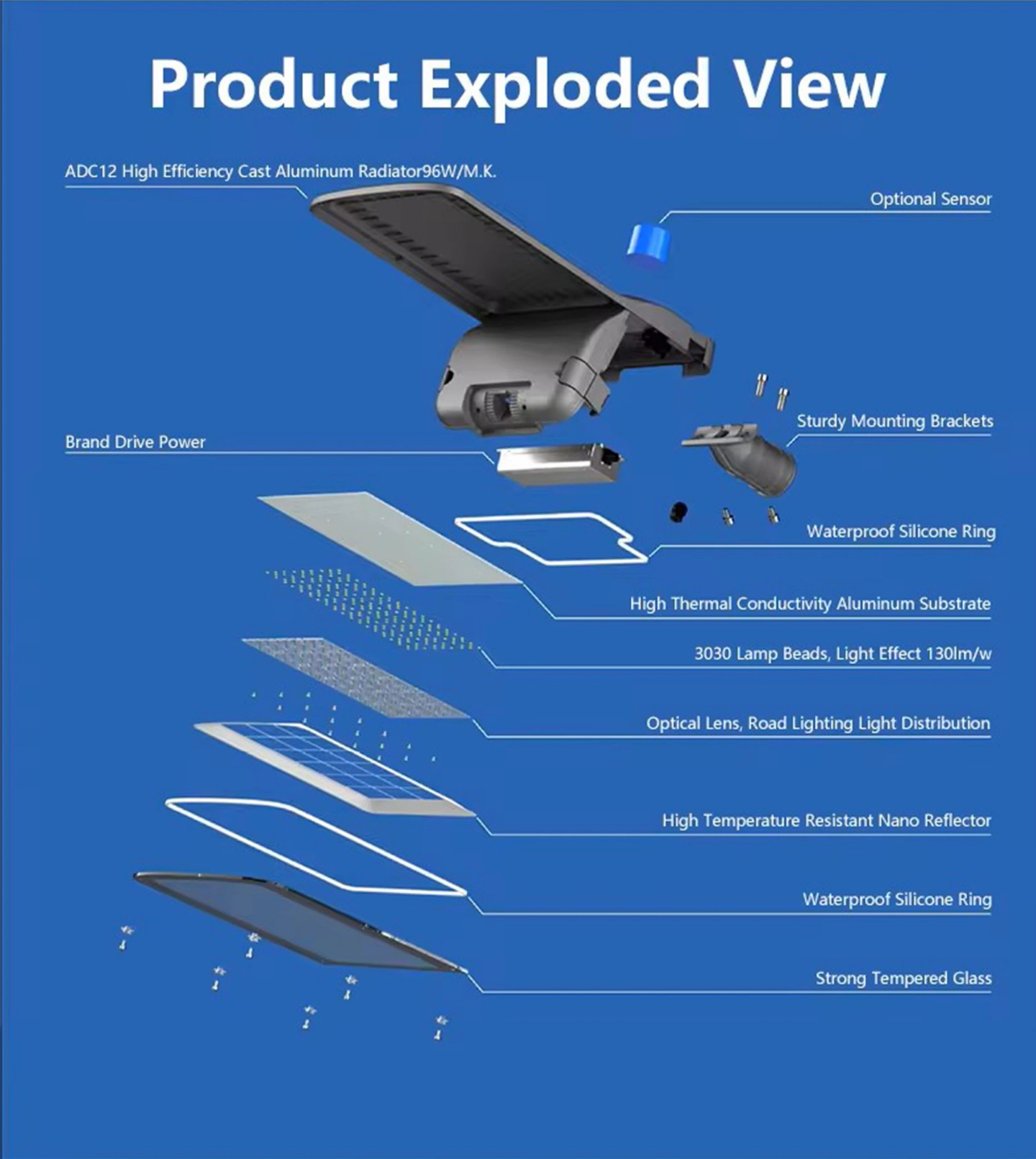

Die-cast aluminum fin housing + IP67 full sealing structure, IK08~IK09 anti-impact, adapt to -40℃~+60℃, anti-salt spray for coastal areas, no water ingress & circuit burnout in rainy, dusty, corrosive environments.
Top-Tier Brand Driver: Philips / Meanwell Power Supply
Original Philips or Meanwell driver is equipped, high PF＞0.95, built-in 6KV lightning protection, anti-surge and no flicker, ensuring long-term stable operation.Complete 5-year whole lamp warranty covers lamp body, LED chip and driver, largely reduce after-sale maintenance expense for project buyers.

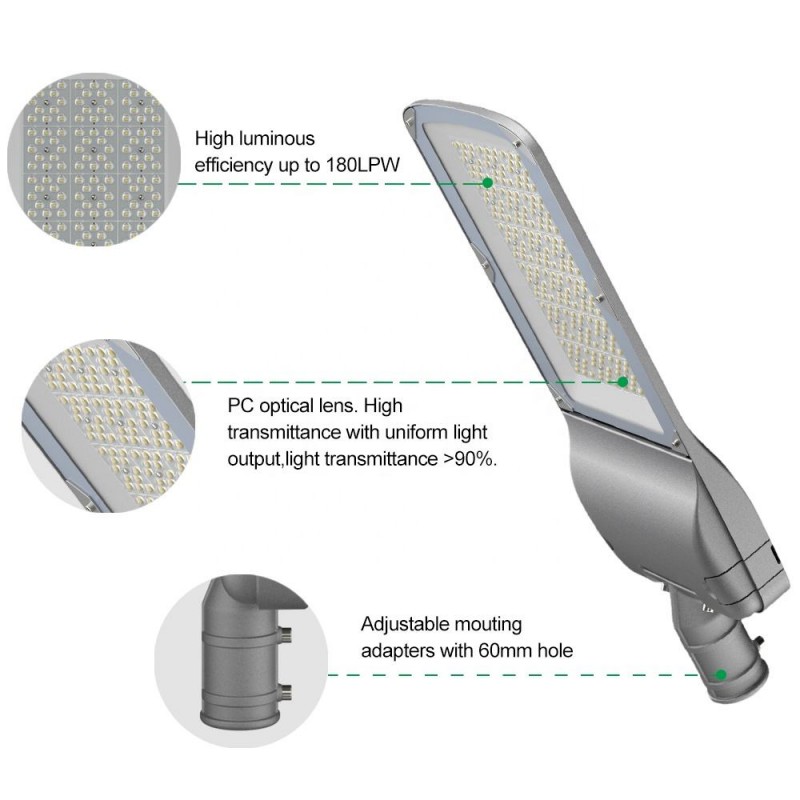

Universal 60mm Adjustable Mounting Bracket
Standard Φ60mm adjustable installation holder, match global mainstream street poles directly without extra accessories, fast on-site installation, greatly cut construction labor cost for road renovation projects.

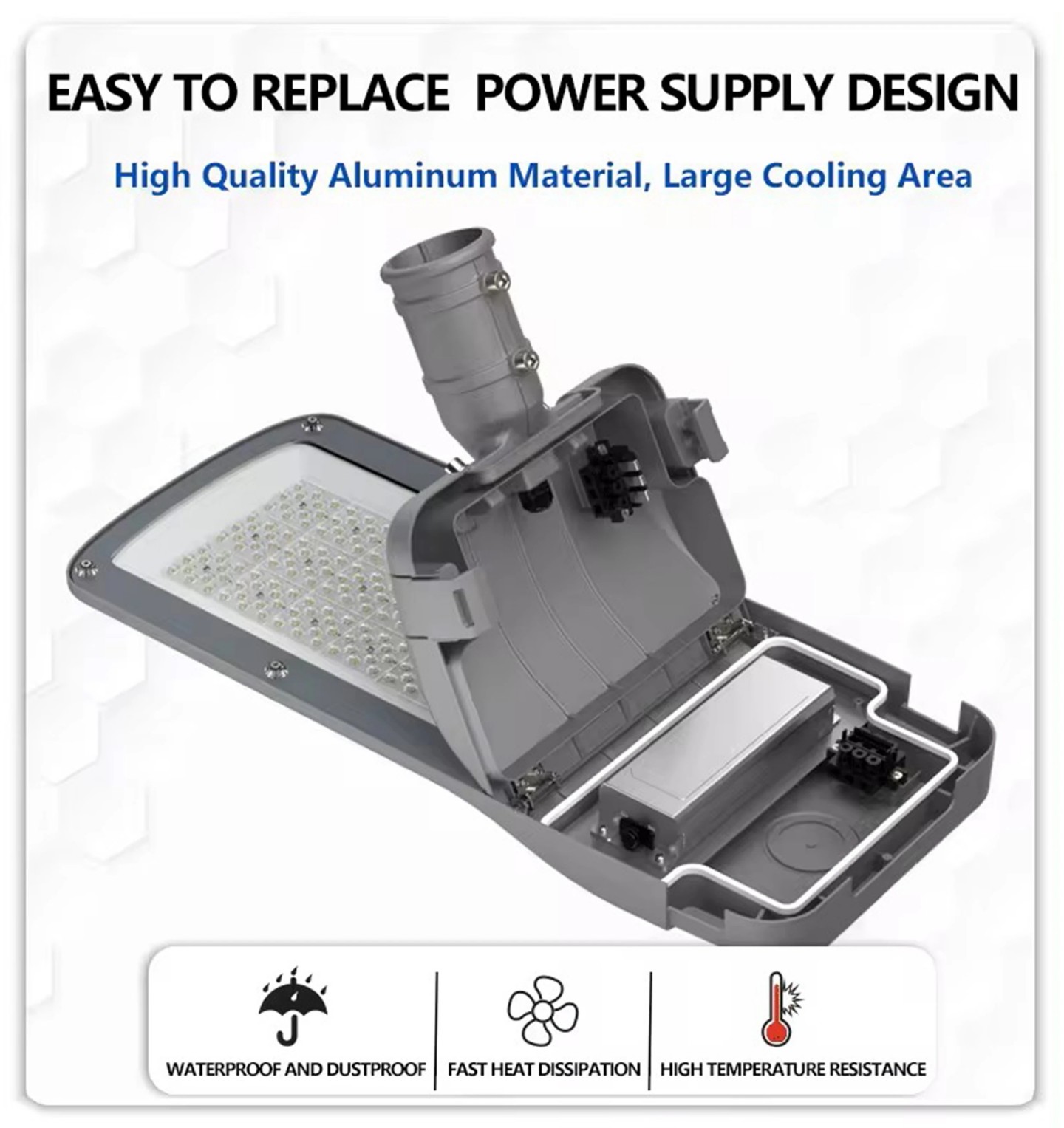

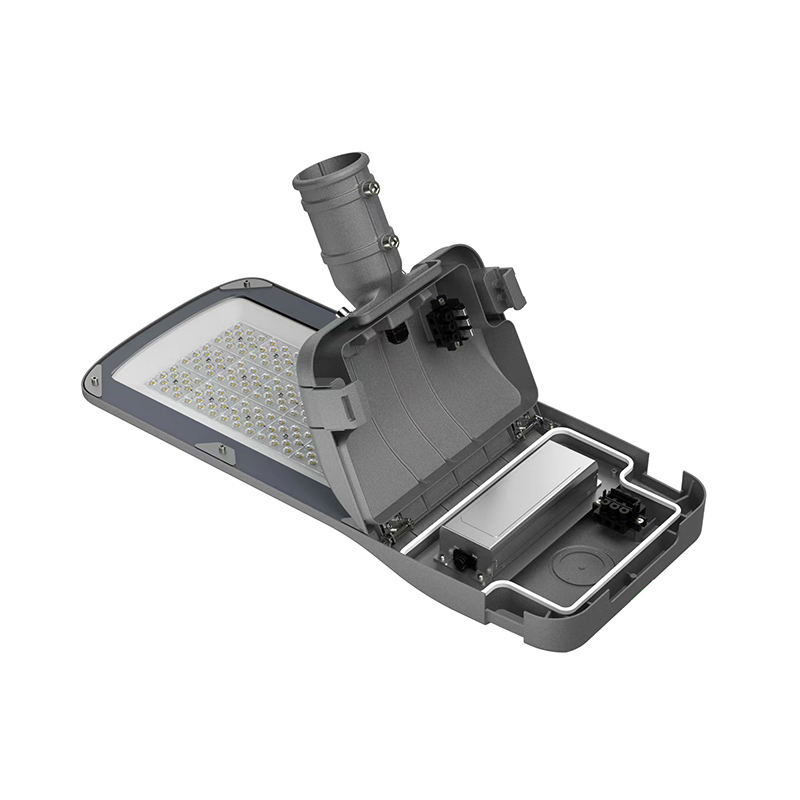

Split Openable Power Compartment
Hinged open-lid power compartment enables quick driver disassembly without removing the whole lamp from pole. Fast on-site repair & component replacement, cut maintenance time and labor cost for road lighting projects.
Multiple Specs & Customization Available

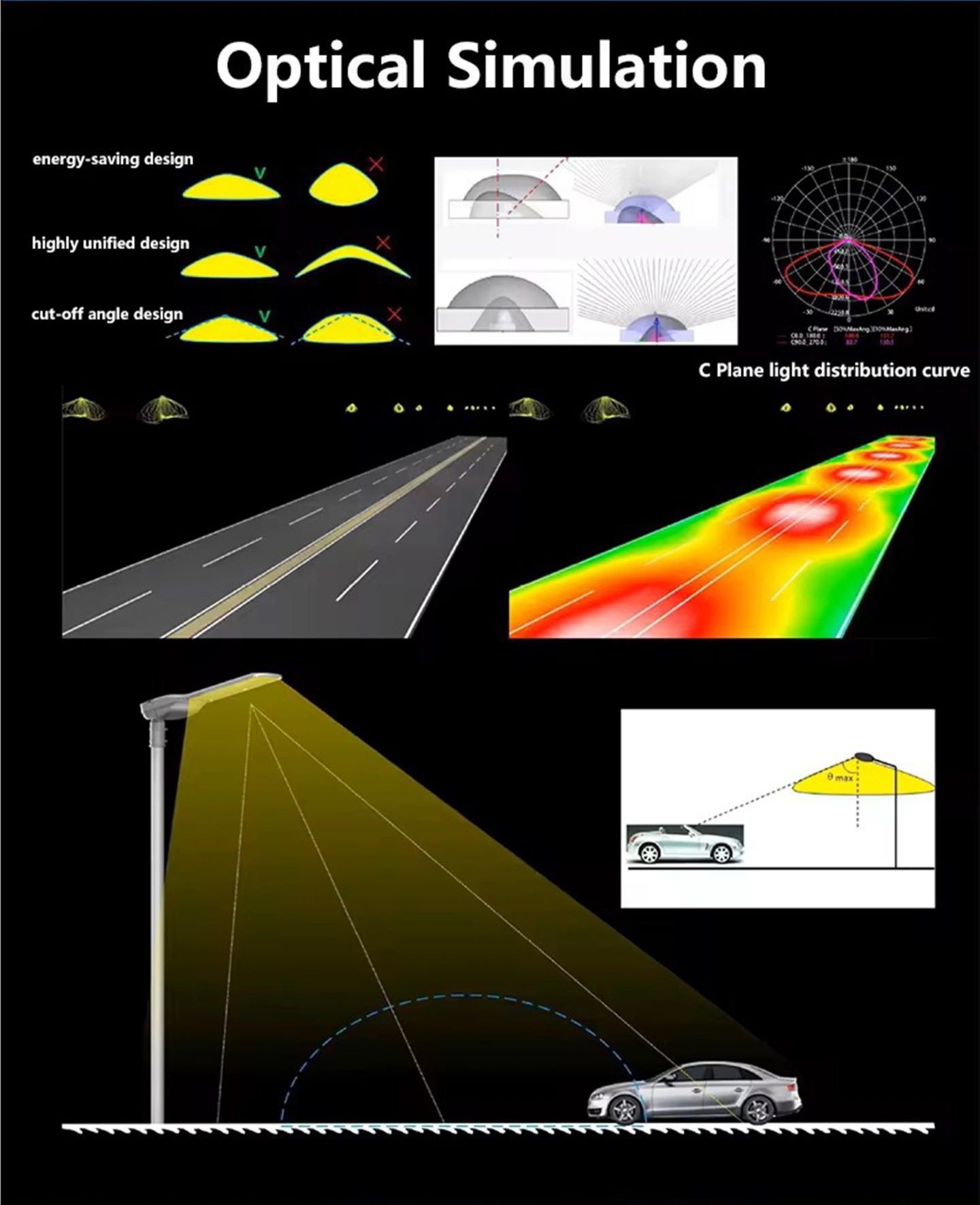

50W/100W/150W/200W optional power, CCT 3000K/4000K/5000K/5700K optional; accept OEM/ODM logo & appearance customization, provide DIALux IES files for engineering design.

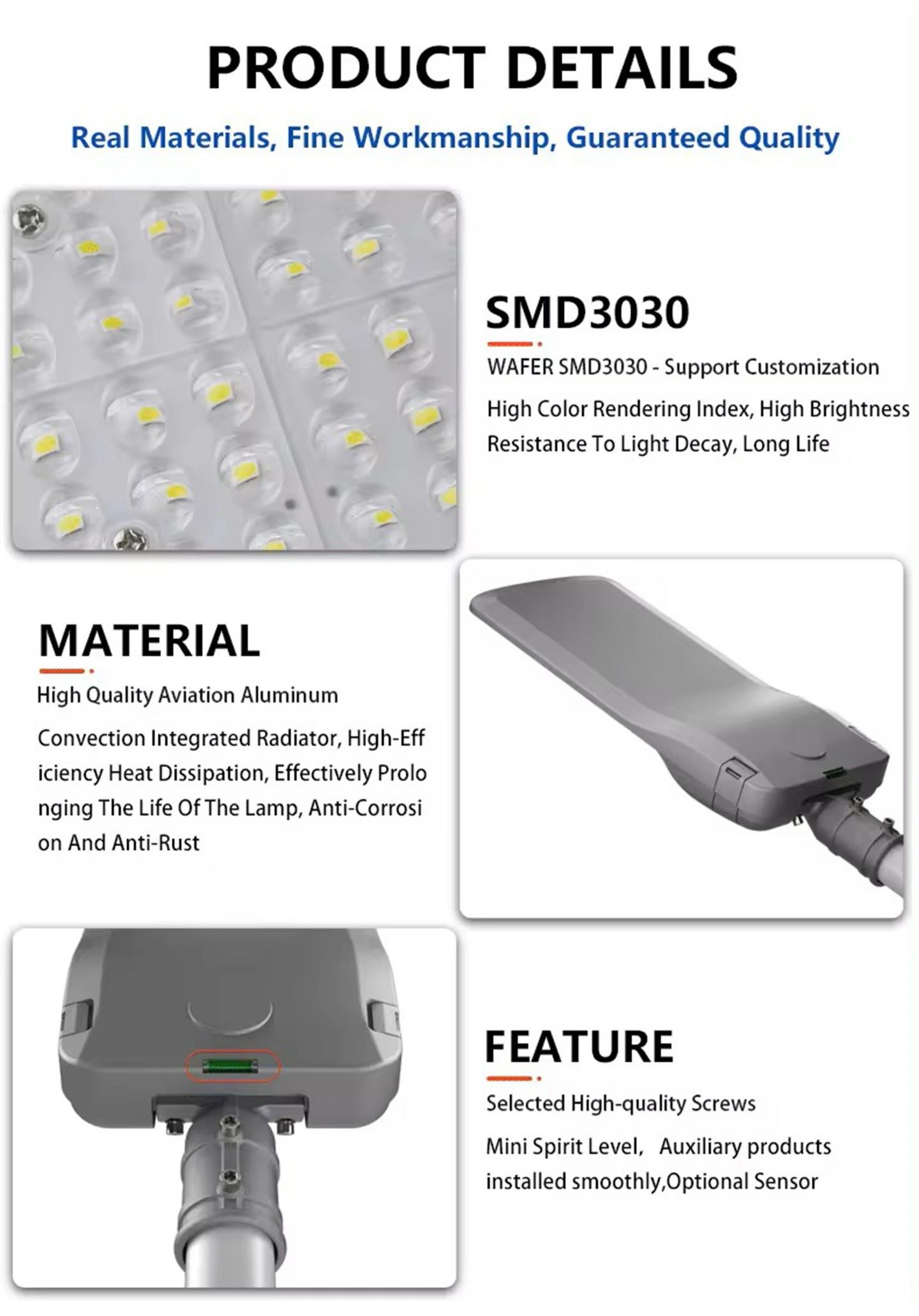

High Luminous Efficiency & Low Light Decay
Equipped with Philips / Osram LED chips, luminous efficiency reaches 140~160lm/W. Low lumen depreciation keeps stable brightness within its 50,000-hour service lifespan.
Lightweight Body to Cut Logistics Burden
Optimized lightweight casting structure reduces lamp weight, lower sea freight cost and avoid pole deformation after installation on old lamp poles.
\

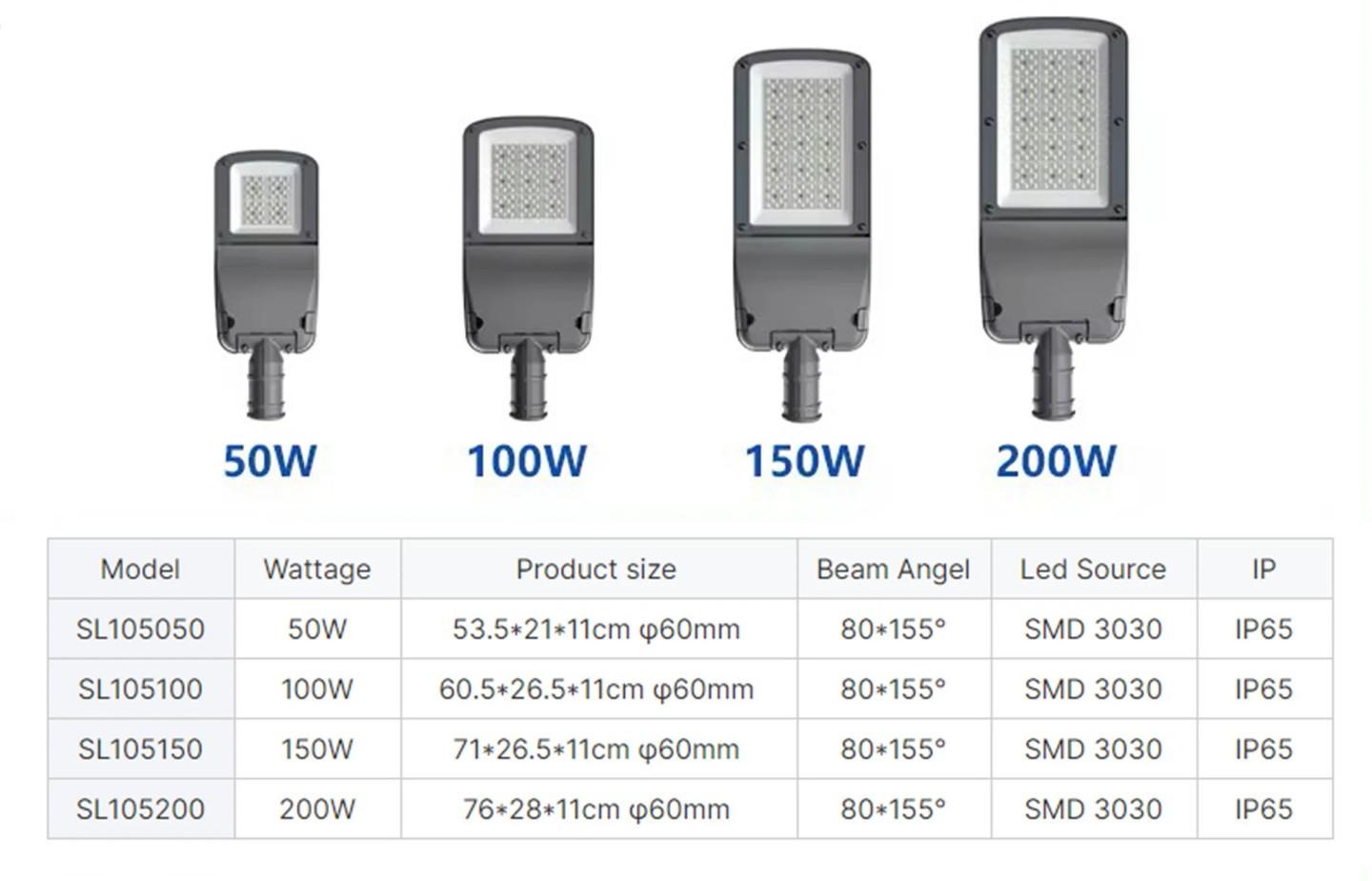

| Model | Wattage | Product size | Beam Angel | Led Source | IP |
| TEL-50 | 50W | 53.5*21*11cm φ60mm | 80*155° | SMD 3030 | IP65 |
| TEL-100 | 100W | 60.5*26.5*11cm φ60mm | 80*155° | SMD 3030 | IP65 |
| TEL-150 | 150W | 71*26.5*11cm φ60mm | 80*155° | SMD 3030 | IP65 |
| TEL-200 | 200W | 76*28*11cm φ60mm | 80*155° | SMD 3030 | IP65 |

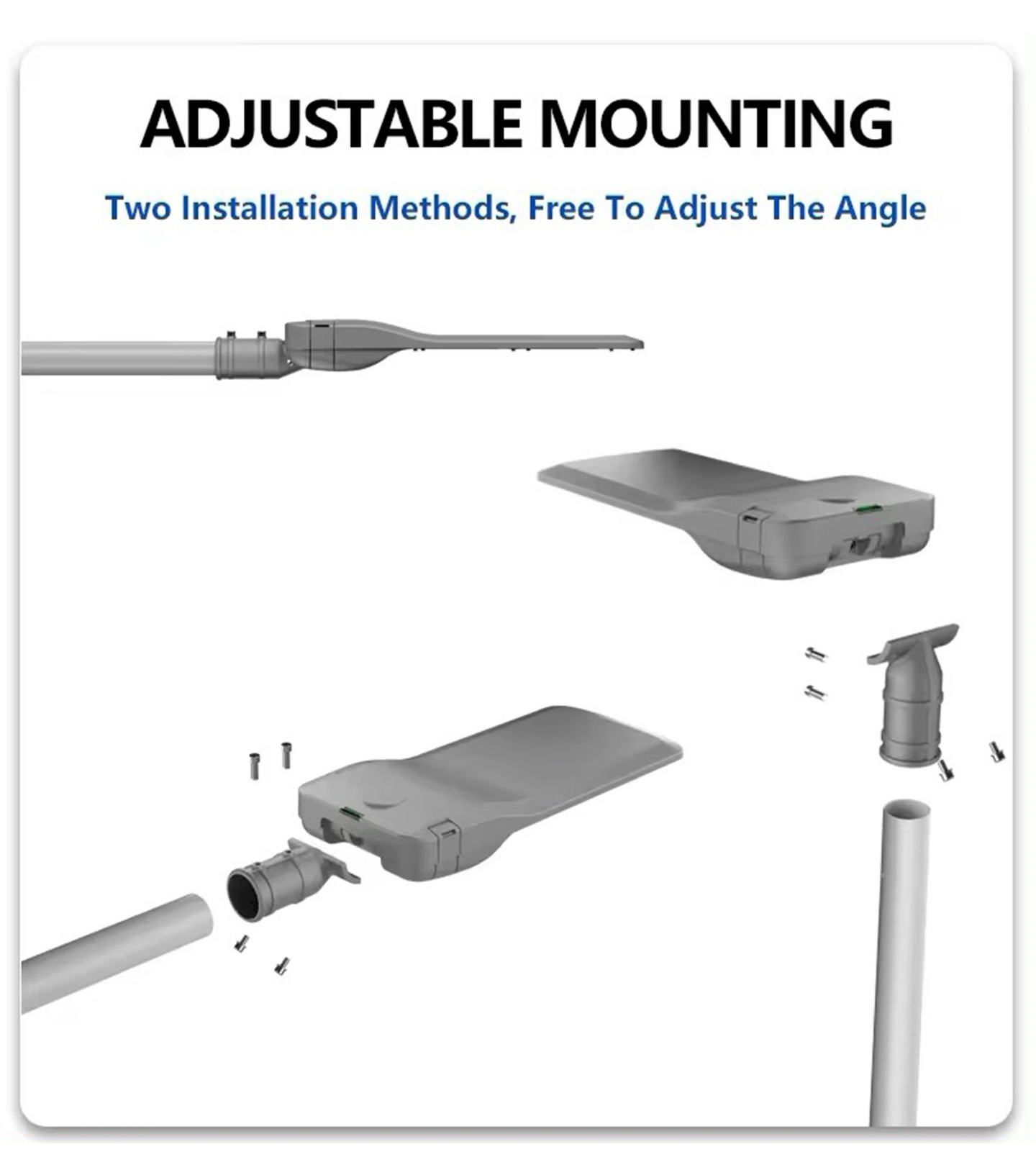

Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
