ZS Series comes with power options of 30W, 60W, 80W and 100W, serving as dedicated lighting equipment for township brightening and road reconstruction projects.The thickened die-cast aluminum body delivers excellent heat dissipation to greatly extend the lamp service life. Upgraded large-capacity energy storage battery ensures stable lighting even during consecutive cloudy and rainy days. The automatic light-sensing system paired with remote intelligent control cuts down later manual maintenance costs significantly. No municipal power wiring is needed, which greatly reduces construction costs for projects. Multiple installation methods including pole mounting and wall mounting are available, compatible with standard 3–10m light poles. The full series holds complete export certifications, our factory supports bulk supply, customized packaging and parameter fine-tuning with stable long-term stock, perfectly matching infrastructure lighting projects in Africa, Southeast Asia, the Middle East and other overseas regions.

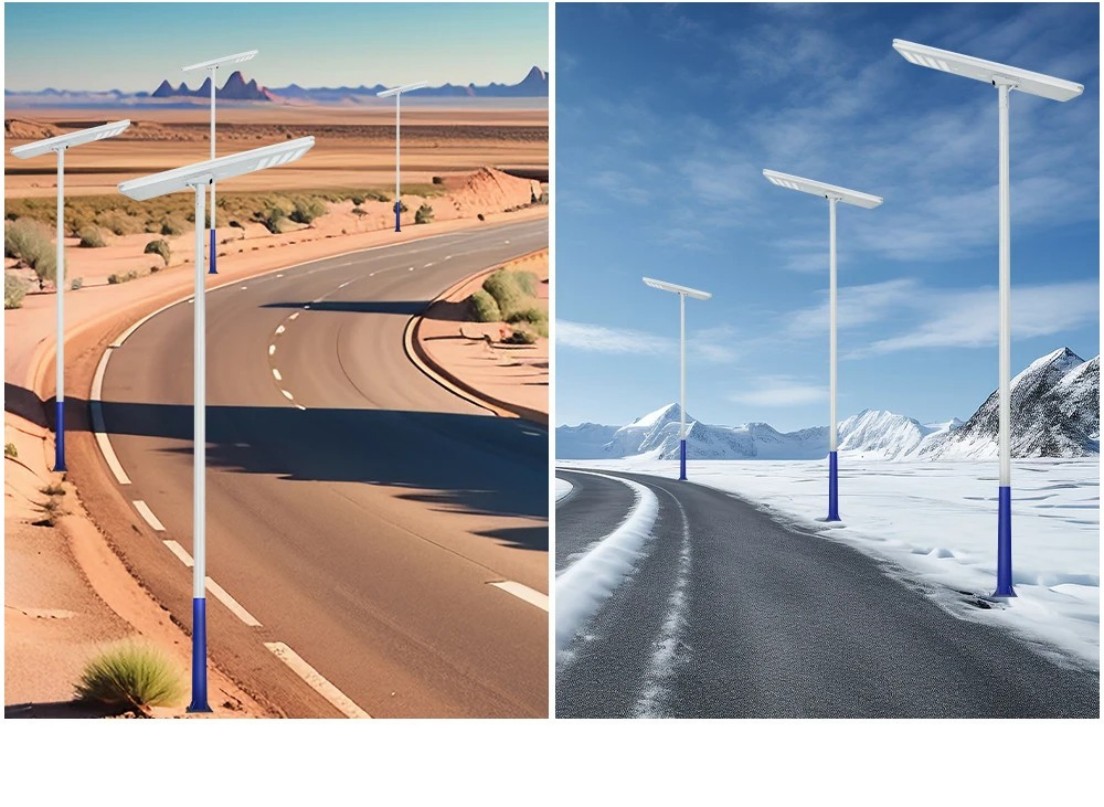

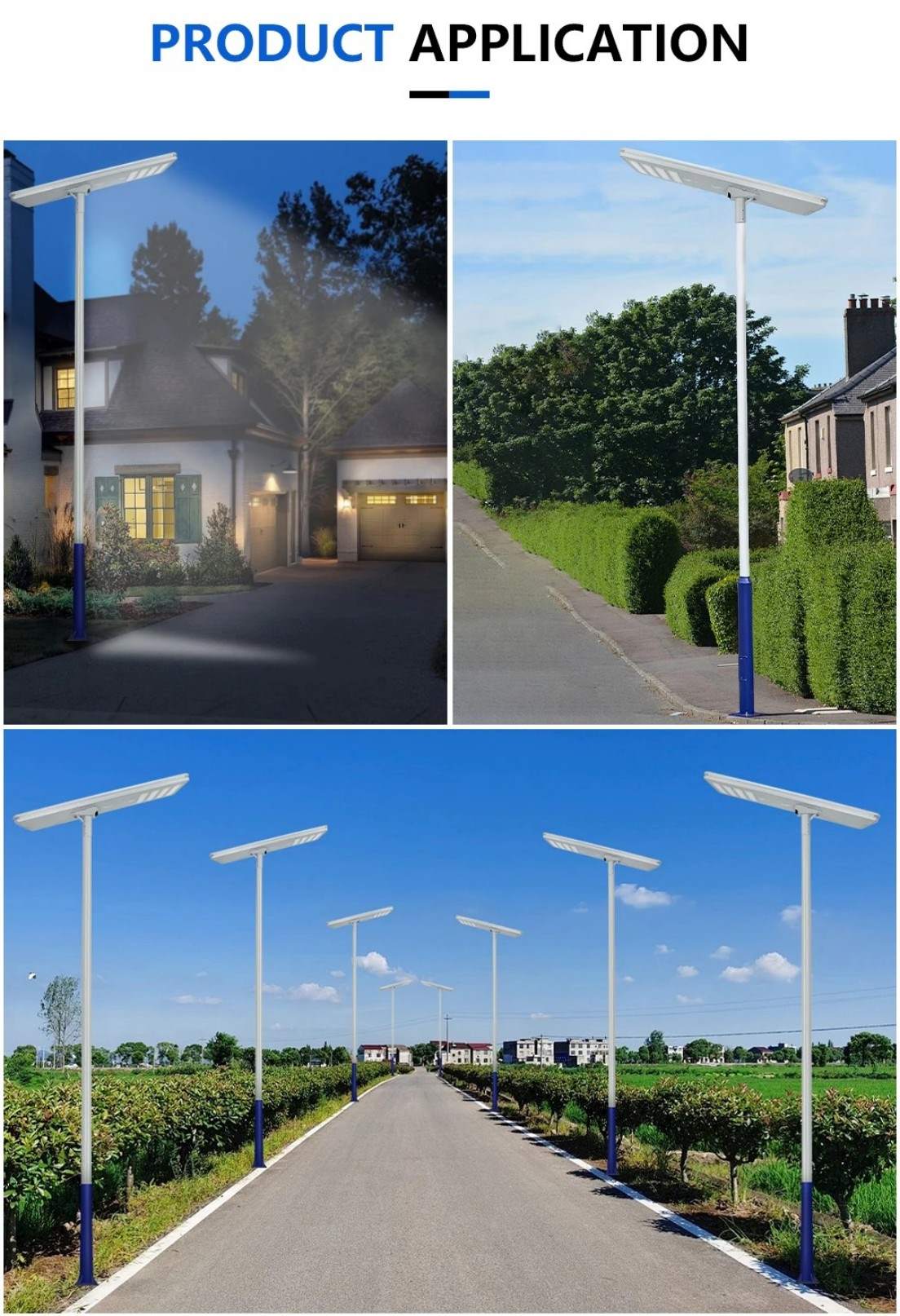

Applications:
Certified Quality for Global Projects

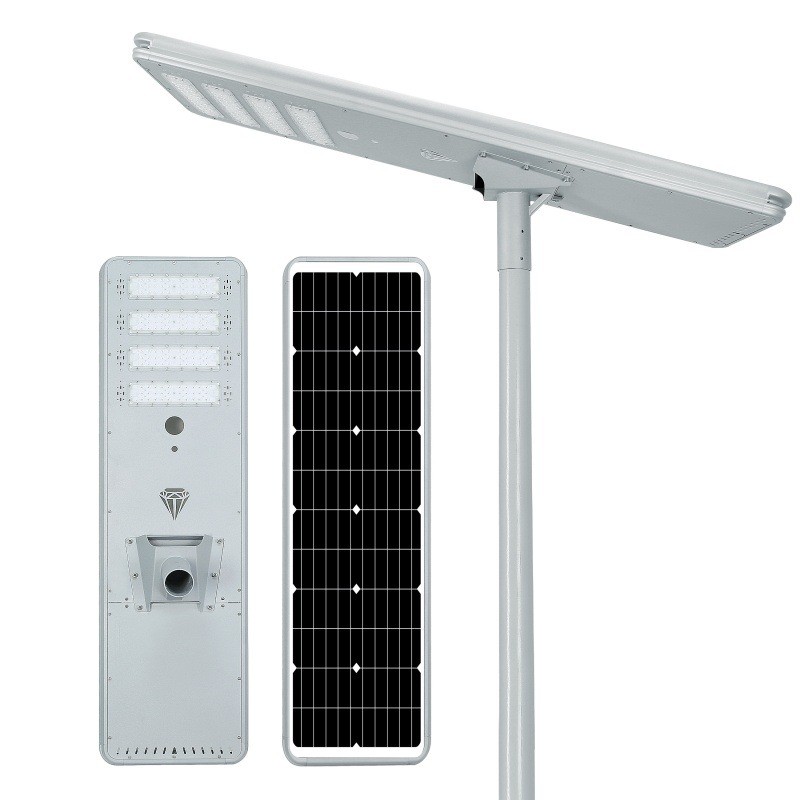

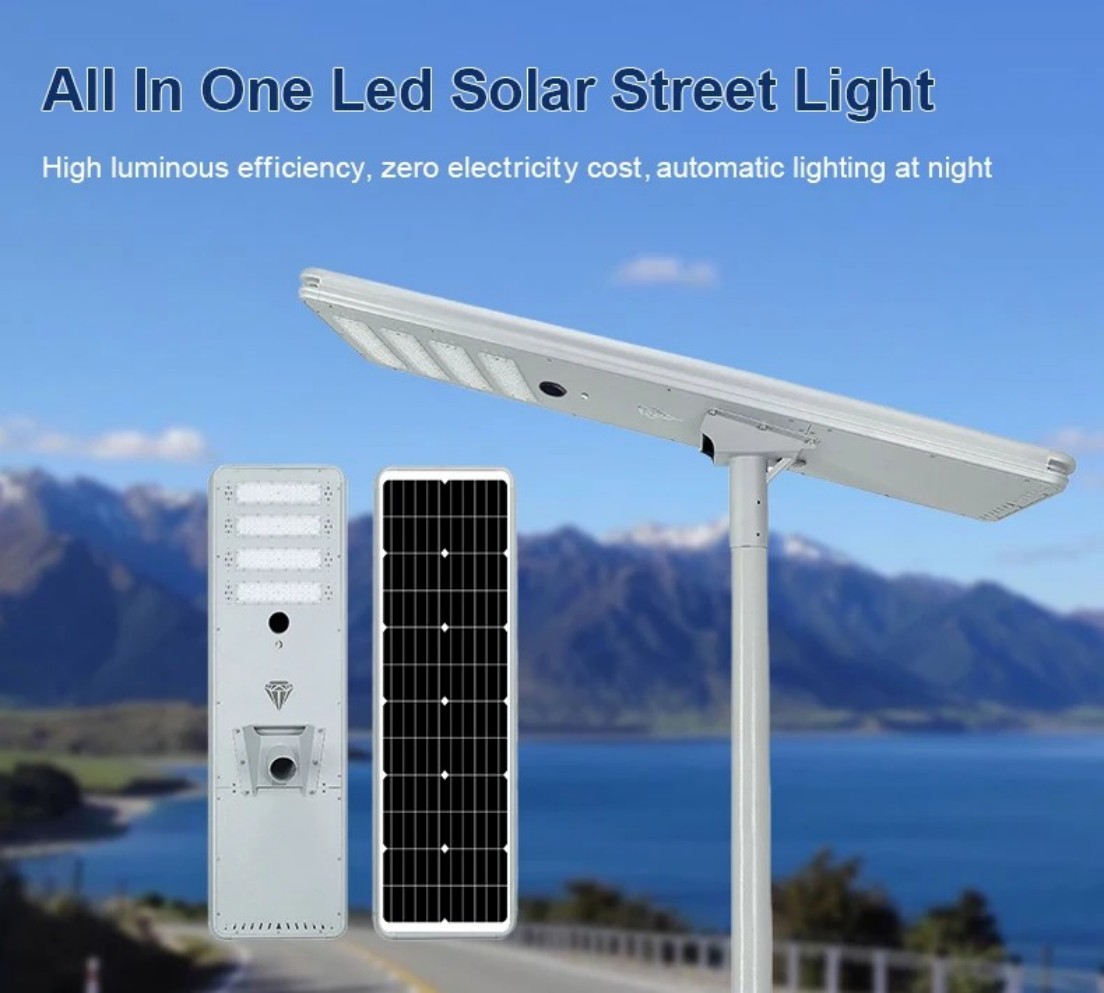

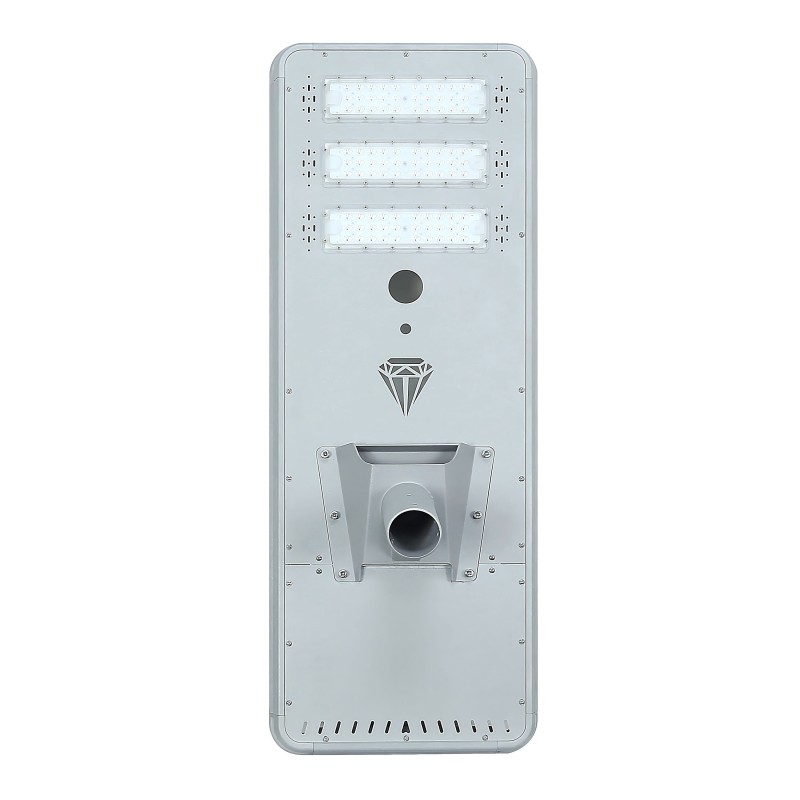

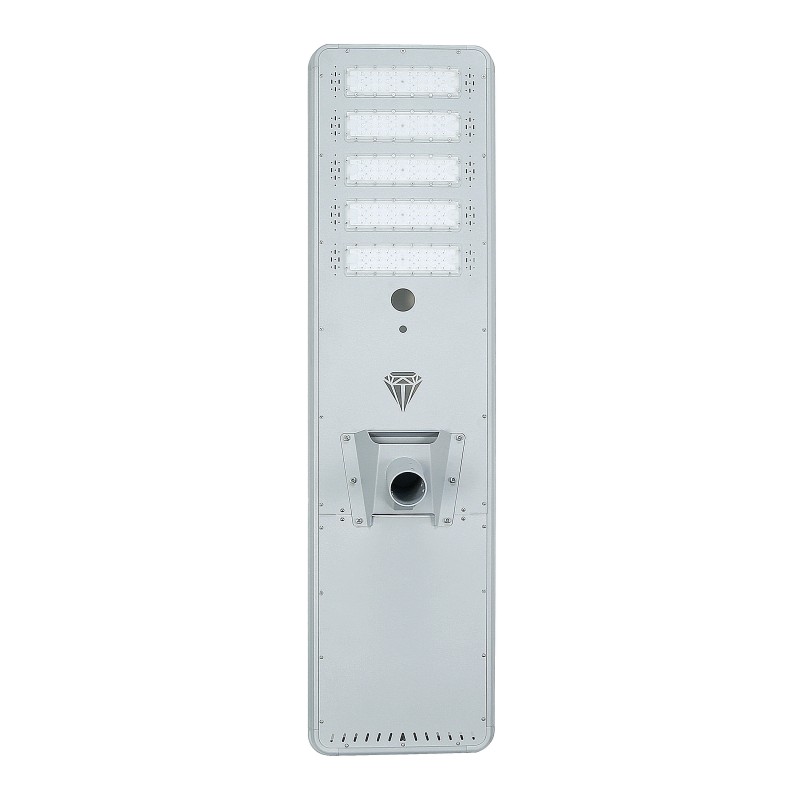

ZS All-in-One IP65 Waterproof Solar Municipal Road Light With Remote Control
No wiring, zero electricity bill
The ZS all-in-one solar street light runs purely on solar energy, no cable laying or municipal power connection required. It saves lots of labor and material costs during installation, with zero electricity bills in long-term use. It is a cost-effective lamp for off-grid rural road lighting and outdoor village illumination.

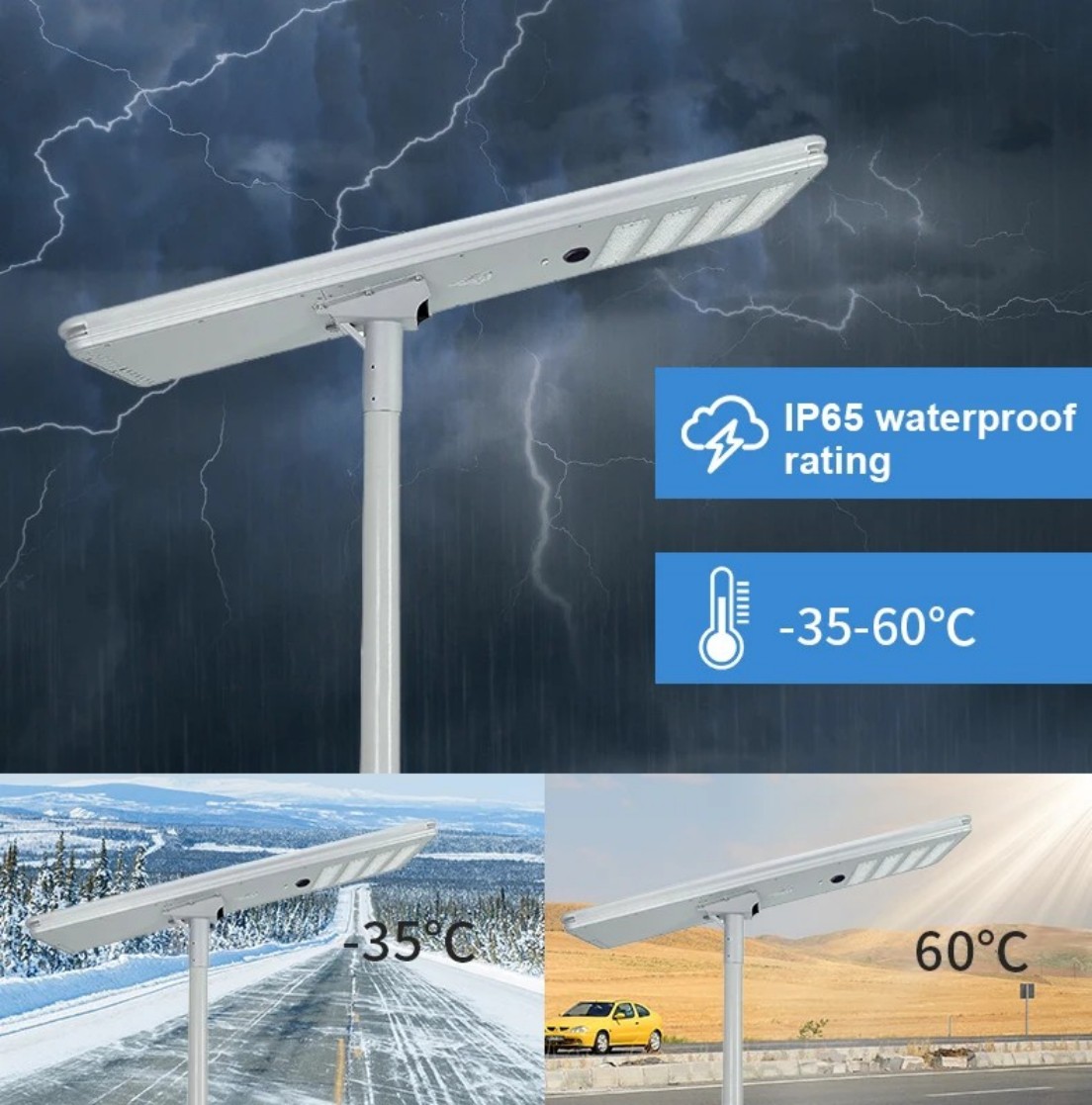

IP65 all-weather waterproof
The whole light reaches IP65 protection grade with sealed waterproof rubber rings. This outdoor solar lamp resists heavy rain and sandstorm. It works without water leakage or short circuit for long-term use in coastal, dusty, open factory and other harsh outdoor environments.

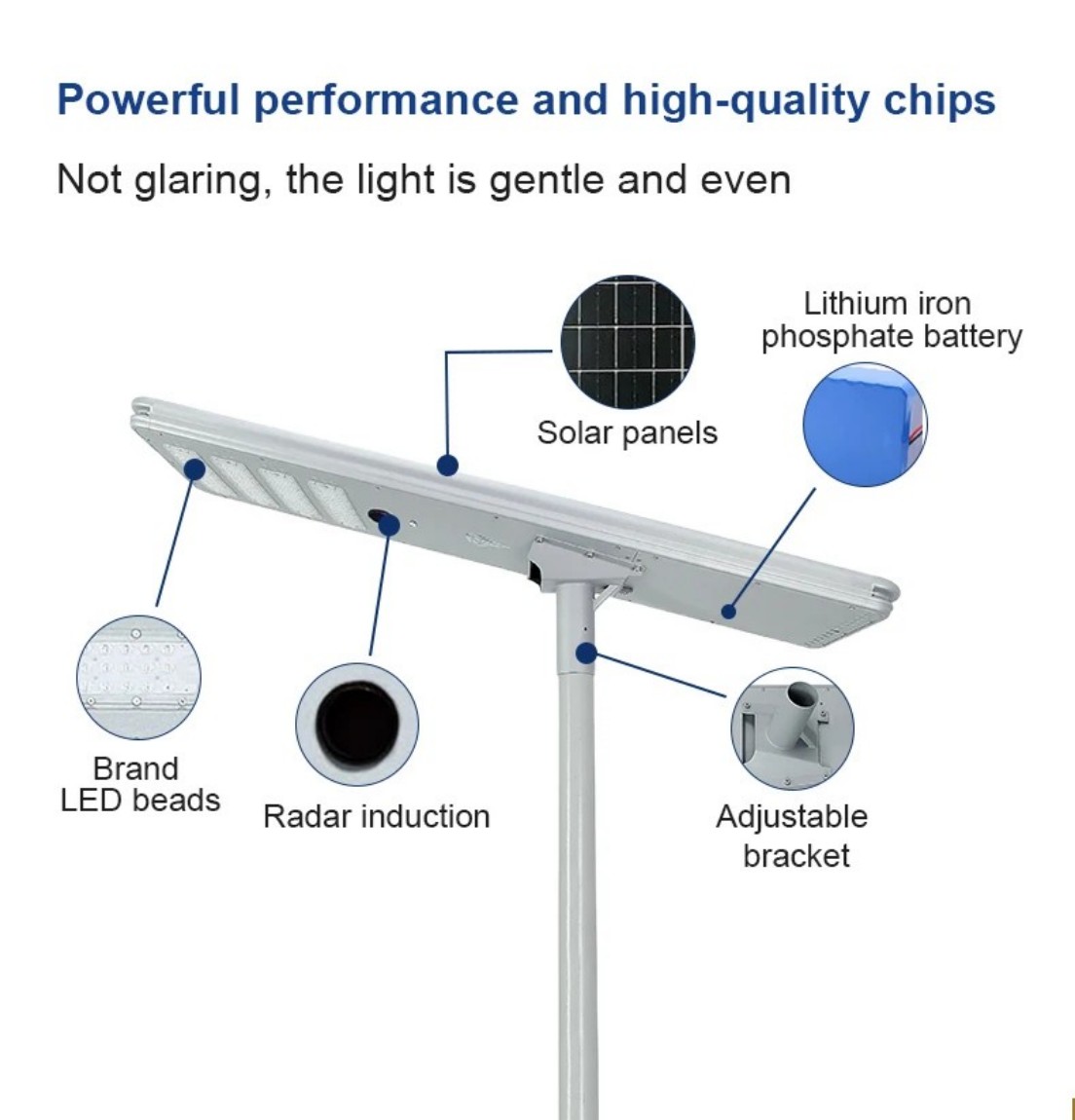

Thick aluminum shell, great heat dissipation
The ZS road solar light adopts integrated thick die-cast aluminum housing with dense back heat dissipation grooves, which quickly dissipate heat generated by LEDs to prevent light decay. It is anti-corrosion and anti-aging, greatly extending the outdoor service life of the whole lamp.

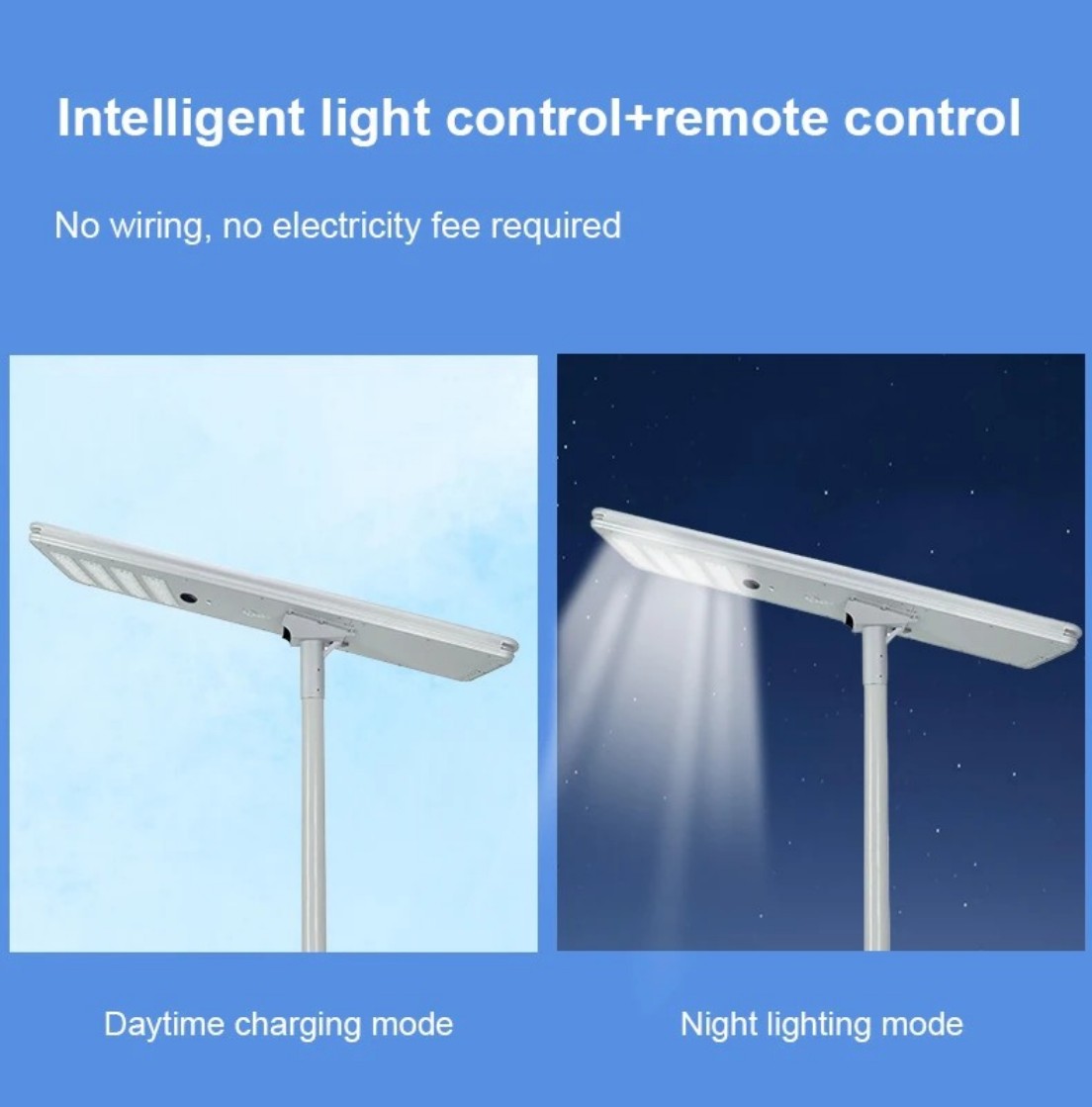

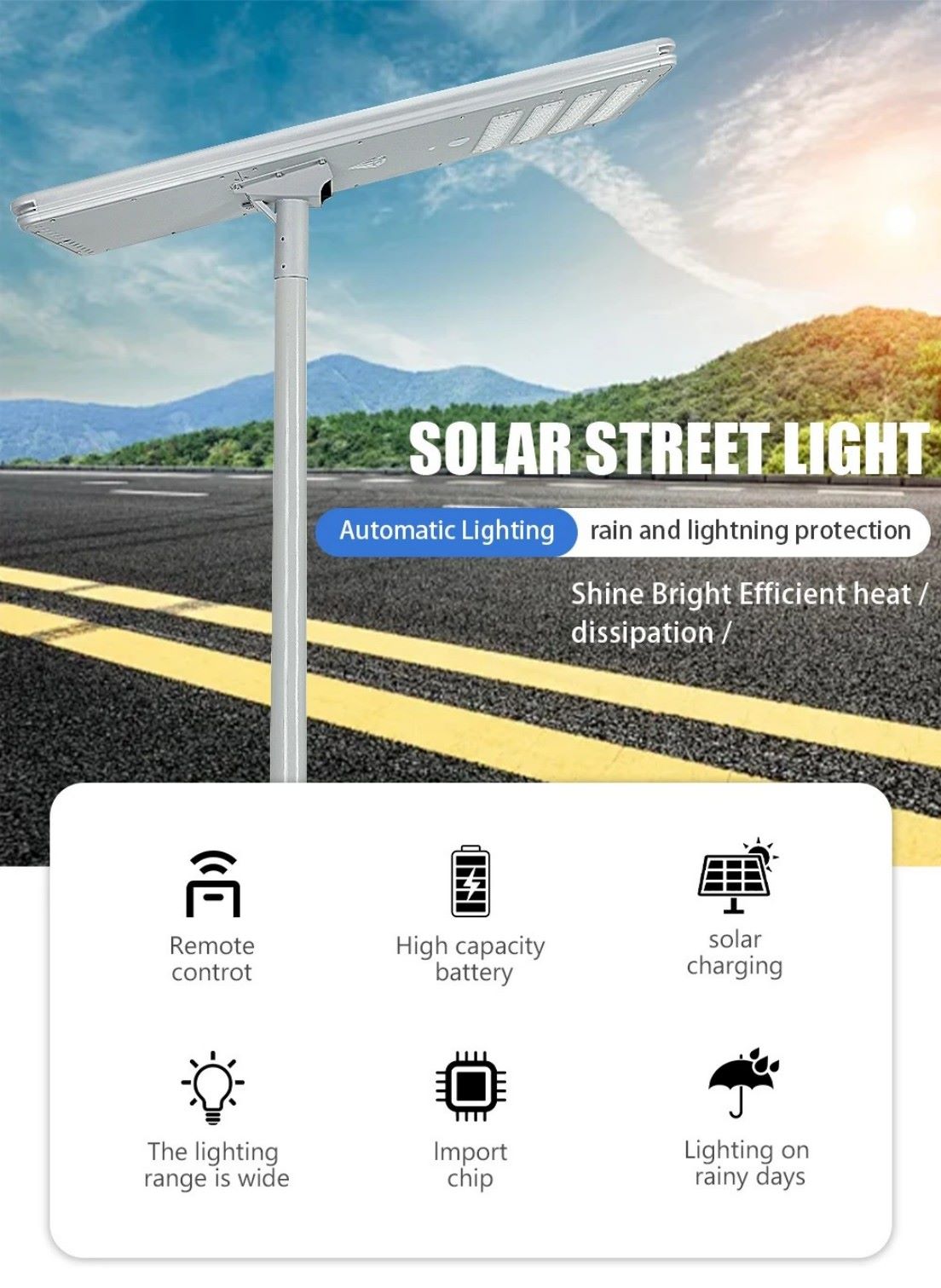

Light sensor & remote dimming control
The ZS solar light is equipped with a photosensitive sensor system, automatically charging in daytime and lighting at dusk. The matched remote controller supports remote switch, brightness adjustment and timing setting, no on-site manual guard needed and reduces later maintenance work.

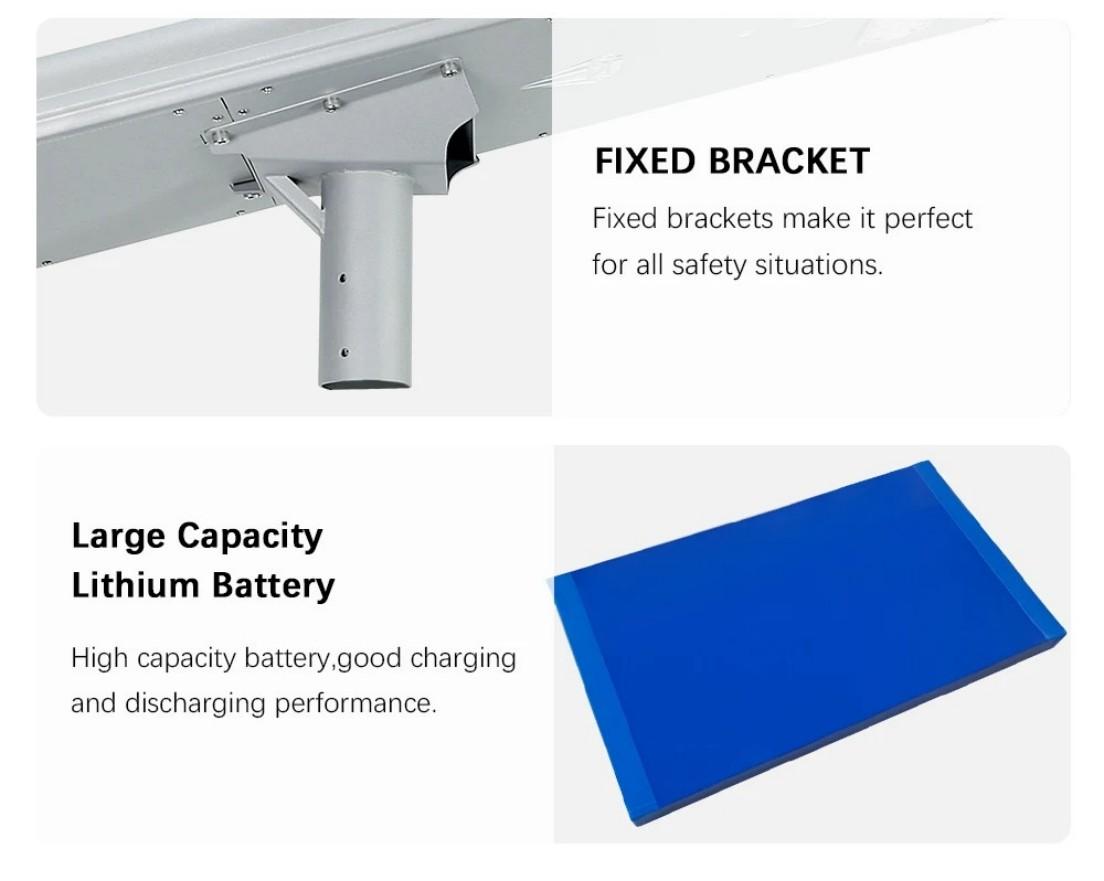

Large lithium battery, long standby time
Built-in large-capacity long-cycle lithium battery with strong energy storage capacity. This solar road lamp can keep stable lighting for 3 to 5 consecutive cloudy and rainy days after fully charged, solving the power-off lighting trouble of remote villages with insufficient sunlight.

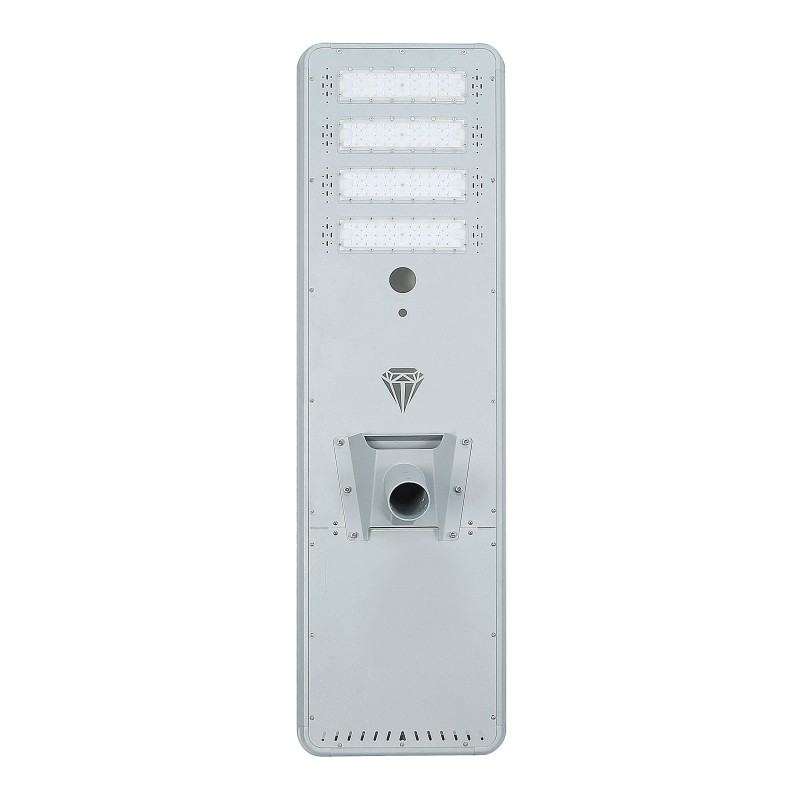

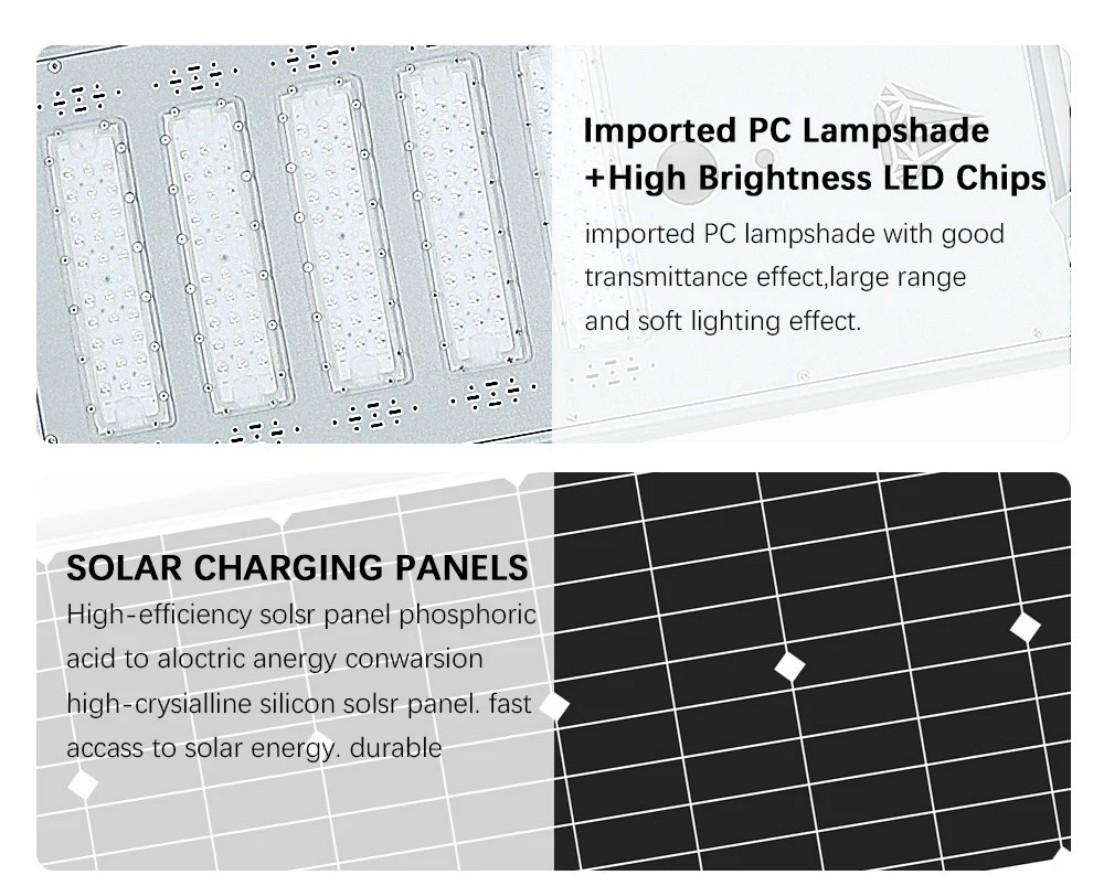

High-bright LED, even light output
Equipped with imported SMD3030 high-brightness beads, this high power solar light outputs standard 6000K pure white road light with even, flicker-free illumination and wide pavement coverage, fully ensuring the driving and walking safety at night.

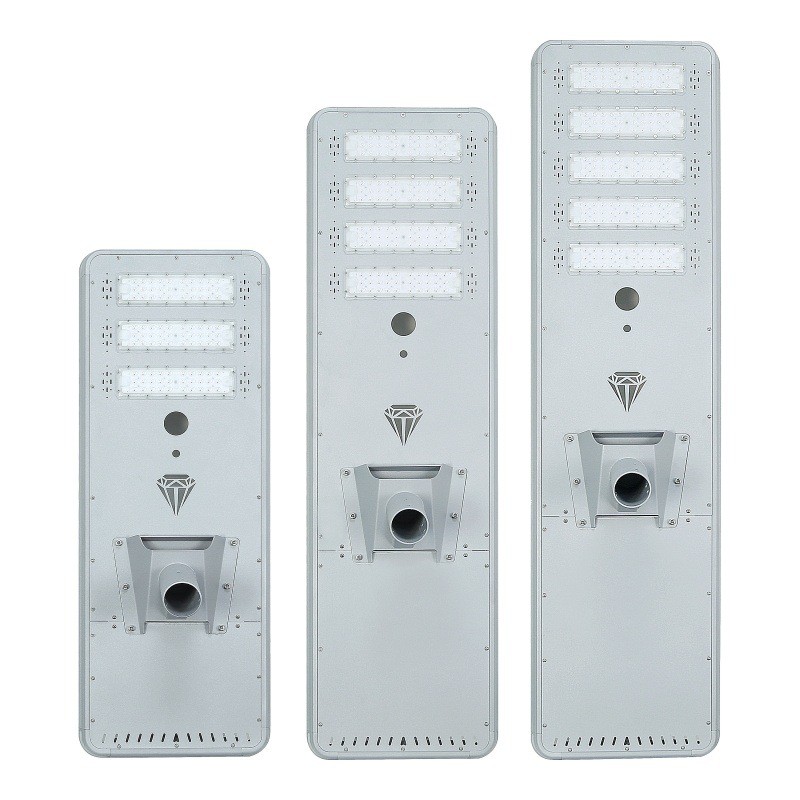

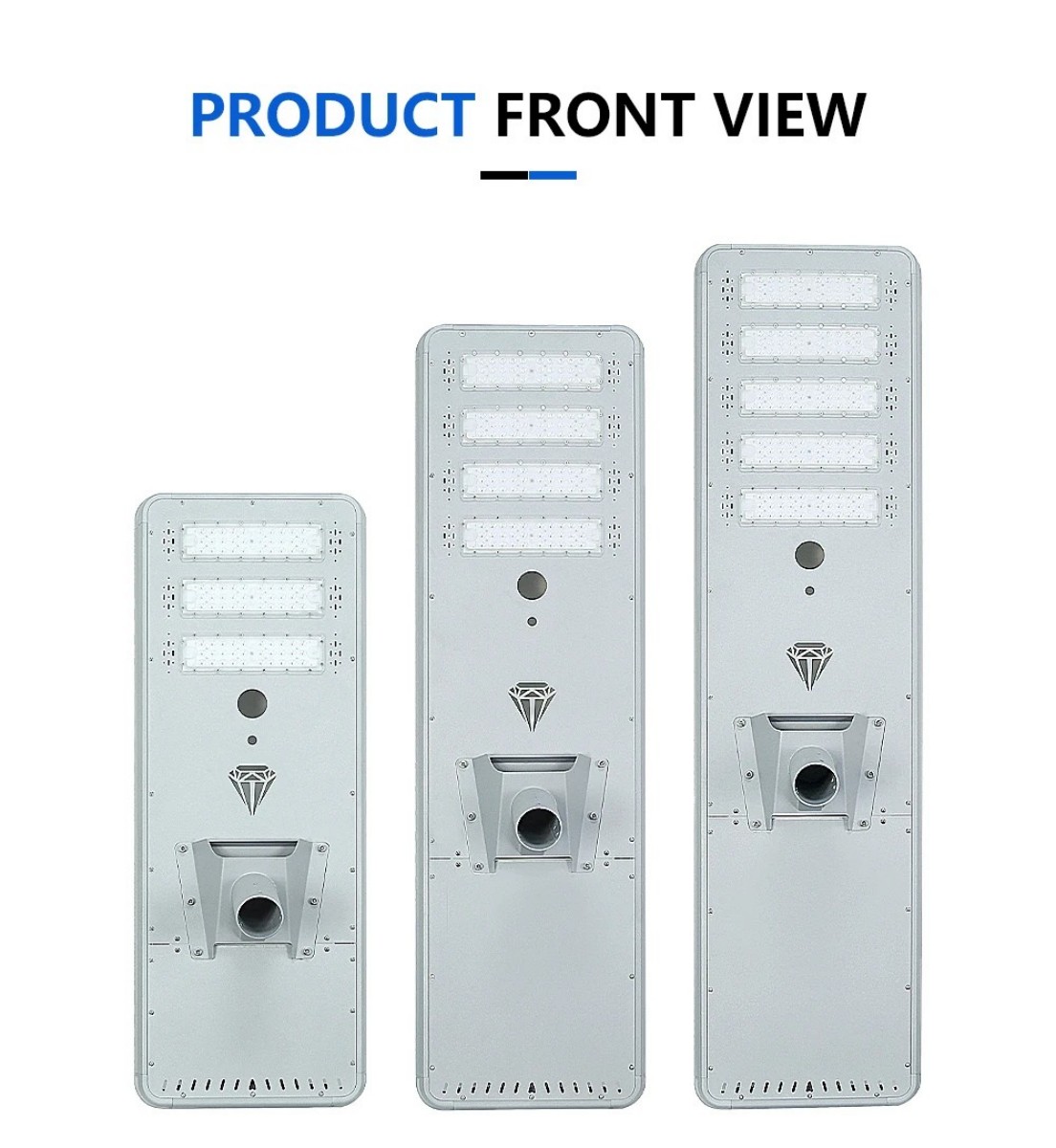

| Model No. | ZS-30 | ZS-60 | ZS-80 | ZS-100 |
| Power | 30w | 60w | 80w | 100w |
| LED chip | 100PCS | 200PCS | 200PCS | 300PCS |
| Luminous Flux | 5100LM | 10200LM | 13600LM | 17000LM |
| LiFeP04 Battery | 12.8v 24AH | 12.8v 42AH | 12.8V 48AH | 12.8V 54AH |

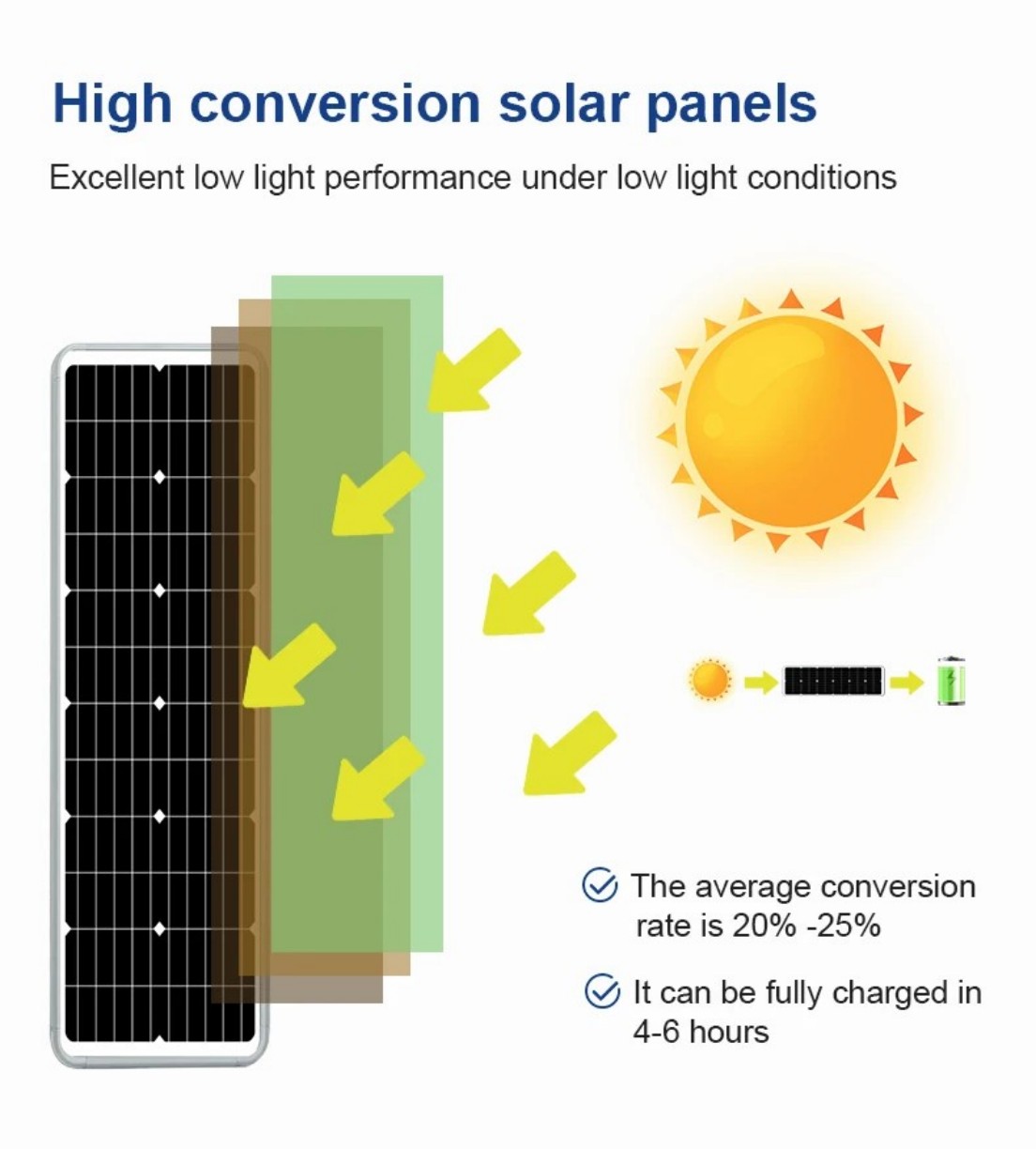

| Mono Solar Panel | 18V 50W | 18V 80W | 18V 110W | 18V 130W |
| Install Height | 6-7M | 7-9M | 8-10M | 9-11M |
| Luminous | 180LM/W | |||
| Charging Time | 5-6 hours | |||
| Material | Aluminum Alloy | |||
| Work Temperature | -35℃ to 60℃ | |||
| Waterproof | IP66 | |||
| Warranty | 5 Years | |||
Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
