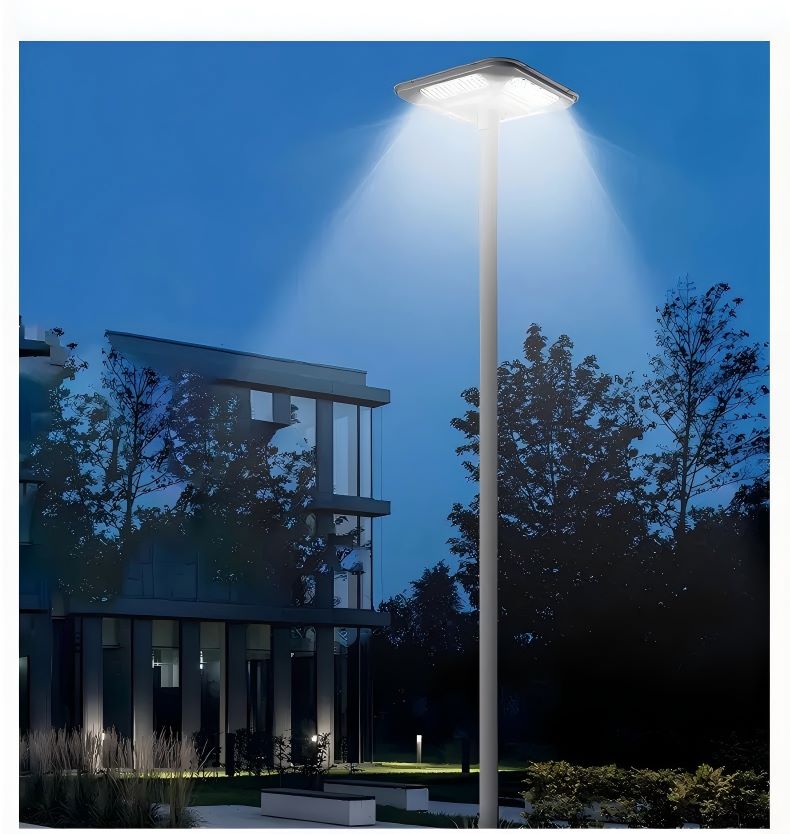

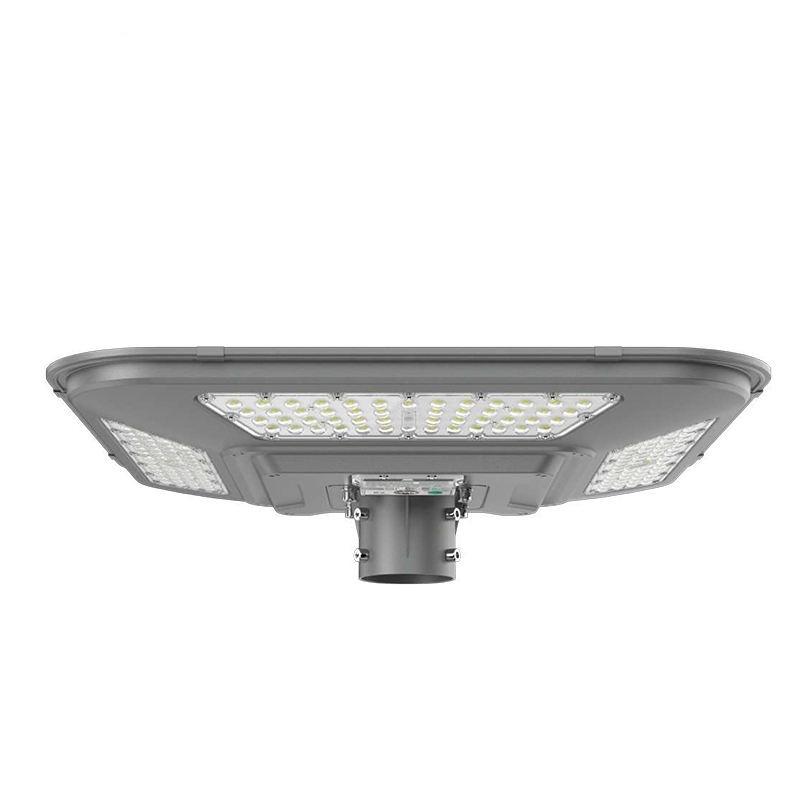

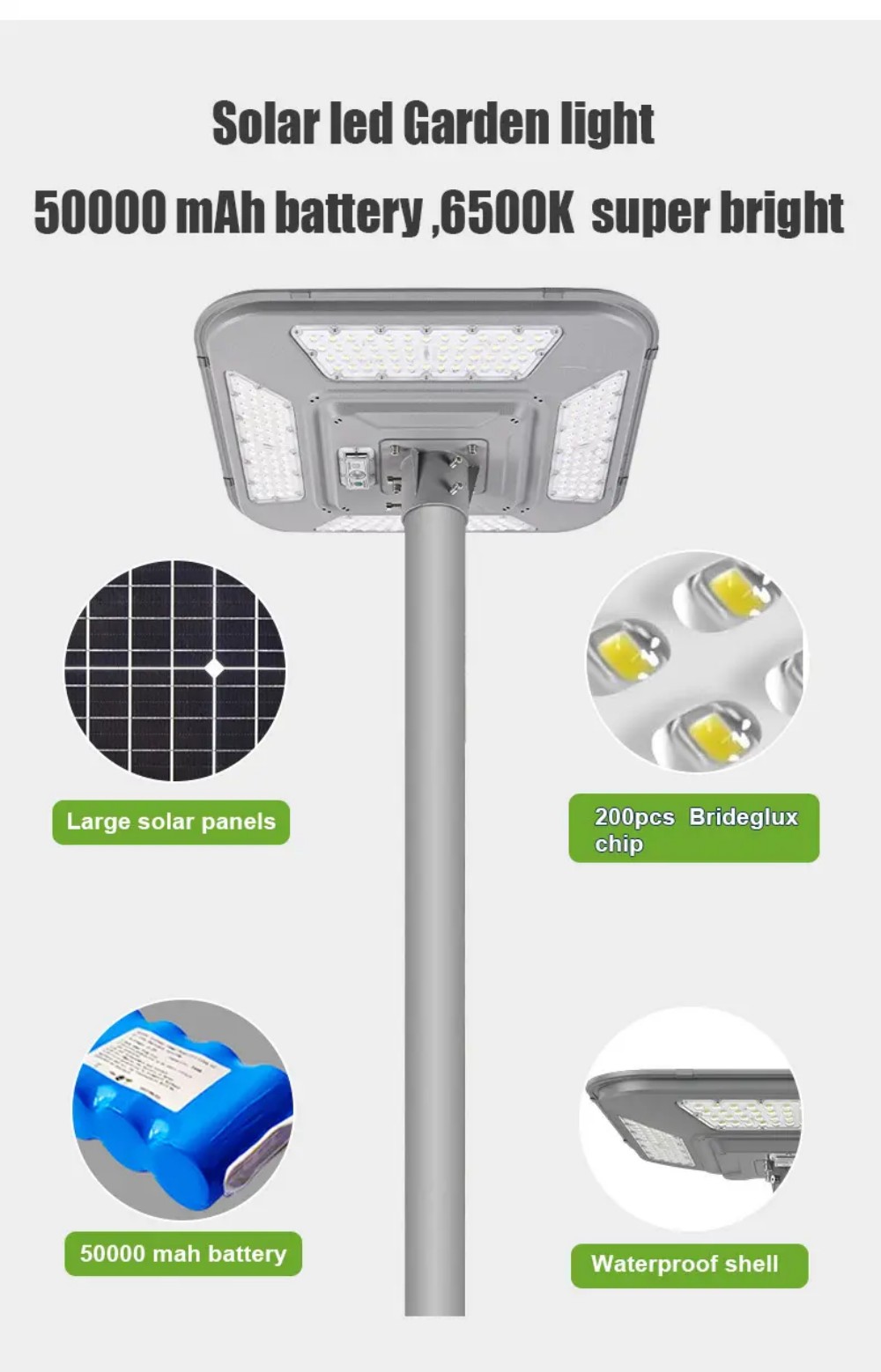

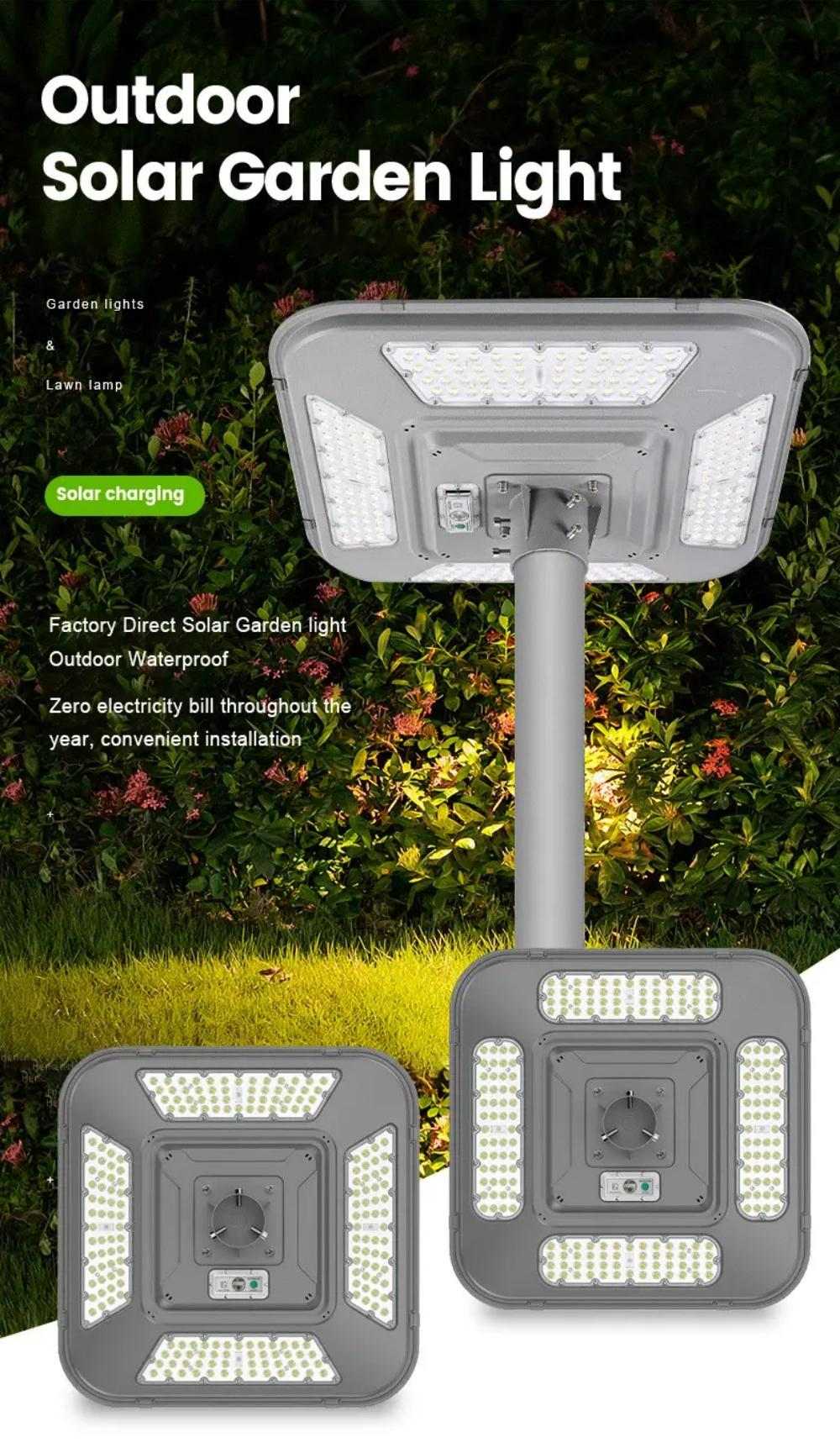

HAORUI Cruiser Series all-in-one solar garden light features a classic UFO shape with cross-shaped LED lights, delivering 360° full-angle shadow-free illumination. It integrates solar panel, LiFePO4 battery, smart controller and light source as one unit. No wiring or ground digging is required for easy installation, which greatly cuts down construction and operating costs.
Made of die-cast aluminum housing, this light reaches IP65/IP66 waterproof rating. It is rustproof, dustproof and rainproof, working steadily at temperatures from -20℃ to +60℃ to adapt to climates worldwide. Equipped with high-efficiency monocrystalline solar panel, it charges fast and supports 3 to 5 days continuous lighting on cloudy days.
It supports multiple intelligent control modes including dusk-to-dawn, timing, motion sensor and remote control, with adjustable brightness and working hours. Available in 60W/100W/150W power options and 3000K/4000K/6000K color temperatures. Ideal for villa yards, park pathways, municipal roads and commercial parking lots, perfect for residential and commercial lighting projects.
Applications:
Certified Quality for Global Projects
All-in-One Solar Courtyard Light - Cruiser Series for Garden & Parking Lot
Waterproof Solar Post Lights | for Home & Business
-

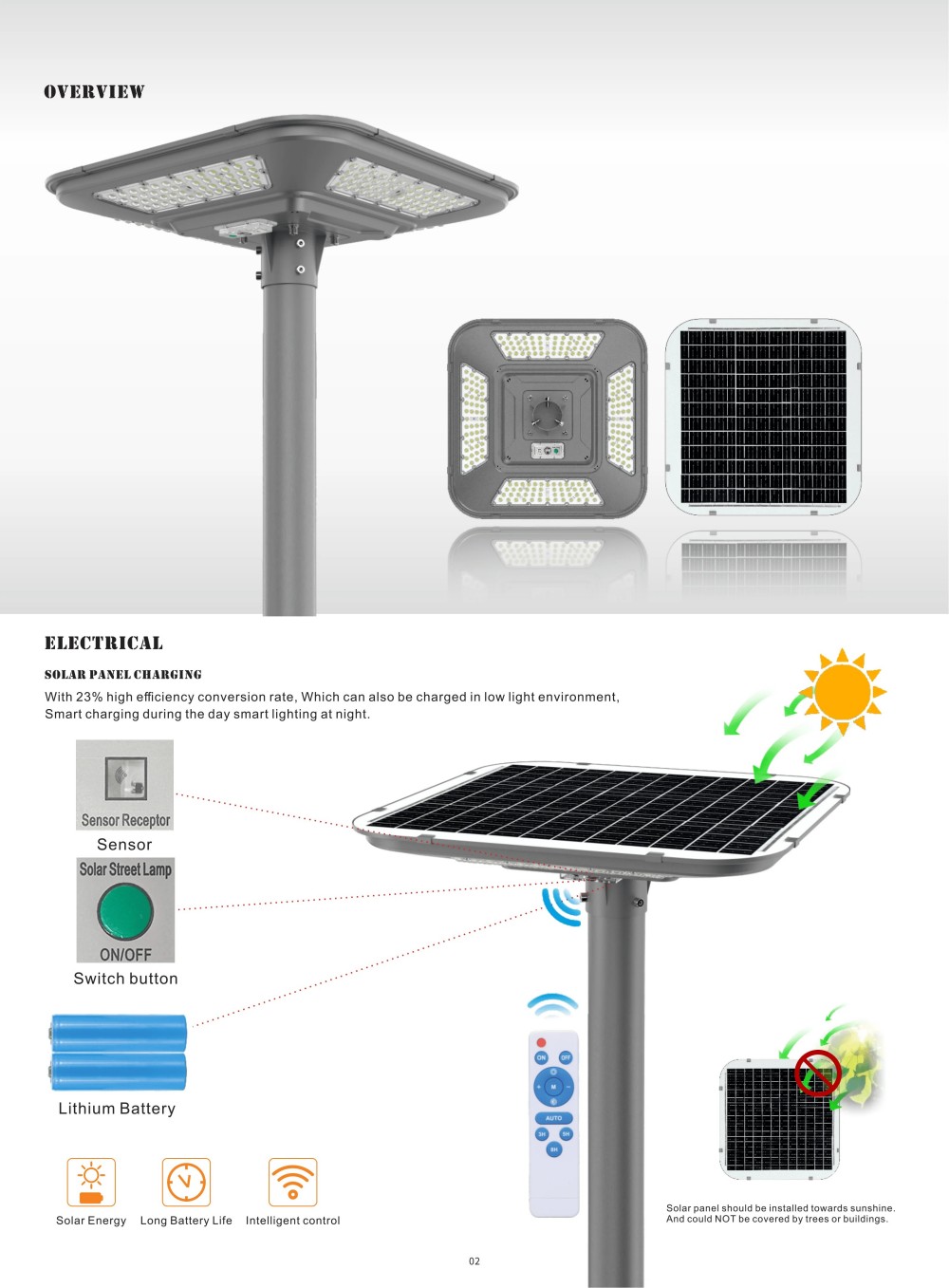

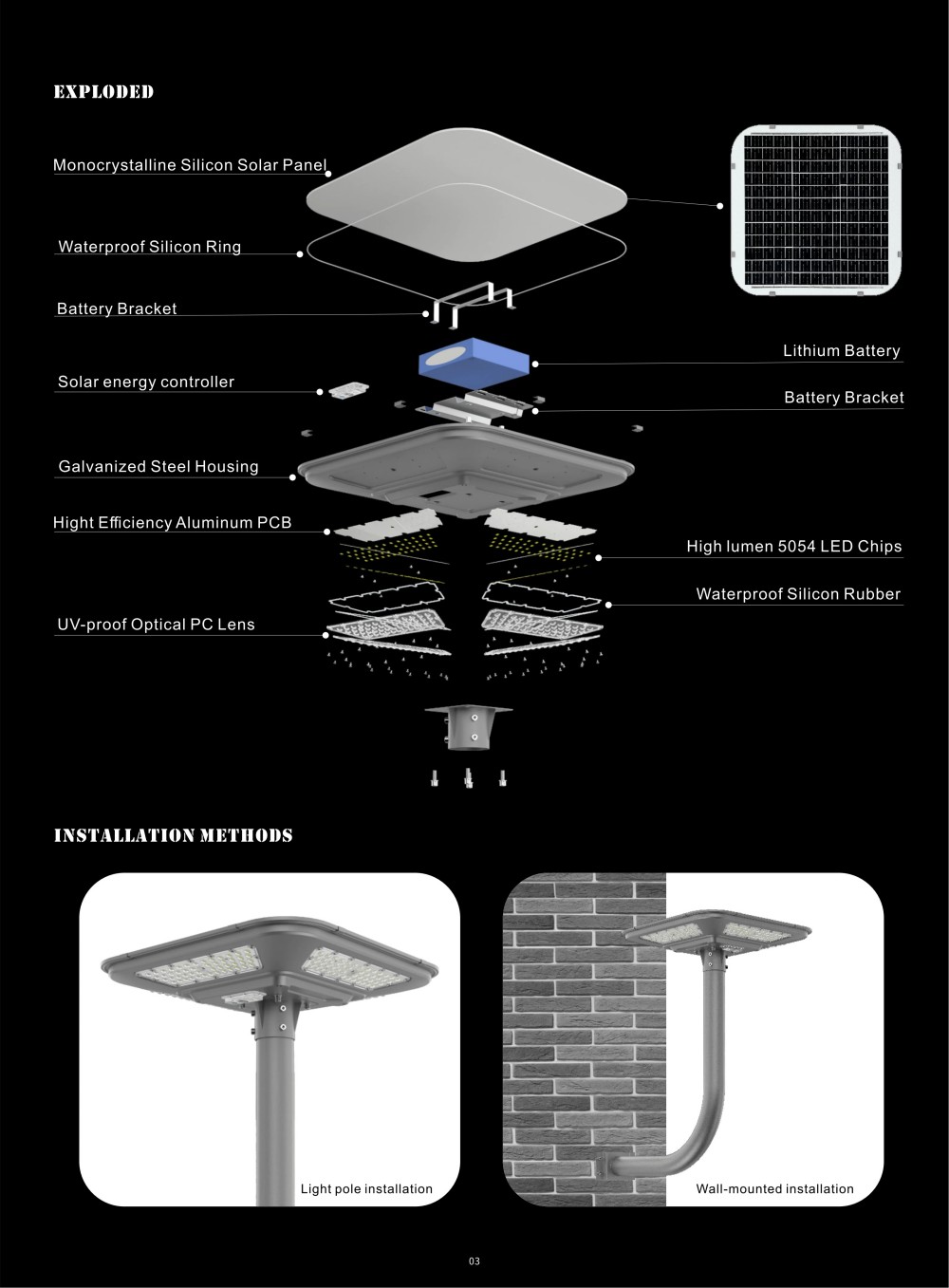

All-in-One Integrated Structure
Solar panel, lithium battery, controller and LED light source are integrated into one unit. The compact internal layout and tight connections reduce exposed wires and gaps, lowering failure risks and improving overall stability.

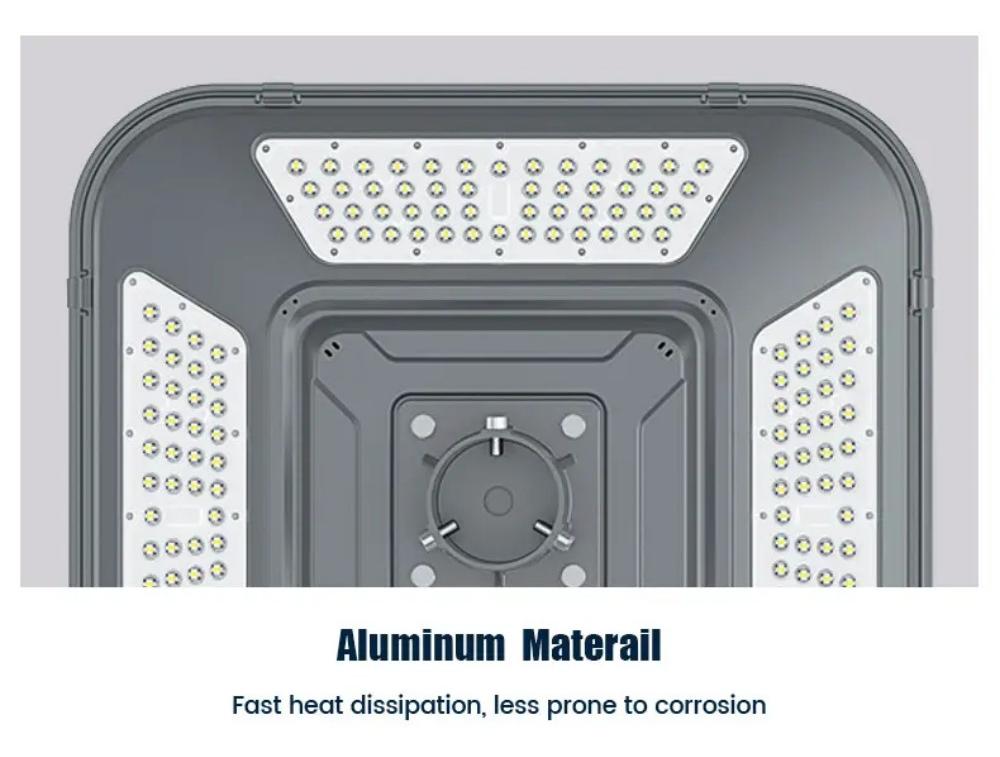

Thick Die-Cast Aluminum Housing
The fixture is integrally molded with die-cast aluminum. This material is high-hardness and impact-resistant. It is excellent in rust prevention, corrosion resistance and anti-aging. It resists salt spray, rain and strong sunlight, keeping intact without fading or cracking after long-term outdoor use.

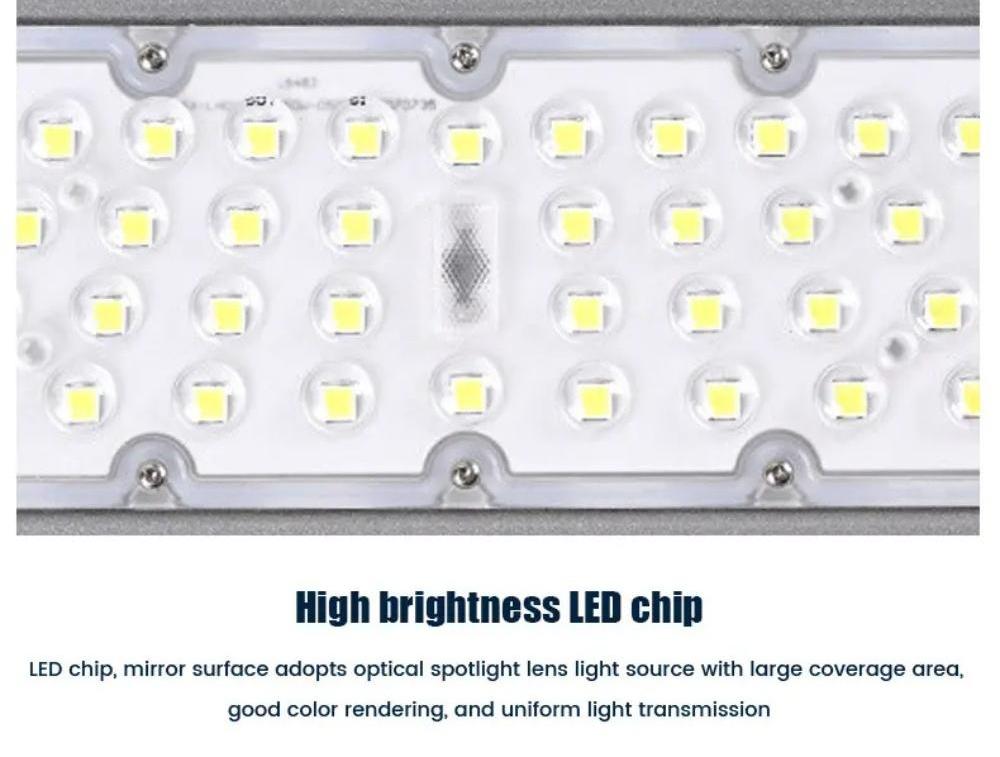

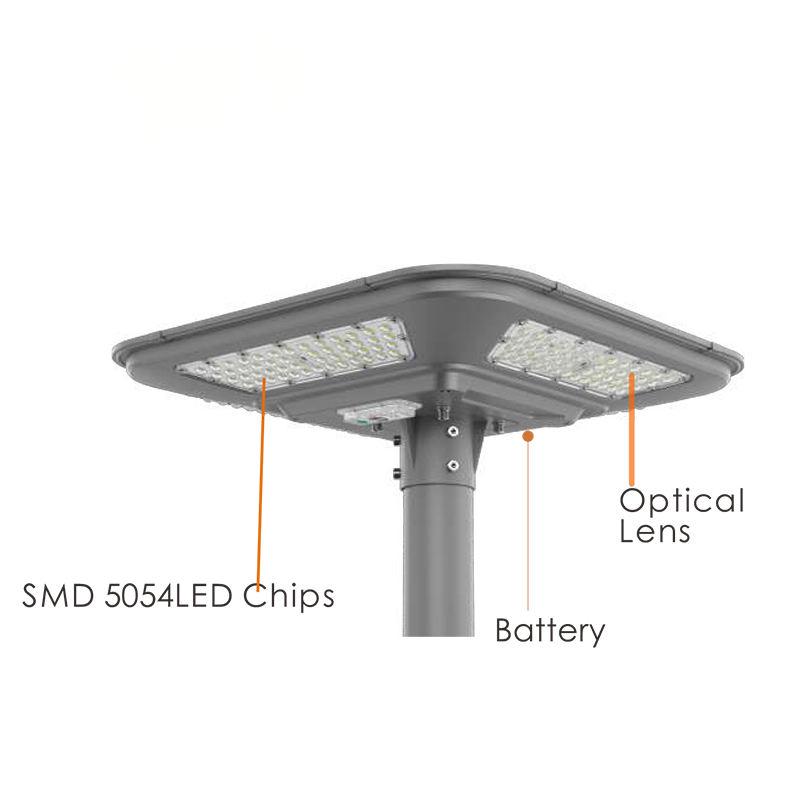

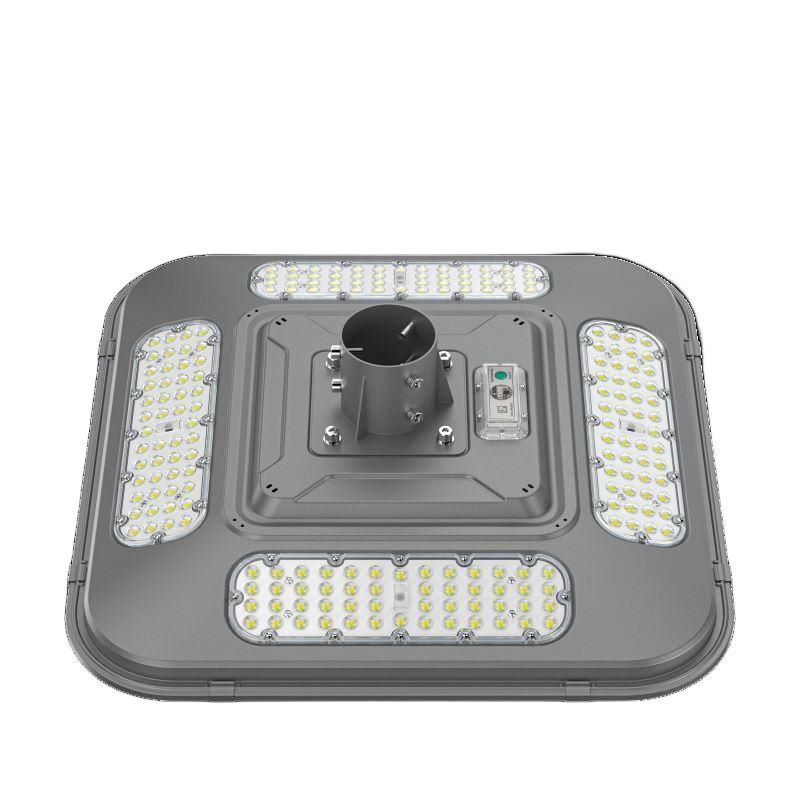

Cross Matrix Light Source
Four sets of LED beads are arranged in cross symmetry. With professional optical design, it features wide beam angle and even light distribution, eliminating dark areas and shadows effectively.

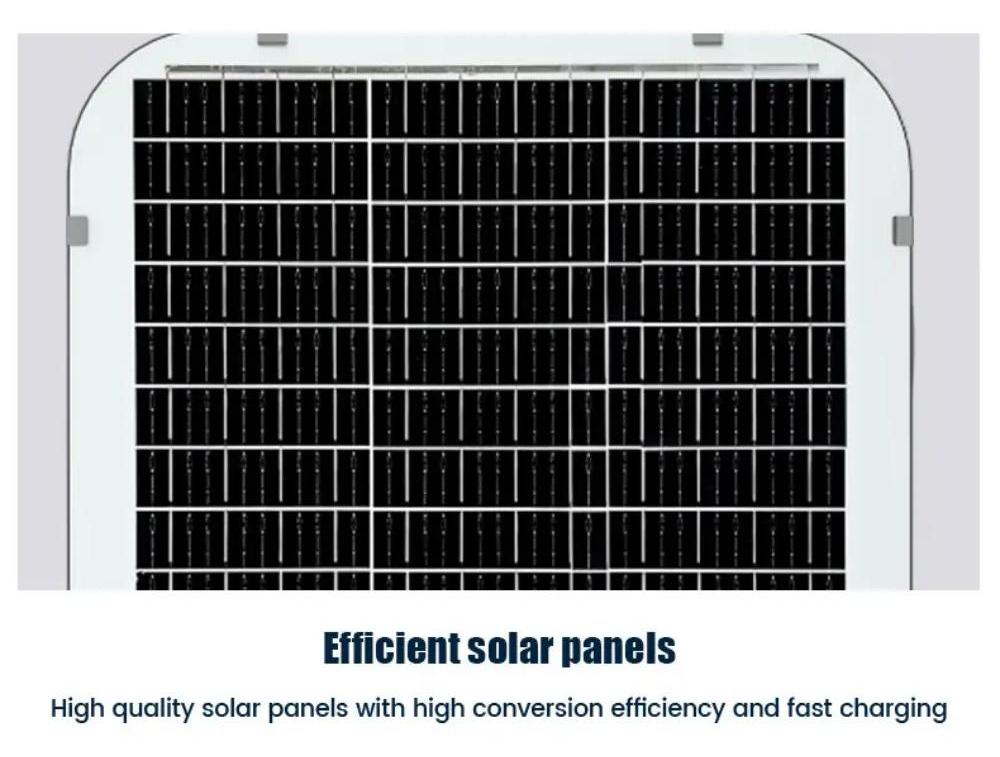

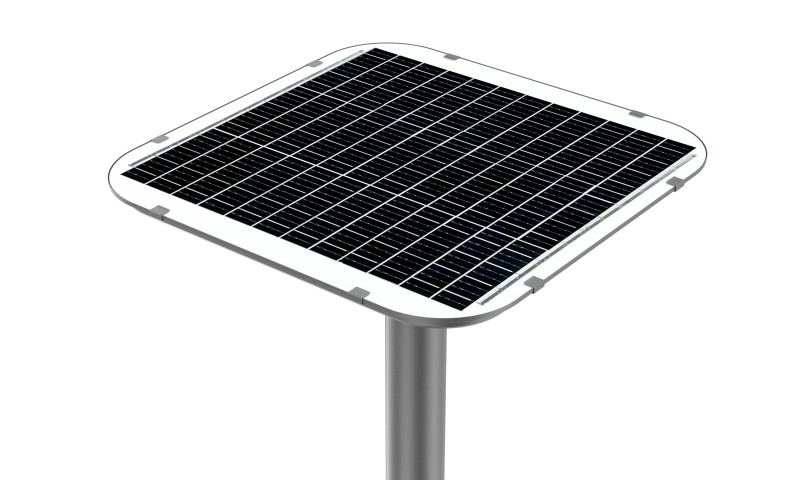

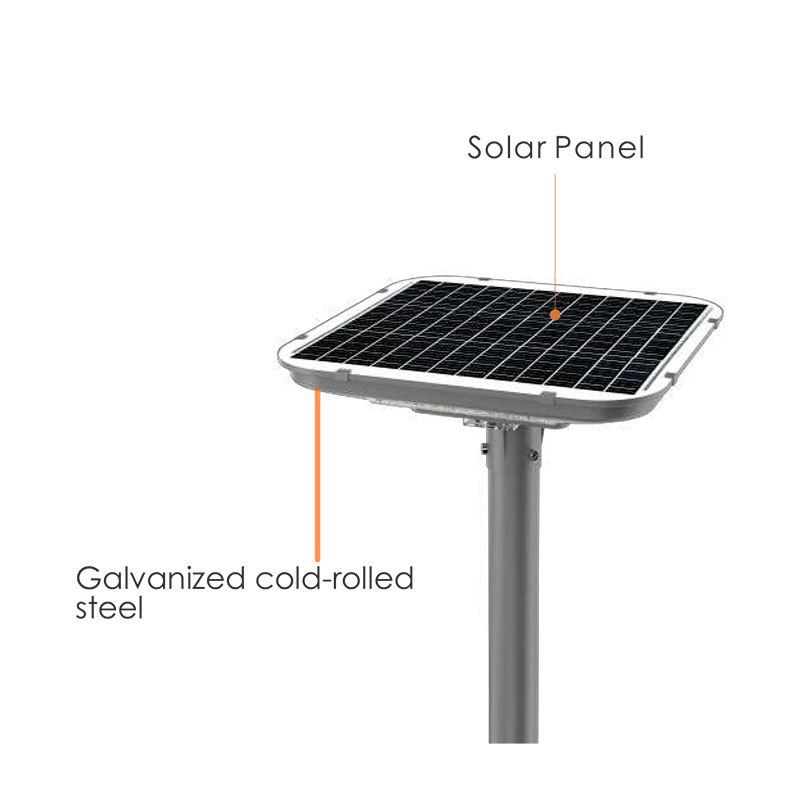

High-Efficiency Monocrystalline Solar Panel
Equipped with high-efficiency monocrystalline solar panel. It performs well under low light conditions and keeps stable energy storage on cloudy days, delivering better charging performance than ordinary solar panels.

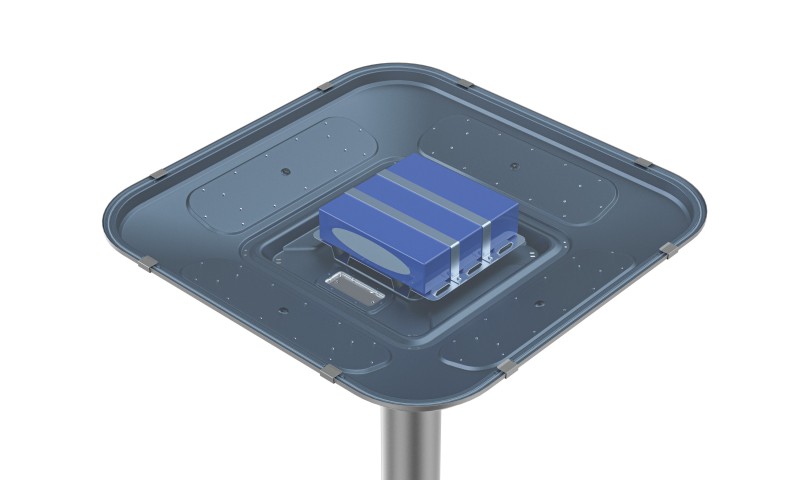

Industrial Grade LiFePO4 Battery
Built-in large-capacity LiFePO4 battery. It features wide temperature tolerance, long charge-discharge cycle and low capacity attenuation, with stable power output to extend the whole lamp’s service life.
Intelligent Electronic Control System

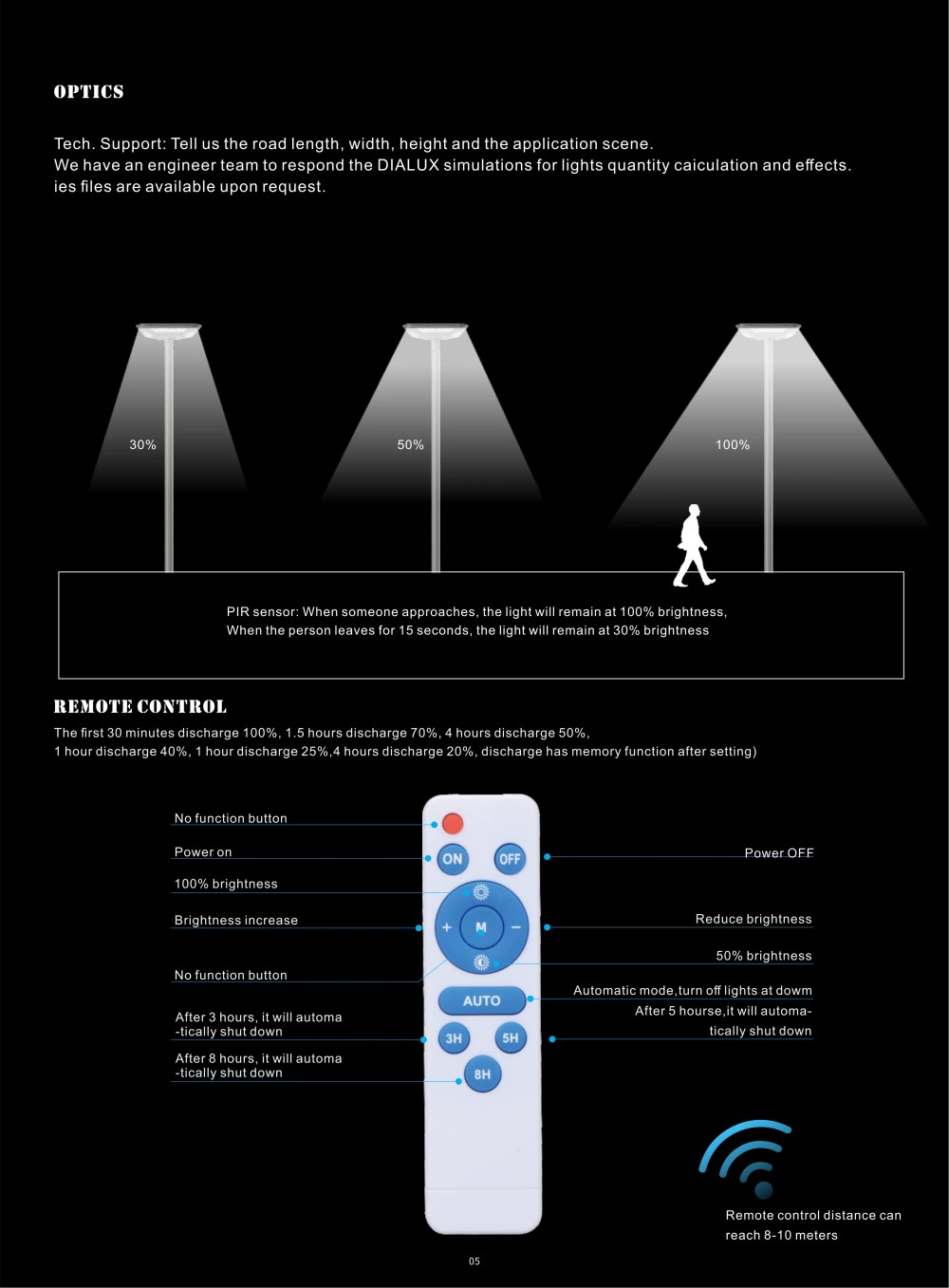

Adopts dedicated smart control chip with dusk sensor, motion sensor, timer and remote control functions. It responds sensitively and runs stably for comfortable operation.
IP65/IP66 Sealed Protection
Sealing rings are installed on all joints. Combined with the high tightness of die-cast aluminum housing, the lamp reaches IP65/IP66 rating. It blocks rain and dust effectively and protects internal circuits and core parts.
Standard Universal Mounting Interface
It adopts industry-standard mounting size, compatible with most common light poles. No extra modification or accessories are required. The installation is simple and the structure stays firm after mounting.
-

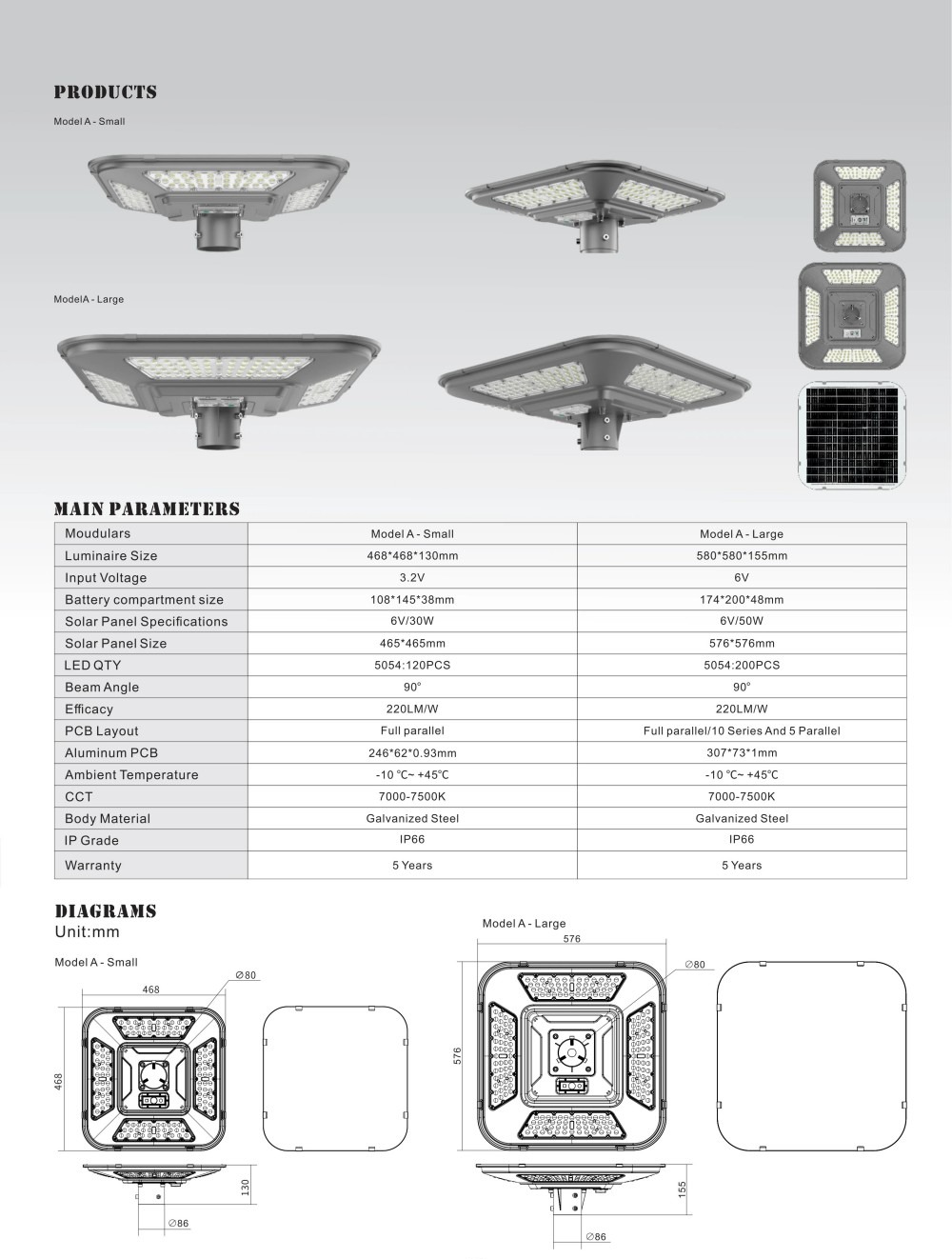

| Moudulars | XHA-Small | XHA-Large |
| Luminaire Size | 468*468*130mm | 580*580*155mm |
| Input Voltage | 3.2V | 6V |
| Battery compartment size | 108*145*38mm | 174*200*48mm |
| Solar Panel Specifications | 6V/30W | 6V/50W |
| Solar Panel Size | 465*465mm | 576*576mm |
| LEDQTY | 5054:120PCS | 5054:200PCS |
| BeamAngle | 90° | 90° |
| Efficacy | 220LM/W | 220LM/W |
| PCB Layout | Full parallel | Full parallel/10 SeriesAnd 5Parallel |
| Aluminum PCB | 246*62*0.93mm | 307*73*1mm |
| Ambient Temperature | -10℃~+45℃ | -10℃~+45℃ |
| CCT | 7000-7500K | 7000-7500K |
| Body Material | Galvanized Steel | Galvanized Steel |
| IPGrade | IP66 | IP66 |
| Warranty | 5Years | 5Years |

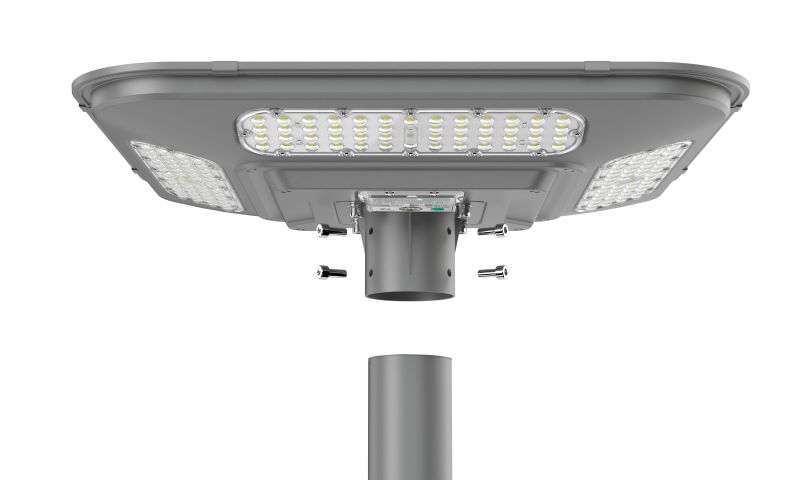

Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
