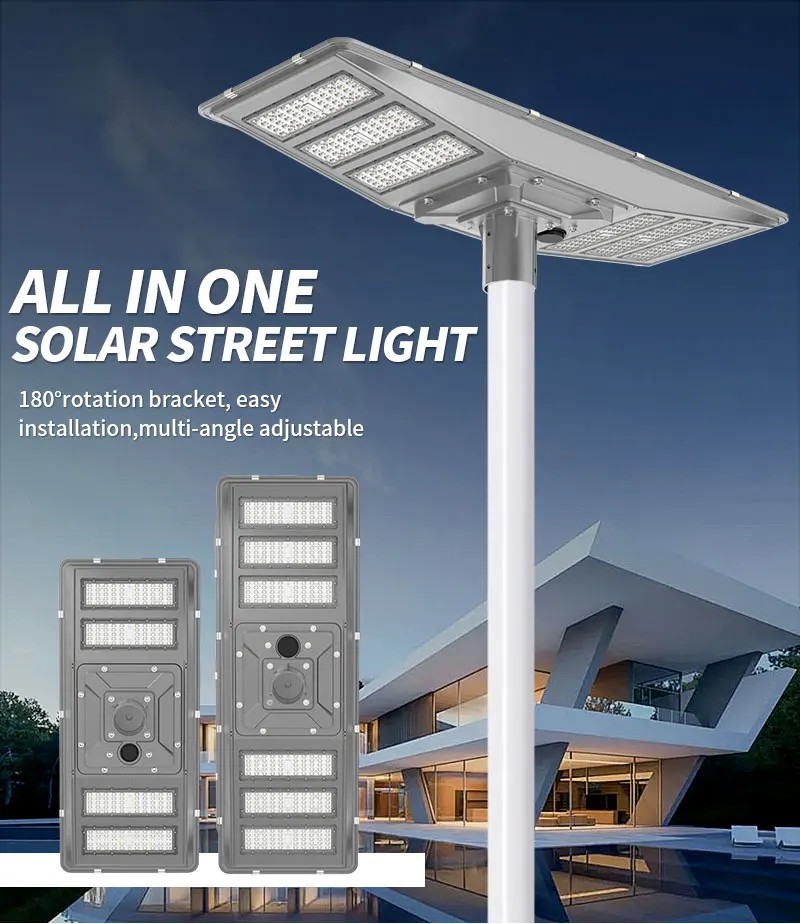

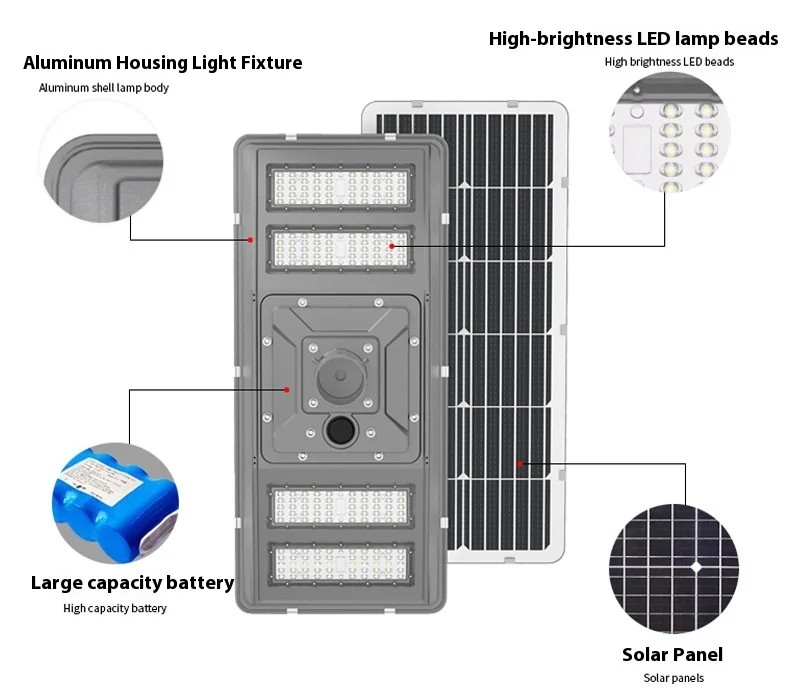

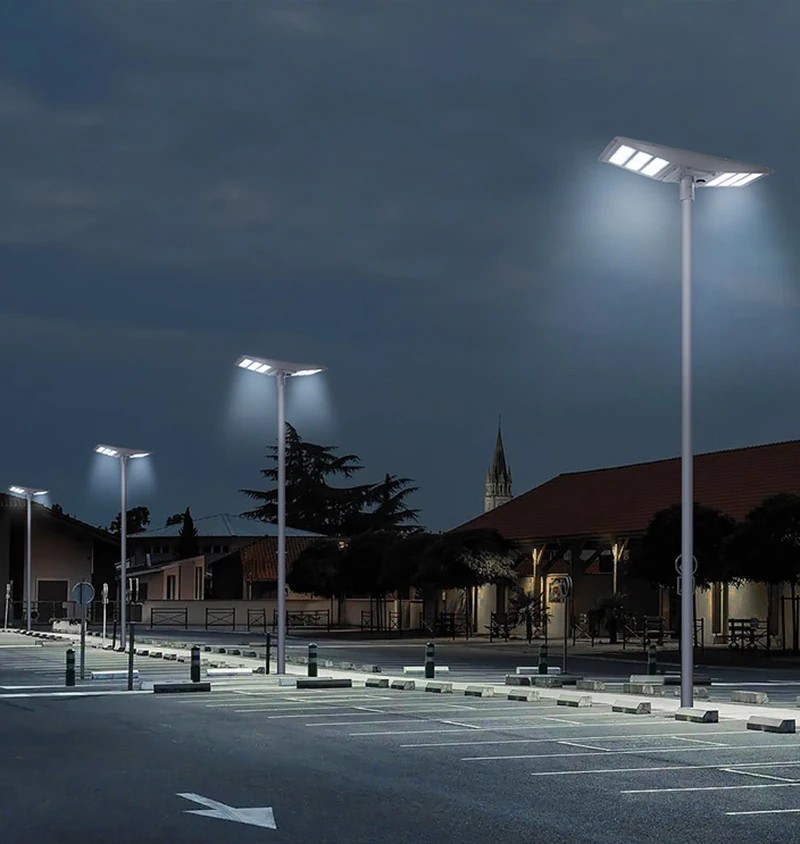

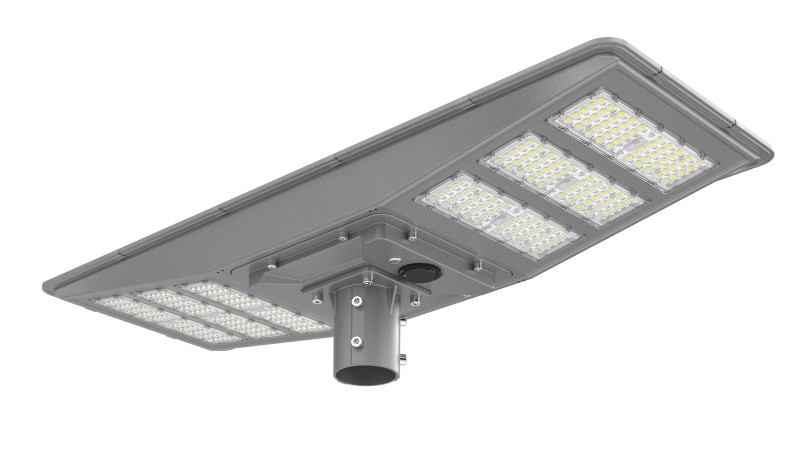

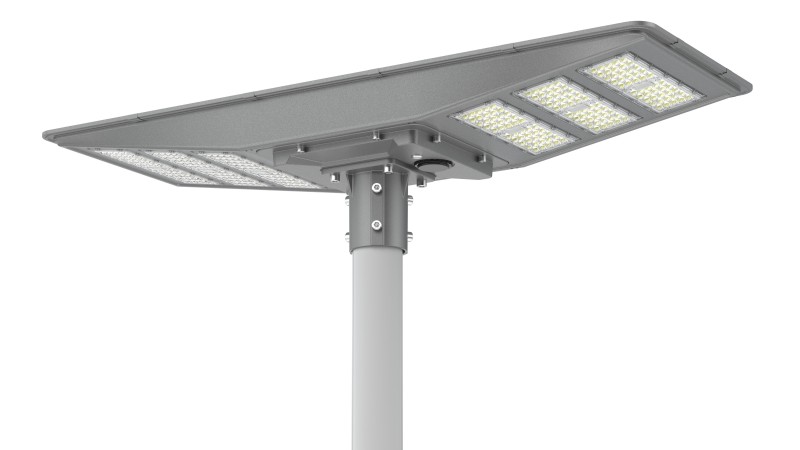

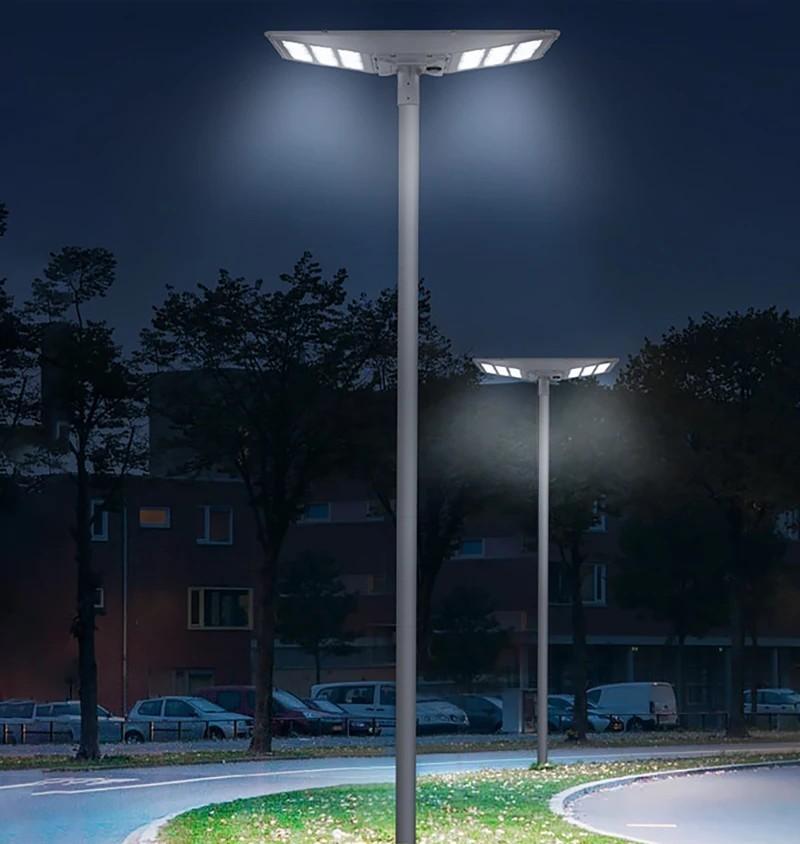

The Polaris All-in-One Solar Street Light is an integrated outdoor lighting solution that combines a high-efficiency monocrystalline solar panel, long-lasting LiFePO4 battery, high-brightness LED module, and intelligent controller into a single compact unit. Named after Polaris (the North Star), which symbolizes guidance, stability and eternity, this product is designed for grid-free areas and energy-saving projects, delivering reliable 24/7 illumination with zero electricity bills. It is the ideal choice for urban roads, rural highways, parks, parking lots, and residential communities, just like Polaris guiding the way in the night sky.

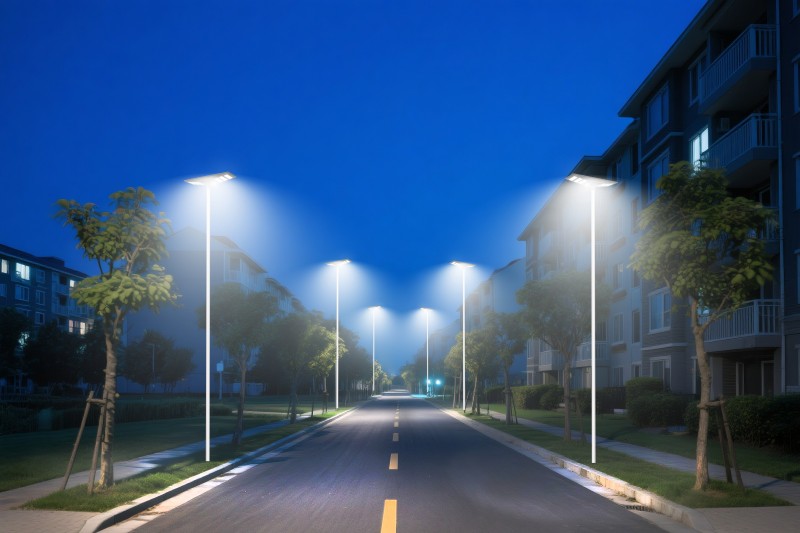

Applications:
Certified Quality for Global Projects
Polaris All-in-One Solar Street Light | IP66 Waterproof | 120W High Lumen
High-Lumen Outdoor Lighting for Projects

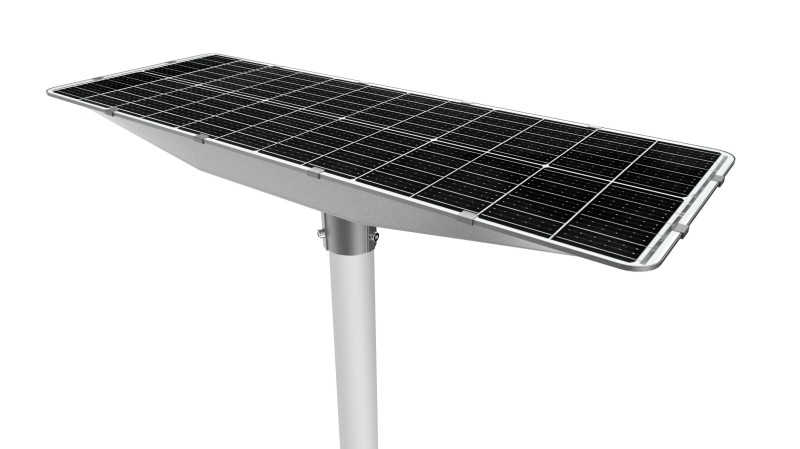

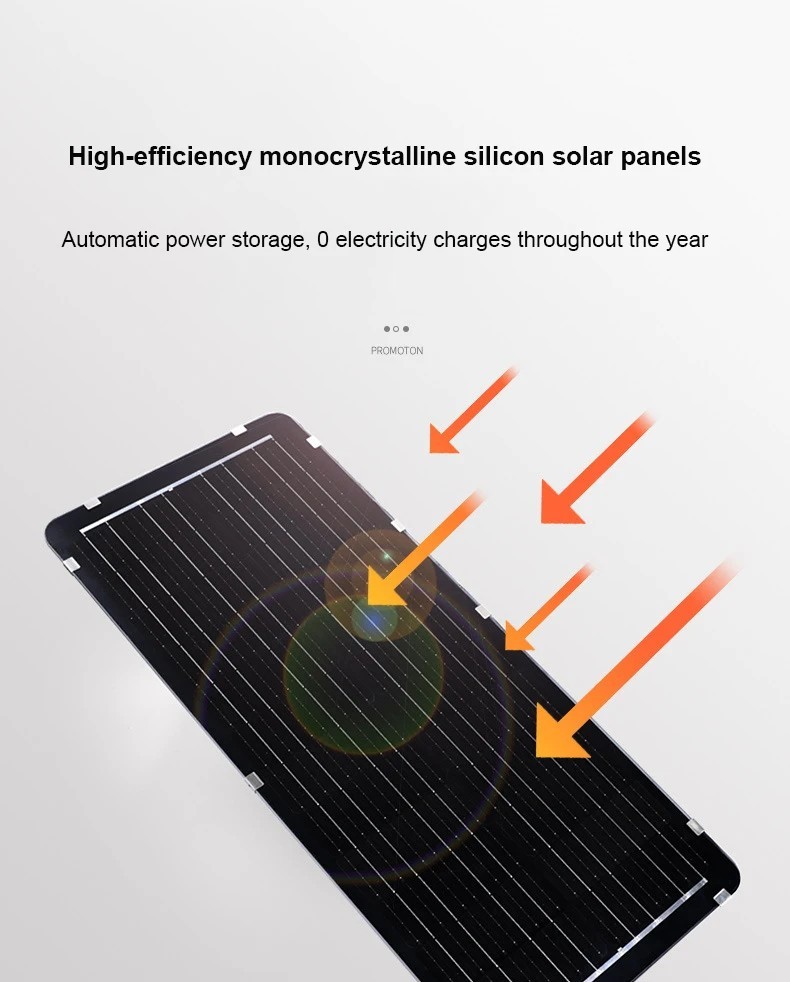

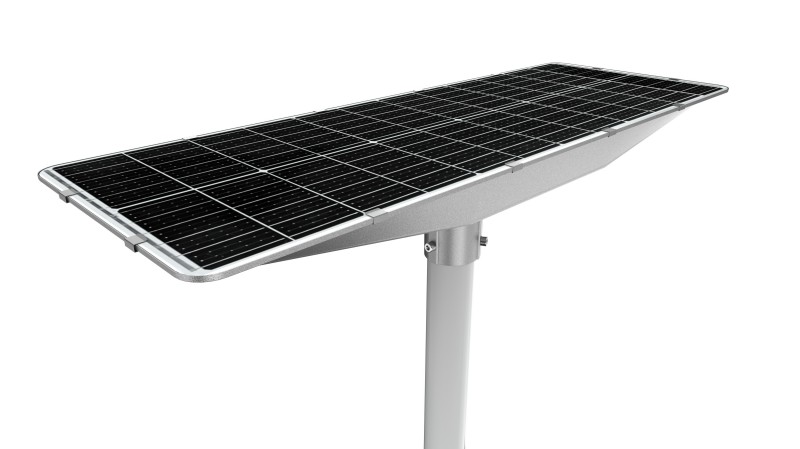

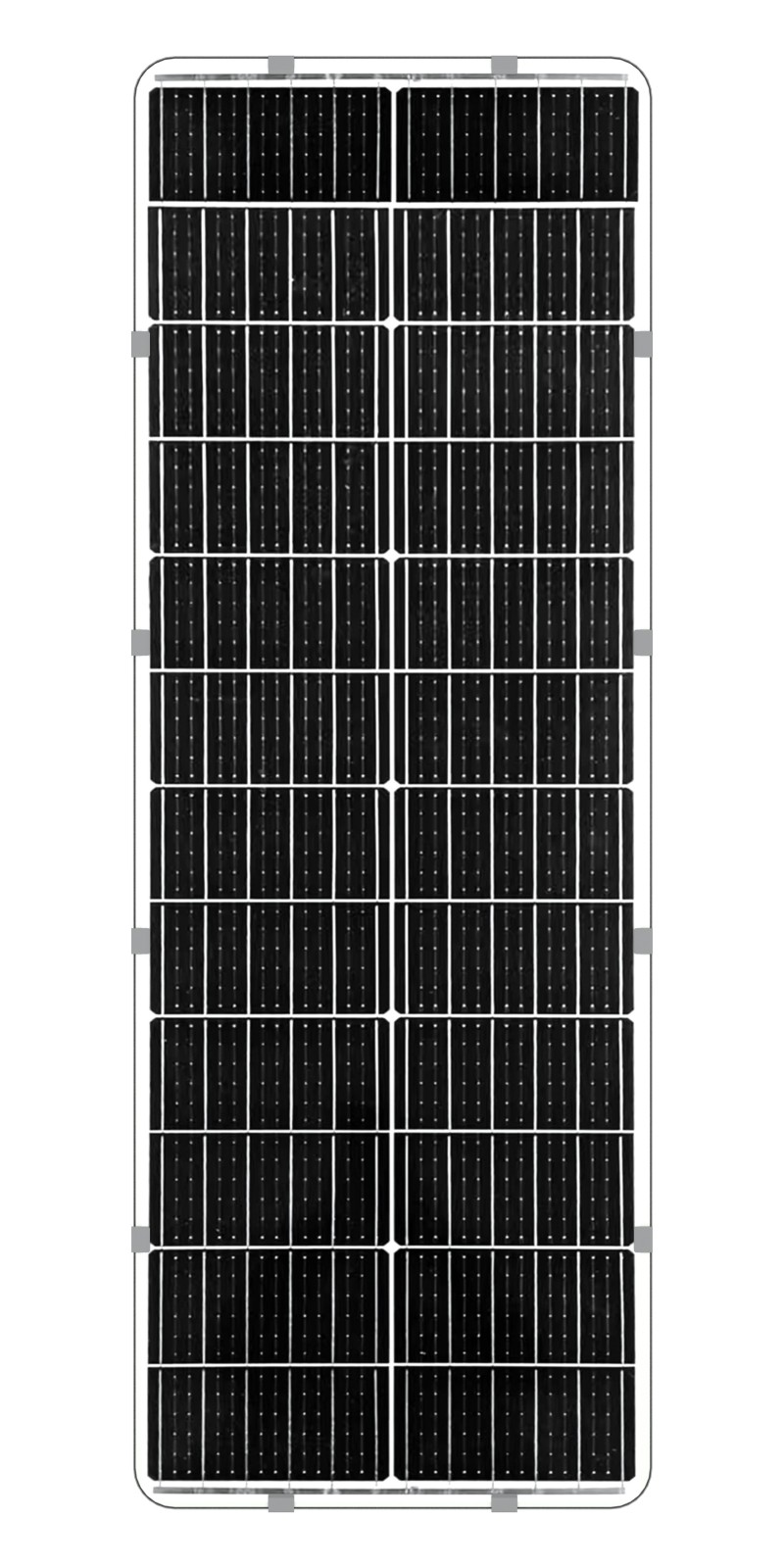

Polaris Monocrystalline Solar Panel
Adopts 22%+ efficiency monocrystalline silicon cells, ensuring maximum energy absorption even under low sunlight. The panel is UV-stabilized and weather-resistant, with a 25-year lifespan for long-term use, just as Polaris remains stable in the sky.

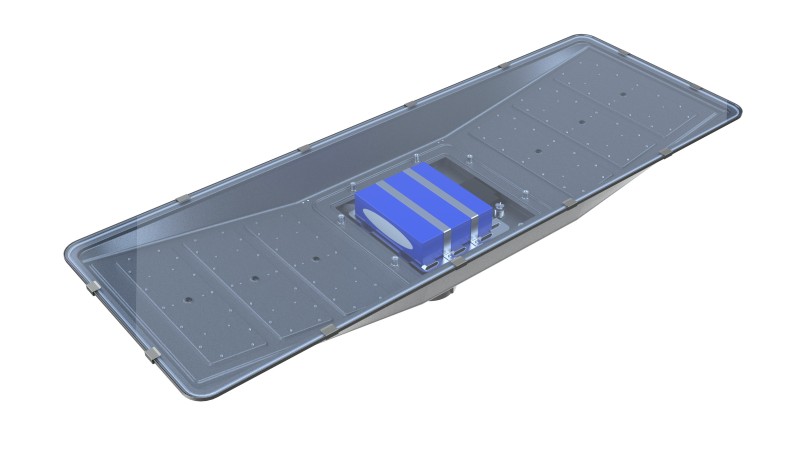

Polaris LiFePO4 Battery System
Equipped with Grade A LiFePO4 battery, supporting 2000+ charge-discharge cycles and 3-5 consecutive rainy days backup. Built-in BMS prevents overcharging, over-discharging, and short circuits for safe operation, delivering stable performance like Polaris.

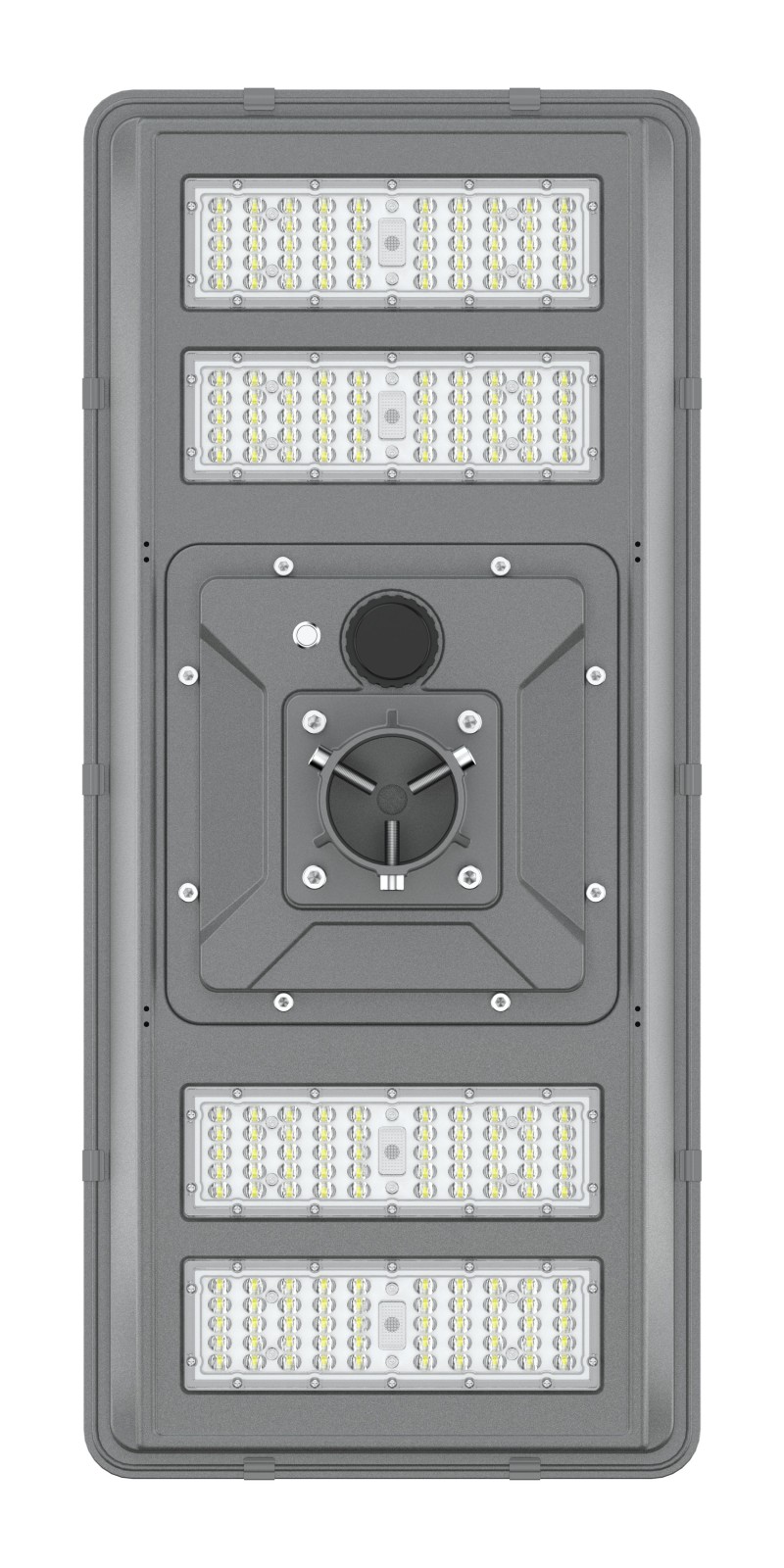

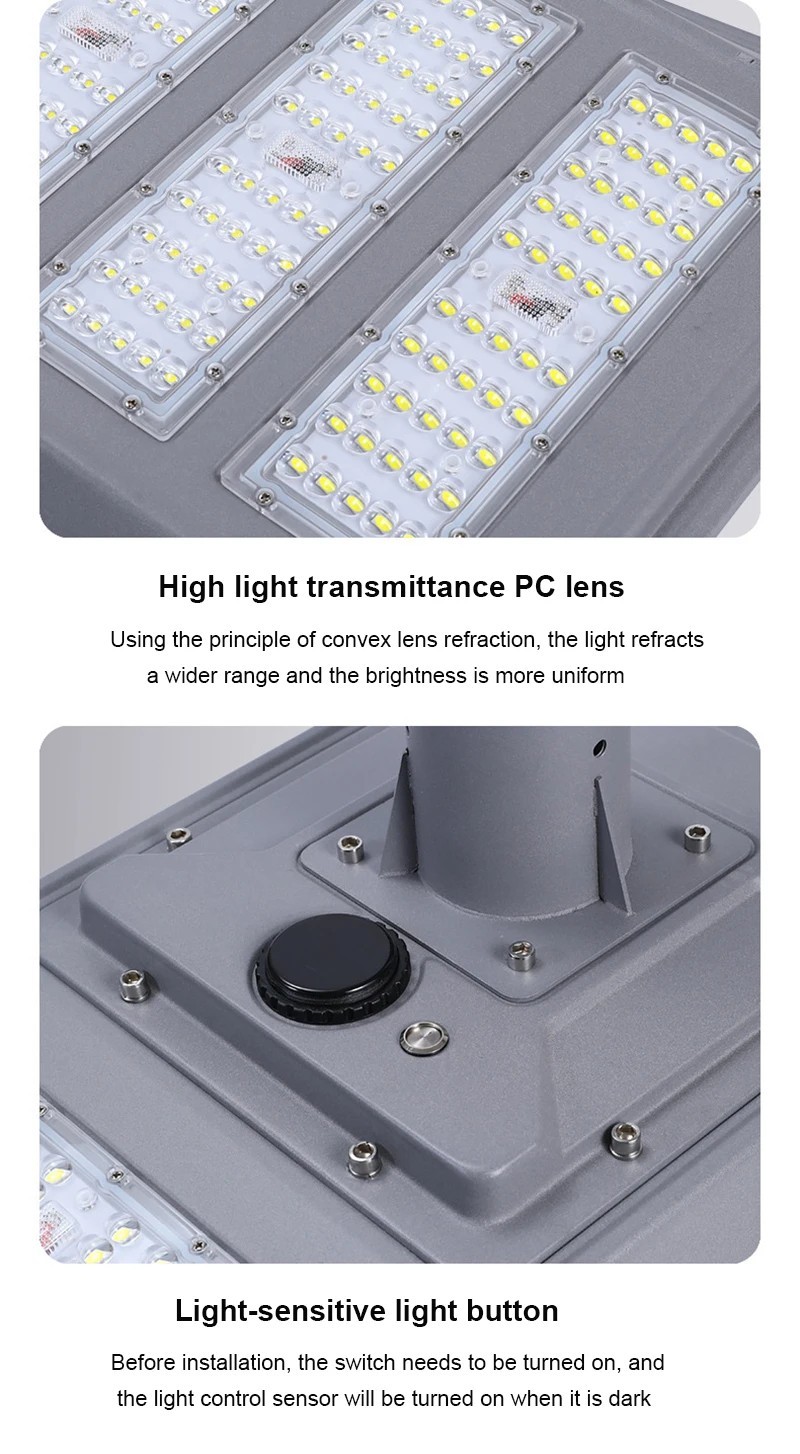

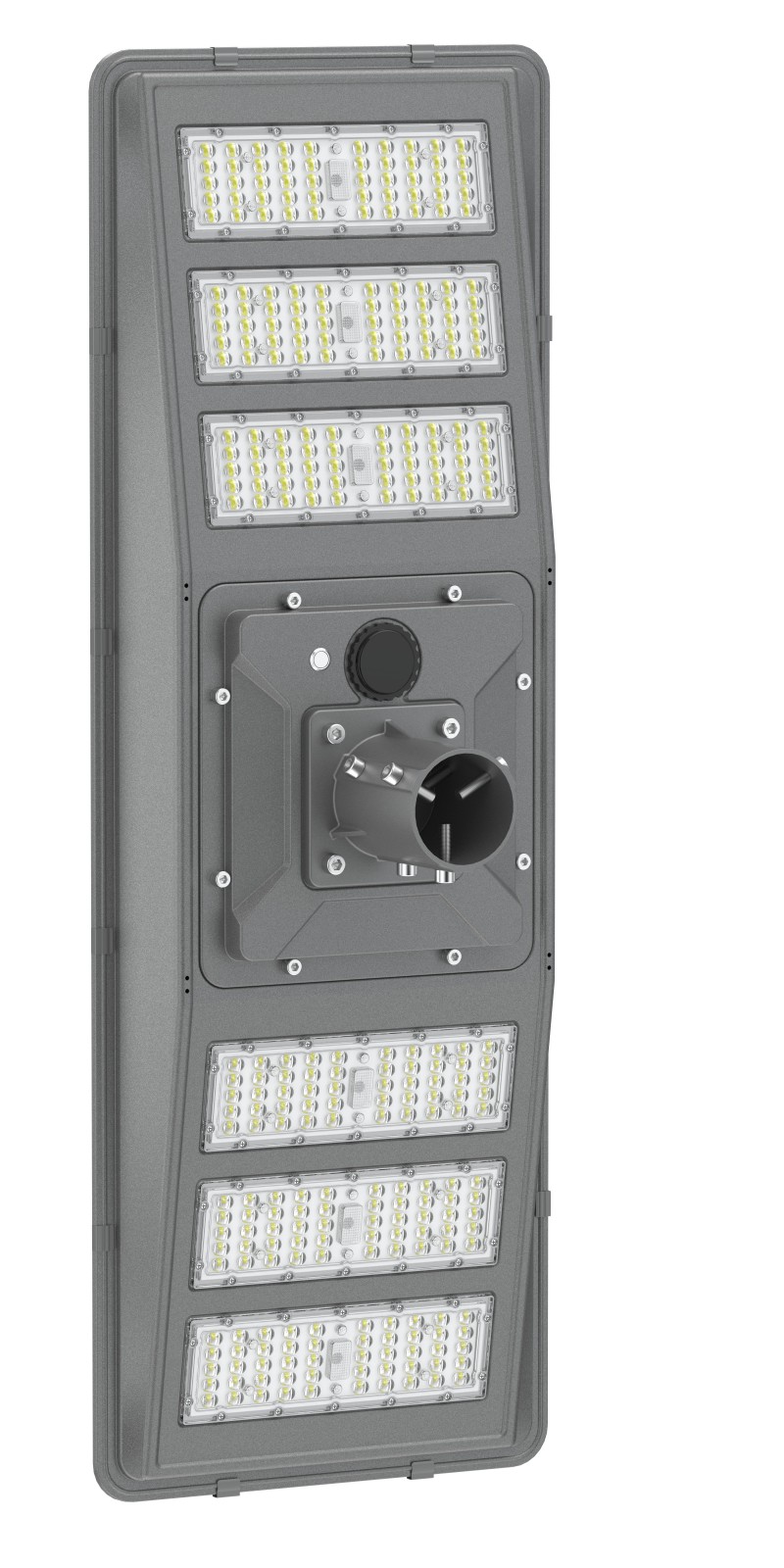

Polaris High-Efficiency LED Lighting

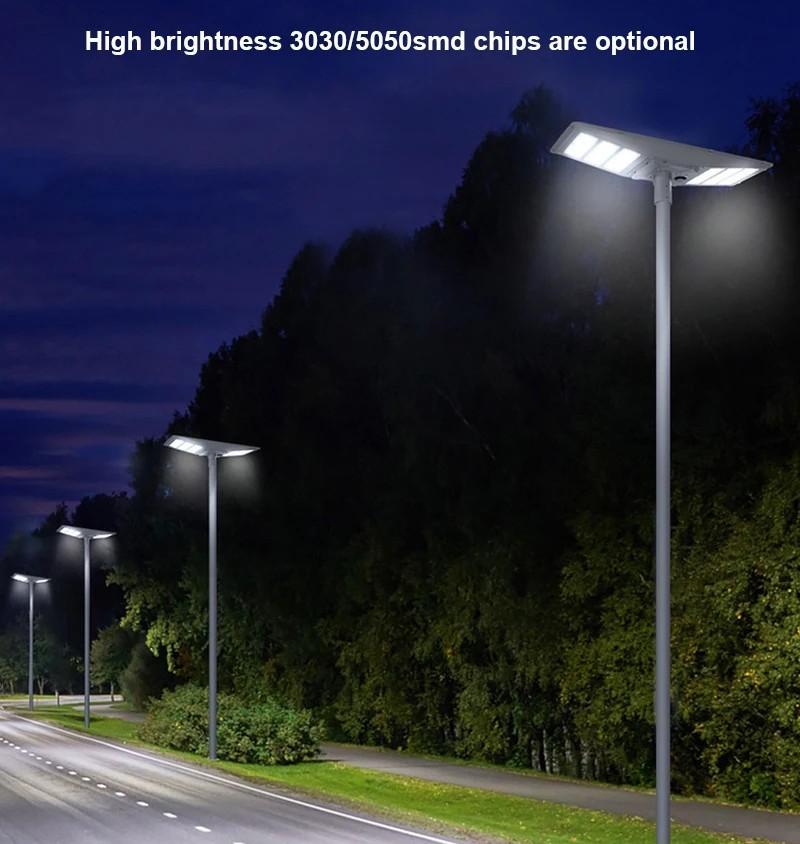

Uses premium 3030/2835 LED chips with 130lm/W high luminous efficacy, delivering uniform, glare-free illumination. The secondary optical design expands irradiation coverage by 30%, reducing lighting spacing by 25%, providing clear guidance like Polaris.

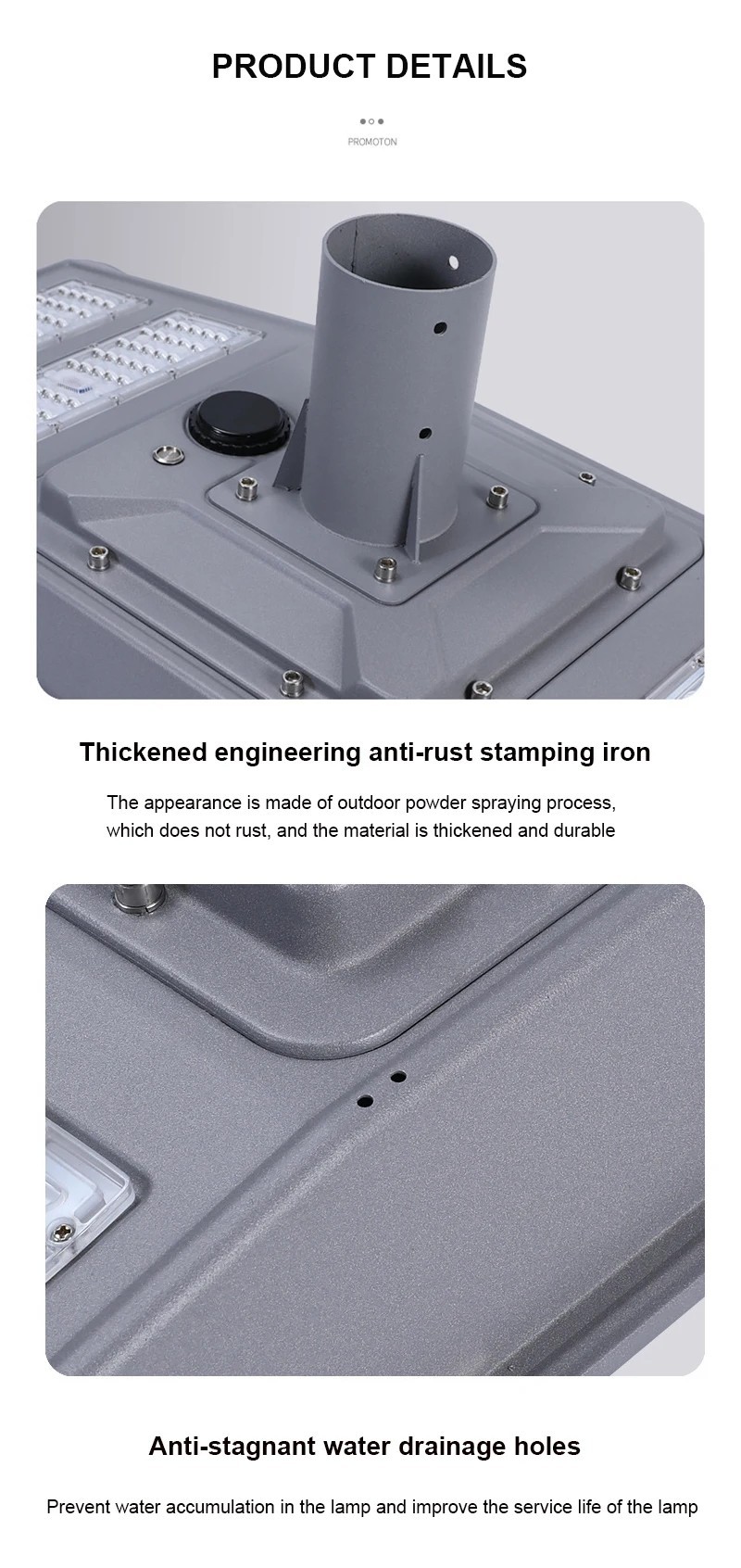

Polaris Extreme Weather Resistance
IP66 waterproof & dustproof rating, with a rugged die-cast aluminum housing that resists corrosion, UV rays, and mechanical impacts. Operates stably in -20℃~60℃ extreme environments, maintaining reliability in any weather.
Polaris Smart Energy Management

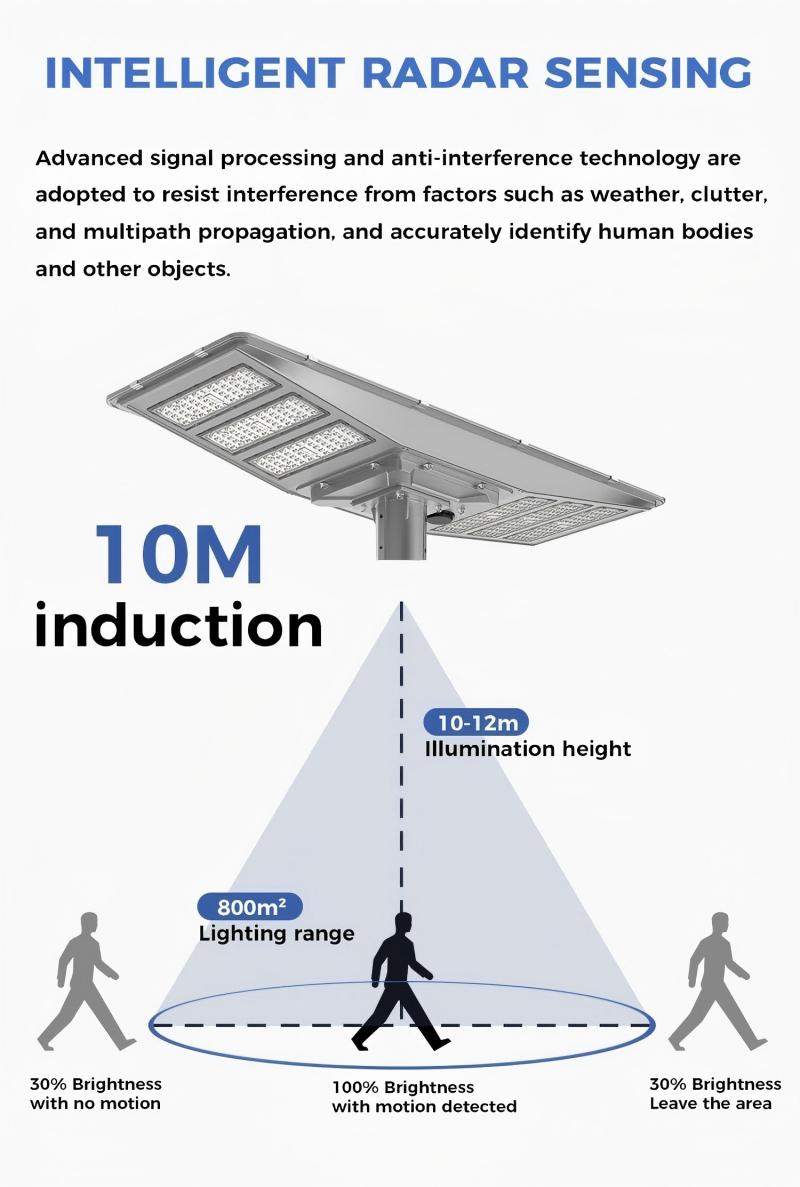

Built-in PIR motion sensor automatically adjusts brightness—100% brightness when motion is detected, 30% brightness in standby mode. Saves up to 60% energy while enhancing security, intelligent and energy-saving.
Polaris Tool-Free Installation
Integrated modular design requires no complex wiring or pole modification. Comes with all mounting accessories, enabling quick installation by 1 person within 15 minutes, saving time and labor costs.
| Dimensions | 400*900*200mm | 400*1120*230mm |
| Power | 60W | 120W |
| Recommended Installation Height | 5-6M | 8-10M |
| Luminous Flux | 4400LM | 6600LM |
| Color Temperature | 3000K – 6500K | |
| Light Distribution | Type II, Type III | |
| Input Voltage | DC12/24V | |
| Mono Solar Panel Power | 70W | 90W |
| LiFePO4 Battery Capacity | 320Wh | 384Wh |
| Solar Controller | 10A – 20A | |
| Control Mode | Motion Sensor, PIR Sensor, Timer Dimming, Daylight Sensor | |
| Installation Type | Rear / Side Entry | |
| Lamp Material | Galvanized Iron | |
| Operating Temperature | -20 – 65°C | |
| Protection Grade | IP66 / IK09 | |
| Wind Resistance | > 120 km/h | |
| Service Life | > 10 Years | |
| Service Life | 4-5 Nights | |
Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.

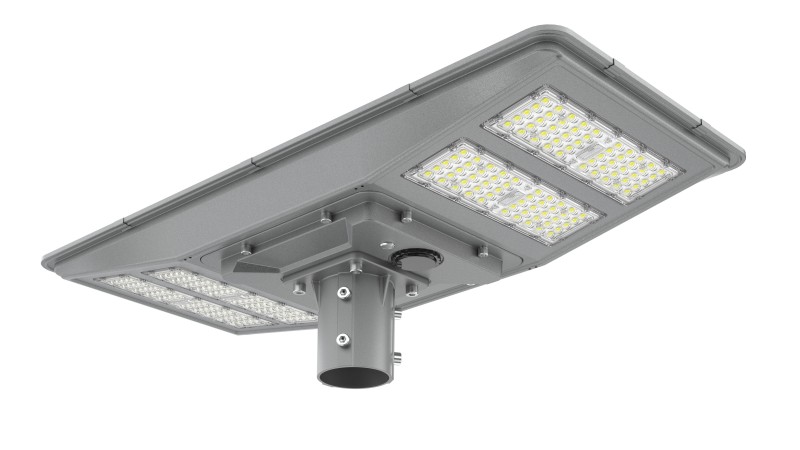

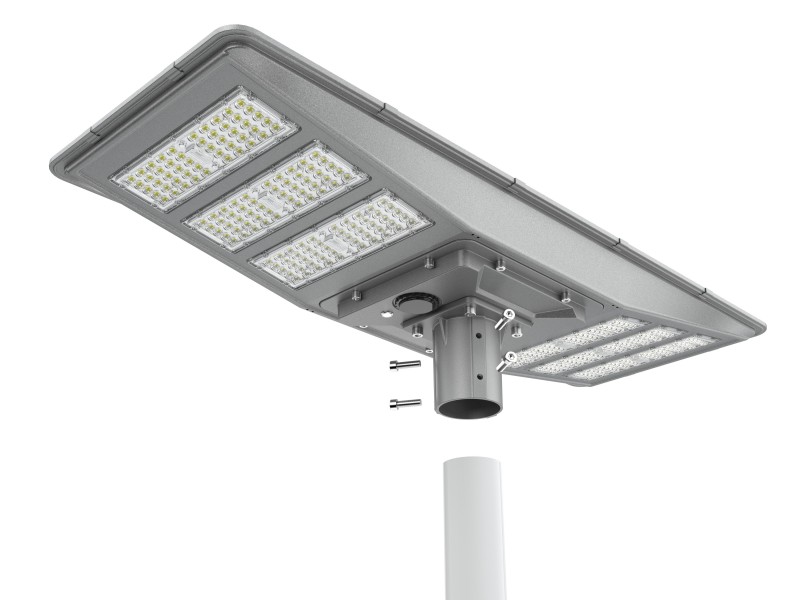

Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
