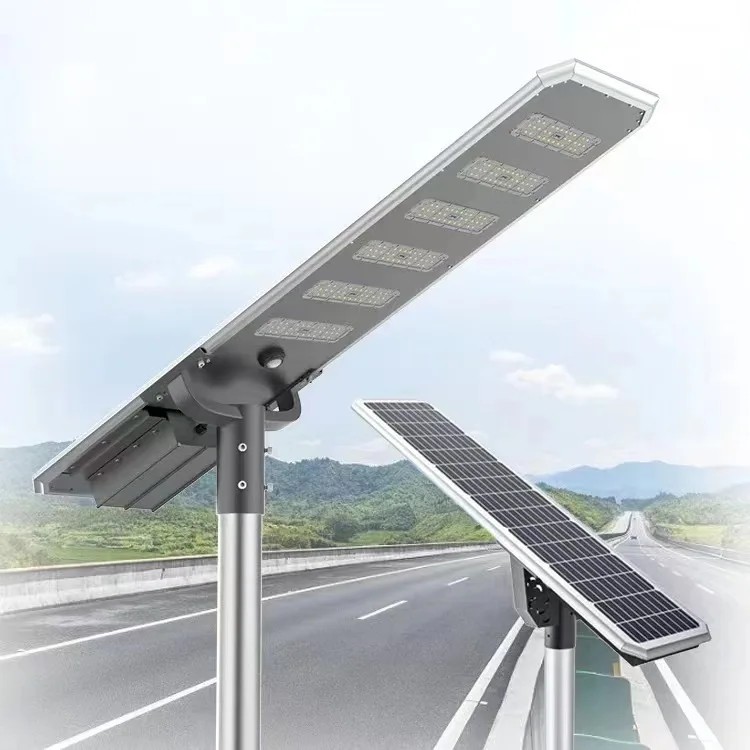

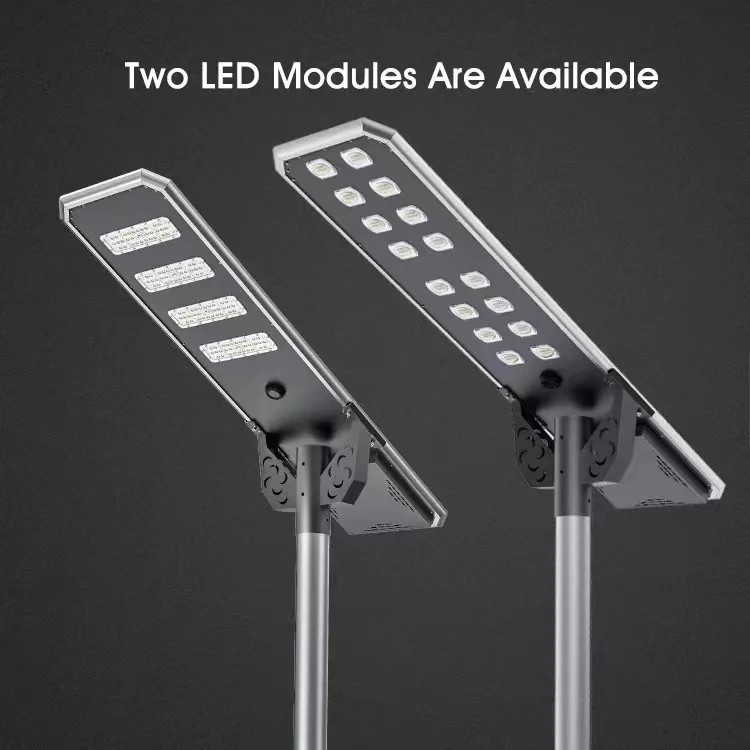

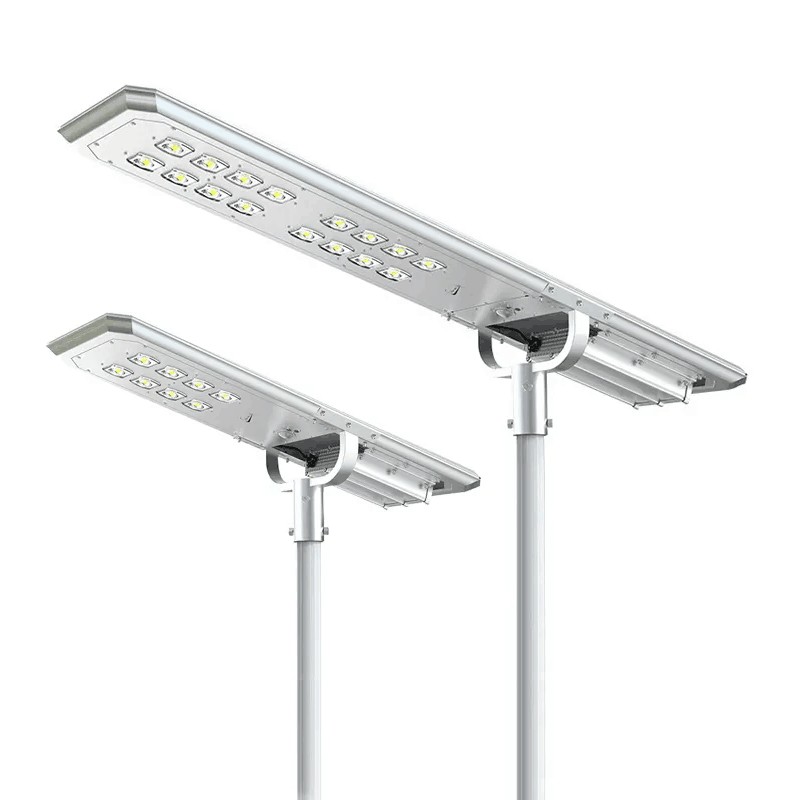

Octagon all-in-one solar street light is a newly upgraded outdoor lighting solution with dual LED module options: COB integrated module and SMD lamp bead version for your choice.

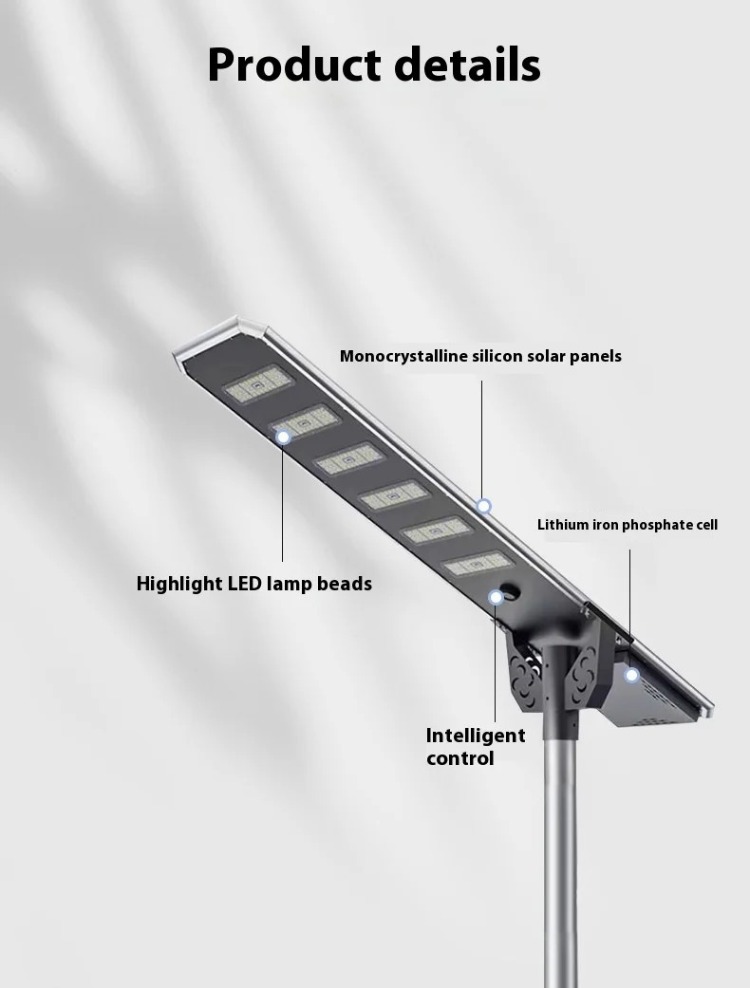

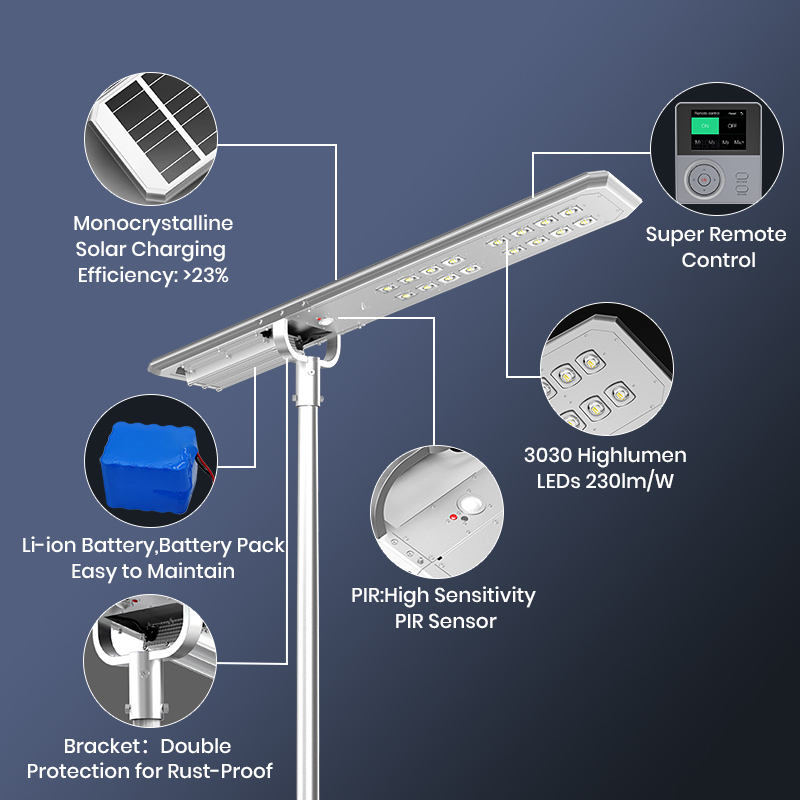

Integrating solar panel, lithium battery, LED light source and intelligent controller into one unit, it needs no grid power and no complicated wiring. With flexible angle adjustable bracket, the solar panel can capture sunlight efficiently to ensure long-time night lighting.
Adopting die-cast aluminum alloy body and IP65 waterproof design, the light is dustproof, rainproof and corrosion resistant, suitable for all kinds of harsh outdoor climates. Built-in light sensor realizes automatic on/off from dusk to dawn, greatly saving energy and maintenance cost.

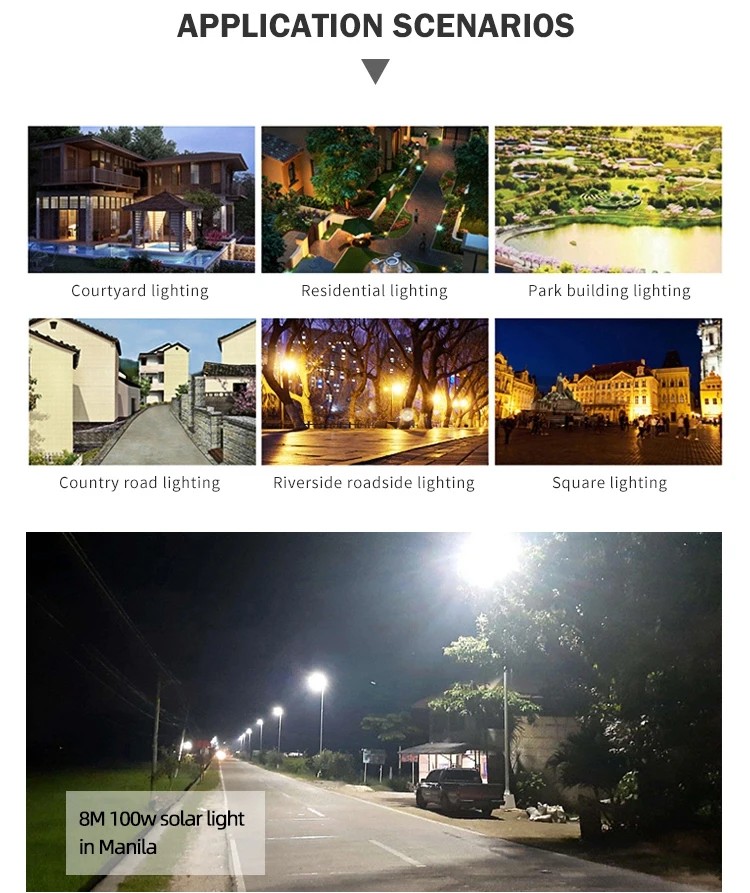

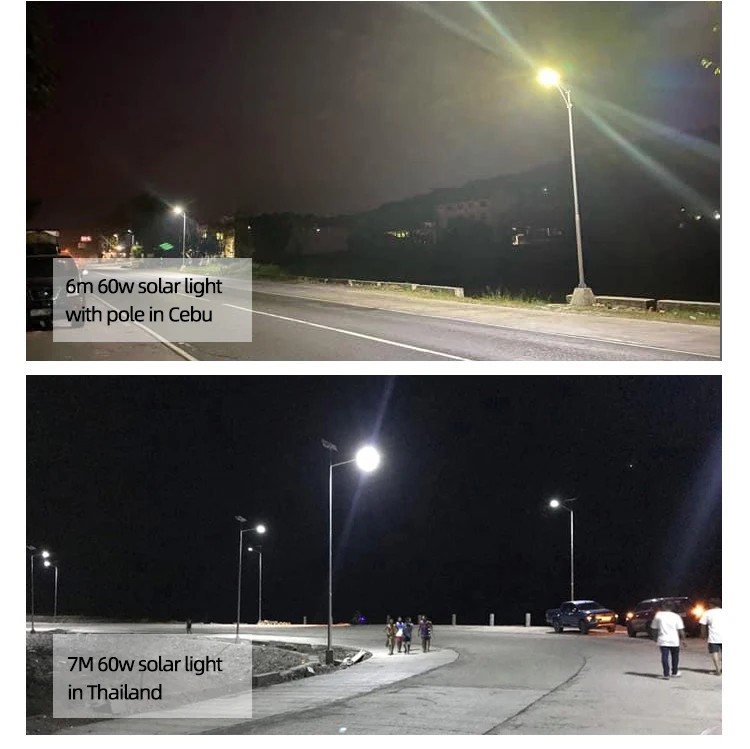

Widely applied in urban and rural roads, residential communities, parks, parking lots and remote off-grid areas. NOVA Series supports OEM, ODM and logo customization, being your reliable partner for outdoor lighting projects.
Applications:
Certified Quality for Global Projects

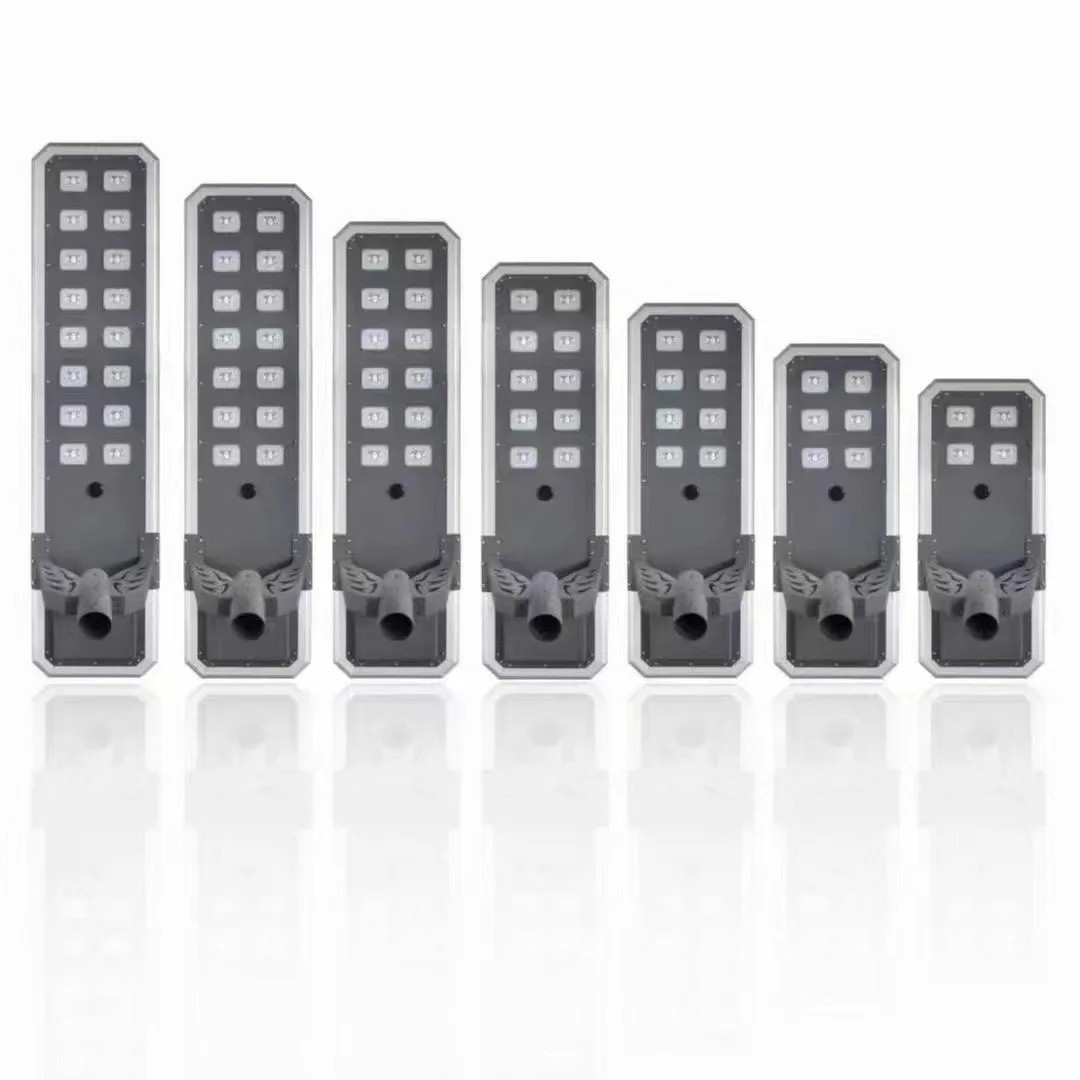

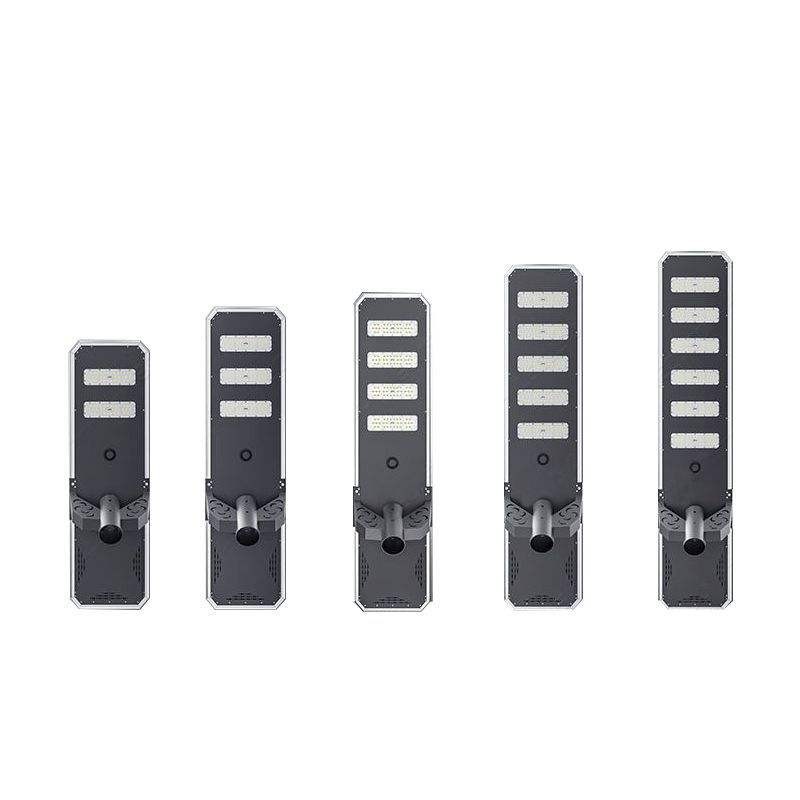

Octagon Integrated Solar Street Light (40W-120W)
High-Lumen Outdoor Lighting for Projects
Superior Luminous Efficacy

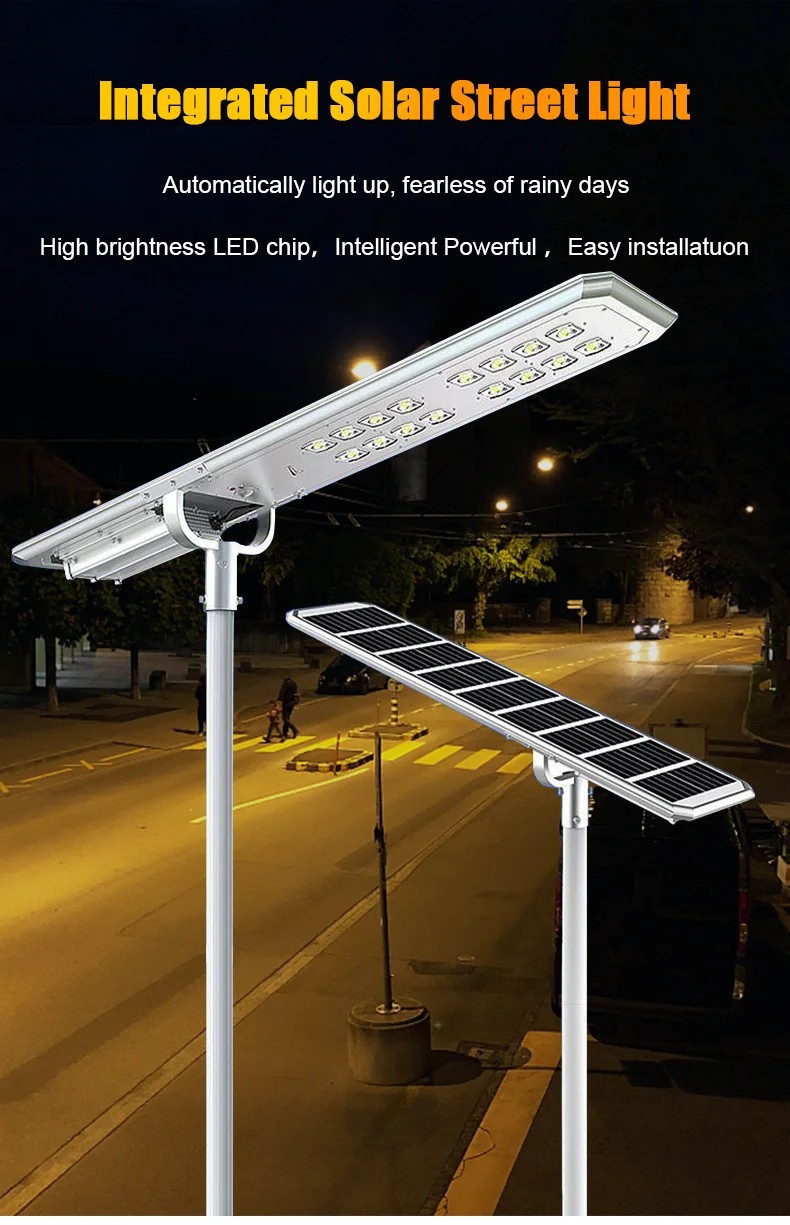

Boasting superior luminous efficacy, the Sirius Series is equipped with premium Bridgelux/Philips LED chips, delivering an impressive light output of up to 200lm/W. This exceptional efficiency guarantees maximum brightness while minimizing energy consumption, effectively reducing the overall energy demands of the system.
Intelligent Power Management

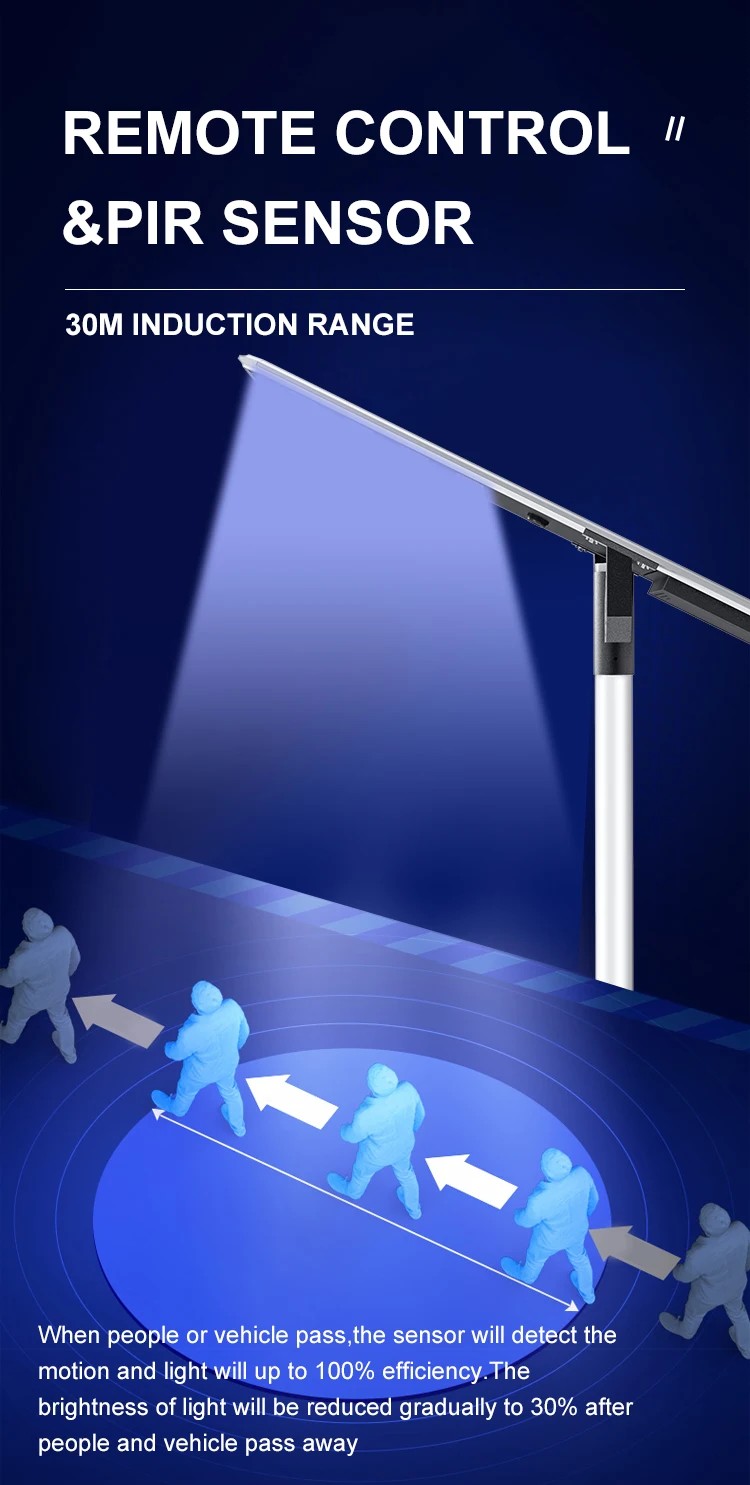

Our proprietary MPPT (Maximum Power Point Tracking) Controller increases charging efficiency by 30% compared to traditional PWM controllers. Combined with a smart PIR motion sensor, the system ensures stable lighting for 3-5 continuous rainy days.
Harsh Environment Adaptation

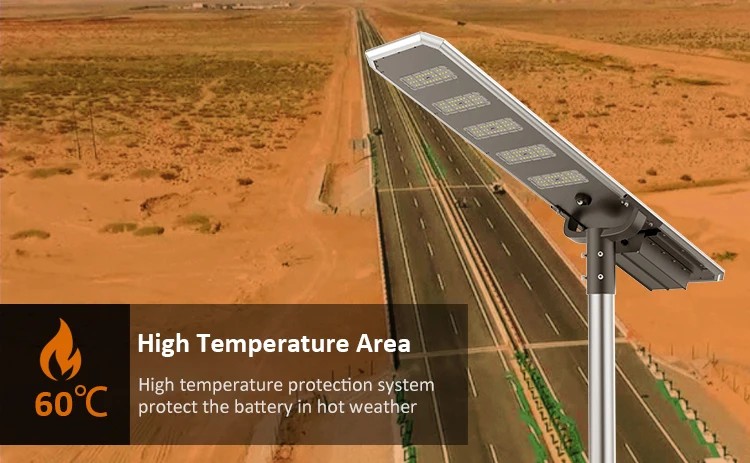

Protection grade up to IP66 and impact resistance grade IK09, using aviation-grade die-cast galvanized iron shell with anti-corrosion coating, which can resist harsh weather such as typhoons (wind resistance >120km/h), heavy rain, and desert dust, suitable for coastal, plateau and other scenarios.
Long Lifespan & Easy Maintenance

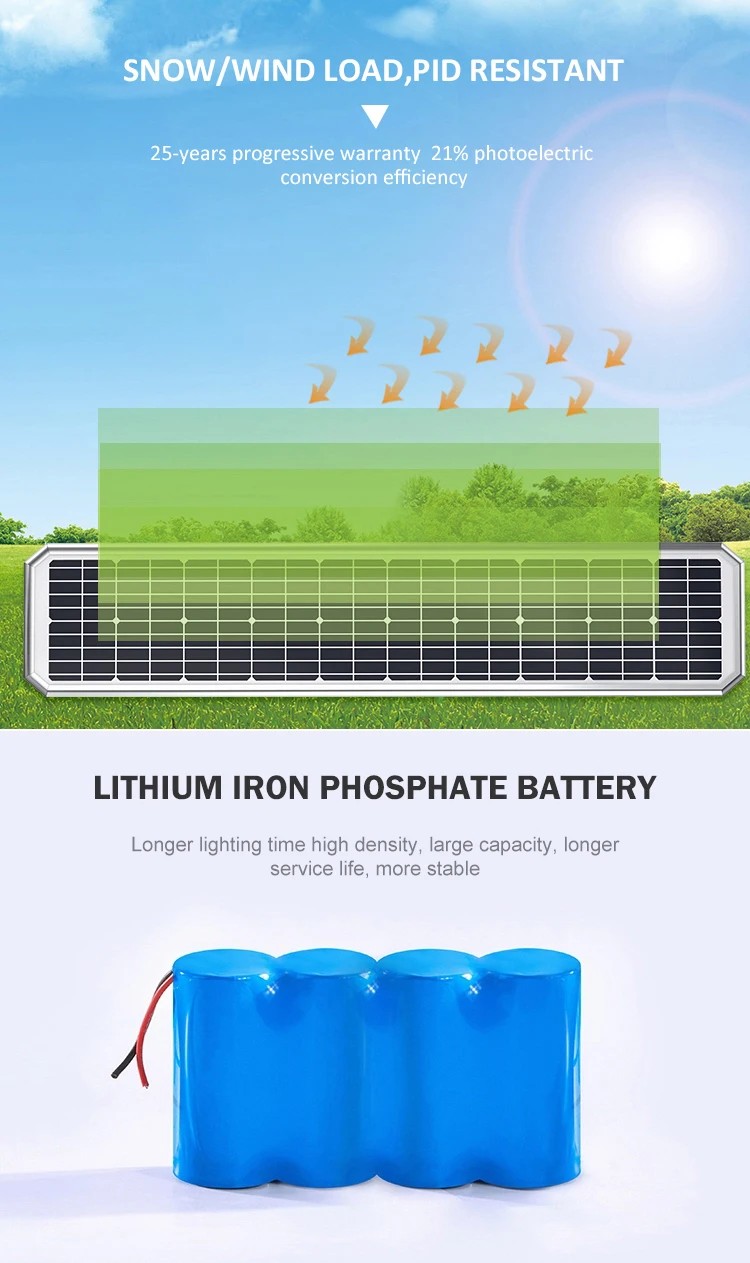

Using Grade A LiFePO4 batteries with more than 2000 deep charge-discharge cycles, the actual service life is 5-8 years, far exceeding lead-acid batteries; the detachable battery case design facilitates regular inspection and maintenance of the battery, extending the service life of the entire system.
Flexible Installation

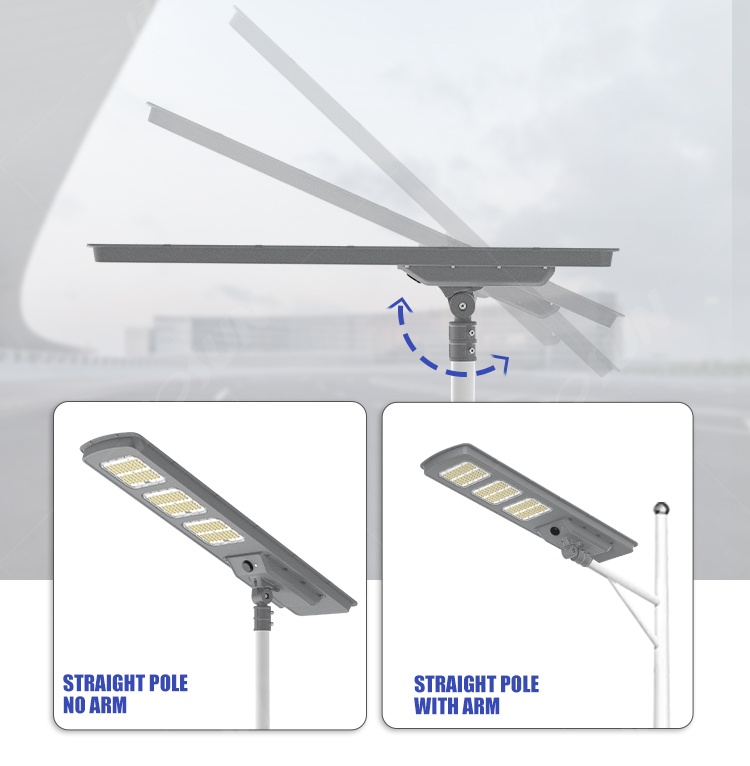

Integrated "plug-and-play" design, no complicated wiring required; 0-180° adjustable bracket, supporting vertical and horizontal installation methods, adapting to different lighting angle requirements, high installation efficiency, and reducing construction costs.
Uniform Lighting
Using PVVC optical lens with light transmittance up to 98%, reducing lighting dark areas, the light is soft and uniform, suitable for large-area lighting scenarios such as roads and parking lots.
| Dimensions | 910*400*175mm | 1168*400*175mm | 1528*400*175mm | 1528*400*175mm |
| Power | 40W | 60W | 100W | 120W |
| Recommended Installation Height | 5-6M | 6-7M | 7-8M | 8-9M |
| Luminous Flux | 4400LM | 6600LM | 11000LM | 13200LM |
| Color Temperature | 3000K – 6500K | |||
| Light Distribution | Type II, Type III | |||
| Input Voltage | DC12/24V | |||
| Mono Solar Panel Power | 70W | 90W | 140W | 150W |
| LiFePO4 Battery Capacity | 320Wh | 384Wh | 640Wh | 768Wh |
| Solar Controller | 10A – 20A | |||
| Control Mode | Motion Sensor, PIR Sensor, Timer Dimming, Daylight Sensor | |||
| Installation Type | Rear / Side Entry | |||
| Lamp Material | Galvanized Iron | |||

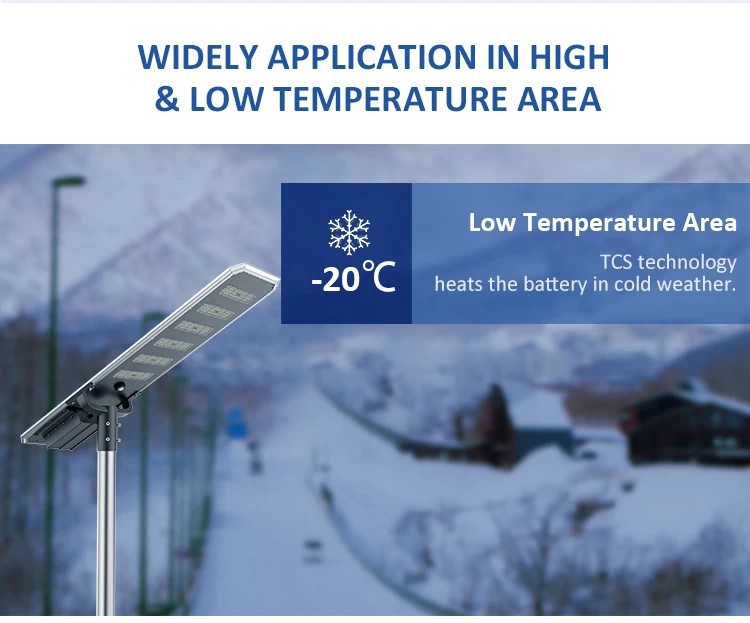

| Operating Temperature | -20 – 65°C | |||
| Protection Grade | IP66 / IK09 | |||
| Wind Resistance | > 120 km/h | |||
| Service Life | > 10 Years | |||
| Service Life | 4-5 Nights | |||

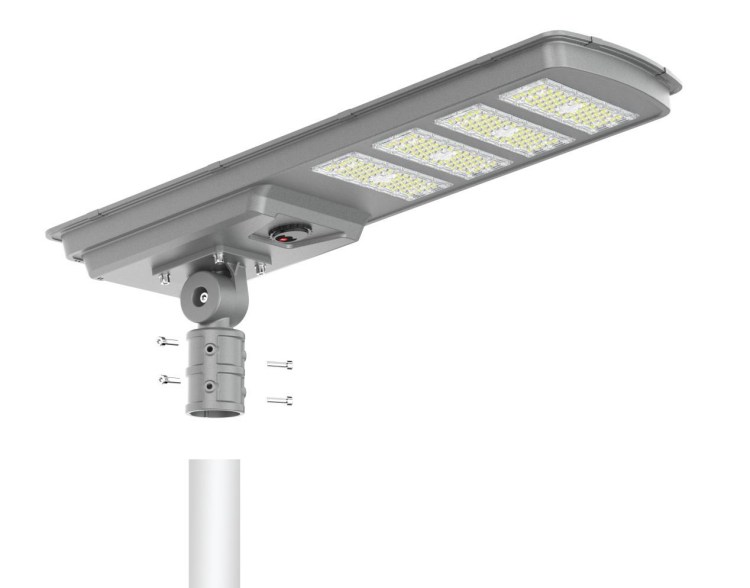

Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.

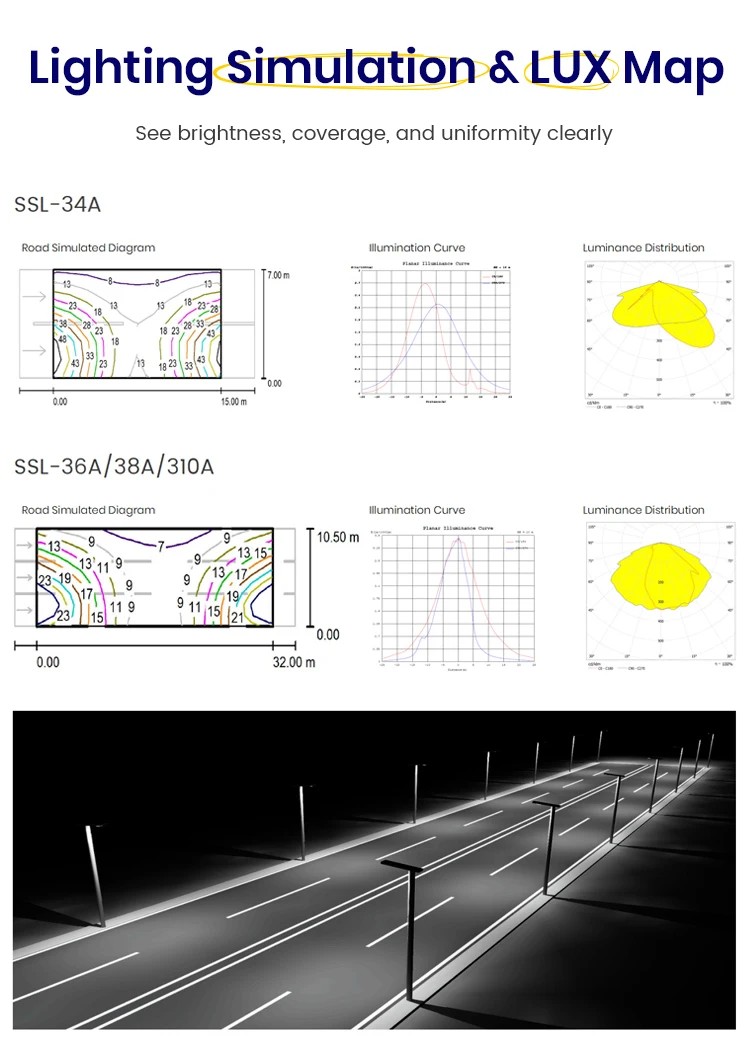

Need a Dialux simulation for your project? Click here for a free lighting plan.
