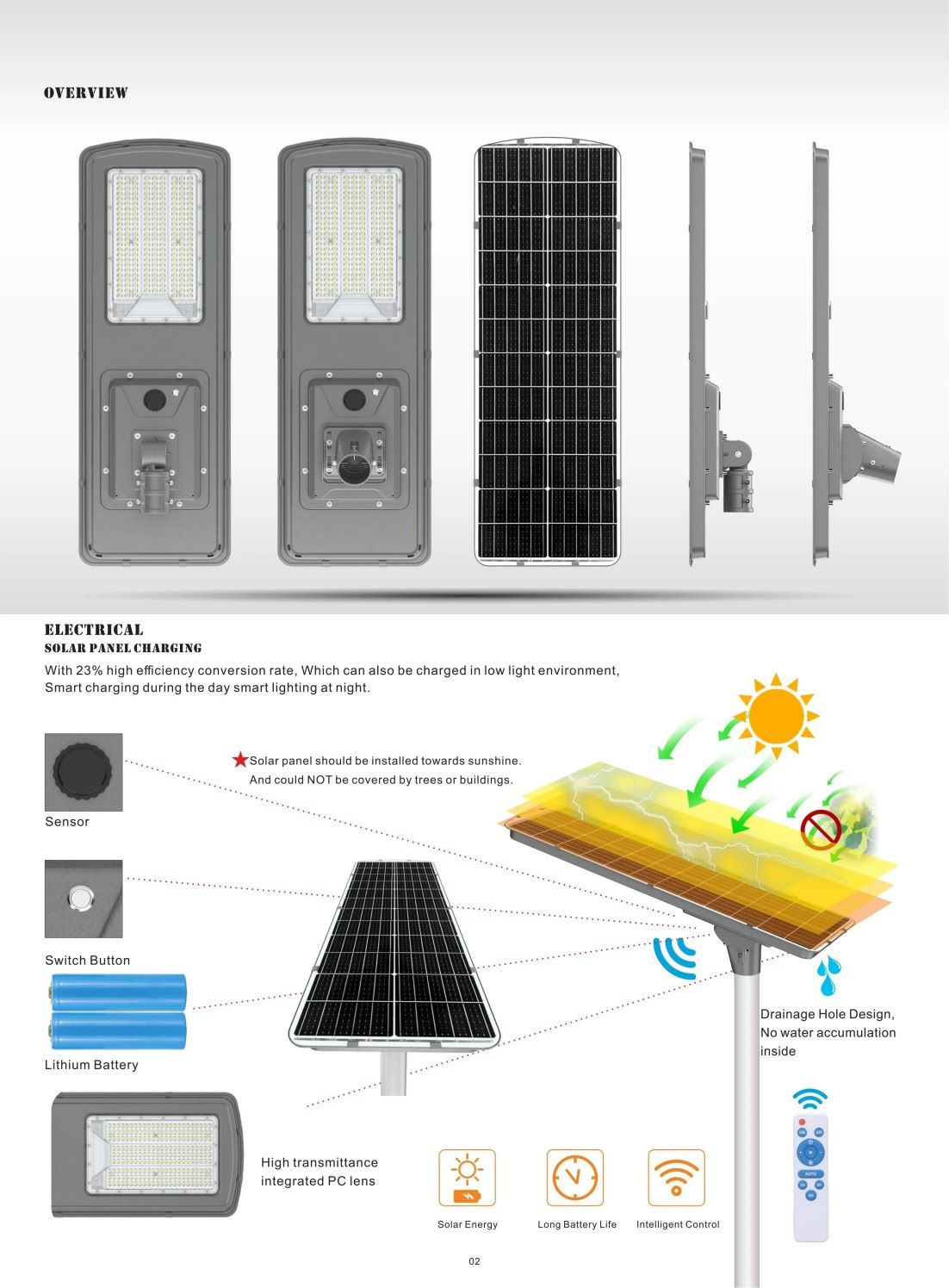

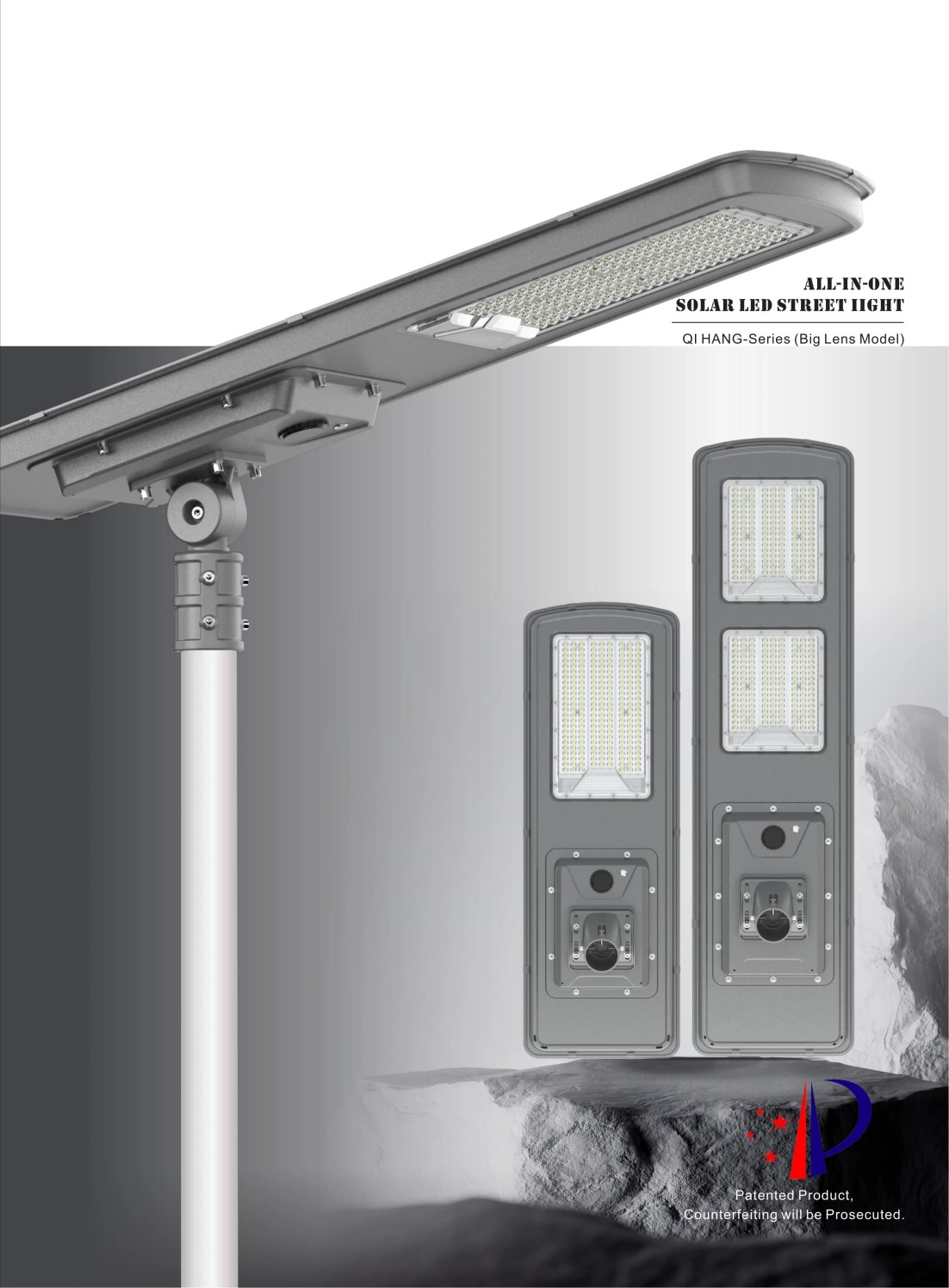

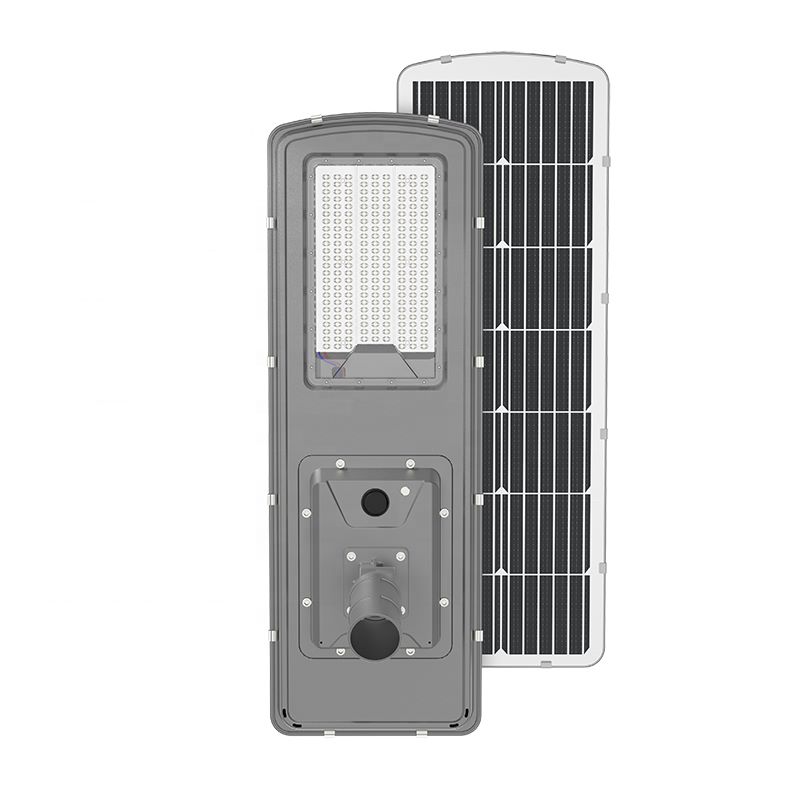

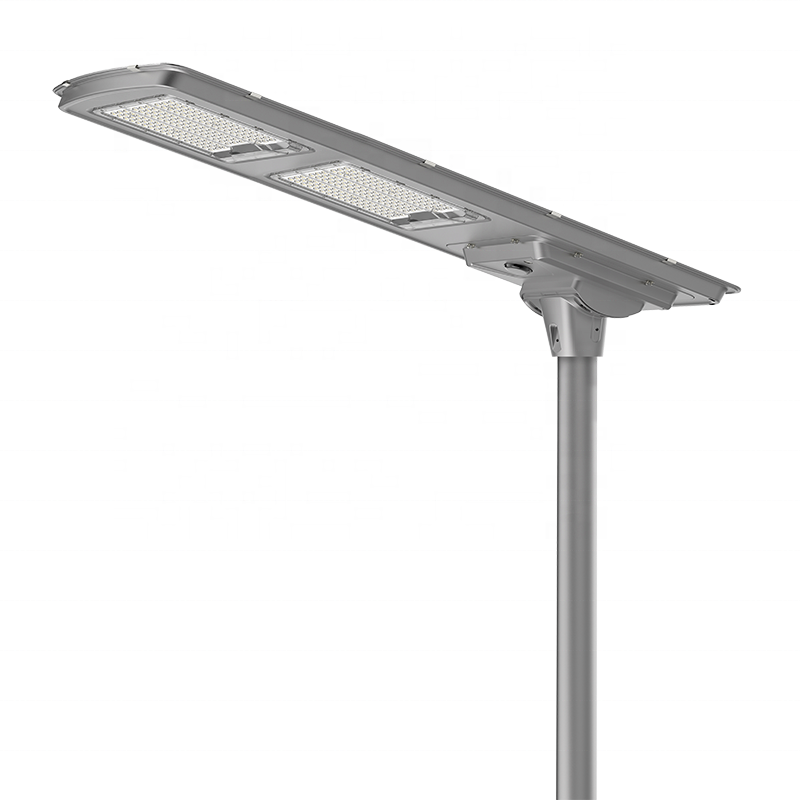

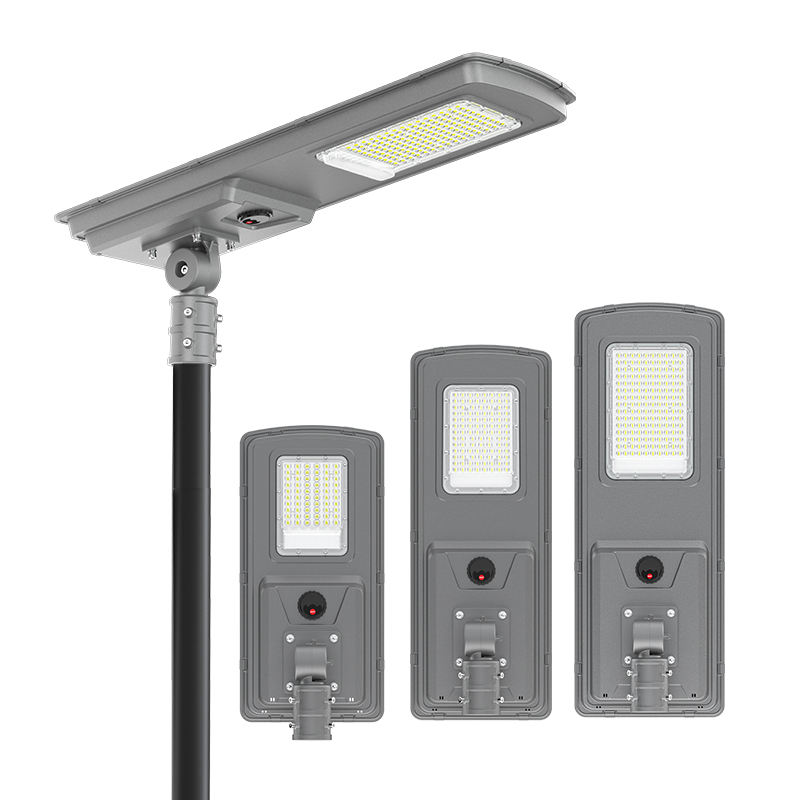

QH2 split integrated solar street light features an integral die-cast aluminum housing with IP66 full waterproof and dustproof rating. Equipped with a built-in large-capacity lithium battery, high-lumen LED source and intelligent radar motion sensor system, it automatically turns on at dusk and off at dawn, running at full brightness upon human detection and switching to low-power standby for energy saving when vacant. Fitted with an all-angle adjustable mounting bracket, its solar panel can be separately mounted in sunlit areas while the lamp body is fixed on poles or walls. Certified to CE and RoHS standards, this light is widely deployed for rural roads, park walkways, factory perimeter and municipal outdoor lighting projects, with bulk wholesale and OEM customization available for overseas distributors and engineering clients.
Applications:
Certified Quality for Global Projects

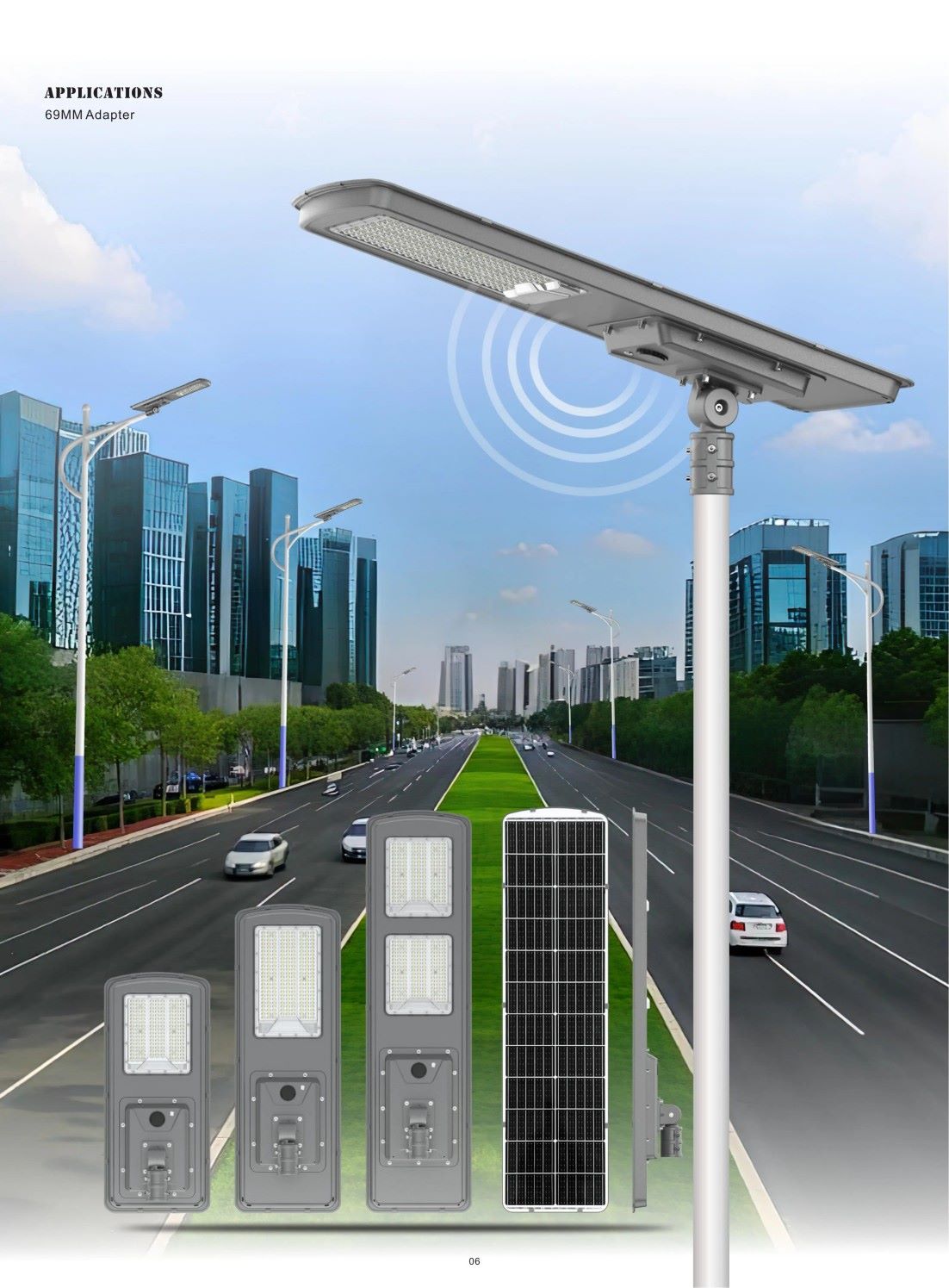

QH2 Solar Street Light for Rural Village Road Lighting Project
QH2 Radar Sensor Solar Street Lamp for Outdoor Road
Superior Luminous Efficacy
Boasting superior luminous efficacy, the Sirius Series is equipped with premium Bridgelux/Philips LED chips, delivering an impressive light output of up to 200lm/W. This exceptional efficiency guarantees maximum brightness while minimizing energy consumption, effectively reducing the overall energy demands of the system.

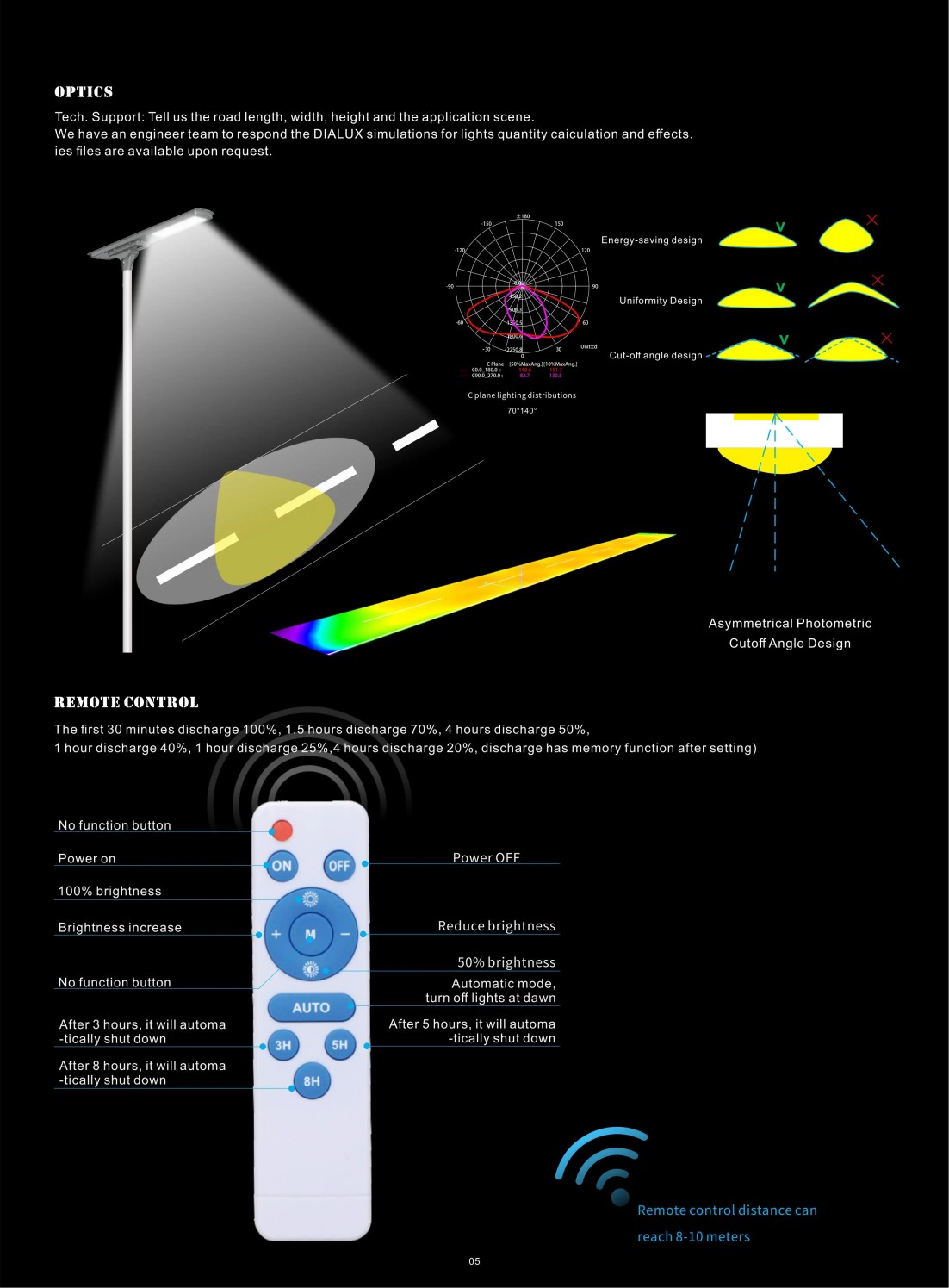

Intelligent Power Management

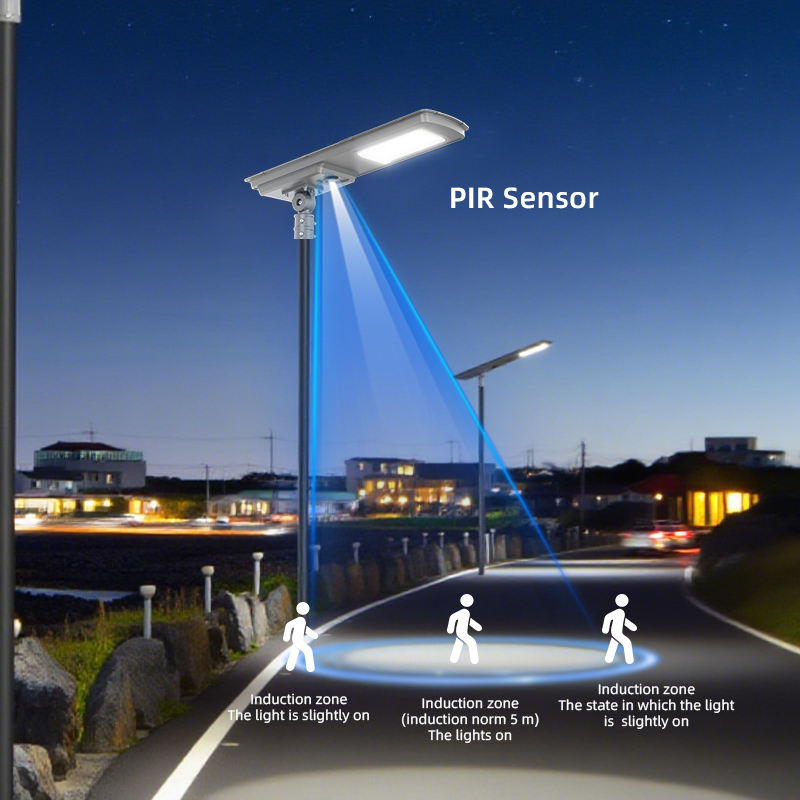

Our proprietary MPPT (Maximum Power Point Tracking) Controller increases charging efficiency by 30% compared to traditional PWM controllers. Combined with a smart PIR motion sensor, the system ensures stable lighting for 3-5 continuous rainy days.
Harsh Environment Adaptation
Protection grade up to IP66 and impact resistance grade IK09, using aviation-grade die-cast galvanized iron shell with anti-corrosion coating, which can resist harsh weather such as typhoons (wind resistance >120km/h), heavy rain, and desert dust, suitable for coastal, plateau and other scenarios.
Long Lifespan & Easy Maintenance
Using Grade A LiFePO4 batteries with more than 2000 deep charge-discharge cycles, the actual service life is 5-8 years, far exceeding lead-acid batteries; the detachable battery case design facilitates regular inspection and maintenance of the battery, extending the service life of the entire system.

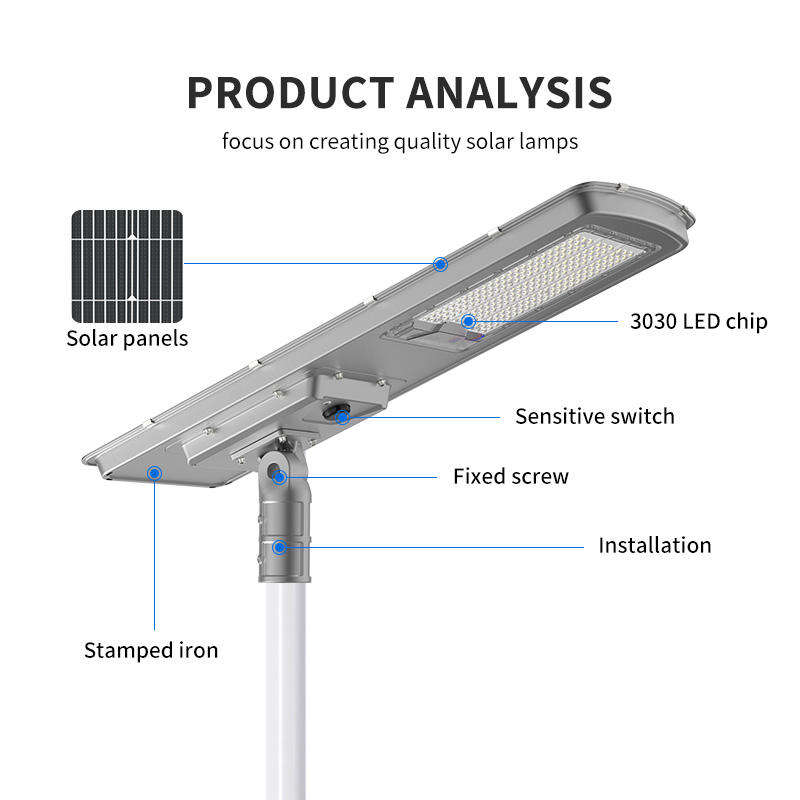

Flexible Installation
Integrated "plug-and-play" design, no complicated wiring required; 0-180° adjustable bracket, supporting vertical and horizontal installation methods, adapting to different lighting angle requirements, high installation efficiency, and reducing construction costs.
Uniform Lighting
Using PVVC optical lens with light transmittance up to 98%, reducing lighting dark areas, the light is soft and uniform, suitable for large-area lighting scenarios such as roads and parking lots.

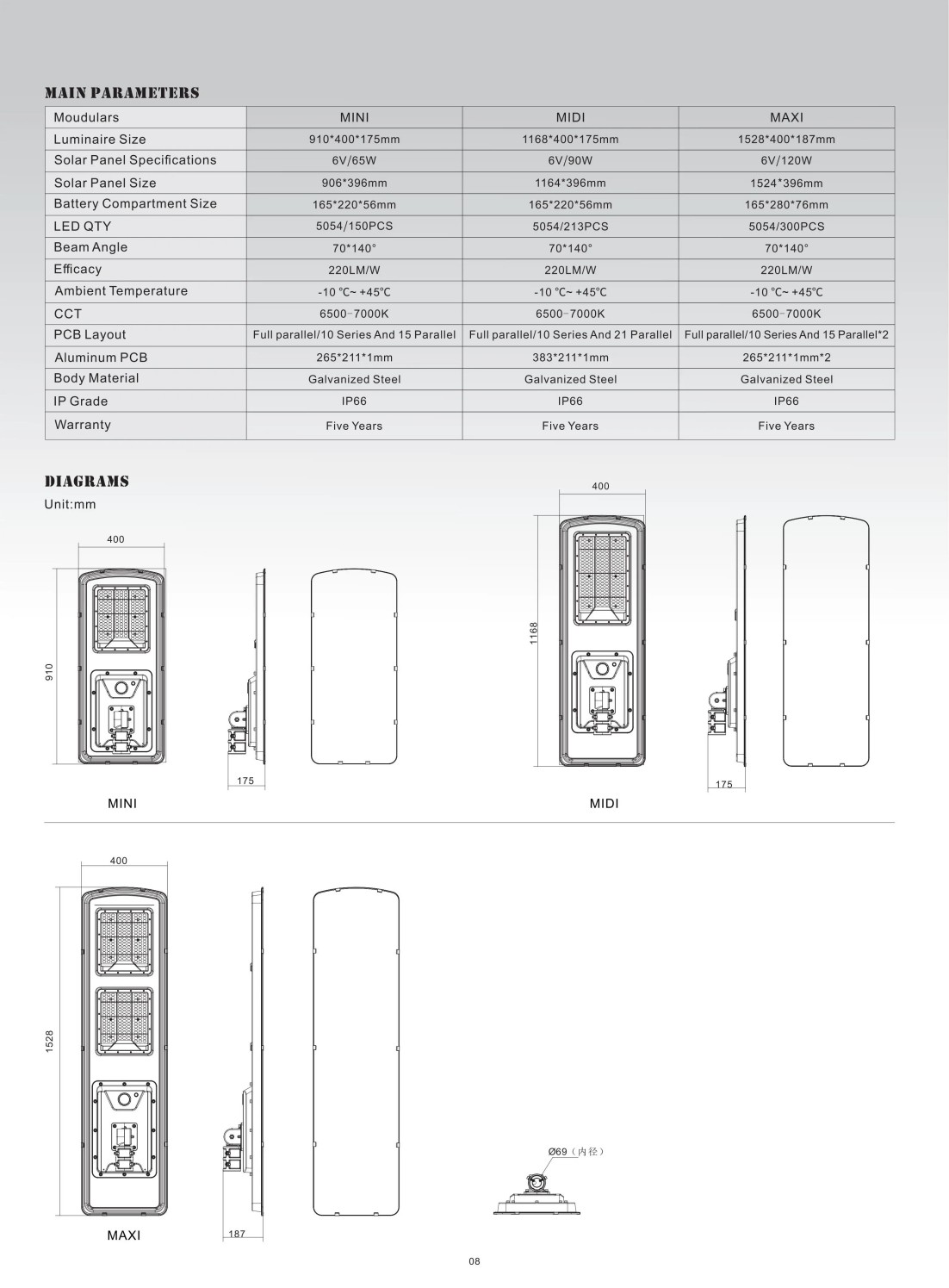

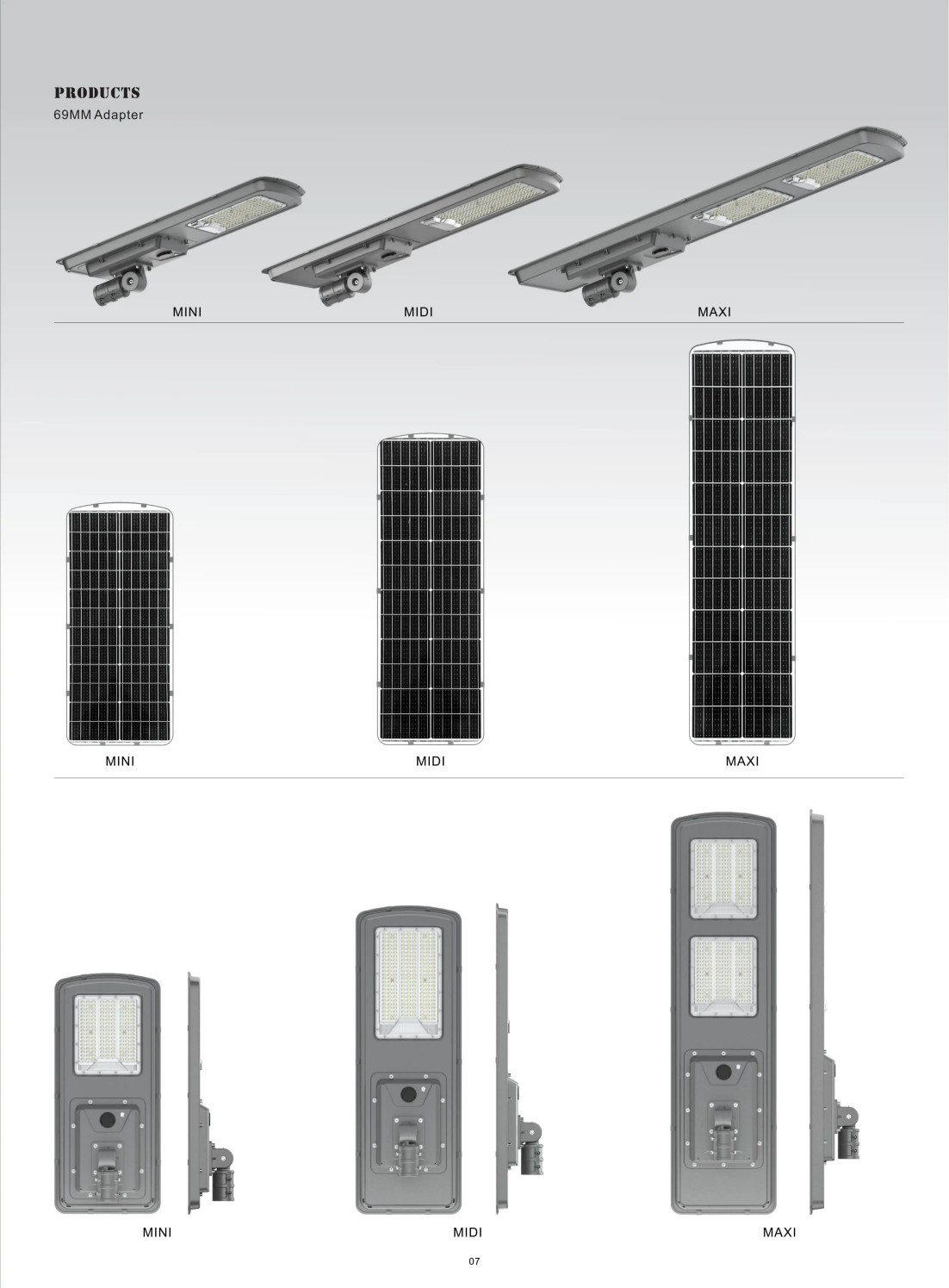

| Moudulars | MINI | MIDI | MAXI |
| Luminaire Size | 910*400*175mm | 1168*400*175mm | 1528*400*187mm |
| Solar Panel Specifications | 6V/65W | 6V/90W | 6V/120W |
| Solar Panel Size | 906*396mm | 1164*396mm | 1524*396mm |
| Battery Compartment Size | 165*220*56mm | 165*220*56mm | 165*280*76mm |
| LED QTY | 5054/150PCS | 5054/213PCS | 5054/300PCS |
| Beam Angle | 70*140° | 70*140° | 70*140° |
| Efficacy | 220LM/W | 220LM/W | 220LM/W |
| Ambient Temperature | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ |
| CCT | 6500-7000K | 6500-7000K | 6500-7000K |
| PCB Layout | Full parallel/10 Series And 15 Parallel | Fullparallel/10 Series And 21 Parallel | Fullparallel/10 Series And 15 Parallel*2 |
| Aluminum PCB | 265*211*1mm | 383*211*1mm | 265*211*1mm*2 |
| Body Material | Galvanized Steel | Galvanized Steel | Galvanized Steel |
| IP Grade | IP66 | IP66 | IP66 |
| Warranty | Five Years | Five Years | Five Years |
Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
