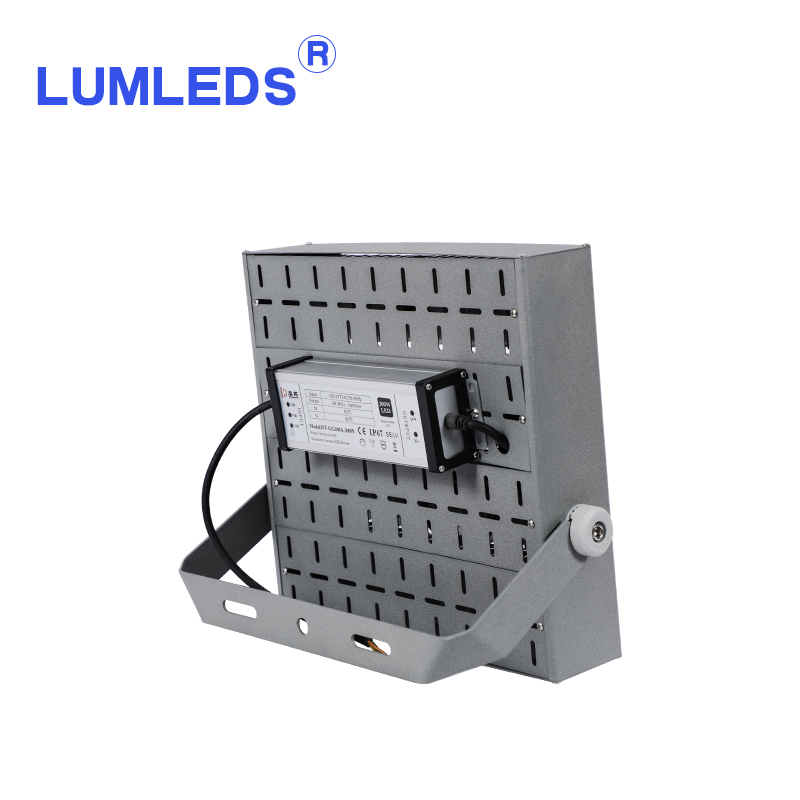

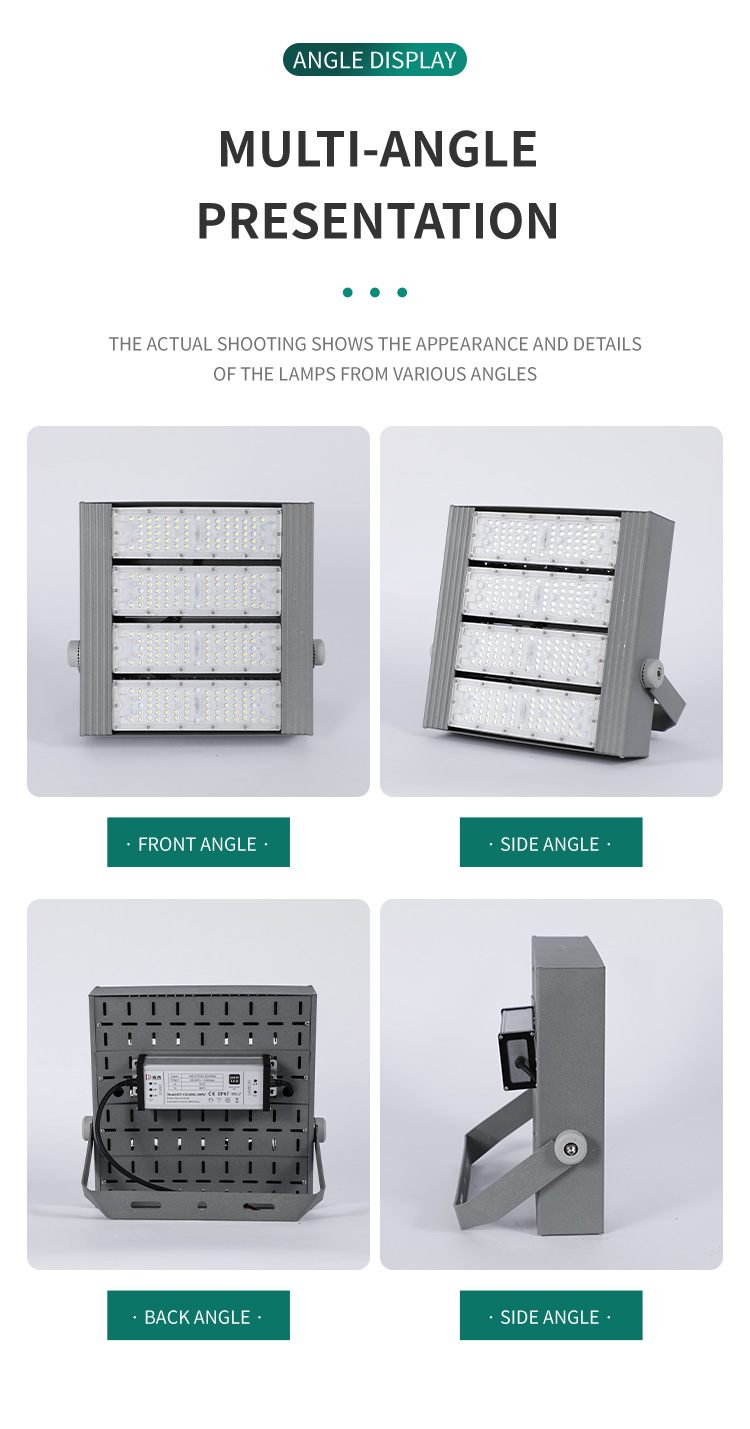

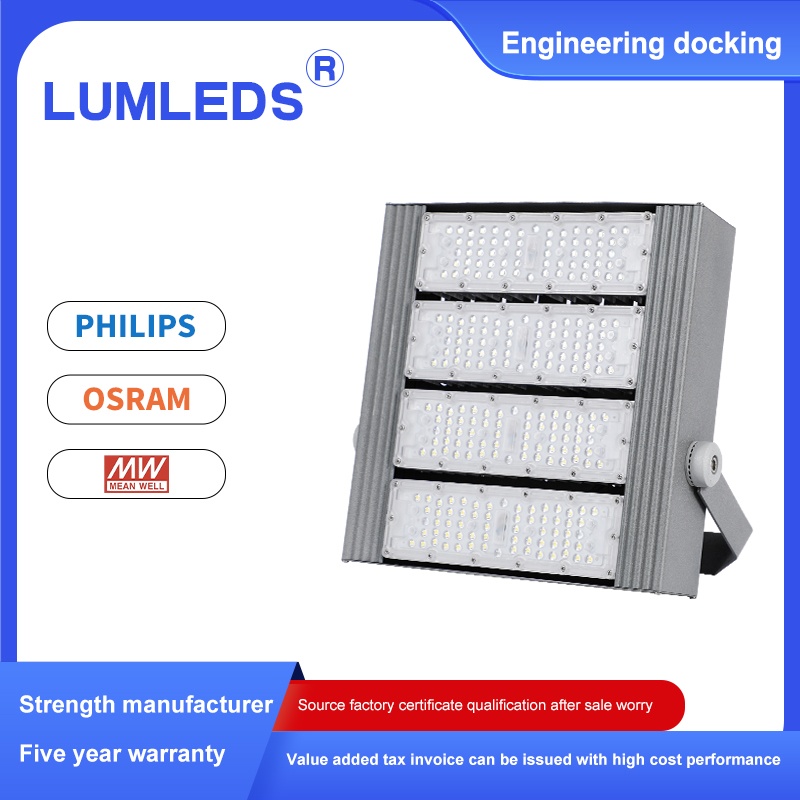

Venus Series LED Tunnel Light is a professional engineering lighting product independently developed by HRLUXsolar, specially designed for tunnels and enclosed underground spaces. Adhering to the brand philosophy of Energy Saving, Low Carbon, Intelligent and Future-oriented, it features high brightness & uniform light distribution, anti-glare design, and IP66 waterproof & dustproof performance. Equipped with efficient heat dissipation structure and stable power supply system, it is suitable for various tunnel and underground passage lighting scenarios. Manufactured under standardized production lines, the product has strict and controllable quality, combining durability and high cost-effectiveness, making it an ideal lighting choice for municipal infrastructure and engineering lighting projects at home and abroad.

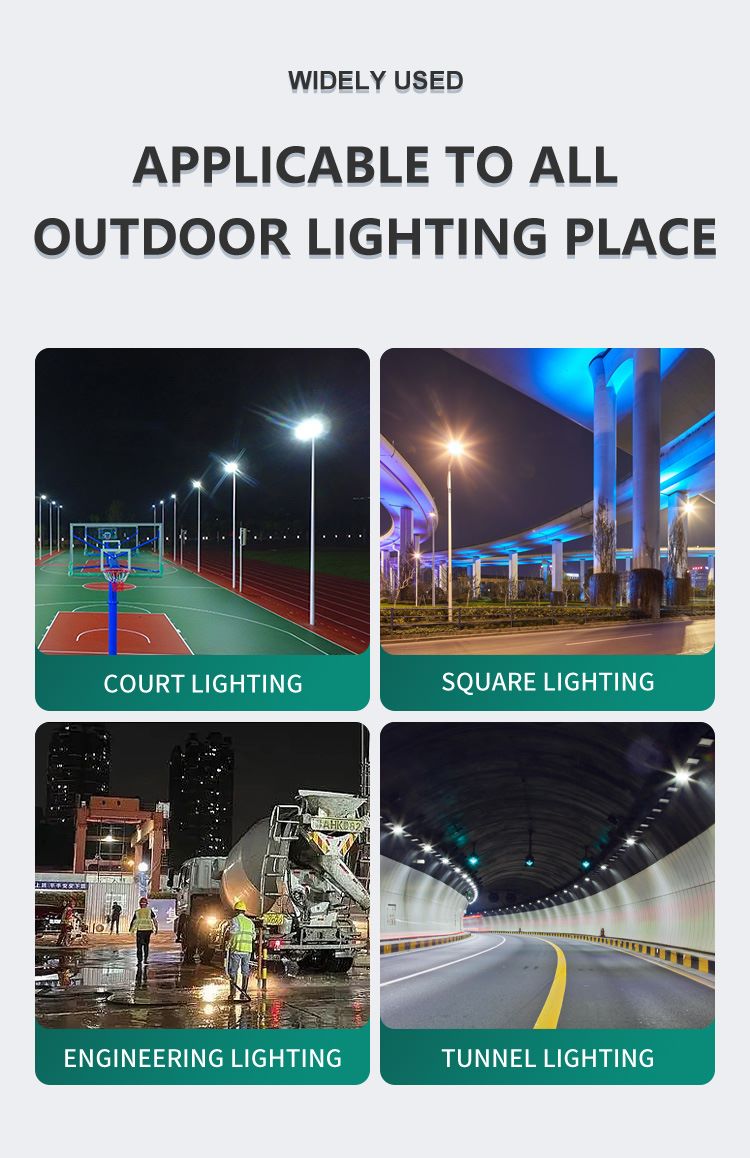

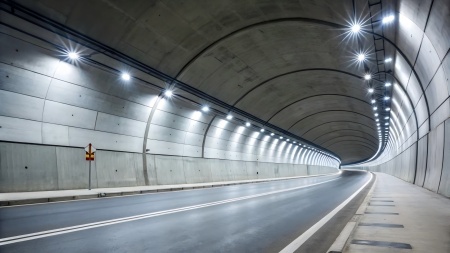

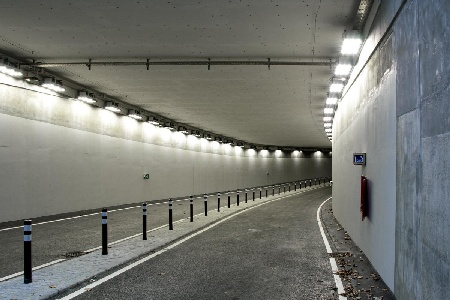

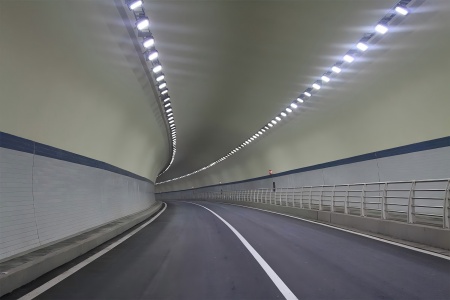

Applications:
Certified Quality for Global Projects

IP66 Waterproof Venus LED Tunnel Light with Long Warranty
Durable & Reliable LED Tunnel Light for Engineering Projects

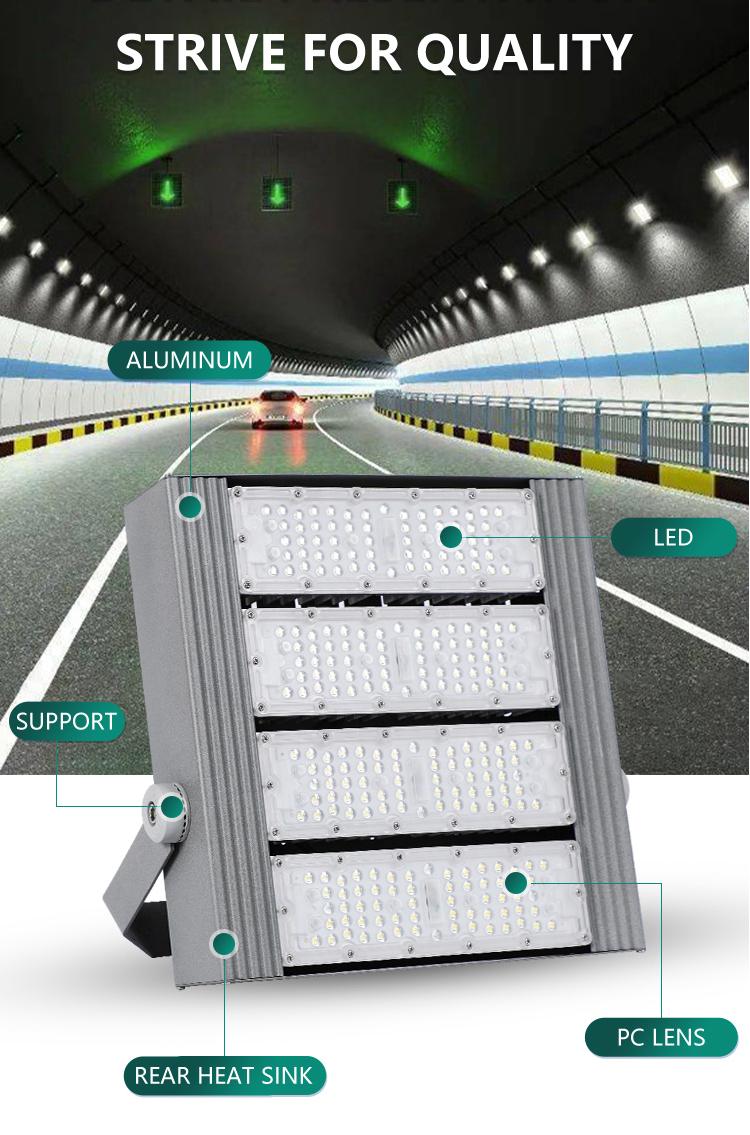

High-Quality LED Light Source
Selected industrial-grade high-power original LED beads, with high luminous purity, full brightness, no flicker and no light spots. The light is close to natural light, bringing better lighting visual experience; the light source has extremely high stability, which is not easy to burn or blacken after long-term lighting, taking into account lighting brightness and service durability. It perfectly meets the demand of long-term uninterrupted lighting in tunnels, avoiding the trouble of frequent light source replacement.
Anti-Glare & Uniform Light Output
Equipped with customized optical lenses, it accurately controls the light projection angle, delivering soft and uniform light without dark areas. It completely eliminates strong light glare in tunnels, taking into account driving visibility and traffic safety, suitable for all kinds of enclosed passage lighting scenarios.

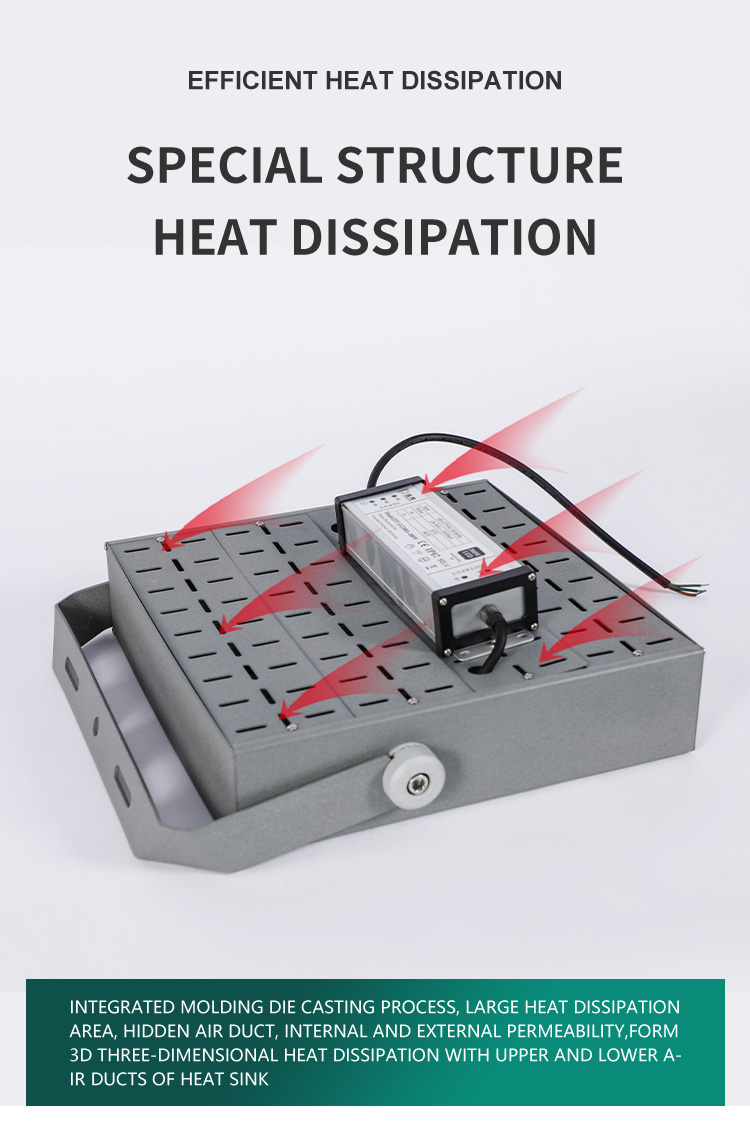

High Efficiency Heat Dissipation
Integrated aluminum alloy heat dissipation body with scientific heat dissipation structure, quickly导出 the residual heat of lamp beads, avoiding high temperature loss of light source, effectively delaying light decay, greatly extending the service life of lamps, and reducing later replacement and maintenance frequency.
IP66 Waterproof & Dustproof
Adopts a fully sealed structure design, reaching IP66 high-level protection grade. It is not afraid of moisture, dust and water mist erosion in tunnels, maintaining stable performance even after long-term operation in harsh underground environments, and avoiding water and dust ingress failures.
High Luminous Efficiency & Energy Saving
Selected high-brightness high-power LED beads with high light efficiency conversion rate and lower energy consumption under the same brightness. It meets the needs of low-carbon energy-saving projects, greatly reducing lighting power costs for long-term use, and is suitable for various overseas infrastructure energy-saving projects.
Stable Power Supply & Wide Voltage
Built-in high-quality driver with multiple protections against lightning, overvoltage and overcurrent, supports wide voltage input, perfectly adapts to power standards of different countries around the world, and can operate stably even in areas with unstable power supply, with strong adaptability.

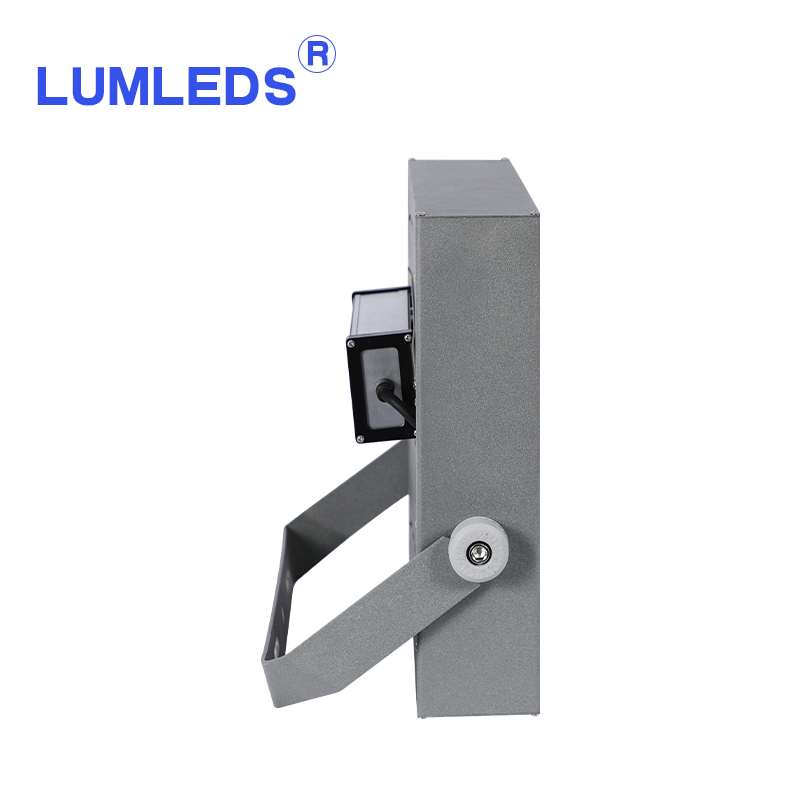

Sturdy Structure & Easy Installation
IThickened metal body, impact-resistant and rust-resistant, suitable for engineering-grade heavy-duty scenarios; standardized installation interface design, no complicated procedures, installation and commissioning can be completed by one person, greatly reducing construction period and labor cost.

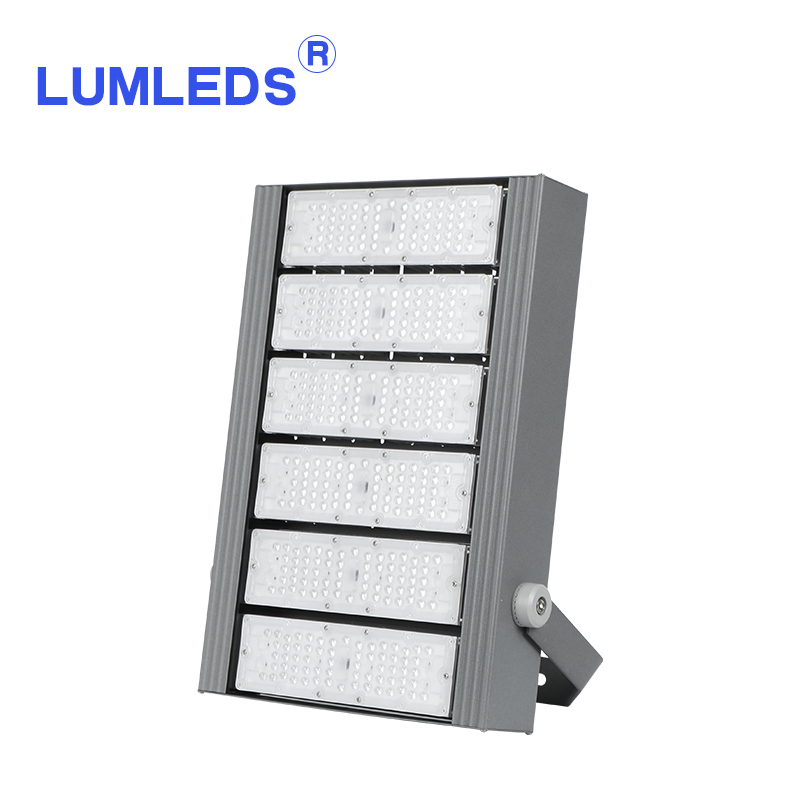

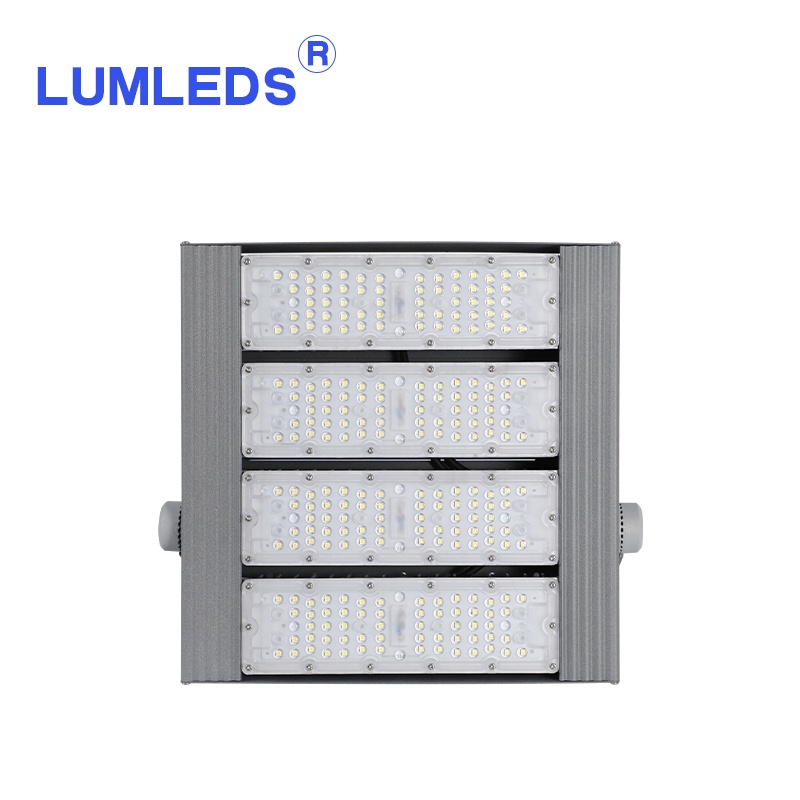

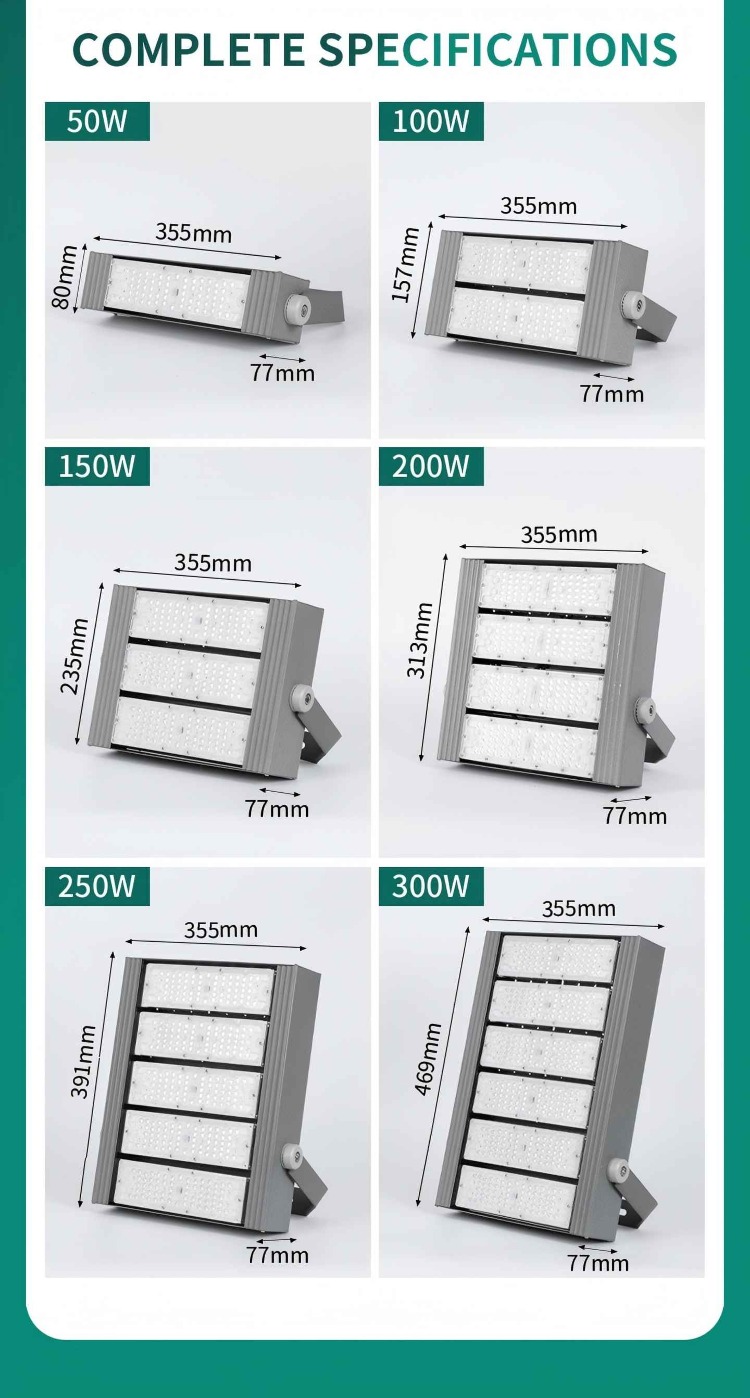

| Model Number | QM1-1 | QM1-2 | QM1-3 | QM1-4 | QM1-5 | QM1-6 |
| Size | L80*W355*H125MM | L157*W355*H125MM | L235*W355*H125MM | L313*W355*H125MM | L391*W355*H125MM | L469*W355*H125MM |
| Rated Power | 50W | 100W | 150W | 200W | 250W | 300W |
| Total Lumen | 7500 LM | 15000 LM | 22500 LM | 30000 LM | 37500 LM | 45000 LM |
| Color Temperature | 3000K/4000K/6000K | |||||
| Input Voltage | AC 170-265V / 110-277V | |||||
| Brace eye distance | 155MM | |||||
| CRI | ≥70 | |||||
| IP/IK Rate | IP66 / IK09 | |||||
| Material | Stretch aluminum profiles | |||||
| Heat Dissipation | Natural Convection Heat Dissipation | |||||
| Working Temperature | -40°C ~ +65°C | |||||
| Service Life | ≥50,000 Hours | |||||






Step 1: Select installation method
Wall-mounted Installation、Pendant Installation、 Ground-mounted Installation.
Step 2: Fix the Screws
Align the lamp bracket with the installation position, fix it firmly with matching screws, and ensure stable installation without looseness.

Step 3: Connect the Wires
Connect live, neutral and ground wires as marked, close the junction box tightly, and complete waterproof sealing.

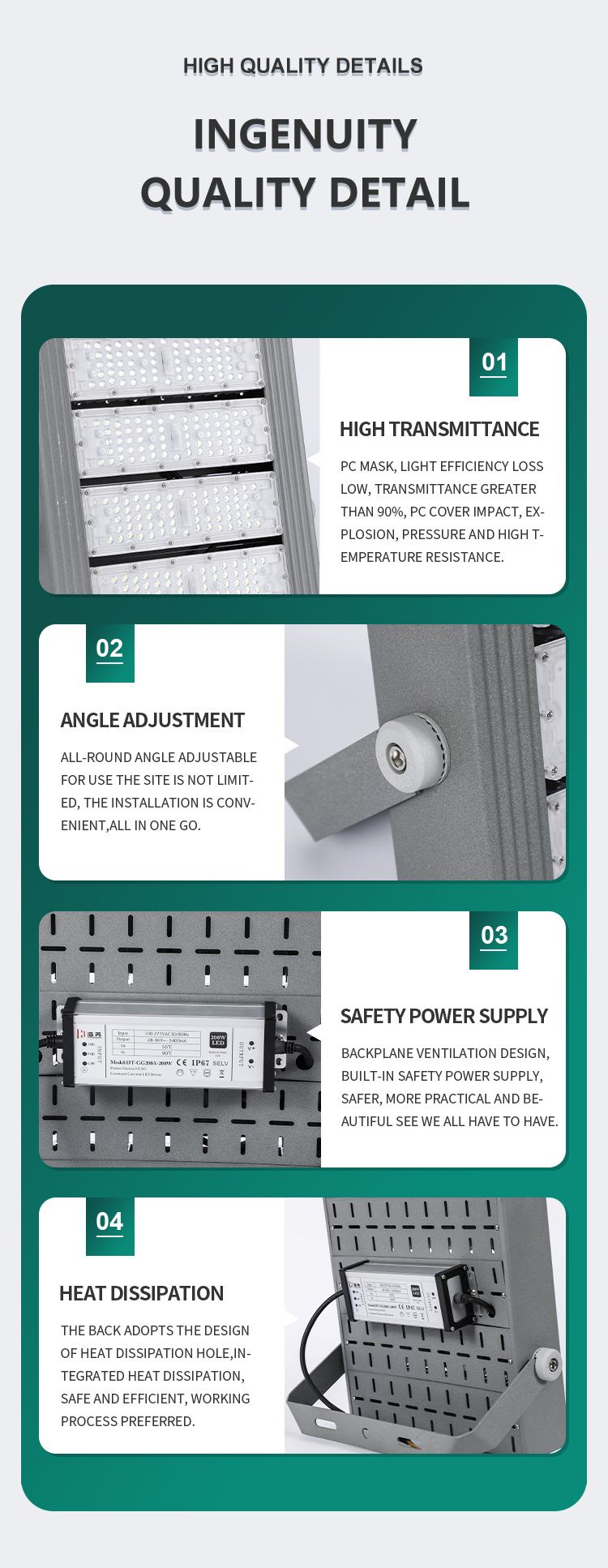

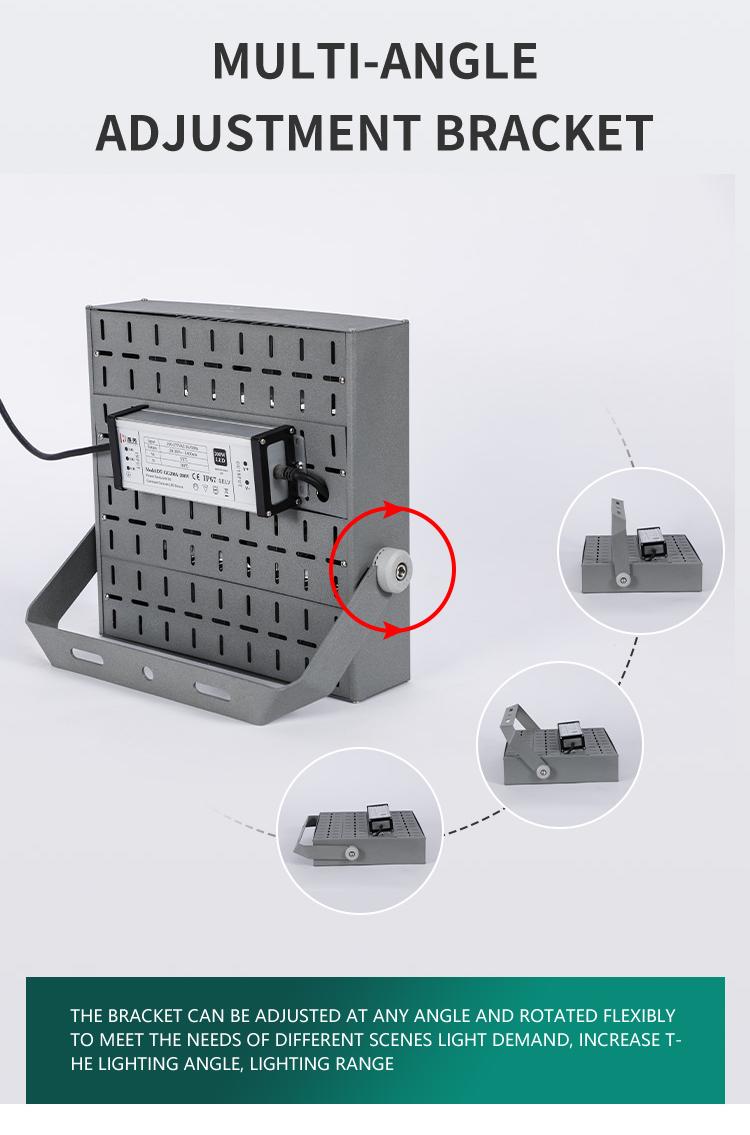

Step 4: Adjust the Angle
Loosen the adjustment screw, adjust the irradiation angle as needed, then tighten the screw to lock the position.
