Home LED Flood Light

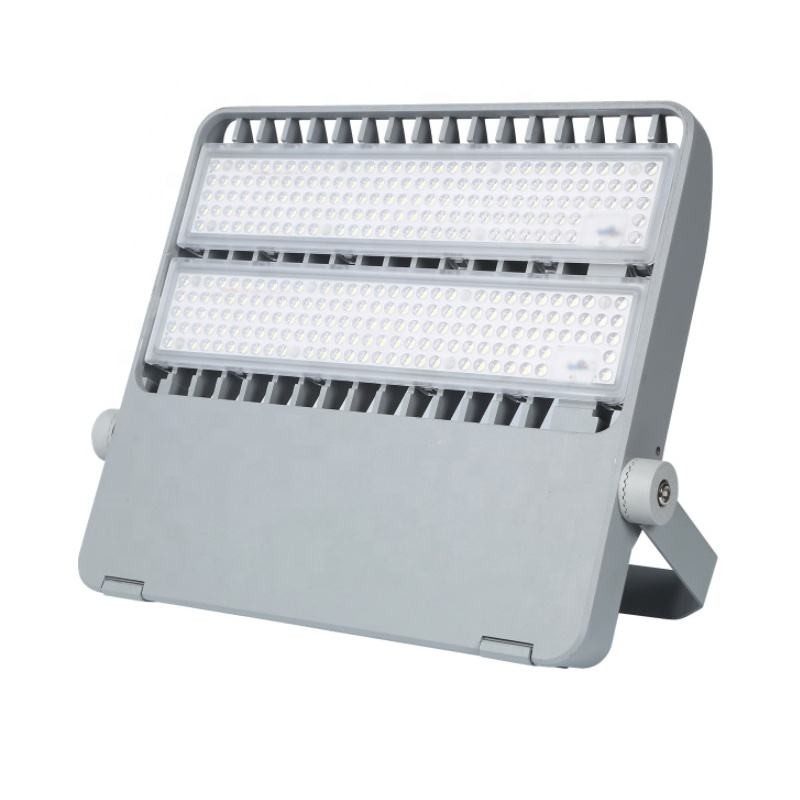

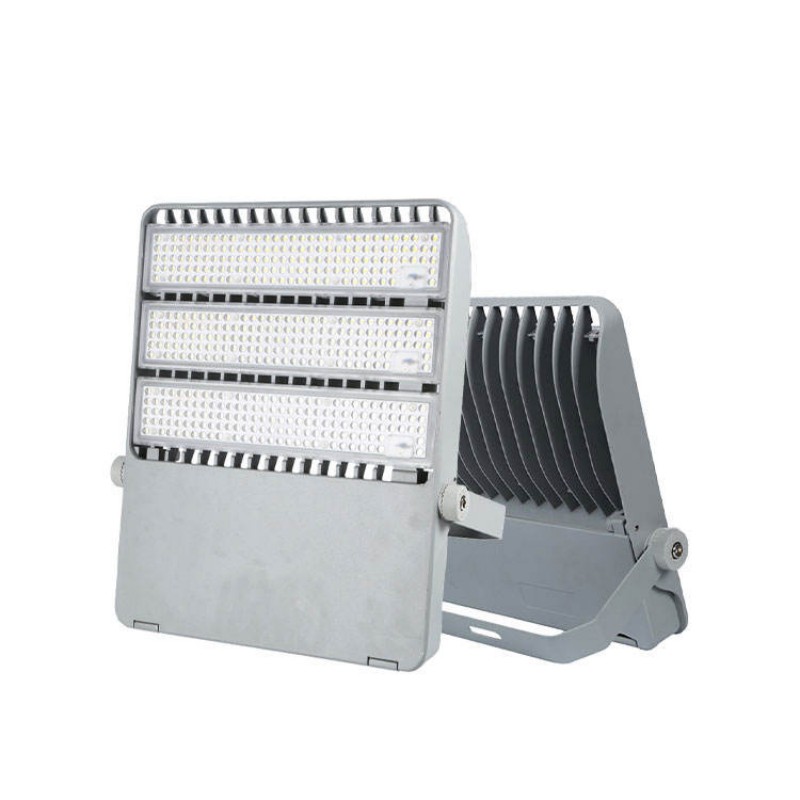

FF Series 100W-1000W LED Stadium Flood Light | IP65 Outdoor Sports Light Manufacturer

FF Series 100W-1000W LED Stadium Flood Light | IP65 Outdoor Sports Light Manufacturer

Our FF modular LED flood light is ideal for stadium, factory, tunnel, parking and port projects.

Wattage range:100W,150W,200W,300W,450W,500W,750W,1000W for varied project demands.

Fitted with Philips/Osram LED chips; optional 3000K~6000K CCT and multi beam angles.

Die-cast aluminum fin heat sink ensures long lifespan above 50,000hrs; U bracket allows 0-180° adjustable installation.

IP65 waterproof, CE&RoHS approved, AC85-265V wide voltage. 5-year warranty, flexible MOQ & custom service available.

Applications:

  • Sports venue lighting
  • Building Facade & Building Lighting
  • Municipal plazas & high-mast lighting
  • Parking Lots & Road Traffic
  • Industrial Parks & Factory Warehouses
  • Construction Site & Mine Area
  • Ports & docks and airports & freight yards
  • Large outdoor venues & sports events



Certified Quality for Global Projects



Inquire Now

FF Modular LED Flood Light with Philips & Osram Chips for Stadium Lighting

High Watt Sports LED Flood Lamp FF Series

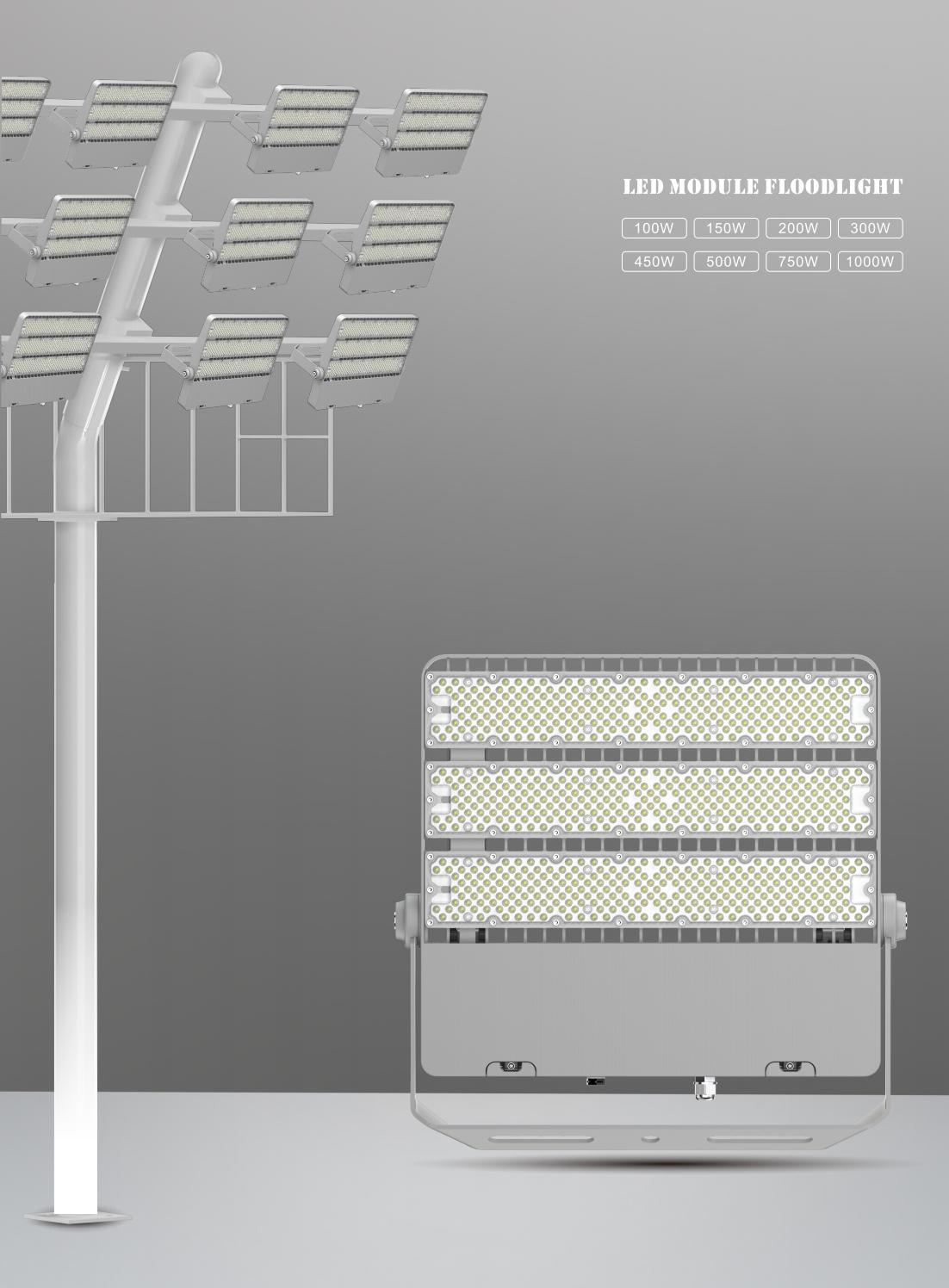

FF flood light equipped with Philips & Osram LED chips

Premium Chips

This FF series modular LED flood light is equipped with original Philips or Osram LED chips, the top mainstream light source brands in the industry. It features high luminous efficiency, high color rendering and uniform light emission. The premium chips effectively reduce light attenuation during long-term continuous operation, ensuring consistent and bright lighting effect without dark areas, greatly improving the overall stability and durability of the lamp.



Complete Powers

We provide complete wattage options ranging from 100W, 150W, 200W, 300W, 450W, 500W, 750W to 1000W. The diversified power specifications perfectly meet different lighting demands, including small-scale indoor and outdoor lighting such as warehouses and parking lots, as well as large professional engineering projects like sports stadiums, highway tunnels, ports and large squares.



 Great Heat Dissipation

 The lamp body adopts high-quality die-cast aluminum integrated molding process, matched with rear fin-type heat dissipation structure. The large-area heat dissipation design accelerates rapid heat conduction and air convection, effectively solves the heat accumulation problem of high-power lamps. It greatly reduces light decay and chip aging speed, with the service life of the whole lamp reaching more than 50,000 hours.



Adjustable Mount

Equipped with thickened lockable U-shaped metal bracket, the flood light supports 0-180° free adjustment of irradiation angle. It is compatible with multiple installation methods including wall mounting, pole mounting and steel structure fixing. Customers can adjust the lighting angle arbitrarily according to the site environment to achieve the most accurate and uniform lighting layout.



 Custom Optics

The flood light supports multiple color temperature options of 3000K warm white, 4000K natural white, 5000K and 6000K cool white, meeting the ambient lighting needs of different scenarios. Meanwhile, various beam angle lenses (narrow, medium, wide) are optional, realizing long-distance concentrated projection for stadiums and uniform flat lighting for tunnels, to match personalized engineering lighting requirements.



Stable Quality

Rated IP65 waterproof and dustproof, the lamp can work stably in harsh outdoor environments such as heavy rain, snow and strong wind. It passes CE and RoHS certification, conforming to global import and export standards. The universal AC85-265V wide voltage design adapts to power grids of various countries. We provide 5-year official manufacturer warranty, flexible MOQ and fast delivery to support global engineering and wholesale orders.

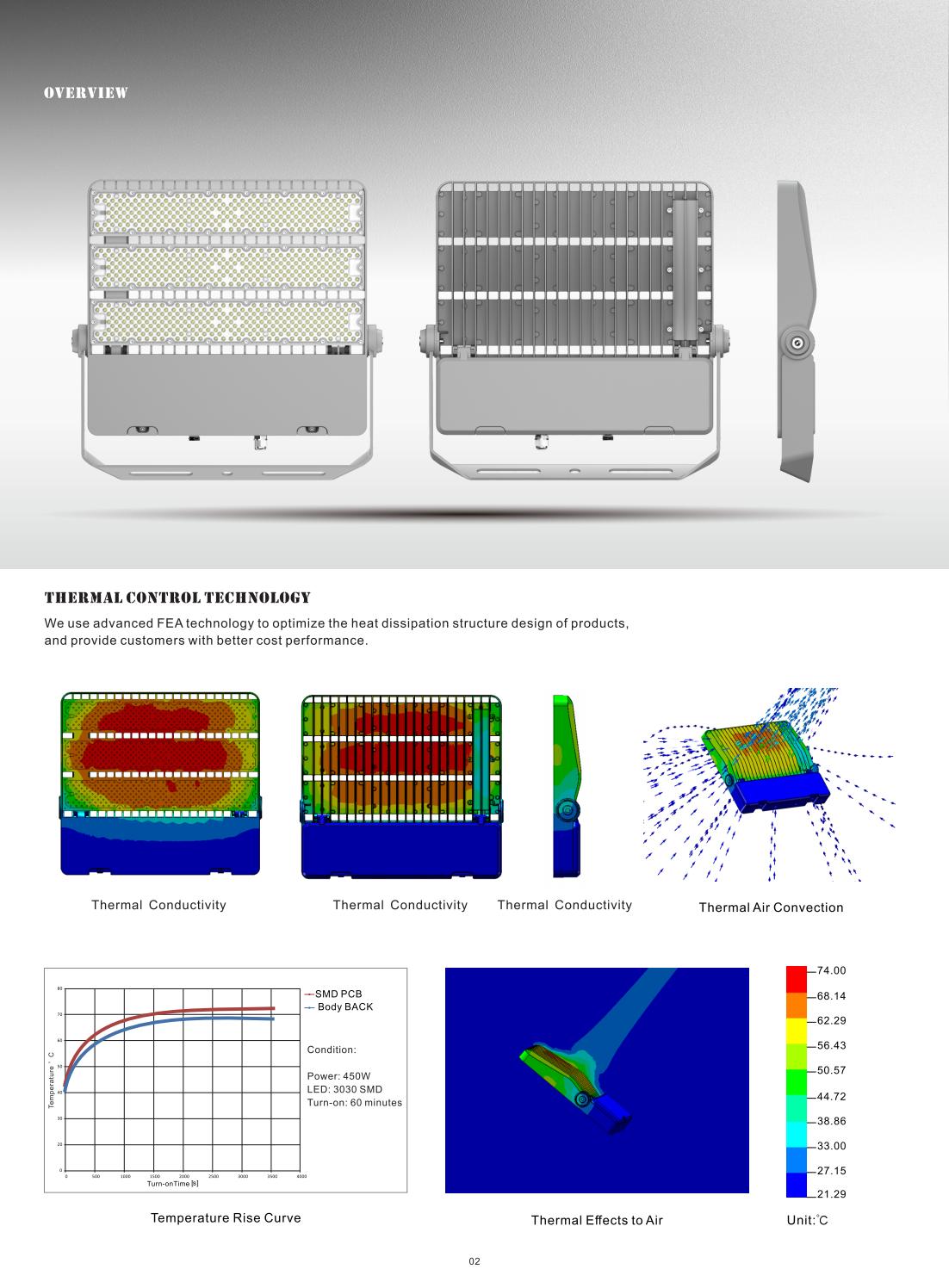

Die-cast aluminum fin heat sink for efficient cooling

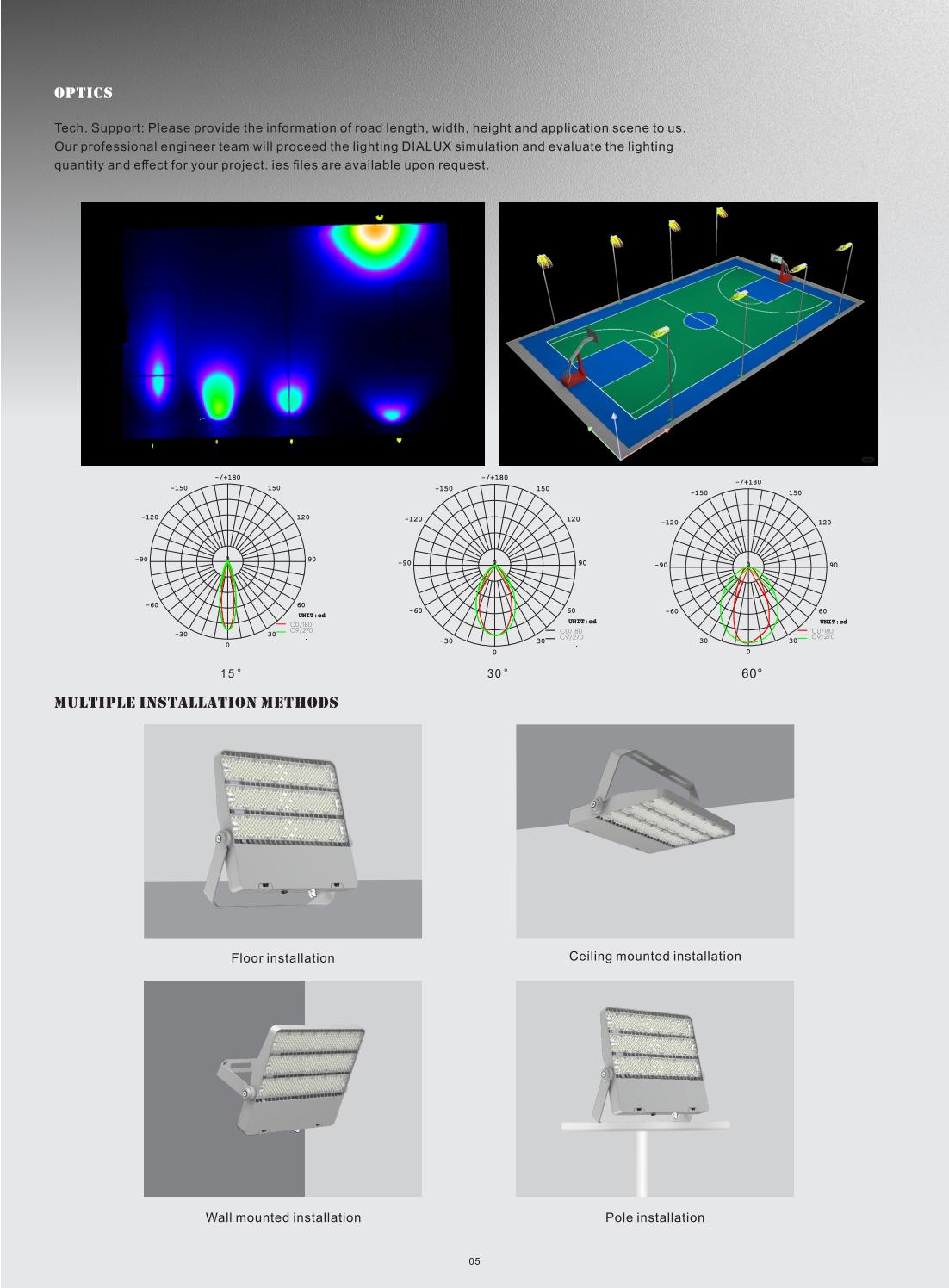

 Multi CCT Multi Beam Angle FF Series Industrial LED Flood Light











Technical Specifications



Power 100W 150W 200W 300W 450W 500W 750W 1000W
Size(mm) 360*325*52 360*385*50 360*445*56 470*370*57 470*452*58 586*435*60 586*530*66 587*628*70
Battery Compartment
Size(mm)
300*85*42 300*85*45 300*85*42 405*93*45 405*93*45 525*130*47 525*128*47 525*130*47
Materials Die-cast aluminum
IP Grade IP65
CRI 70Ra
Beam Angle 60°、120°、70*140°
Efficiency 150-200LMIW

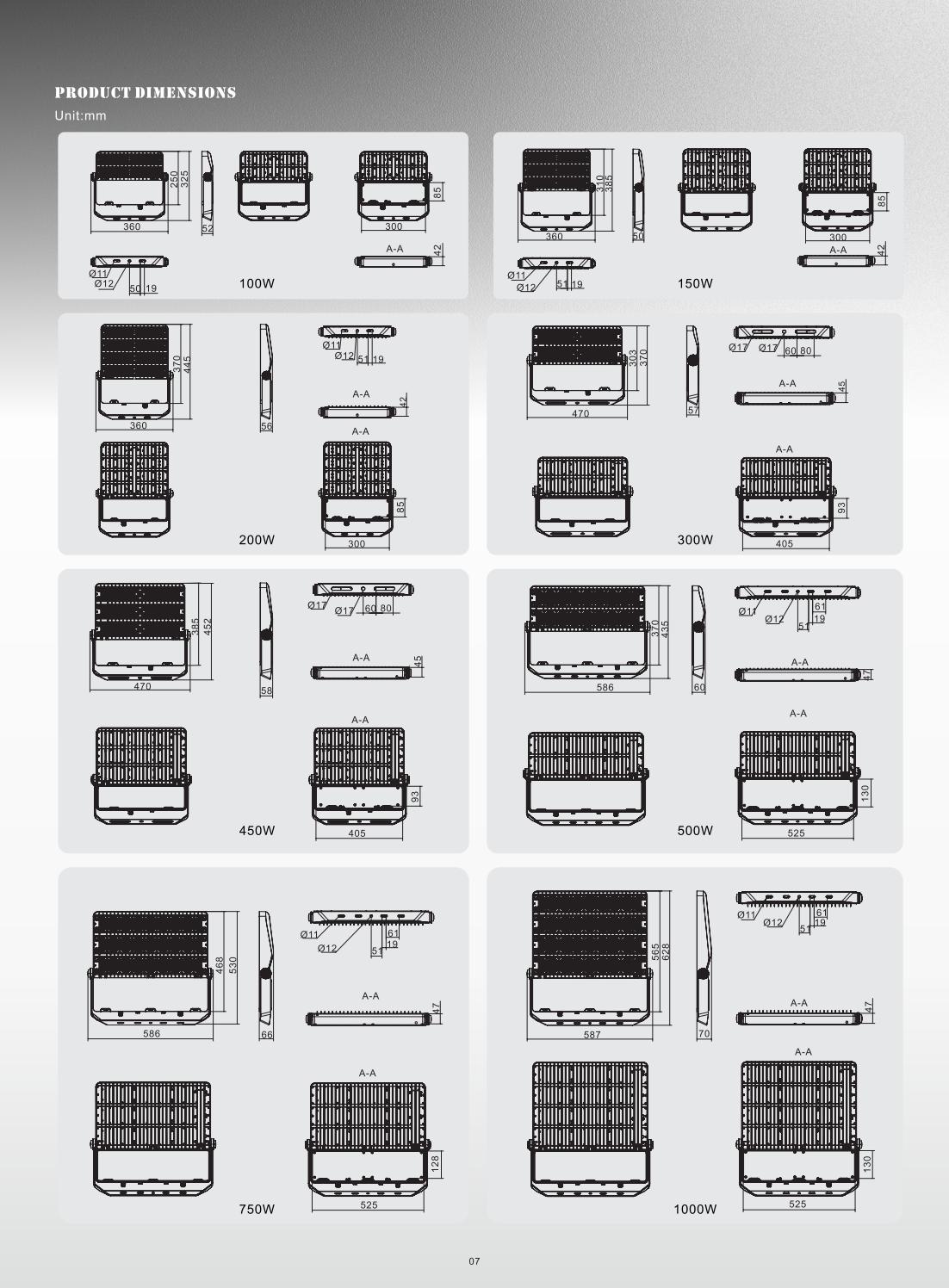

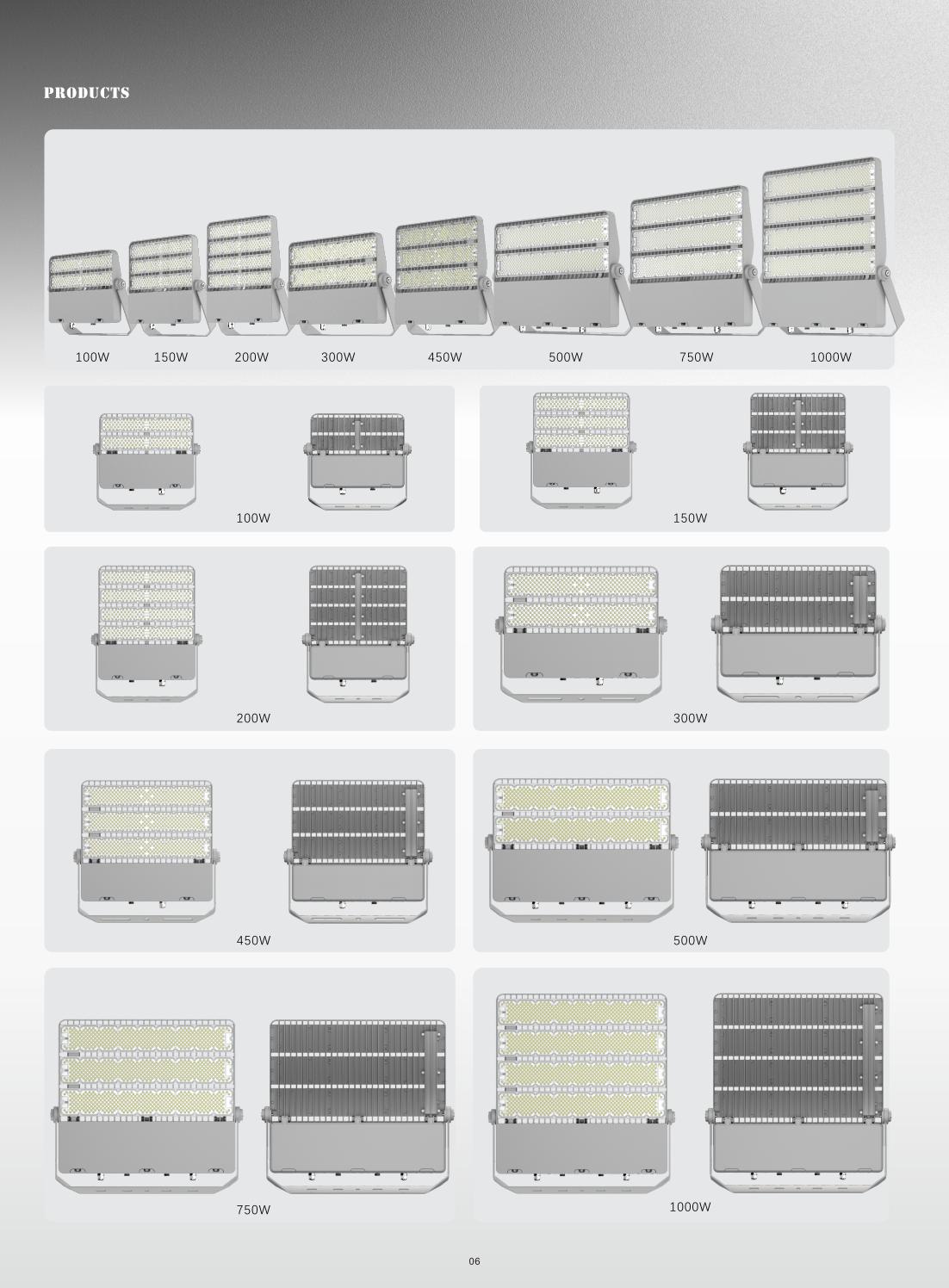

Complete wattage from 100W up to 1000W optional

Complete wattage from 100W up to 1000W optional













Product Structure

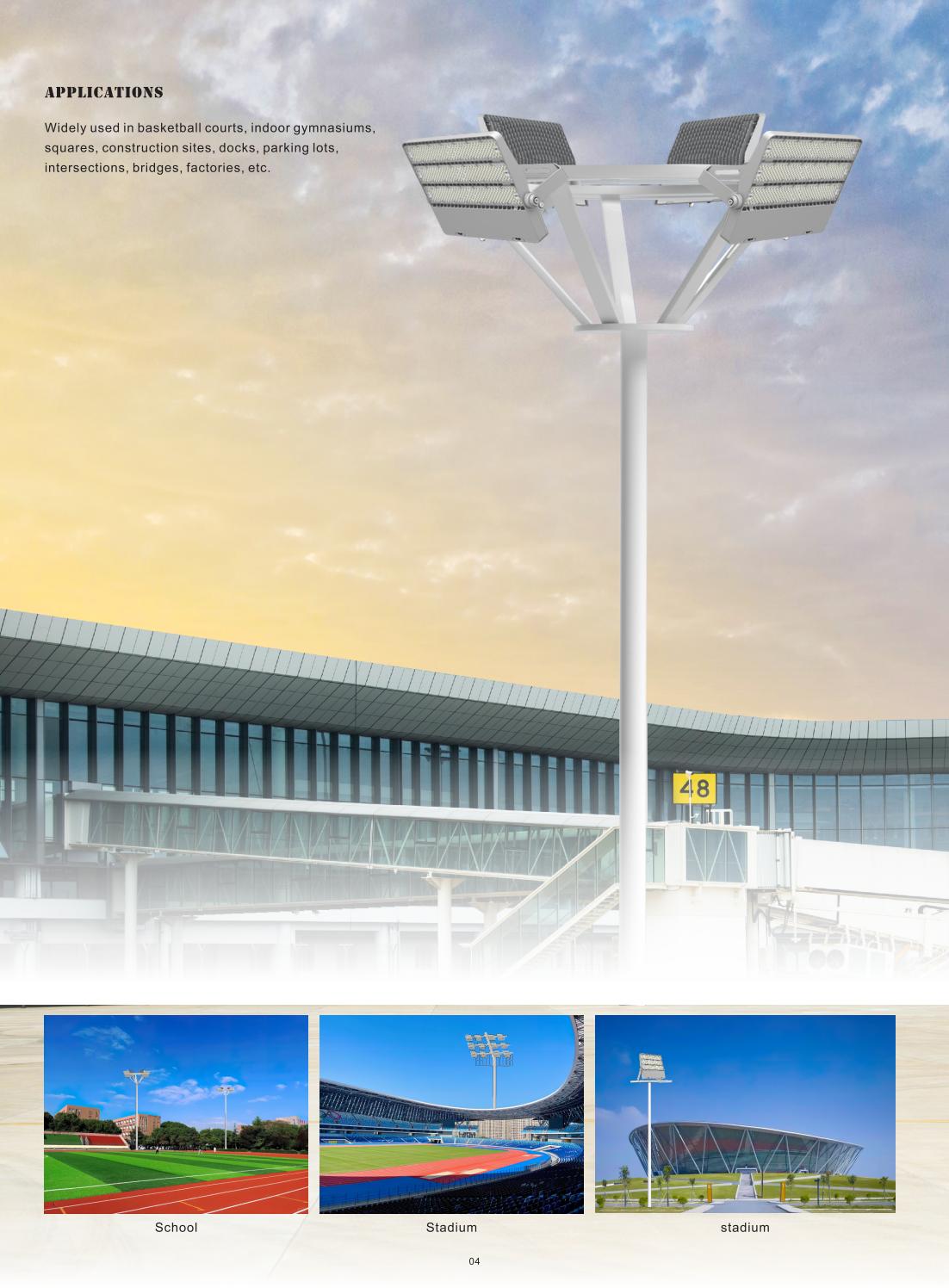

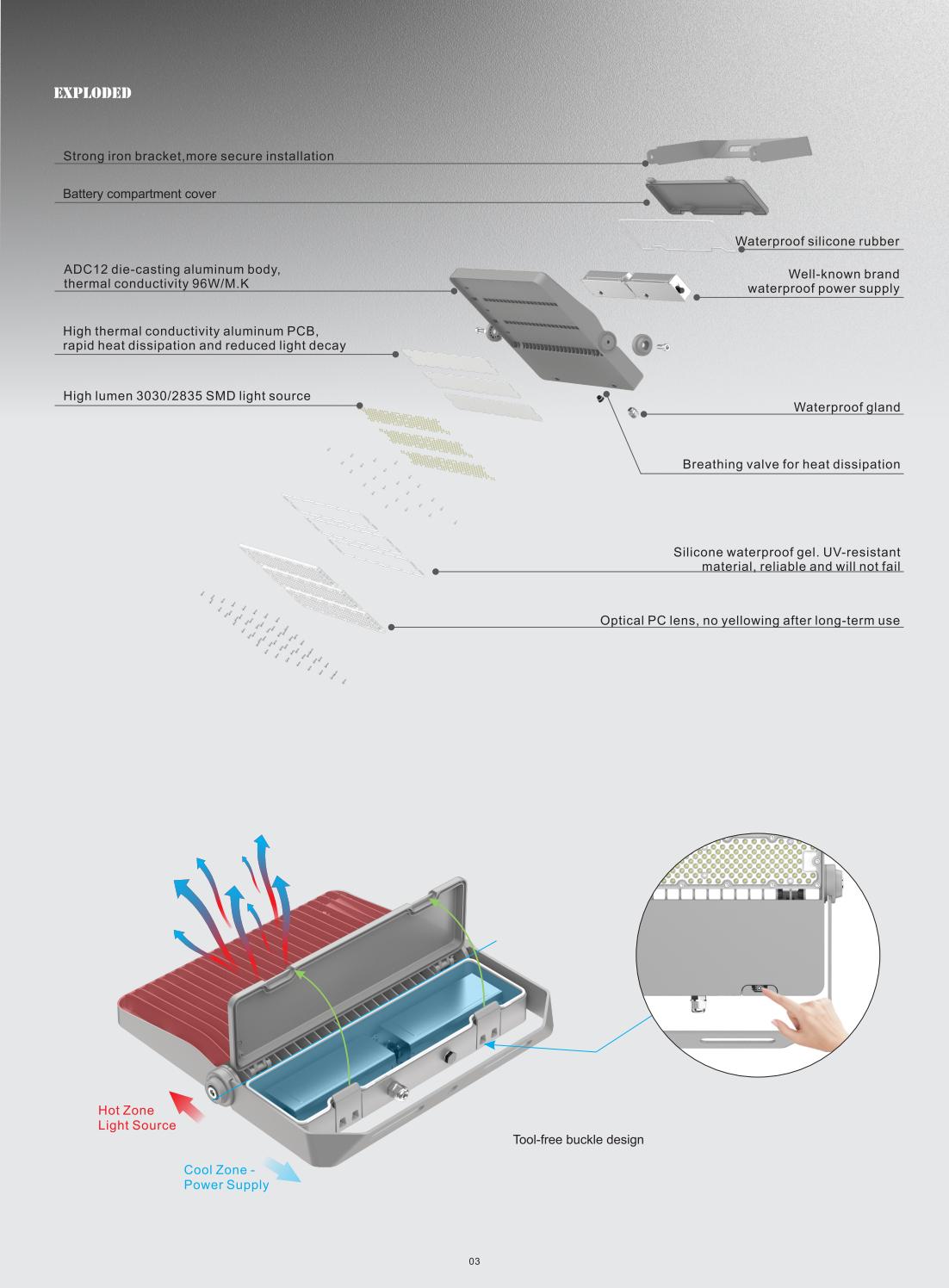

Die-cast aluminum with fin heat sink, low light decay, service life over 50000 hours 100W-1000W High Power IP65 LED Flood Lamp for Tunnel & Factory

Airport port large parking lot outdoor LED flood lighting

Heavy Aurora LED Flood Light





Easy to Installation



LED Flood Light

Step 1:  Select installation method

Wall-mounted Installation、Pendant Installation、 Ground-mounted Installation.



Step 2:  Fix the Screws

Align the lamp bracket with the installation position, fix it firmly with matching screws, and ensure stable installation without looseness.







Outdoor Flood Light

Step 3: Connect the Wires

Connect live, neutral and ground wires as marked, close the junction box tightly, and complete waterproof sealing.



Step 4: Adjust the Angle

Loosen the adjustment screw, adjust the irradiation angle as needed, then tighten the screw to lock the position.





Check out Project Gallery



Your Reliable Outdoor Lighting Partner



HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.



Need a Dialux simulation for your project? Click here for a free lighting plan.
