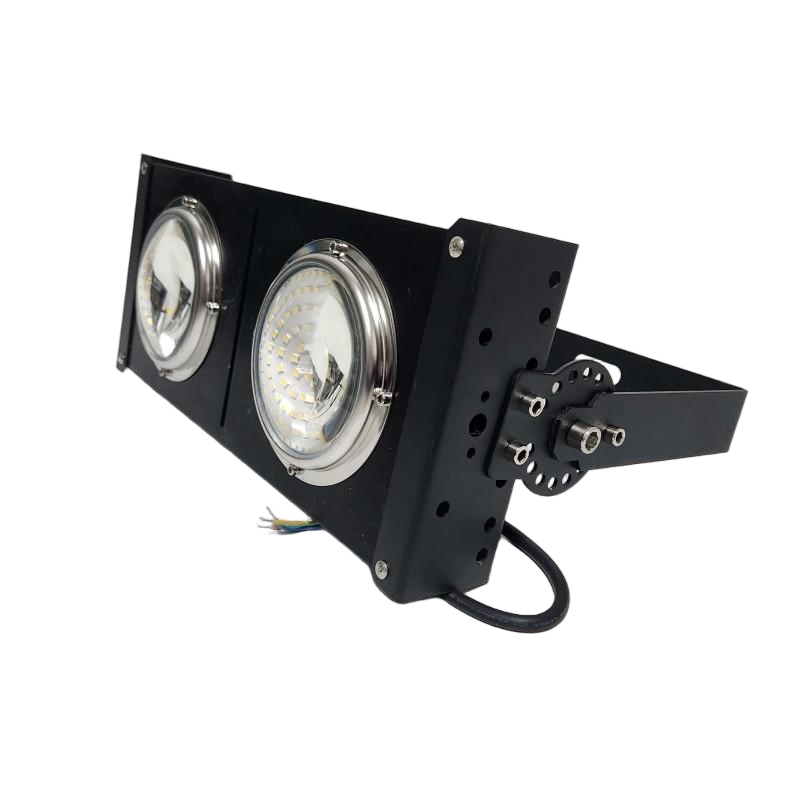

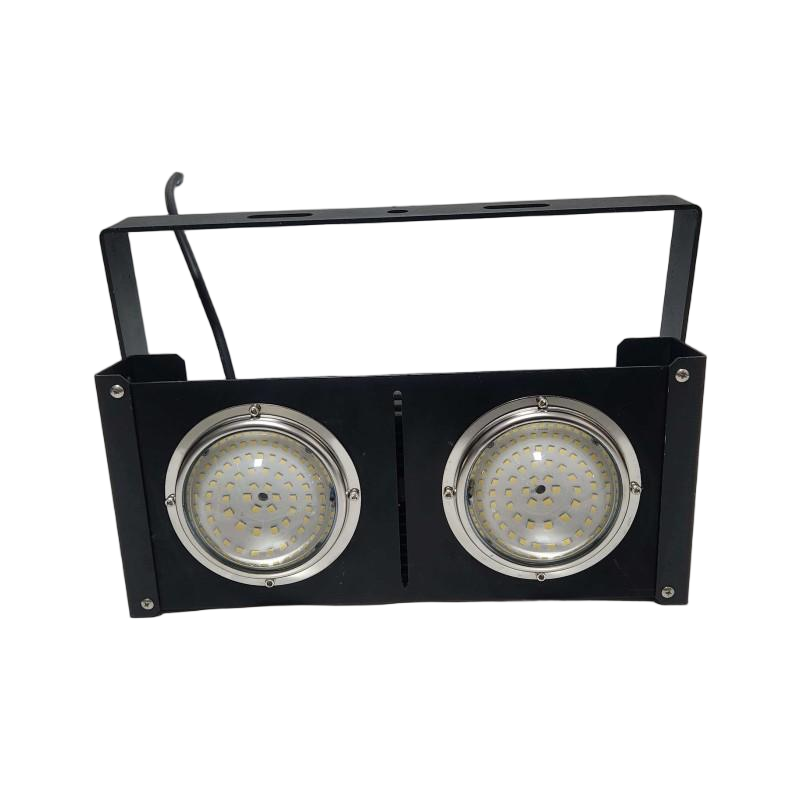

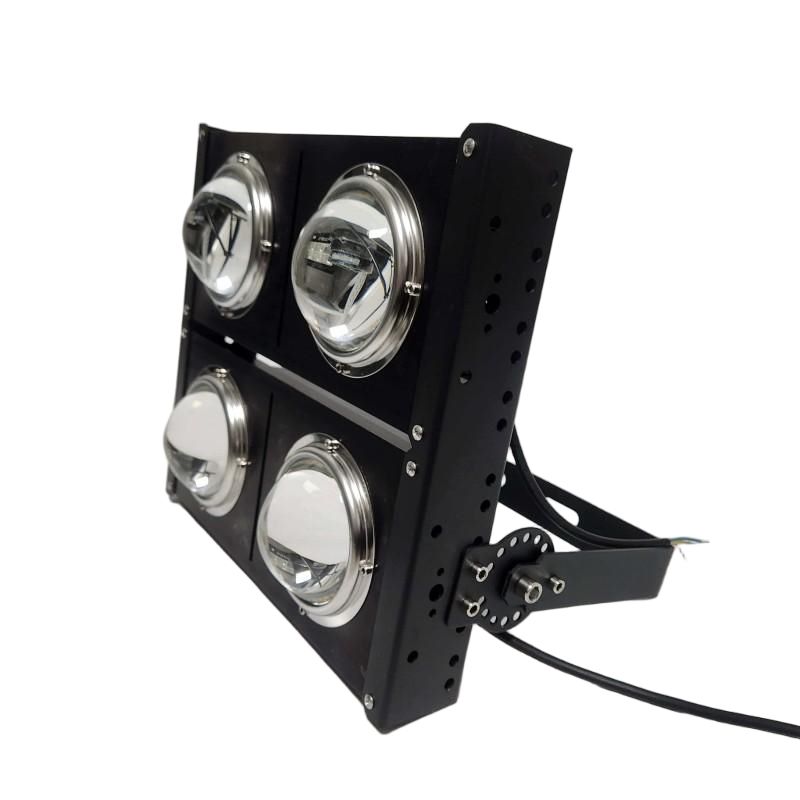

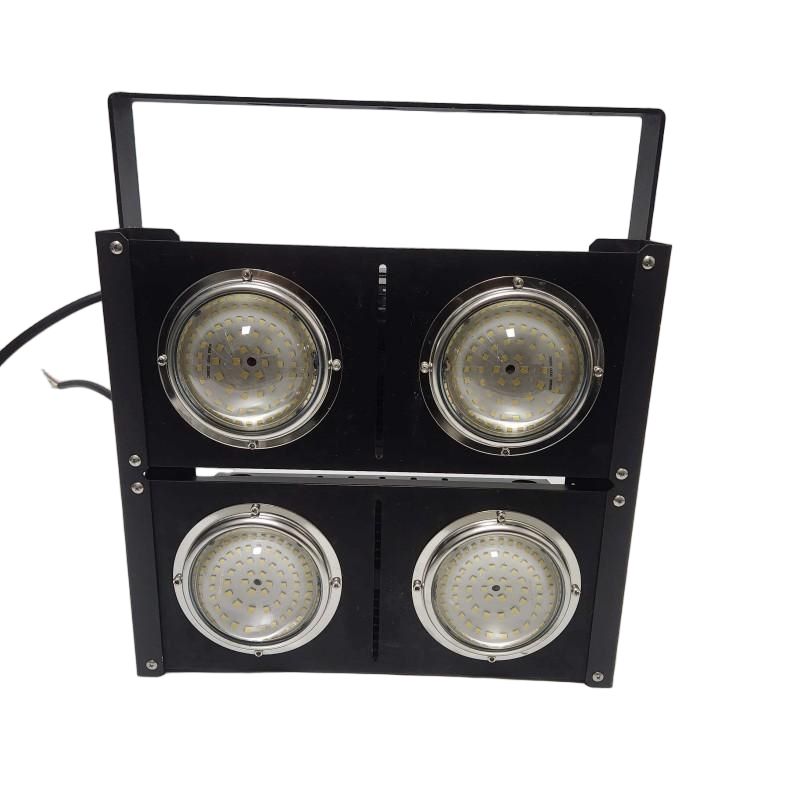

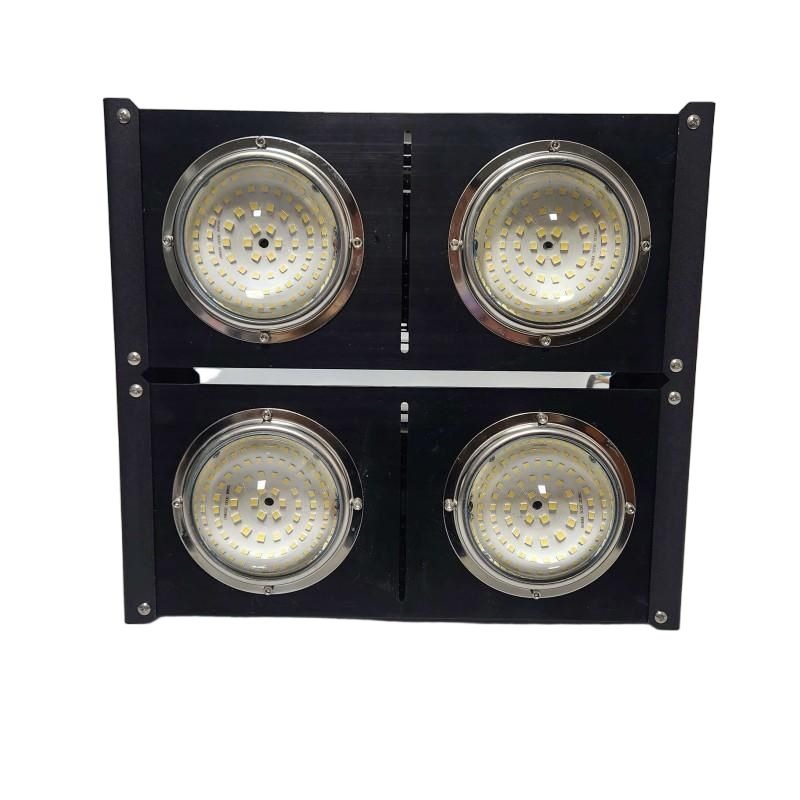

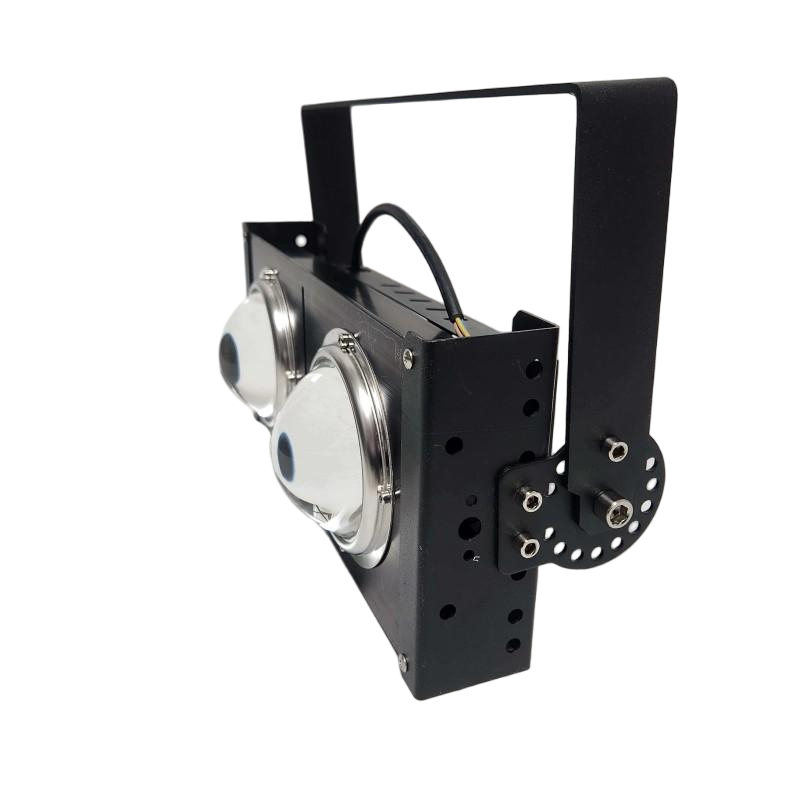

DTT1 is a high-performance industrial-grade LED flood light designed for harsh outdoor and industrial environments. It features a modular 4-lens optical system, efficient thermal management, and rugged construction, delivering reliable, long-lasting illumination for high-demand applications. Equipped with four independent high-power LED modules and high-transmittance optical lenses, the DTT1 delivers focused, uniform light with precise beam control, maximizing light utilization and minimizing glare. Its heavy-duty die-cast aluminum housing, with an anti-corrosion electrostatic spray finish, provides excellent impact and corrosion resistance. Hollow ventilation slots on the side enhance airflow, ensuring optimal heat dissipation and extending LED lifespan.The adjustable steel bracket allows flexible angle positioning for versatile installation on poles, walls, and brackets. With IP66 waterproof rating, the DTT1 is fully protected against rain, dust, and extreme weather, making it ideal for factories, industrial sites, sports venues, gas stations, parking lots, train stations, ports, docks, mobile light towers, and mining operations.Compared to traditional metal halide lights, the DTT1 offers over 70% energy savings and a 50,000-hour LED lifespan, significantly reducing energy consumption and maintenance costs for your projects.
Applications:
Certified Quality for Global Projects

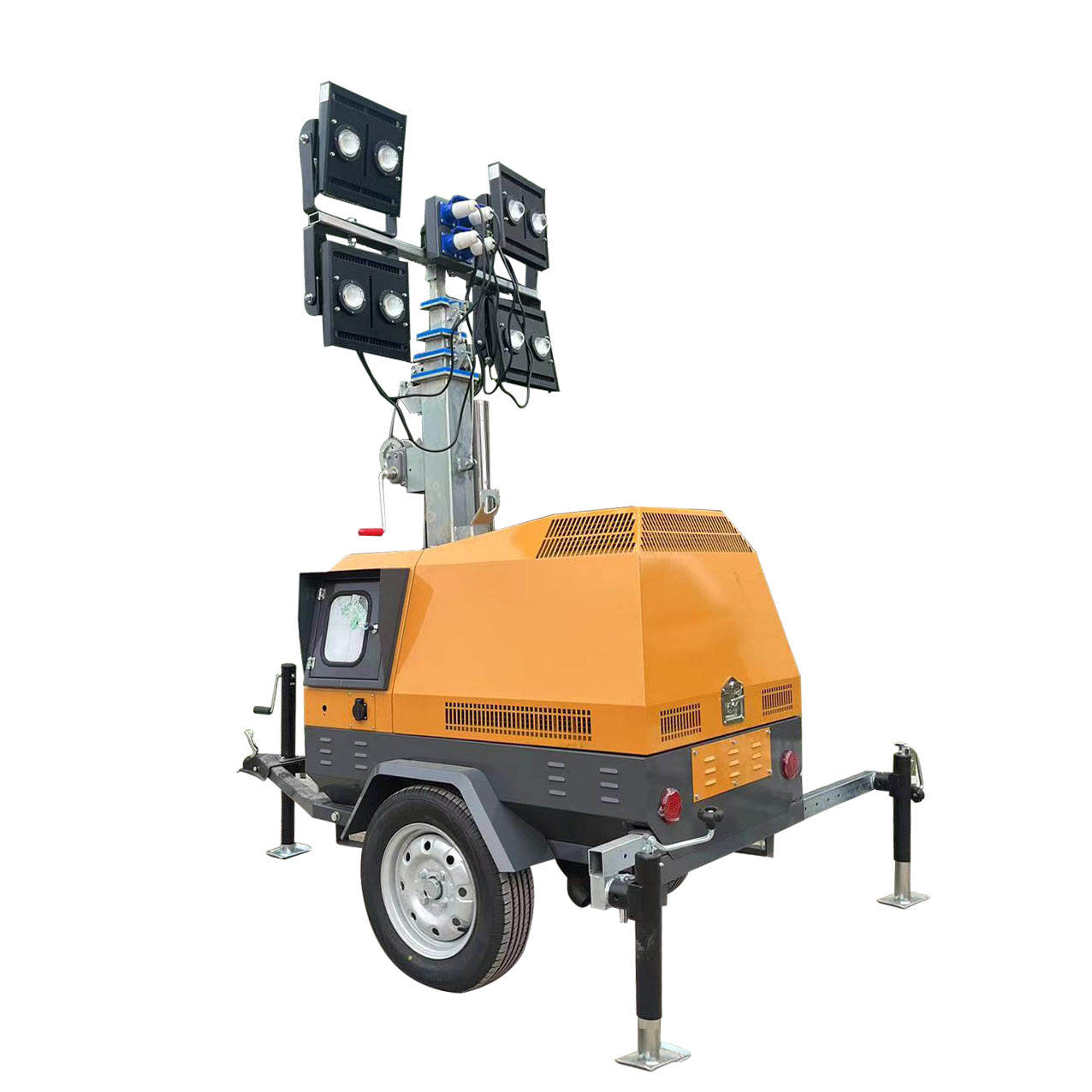

Portable Light Tower & Stadium LED Lights | DTT1 350W-500W Floodlights for Sports & Mining
High-transmittance Glass Lens
This fixture adopts premium glass lenses featuring high light transmittance, outstanding temperature resistance and strong impact resistance. Unlike ordinary plastic lenses, the glass lens resists yellowing and deformation during long-term outdoor service, delivering consistently stable and uniform lighting output.
200W-1000W Wide Power Range
It supports a wide power range from 200W to 1000W, fully catering to the lighting requirements of small, medium and large mobile light towers, industrial venues and various outdoor engineering projects.

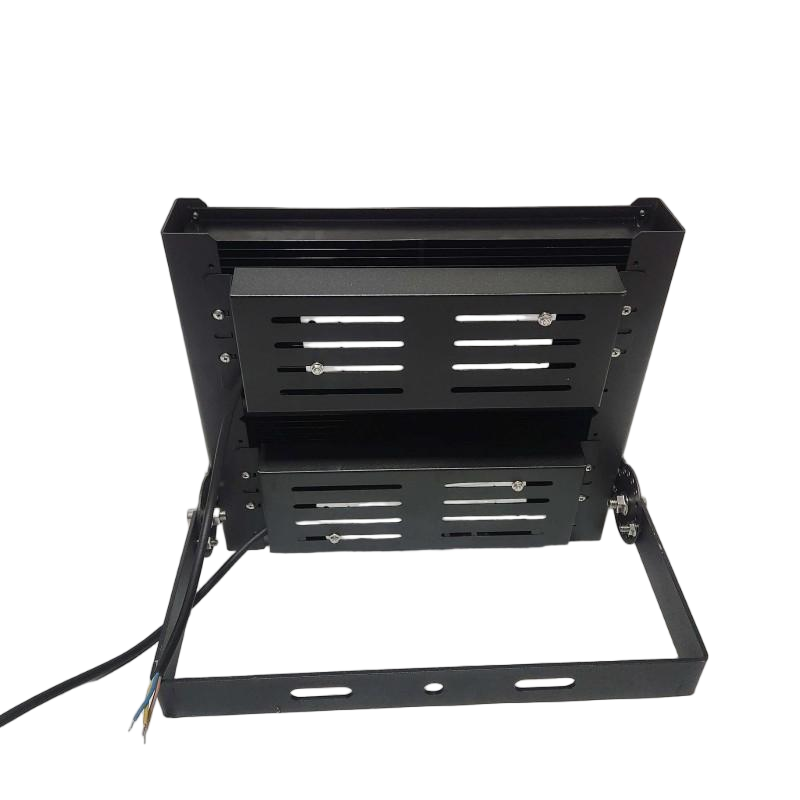

Efficient Hollow Heat Dissipation
The hollow ventilated heat dissipation structure boosts air convection efficiently, lowering the operating temperature of the lamp and ensuring stable performance during long-hour continuous work.
Heavy-duty Aluminum Housing
Built with heavy-duty die-cast aluminum housing and finished with electrostatic spraying, the lamp boasts excellent impact resistance, corrosion resistance and superior outdoor weather resistance.

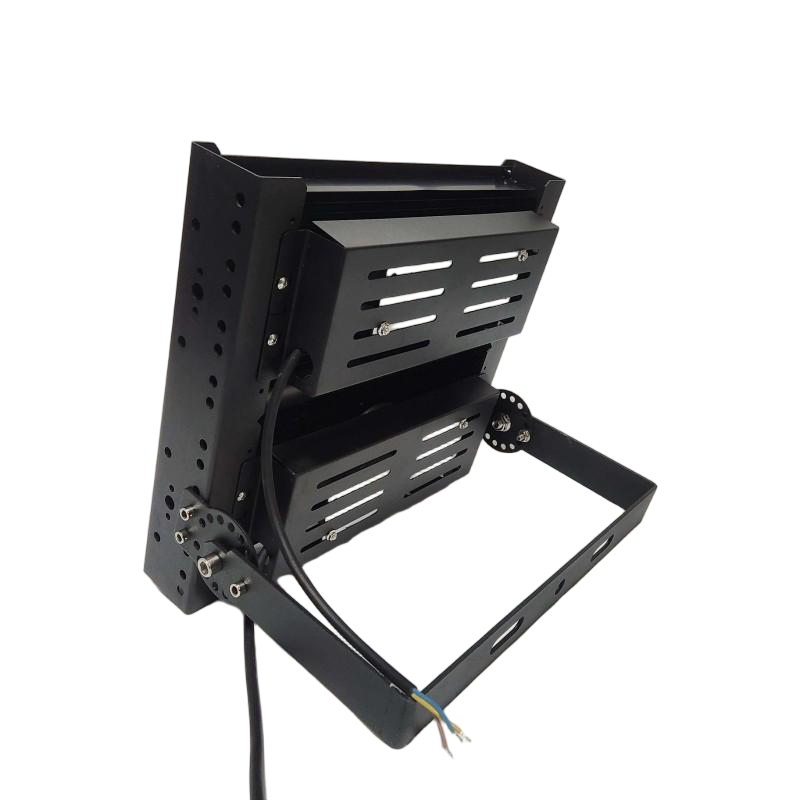

IP66 Waterproof & Dustproof
Rated IP66 waterproof and dustproof, this LED flood light operates steadily in harsh outdoor conditions such as heavy rain, snow and sandstorms.

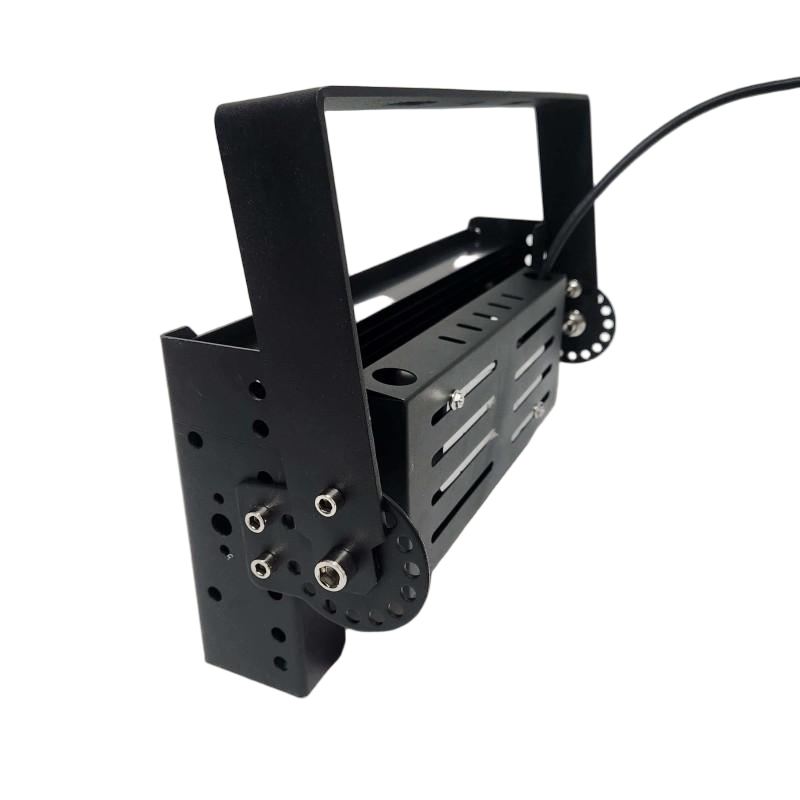

Adjustable Mounting Bracket
Equipped with a flexible adjustable steel bracket, the lamp supports multi-angle positioning, making it perfectly compatible with mobile light towers and various equipment mounting brackets.
150lm/W High-brightness LED Beads
Fitted with high-quality high-brightness LED beads, it achieves a high luminous efficiency of 150lm/W. It provides brighter and more even illumination with lower power consumption, achieving remarkable energy-saving effects.
Premium Brand Power Driver
Optional premium brand drivers including Inventronics, Mean Well, Moso and Philips are available. These high-performance power supplies deliver stable constant current and voltage output, effectively avoiding lamp flicker and damage, and greatly extending the overall service life of the flood light.
| No. | Parameters | Unit | Standard |
| Optical parameters | |||
| 1 | Color temperature | K | 5000 (optional) |
| 2 | Ra | / | ≥70 |
| 3 | Luminous flux | Lm | 28000/56000 |
| 4 | Luminous efficiency | Lm/W | 140 |
| 5 | Beam angle | º | 45/60/90 |
| 6 | Life | Hrs | 50000 |
| Electrical parameters | |||
| 7 | Power | W | 200/400 |
| 8 | Input voltage | Vac | 90-305 |
| 9 | Max input current | A | 3.9 |
| 10 | Frequency | Hz | 50/60 |
| 11 | Output current | A | 5400/10800 |
| 12 | Power factor | / | ≥0.95 |
| 13 | Driver efficiency | % | >90 |
| 14 | High voltage test | Vac/ 1min | 1500 |
| Structural parameters | |||
| 15 | Dimensions(L*W*H) | mm | 370*240*170 |
| 370*370*170 | |||
| 16 | Weight | Kg | 5\10 |
| 17 | （IP） | / | 67 |
| 18 | Color | / | Black |
| Comprehensive parameters | |||
| 19 | Operating temperature | ℃ | -40～+50 |
| 20 | Storage temperature | ℃ | -40～+70 |
| 21 | Packaging requirements | / | Carton |
| 22 | Environmental directives | / | RoHs |
Step 1: Select installation method
Wall-mounted Installation、Pendant Installation、 Ground-mounted Installation.
Step 2: Fix the Screws
Align the lamp bracket with the installation position, fix it firmly with matching screws, and ensure stable installation without looseness.
Step 3: Connect the Wires
Connect live, neutral and ground wires as marked, close the junction box tightly, and complete waterproof sealing.
Step 4: Adjust the Angle
Loosen the adjustment screw, adjust the irradiation angle as needed, then tighten the screw to lock the position.
HRLUXSOLAR focuses on mid-to-high-end outdoor lighting with strict quality standards and a rigorous, responsible team. We take quality as the core and professionalism as the foundation to provide stable and durable outdoor lighting products.We specialize in professional services for municipal and commercial engineering projects, delivering customized lighting solutions for smooth project implementation. We support flexible customization, efficient delivery and full-process technical support to meet diverse project demands.Committed to being your trusted outdoor lighting partner, HRLUXSOLAR keeps improving to create better lighting value for your projects.
Need a Dialux simulation for your project? Click here for a free lighting plan.
