Project Background
This renovation project targets a standard commercial 7-a-side artificial turf football pitch. The venue has long been open for daily training and small-scale night matches. The original lighting system adopted traditional 800W metal halide floodlights, which suffered from long-term aging, extremely high power consumption and severe lumen depreciation. The old lighting failed to meet modern night training requirements and international match illuminance standards. To reduce long-term operation electricity costs, improve field lighting uniformity and eliminate night glare, the venue operator decided to fully upgrade the entire lighting system to LED. The project retained the original 8m light poles without rewiring, realizing a low-cost and high-efficiency lighting renovation.
Existing Pain Points
Before renovation, the traditional metal halide lighting system of the 7-a-side pitch had four core operational problems, which are common pain points of old stadiums at home and abroad:
1. High Energy Consumption & Heavy Electricity Cost: 36pcs 800W MH lamps operated at full load with huge daily power consumption, resulting in high annual electricity expenditure and compressed venue profit margin.
2. Severe Lumen Depreciation: Short service life of traditional MH lamps caused obvious brightness attenuation within half a year. Uneven field brightness failed to support stable daily night training.
3. Severe Glare & Poor Sports Experience: Without professional light-control lenses, MH lamps produced scattered light with massive waste outside the pitch, causing visual fatigue and sight interference for players during night games.
4. High Maintenance Cost: MH lamps had high failure rate and short lifespan. Aerial equipment rental and manual replacement were required every year, bringing high hidden maintenance costs.
Customized Solution
Combined with the original pole layout, circuit load and sports lighting standards, we customized an integral renovation solution of non-destructive replacement, energy saving & brightness improvement, no rewiring and low maintenance. All outdated 800W metal halide lamps were removed and fully replaced with HRLUX 400W professional bat-wing LED stadium lights.

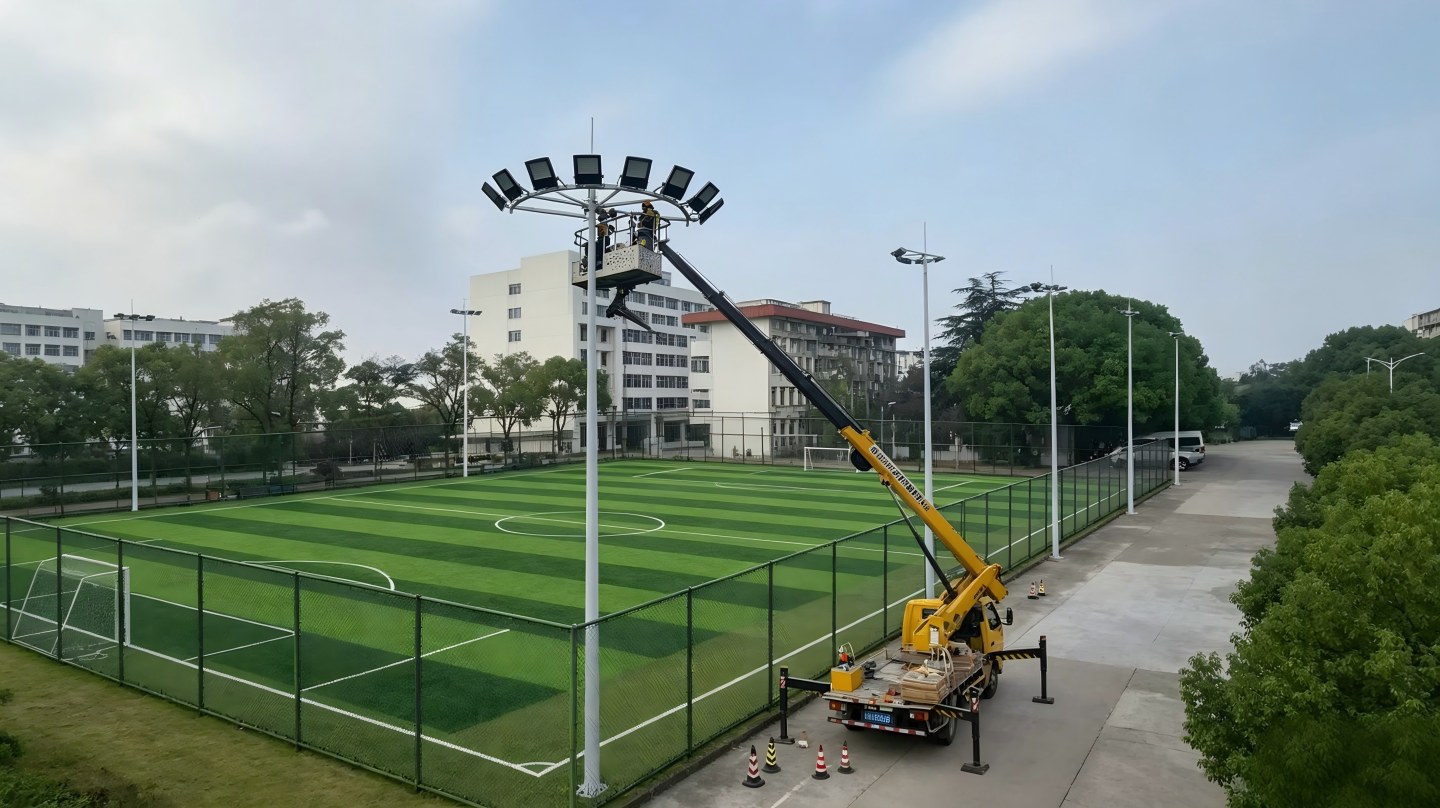

The project adopted a mature standardized layout: 6pcs 8m standard light poles, equipped with multi-angle circular brackets, 6pcs 400W lamps per pole, 36 lamps in total. With exclusive bat-wing optical lenses, the lights precisely control the projection angle, focusing 92% of luminous flux on the turf to avoid light waste and glare. The lamps perfectly adapt to the original circuit load without rewiring or pole modification, greatly shortening the construction period and reducing renovation cost. Equipped with IP66 full-sealed protection, Meanwell industrial driver and 50,000-hour long-life chips, the lamps are suitable for long-term outdoor harsh environments such as high temperature, rain and sand wind.
Test Data & Project Results
After construction completion, third-party inspectors conducted multi-point on-site night tests. All lighting parameters met and exceeded industry standards. The quantified renovation results are as follows:
1. Greatly Improved Illuminance: The average field illuminance increased from 275LUX to 330LUX (20% brightness improvement), far exceeding the 200LUX minimum standard for global amateur matches, with uniformity up to 0.72 and no dark zones.
2. Significant Energy Saving: The total installed power dropped from 28800W to 14400W, realizing 50% power reduction. Daily power saving reaches 86.4 kWh, reducing annual comprehensive operation cost by 52%-60%.
3. Optimized Optical Performance: Custom bat-wing light control design ensures UGR ≤ 22, completely eliminating harsh glare and providing clear and comfortable vision for night training and matches.
4. Ultra-Low Maintenance Cost: 50,000-hour long-life LED chips require no batch replacement within 5-8 years, completely eliminating annual high-cost aerial maintenance.
Customer Testimonial
“The biggest problems of our pitch were high electricity bills and frequent annual lamp maintenance, which brought great operational pressure. After upgrading to HRLUX 400W professional LED stadium lights, our electricity cost was cut in half. The field brightness is more uniform and glare-free, and players have a much better night vision experience. The most reassuring point is that no aerial maintenance is required for years, and the payback period is shorter than expected. We will continue cooperation for subsequent venue upgrades.”
—— Stadium Operation Manager
Qualification & E-E-A-T Credibility
This renovation solution is implemented by the professional HRLUX sports lighting engineering team. With 12 years of experience in outdoor professional lighting R&D and construction, we have completed more than 300 global lighting renovation projects for football, basketball and tennis courts. Focusing on overseas municipal, campus and commercial sports lighting bidding markets, all lamps have passed full-item testing by authoritative third-party optical laboratories with complete export qualifications. All official acceptance and bidding documents are available to meet government procurement audit standards worldwide, with verifiable and traceable project content.
Full Project Parameters
| Parameter | Before Renovation | After Renovation |
| Venue Specification | Standard 7-a-side artificial turf pitch | Standard 7-a-side artificial turf pitch |
| Pole Configuration | 6×8m poles, 6 lamps per pole | 6×8m poles, non-destructive in-situ replacement |
| Total Lamps | 36pcs | 36pcs |
| Single Power | 800W | 400W |
| Total Power | 28800W | 14400W（ 50% Energy Saving） |
| Average Illuminance | 275LUX | 330LUX（ +20% Brightness） |
| niformity | 0.53 | 0.72 |
| UGR | ≥30（Severe Glare） | ≤22（Low Glare） |
| Service Life | 8,000h | 50,000h |
| Daily Power Consumption | 172.8kWh | 86.4kWh |
| Match Standard | Basic casual training | School & Amateur League matches |
Regional Customized Solution
According to the climate, power grid environment and local bidding standards of different global regions, this 7-a-side stadium lighting solution supports differentiated customized upgrades to meet local overseas procurement needs and can be directly written into tender technical documents:
1. Middle East (Saudi Arabia, UAE, Qatar): Equipped with complete SASO and SABER certifications, upgraded high-temperature heat dissipation cavity and fully sealed dustproof structure, adapting to desert high temperature and windy sand environments to avoid dust accumulation and overheating light decay, suitable for local municipal paid stadium bidding projects.
2. Coastal Southeast Asia (Thailand, Vietnam, Malaysia): Added nano anti-salt spray and anti-corrosion coating, reinforced waterproof terminals to resist coastal high salt spray and high humidity, effectively delaying lamp oxidation and rusting, suitable for long-term outdoor use in campus and community stadiums.
3. Europe, America & Australia: Provide official DLC and LM79 luminous efficiency and light decay test reports, standard 0-10V intelligent dimming function and 5700K international standard match color temperature, complying with European and American energy-saving certifications and sports lighting specifications, suitable for government public stadium renovation projects.
4. Africa (Nigeria, Kenya): Upgraded AC85-305V ultra-wide voltage driver and 15KV high-voltage surge protection module, adapting to local unstable power grid and voltage fluctuation conditions, reducing lamp burnout failure rate and ensuring long-term stable operation.
Key Takeaways
1. This project realizes non-destructive replacement of 800W MH lamps with 400W LED stadium lights, reducing total power consumption by 50% and annual operation cost by 52%-60%;
2. The renovated pitch achieves 330LUX illuminance and 0.72 uniformity with low glare and no dark zones, meeting international amateur match lighting standards;
3. No rewiring or pole replacement is required, featuring low renovation cost and short construction cycle, suitable for new and old stadium upgrades;
4. 50,000-hour ultra-long lamp life greatly reduces later aerial maintenance cost with a short payback period;
5. Support customized upgrades for multiple global regions and complete tender document output for various overseas bidding projects.
FAQ
Q1: Can 400W LED lights directly replace 800W MH lamps in situ without rewiring?
A: Yes, fully non-destructive in-situ replacement is supported. The lamp voltage and load adapt to the original circuit, no rewiring or pole modification is required, saving construction cost and cycle to the greatest extent.
Q2: Does the lighting scheme meet the bidding standards of overseas campus and municipal matches?
A: The measured average illuminance is 330LUX, far exceeding the international minimum bidding threshold of 200LUX for amateur matches with a uniformity of 0.72. All parameters can be directly written into tender documents and support re-inspection by third-party institutions.
Q3: What is the payback period of the renovated stadium lights?
A: According to regional electricity price differences, the payback period is 9-11 months in Europe and America, 12-14 months in the Middle East, and 22-26 months in Southeast Asia and Africa with stable energy-saving benefits.
Q4: How long is the lamp warranty and how to guarantee overseas after-sales service?
A: All lamps come with a 5-year global full-machine warranty. Spare parts are delivered quickly from overseas warehouses, with 24-hour online professional engineer support, including remote construction guidance and after-sales technical service.
Q5: Can you provide Dialux lighting simulation drawings and tender documents?
A: We provide free customized Dialux on-site lighting layout simulation drawings and illuminance analysis reports, as well as complete certifications, test reports and qualification documents to meet one-stop overseas tender document needs.
Q6: Do you support customized renovation solutions and special environment adaptation?
A: Yes! We can customize exclusive lighting solutions and hardware upgrades according to venue size, pole height, local climate, power grid conditions and bidding requirements, adapting to various special working conditions such as high temperature, salt spray and low-voltage power grids.
Service & Warranty
We provide free Dialux lighting simulation drawings, complete tender certification documents, 5-year global full lamp warranty, fast overseas warehouse spare parts delivery and 24-hour online engineer support, supporting customized lighting upgrades and bulk export projects for global stadiums.
