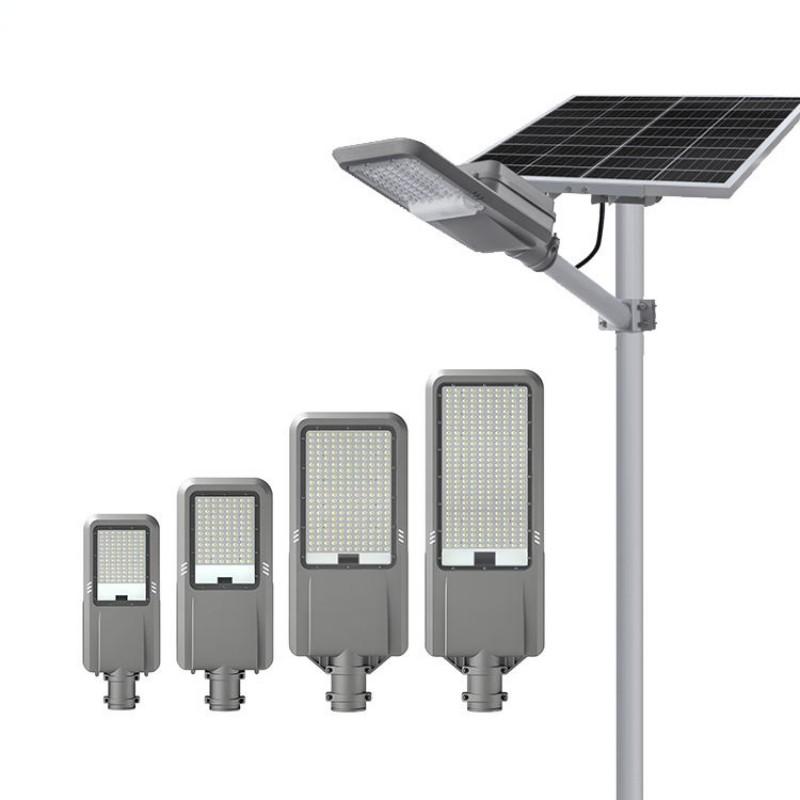

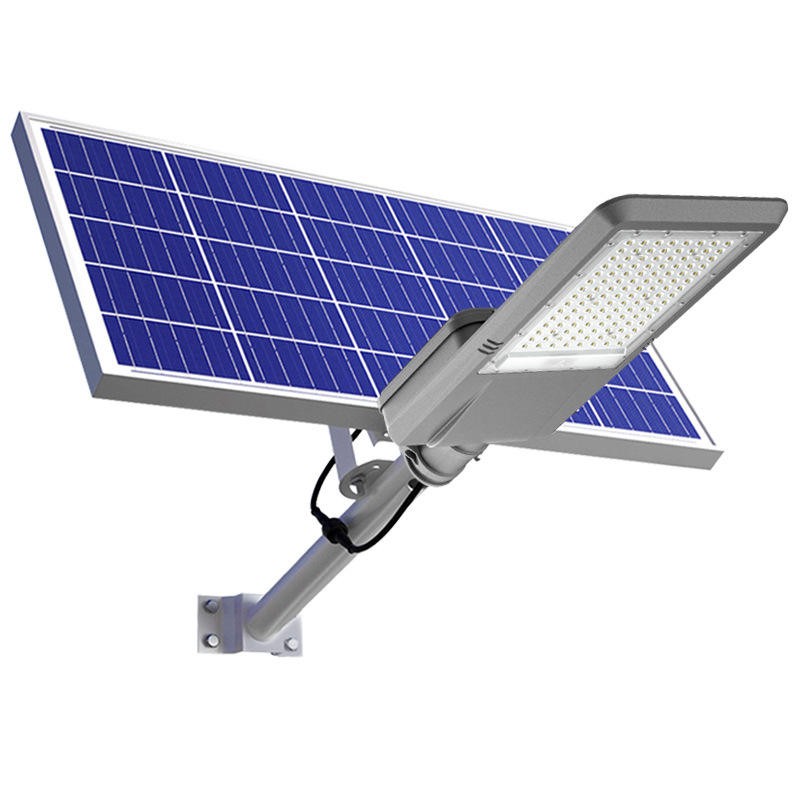

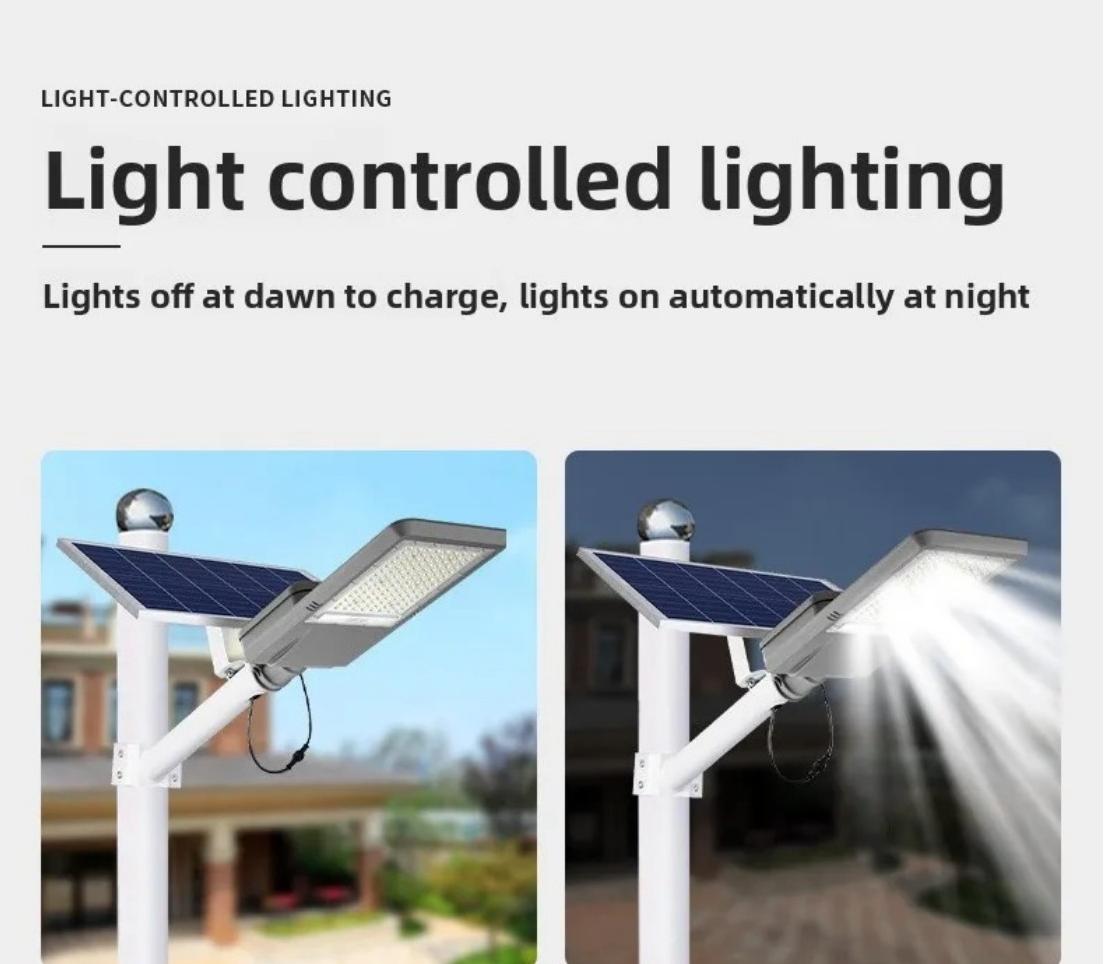

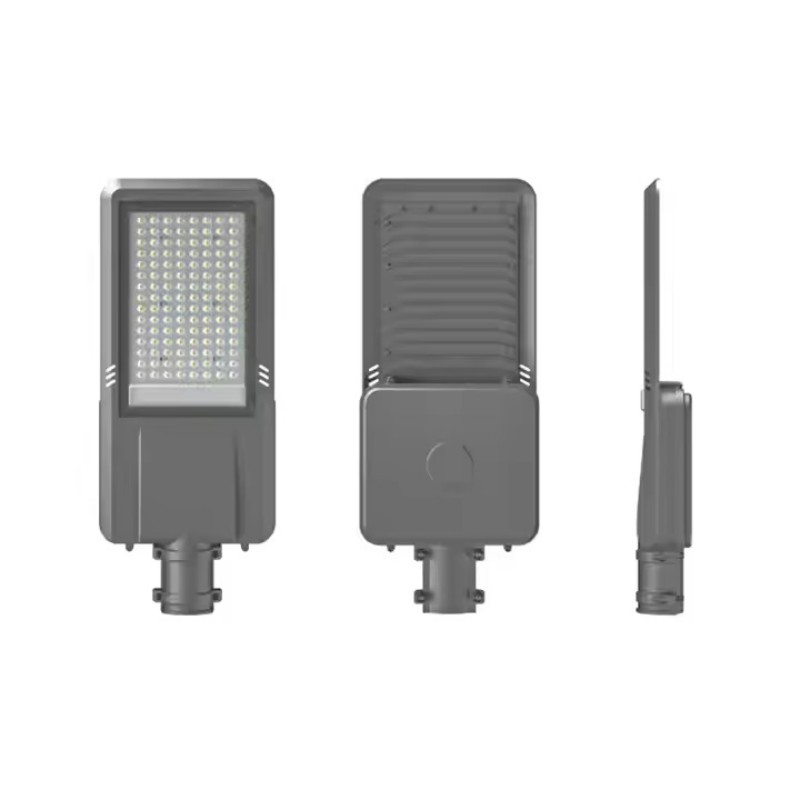

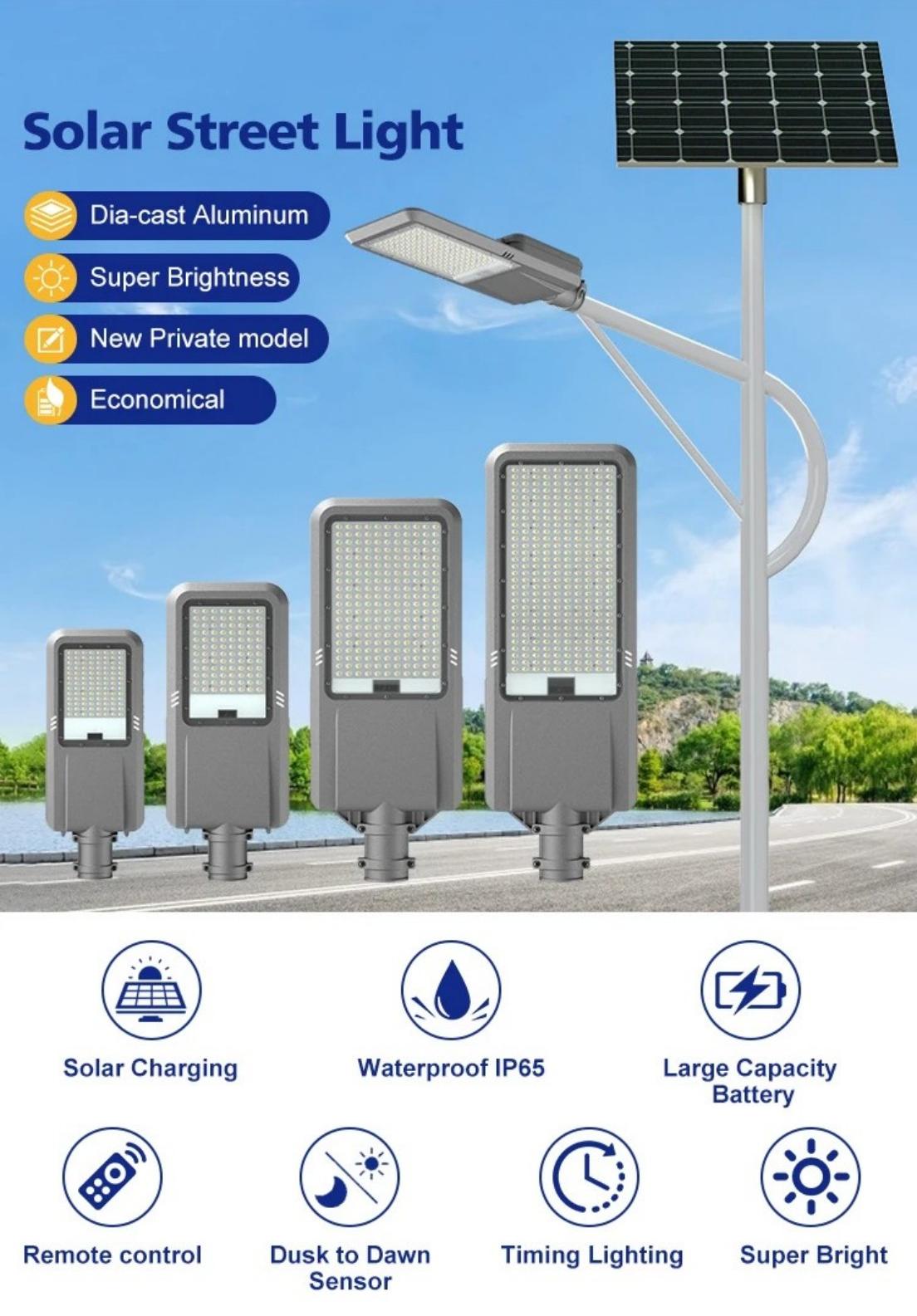

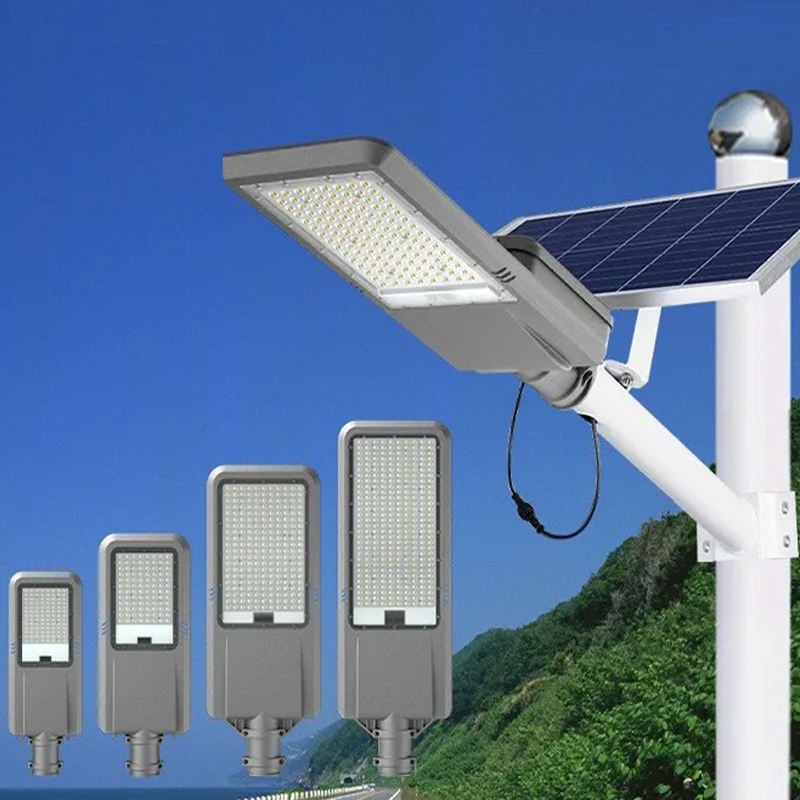

JD split solar street light adopts separated split design, independent solar panel and lamp body structure, different from all-in-one solar lights. It is equipped with IP65 waterproof housing, wireless remote control and built-in light sensor, auto turn on at dusk and turn off at dawn.

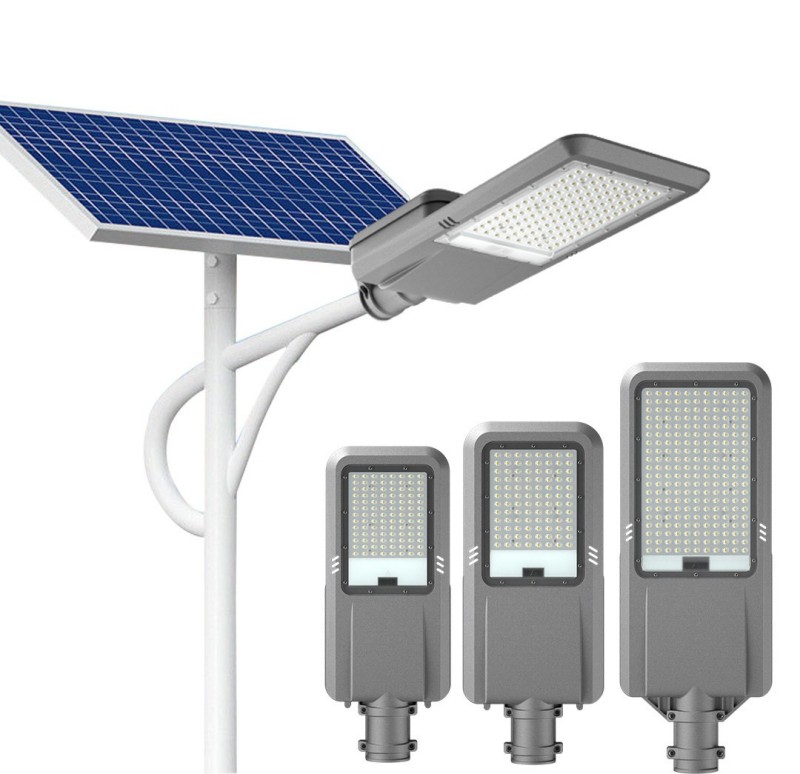

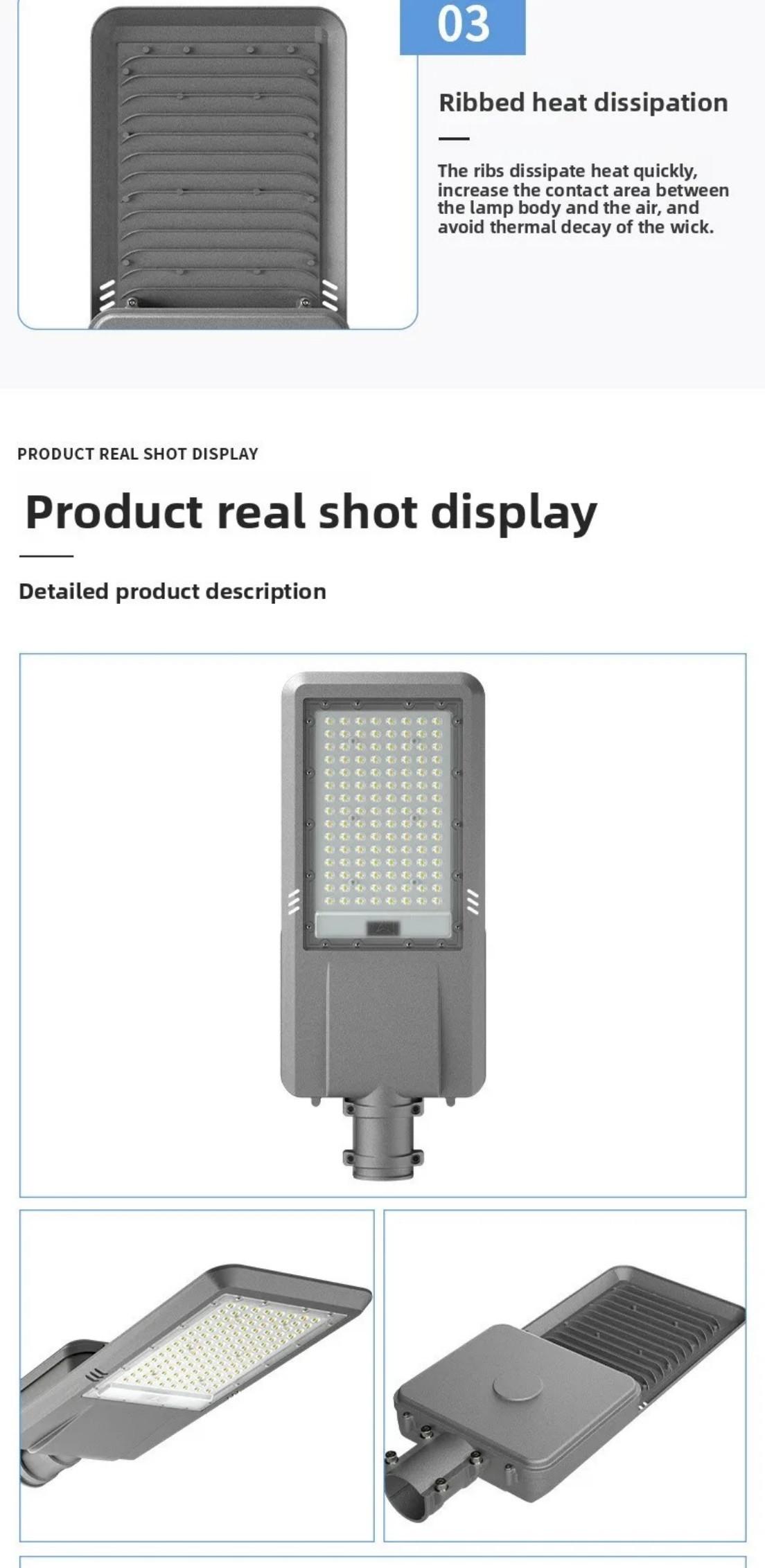

The separated solar panel can be installed separately to catch sufficient sunlight, equipped with large-capacity lithium battery, supporting 2-5 days continuous lighting on rainy days. The lamp body features excellent heat dissipation, available in multiple high-power options for highway, village, farm, park and factory off-grid lighting projects. No complicated wiring required, easy and fast installation, zero electricity cost for long-term use.
As a professional solar light manufacturer in China, we provide wholesale bulk supply, OEM & ODM customization services. We can customize logo, power, color temperature and packaging for global distributors and engineering contractors. All JD split solar street lights pass strict factory inspection with stable quality and long service life.

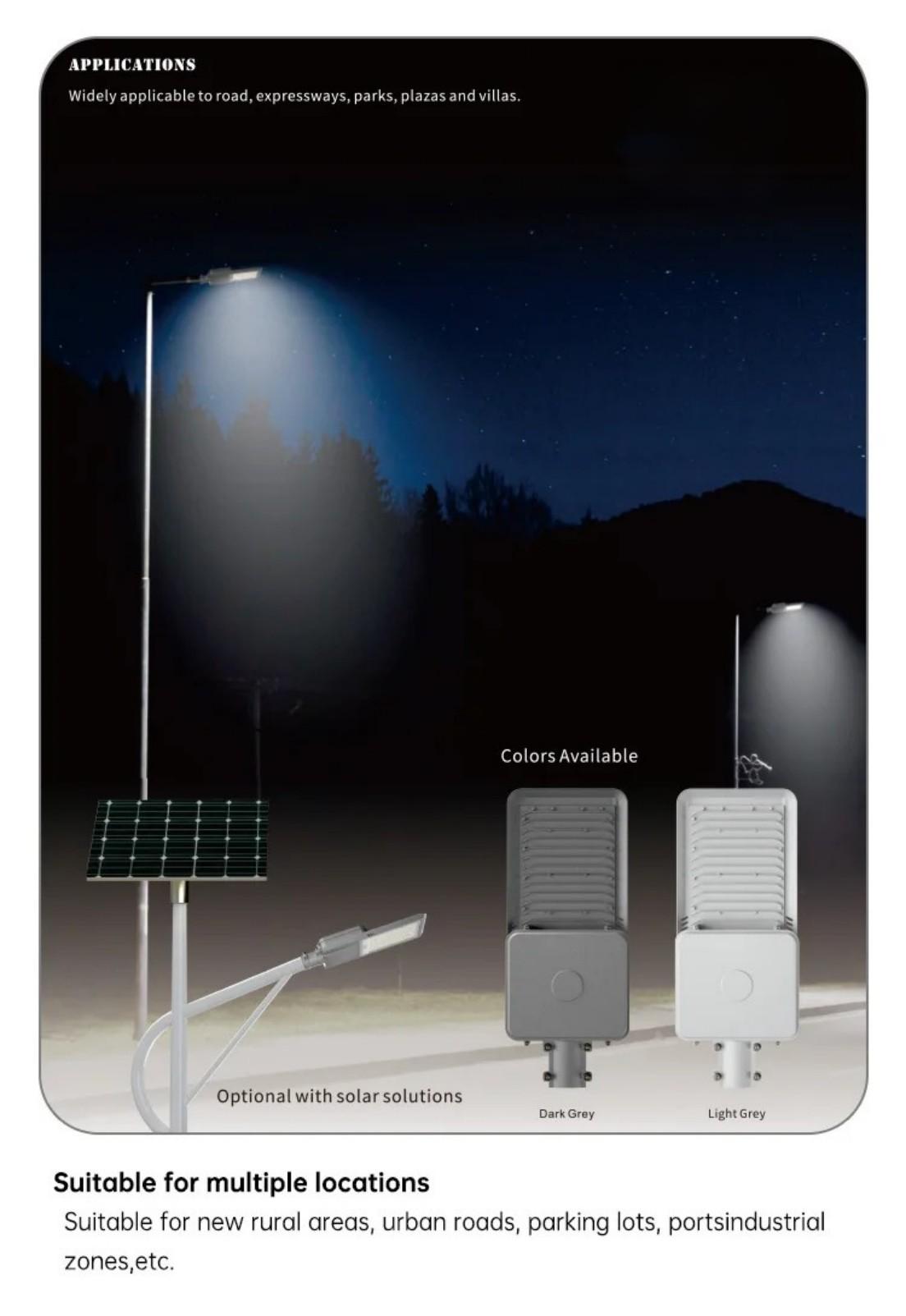

Applications:
Certified Quality for Global Projects
JD Split Design Solar Street Light IP65 Waterproof With Remote & Light Control
Superior Luminous Efficacy

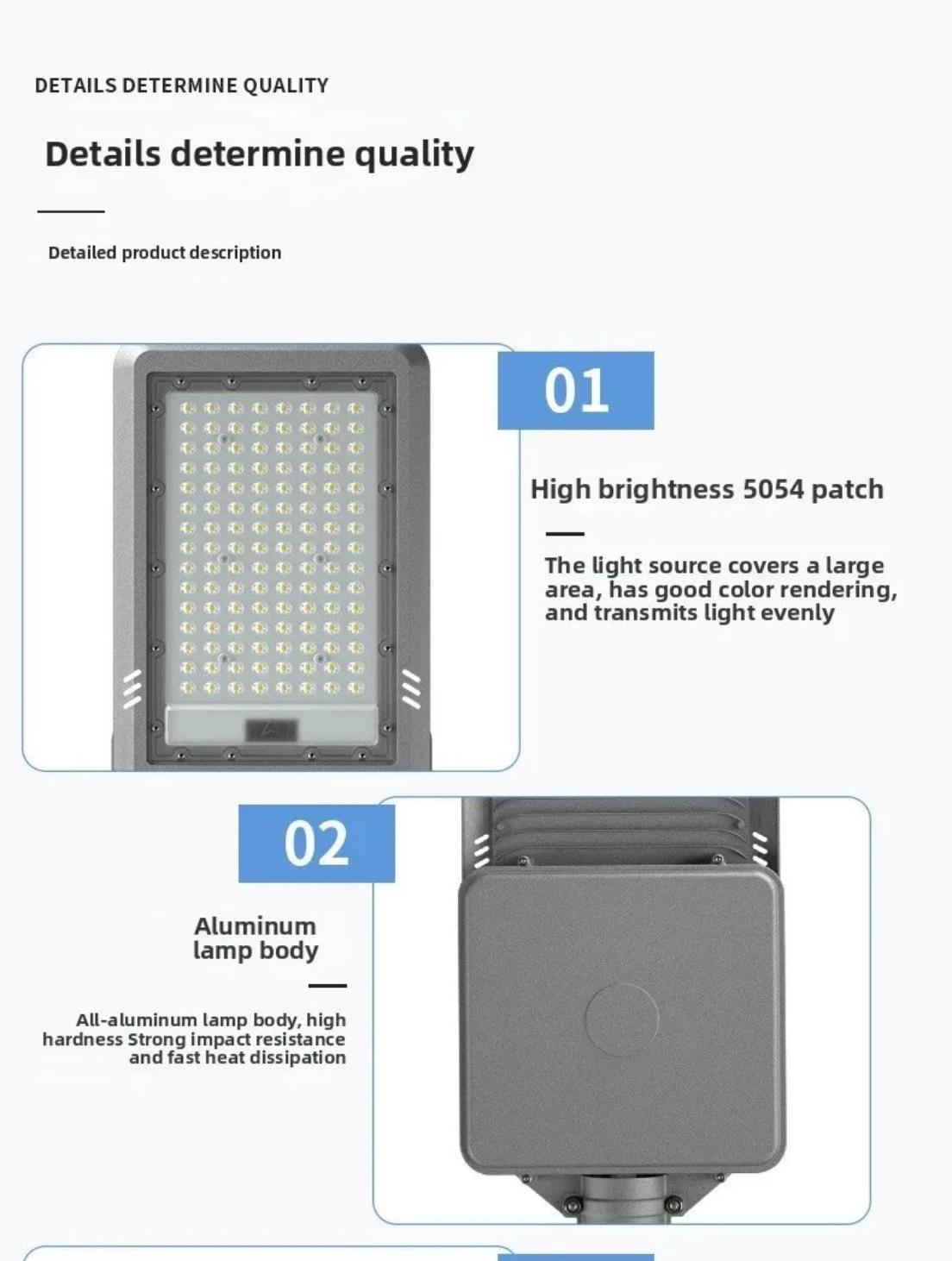

Boasting superior luminous efficacy, the Sirius Series is equipped with premium Bridgelux/Philips LED chips, delivering an impressive light output of up to 180lm/W. This exceptional efficiency guarantees maximum brightness while minimizing energy consumption, effectively reducing the overall energy demands of the system.
Intelligent Power Management
Our proprietary MPPT (Maximum Power Point Tracking) Controller increases charging efficiency by 30% compared to traditional PWM controllers. Combined with a smart PIR motion sensor, the system ensures stable lighting for 3-5 continuous rainy days.
Harsh Environment Adaptation
Protection grade up to IP66 and impact resistance grade IK09, using aviation-grade die-cast galvanized iron shell with anti-corrosion coating, which can resist harsh weather such as typhoons (wind resistance >120km/h), heavy rain, and desert dust, suitable for coastal, plateau and other scenarios.
Long Lifespan & Easy Maintenance

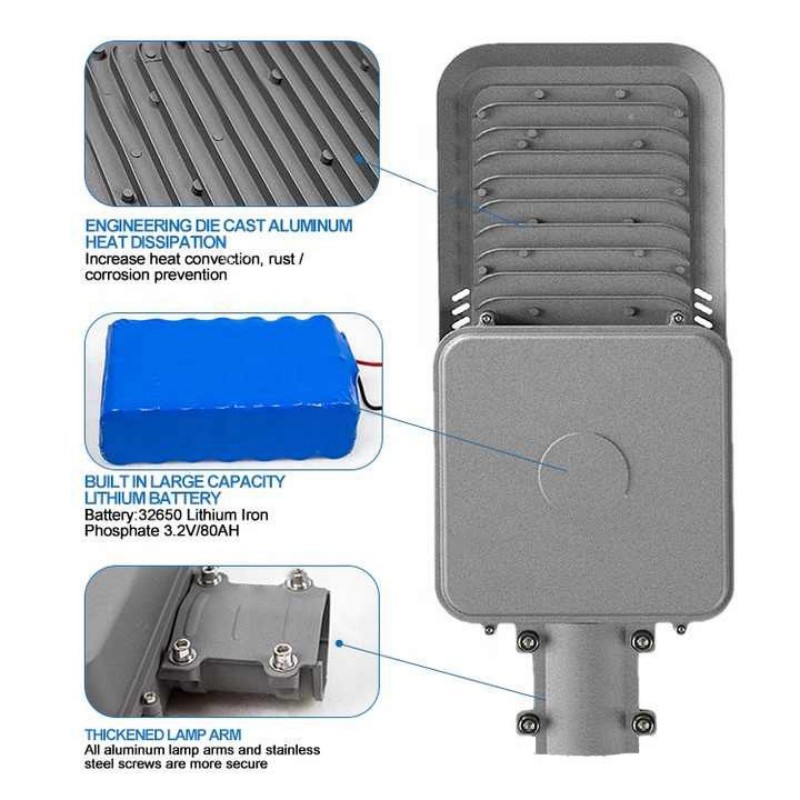

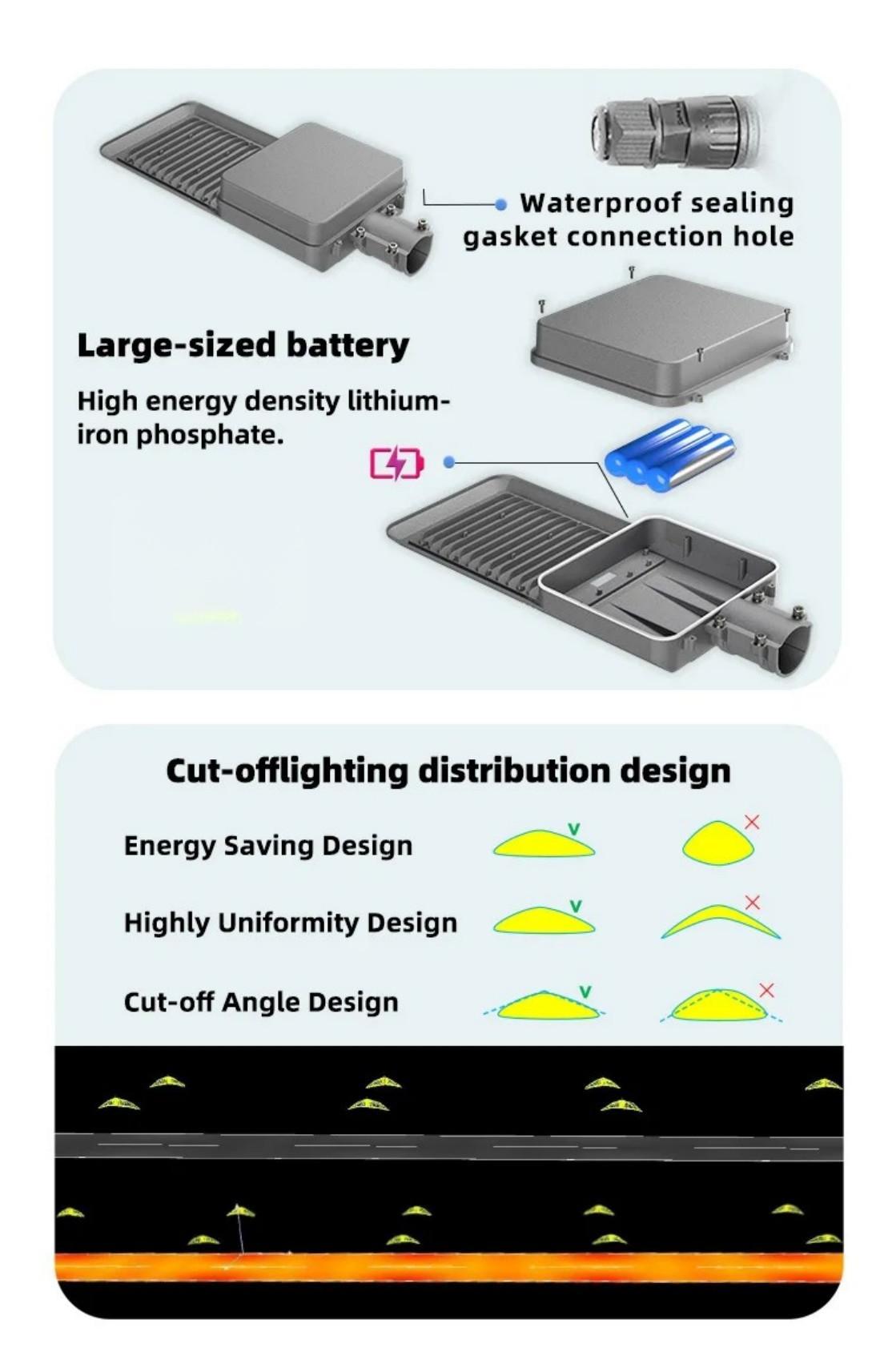

Using Grade A LiFePO4 batteries with more than 2000 deep charge-discharge cycles, the actual service life is 5-8 years, far exceeding lead-acid batteries; the detachable battery case design facilitates regular inspection and maintenance of the battery, extending the service life of the entire system.
Flexible Installation
Integrated "plug-and-play" design, no complicated wiring required; 0-180° adjustable bracket, supporting vertical and horizontal installation methods, adapting to different lighting angle requirements, high installation efficiency, and reducing construction costs.
Uniform Lighting

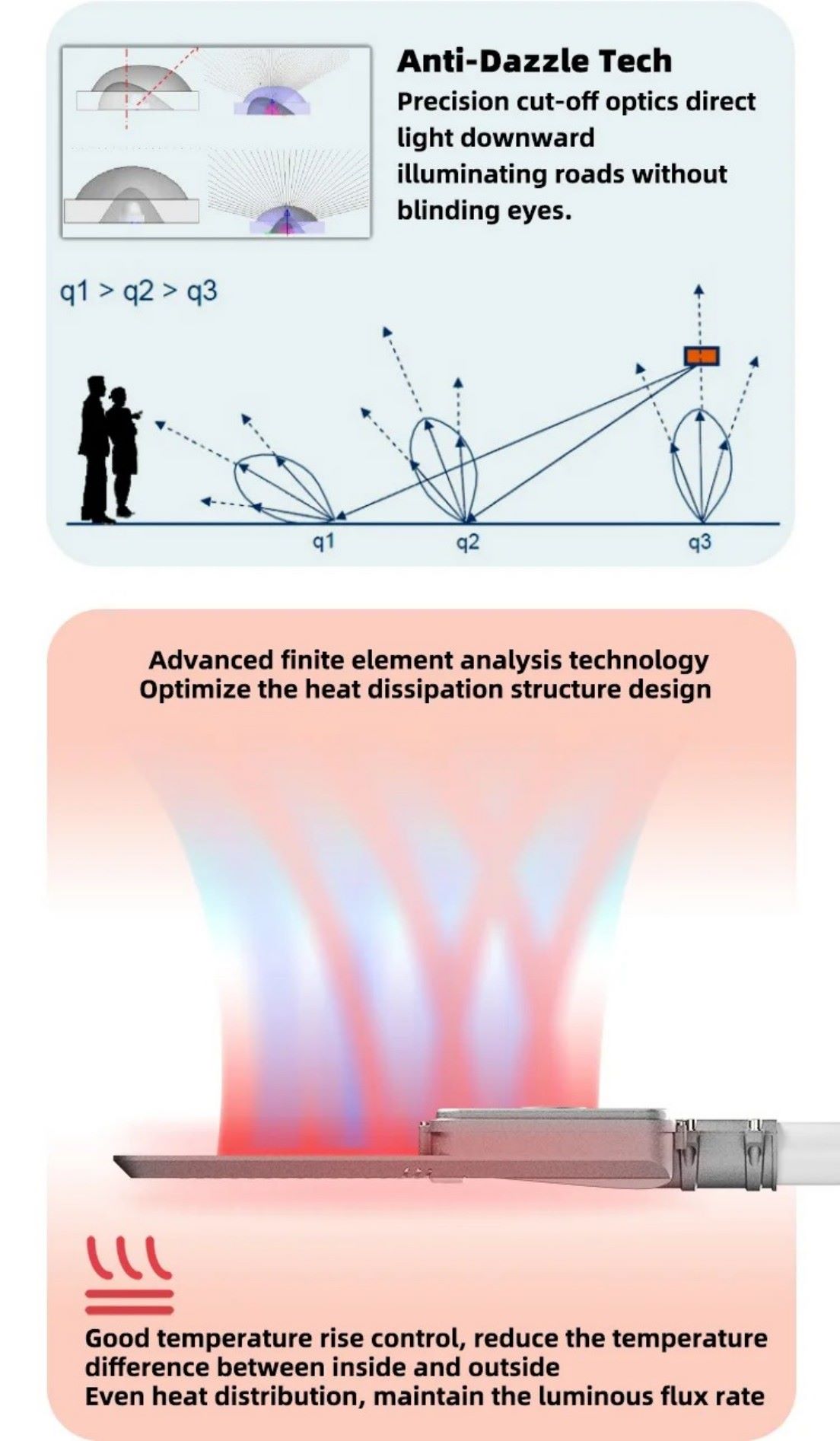

Using PVVC optical lens with light transmittance up to 98%, reducing lighting dark areas, the light is soft and uniform, suitable for large-area lighting scenarios such as roads and parking lots.

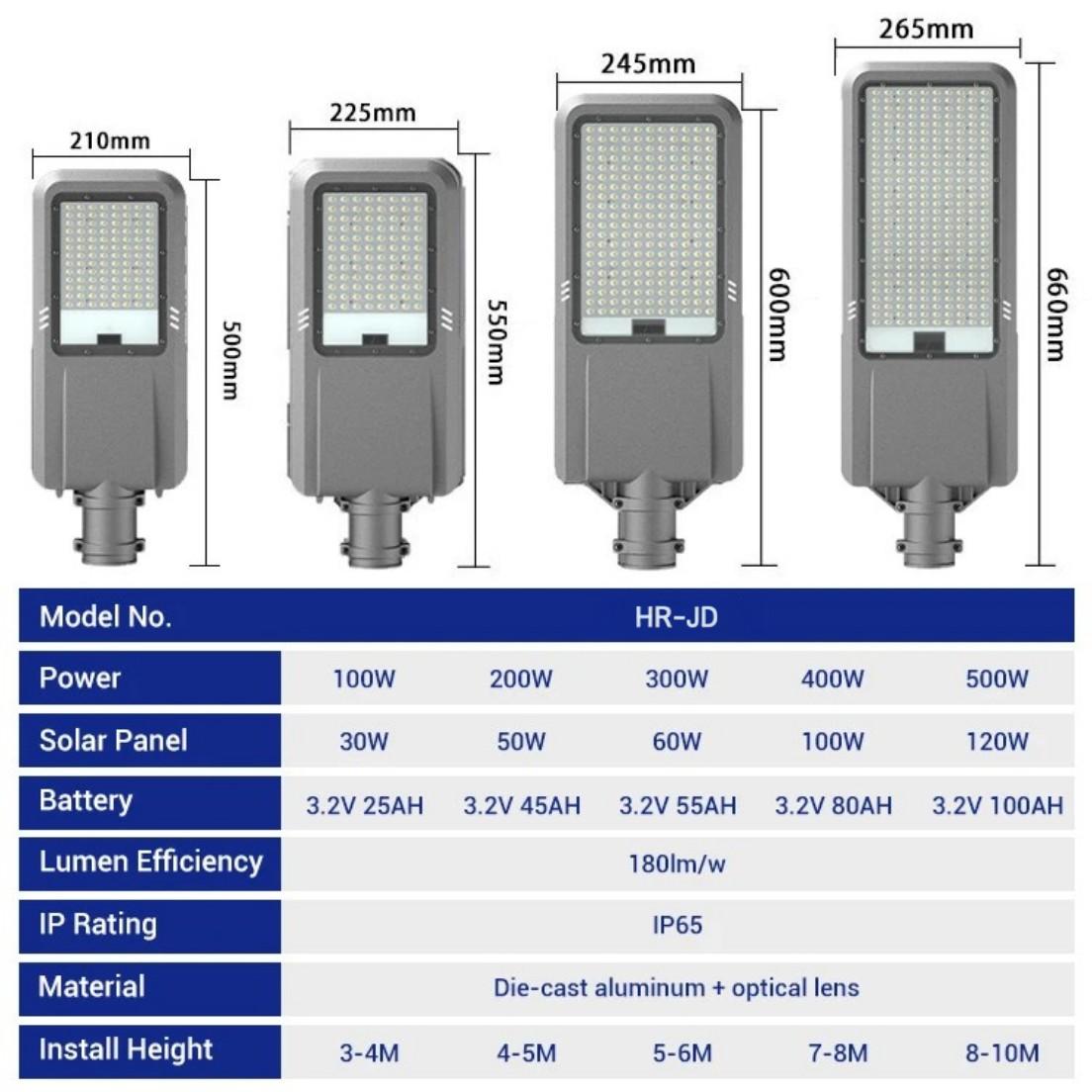

| Model No. | HR-JD | ||||
| Power | 100W | 200W | 300W | 400W | 500W |
| Solar Panel | 30W | 50W | 60W | 100W | 120W |
| Battery | 3.2V 25AH | 3.2V 45AH | 3.2V 55AH | 3.2V 80AH | 3.2V100AH |
| Lumen Efficiency | 180lm/w | ||||
| IP Rating | IP65 | ||||
| Material | Die-cast aluminum+optical lens | ||||
| Install Height | 3-4M | 4-5M | 5-6M | 7-8M | 8-10M |
Step 1: Pole Installation
Fix the lamp pole vertically on the pre-made concrete foundation, tighten the foundation bolts and keep the pole straight.
Step 2: Solar Panel Mounting
Install the solar panel on the top of the pole, adjust the angle facing the sun for best charging efficiency, then fix the bracket tightly.
Step 3: Lamp Head Installation
Mount the LED lamp head on the middle or lower position of the pole, adjust the lighting angle toward the road surface and lock firmly.
Step 4:Battery Box Fixing
Install the waterproof battery box on the inner or back side of the lamp pole, avoid direct rain exposure.
Step 5: Wiring Connection
Connect the solar panel wire, lamp head wire and battery box wire according to the positive and negative marks. Do not connect wrongly.
Step 6: Testing & Commissioning
Cover the solar panel to simulate night, the lamp will light up automatically. Expose to sunlight, the light will turn off normally. Installation completed.
Important Notes:
Solar panel must face south in northern hemisphere.
Keep no shelter such as trees and buildings above solar panel.
All wiring joints should be waterproof wrapped.
Do not disassemble the battery box privately.
